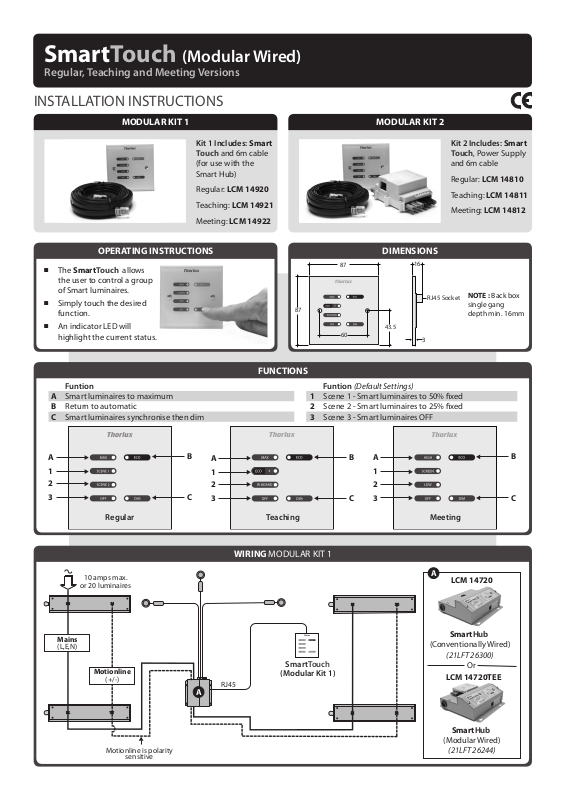

SmartTouch (Modular Wired)
3
16
NOTE : Back box
single gang
depth min. 16mm
RJ45 Socket
87
87
43.5
60
A
1
2
3
B
C
A
1
2
3
B
C
Funtion
A Smart luminaires to maximum
B Return to automatic
C Smart luminaires synchronise then dim
Funtion (Default Settings)
1 Scene 1 - Smart luminaires to 50% xed
2 Scene 2 - Smart luminaires to 25% xed
3 Scene 3 - Smart luminaires OFF
A
1
2
3
B
C
Regular TeachingMeeting
Mains
(L,E,N)
Motionline
(+/-)
10 amps max.
or 20 luminaires
RJ45
SmartTouch
(Modular Kit 1)
A
LCM 14720
SmartHub
(Conventionally Wired)
(21LFT 26300)
Motionline is polarity
sensitive
A
LCM 14720TEE
SmartHub
(Modular Wired)
(21LFT 26244)
Or
Regular, Teaching and Meeting Versions
INSTALLATION INSTRUCTIONS
MODULAR KIT 1
OPERATING INSTRUCTIONS
■
The SmartTouch allows
the user to control a group
of Smart luminaires.
■
Simply touch the desired
function.
■
An indicator LED will
highlight the current status.
Kit 1 Includes: Smart
Touch and 6m cable
(for use with the
Smart Hub)
Regular: LCM 14920
Teaching: LCM 14921
Meeting: LCM 14922
FUNCTIONS
MODULAR KIT 2
Kit 2 Includes: Smart
Touch, Power Supply
and 6m cable
Regular: LCM 14810
Teaching: LCM 14811
Meeting: LCM 14812
DIMENSIONS
WIRING MODULAR KIT 1

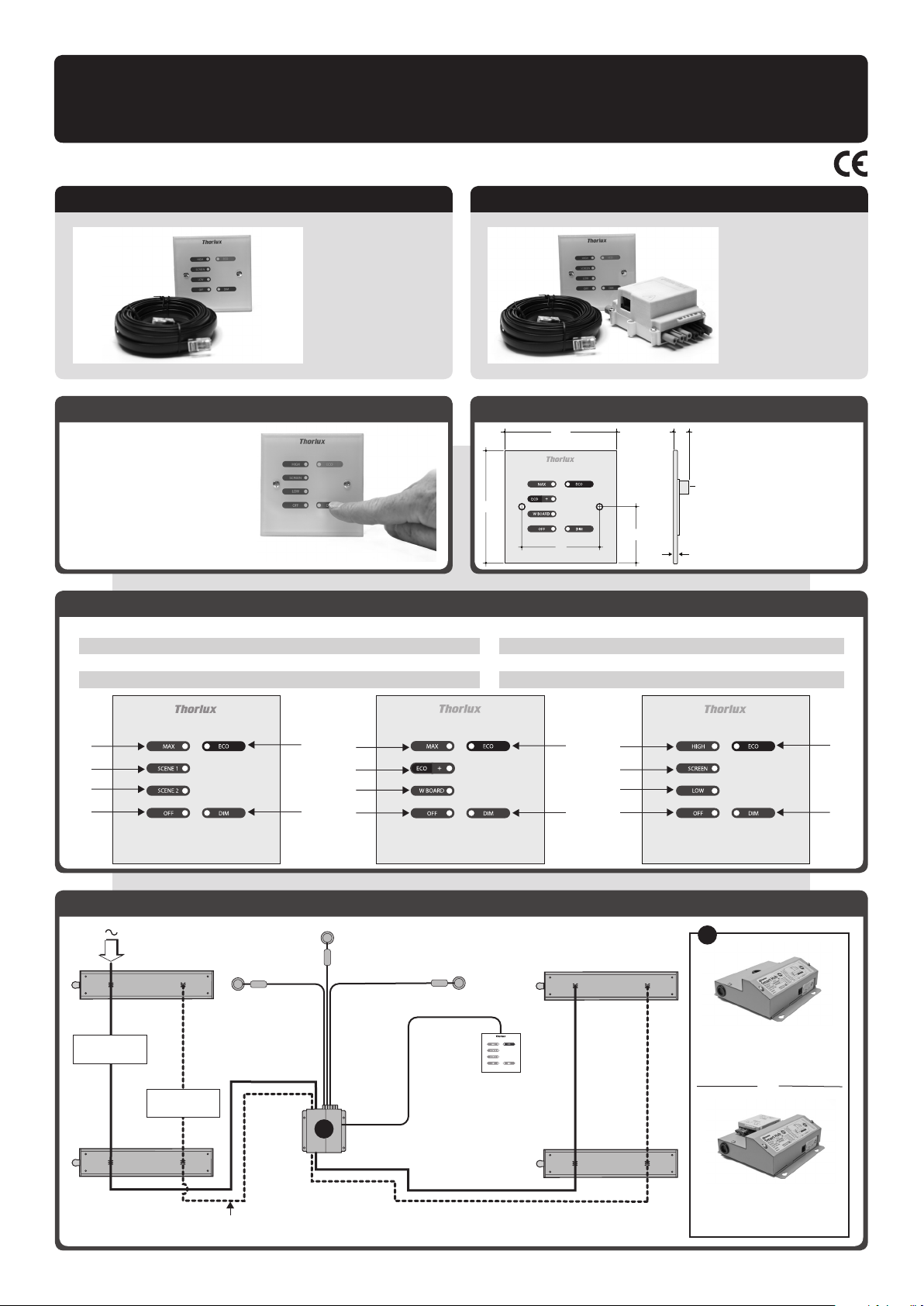

Page 2
Mains
(L,E,N)
Motionline
(+/-)
10 amps max.
or 20 luminaires
RJ45
SmartTouch
(Modular Kit 1)
A
LCM 14720
SmartHub
(Conventionally Wired)
(21LFT 26300)
Motionline is polarity
sensitive
A
LCM 14720TEE
SmartHub
(Modular Wired)
(21LFT 26244)
10 amps max.
or 20 luminaires
LUMINAIRE
Side Arm Suspension Brackets
LUMINAIRE
RJ45
LUMINAIRE
Side Arm Suspension Brackets
LUMINAIRE
SmartTouch
(Modular Kit 2)
Or
SmartTouch
Power Supply
(Included)
RJ45

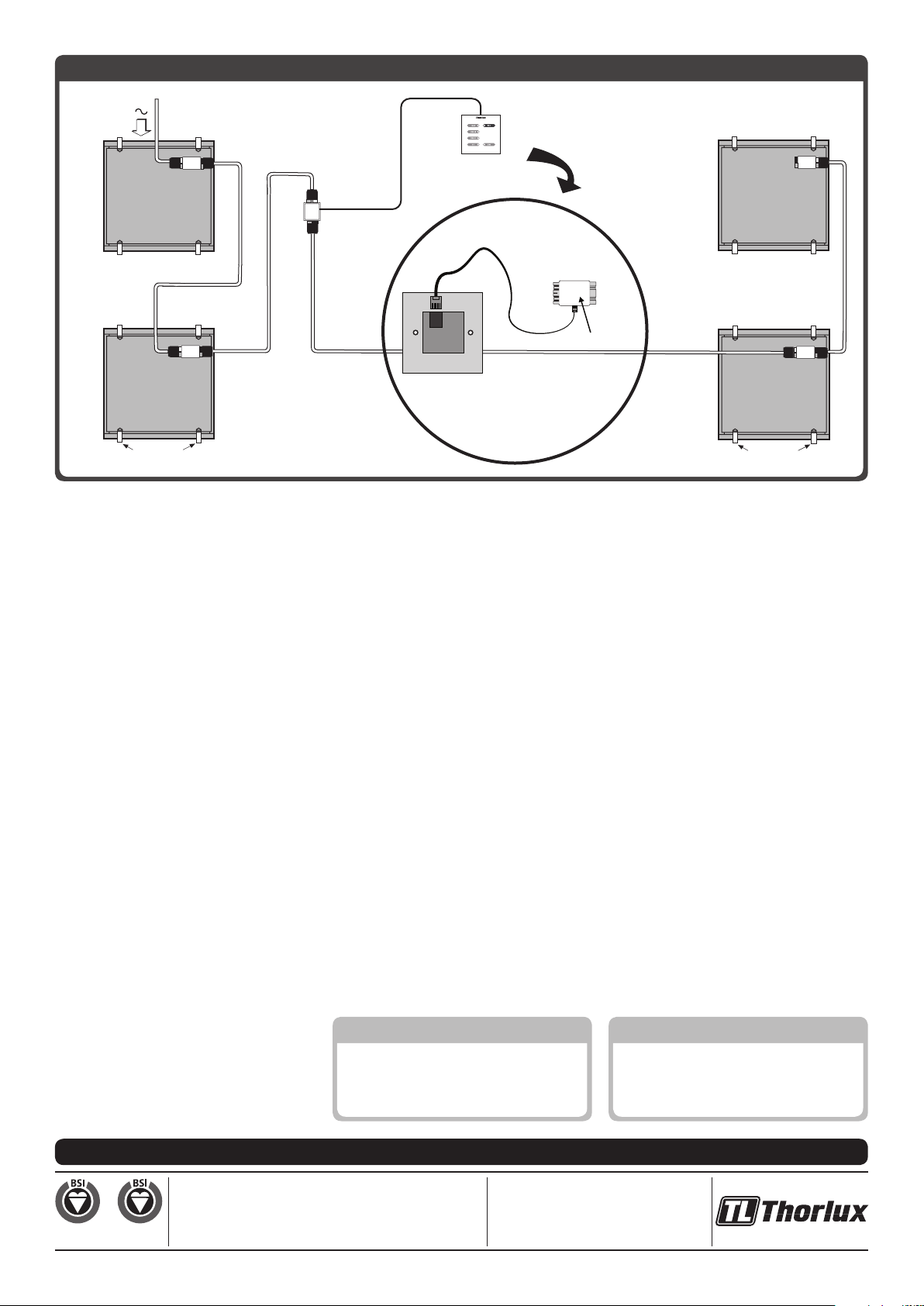

WIRING MODULAR KIT 2
MAINTENANCE
The Smart Touch should not be sub-
jected to undue mechanical shock or
extremes of temperature. Clean only with
a clean dry cloth.
Thorlux products should not be modied.
Any modication may render the product
unsafe and will invalidate any Safety/
Approval marks.
MODIFICATIONS
NOTICE TO CONTRACTOR - PLEASE PASS THIS LEAFLET TO THE END-USER
MERSE ROAD NORTH MOONS MOAT
REDDITCH WORCS B98 9HH ENGLAND
☎ +44 (0)1527 583200
Fax: +44 (0)1527 584177
e-mail: [email protected]
Web: www.thorlux.com
ISO 14001
EMS 532104
TM
Deutschland: www.thorlux.de ☎+49 (0)89 31881794
Sverige: www.thorlux.se ☎+46 (0)46 771783
Ireland: www.thorlux.ie ☎+353 (0)1 460 4608
Australia: www.thorlux.com.au ☎+61 (0)3 9338 1891
TM
ISO 9001
FM 10913
21LFT 26216 Issue 1 PN 2342A Sep.‘11
