PRO-DVB H-2/4HD-EM(S/H)
2ch or 4ch HD-SDI
AC3 & CC 608/708
Revision 1.3
Revised 2014
Page 2
H-2/4HD-EM(S/H)
A Note From Thor About
This Manual
Intended Audience
This user manual has been written to help people who have to use, integrate and to install
the product. Some chapters require some prerequisite knowledge in electronics and
especially in broadcast technologies and standards.
Disclaimer
No part of this document may be reproduced in any form without the written permission of
Thor Broadcast.
The contents of this document are subject to revision without notice due to continued
progress in methodology, design and manufacturing. Thor shall have no liability for any
error or damage of any kind resulting from the use of this document.
Copy Warning
This document includes some confidential information. Its usage is limited to the owners
of the product that it is relevant to. It cannot be copied, modified, or translated in another
language without prior written authorization from Thor Broadcast.
Page 3
Contents
H-2/4HD-EM(S/H)
Directory
CHAPTER 1 INTRODUCTION .................................................................................................................... 4
1.1 P
RODUCT OVERVIEW
1.2 K
EY FEATURES
1.3 S
PECIFICATIONS
1.4 S
CHEMATIC OVERVIEW
1.5 I
MAGE AND BUTTON CONFIGURATION LAYOUT
2.1 G
ENERAL PRECAUTIONS
2.2 P
OWER PRECAUTIONS
2.3 D
EVICE’S INSTALLATION FLOW CHART ILLUSTRATED AS FOLLOWING
2.4 E
NVIRONMENT REQUIREMENT
2.5 G
ROUNDING REQUIREMENT
CHAPTER 3 OPERATION ........................................................................................................................ 10
.............................................................................................................................. 4
........................................................................................................................................ 4
...................................................................................................................................... 5
........................................................................................................................... 6
...................................................................................... 6
......................................................................................................................... 7
............................................................................................................................. 8
.................................................... 8
................................................................................................................ 8
.................................................................................................................... 9
3.1 LCD T
3.2 I
3.3 G
4.1
4.2 O
CHAPTER 5 TROUBLESHOOTING ........................................................................................................... 26
CHAPTER 6 PACKING LIST ..................................................................................................................... 27
REE BREAKDOWN
NITIAL STATUS
ENERAL SETTINGS FOR MAIN MENU
LOGIN
.................................................................................................................................................... 18
PERATION
..................................................................................................................................... 11
........................................................................................................................................... 19
....................................................................................................................... 10
.................................................................................................. 11
Page 4
H-2/4HD-EM(S/H)
Chapter 1 Introduction
1.1 Product Overview
The Thor H-2/4HD-EM is our new pro broadcast featured encoder that features
high end performance with powerful functionality. It comes equipped with 2/4
HD-SDI channel inputs that support: MPEG-2 & H.264 video encoding with
MPEG-1 layer 2, LC-AAC, HE-AAC, and AC3 audio encoding. The 2/4 SDI inputs
will be output via either ASI or IP in MPTS or SPTS.
This encoder will be an ideal chassis to support any DVB-ASI programming as it
adopts the necessities to output AC3 audio and Closed Caption 608 &708. Also
comes’ stock with dual power supply, as a back-up units is on standby to ensure
your unit won’t fail. Structured to facilitate to the demanding needs of any broadcast,
this encoder series is the newest addition to Thor’s Broadcast Encoders.
1.2 Key Features
Dual power supply
MPEG2 HD/SD & MPEG4 AVC/H.264 HD/SD video encoding
MPEG1 Audio Layer 2, LC-AAC, HE-AAC and AC3 audio encoding
4*HD-SDI input
Support VBR/CBR rate control mode
Support CC (closed caption) EIA 608 & EIA 708
Low Latency function
Supports PSI/SI editing and inserting
Supports IP null packet filter
ASI output, IP (MPTS & 4 SPTS) output over UDP, RTP
LCD display, Remote control and firmware
Web-based NMS management; Updates via web
Page 5
H-2/4HD-EM(S/H)
1.3 Specifications
Encoding Section
Video
Encoding MPEG2 & MPEG4 AVC/H.264
Input HD-SDI*4
1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only)
Resolution
Bit Rate
Rate Control Mode
Audio
encoding MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3
Sample rate 48KHz
Bit rate 64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps
System
Local interface LCD + control buttons
Remote management Web NMS
Low Latency Mode Normal, mode 1, mode 2
output 2*ASI out (BNC type);
NMS interface RJ45, 100M
Language English
General
Power supply AC 100V~240V
Power Consumption 45W
Dimensions 482*400*44mm
Weight 4.5 kgs
Operation temperature
1920*1080_60i, 1920*1080_50i,
1280*720_60p, 1280*720_50P
720*480_60i, 720*576_50i
0.5~19.5Mbps for H.264 encoding
1~19.5Mbps for MPEG-2 encoding
CBR/VBR
IP (1 MPTS & 4 SPTS) over UDP, RTP (RJ45, 100M)
0~45℃
Page 6
H-2/4HD-EM(S/H)
1.4 Schematic Overview

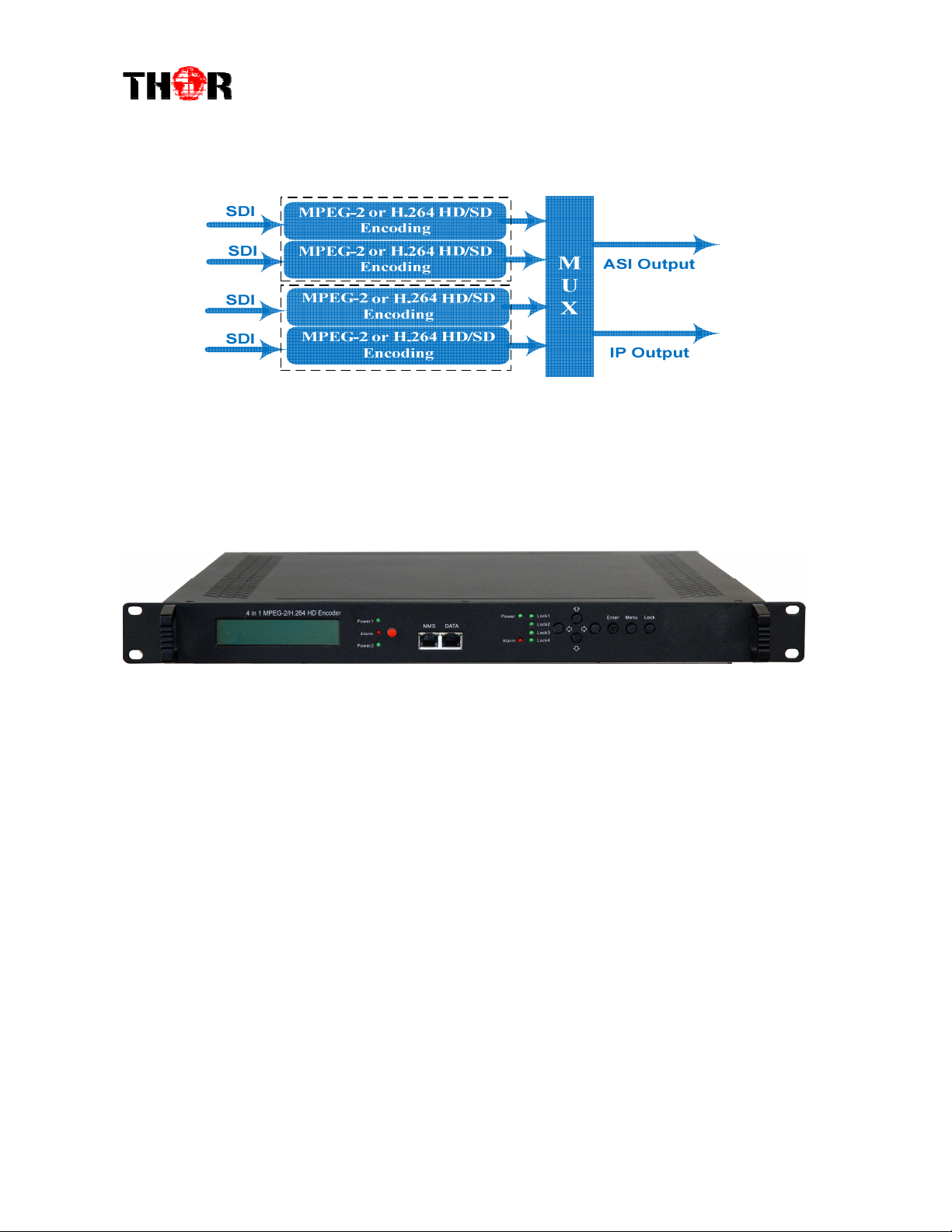

1.5 Image and Button Configuration Layout
8 1 2 3 4 5 6 7 8
①
① LCD window
①①
②
② Power supply indicators
②②
③
③ Power Alarm Switch: When only one power supply is connected or one of the power
③③
supplies fails, the device will give alarm sound, and then press the alarm switch to turn off the
alarm sound.
④
④ NMS port for the connection between the device and PC
④④
⑤
⑤ DATA port for IP signal out
⑤⑤
⑥
⑥
Indicators for whole unit power supply, working alarm and input signal lock status
⑥⑥
⑦
⑦ Control Buttons
⑦⑦
⑧
⑧ Handles
⑧⑧
Page 7
H-2/4HD-EM(S/H)

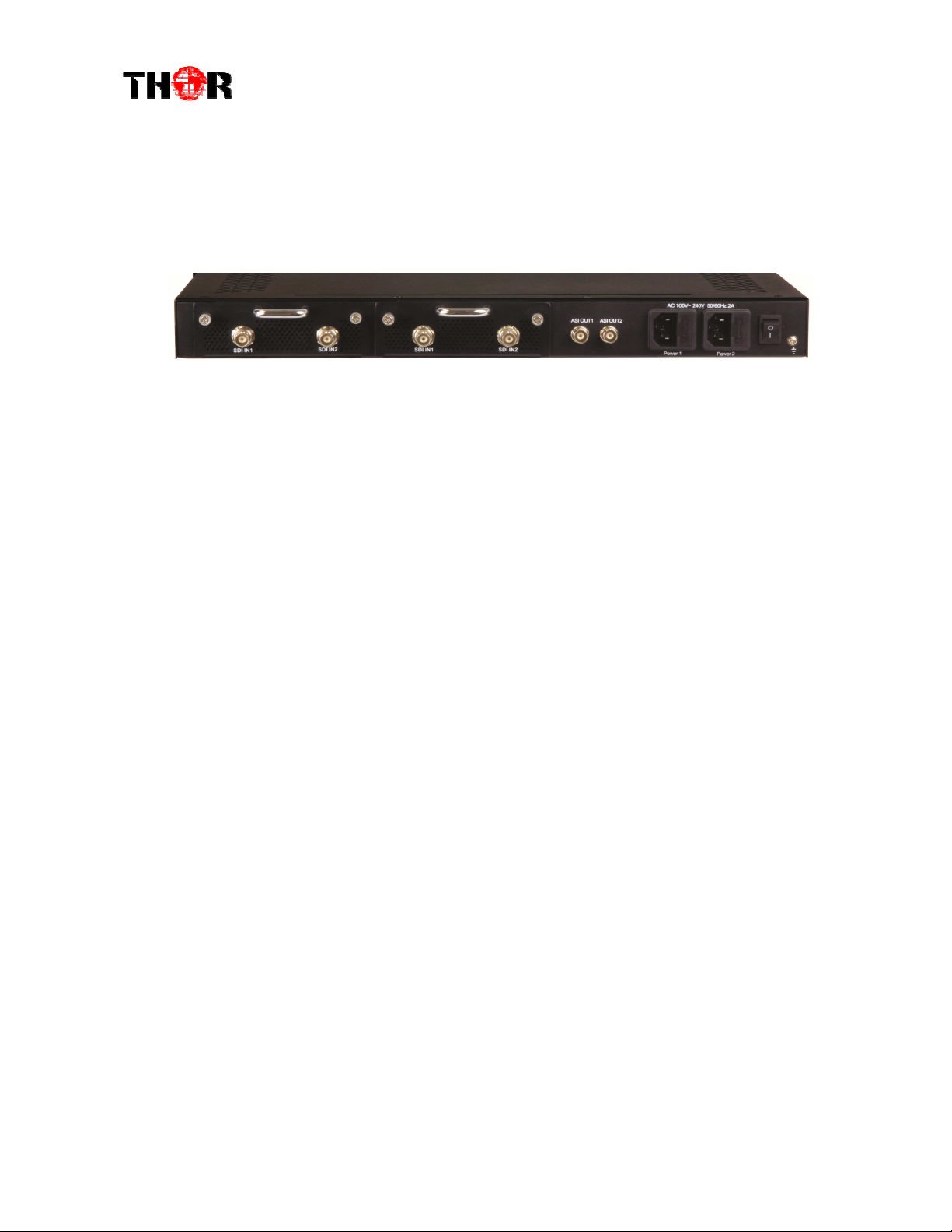

1 2 3 4 56
①
① SDI Input Module 1: Program input port 1&2
①①
②
② SDI Input Module 2: Program input port 3&4
②②
③
③ ASI output ports
③③
④
④ Power Supply Slot
④④
⑤
⑤ Power Switch
⑤⑤
⑥
⑥ Grounding
⑥⑥
Chapter 2 Installation Guide
Please use caution when operating this device in order to abstain from any possible
injury during installation. For this reason, please read all details listed below and make
and use caution before proceeding to operate and use this electronic equipment.
2.1 General Precautions
Must be operated and maintained in an area free of dust and debris.
The cover should be securely fastened, do not open the cover of the chassis when the
power is on. This will also void Thor’s manufacturer’s warranty.
After installation, securely stow away all loose cables, external antenna, and others.
Page 8
H-2/4HD-EM(S/H)
2.2 Power Precautions
Be careful when connecting a power source to the device.
Do not operate in wet or damp areas. Make sure the extension cable is in good
condition
Make sure the power switch is off before you start to install the device

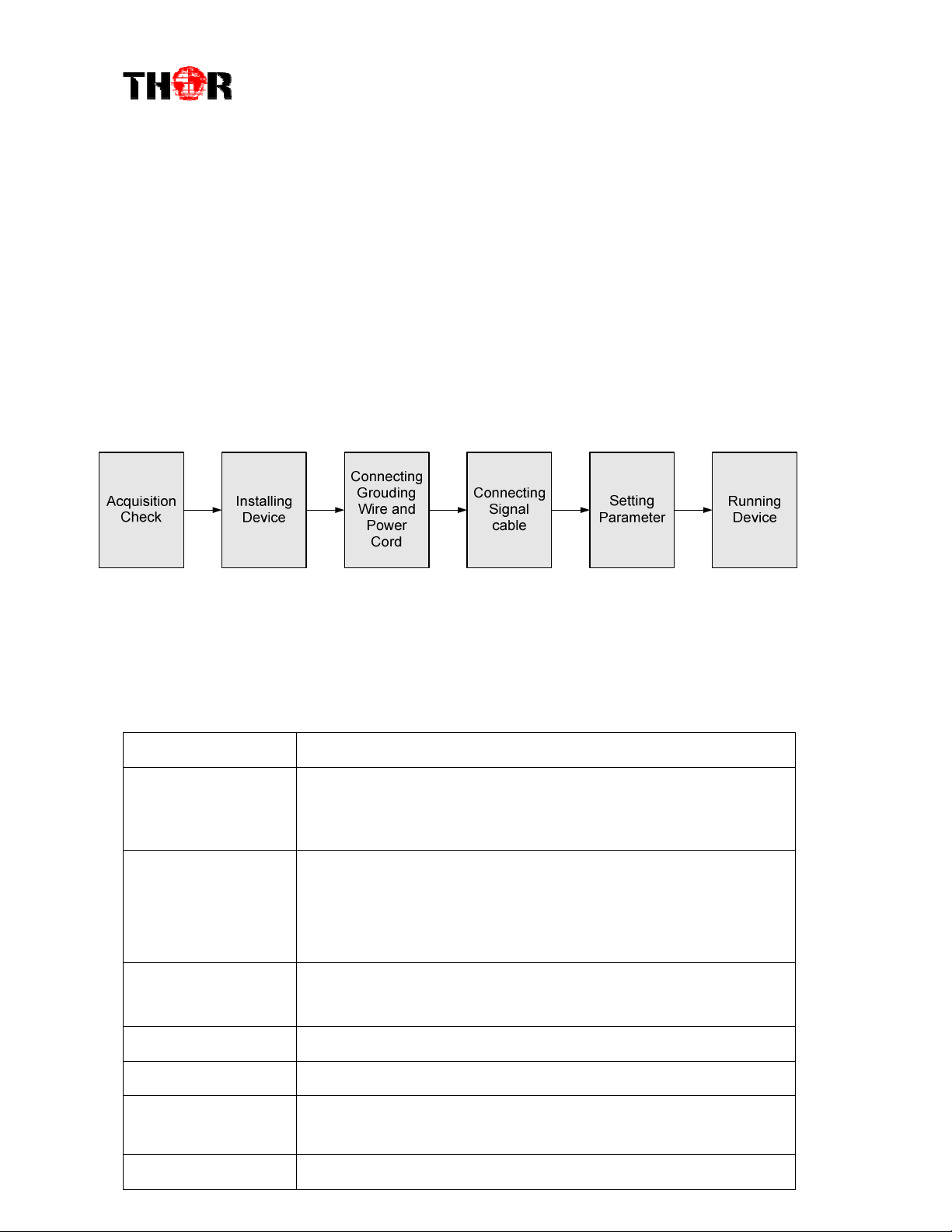

2.3 Device’s Installation Flow Chart Illustrated as following
2.4 Environment Requirement
Item Requirement
Machine Hall
Space
Machine Hall Floor
Environment
Temperature
When user installs machine on rack, the distance between 2
rows of machine frames should be 1.2~1.5m and the distance
against wall should be no less than 0.8m.
Electric Isolation, Dust Free
Volume resistivity of ground anti-static material:
1X107~1X1010Ω，Grounding current limiting resistance: 1MΩ
(Floor bearing should be greater than 450Kg/㎡)
5~40℃(sustainable )，0~45℃(short time)，
installing air-conditioning is recommended
Relative Humidity 20%~80% sustainable 10%~90% short time
Pressure 86~105KPa
Door & Window
Wall It can be covered with wallpaper, or brightness less paint.
Installing rubber strip for sealing door-gaps and dual level
glasses for window
Page 9
H-2/4HD-EM(S/H)
Fire Protection Fire alarm system and extinguisher
Requiring device power, air-conditioning power and lighting
Power
2.5 Grounding Requirement
It is important to keep this device grounded to ensure all of the modules
function correctly. Correctly grounding the device will also help prevent any
electrical interference, lightening. Etc. Also it helps reject minor interference that
may disrupt the devices ability to function smoothly. General rule of them, make
sure the device is grounded when installing anywhere.
power are independent to each other. Device power requires
AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz. Please
carefully check before running.
Always use copper wire. When applied correctly the ground must be wrapped
well to ensure maximum conduction so it can reduce any high frequencies. The
copper ground wire should also be as short and thick as possible
Installer must make sure that the two ends of the ground are well conducted
and have appropriate anti-rust properties.
It is prohibited to use any other device as part of the grounding electric
circuit.
The area of the conduction between the ground wire and device’s frame
should be no less than 25 ㎡.
Page 10
H-2/4HD-EM(S/H)
Chapter 3 Operation

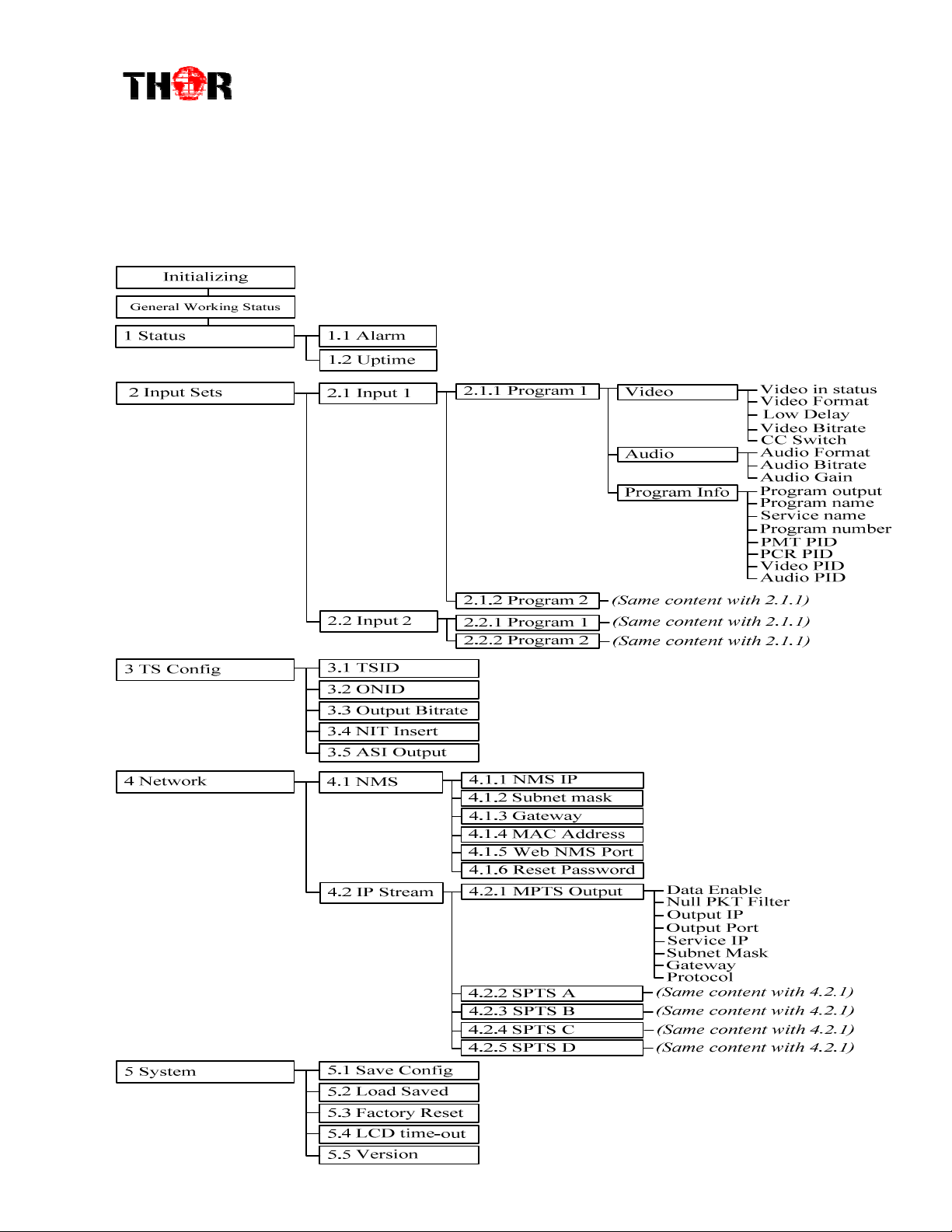

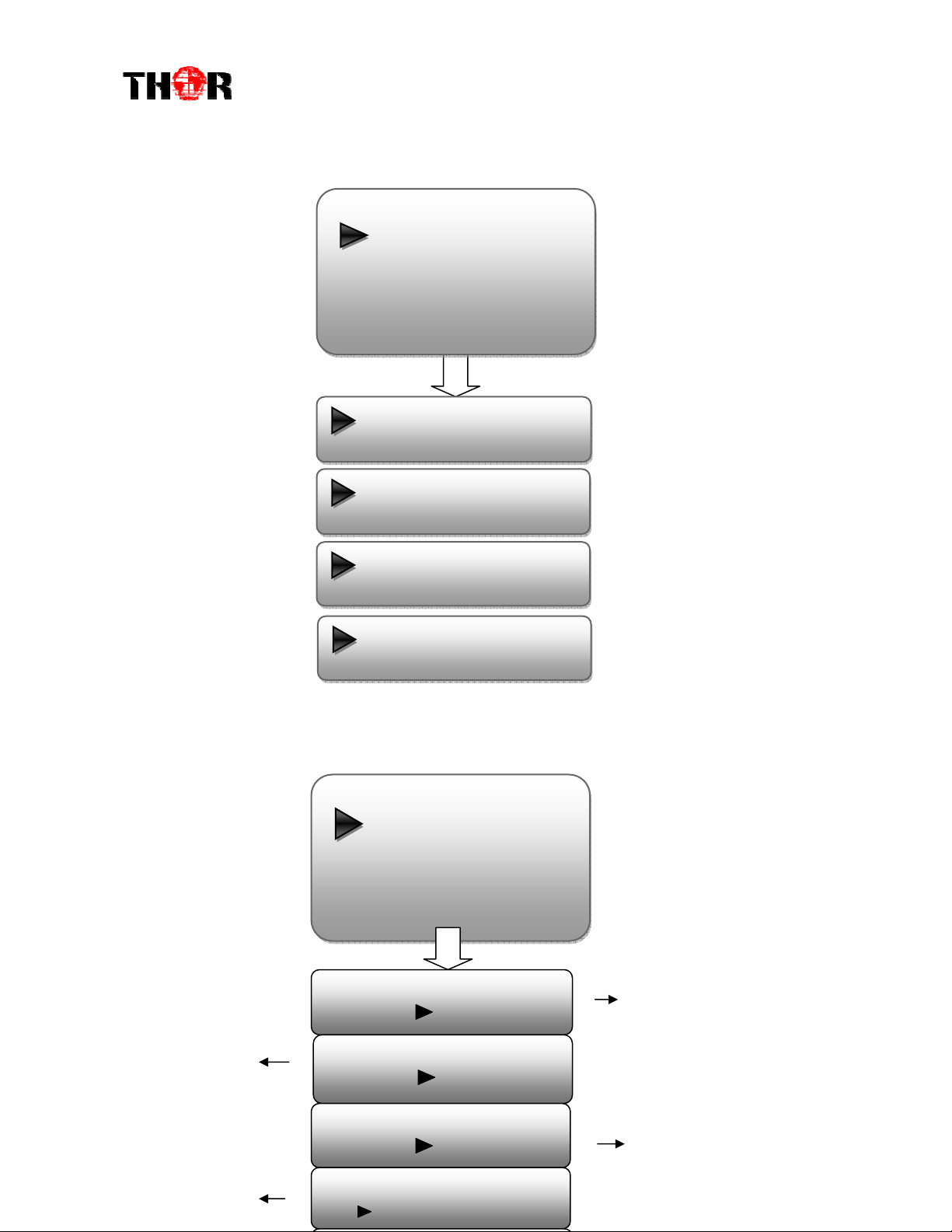

3.1 LCD Tree Breakdown
Page 11
H-2/4HD-EM(S/H)

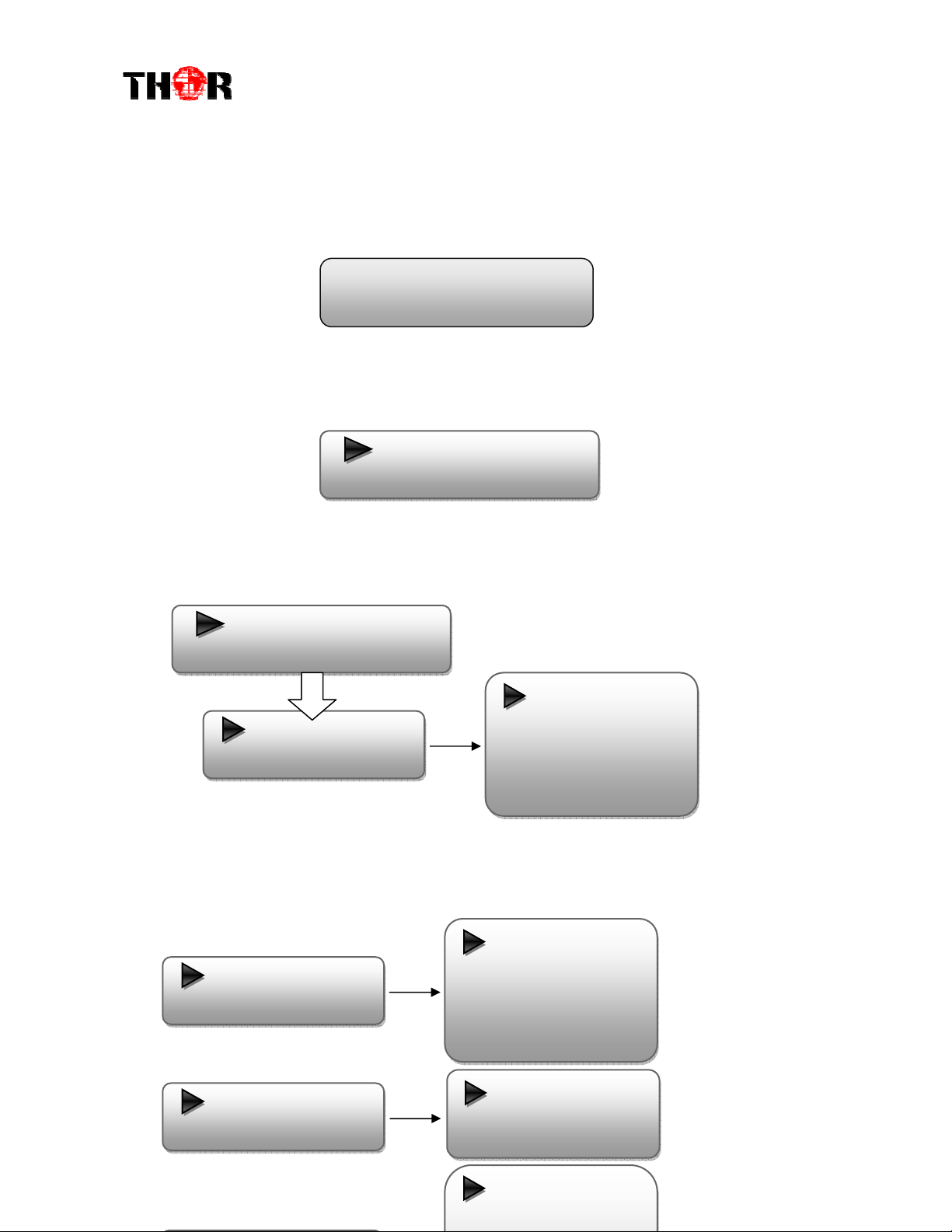

3.2 Initial Status
Switch on the device and after a few seconds’ initialization, it presents start-up pictures as
shown below:
Start up…
Start OK…
H-HD-EM HD ENCODER
P1:X.XXMbps P2: X.XXMbps
H-HD-EM: Module name and number
P1: Program 1; P2: Program 2; P3: Program 3; P4: Program 4
X.XX Mbps: indicate the current encoding bit rate of the corresponding channel.
3.3 General Settings for Main Menu
Press “Lock” key on the front panel to enter the main menu. The LCD will display the
following pages where user can configure the parameters for the device:
1 Alarm Status
2 Encode Setting
3 Modulate Setting
4 IP Output Setting
5 Network Setting
6 Saving Config
7 Loading Config
8 Version
User can press UP/DOWN buttons to specify menu item, and then press ENTER to
enter the submenus as below:
1) Status
1.1 Alarm
1.2 Uptime
Page 12
H-2/4HD-EM(S/H)
Audio Gain
Alarm
The alarm indicator will turn on if there is no A/V signals inputting or outputting bit
rate overflows. User then can enter this menu to check the error type.
Uptime
Uptime
It displays the working time duration of the device. It times upon power on.
0 Day(s) xx-xx-xx
2.1 Input 1
2.2 Input 2
2) Input Settings
Under this submenu, the LCD will show “2.1 Input 1” and “2.2 Input 2” to represent
the two SDI-input modules respectively.
2.1.1 Program 1
2.1.2 Program 2
Video
Video in status
Video Format
Low Delay
Video Bit Rate
CC Switch
Each SDI input module support two program input connecters. Under submenus 2.1
(or 2.2), user could set the video/audio parameters for the 2 SDI programs respectively.
Video
Video in status
Video Format
Low Delay
Video Bit Rate
CC Switch
Audio
Audio Format
Audio Bit rate
Program output
Program name
Page 13
H-2/4HD-EM(S/H)
Video in Status
Users can enter this menu to check the video input status.
Video Format
The SDI encoding module supports both “MPEG2” and “H.264” video encoding
formats. Users can enter this menu to select one format from the 2 options.
Press ENTER to shift ‘*’ to ‘►’, and then press UP/DOWN buttons to specify one item and then press
ENTER to confirm. Press MENU to step back to upper level menu. (The operation method is applicable
for rest part.)
Low Delay
MPEG2
H.264
This unit can achieve a low time delay from encoding to decoding terminal
end-to-end.
Normal
Mode 1
…..……………………………….....
NOTE
……..……..………………………….
The different combination of Video Format, Video Bit-rate, Low Delay Mode, the
Resolution of signal source and Decoding solution adopted on terminal side will have an
impact on the latency.
…………………………………………………………………………………………..……
Video Bit Rate
Users can set the video encoding bit rate manually in this menu.
0.5~19.5Mbps for H.264 encoding
Video Bit Rate
14.000 Mbps
1~19.5Mbps for MPEG-2 encoding
CC Switch
CC refers to Closed Caption.
Users can select a standard for the CC from the 2 options in this menu.
► EIA 608
EIA 708
Page 14
H-2/4HD-EM(S/H)
Audio Format
The SDI encoding module supports 4 encoding formats. Users can enter this menu to
select one format’s from the 4 options available.
MPEG1 Layer 2
MPEG2 AAC
MPEG4 AAC
AC3
Audio Bit Rate
The audio bit rate ranges from 64Kbps to 320Kbps. Users can select one bit-rate from
the options provided.
Audio Bitrate
64Kbps
Audio Gain
Users can adjust the audio gain in this menu.
Audio Gain
100 %
Program Info
Users can enable or disable the program output in the first sub-menu and configure the
other parameters in the rest sub-menus.
Program Output
Enable
PMT PID
0x101
Program Name
TV-101
PCR PID
0x100
Service Name
TV-Provider
Video PID
0x100
Program number
Audio PID
Page 15
H-2/4HD-EM(S/H)
3) TS Configuration
This encoder support TS output via ASI ports. ‘TS Config’ is for the configuration of
ASI output. Its submenus contain:
3.1 TS ID
3.2 ON ID
3.3 Output Bit rate
3.4 NIT Insert
3.5 ASI Output
TS ID/ ON ID
Users can set the TS ID and Original Network ID in the 2 submenus. The IDs are in
hexadecimal form.
ON ID
0x0001
Output Bit rate
Users can set the max output bit rate for the ASI MPTS out. (Range 0-100 Mbps)
Output Bit rate
60.000 Mbps
NIT Insert
Users can insert your NIT with operations in the menu.
NIT Insert
Yes No
ASI Output
Users can copy a stream from the IP out streams (1 MPTS & 8 SPTS) to output through
ASI.
ASI Output
MPTS
Page 16
H-2/4HD-EM(S/H)
4.1.6 Reset Password
4) Net Work
‘Net work’ is divided into 2 parts: NMS and IP Stream.
4.1 NMS
4.2 IP Stream
NMS
Submenus under ‘NMS’ are for setting the parameters related to the device connection
in the network.
NMS
4.1.1 NMS IP
4.1.2 Subnet Mask
4.1.3 Gateway
4.1.4 MAC Address
4.1.5 Web NMS Port
NMS IP
192.168.000.136
The IP address for connecting
the device to PC
Subnet Mask
255.255.255.000
MAC Address
201012345678
Gateway
192.168.000.001
Web NMS Port
00080
Reset Password?
Yes NO
Page 17
H-2/4HD-EM(S/H)
Subnet Mask
Protocol
4.2.5 SPTS Output D
5.5Version
30 s
IP Stream
Submenus under ‘IP Stream’ are for setting the output IP stream in MPTS or SPTS.
IP Stream
4.2.1 MPTS Output
4.2.2 SPTS Output A
4.2.3 SPTS Output B
4.2.4 SPTS Output C
Data Enable
Null PKT Filter
Output IP
Output Port
Service IP
Gateway
5) System
Users can set the system parameters in this menu. Enter ‘System’ submenus to
separately set corresponding parameters.
Choose yes to restore the
device into the last saved
configuration.
Press DOWN/UP key to select
a time out for the LCD lighting
duration (5-120 seconds)
System
5.1 Save Config
5.2 Load Saved CFG
5.3 Factory Reset
5.4 LCD Time-out
Save Configuration?
Yes No
Load Saved CFG?
Yes No
Reset All Sets?
Yes No
LCD Time-out
Choose yes to save settings.
and press ENTER to confirm
Choose yes to restore the
device into factory’s default
configuration.
Page 18
H-2/4HD-EM(S/H)
Chapter 4 WEB NMS Operation
Using the LCD digital display and front buttons for setting configuration is always
an option if you are close by, conveniently you can alter the same settings through a
computer by connecting the device to the web NMS Port. Always make sure that
the computer’s IP address is different from the Units IP address; otherwise, it will
cause an IP conflict. Below is an explanation of how you can adjust settings
through a web portal
4.1 login
The default IP address of this device is 192.168.0.136. (We can modify the IP through
the front panel.)
Connect the PC (Personal Computer) and the device with an ethernet cable, and use
ping command to confirm they are on the same network segment.
NOTE* if the PC IP address is 192.168.99.252, we then change the device IP to
192.168.99.xxx (xxx can be 1 to 254 except 252 to avoid IP conflict).
Use web browser to connect the device with a PC by inputting the encoders IP address
in the browser’s address bar and press Enter.

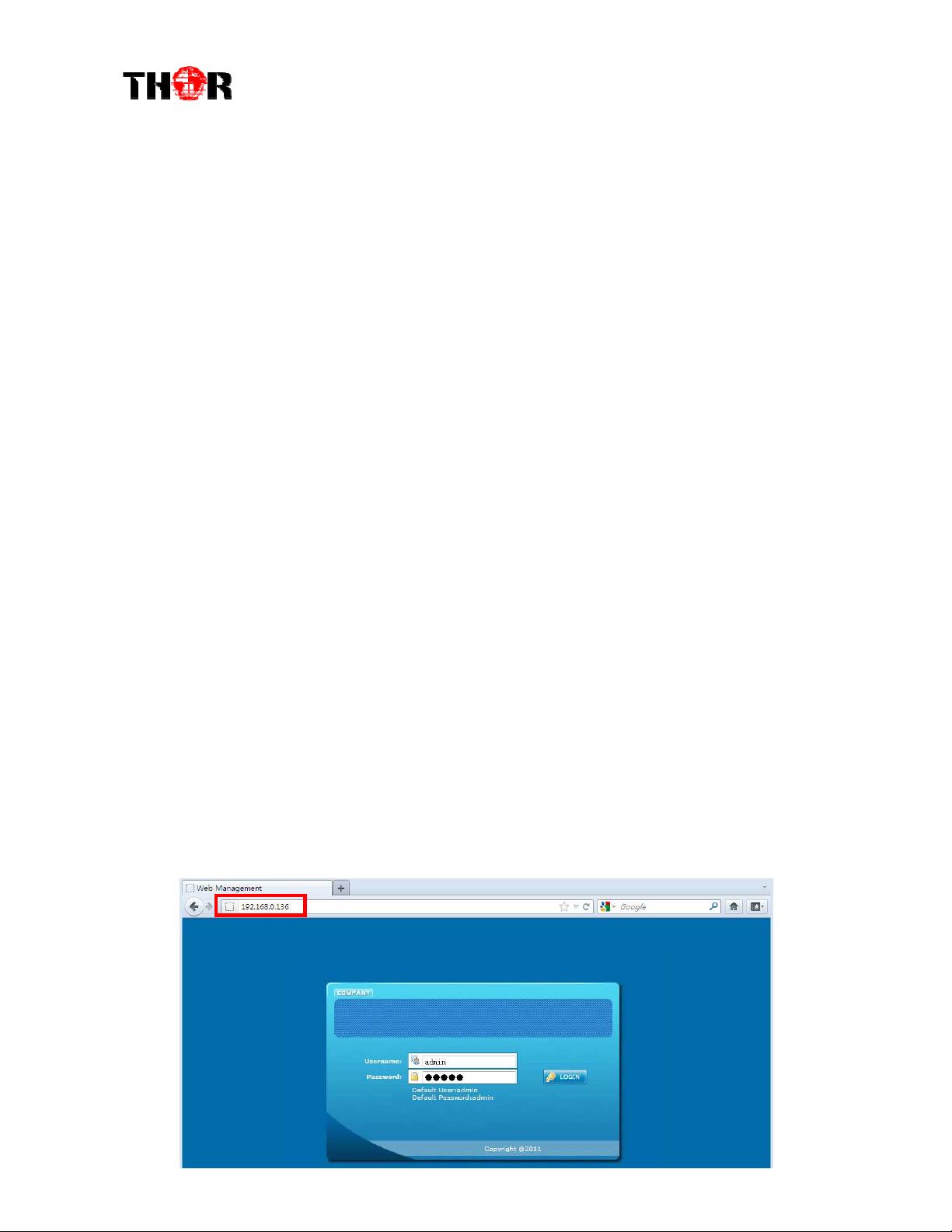

It will display the Login interface as Figure-1. Input the Username and Password
(Both the default Username and Password are “admin”.) and then click “LOGIN” to
start the device setting.
Figure-1
Page 19
H-2/4HD-EM(S/H)
4.2 Operation

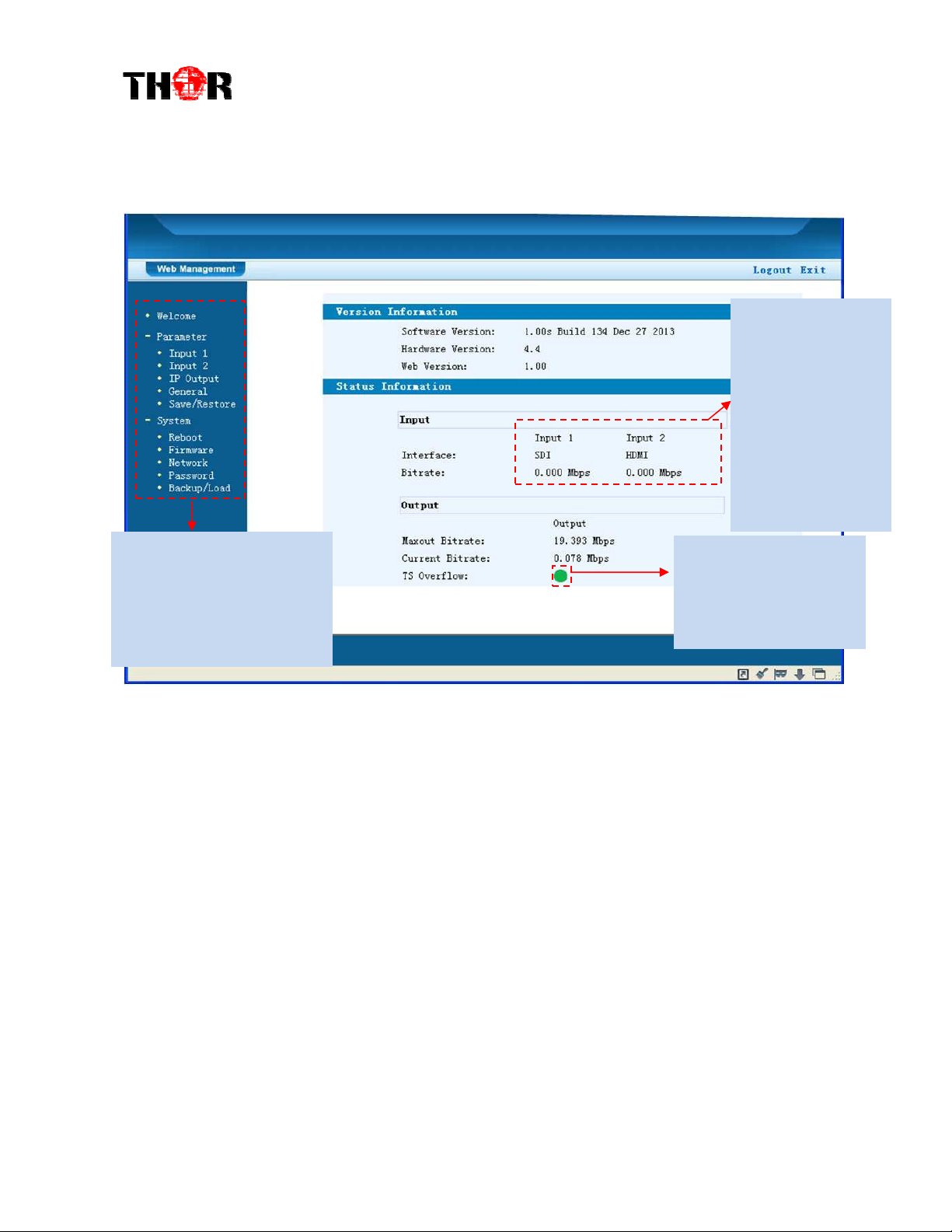

When we confirm the login, it displays the WELCOME interface as shown in Figure-2.
It automatically
identifies and
displays the signal
source interface and
real-time encoding
bit rate of
corresponding input
channel.
User can click any item
here to enter the
corresponding interface to
check information or set the
parameters.
TS indicators—Green
light indicates the TS is
normal, which otherwise
turns to red.
Figure-2
Input 1

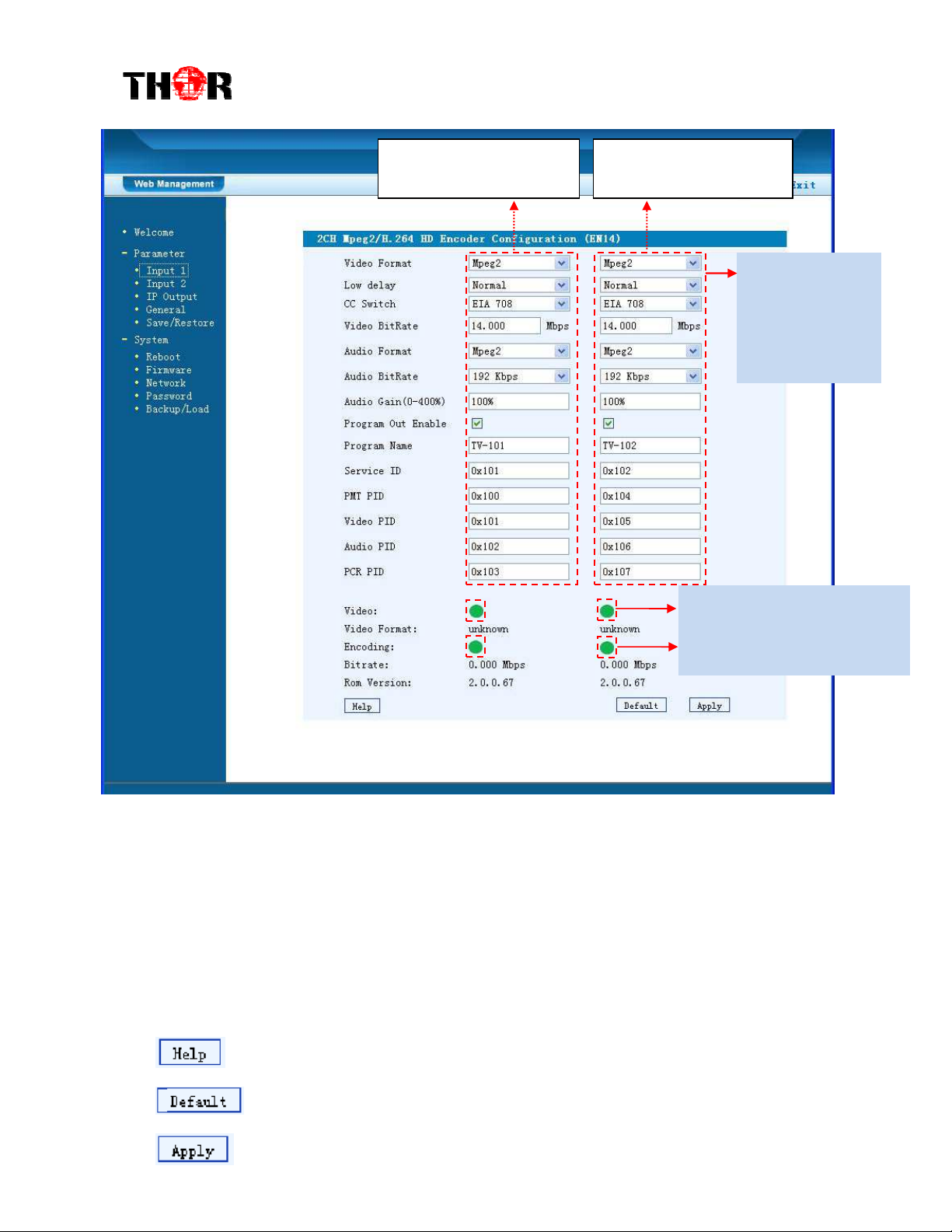

From the menu on left side of the webpage, click “Input 1”, it displays the
information of the programs (1st & 2ed ones) from the 1st SDI encoding module as
Figure-3.
Page 20
H-2/4HD-EM(S/H)
listed as needed.
This column is for setting
the 1st SDI IN program.
This column is for setting
the 2ed SDI IN program.
General Settings
for the SDI IN
programs: User
can edit any item
Encoding Status—Green light
indicate it works normally,
which otherwise turn to red.
Figure-3
…..……………………………….....
NOTE
……..……..………………………….
The different combination of Video Format, Video Bit-rate, Low Delay Mode, the
Resolution of signal source and Decoding solution adopted on terminal side will have an
impact on the latency.
…………………………………………………………………………………………..……
For user to turn to refer detailed explanation of terms on this interface
Click this button to apply the default setting of Input 1
Click this button to apply the modified parameters.
Page 21
H-2/4HD-EM(S/H)
Input 2
Similarly, from the menu on left side of the webpage, clicking “Input 2”, it displays
the information of the programs (3rd & 4th ones) from the 2ed SDI encoding module.
IP Output

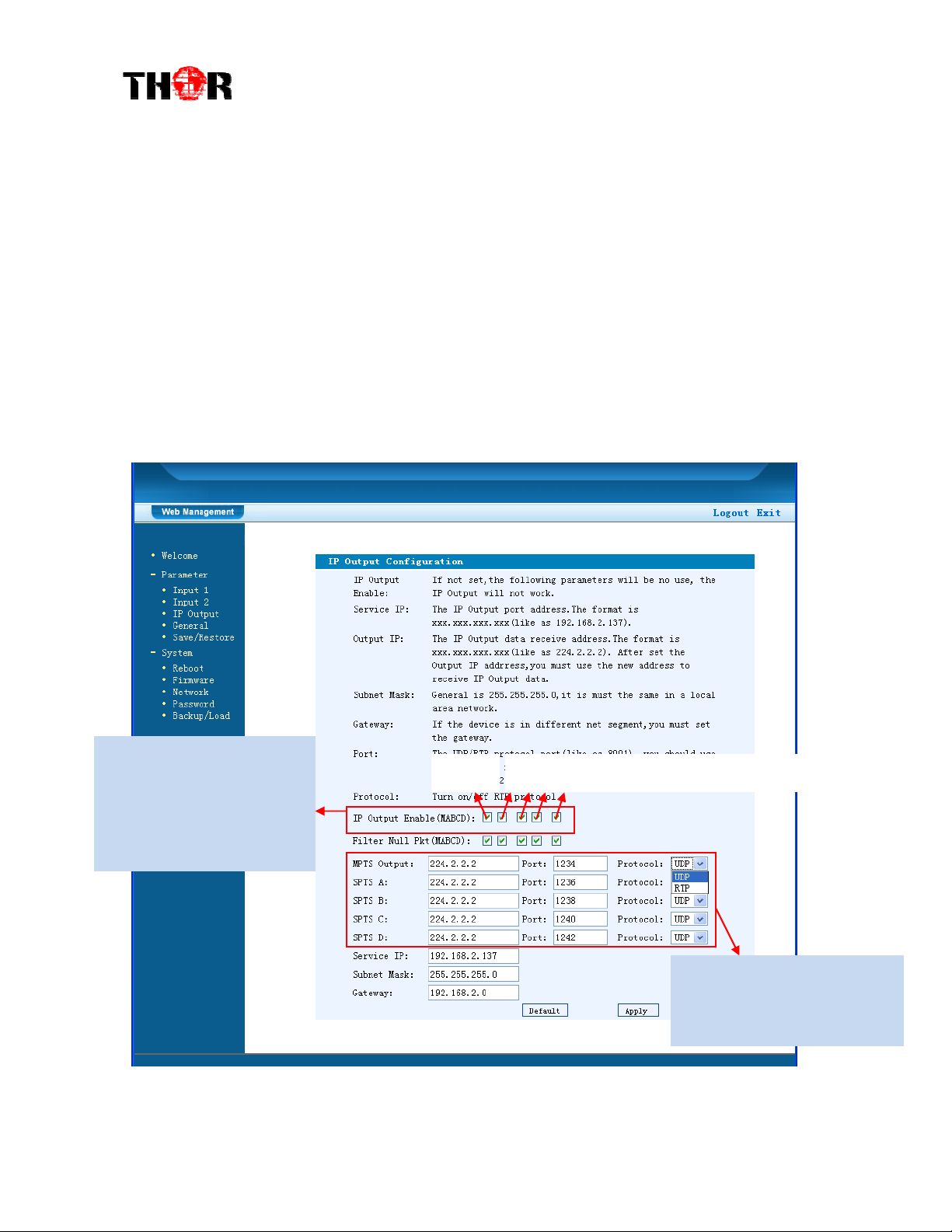

Click “IP Output”, it will display the interface where to configure the output IP stream
in MPTS or SPTS the as Figure-4.
This device supports 1 MPTS
& 4 SPTS IP output. Click the
related box to enable the
corresponding program to
output through IP Channel.
After setting the parameters, click “Apply” to save the settings.
MPTS 4 SPTS for the 4 programs respectively
To configure the output IP
address and ports for the IP
Channels respectively.
Figure-4
Page 22
H-2/4HD-EM(S/H)

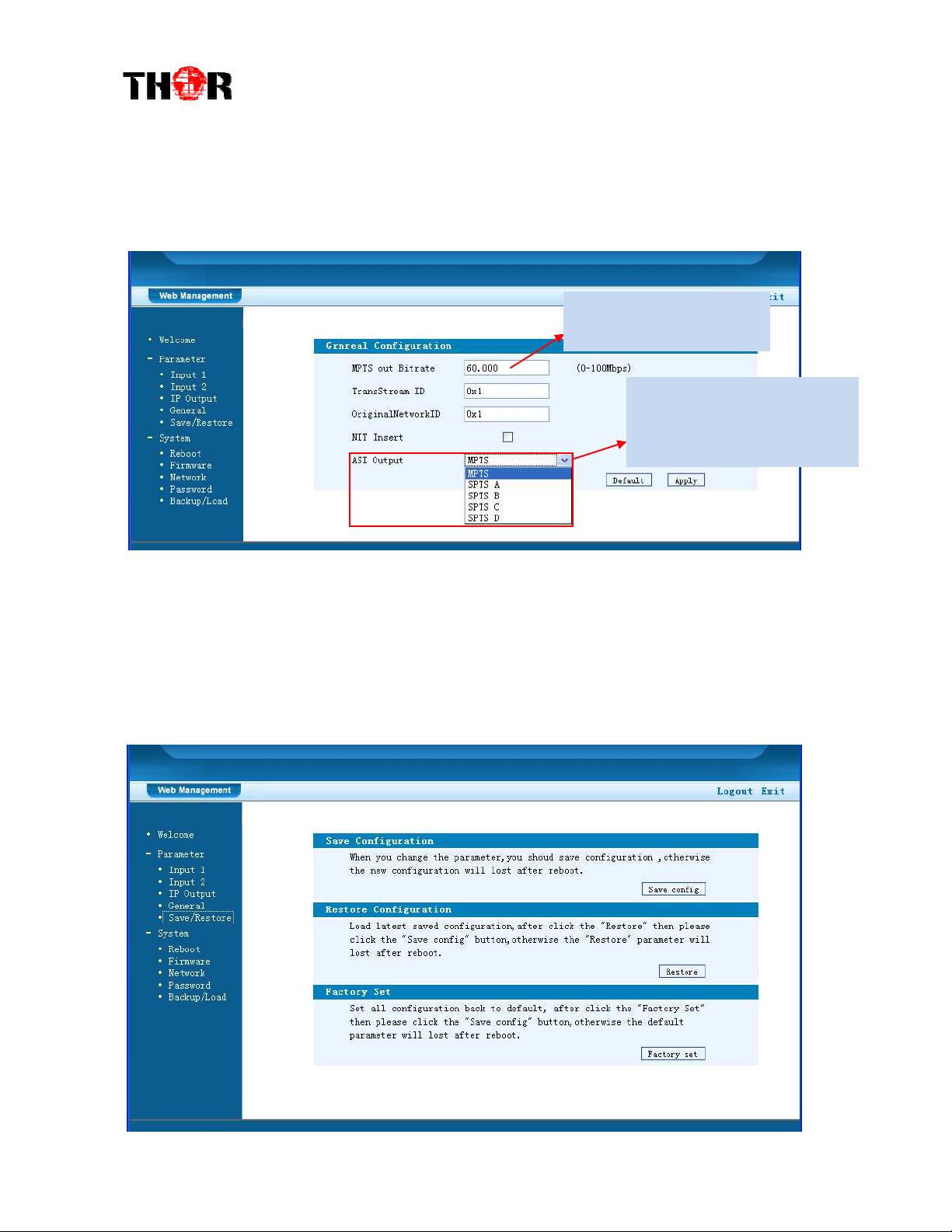

rate for the ASI MPTS out
General
Clicking “General” from the menu, it will display the interface as shown in Figure-5
where to set the network info for the output TS.
To set the max output bit
Users can copy a stream from
the IP out streams (1 MPTS & 8
SPTS) to output through ASI.
Figure-5
Save/Restore
From the menu on left side of the webpage, click “Save/Restore”, it will display the
screen as Figure-6 where to save or restore your configurations.
Figure-6
Page 23
H-2/4HD-EM(S/H)
Button
Restart the Device

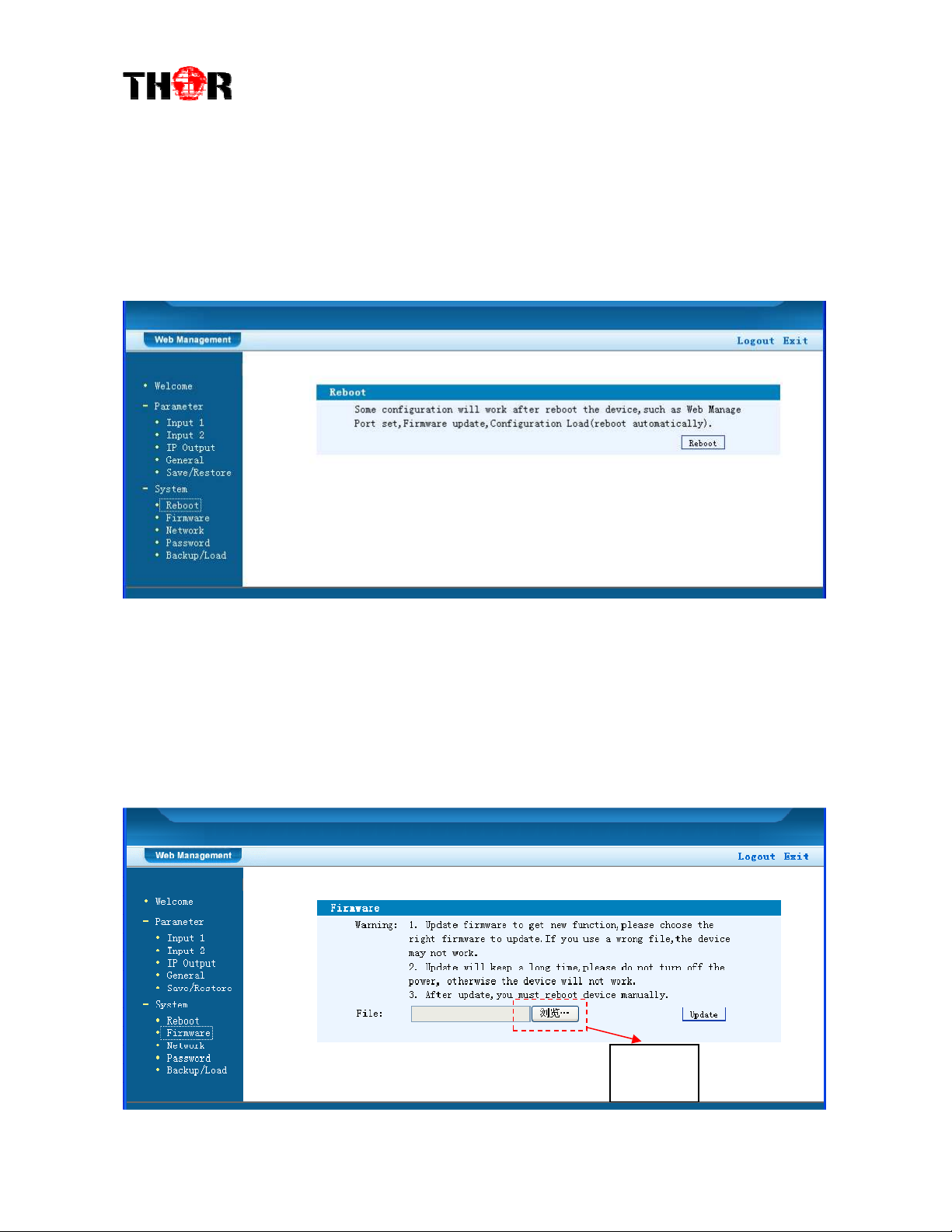

Click “Reboot” from the menu, the screen will display as shown in Figure-7. Here,
when clicking “Reboot” box, it will restart the device automatically.
Figure-7
Update the Device
Click “Firmware” from the menu it will display the screen as Figure-8. Here user can
update the device by using the update file.
Click “Browse” to find the path of the device update file for this device then click
“Update” to update the device.
After updating the device, user needs to restart the device by using Reboot options.
Browse
Figure-8
Page 24
H-2/4HD-EM(S/H)
Network

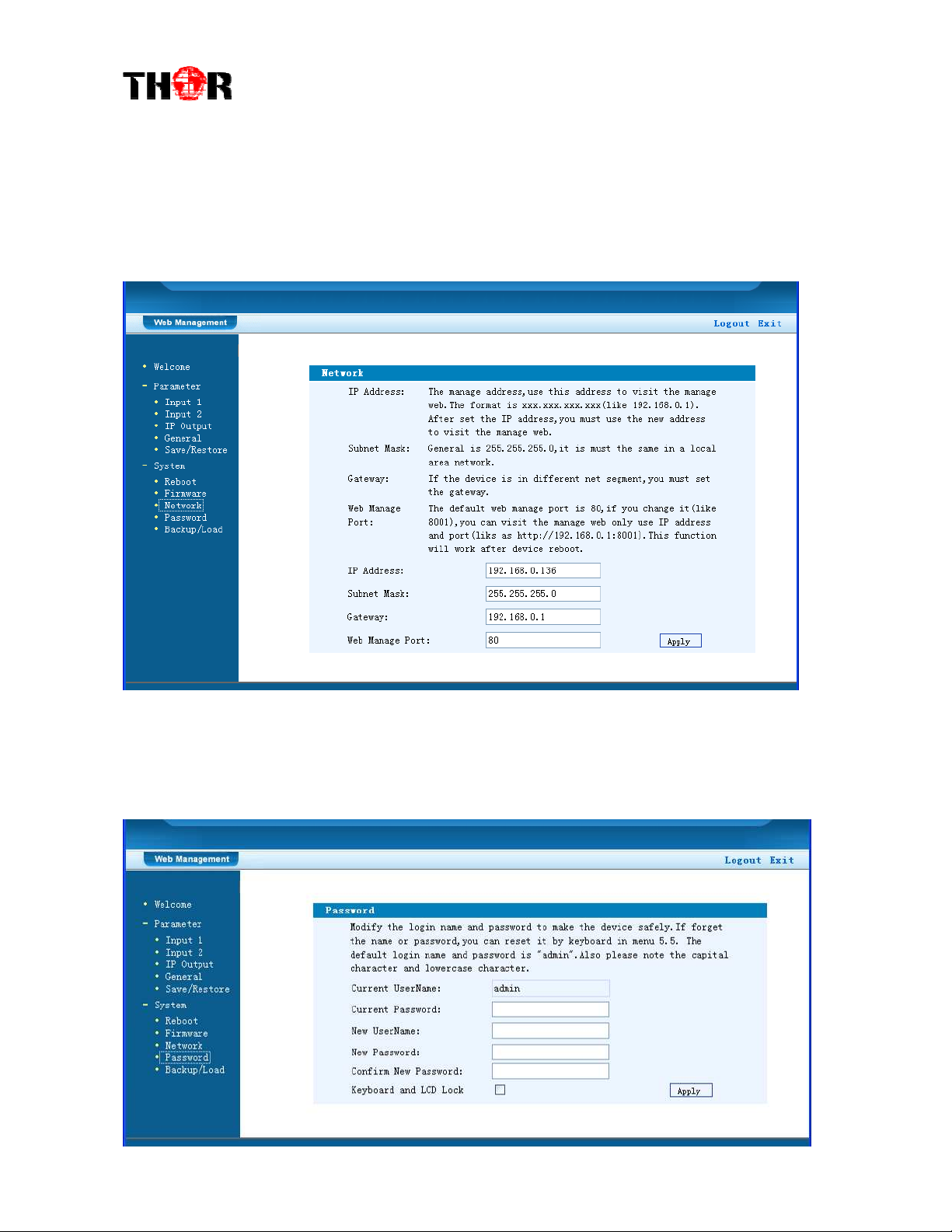

When user clicks “Network”, it will display the screen as shown in Figure-9. It
displays the network information of the device. Here you can change the device
network configuration as needed.
Figure-9
Change Password
When you click “Password”, it will display the password screen as shown in Figure-10.
Here you can change the Username and Password for logging into the device.
Figure-10
Page 25
H-2/4HD-EM(S/H)
Button
Keyboard and LCD Lock: If it is marked with “√”，the LCD and keyboard will be locked
to avoid unrelated users’ modifying or viewing the device information and configurations.
You can’t operate the keyboard & LCD, only the device IP address can be noted in the
LCD window.
IP Address
192.168.000.136
Backup/Load

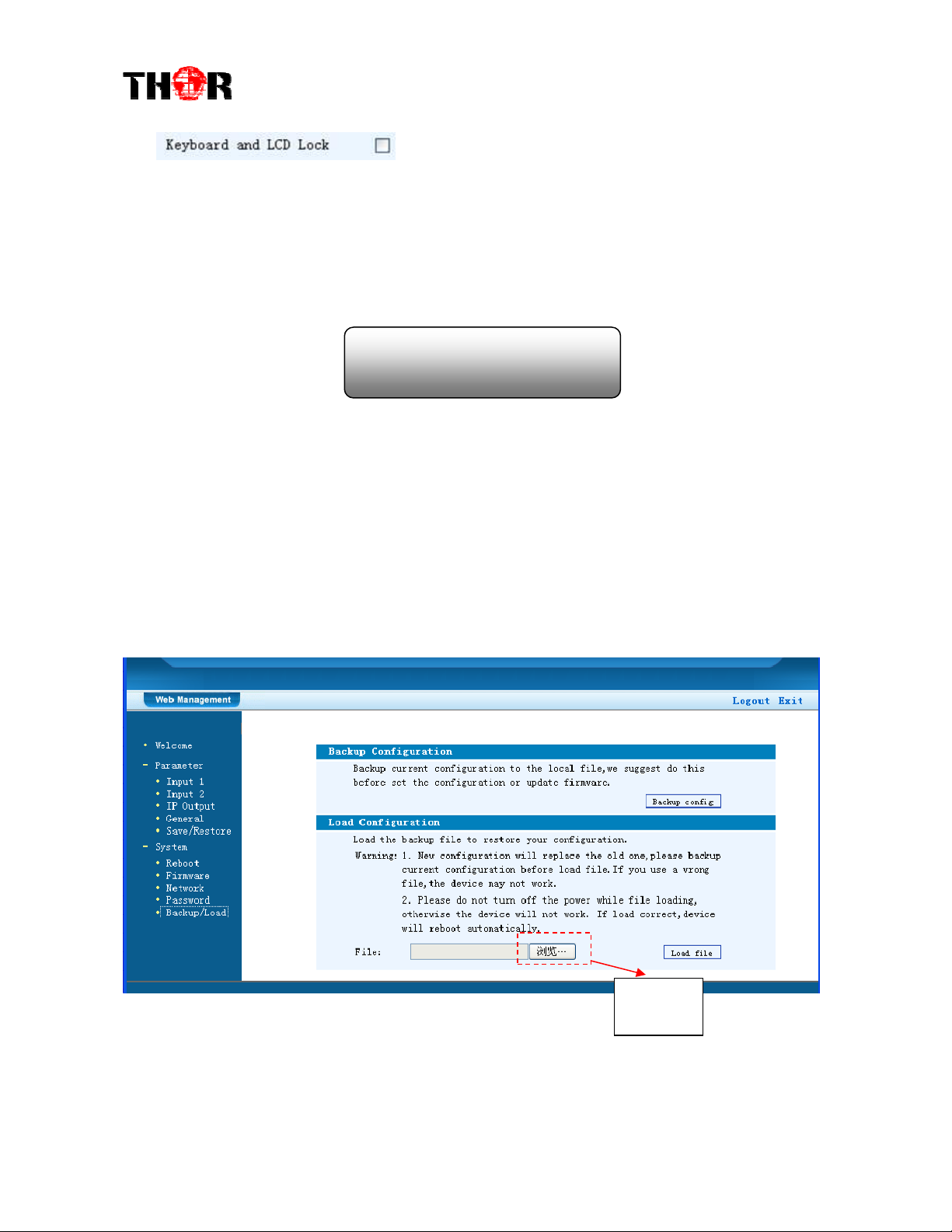

Click “Backup/Load” from the menu, it will display the screen as in Figure-11.
Backup Configuration – To back up the device configuration file to a folder
Load Configuration – If user needs to load the old configuration to the device, click
“Browse” and find the backup configuration file path. After selecting the file, click
“Load File” to load the backup file to the device.
Figure-11
Browse
Page 26
H-2/4HD-EM(S/H)
Chapter 5 Troubleshooting
THOR’s ISO9001 quality assurance system has been approved by the CQC
organization. We guarantee the products’ quality, reliability and stability. All THOR
products haven passed all testing and manual inspections before they are shipped
out. The testing and inspection scheme already covers all the Optical, Electronic
and Mechanical criteria which have been published by THOR. To prevent a
potential hazard, please strictly follow the operation conditions.
Prevention Measures
Installing the device in a place where the environmental temperature is
between 0 to 45 °C
Making sure the unit has plenty of ventilation for the heat-sink on the rear
panel; and other heat-sink bores if necessary
Checking the AC input within the power supply and ensure it is working, the
connection is correctly installed before switching on device
Checking the RF output levels to stay within a tolerable range, if it is
necessary
Checking all signal cables have been properly connected
Frequently switching on/off device is prohibited; the interval between every
switching on/off must be greater than 10 seconds.
Conditions needed to unplug power cord
Power cord or socket damage.
Any liquid that got into the device.
Any stuff that could cause a circuit short
Device in damp environment
Device has suffered from physical damage; i.e. it fell off a rack.
Longtime idle.
After switching on and restoring to factory setting, device still won’t work
properly.
Maintenance needed on device
Page 27
H-2/4HD-EM(S/H)
Chapter 6 Packing List
Thor H-HD-ME Encoder x 1
User Manual x 1
SDI Cables x 1
Power Cord x1
Loading...
