Page 1
Thor Fiber 2018 Tel: (800) 521-8467 Email: [email protected] http://www.thorbroadcast.com
User Manua
l
H-PCKT-MOD
Encoder Modulator
2018
Page 2
H-PCKT-MOD
Thor Fiber 2018 Tel: (800) 521-8467 Email: [email protected] http://www.thorbroadcast.com
A Note from Thor Broadcast about this Manual
Intended Audience
This user manual has been written to help people who have to use, integrate and to install
the product. Some chapters require some prerequisite knowledge in electronics and
especially in broadcast technologies and standards.
Disclaimer
No part of this document may be reproduced in any form without the written permission of
Thor Broadcast.
The contents of this document are subject to revision without notice due to continued
progress in methodology, design and manufacturing. Thor shall have no liability for any
error or damage of any kind resulting from the use of this document.
Copy Warning
This document includes some confidential information. Its usage is limited to the owners of
the product that it is relevant to. It cannot be copied, modified, or translated in another
language without prior written authorization from Thor Broadcast.
Page 3
H-PCKT-MOD
Thor Fiber 2018 Tel: (800) 521-8467 Email: [email protected] http://www.thorbroadcast.com
Table of Contents
HDMI-MODULATOR J.83B/ATSC/DVB-T/ISDB-T BUTTON LAYOUT .............................................................................. 1
SAFETY INSTRUCTIONS ..................................................................................................................................... 1
PRIMARY USE .................................................................................................................................................... 2
NAVIGATION IN THE MENU .................................................................................................................................. 2
APPLICATION DRAWING ..................................................................................................................................... 3
J.83B MENU ...................................................................................................................................................... 4
J.83B – ADVANCED SETTINGS .......................................................................................................................... 4
ATSC MENU ...................................................................................................................................................... 4
ATSC – ADVANCED SETTINGS .......................................................................................................................... 5
DVB-T MENU .................................................................................................................................................... 5
DVB-T – ADVANCED SETTINGS ........................................................................................................................ 6
ISDB-T MENU ................................................................................................................................................... 6
ISDB-T – ADVANCED SETTINGS ....................................................................................................................... 7
PACKING LIST .................................................................................................................................................... 7
Page 4
H-PCKT-MOD
Thor Fiber 2018 Tel: (800) 521-8467 Email: [email protected] http://www.thorbroadcast.com

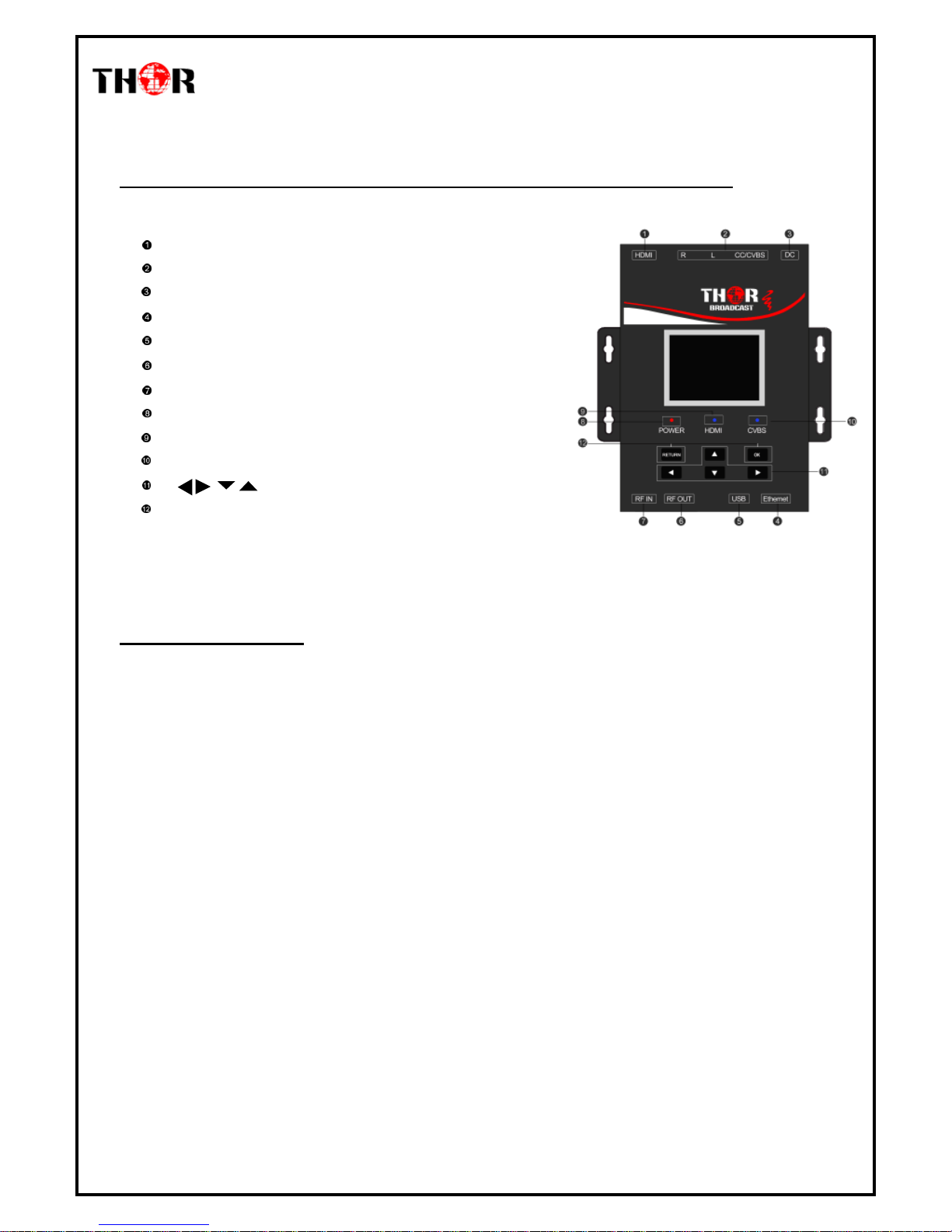

HDMI-Modulator J.83B/ATSC/DVB-T/ISDB-T Button Layout
HDMI
HDMI Signal input
CVBS/ CC
CVBS or Signal input
DC
Power Supply 12V DC 1A
Ethernet
RJ45 connector for service
Micro USB
PC connector for service & update
RF Out
RF Signal output
RF In
RF Signal loop-through input
Power LED
Lit when device is powered on
HDMI LED
Lit when HDMI is in operation
CVBS LED
Lit when CVBS is in operation
Control buttons for menu functions
OK/Return
Enter & Escape buttons for menu
Safety Instructions
Please make sure the DC adaptor is securely plugged in before operation of the unit, if
there are any tears or obstructions to the power supply, do not turn on PCKT-MOD
Install in a dust-free, dry environment, vapors, water or moisture present. Protect the unit
from direct sunlight so it doesn’t overheat. Do not install near any heat sources or at ambient
temperatures >50℃. Make sure the unit is in a well ventilated and the ventilation slots are not
obstructed!
To avoid any short circuits that are excluded from Thor’s warranty are: damage caused by
improper handling, external influences, liquids, incorrect connection or incorrect operation as
well as damage due to blunt force and overvoltage.
Follow any relevant standards, regulations and guidelines for installation and always use
proper care when handling the units to ensure its life expectancy
Page 5
H-PCKT-MOD
Thor Fiber 2018 Tel: (800) 521-8467 Email: [email protected] http://www.thorbroadcast.com
Primary Use
This Thor Broadcast H-PCKT-MOD handheld pocket modulator is used to feed audio-video
signals through the HDMI or AV connector to inject into an existing coaxial cable network.
Signals from surveillance cameras, media-players, satellite receivers or computers are fed through
the input then output via RF-modulation and available to any number of receivers (TV, cable settop-box) over long distances of coax or hybrid fiber/coax infrastructures.
Navigation in the menu
1. In the menus, you can use the keys to select between preset values.
2. To enter numeric values, move the cursor to the line, then press OK. Then use
buttons to move the cursor to the digit you want to change and change it by pressing
buttons.
3. To enter alphanumeric values, press OK and an overview of the character set opens. Use
the keys to move the cursor. Press OK to accept the desired number/letter. You
can correct your entries if needed. Place the cursor on <- or -> and press OK, you will move
to the next letter.
To delete, move the cursor to “Del”. Exit the input window by pressing RETURN.
If you have changed any values, these are only applied and saved after your confirmation.
Make sure you save your work; leave the main menu by pressing RETURN, A dialogue box
will appear. To confirm, select “yes” at the question “Save Changes”. If you select “No”,
your entries will not be saved.
Page 6
H-PCKT-MOD
Thor Fiber 2018 Tel: (800) 521-8467 Email: [email protected] http://www.thorbroadcast.com

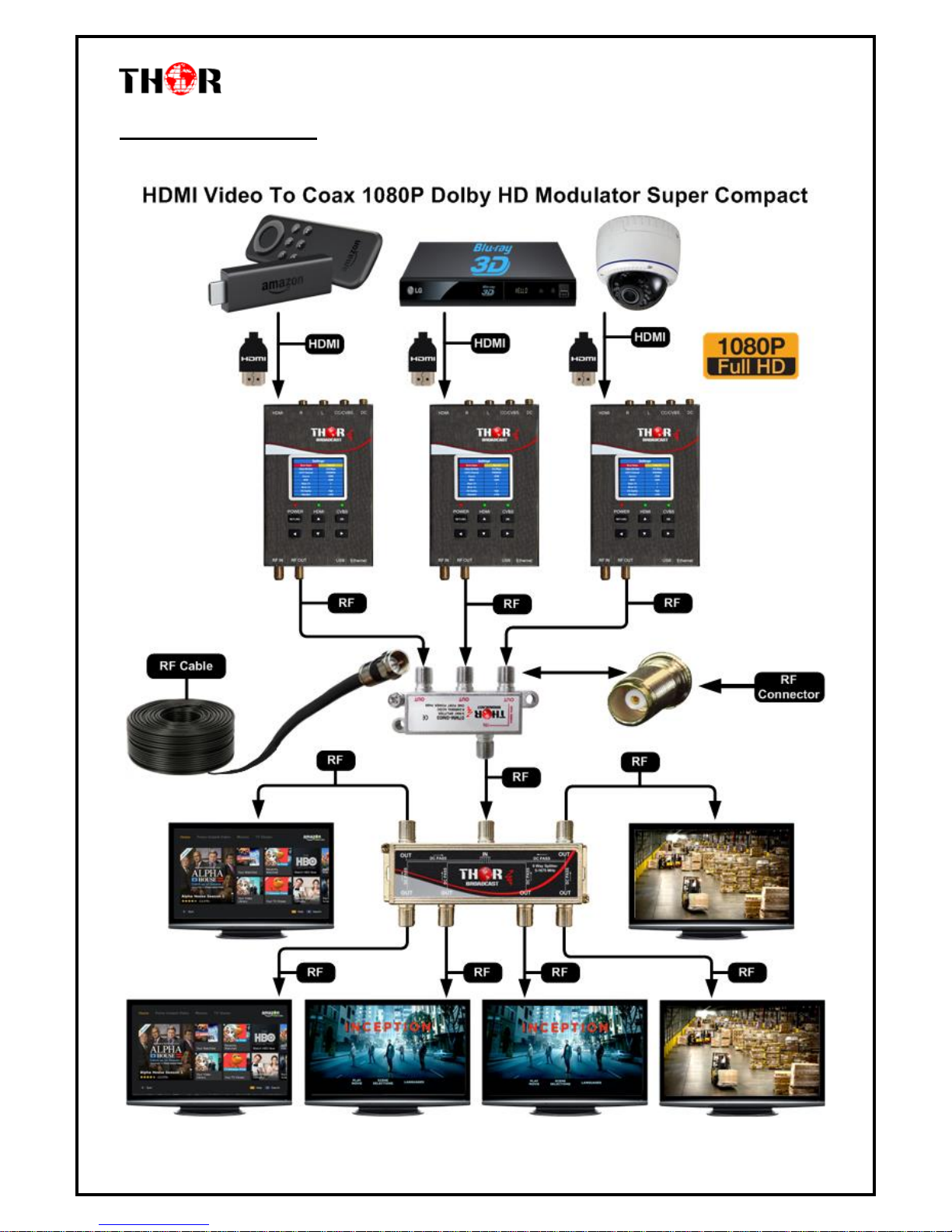

Application Drawing
Page 7
H-PCKT-MOD
Thor Fiber 2018 Tel: (800) 521-8467 Email: [email protected] http://www.thorbroadcast.com
J.83B Menu
J.83B – Advanced Settings
Service ID
Alphanumeric
TS ID
[0000-65535]
Min BR
Minimum bitrate,2000 kbps
Max BR
Maximum bitrate 24000 kbps
Audio Encoder
MPEG1 / AC3 / AAC
PMT PID
[32-8190]
Video PID
[32-8190]
Audio PID
[32-8190]
PCR PID
[32-8190]
Network
Check and set the IP
Factory Default
Reset to factory settings
ATSC Menu
Frequency (MHz)
Output Frequency
Short Name
Press OK to edit
Major Ch
Press OK to edit
Minor Ch
Press OK to edit
Modulation
Select 64 or 256QAM
RF Attenuation
attenuation of the output (0-30dB attenuation>output level 100-70 dBuV)
More
If necessary, you can set further values here
Version
Check the device SW version
Frequency (MHz)
Output Frequency
Short Name
Press OK to edit
Major Ch
Press OK to edit
Minor Ch
Press OK to edit
RF Attenuation
attenuation of the output (0-30dB attenuation>output level 100-70 dBuV)
More
If necessary, you can set further values here
Version
Check the device SW version
Page 8
H-PCKT-MOD
Thor Fiber 2018 Tel: (800) 521-8467 Email: [email protected] http://www.thorbroadcast.com
ATSC – Advanced Settings
Service ID
Alphanumeric
TS ID
[0000-65535]
Min BR
Minimum bitrate,2000 kbps
Max BR
Maximum bitrate 24000 kbps
Audio Encoder
MPEG1 / AC3 / AAC
PMT PID
[32-8190]
Video PID
[32-8190]
Audio PID
[32-8190]
PCR PID
[32-8190]
Network
Check and set the IP
Factory Default
Reset to factory settings
DVB-T Menu
Frequency (MHz)
Output Frequency
Bandwidth
Bandwidth 6M / 7M / 8M，typical value:8MHz at 474-786 MHz or 7 MHz at 177.5-
226.5 MHz
Service Name
Press ENTER to change the service name. Under this name，the output signal
appears in a channel list，enter up to 15 alphanumeric characters
LCN
With LCN ( Logical Channel Numbering )，compatible TVs sort the modulated
signal during the search according to the number in the channel list entered here
RF Attenuation
Attenuation of the output (0-30dB attenuation>output level 100-70 dBuV)
More
If necessary, you can set further values here
Version
Check the device SW version
Page 9
H-PCKT-MOD
Thor Fiber 2018 Tel: (800) 521-8467 Email: [email protected] http://www.thorbroadcast.com
DVB-T – Advanced Settings
Service Provider
alphanumeric
Network ID
[0000-65535]
ONID
[0000-65535]
TS ID
[0000-65535]
Service ID
[0000-65535]
Min BR
Minimum bitrate,2000 kbps
Max BR
Maximum bitrate 24000 kbps
Modulation
QPSK / QAM16 / QAM64
FFT
Fast Fourier Transform Mode 2K / 8K
Guard Interval
1/4 / 1/8 / 1/16 / 1/32
Code Rate
1/2 / 2/3 / 3/4 / 5/6 / 7/8
PMT PID
[32-8190]
Video PID
[32-8190]
Audio PID
[32-8190]
PCR PID
[32-8190]
Network
Check and set the IP
Factory Default
Reset to factory settings
ISDB-T Menu
Frequency (MHz)
Output Frequency
Service Name
Press ENTER to change the service name. Under this name, the output signal
appears in a channel list, enter up to 15 alphanumeric characters
Key ID
Compatible TVs sort the modulated signal during the search according to the
number in the channel list entered here
RF Attenuation
Attenuation of the output (0-30dB attenuation>output level 100-70 dBuV)
More
If necessary, you can set further values here
Version
Check the device SW version
Page 10
H-PCKT-MOD
Thor Fiber 2018 Tel: (800) 521-8467 Email: [email protected] http://www.thorbroadcast.com
ISDB-T – Advanced Settings
Service Provider
alphanumeric
Network ID
[0000-65535]
ONID
[0000-65535]
TS ID
[0000-65535]
Service ID
[0000-65535]
Min BR
Minimum bitrate,2000 kbps
Max BR
Maximum bitrate 24000 kbps
Modulation
QPSK / QAM16 / QAM64
FFT
Fast Fourier Transform Mode 2K / 8K
Guard Interval
1/4 / 1/8 / 1/16 / 1/32
Code Rate
1/2 / 2/3 / 3/4 / 5/6 / 7/8
PMT PID
[32-8190]
Video PID
[32-8190]
Audio PID
[32-8190]
PCR PID
[32-8190]
Network
Check and set the IP
Factory Default
Reset to factory settings
Packing List
Thor Broadcast H-PCKT-MOD 1 PC
User's Manual 1 PC
HDMI Cables 1 PCS
Power Cord 1 PC
For Further Tech Support
1-800-521-Thor(8467)
