About this Setup and User Guide

Used Symbols

A note provides additional information about a topic.

A caution

warns you about potential problems or specific precautions that need to be taken.

Terminology

Generally, the THOMSON TG797n v2 will be referred to as Thomson Gateway in this Setup and User Guide.

Typographical Conventions

Following typographical convention is used throughout this manual:

 Sample text indicates a hyperlink to a Web site.

Example: For more infor

mation, visit us at www.technicolor.com.

 Sample text indicates an internal cross-reference.

Example: If you want to know more about guide, see “1 Introduction” on page 7”.

 Sample text indicates an important content-related word.

Example: To enter the network, you mu

st authenticate yourself.

 Sample text indicates a GUI element (commands on menus and buttons, dialog box elements, file

names, paths and folders).

Example: On the File menu, click Op

en to open a file.

Documentation and software updates

THOMSON continuously develops new solutions, but is also committed to improving its existing products.

For more information on THOMSON's latest technolog

ical innovations, documents and software releases,

visit us at www.technicolor.com.

DMS-CTC-20101208-0018 v1.0

About this Setup and

User Guide

DMS-CTC-20101208-0018 v1.0

Getting Started

1 Getting Started

Introduction

This chapter gives you a brief overview of the main features and components of the Thomson Gateway. After this chapter we will start with the installation.

Do not connect any cables to the Thomson Gateway until instructed to do so.

DMS-CTC-20101208-0018 v1.0

Getting Started

1.1 Features At A Glance

Introduction

This section provides a brief overview of the main features of your Thomson Gateway.

Internet connection features

 Broadband Internet access via the integrated DSL modem.

The first chapters describe how to connect your Thomson Gateway to the Internet.

 Internet Security for your entire network.

For more information, see “10 Internet Security” on page 91.

 Useful network tools like UPnP, Dynamic DNS and many more.

For more information, see “9 Thomson Gateway Network Services” on page 79.

Local networking features

 Wired access for your local network devices via the Ethernet interface.

For more information, see “3.3.2 Setting up a Wired Connection” on page 28.

 Wireless access for your local network devices via the integrated IEEE 802.11n wireless access point.

For more information, see “5 The Thomson Gateway Wireless Access Point” on page 39.

 An Integrated Media Server allowing you to share your media with media players and other network

devices. For more information, see “8 Sharing Content on your Thomson Gateway” on page 65.

Telephony features

The Thomson Gateway offers Voice over IP (VoIP) connectivity for traditional phones, DECT phones and IP phones. For more information see “6 Telephony” on page 45

ECO label

THOMSON’s ECO label guarantees you that the Thomson Gateway is able to reduce its power consumption to an absolute minimum. For more information, see “7 Saving Energy with Your Thomson Gateway” on

page 61.

Thomson Gateway configuration tools

 The Thomson Gateway Setup CD allows you to configure your Thomson Gateway and helps you to

connect your computers to the Thomson Gateway.

 The Thomson Gateway GUI allows you to configure your Thomson Gateway via your web browser.

For more information, see “4.1 Thomson Gateway GUI” on page 32.

DMS-CTC-20101208-0018 v1.0

Getting Started

1.2 Components

Overview

This section provides an overview of the different components of the Thomson Gateway:

Topic Page

1.2.1 Power 6

1.2.2 Local Network Connection 7

1.2.3 Broadband Connection 8

1.2.4 Voice Connection 9

1.2.5 Buttons 10

1.2.6 Status LEDs 11

DMS-CTC-20101208-0018 v1.0

Getting Started

1.2.1 Power

Overview

Power inlet

The power inlet () allows you to connect the power supply.

Power switch

The power switch () allows you to power on/off your Thomson Gateway.

Only use the power supply delivered with your Thomson Gateway.

DMS-CTC-20101208-0018 v1.0

Getting Started

1.2.2 Local Network Connection

Overview

Wireless Access Point

The built-in WiFi-certified wireless access point provides wireless access to your WiFi-certified wireless clients.

For more information, see “5 The Thomson Gateway Wireless Access Point” on page 39.

Ethernet switch

The Ethernet switch () allows you to connect an Ethernet device (for example, a computer) to your local network. For more information, see “3.3.2 Setting up a Wired Connection” on page 28.

A LED may be provided per Ethernet port to indicate link integrity (or activity).

USB Port

The USB port () can be used to:

 Connect a USB mass storage device to share your content (for example, music, movies,...):

 On your local network via the Network File server or the UPnP AV Media Server.

 On Internet via FTP.

For more information, see “8 Sharing Content on your Thomson Gateway” on page 65.

LED Status Description

Solid on Device connected.

Blinking Device connected and sending/receiving data.

Off No device connected.

DMS-CTC-20101208-0018 v1.0

Getting Started

1.2.3 Broadband Connection

Overview

DSL port

This port can be used to connect your Thomson Gateway to your service provider’s DSL network.

DSL

DMS-CTC-20101208-0018 v1.0

Getting Started

1.2.4 Voice Connection

Overview

DECT base station

The integrated DECT base station allows you to connect your DECT phones to the Thomson Gateway. This way you will be able to make phone calls over the Internet and save on communication costs, especially for long-distance calls.

Phone Port

The Phone ( ) port allows you to connect a traditional phone to your Thomson Gateway. This way you will be able to make phone calls over the Internet and save on communication costs, especially for long-distance calls.

For more information, see “6.1 Setting Up Your Telephone Network” on page 46.

PSTN Port (optional)

The PSTN port allows you to connect the Thomson Gateway to the traditional telephone network, i.e. the Public Switched Telephone Network (PSTN). When the VoIP connection is not available, the Thomson Gateway will automatically switch from VoIP to the traditional telephone network.

For more information, see “6.1.2 Connection to the Traditional Telephone Network” on page 48.

If your Thomson Gateway does not have a PSTN port, this means that:

 Your Thomson Gateways has an integrated filter

The Thomson Gateway separates the phone signal from the signal coming from the DSL port. Your Thomson Gateway has an integrated filter if the product name printed on the label of your Thomson Gateway ends with “wIF” (with Integrated Filter). If this suffix is not present, then your Thomson Gateway does not have an integrated filter.

- or -

 Your Thomson Gateway is VoIP-only

All calls passing through the Thomson Gateway will be done via VoIP.

Be aware that, if you are not connected to the traditional telephone network, emergency calls will not be possible when your Internet connection is down or your Thomson Gateway is powered off.

DMS-CTC-20101208-0018 v1.0

Getting Started

1.2.5 Buttons

Overview

DECT Pairing/Paging button

If you press the DECT pairing/paging button:

 Between 1 and 5 seconds, the Thomson Gateway pages all connected DECT phones.

 Longer than 5 seconds, switches to registration mode to allow you to connect your DECT phone(s) to the

integrated DECT base station of the Thomson Gateway. For more information, see “6.1.1 Connecting a DECT Phone to Your Thomson Gateway” on page 47.

WPS button

The WPS ( ) button allows you to add new wireless clients to your network in a swift and easy way, without the need to enter any of your wireless settings manually.

For more information, see “5.1 Connecting Your Wireless Client via WPS” on page 40.

Reset button

The Reset button allows you to reset your Thomson Gateway to factory defaults.

For more information, see “11.6 Reset to Factory Defaults” on page 105.

Reset

DMS-CTC-20101208-0018 v1.0

Getting Started

1.2.6 Status LEDs

Introduction

On the front panel of your Thomson Gateway, you can find a number of status LEDs, indicating the state of the device.

Power LED

Ethernet LED

Colour State Description

Green Solid on Power on, normal operation

Blinking Bootloader active (during upgrade)

Red Solid on Power on, self-test failed, indicating device malfunction

Orange Solid on Bootloader selftest

Blinking Bootloader active (during upgrade)

Off The Thomson Gateway is powered off.

Colour State Description

Green Solid on Network device connected to the Ethernet switch.

Blinking Network device connected to the Ethernet switch and

sending/receiving data.

Off No Ethernet connection on your local network

Upgrade

Power

Ethernet

USB

Wireless

Voic e

Broadband

Internet

DECT

DMS-CTC-20101208-0018 v1.0

Getting Started

Wireless LED

Broadband LED

Internet LED

Phone LED

Colour State Description

Green Solid on No wireless activity, WPA(2) encryption

Blinking Wireless activity, WPA(2) encryption

Orange Solid on No wireless activity, WEP encryption

Blinking Wireless activity, WEP encryption

Red Solid on No wireless activity, no security

Blinking Wireless activity, no security

Red/green Toggling Wireless client registration phase

Off Wireless access point disabled

Colour State Description

Green Solid on DSL line synchronised

Blinking Trying to detect carrier signal or pending DSL line

synchronisation

Off Thomson Gateway powered off.

Colour State Description

Green Solid on Connected to the Internet, no activity

Blinking Connected to the Internet, sending/receiving data

Red Solid on Failed to setup the Internet connection

Off No Internet connection

Colour State Description

Green Solid on Registered at your VoIP provider, no activity.

Blinking Registered at your VoIP provider, activity.

Off Not registered to your VoIP provider.

DMS-CTC-20101208-0018 v1.0

Getting Started

DECT LED

Colour State Description

Green Solid on DECT service up

Blinking DECT activity or registering DECT clients

Off DECT service down

DMS-CTC-20101208-0018 v1.0

Getting Started

1.3 Mounting The Optional DECT Cradle

Introduction

Your box may contain a DECT cradle. This DECT cradle allows you to seamlessly integrate your DECT phone into your Thomson Gateway.

Mounting the docking station on the Thomson Gateway

Proceed as follows:

1 On the bottom of you device, remove the overlay covering the DECT slot.

2 Insert the DECT cradle in the DECT slot.

3 The DECT cradle is now ready for use. You can now recharge the batteries of your DECT phone by placing

it in the cradle.

DMS-CTC-20101208-0018 v1.0

Getting Started

Can I start making phone calls now?

No, first you have to complete the installation of your Thomson Gateway and then your have to register your DECT phone. For more information about registering DECT phones, see “6.1.1 Connecting a DECT Phone to

Your Thomson Gateway” on page 47.

How to remove the DECT cradle

To remove the cradle from the Thomson Gateway:

1 Turn the Thomson Gateway upside-down.

2 Support the DECT cradle with your hand and press the release button.

3 Keep the release button down while removing the DECT cradle.

DMS-CTC-20101208-0018 v1.0

Getting Started

1.4 Preparing for the Installation

DSL service requirements

Make sure that:

 Your service provider activated the DSL service on your telephone line by your service provider.

 You have the installation information (for example, user name, password, service profile,...) provided by

your service provider at hand.

Local connection requirements

Wireless connection

If you want to connect your computer using a wireless connection, your computer must be equipped with a WiFi-certified wireless client adapter.

Wired connection

If you want to connect a computer using a wired connection, your computer must be equipped with an Ethernet Network Interface Card (NIC).

Start with the installation

You are now ready to start with the installation of your Thomson Gateway.

DMS-CTC-20101208-0018 v1.0

Guided Installation

2 Guided Installation

Introduction

In the guided installation, the Setup wizard on the Setup CD will assist you with the installation of your Thomson Gateway.

If you do not want to use the Setup CD or if the Setup CD is not included in your package, follow the installation procedure described in “3 Manual Installation” on page 21.

Requirements

To use the guided installation you must comply with the following requirements:

 Your computer must run one of the following operating systems:

 Microsoft Windows 7 and higher

 Microsoft Windows 7 x64 and higher

 Microsoft Windows Vista and higher

 Microsoft Windows XP Service Pack 2 (SP2) and higher

 Mac OS X 10.6 (Snow Leopard)

 Mac OS X 10.5 (Leopard)

 Mac OS X 10.4 (Tiger)

 You must have administrative rights on your computer.

If you do not comply with these requirements, use the “3 Manual Installation” on page 21.

Running the Setup wizard

To start the Setup wizard:

1 Insert the Setup CD into your computer's CD- or DVD drive.

2 If your computer runs:

 Microsoft Windows: The Setup CD starts automatically.

If the Setup CD does not autostart, see “ The Setup CD does not start automatically” on page 100.

 Mac OS X: Double-click Menu in the window with the content of the Setup CD.

3 Select the language of your choice and click OK.

4 The Setup wizard will now guide you through the installation of your Thomson Gateway.

DMS-CTC-20101208-0018 v1.0

Guided Installation

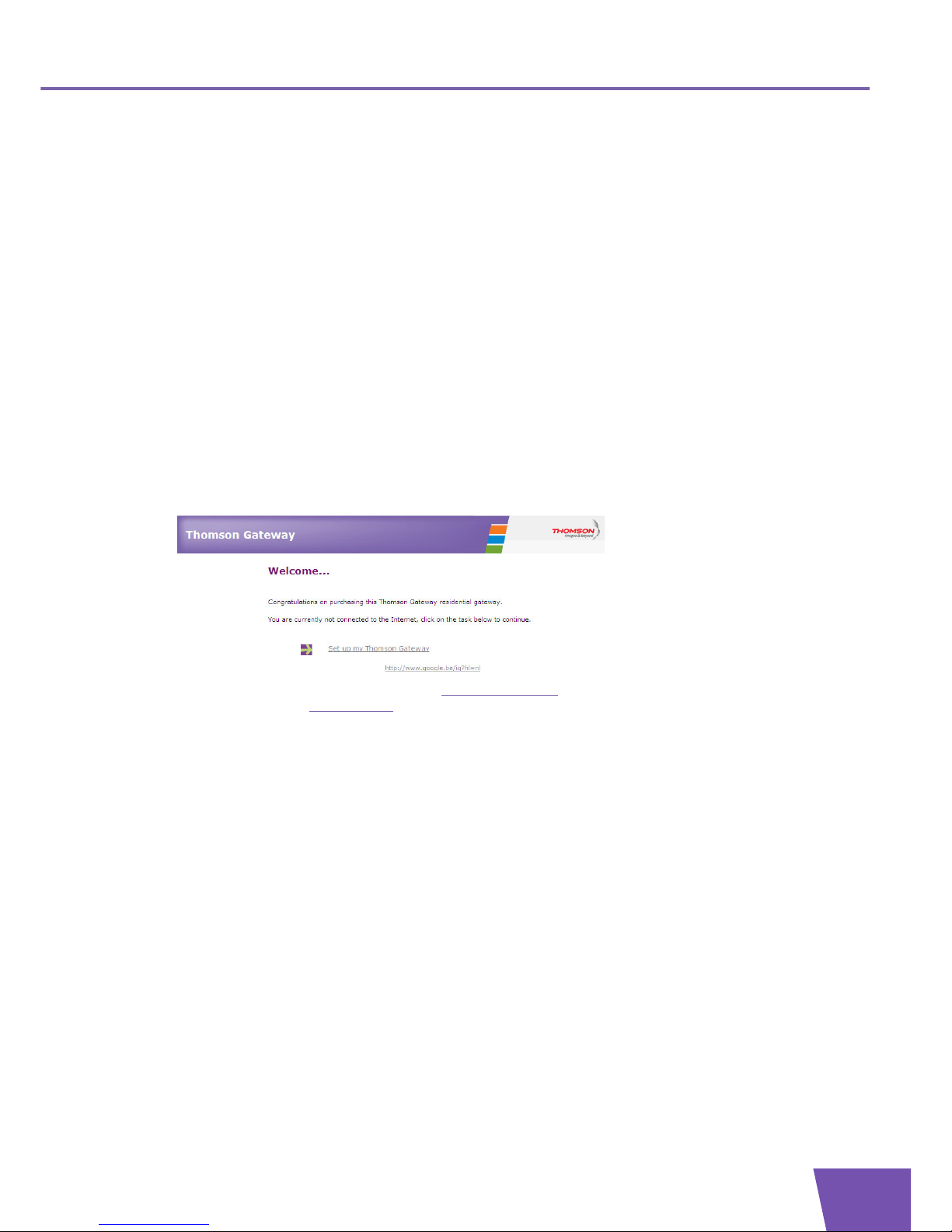

5 At the end of the installation, the following screen appears:

Select Go to the Thomson Gateway web interface if you want to go to the Thomson Gateway GUI after closing the wizard. On the Thomson Gateway GUI, you can configure all services of your Thomson Gateway.

6 Click Finish.

7 The CD menu appears.

CD Menu

On the CD Menu, you can click:

 Initial Setup to connect your computer to the Thomson Gateway and configure your local network.

 Reconfigure my Thomson Gateway to fully reconfigure your Thomson Gateway.

 Setup my computer to connect your computer to the Thomson Gateway network.

 Documentation to view a list of the documentation that is available for your Thomson Gateway.

If you reconfigure your Thomson Gateway via the CD menu, the Thomson Gateway will be reconfigured from scratch. All your current settings will be lost. If you only want to make small changes to your configuration (for example, changing the security), we recommended you to do this via the Thomson Gateway GUI. For more information, see “4.1 Thomson Gateway GUI”

on page 32.

DMS-CTC-20101208-0018 v1.0

Guided Installation

 Visit technicolor.com to visit the online support sections.

In case of problems

If you encounter problems during this installation please refer to “11.1 Setup Troubleshooting” on page 100.

Backup your configuration

Once you successfully installed your Thomson Gateway, it is recommend to backup your configuration. This will allows you to return to this configuration when needed (for example, after misconfiguration).

For more information, see “4.2 Backing Up/Restoring your Configuration” on page 37

Actual available items depend on the Setup CD delivered with your Thomson Gateway.

DMS-CTC-20101208-0018 v1.0

Guided Installation

DMS-CTC-20101208-0018 v1.0

Manual Installation

3 Manual Installation

Installation

This chapter will help you to manually install your Thomson Gateway.

Setting up your network

Proceed as follows:

1 Connect your Thomson Gateway to your service provider’s network.

For more information, see “3.1 Connecting the Thomson Gateway to your Service Provider’s Network”

on page 22.

2 Power on the Thomson Gateway.

For more information, see “3.2 Powering on the Thomson Gateway” on page 25.

3 Connect your computer to the Thomson Gateway.

For more information, see “3.3 Connecting Your Network Devices to the Thomson Gateway” on page 26.

4 Configure your Thomson Gateway.

For more information, see “3.4 Configure the Thomson Gateway” on page 29.

5 Connect your (DECT) phones

For more information, see “6 Telephony” on page 45.

6 Share your content or media on your local network, continue with “8 Sharing Content on your Thomson

Gateway” on page 65.

7 Once you successfully installed your Thomson Gateway, it is recommend to backup your configuration.

This will allows you to return to this configuration when needed (for example, after misconfiguration). For more information, see “4.2 Backing Up/Restoring your Configuration” on page 37

DMS-CTC-20101208-0018 v1.0

Manual Installation

3.1 Connecting the Thomson Gateway to your Service Provider’s Network

Introduction

This section helps you to connect the Thomson Gateway to your service provider’s network.

Signal arriving at your home

The Line signal that arrives at your home consists the following components:

 A Phone signal carrying the traffic for telephony.

 A DSL signal carrying the Internet traffic.

DSL Gateways have a built-in solution to remove the Phone component. No additional devices are needed, you can connect them directly to the Line.

Telephones do not have this capability, so here you have to use a filter or splitter to remove the DSL signal.

How does a filter/splitter look like

A splitter/filter is a box that typically has the following connectors:

 A Line input

This connector must be connected to the input signal that needs to be filtered.

 A Phone/PSTN output

This connector offers filtered output signal. It only contains the Voice component and can only be used for connecting phones.

 A Modem/DSL output (optional)

This connector offers unfiltered output. It contains both the Phone and DSL signal and can be used to connect your Thomson Gateway.

Connecting the cables

The procedure to be followed depends on the fact if this filter has been integrated into your Thomson Gateway or not.

Check the label of your Thomson Gateway. If the product name contains:

This Phone signal is only used for communication over the traditional telephone network (PSTN). Voice over IP communication will be carried by the DSL signal.

DSL + Voice

Voice

DSL + Voice

Service

Provider

Filter/Splitter

LINE

PHONE

MODEM

DMS-CTC-20101208-0018 v1.0

Manual Installation

 “wIF” (for example THOMSON TG797n v2 wIF) then your Thomson Gateway has an integrated filter. No

external filters are needed. Follow the steps described in “ Scenario 2: A Thomson Gateway without

integrated filter” on page 23.

 No “wiF” (for example THOMSON TG797n v2) then your Thomson Gateway does not have an integrated

filter. Follow the steps described in “ Scenario 2: A Thomson Gateway without integrated filter” on

page 23.

Scenario 1: A Thomson Gateway with integrated filter

Proceed as follows:

1 Take the DSL cable. This is the gray cable that is included in your box.

2 Plug one end of the cable in the grey DSL port on the back of your Thomson Gateway.

3 Plug the other end of the cable:

 In the DSL/Modem output of your splitter/filter.

 Directly into the telephone wall outlet if there is no splitter/filter between the network terminator and

your local phone network.

Scenario 2: A Thomson Gateway without integrated filter

Proceed as follows:

1 Take the DSL cable. This is the grey cable that is included in your box.

2 Plug one end of the cable in the grey DSL port on the back of your Thomson Gateway.

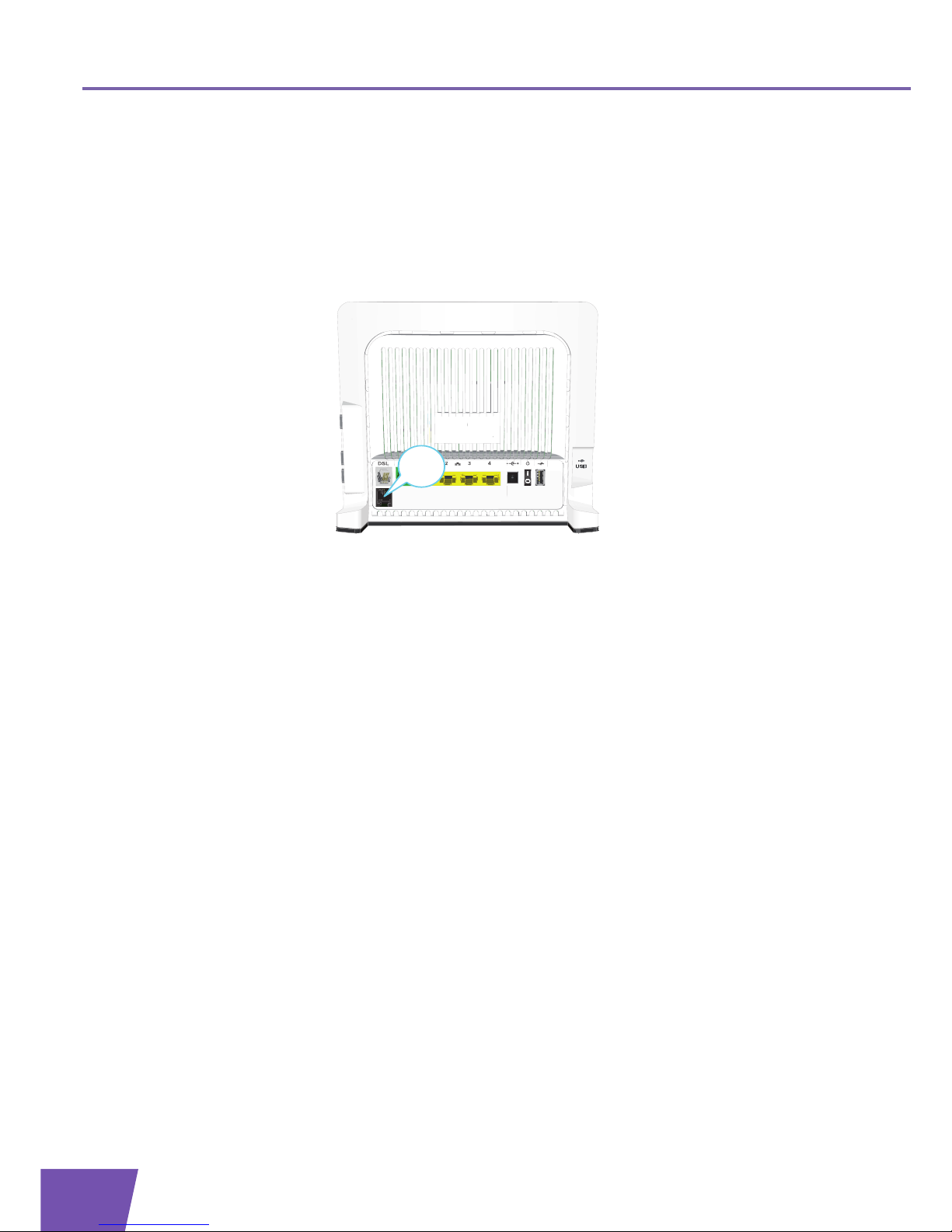

DSL

DMS-CTC-20101208-0018 v1.0

Manual Installation

3 Plug the other end of the cable into the DSL/MODEM output port of your filter/splitter.

If your Thomson Gateway has a black PSTN port on the back, you are able to use the PSTN (this is the traditional telephone network) as a backup for your Voice over IP connection. When the VoIP connection is down, the Thomson Gateway will automatically switch back to the PSTN network.

To setup this backup connection:

1 Take a Telephone Cable

2 Plug one end of the cable in the black PSTN port on the back of your Thomson Gateway.

3 Plug the other end of the cable into the Phone output port of your filter/splitter.

PSTN

DMS-CTC-20101208-0018 v1.0

Manual Installation

3.2 Powering on the Thomson Gateway

Procedure

Proceed as follows:

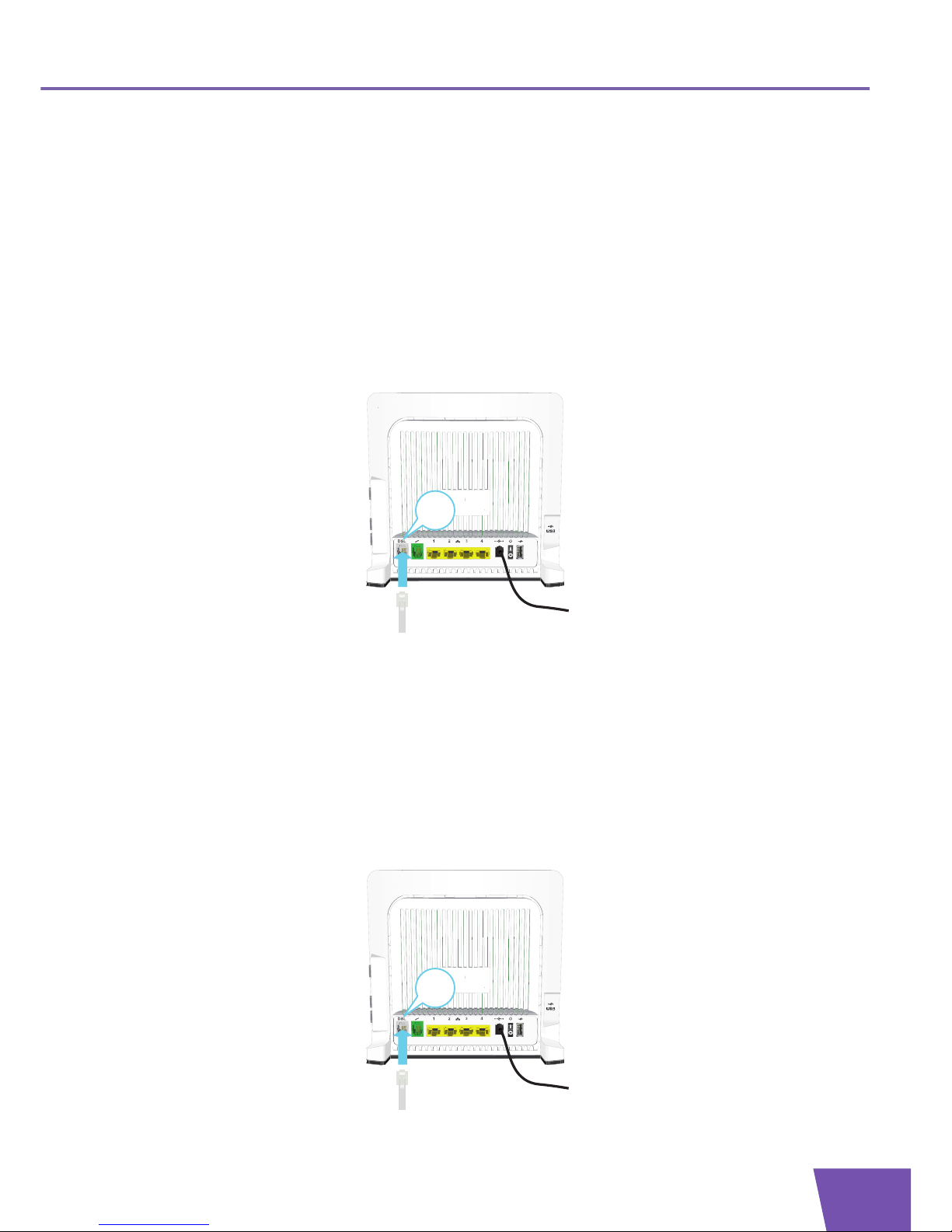

1 Connect the power cord to the power port of the Thomson Gateway.

2 Plug the other end of the power cord into an electrical outlet.

3 Press the power button to turn on the Thomson Gateway.

4 Wait at least two minutes to allow the Thomson Gateway to complete the start up phase.

DMS-CTC-20101208-0018 v1.0

Manual Installation

3.3 Connecting Your Network Devices to the Thomson Gateway

Choose your connection method

To connect your device via:

 A wireless connection, continue with “3.3.1 Setting up a Wireless Connection” on page 27.

 A wired connection, continue with “3.3.2 Setting up a Wired Connection” on page 28.

DMS-CTC-20101208-0018 v1.0

Manual Installation

3.3.1 Setting up a Wireless Connection

The Thomson Gateway access point

Your Thomson Gateway is equipped with a wireless access point that supports the following standards:

 IEEE 802.11n (2.4 Ghz)

 IEEE 802.11g

 IEEE 802.11b

Requirements

Your network device must be equipped with a WiFi-certified wireless client.

Connection speed

When setting up your wireless network, keep in mind that the following factors may have a negative impact on your wireless connection speed:

 The obstacles (walls, ceilings,...) between the wireless client and the access point.

 Distance between the wireless client and the access point.

 To fully benefit from the improved connection speed offered by the IEEE 802.11n standard, it is

recommended to only connect IEEE 802.11n wireless clients to your Thomson Gateway. Connecting older (for example, IEEE 802.11g) wireless clients may also slow down connection speed of the IEEE 802.11n capable clients.

If you have problems with your wireless performance, see “ Poor Wireless Connectivity or Range” on

page 103.

To set up a wireless connections

For more information on how to setup a wireless connection between your network device and your Thomson Gateway, see “5 The Thomson Gateway Wireless Access Point” on page 39.

DMS-CTC-20101208-0018 v1.0

Manual Installation

3.3.2 Setting up a Wired Connection

Requirements

 Both your network device (for example, a computer, a gaming console,...) and Thomson Gateway must

have a free Ethernet port.

 Your network device must be configured to obtain an IP address automatically. This is the default setting.

Ethernet cable

In your package, you will find a cable with yellow connectors. This is the Ethernet cable.

Procedure

Proceed as follows:

1 Connect one end of the Ethernet cable to one of the yellow Ethernet ports of your Thomson Gateway:

2 Connect the other end of the Ethernet cable to your network device.

3 Your network device is now connected to your network. No additional configuration is needed unless

specified by your service provider.

The Thomson Gateway does not support Power over Ethernet (PoE). All network devices that are connected to the Thomson Gateway must be powered by their own power source.

DMS-CTC-20101208-0018 v1.0

Manual Installation

3.4 Configure the Thomson Gateway

Introduction

If your service provider did not preconfigure your Thomson Gateway, you may have to configure the Thomson Gateway via its Graphical User Interface (GUI).

Requirements

JavaScript must be enabled on your web browser (this is the default setting). For more information, consult the help of your web browser.

Procedure

Proceed as follows:

1 Open your web browser.

2 The Thomson Gateway informs you that you have not yet configured your Thomson Gateway.

If this window does not appear, browse to http://dsldevice.lan

or to the IP address of your Thomson

Gateway (by default: 192.168.1.254

) and click Thomson Gateway on the menu on the left-hand side.

3 Click Setup my Thomson Gateway.

4 The Easy Setup wizard appears. This wizard will guide you through the configuration of your Thomson

Gateway. Click Next and follow the instructions.

DMS-CTC-20101208-0018 v1.0

Manual Installation

DMS-CTC-20101208-0018 v1.0

Configuration Tools

4 Configuration Tools

Configuration Tools

You can use the following tools to configure your Thomson Gateway:

 The Thomson Gateway Setup CD allows you to configure your Thomson Gateway and helps you to

connect your computers to the Thomson Gateway. For more information, see “2 Guided Installation” on

page 17.

 The Thomson Gateway GUI allows you to configure your Thomson Gateway via your web browser.

For more information, see “4.1 Thomson Gateway GUI” on page 32.

DMS-CTC-20101208-0018 v1.0

Configuration Tools

4.1 Thomson Gateway GUI

Introduction

The Thomson Gateway Graphical User Interface (GUI) allows you to configure your Thomson Gateway using your web browser.

Requirements

JavaScript must be enabled on your browser (this is the default setting). For more information, consult the help of your web browser.

DMS-CTC-20101208-0018 v1.0

Configuration Tools

4.1.1 Access

Accessing the Thomson Gateway GUI

Proceed as follows:

1 Open your web browser.

2 Browse to http://dsldevice.lan

or to the IP address of your Thomson Gateway (by default: 192.168.1.254).

3 If you have protected your Thomson Gateway with a user name and password, the Thomson Gateway

will prompt you to enter these. Enter your user name and password and click OK.

4 The Thomson Gateway GUI appears.

Access the Thomson Gateway via UPnP

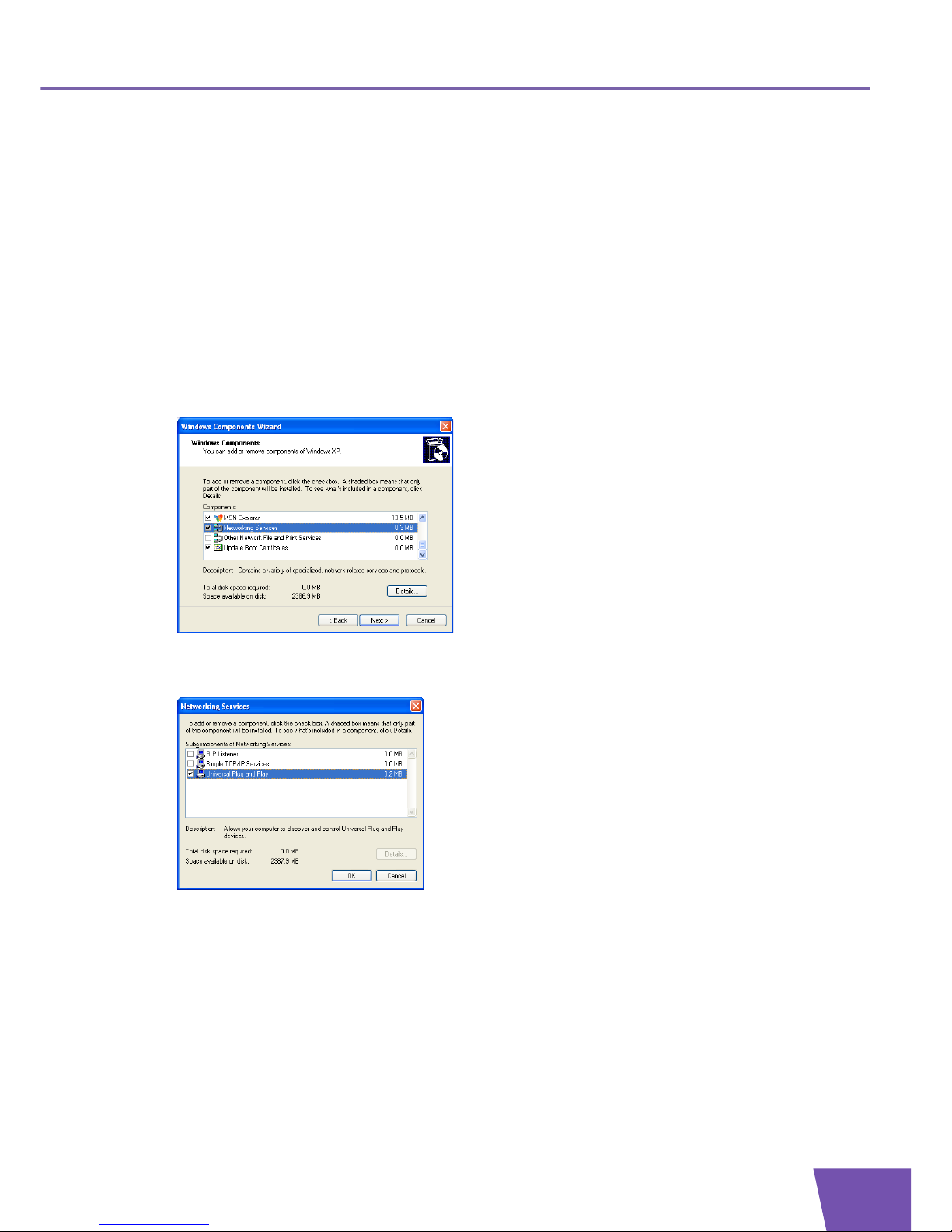

You can also access the Thomson Gateway GUI using the Internet Gateway Device (IGD) icon if your computer runs one of the following operating systems:

 Microsoft Windows 7

 Microsoft Windows Vista

 Microsoft Windows XP

For more information, see “9.1 UPnP” on page 80.

Remote access

It is also possible to access the Thomson Gateway GUI from the Internet. For more information, see

“4.3 Access From the Internet” on page 38.

For more information, see “4.1.3 Protecting Access to the Thomson Gateway” on page 36.

DMS-CTC-20101208-0018 v1.0

Configuration Tools

4.1.2 Components

Overview

Depending on your user right and location on the GUI, the following components can be available:

The menu consists of the following menu items:

 Home:

Allows you to go back to the Thomson Gateway home page.

 Thomson Gateway:

Provides basic information on the Thomson Gateway.

 Broadband Connection:

Allows you to view/configure your broadband connections.

 Toolbox:

Allows you to configure the network services and security settings of your Thomson Gateway.

 Home Network:

Allows you to manage your local network.

 Help:

Allows you to view context-related help information.

Label Description

1 Menu

2 Login section

3 Language bar

4 Notification area

5 Navigation bar

6 Content pane

7 Tasks pane

DMS-CTC-20101208-0018 v1.0

Configuration Tools

Each of these items contain a number of sub-menu items.

In the login section you can see the current user name.

By clicking the user name, you can:

 Change your password.

 Switch to another user.

Language bar

If more than one GUI language is available, a language bar is showed. This language bar allows you to change the language of the Thomson Gateway GUI.

Notification area

The notification area displays:

 Error messages, indicated by a red traffic light.

 Warning messages, indicated by an orange traffic light.

 Information messages, indicated by a green traffic light.

Navigation bar

The Navigation bar displays your current position in the Thomson Gateway GUI.

Some page are available in different configuration levels. These pages have additional links (for example, Overview, Configure) in the right part of the navigation bar that allow you to switch between the configuration levels.

Content pane

The content pane displays the information and configurable items of the selected item.

Tasks pane

To allow a quick configuration of your Thomson Gateway, some pages may offer you a number of related tasks in the Pick a task list. These tasks will guide you to the page where you can perform the selected task.

If none of these events occur, the notification is not shown.

DMS-CTC-20101208-0018 v1.0

Configuration Tools

4.1.3 Protecting Access to the Thomson Gateway

Introduction

To prevent that every user on your local network can access the Thomson Gateway, the Thomson Gateway is secured with a user name and password.

Default user name

The default user name is Administrator.

Default password

The default password is either blank or the ACCESS KEY printed on the label of your Thomson Gateway. This depends on the settings chosen by your Service Provider.

Protected items

The following items are protected by these is will secure access to:

 The Thomson Gateway GUI.

 The embedded FTP Server.

for more information, see “8.3 The FTP Server” on page 74.

How to change your password

Proceed as follows:

1 On the Toolbox menu, click User Management.

2 In the Pick a task list, click Change my password.

3 Enter your new password and click OK.

4 Your new password is now active. The next time that you log on to the Thomson Gateway GUI you will

have to enter this password.

It is recommended to change the default password settings.

Choose a password that your can easily remember or write it down. If you forget your password the only option is to reset your Thomson Gateway. For more information, see “11.6 Reset to

Factory Defaults” on page 105.

This password will also be used by the network file server and FTP server.

For more information about the network file server and FTP server, see “8 Sharing Content on

your Thomson Gateway” on page 65

DMS-CTC-20101208-0018 v1.0

Configuration Tools

4.2 Backing Up/Restoring your Configuration

Introduction

Once you have configured your Thomson Gateway to your needs, it is recommended to backup your configuration for later use. This way you can always return to your working configuration in case of problems.

Backing up your configuration

Proceed as follows:

1 Browse to the Technicolor Gateway GUI.

For more information, see “4.1 Thomson Gateway GUI” on page 32.

2 On the Thomson Gateway menu, click Configuration.

3 In the Pick a task list, click Save or Restore Configuration.

4 Under Backup current configuration, click Backup Configuration Now.

5 The Thomson Gateway prompts you to save your backup file.

6 Save your file to a location of your choice.

Restoring your configuration

Proceed as follows:

1 Browse to the Technicolor Gateway GUI.

For more information, see “4.1 Thomson Gateway GUI” on page 32.

2 On the Thomson Gateway menu, click Configuration.

3 In the Pick a task list, click Save or Restore Configuration.

4 Under Restore saved configuration, click Browse and open your backup file.

5 The Thomson Gateway restores your configuration.

Do not edit the backup files, this may result in corrupt files making them worthless as configuration backup.

Backup files usually have.ini as extension.

DMS-CTC-20101208-0018 v1.0

Configuration Tools

4.3 Access From the Internet

Modes

To access your Thomson Gateway from the Internet, you can choose between two modes:

 Permanent Mode (Remote Access):

The remote session ends when you disable remote assistance or after restarting your Thomson Gateway.

 Temporary Mode (Remote Assistance):

The remote session ends when you disable remote assistance, after restarting your Thomson Gateway or after 20 minutes of inactivity.

To enable Remote Assistance / Remote Access.

To enable remote assistance/access:

1 Browse to the Technicolor Gateway GUI.

For more information, see “4.1 Thomson Gateway GUI” on page 32.

2 Complete and check the following parameters:

 Mode:

Select the mode that you want to use.

 URL:

Contains the URL that must be used to access the Thomson Gateway from the Internet.

 User name and Password:

Contains the user name and password are needed to access your Thomson Gateway remotely. If wanted you can change the automatically generated password in the Password box.

3 Click Enable Remote Assistance.

Accessing your Thomson Gateway from the Internet

Proceed as follows:

1 Open your web browser.

2 Type the URL that was listed in the URL field on the Remote Assistance page (for example https://

141.11.249.150:51003).

3 Enter the user name and password that you specified on the Remote Assistance page.

4 The Thomson Gateway GUI appears.

It is now possible for a remote user to access your Thomson Gateway via the specified URL using the provided user name and password.

Enabling remote assistance is only possible when you are connected to the Internet.

You can replace the IP address in this URL by the dynamic DNS host name if you enabled and configured Dynamic DNS. For more information, see Dynamic DNS.

Example: https://141.11.249.150:51003 can be replaced by https://

mygateway.dyndns.org:51003.

DMS-CTC-20101208-0018 v1.0

The Thomson Gateway Wireless Access Point

5 The Thomson Gateway Wireless Access Point

Introduction

This section will help you set up your wireless network.

What you need to set up a wireless network

To set up a wireless network, you need the following components:

 A Wireless Access Point (already integrated into your Thomson Gateway)

 A Wireless client the device that you want to connect (for example, a computer, smartphone, network

printer,...)

Wireless Access Point

The wireless access point is the heart of your wireless network. The wireless access point:

 Connects different wireless devices.

 Secures the data sent over wireless connection.

The Thomson Gateway comes with an integrated wireless access point.

Wireless client

The wireless client allows you to connect a device, typically a computer, to a wireless access point. Both builtin and external (for example via USB) clients are available.

Check the documentation of your computer if you are not sure if your computer is equipped with a wireless client.

Configuring your wireless clients

For more information on how to establish a wireless connection to the Thomson Gateway, see

“5.1 Connecting Your Wireless Client via WPS” on page 40 and “5.2 Connecting Your Wireless Client without WPS” on page 42.

Secure your wireless connection!

When using an unsecured connection, everyone who is within the range of your Thomson Gateway can access your network. If not:

 People may use your connection to access the Internet.

 Hackers may use your connection to commit computer crimes.

You can easily prevent this by securing your wireless access point. For more information, see “5.3 Securing

Your Wireless Connection” on page 43.

Devices like media players and smartphones may also have a built-in wireless client. Check the documentation of your device for more information.

DMS-CTC-20101208-0018 v1.0

The Thomson Gatewa

y Wireless Access Point

5.1 Connecting Your Wireless Client via WPS

WPS

Wi-Fi Protected Setup (WPS) allows you to add new wireless clients to your local network in a swift and easy way, without the need to enter any of your wireless settings (network name, wireless key, encryption type).

Requirements

 Your wireless client must support WPS. Check the documentation of your wireless client for this.

 Your Thomson Gateway must use WPA(2)-PSK encryption (default encryption) or no encryption. WPS

with WEP encryption is not possible.

Procedure

Proceed as follows:

1 Shortly press the WPS button on the Thomson Gateway:

2 The WPS button LED starts blinking orange. This indicates that the Thomson Gateway is now searching

for wireless clients that are in registration mode. You now have two minutes to start WPS on your wireless client.

3 Start WPS on your wireless client.

4 The Thomson Gateway is now exchanging the security settings.

5 At the end of the procedure the status of the WPS LED will change to either of the following:

 Solid green

This indicates that you have successfully registered your wireless client. You are now connected to the Thomson Gateway network.

 Blinking red

This indicates that the Thomson Gateway could not find your wireless client. Use the same procedure to try again (you do not need to wait until the LED turns off).

Both Windows 7 and Windows Vista Service Pack 1 have native WPS support.

DMS-CTC-20101208-0018 v1.0

The Thomson Gateway Wireless Access Point

Troubleshooting

If you are having trouble connecting your wireless client via WPS, this may be cause by one of the following reasons:

 WPS can not be correctly executed:

Configure your wireless manually. For more information, see “5.2 Connecting Your Wireless Client

without WPS” on page 42.

 Your wireless client is out of range:

If possible move your wireless client closer to your Thomson Gateway or use a wireless repeater to extend the range of your wireless network.

 Another device is interfering on the selected wireless channel:

Change the wireless channel of your Thomson Gateway. For more information, see “ Change the

wireless channel” on page 103.

DMS-CTC-20101208-0018 v1.0

The Thomson Gatewa

y Wireless Access Point

5.2 Connecting Your Wireless Client without WPS

Before you start

Before you can connect a wireless client (for example, a computer) to your wireless network you need to know the wireless settings that are currently used by the Thomson Gateway, i.e.:

 The Network Name (SSID)

 The wireless key

What Network Name (SSID) is my Thomson Gateway using?

If you did not change the SSID, your Thomson Gateway uses the Network Name that is printed on the back panel label of your Thomson Gateway.

What wireless key is my Thomson Gateway using?

If you did not change the security settings, no wireless key is used.

Forgot your wireless key?

If you have changed the wireless settings manually and you can’t remember your settings, try one of the following:

1 Use a computer that is already connected to your network.

2 Browse to the Technicolor Gateway GUI.

For more information, see

“4.1 Technicolor Gateway GUI” on page 50

3 On the Home Network menu, click Wireless.

4 In the upper-right corner, click Details.

5 Under:

 Configuration, you can find the network name (SSID).

 Security, you can find the encryption.

Connecting your wireless client

Configure your wireless client with the same wireless settings as your Thomson Gateway (network name and wireless key). For more information, consult the documentation of your wireless client.

If your service provider did choose to use a default wireless key, use the Wireless Key that is printed on the bottom panel label of your Thomson Gateway.

If none of your computers is connected yet, connect one with an Ethernet cable. For more information, see “3.3.2 Setting up a Wired Connection” on page 28.

DMS-CTC-20101208-0018 v1.0

The Thomson Gateway Wireless Access Point

5.3 Securing Your Wireless Connection

Introduction

You can protect the wireless communication between the wireless clients and your Thomson Gateway with a wireless key. This means that:

 Only clients which use the correct Network Name (SSID) and wireless key can connect to your network.

 All data passing through your wireless access point is secured and encrypted.

Encryption types

Over the years a number of encryption types have been developed. The list below gives you an overview of the supported encryption types ordered by descending security level; you will find the highest level of security at the top of the list:

 WPA-PSK Encryption:

The wireless connection is secured with a pre-shared key that has been defined by the user. Wireless clients must be configured with this key before they can connect to the Thomson Gateway. The Thomson Gateway supports the following WPA versions (ordered by descending security):

 WPA2:

The most recent and most secure version of WPA. Choose this version if you are sure that all your wireless clients support WPA2.

 WPA+WPA2:

This is a mixed mode. In this mode WPA2, is the preferred encryption type but wireless clients do not support WPA2, can still use WPA as encryption type. Choose this option if not all of your wireless clients support WPA2 or if you are not sure. Wireless clients that support WPA2 will use WPA2, the others will use WPA.

 WPA:

The first version of WPA. Choose this option if you are sure that none of your wireless clients support WPA2.

 WEP Encryption:

The least safe encryption type used for wireless connections. Like WPA-PSK it uses a user-defined key, but WEP has been proven to have security issues.

Configuration

Proceed as follows:

1 Open the Thomson Gateway GUI.

2 Under Home Network, click Wireless.

3 The Wireless Access Point page appears. In the upper-right corner, click Configure.

4 Under Encryption, select Use WPA-PSK Encryption.

If you want to configure WPA2 on the built-in wireless utility of Windows XP Service Pack 2 (SP2), you first have to:

 Upgrade your Windows XP to Service Pack 3.

- or -

 Install the following update: http://support.microsoft.com/kb/917021.

Although the Thomson Gateway allows you to use WEP or no security, we strongly advise against using one of them! Use WPA(2)-PSK instead.

DMS-CTC-20101208-0018 v1.0

The Thomson Gatewa

y Wireless Access Point

5 In the WPA-PSK Encryption Key box, type a the key of your choice. The key must be in one of the

following formats:

 8 to 63 alphanumeric characters. For example: MyKey123

 8 to 64 hexadecimal characters (characters from 0 to 9 and from A to F). For example: C54F48A5.

6 In the WPA-PSK Version list, click the WPA-version of your choice. For more information, see “ Encryption

types” on page 43.

7 Click Apply.

8 Reconnect your wireless client(s) to the Thomson Gateway using these new security settings.

For more information, see “5.1 Connecting Your Wireless Client via WPS” on page 40 or “5.2 Connecting

Your Wireless Client without WPS” on page 42.

DMS-CTC-20101208-0018 v1.0

Telephony

6 Telephony

Voice over IP (VoIP)

VoIP is a technology in which telephone calls are made over the Internet. This allows you to save on communication costs, especially for long-distance calls.

The expensive solution

To be able to make your phone calls over the Internet you could either:

 Buy an IP phone.

These IP phones are special phones that you can connect to your Internet Gateway.

 Install VoIP software on your computer and make your phone calls via your computer.

The THOMSON solution

With the Thomson Gateway you can make both VoIP and traditional telephone calls using a traditional analogue phone or A DECT phone.

If your Thomson Gateway is not powered, the traditional telephone network (if connected) will automatically selected. This way you are still able to make emergency calls.

In this chapter

This chapter covers following topics:

Topi c Page

6.1 Setting Up Your Telephone Network 46

6.2 Address Book 51

6.3 Telephony Services 53

6.4 Viewing Call Logs 58

DMS-CTC-20101208-0018 v1.0

Telephony

6.1 Setting Up Your Telephone Network

Procedure

To set up your telephone network, follow these steps:

1 Your Thomson Gateway has an integrated DECT base station. This means that you can register your

DECT phone directly to the Thomson Gateway. For more information, see “6.1.1 Connecting a DECT

Phone to Your Thomson Gateway” on page 47.

2 Connect your traditional phone(s), DECT base station or fax to the green Phone port(s) on the back panel

of your Thomson Gateway.

3 Connect your Thomson Gateway to the traditional network.

For more information, see “6.1.2 Connection to the Traditional Telephone Network” on page 48.

4 Configure the VoIP service on your Thomson Gateway.

For more information, see “6.1.3 Configuring the Thomson Gateway VoIP Service” on page 49.

DMS-CTC-20101208-0018 v1.0

Telephony

6.1.1 Connecting a DECT Phone to Your Thomson Gateway

Introduction

The Thomson Gateway is equipped with a DECT base station allowing you to connect up to five DECT phones.

Before you can start using your DECT phone, you first have to pair it with your Thomson Gateway.

Procedure

Proceed as follows:

1 Put the Thomson Gateway in pairing mode. You can do either of the following:

 Press the DECT button on the Thomson Gateway until the DECT LED on the front panel starts

flashing.

 Via the Thomson Gateway GUI.

1 On the Toolbox menu, click Telephony.

2 Under Pick a task, click DECT pairing.

2 Put your DECT phone in pairing mode.

Consult your DECT phone’s user documentation to register your DECT phone.

3 Your DECT phone prompts you that If the registration is successful, the message “Registered to base x”

appears on the screen of your THOMSON DECT phone.

DMS-CTC-20101208-0018 v1.0

Telephony

6.1.2 Connection to the Traditional Telephone Network

Combining VoIP with the traditional telephone network

Some service providers use the traditional telephone network (PSTN) as a backup solution for your VoIP connection. This way, you can still make calls over the traditional network if the VoIP service is down (for example, your Thomson Gateway is powered off).

Applicability

If your Thomson Gateway:

 Has an integrated filter, no additional connections are needed.

The DSL port must be directly connected to your telephone outlet. Do not put any filter or splitter between them!

 Does not have an integrated filter, check if your Thomson Gateway has a PSTN port on the back panel (for

more information, see “ PSTN Port (optional)” on page 9). If your Thomson Gateway has:

 A PSTN port:

Connect the PSTN port to the Phone output of your filter or splitter.

 No PSTN port, no connections are needed.

This is a VoIP-only variant. All calls passing through the Thomson Gateway will be done via VoIP.

Be aware that, if you are not connected to the traditional telephone network, emergency calls will not be possible when your Internet connection is down or your Thomson Gateway is powered off.

How do I know if my Thomson Gateway has an integrated filter?

Check if the product name printed on the label of your Thomson Gateway ends with “wIF” (with Integrated Filter). If this suffix is not present, then your Thomson Gateway does not have an integrated filter.

DMS-CTC-20101208-0018 v1.0

Telephony

6.1.3 Configuring the Thomson Gateway VoIP Service

Introduction

If your VoIP service has not been configured yet, follow the instructions in this section.

How can I check if the VoIP service has already been configured?

If the Phone LED is:

 Solid or blinking green then the VoIP service is configured correctly. No configuration is needed.

 Off then telephony service is not configured (yet). Follow the instructions below.

Requirements

Your Internet connection must be up and running before you can configure Internet telephony.

Configuring the VoIP settings

Proceed as follows:

1 Enter the proxy and registrar settings.

2 Enter your VoIP account settings.

Enter the proxy and registrar settings

Proceed as follows:

1 Browse to the Technicolor Gateway GUI.

For more information, see

“4.1 Technicolor Gateway GUI” on page 50

2 On the Toolbox menu, click Telephony.

3 In the Navigation bar, click Expert configure.

4 Complete the following fields based on the settings provided by your VoIP provider:

 Proxy:

Type the URL (for example: sip.provider.com) or IP address of the proxy.

 Registrar:

Type the URL (for example: sip.provider.com) or IP address of the registrar.

 Registrar Port and Proxy Port.

In most cases the default port (5060) will be used. Only change these values if your provider is using other port numbers.

5 Click Apply.

Enter your VoIP account settings

Proceed as follows:

1 In the Navigation bar, click Configure.

2 Under Service Configuration, select Enable Telephony.

3 Under Telephone Numbers, complete the following fields:

DMS-CTC-20101208-0018 v1.0

Telephony

 SIP URI:

The Uniform Resource Identifier (URI) of your SIP account (for example: 035051979, john.doe,...). This is the telephone number that people have to dial to call you.

 Username:

The user name of your VoIP account (for example: 035051979, john.doe,...).

 Password:

The password of your VoIP account.

 Displayname:

The name that you want people to see on the display of their phone when you are calling.

 Abbreviated number:

An internal number to call the phones associated with this VoIP account.

 Port:

The phone port that you want to associate with this VoIP account. select

 All to use this VoIP account for all connected phone (fixed + DECT).

 All DECT to use this VoIP account for all connected DECT phones.

 DECT 1/2/3/4/5 to use this VoIP account for one specific DECT phone. You can find the number of

your DECT phone its display.

 Phone 1/2 to use this VoIP account for the phone connected to the Phone 1/2 port of your

Thomson Gateway.

4 Click Apply.

Verifying Telephone Connectivity

Proceed as follows to verify the voice connection:

1 Make sure the Thomson Gateway is turned on.

2 Make sure the Internet telephony service is enabled and configured. The Phone/DECT LED must be solid

green.

3 Pick up your phone, wait for the dialling tone, and dial the number.

Your VoIP provider may not support this feature.

DMS-CTC-20101208-0018 v1.0

Telephony

6.2 Address Book

Introduction

The Address Book page allows you to:

 Store your contacts on the Thomson Gateway GUI.

 Initiate a call or send a message by clicking the phone number or e-mail address in the contact details.

Everyone with access to the Thomson Gateway GUI can view and use the address book.

Accessing the Address Book page

Proceed as follows:

1 Browse to the Technicolor Gateway GUI.

For more information, see

“4.1 Technicolor Gateway GUI” on page 50

2 On the Toolbox menu, click Address Book.

3 The Address Book page appears.

For each contact, you can provide the following information:

 Business: to make a call to the contact’s business telephone number

 Home: to make a call to the contacts home telephone number

 Mobile: to make a call to the contact’s mobile telephone number

 Other or SIP uri: to make a call to the contact’s VoIP telephone number

 E-mail to send an E-mail message to the contact with your e-mail client.

Managing contacts

All information provided per contact is optional except for the last and first name. The information can be updated or completed at any time.

Click... To...

Add Add a contact

Edit Edit a contact

Delete Delete a contact

DMS-CTC-20101208-0018 v1.0

Telephony

Making a phone call from the address book

Proceed as follows:

1 Browse to the Address Book page.

2 Click on the phone number of your contact.

3 The following page appears:

In case you are using:

 A DECT phone, the phone number of your contact appears on the screen.

 A fixed phone, your phone starts to ring.

4 Pick up the phone.

5 The Thomson Gateway is now initiating the call. Your contact’s phone is now ringing.

6 At the end of the conversation, click Done to go to the Last Calls page. This page allows you to view the

statistics of your last calls (including the call that you just made).

You can use the buttons in the Remote Number column to make a new call to one of the contacts in your call log.

DMS-CTC-20101208-0018 v1.0

Telephony

6.3 Telephony Services

Introduction

Telephony services add extra functionality to your phone. For example: putting a call on hold, transferring calls,...

Requirements

Before you can use a service, must both be:

1 Supported by your service provider.

2 Activated on your Thomson Gateway.

Checking if a telephone service is activated/supported

To check which services are supported or activated, proceed as follows:

1 Browse to the Thomson Gateway GUI.

For more information, see “4.1 Thomson Gateway GUI” on page 32.

2 On the Toolbox menu, click Telephony.

3 In the Navigation bar, click Configure.

4 In the Pick a task list, click View Telephony Services.

5 Under Telephony Services, you can see the services that are supported by your provider.

In the Activated column, you can see if this service is also activated on the Thomson Gateway.

6 To (de)activate a service, proceed with “6.3.1 Activating a Telephony Service on your Thomson Gateway”

on page 54.

DMS-CTC-20101208-0018 v1.0

Telephony

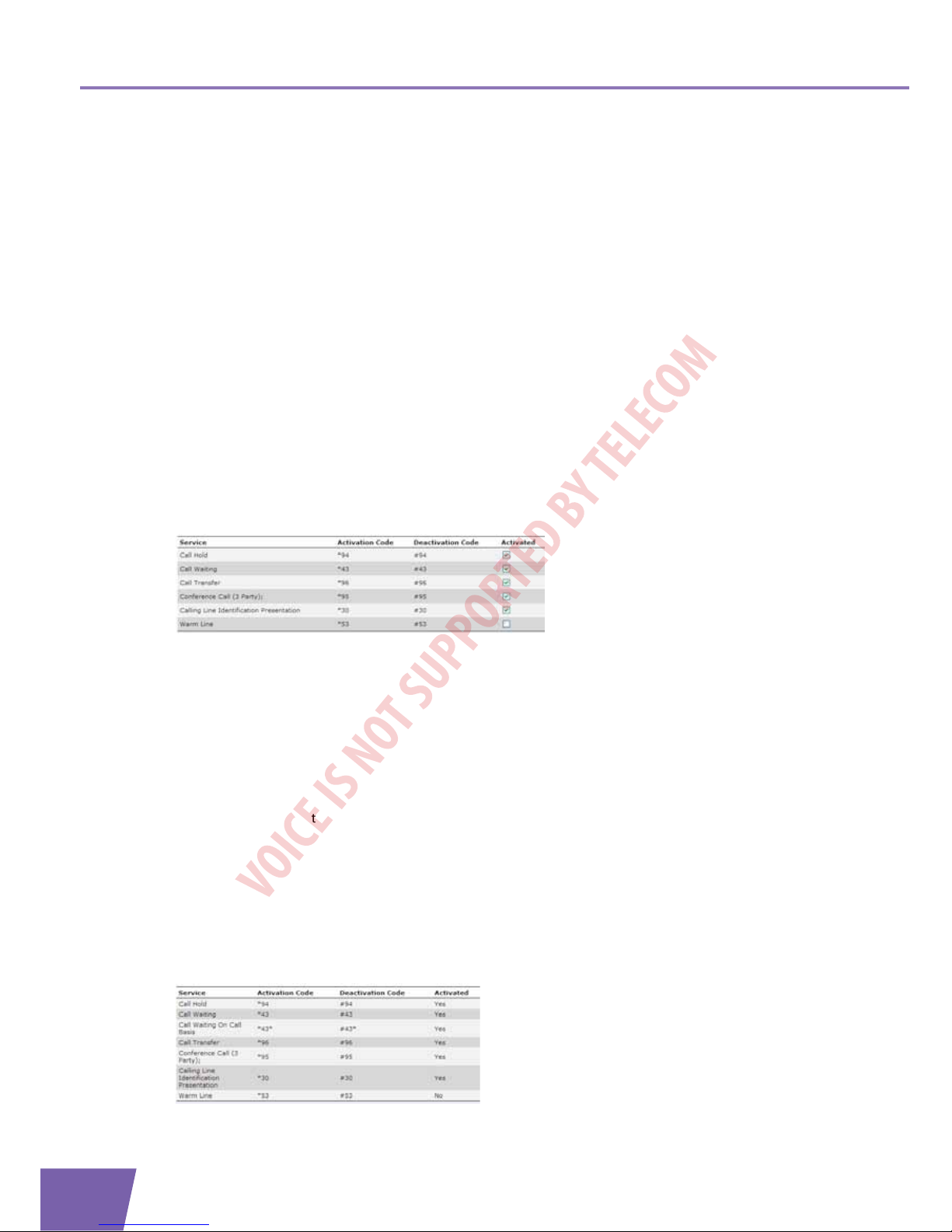

6.3.1 Activating a Telephony Service on your Thomson Gateway

How can I (de)activate a service on my Thomson Gateway?

You can (de)activate services in two ways:

 Via the Thomson Gateway GUI.

 Via (de)activation codes on your phone.

Activating a Telephony Service via the Thomson Gateway GUI

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

For more information, see “4.1 Thomson Gateway GUI” on page 32.

2 On the Toolbox menu, click Telephony.

3 In the Navigation bar, click Configure.

4 In the Pick a task list, click View Telephony Services.

5 In the Navigation bar, click Configure.

6 Under Telephony services you can now activate or deactivate the services of your choice:

To:

 Activate a service select the check box next to the service.

 Deactivate a service clear the check box next to the service.

7 Click Apply.

Activating a Telephony Service via Your Phone

To (de)activate one of the services just dial the corresponding code on your phone. For example, to activate Call Hold dial *94; to deactivate the service dial #94.

To know which code to use:

1 Browse to the Thomson Gateway GUI.

For more information, see “4.1 Thomson Gateway GUI” on page 32.

2 On the Toolbox menu, click Telephony.

3 In the Navigation bar, click Configure.

4 In the Pick a task list, click View Telephony Services.

5 In the Telephony Services table, you can find the activation and deactivation codes.

DMS-CTC-20101208-0018 v1.0

Telephony

6.3.2 Common Telephony Services

Introduction

This section provides an overview of the functions that will be available if you activate one of the following services:

 Call Hold service

 Call Waiting service

 Conference Call (3 Party) service

 Call Transfer

For more information on the other services, please contact your service provider.

Call Hold service

If the Call Hold service is activated, you can use the following functions:

To... Press... Illustration

Put an active call on hold and enable a call set up (the dial tone is generated)

R, 2

Terminate the call on hold R, 0

Terminate an active call and switch to the call on hold

R, 1

Retrieve the call on hold (when there is no active call)

R, 1

Terminate an active call and enables a call set up (the dial tone is generated)

R, 9

You

on hold

dial tone

You

active

You press

R, 2

You

active

You

active on hold

You press

R, 0

You

active

You

active on hold

You press

R, 1

You

active

You

on hold

You press

R, 1

You

dial tone

on hold

You

active on hold

You press

R, 9

DMS-CTC-20101208-0018 v1.0

Telephony

Call Waiting service

If the Call Waiting service is activated, you can use the following functions:

Conference Call (3 Party) service

If the Conference Call (3 Party) service is activated, you can use the following functions:

To... Press... Illustration

Terminate an active call and switch to an incoming call

R, 1

Reject an incoming call R, 0

Switch between an active call and a call on hold R, 2

Switch between an active call and an incoming call

R, 2

You

active

You

active

incoming

You press

R, 1

You

active

You

active incoming

You press

R, 0

You

on hold

active

You

active on hold

You press

R, 2

You

on hold

active

You

active

incoming

You press

R, 2

To... Press... Illustration

Establish a conference call (or 3 party connection)

R, 3

During a conference call: put B and C on hold R, 2

During a conference call: retrieve B and C when they are on hold

R, 3

You

active

You

on hold active

You press

R, 3

You

on hold

You

active active

You press

R, 2

You

active

You

on hold on hold

You press

R, 3

DMS-CTC-20101208-0018 v1.0

Telephony

Call Transfer

If the Call Transfer service is activated, you can use the following functions:

To... Press... Illustration

Transfer a call R, 4

You

active

You

on hold

active

You press

R, 4

DMS-CTC-20101208-0018 v1.0

Telephony

6.4 Viewing Call Logs

Introduction

The Call Logs page on the Thomson Gateway GUI lists:

 Successful incoming calls.

 Missed incoming calls.

 Successful outgoing calls.

 Failed outgoing calls.

Viewing the telephony statistics

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Telephony.

3 The Telephony page appears:

On this page you can see an overview of your last calls.

4 To view more detailed statistics, click View telephony statistics and logs in the Pick a task list.

Used icons

The call logs use the following icons to illustrate the call type:

Calling a contact from the call log

You can immediately start a new call to one of these contacts by clicking the button in the Remote Number column.

Icon Type

Successful outgoing phone call

Successful incoming call

Failed outgoing call

Failed incoming call

DMS-CTC-20101208-0018 v1.0

Telephony

DMS-CTC-20101208-0018 v1.0

Telephony

DMS-CTC-20101208-0018 v1.0

Saving Energy with Your Thomson Gateway

7 Saving Energy with Your Thomson Gateway

Code of Conduct v3

To prove its commitment to protect the environment, THOMSON has signed the Code of Conduct v3 (CoC v3), a global agreement to reduce the power consumption of broadband access devices.

For more information, see “7.1 Code of Conduct v3” on page 62.

THOMSON power saving innovations

On top of the CoC v3 measures, THOMSON has developed the

eco Manager

to further reduce the power consumption. This system constantly monitors the services provided by the Thomson Gateway and automatically switches unused services to an ECO-friendly state. For more information, see

“2.2 eco

Manager” on page 5

Next to this automated tool, you can also choose to manually disable services that you will not be using. For more information, “7.3 Manually Switching Off Services to Reduce Power” on page 64.

DMS-CTC-20101208-0018 v1.0

Saving Energy with Y

our Thomson Gateway

7.1 Code of Conduct v3

Power states

CoC v3 provides rules for the power consumption in:

 Full power state:

This is the normal operation mode of the device, where all functionality is enabled.

 Low power state:

When there is no user traffic on the device, the device should switch to low power mode. This is a state in which devices are only allowed to use a limited amount of energy to be able to power its components and respond to user activity.

Example

Take the following example:

 The user switches off his computer at 20:00.

 There are no other devices connected to the Thomson Gateway.

The Thomson Gateway switches to low power mode. This results in a considerable drop in the overall power consumption of the Thomson Gateway.

No user traffic

User traffic

Time

Power

Consumption

Full power limit

Low power limit

20:00

DMS-CTC-20101208-0018 v1.0

Saving Energy with Your Thomson Gateway

7.2 ECO Manager

Introduction

The Thomson Gateway constantly monitors the user activity and uses this information to optimise the power consumption:

For example:

 The Thomson Gateway reduces the clock frequency of the central processor when there is no or low user

activity. This lowered clock frequency will result in a lower power consumption of the Thomson Gateway.

 Switch the wireless interface to power reduction mode.

Wireless access point power reduction mode

When the Thomson Gateway access point switches to power reduction mode, the access point is switched off and is only power on periodically to be able to detect new clients. If new clients are detected the wireless access point is fully powered again. This is only possible if there are no devices connected to the Thomson Gateway.

Power reduction is enabled by default, but it is possible to disable it via the Thomson Gateway GUI. Proceed as follows:

1 Browse to the Technicolor Gateway GUI.

For more information, see

“4.1 Technicolor Gateway GUI” on page 50

2 Under Home Network, click Wireless.

3 In the Navigation bar, click Configure.

4 Under Configuration:

 Select Power Reduction Enabled to enable power reduction.

 Clear Power Reduction Enabled to disable power reduction.

5 Click Apply.

Example

If we use the same example as in the previous section, you can see that the Thomson Gateway is now able to further reduce the power consumption in periods where less action is required from the Thomson Gateway.

No User Traffic

User Traffic

Time

20:00

Time

Power

Consumption

Full power limit

Low power limit

DMS-CTC-20101208-0018 v1.0

Saving Energy with Y

our Thomson Gateway

7.3 Manually Switching Off Services to Reduce Power

ECO button

If you are not using the wireless access point of your Thomson Gateway, you might consider to disable the wireless access point permanently. This allows you to further reduce the power consumption.

To turn the wireless interface:

 Off, press the ECO ( ) button until the Wireless LED is off.

 On, press the ECO ( ) button until the Wireless LED is on.

Zero power consumption

If you will not be using your Thomson Gateway for a longer time (for example: you are going on holiday), you should consider to turn off the Thomson Gateway. This way no energy will be consumed at all.

However, be aware that if you turn off the Thomson Gateway, all services provided by the Thomson Gateway

that require access to the Internet will not be available. For example:

 No VoIP calls can be made/received

You will no longer be able to make or receive phone calls over the Internet. Your phone calls will automatically be done via the traditional phone network (if available).

 No Digital TV is provided

If your set-top box is connected to your Thomson Gateway, it will no longer be able to connect to the Internet, hence not be able to service your TV set.

DMS-CTC-20101208-0018 v1.0

Sharing Content on your Thomson Gateway

8 Sharing Content on your Thomson Gateway

Introduction

The Thomson Gateway allows you to share the content stored on your USB storage device with other users on your network or even access this shared content from the Internet.

Features

 The Thomson Gateway supports USB 2.0

 The following file systems are supported:

 NTFS (optional)

 FAT3 2

 FAT1 6

 HFS+ (optional)

 EXT2/EXT3 (optional)

 You can connect up to five USB storage devices (via a USB hub).

 Each USB storage device can have up to 10 partitions. If your device has more partitions the extra

partitions will be ignored.

Content Sharing Servers

The Thomson Gateway offers three types of services to share your content. The following table gives a you a brief overview of the main functions:

Network File Server UPnP AV Media

Server

FTP Server

Function

Store and access your data on your local network.

Make media files available for UPnP AV capable devices like Media players, Set-Top boxes from your local network.

Store and access your data from the Internet.

Access

Read and write Read-only Read and write

Accessible from

Local network Local network Internet and Local

network

Type of content shared

All files from all partitions and disks that are connected.

Media files (music,

movies and pictures) from all partitions and disks that are connected.

All files that are stored in the Shared folder of the managed partition.

For more information, see...

“8.1 The Network File Server” on page 67

“8.2 The UPnP AV Media Server” on page 70

“8.3 The FTP Server” on page 74

DMS-CTC-20101208-0018 v1.0

Sharing Content on y

our Thomson Gateway

Configuration

All servers are enabled by default. The only thing that you need to do is to plug your USB memory stick or external hard disk in (one of) the USB port(s) of your Thomson Gateway.

By using a USB hub, you can connect up to five USB mass storage devices to the Thomson Gateway.

Do not remove your USB storage device without stopping it first, otherwise data might be lost! For more information, see “8.5 Safely Removing your USB Storage Device” on page 78.

DMS-CTC-20101208-0018 v1.0

Sharing Content on your Thomson Gateway

8.1 The Network File Server

Introduction

The Network Server allows you to share the content on your USB storage device(s) with other devices that are connected to your local network (mostly computers).

These devices have read and write access to this USB device(s).

Configuration

The Network File Server is enabled by default and ready for use.

To change the default settings, proceed as follows:

1 Browse to the Technicolor Gateway GUI.

For more information, see

“4.1 Technicolor Gateway GUI” on page 50

2 On the Tools menu, click Content Sharing.

3 In the Navigation bar, click Configure.

4 Under Network File Server (Windows Networking), you can change the following settings:

 Server Name:

Enter the name that you want to use to access the Thomson Gateway.

 Server Description:

Add a short description for what kind of data is stored on the USB storage device.

 Workgroup:

Enter the same workgroup as used by your computer(s).

 Server Enabled:

Select this option to enable the Network File Server

5 Click Apply.

6 All users connected to the Thomson Gateway can now access the data on stored your USB storage

device.

7 If you want to limit the number of folders that can be accessed, continue with “8.4 Managing your Shared

Content” on page 76.

Accessing the shared content on Windows

Proceed as follows:

1 Open Windows Explorer.

2 In the address bar, type two backslashes followed by the name that you entered in the Server Name box

(default: \\THOMSON).

If you did not provide a server name, type \\192.168.1.253.

DMS-CTC-20101208-0018 v1.0

Sharing Content on y

our Thomson Gateway

3 An Explorer windows appears. The storage devices that are attached to your Thomson Gateway are

listed as folders.

If the storage device has multiple partitions an index number will be added at the end (for example: Disk_a1 and Disk_a2).

If multiple storage devices are inserted the first one is listed as Disk_a1, the second one as Disk_b1, and so on.

If the partition is a managed partition, only the Media and Shared folders of the managed partition are displayed:

For more information on managed partitions, see “8.4 Managing your Shared Content” on page 76.

4 If you plan to frequently use this folder, it might be useful to map this folder as a network drive. For more

information, see the help of your operating system.

DMS-CTC-20101208-0018 v1.0

Sharing Content on your Thomson Gateway

Accessing the shared content on Mac

Proceed as follows:

1 On the Go menu, click Connect To Server.

2 The Connect To Server window appears.

In the Server Address box, type smb://<server name>, where <server name> is the Server Name you assigned to your USB storage device (default: smb://THOMSON).

3 The following window appears:

Select Guest and click Connect.

4 If prompted, select the partition that you want to open and click OK:

5 Your USB storage device is now mounted and is displayed on your desktop.

If you did not provide a server name, type smb://192.168.1.253.

DMS-CTC-20101208-0018 v1.0

Sharing Content on y

our Thomson Gateway

8.2 The UPnP AV Media Server

Introduction

Your Thomson Gateway has a built-in DLNA-certified UPnP AV media server. This section describes how to use and configure this media server.

UPnP AV

UPnP AV (AV stands for Audio and Video) is a protocol especially designed to share media files on your local

network.

DLNA-certified

The Digital Living Network Alliance (DLNA) is an organisation that imposes requirements to ensure the interoperatability of your media devices and standardize the communication between them.

Buying a DLNA-certified device like the Thomson Gateway guarantees you that it will seamlessly integrate with your other DLNA-certified devices.

To allow you to access your media in a quick and easy way, the Thomson Gateway scans your storage device for meta data information (for example, title, artist, album) and stores it in a database. When you are looking for a file, the Thomson Gateway can simply query the database instead of having to go through all the files.

UPnP AV network components

A UPnP AV network consists of the following components:

 The UPnP AV server is directly connected to your media files and makes them available on the network.

In your network the Thomson Gateway will fulfil this role.

 The UPnP AV client is a software application or hardware device that allows you to play or view the

media files provided by your UPnP AV media server.

This database will only be created if the following conditions are met:

 Your disk or partition must have at least 250MB of free space

 Your disk or partition must not be read-only.

DMS-CTC-20101208-0018 v1.0

Sharing Content on your Thomson Gateway

8.2.1 Configuring the UPnP AV Media Server

Introduction

The Network File Server is enabled by default and ready to use.

Enabling/disabling the UPnP AV Media Server

Proceed as follows:

1 Browse to the Technicolor Gateway GUI.

For more information, see

“4.1 Technicolor Gateway GUI” on page 50

2 On the Tools menu, click Content Sharing.

3 In the Navigation bar, click Configure.

4 Under UPnP AV Media Server, click Server Enabled.

5 Click Apply.

Media Database

When you plug in your USB storage device, the Thomson Gateway will automatically start building the media

database. This database contains all meta data of the media files stored on your USB storage device.

To view the status of the media database:

1 Browse to the Technicolor Gateway GUI.

For more information, see

“4.1 Technicolor Gateway GUI” on page 50

2 On the Tools menu, click Content Sharing.

3 In the Navigation bar, click Configure.

4 Under UPnP AV Media Server, you can find the Database Status.

5 If you want to rebuild the database, click Rebuild.

DMS-CTC-20101208-0018 v1.0

Sharing Content on y

our Thomson Gateway

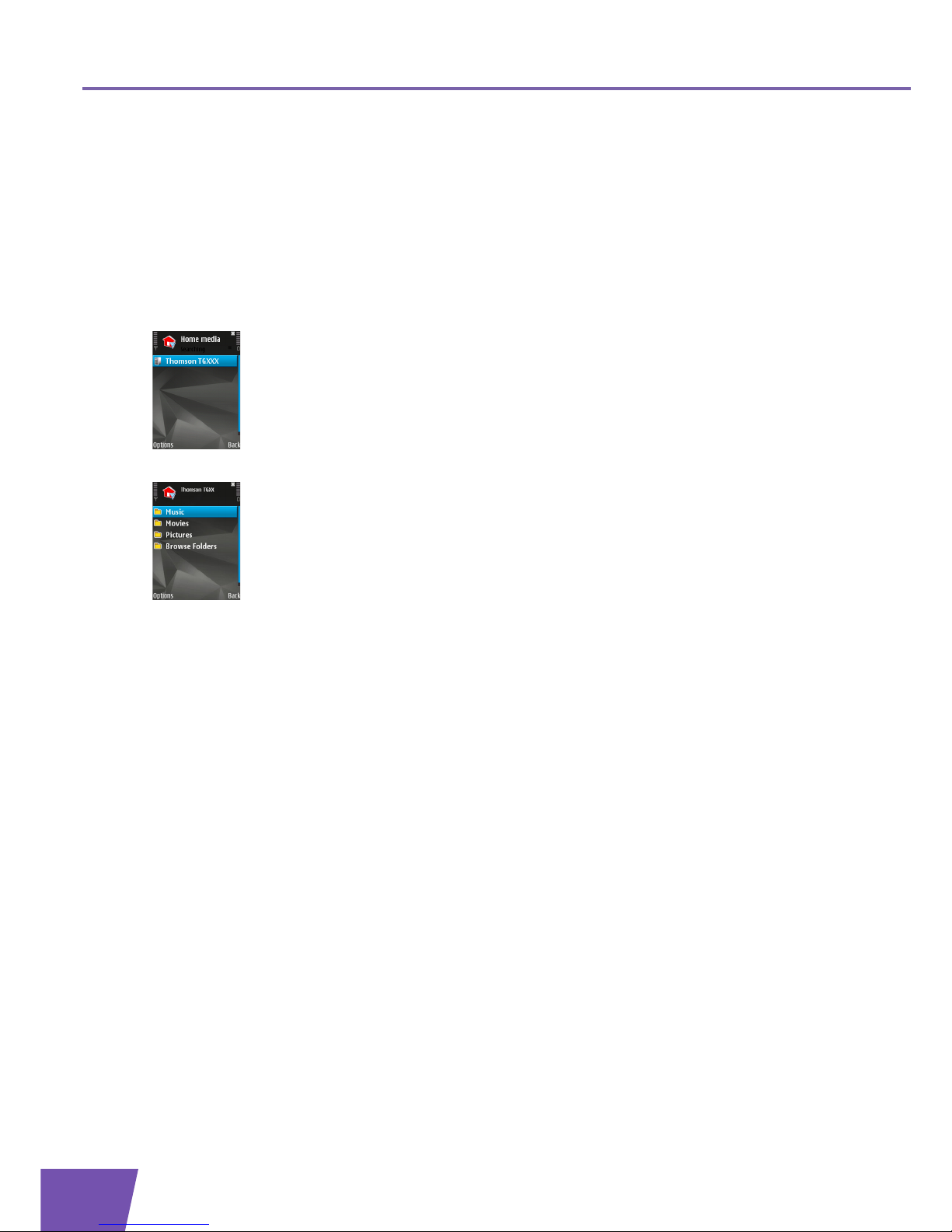

8.2.2 Using the UPnP AV Media Server

Introduction

The UPnP AV Media Server lists all audio, video and picture files located on the connected USB storage device. All UPnP AV renderers (for example, a DLNA-certified Set-Top box) that are connected to your network are able to view this list and play or view items from this list.

On your UPnP AV renderer, the Thomson Gateway’s UPnP AV media server will be listed as THOMSON TGXXX. Below you can find a screenshot taken on a smartphone with a UPnP AV client.

Via this entry, you can browse to your media files.

Windows 7

Windows 7 has native support for UPnP AV. It automatically detects UPnP AV and makes your media files available for playback on your Windows Media Player.

Proceed as follows:

1 On the Windows Start menu, click Network.

DMS-CTC-20101208-0018 v1.0

Sharing Content on your Thomson Gateway

2 The Network window appears:

Under Media Devices you will find the Thomson Gateway’s UPnP AV Media Server (displayed as THOMSON TGXXX).

3 Double-click the Thomson Gateway’s UPnP AV Media Server to access your media files.

4 Windows Media Player starts up.

Your Thomson Gateway’s UPnP AV Media Server is listed on the left. This entry allows you to browse to your media files.

DMS-CTC-20101208-0018 v1.0

Sharing Content on y

our Thomson Gateway

8.3 The FTP Server

Introduction

The Thomson Gateway allows you to access your shared content by FTP. This can be useful if you want to be able to access your shared content from the Internet.

Via FTP you can download and upload all types of files both from your local network and the Internet.

Setting up the FTP server

Proceed as follows:

1 Protect your account with a password.

2 Enable the FTP Server and select the managed partition.

Protect your account with a password

If you did not yet configure your login to the Thomson Gateway GUI with a password:

1 Browse to the Technicolor Gateway GUI.

For more information, see

“4.1 Technicolor Gateway GUI” on page 50

2 On the Toolbox menu, click User Management.

3 In the Pick a task list, click Change my password.

4 Leave the Old Password box empty.

5 Type your new password both in the New Password box and Confirm New Password box.

Enable the FTP Server and select the managed partition

Proceed as follows:

1 Browse to the Technicolor Gateway GUI.

For more information, see

“4.1 Technicolor Gateway GUI” on page 50

2 On the Tools menu, click Content Sharing.

3 In the Navigation bar, click Configure.

4 Under FTP Server, click Server Enabled.

5 Under List of connected disks, click the radio button next to the partition to make it managed.

6 The Thomson Gateway now creates a Media and Shared folder on the selected partition. The Shared

folder will be used as root location for FTP sessions.

7 Click Apply.

DMS-CTC-20101208-0018 v1.0

Sharing Content on your Thomson Gateway

Result

The Shared folder and its subfolders are now accessible using FTP. The other folders are not accessible via FTP.

If you are connected to the Internet, the link to the FTP server is displayed under FTP Server:

On the Thomson Gateway network, you can also access the FTP server using its local address (192.168.1.253).

Additional configuration

Because most service providers use dynamic IP addresses, the IP address of your Internet connection may change frequently. This implies that the link to the FTP server will also change every time the public IP changes. With Dynamic DNS, you can assign a host name to the IP address (for example mygateway.dyndns.org). For more information, see “9.3 Dynamic DNS” on page 89.

DMS-CTC-20101208-0018 v1.0

Sharing Content on y

our Thomson Gateway

8.4 Managing your Shared Content

Managed Partition

When your USB storage device is permanently connected to the Thomson Gateway, you may want to

If you select your drive or partition as managed partition, users only have access to the following folders:

 Media

 Shared

All other folders will be hidden from the user. These hidden folders are still on the USB storage device, but you can not access them. If you connected more than one USB storage device, those devices will also be hidden.

Media folder

Use the Media folder to share your audio, video and picture files. This folder can only be accessed via the following servers:

 The Network File Server

For more information, see “8.1 The Network File Server”.

 UPnP AV Media Server.

For more information, see “8.2 The UPnP AV Media Server”.

Shared folder

The Shared folder is a folder to share files both on the local network and the Internet. This folder can only be accessed via the following server:

 The Network File Server

For more information, see “8.1 The Network File Server”.

 FTP Server

For more information, see “8.3 The FTP Server”.

Ummanaged vs. managed

The following table compares the two modes:

If your partition is managed, the UPnP AV server will only use the media files that are located in the Media folder.

The FTP Server can only be used with a managed partition.

Access via Accessible folders

Unmanaged Managed

Network File Server All Media and Shared folder.

UPnP AV Media Server All Media folder.

FTP Server Not available in this mode. Shared folder.

DMS-CTC-20101208-0018 v1.0

Sharing Content on your Thomson Gateway

Setting up the managed partition

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Tools menu, click Content Sharing.

3 In the Navigation bar, click Configure.

4 Under List of connected disks, click the radio button next to the partition you want to configure as

Managed Partition.

5 Click Apply.

Result

The Thomson Gateway creates following folders:

 Media:

Use this folder to share your media files with others users on your network. You can store your media files in following subfolders:

 Movies

 Music

 Pictures

 Shared:

Use this folder to share your other data with other users on your network. Optionally, users can also access this folder using FTP. For more information, see “8.3 The FTP Server” on page 74.

If the above folders already exist, the existing folders are used.

DMS-CTC-20101208-0018 v1.0

Sharing Content on y

our Thomson Gateway

8.5 Safely Removing your USB Storage Device

Introduction

If you just unplug your USB storage device from the Thomson Gateway you may loose your data. To avoid this you must first stop your USB storage device.

Stopping your USB storage device

Proceed as follows

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Content Sharing.

3 In the Navigation bar, click Configure.

4 Click Stop.

5 Unplug your USB storage device from the Thomson Gateway.

DMS-CTC-20101208-0018 v1.0

Thomson Gateway Network Services

9 Thomson Gateway Network Services

In this chapter

In this chapter we will take a closer look at following features:

Feature availability

Depending on the configuration offered by your service provider, some features may not be available on your Thomson Gateway. For more information, contact your service provider.

Topi c Page

9.1 UPnP 80

9.2 Assigning a service (HTTP, FTP,...) to a Computer 87

9.3 Dynamic DNS 89

DMS-CTC-20101208-0018 v1.0

Thomson Gateway N

etwork Services

9.1 UPnP

Introduction

UPnP is designed to automate the installation and configuration of a (small) network as much as possible. This means that UPnP-capable devices can join and leave a network without any effort of a network administrator.

Supported Operating Systems

The following operating systems support UPnP:

 Windows 7

 Windows Vista

 Windows XP

UPnP and the Thomson Gateway

UPnP offers you the following functions:

 You can access the Thomson Gateway GUI without having to remember the address of the Thomson

Gateway. For more information, see “9.1.1 Accessing Your Thomson Gateway via UPnP” on page 81.

 If you are using a PPP connection to connect to the Internet, you can enable/disable your Internet

connection without having to open the Thomson Gateway GUI. For more information, see “9.1.2 Managing your Internet connection via UPnP” on page 82.

 You do not have to manually create port mappings to run services on a computer. The automatic port

configuration mechanism for UPnP-enabled games and applications will do this for you. If the application is UPnP-enabled, UPnP will create these entries automatically. For more information, see “9.2 Assigning

a service (HTTP, FTP,...) to a Computer” on page 87.

If your computer is running Windows XP, you first have to install the UPnP component. For more information, see “9.1.4 Installing UPnP on Windows XP” on page 85.

DMS-CTC-20101208-0018 v1.0

Thomson Gateway Network Services

9.1.1 Accessing Your Thomson Gateway via UPnP

Windows 7/Vista

If you computer runs Windows 7/Vista:

1 On the Windows Start menu, click Network.

2 The Network window appears:

3 Right-click your Thomson Gateway (displayed as THOMSON TGXXX) and click View device web page.

4 The Thomson Gateway GUI appears.

Windows XP

If you computer runs Windows XP:

1 Go to My Network Places.

2 The My Network Places window appears:

3 Double-click your Thomson Gateway (displayed as THOMSON TGXXX).

4 The Thomson Gateway GUI appears.

DMS-CTC-20101208-0018 v1.0

Thomson Gateway N

etwork Services

9.1.2 Managing your Internet connection via UPnP

Applicability

This section only applicable if you are using a PPP connection to the Internet.

Windows 7/Vista

If you computer runs Windows 7/Vista:

1 On the Windows Start menu, click Network.

2 The Network window appears:

3 Right-click your Thomson Gateway (displayed as THOMSON TGXXX).

4 If you are currently:

 Connected to the Internet, click Disable to disconnect from the Internet.

 Not connected to the Internet, click Enable to connect to the Internet.

Windows XP

Proceed as follows:

1 On the Windows Start menu, click (Settings >) Control Panel.

2 The Control Panel window appears.

Click (Network and Internet Connections) > Internet Connections.

DMS-CTC-20101208-0018 v1.0

Thomson Gateway Network Services

3 The Network Connections window appears;

4 If you right-click the Internet Connection icon, you can connect/disconnect your connection to the

Internet.

Disabling this feature

To prevent that users can connect/disconnect you can enable Extended Security. This feature is enabled by default.

For more information, see “9.1.3 Configuring UPnP on the Thomson Gateway” on page 84.

DMS-CTC-20101208-0018 v1.0

Thomson Gateway N

etwork Services

9.1.3 Configuring UPnP on the Thomson Gateway

Introduction

On the Thomson Gateway GUI you can:

 Enable/Disable UPnP.

 Enable/Disable Extended Security.

Enable/Disable UPnP

Proceed as follows:

1 Browse to the Technicolor Gateway GUI.

For more information, see

“4.1 Technicolor Gateway GUI” on page 50

2 On the Toolbox menu, click Game & Application Sharing.

3 Under Universal Plug and Play:

 Select the Use UPnP check box, to enable UPnP.

 Clear the Use UPnP check box, to disable UPnP.

4 Click Apply.

Extended Security

If Extended Security is enabled, only limited UPnP operation between the host and the Thomson Gateway is allowed:

 A local host is not allowed to connect/disconnect the Thomson Gateway Internet connection. You can

then only connect/disconnect the Internet connection via the Thomson Gateway GUI

 Address translation mappings can only be added or changed via UPnP for the host on which the UPnP

application is running.

Enable/Disable Extended Security

Proceed as follows:

1 Browse to the Technicolor Gateway GUI.

For more information, see

“4.1 Technicolor Gateway GUI” on page 50

2 On the Toolbox menu, click Game & Application Sharing.

3 Under Universal Plug and Play, select Use Extended Security.

4 Click Apply.

DMS-CTC-20101208-0018 v1.0

Thomson Gateway Network Services

9.1.4 Installing UPnP on Windows XP

Adding UPnP

If you are running Microsoft Windows XP, it is recommended to add the UPnP component to your system.

Proceed as follows:

1 In the Start menu, click (Settings >) Control Panel.

2 The Control Panel window appears.

Click Add or Remove Programs.

3 The Add or Remove Programs window appears.

Click Add/Remove Windows Components.

4 The Windows Components Wizard appears:

In the Components list, select Networking Services and click Details

5 The Networking Services window appears:

Select Universal Plug and Play or UPnP User Interface and click OK.

6 Click Next to start the installation and follow the instructions in the Windows Components Wizard.

7 At the end of the procedure the wizard informs you that the installation was successful. Click Finish to

quit.

Adding IGD Discovery and Control

Your Windows XP system is able to discover and control Internet Gateway Devices (IGD), like the Thomson Gateway on your local network. Therefore, it is recommended to add the IGD Discovery and Control client to your system.

Proceed as follows:

DMS-CTC-20101208-0018 v1.0

Thomson Gateway N

etwork Services

1 On the Windows taskbar, click Start.

2 Select (Settings >) Control Panel > Add or Remove Programs.

3 In the Add or Remove Programs window, click Add/Remove Windows Components.

4 The Windows Components Wizard appears:

Select Networking Services in the Components list and click Details.

5 The Networking Services window appears:

Select Internet Gateway Device Discovery and Control Client and click OK.

6 Click Next to start the installation and follow the instructions in the Windows Components Wizard.

7 At the end of the procedure, the wizard informs you that the installation was successful. Click Finish to

quit.

DMS-CTC-20101208-0018 v1.0

Thomson Gateway Network Services

9.2 Assigning a service (HTTP, FTP,...) to a Computer

Introduction

The Thomson Gateway allows you to use one Internet connection for multiple computers. This means that all your computers share one public IP address, as if only one computer were connected to the outside world.

Issue

When the Thomson Gateway receives an incoming message, the Thomson Gateway has to decide to which computer it has to send this message.

If the incoming message is a response to an outgoing message originating from one of your computers, the Thomson Gateway sends the incoming message to this computer.

If your are running a server or an application that acts as a server (for example a HTTP server, Internet game), the initial message will come from the Internet and the Thomson Gateway has no information to decide to which computer it should forward the incoming message.

Solution

To avoid this problem you can do either of the following:

 Enable UPnP.

 Assign a game or application to a local networking device.

Internet

DMS-CTC-20101208-0018 v1.0

Thomson Gateway N

etwork Services

UPnP

UPnP is a technology that enables seamless operation of a wide range of games and messaging applications. Your computer will use UPnP to communicate to the Thomson Gateway which services are running on the computer.

For example, when you start a UPnP-enabled application on your computer, it will automatically create the necessary port mappings on this computer and on the Thomson Gateway.

For more information on UPnP, see “9.1 UPnP” on page 80.

Assign a game or application to a local networking device

If you assign a game or application to a local networking device, you will basically tell the Thomson Gateway that if it receives requests for a specific game or application, it has to forward these messages to a specific computer.

Proceed as follows to do so:

1 Browse to the Technicolor Gateway GUI.

For more information, see

“4.1 Technicolor Gateway GUI” on page 50

2 On the Toolbox menu, click Game & Application Sharing.

3 In the Pick a task list, click Assign a game or application to a local network device.

4 In the Game or application list, click the service you want to run on the computer. For example, HTTP

Server (World Wide Web).

5 In the Device list, select the computer to which you want to assign the service. Your computer will be

listed with its computer name.

6 All incoming requests for the selected service will now be directed to the selected device. The Thomson

Gateway will also configure its firewall to allow this service.

If the service is not available in the list, click Create a new game or application in the Pick a task list. For more information, click Help on the Thomson Gateway GUI.

DMS-CTC-20101208-0018 v1.0

Thomson Gateway Network Services

9.3 Dynamic DNS

Introduction

The Dynamic DNS service allows you to assign a dynamic DNS host name (for example mywebpage.dyndns.org) to a broadband connection even if it is using a dynamic IP address. As soon as the device gets a new IP address, the dynamic DNS server updates its entry to the new IP address.

What you need

Before you can configure Dynamic DNS, you first have to create an account at a Dynamic DNS service provider. For example:

 www.dyndns.org

 www.no-ip.com

 www.dtdns.com

Procedure

Proceed as follows:

1 Browse to the Technicolor Gateway GUI.

For more information, see

“4.1 Technicolor Gateway GUI” on page 50

2 On the Toolbox menu, click Dynamic DNS.

3 On the Navigation bar, click Configure.

4 Select the Enabled check box.

5 If necessary, select the broadband connection to which you want to assign the Dynamic DNS host name

in the Interface list.

6 Type the user name and password of your Dynamic DNS service account in the corresponding fields.

7 In the Service list, click the name of your Dynamic DNS service provider.

8 In the Host box, type the host name that you got from the Dynamic DNS service provider (for example

mywebpage.dyndns.org).

9 Click Apply.

DMS-CTC-20101208-0018 v1.0

Thomson Gateway N

etwork Services

DMS-CTC-20101208-0018 v1.0

Internet Security

10 Internet Security

Overview

The Thomson Gateway offers various options to secure your network and network connection:

Topi c Page

10.1 Parental Control 92

10.2 Firewall 97

DMS-CTC-20101208-0018 v1.0

Internet Security

10.1 Parental Control

Introduction

The Thomson Gateway allows you to deny access to specific web sites.

Access Denied page

When a user tries to access a page that is being blocked, the following page is displayed:

Address-based filtering

With address-based filtering (or URL-filtering) you can block web sites based on their address (for example www.porn.com).

Content-based filtering

As you know, the Internet consists of a large number of web sites, and that number still increases every day. This makes it almost impossible to keep the list of addresses up-to-date.

To solve this problem Thomson Gateway introduced content-based filtering.

With content-based filtering you can block web sites based on their content category (for example pornography) instead of their URL. This way, you only need to select the appropriate categories and the content category server takes care of the rest. This content category server is updated at regular intervals.

Combining the two filters

Address-based filtering has priority over content-based filtering. This means that when you are blocking a

specific category, you can still access a specific address provided you create a rule to allow access to that URL.

For example, if you are blocking content from the Finance / Investment category, you can create a rule to make an exception for netbanking.mybank.com.

Activating content-based filtering

Before you can use content-based filtering you must first activate it by purchasing a license key at your service provider or by activating the 30-day trial.

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Parental Control.

THOMSON TG797n, TG797n v2 Setup And User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
