THOMSON TG782

Wireless Multi-User VoIP ADSL2+ Gateway

Setup and User Guide

THOMSON TG782

Setup and User Guide

Distribution and copying of this document, use and communication of its contents is not permitted without written authorization from THOMSON. The content of this document is furnished for informational use only, may be subject to change without notice, and should not be construed as a commitment by THOMSON. THOMSON assumes no responsibility or liability for any errors or inaccuracies that may appear in this document.

THOMSON Telecom Belgium NV Prins Boudewijnlaan, 47 2650 Edegem Belgium

http://www.thomson.net

Trademarks

The following trademarks may be used in this document:

 DECT™ is a trademark of ETSI.

 Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.

 Ethernet™ is a trademark of Xerox Corporation.

 Wi-Fi®, WMM® and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance®. Wi-Fi CERTIFIED, Wi-Fi ZONE, Wi-Fi

Protected Access, Wi-Fi Multimedia, Wi-Fi Protected Setup, WPA, WPA2 and their respective logos are trademarks of the Wi-Fi Alliance®.

 UPnP™ is a certification mark of the UPnP™ Implementers Corporation.

 DLNA® is a registered trademark, DLNA disc logo is a service mark, and DLNA Certified is a trademark of the Digital Living

Network Alliance. Digital Living Network Alliance is a service mark of the Digital Living Network Alliance.

 Microsoft®, MS-DOS®, Windows®, Windows NT® and Windows Vista® are either registered trademarks or trademarks

of Microsoft Corporation in the United States and/or other countries.

 Apple® and Mac OS® are registered trademarks of Apple Computer, Incorporated, registered in the United States and

other countries.

 UNIX® is a registered trademark of UNIX System Laboratories, Incorporated.

 Adobe®, the Adobe logo, Acrobat and Acrobat Reader are trademarks or registered trademarks of Adobe Systems, Incor-

porated, registered in the United States and/or other countries.

Other brands and product names may be trademarks or registered trademarks of their respective holders. All other logos, trademarks and service marks are the property of their respective owners, where marked or not.

Document Information

Status: v1.0 (April 2010) Reference: E-DOC-CTC-20090619-0001 Short Title: Setup & User Guide TG782 R8.4.x (en)

Contents

About this Setup and User Guide ............................................. 1

1 Installation....................................................................................3

1.1 Before you start .............................................................................................. 4

1.2 Installing your Thomson Gateway .................................................................. 6

1.2.1 Guided Installation .................................................................................................................................7

1.2.2 Manual Installation.................................................................................................................................9

1.3 Adding a New Computer to your Network ................................................... 11

1.4 Connecting a Computer Using the Ethernet Cable ....................................... 12

2 Thomson Gateway Basics ........................................................13

2.1 Thomson Gateway LED Behaviour ................................................................ 14

2.1.1 Status LEDs ........................................................................................................................................... 15

2.1.2 WPS Button LED ...................................................................................................................................17

2.1.3 Ethernet LEDs ....................................................................................................................................... 18

2.2 Thomson Gateway GUI ................................................................................. 19

2.3 Backing Up/Restoring your Configuration .................................................... 22

3 Wireless Access .........................................................................23

3.1 Connecting Your Wireless Client via WPS .................................................... 24

3.2 Connecting Your Wireless Client without WPS ............................................ 26

3.3 Securing Your Wireless Connection.............................................................. 27

3.3.1 Configuring WPA-PSK Encryption ...................................................................................................... 28

3.3.2 Configuring WEP Encryption...............................................................................................................29

4 Telephony................................................................................... 31

4.1 Setting Up Your Telephone Network ............................................................ 32

4.1.1 Connection to the Traditional Telephone Network............................................................................33

4.1.2 Configuring the Thomson Gateway VoIP Settings............................................................................34

4.2 Address Book ................................................................................................ 37

4.3 Telephony Services ....................................................................................... 38

4.3.1 Services supported by Your Service Provider ...................................................................................39

4.3.2 Activating a Telephony Service on your Thomson Gateway ........................................................... 40

4.3.3 Using Telephony Services...................................................................................................................41

E-DOC-CTC-20090619-0001 v1.0

Contents

4.4 Viewing Telephony Statistics ....................................................................... 44

6.1 Using the Network File Server ...................................................................... 48

6.2 Using the UPnP AV Media Server ................................................................. 51

6.3 Using the FTP Server .................................................................................... 52

6.4 Managing your Shared Content .................................................................... 54

6.5 Safely Removing your USB Storage Device .................................................. 56

5 Saving Energy with Your Thomson Gateway ........................45

6 Sharing Content on your Thomson Gateway......................... 47

7 Thomson Gateway Tools.......................................................... 57

7.1 UPnP ............................................................................................................. 58

7.1.1 Accessing Your Thomson Gateway with UPnP ................................................................................. 59

7.1.2 Managing your Internet connection with UPnP................................................................................. 60

7.1.3 Configuring UPnP on the Thomson Gateway ....................................................................................61

7.1.4 Installing UPnP on Windows XP ......................................................................................................... 62

7.2 Assigning a service (HTTP, FTP,...) to a Computer........................................ 64

7.3 Dynamic DNS ................................................................................................ 66

8 Internet Security ........................................................................ 67

8.1 Firewall.......................................................................................................... 68

8.2 Parental Control ............................................................................................ 69

8.2.1 Configuring The Content-based Filter ................................................................................................ 71

8.2.2 Adding Rules for the Address-Based Filter ........................................................................................ 72

9 Troubleshooting ........................................................................75

9.1 Setup Troubleshooting.................................................................................. 76

9.2 General Thomson Gateway Troubleshooting ................................................ 77

9.3 Wired Connection Troubleshooting .............................................................. 78

9.4 Wireless Connection Troubleshooting .......................................................... 79

9.5 Voice over IP Troubleshooting ...................................................................... 80

9.6 Reset to Factory Defaults ............................................................................. 81

E-DOC-CTC-20090619-0001 v1.0

About this Setup and User Guide

Used Symbols

A note provides additional information about a topic.

A caution warns you about potential problems or specific precautions that need to be taken.

Terminology

Generally, the THOMSON TG782 will be referred to as Thomson Gateway in this Setup and User Guide.

Typographical Conventions

Following typographical convention is used throughout this manual:

 Sample text indicates a hyperlink to a Web site.

Example: For more information, visit us at www.thomson.net

 Sample text indicates an internal cross-reference.

Example: If you want to know more about guide, see “1 Introduction” on page 7”.

 Sample text indicates an important content-related word.

Example: To enter the network, you must authenticate yourself.

 Sample text indicates a GUI element (commands on menus and buttons, dialog box elements, file

names, paths and folders).

Example: On the File menu, click Open to open a file.

Documentation and software updates

THOMSON continuously develops new solutions, but is also committed to improving its existing products.

For more information on THOMSON's latest technological innovations, documents and software releases, visit us at www.thomson.net

E-DOC-CTC-20090619-0001 v1.0

About this Setup and

User Guide

E-DOC-CTC-20090619-0001 v1.0

1 Installation

Introduction

In a few minutes you will be able to access the Internet using your Thomson Gateway.

This Setup and User Guide will show you how to set up your Thomson Gateway and how to connect your computer(s) to the Internet.

Main features

As soon as you have completed the installation of your Thomson Gateway you will be able to benefit from all the services offered by your Thomson Gateway. This Setup and User Guide will focus on the following features:

 Broadband Internet connection.

The first chapter describes how to connect your Thomson Gateway to the Internet.

 Wired and wireless access to your local network devices.

For more information, see “1.4 Connecting a Computer Using the Ethernet Cable” on page 12 and

“3 Wireless Access” on page 23.

 Voice over IP (VoIP) connectivity for traditional phones and IP phones.

For more information see “4 Telephony” on page 31

 Useful networking tools like UPnP, Dynamic DNS and many more.

For more information, see “7 Thomson Gateway Tools” on page 57.

 Internet Security:

For more information, see “8 Internet Security” on page 67.

Before you can start to use these features, we will first set up your Thomson Gateway.

E-DOC-CTC-20090619-0001 v1.0

1 Installation

Telephone

Network

DSL

Voice

Splitter

Voice

DSL

Telephone

Network

DSL

Voice

Filter/Splitter

Voice

DSL

Voice

DSL

Voice

1.1 Before you start

DSL Service

The DSL service must be activated on your telephone line by your service provider.

Decoupling the voice and DSL signal

As soon as the DSL service is activated two kinds of signals will be available on your telephone line:

 Voice signals

 DSL signals

To ensure the sound quality of your phone calls, the DSL signal must be omitted from the telephone line before it reaches your phone, otherwise you might hear a noise in the background when using your phone.

Filters and splitters

To split the DSL signal from the telephone line, you can use one of the following solutions:

 A splitter that splits the telephone signal into a DSL and Voice signal.

 A filter between your telephone outlet and your phone. This filter removes the DSL signal and passes the

Voice signal.

This filter may also be integrated in your Thomson Gateway.

E-DOC-CTC-20090619-0001 v1.0

How do I know if my Thomson Gateway has an integrated filter?

PSTN

Thomson Gateways:

 With an integrated filter have no PSTN port on their back panel.

 Without integrated filter have a PSTN port on their back panel.

Here you will have to put a filters/splitter between the telephone outlet and your Thomson Gateway.

Wireless connection

1 Installation

If you want to connect your computer using a wireless connection, you will need a WiFi-certified wireless client adapter for each computer you want to connect wirelessly.

Wired connection

If you want to connect one or more computer using a wired connection, make sure those computers are equipped with an Ethernet Network Interface Card (NIC).

Internet connection

You may need the following connection details from your service provider:

 Your service provider’s method for connecting to the Internet (for example PPPoE)

 The VPI/VCI (for example 8/35)

 Your user name and password to connect to the Internet for PPP connections

 Your IP settings in case of static configurations

Optionally your service provider may indicate the service profile to use during the setup.

You may have received this information when you subscribed at your Internet Service Provider. You may be prompted for this information at a given step in the installation procedure.

E-DOC-CTC-20090619-0001 v1.0

1 Installation

1.2 Installing your Thomson Gateway

Warning

Do not plug in any cables or connect any devices until you are instructed to do so.

Installation methods

There two ways to set up your Thomson Gateway:

 Guided Installation

The Setup wizard included on the Setup CD will guide you through all configuration aspects of your Thomson Gateway. This is the recommended way to install your Thomson Gateway.

 Manual Installation

The Setup and User Guide will first help you to connect your computer to the Thomson Gateway. After this is done, you can configure your Thomson Gateway using your web browser.

E-DOC-CTC-20090619-0001 v1.0

1.2.1 Guided Installation

Requirements

 Your computer must run one of the following operating systems:

 Microsoft Windows 7 or higher

 Microsoft Windows 7 x64 or higher

 Microsoft Windows Vista (SP1) or higher

 Microsoft Windows Vista x64 (SP1) or higher

 Microsoft Windows XP SP2 or higher

 Microsoft Windows XP x64 SP1 or higher

 Microsoft Windows 2000 SP4

 Mac OS X 10.4 (Tiger)

 Mac OS X 10.5 (Leopard)

If you are using another operating system, use the Manual Installation.

 You must have administrative rights on your computer

1 Installation

Starting the wizard

To start the wizard:

1 Insert the Setup CD into your computer's CD- or DVD-ROM drive.

2 If your computer runs:

 Microsoft Windows: The CD should autostart.

If the CD does not autostart, see “The Setup CD does not start automatically” on page 76.

 Mac OS X: Double-click Menu in the window with the content of the CD.

3 Select the language of your choice and click OK.

4 The Setup wizard will now guide you through the installation of your Thomson Gateway.

5 At the end of the installation, the following screen appears:

6 Select Go to the Thomson Gateway Web Interface if you want to go to the Thomson Gateway GUI after

closing the wizard. On the Thomson Gateway GUI, you can configure all services of your Thomson Gateway.

7 Click Finish.

8 The CD menu appears.

E-DOC-CTC-20090619-0001 v1.0

1 Installation

CD menu

On the CD Menu, you can click:

 Initial Setup to connect your computer to the Thomson Gateway and configure it.

 Reconfigure my Thomson Gateway to fully reconfigure your Thomson Gateway.

If you reconfigure your Thomson Gateway via the CD menu, the Thomson Gateway will be reconfigured from scratch. All your current settings will be lost. If you only want to make small changes to your configuration (e.g. changing the security), we recommended you to do this via the Thomson Gateway GUI. For more information, see “2.2 Thomson Gateway GUI” on

page 19.

 Setup my computer to connect your computer to the Thomson Gateway network.

 View Documentation to view a list of the documentation that is available for your Thomson Gateway.

This list will be automatically updated if you are connected to the Internet.

 Visit thomson.net to visit the online support sections.

Actual available items may depend on the Setup CD delivered with your Thomson Gateway.

In case of problems

If you encounter problems during this installation please refer to “9.1 Setup Troubleshooting” on page 76.

E-DOC-CTC-20090619-0001 v1.0

1 Installation

1.2.2 Manual Installation

Requirements

JavaScript must be enabled (this is the default setting) on your browser. For more information, consult the help of your web browser.

Procedure

Proceed as follows:

1 Connect the Thomson Gateway to your broadband service.

2 Power on the Thomson Gateway.

3 Connect your computer to the Thomson Gateway.

4 Configure the Thomson Gateway.

This is described in the sections below.

Connect the Thomson Gateway to your broadband service

Proceed as follows:

1 Take the DSL cable with the grey connectors. This cable is included in your box.

2 Plug one end of the cable in the grey DSL port on the back of your Thomson Gateway.

3 If you are:

 Using a splitter, plug the other end of the cable into the Modem/ADSL out put of your splitter.

 Not using a splitter, plug the other end of the cable directly in the wall outlet.

For more information about splitters, see “Filters and splitters” on page 4.

Power on the Thomson Gateway

Proceed as follows:

1 Connect the power cord to the Thomson Gateway’s power port.

2 Plug the other end into an electrical outlet.

3 Push the power button to turn on the Thomson Gateway.

4 Wait two minutes to allow the Thomson Gateway to complete the start up phase.

Connect your computer to the Thomson Gateway

Setting up a wireless connections

For more information on how to setup a wireless connection to your Thomson Gateway, see “3 Wireless

Access” on page 23.

Setting up a wired connection

For more information on how to setup a wired connection (i.e. an Ethernet connection) to your Thomson Gateway, see “1.4 Connecting a Computer Using the Ethernet Cable” on page 12.

E-DOC-CTC-20090619-0001 v1.0

1 Installation

Configure the Thomson Gateway

Proceed as follows:

1 Open your web browser.

2 The Thomson Gateway informs you that you have not yet configured your Thomson Gateway.

If this window does not appear browse to http://dsldevice.lan Gateway (by default: 192.168.1.254) and click Thomson Gateway on the menu on the left-hand side.

3 Click Setup my Thomson Gateway.

4 The Easy Setup wizard appears. This wizard will guide you through the configuration of your Thomson

Gateway. Click Next and follow the instructions.

or to the IP address of your Thomson

E-DOC-CTC-20090619-0001 v1.0

1 Installation

1.3 Adding a New Computer to your Network

Guided Installation

If you configured your Thomson Gateway using the Guided Installation, use the same procedure on the computer that you want to add.

When the Setup wizard informs you that the Thomson Gateway has already been configured, select No and click Next to continue.

Manual Installation

Setting up a wireless connections

For more information on how to setup a wireless connection to your Thomson Gateway, see “3 Wireless

Access” on page 23.

Setting up a wired connection

For more information on how to setup a wired connection (i.e. an Ethernet connection) to your Thomson Gateway, see “1.4 Connecting a Computer Using the Ethernet Cable” on page 12.

E-DOC-CTC-20090619-0001 v1.0

1 Installation

1.4 Connecting a Computer Using the Ethernet Cable

Requirements

 Both your computer and Thomson Gateway must have a free Ethernet port.

 Your computer must be configured to obtain an IP address automatically. This is the default setting.

Ethernet cable

In your package, you will find a cable with yellow connectors. This is the Ethernet cable.

Procedure

Proceed as follows:

1 Connect one end of the Ethernet cable to one of the yellow Ethernet ports of your Thomson Gateway:

2 Connect the other end of the Ethernet cable to your computer.

3 Your computer is now connected to your network. No additional configuration is needed.

E-DOC-CTC-20090619-0001 v1.0

2 Thomson Gateway Basics

In this chapter

Thomson Gateway LED Behaviour 14

Thomson Gateway GUI 19

Backing Up/Restoring your Configuration 22

2 Thomson Gateway Basics

Topi c Page

E-DOC-CTC-20090619-0001 v1.0

2 Thomson Gateway

Basics

2.1 Thomson Gateway LED Behaviour

Content

This chapter describes the behaviour of:

 Status LEDs

 WPS Button LED

 Ethernet LEDs

E-DOC-CTC-20090619-0001 v1.0

2 Thomson Gateway Basics

2.1.1 Status LEDs

Introduction

On the top panel of your Thomson Gateway, you can find a number of status LEDs, indicating the state of the device.

Power LED

Colour State Description

Green Solid on Power on, normal operation

Red Solid on Power on, self-test failed, indicating device malfunction

Orange Blinking Bootloader active (during upgrade)

Off Power off

Ethernet LED

Colour State Description

Green Solid on Ethernet connection, no activity

Blinking Ethernet activity

Off No Ethernet connection

Wireless LED

Colour State Description

Green Solid on No wireless activity, WPA(2) encryption

Blinking Wireless activity, WPA(2) encryption

Orange Solid on No wireless activity, WEP encryption

Blinking Wireless activity, WEP encryption

Red Solid on No wireless activity, no security

Blinking Wireless activity, no security

Red/green Toggling Wireless client registration phase

Off WLAN disabled

E-DOC-CTC-20090619-0001 v1.0

2 Thomson Gateway

Phone LED

Colour State Description

Green Solid on VoIP service up

Blinking VoIP activity

Off VoIP service down

Broadband LED

Colour State Description

Green Solid on DSL line synchronised

Blinking Pending DSL line synchronisation

Off No DSL line

Basics

Internet LED

Colour State Description

Green Solid on Internet connectivity, no activity

Blinking Internet activity

Red Solid on Internet connection setup failed

Off No Internet connection

E-DOC-CTC-20090619-0001 v1.0

2 Thomson Gateway Basics

2.1.2 WPS Button LED

WPS button

The Wi-Fi Protected Setup (WPS) button allows you to add new wireless clients to your network.

For more information, see “3.1 Connecting Your Wireless Client via WPS” on page 24.

WPS Button LED

Colour State Description

Green Solid On Client successfully registered via WPS

Orange Blinking WPS registration ongoing

Red Blinking Error occurred

E-DOC-CTC-20090619-0001 v1.0

2 Thomson Gateway

2.1.3 Ethernet LEDs

Ethernet LED

A LED may be provided per Ethernet port to indicate link integrity (or activity).

LED Status Description

Off No connection on this port

Solid on Ethernet link up

Blinking Data is flowing from/to this port

Basics

E-DOC-CTC-20090619-0001 v1.0

2 Thomson Gateway Basics

2.2 Thomson Gateway GUI

Introduction

The Thomson Gateway Graphical User Interface (GIU) allows you to configure your Thomson Gateway using your web browser.

Requirements

JavaScript must be enabled (this is the default setting) on your browser. For more information, consult the help of your web browser.

Accessing the Thomson Gateway GUI

Proceed as follows:

1 Open your web browser.

2 Browse to http://dsldevice.lan

3 If you have protected your Thomson Gateway with a user name and password, the Thomson Gateway

will prompt you to enter these. Enter your user name and password and click OK.

4 The Thomson Gateway GUI appears.

or to the IP address of your Thomson Gateway (by default: 192.168.1.254).

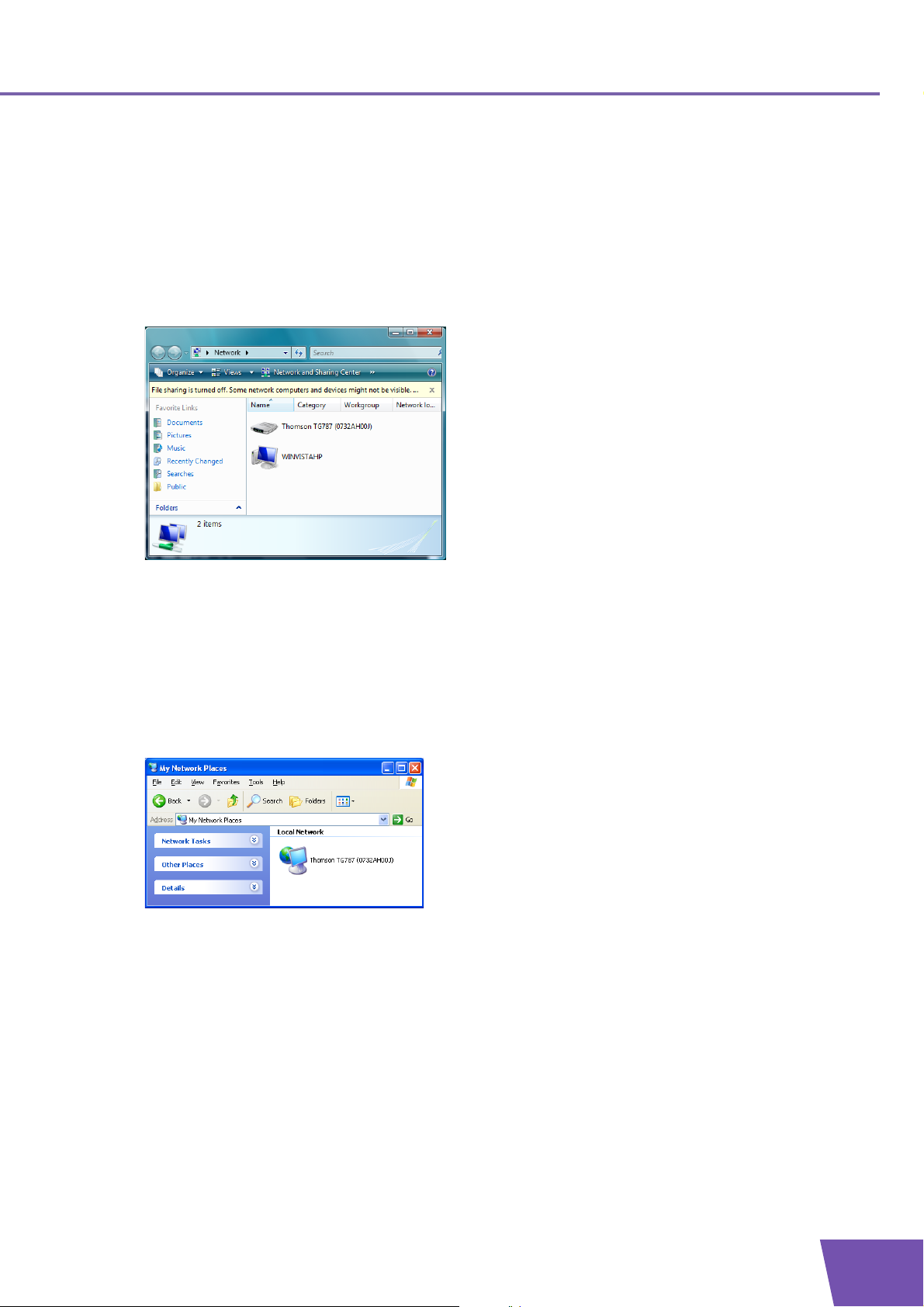

Access the Thomson Gateway via UPnP

You can also access the Thomson Gateway GUI using the Internet Gateway Device (IGD) icon if your computer runs one of the following operating systems:

 Windows 7

 Windows Vista

 Windows XP

For more information, see “7.1 UPnP” on page 58.

E-DOC-CTC-20090619-0001 v1.0

2 Thomson Gateway

Components

All the pages contain following components:

Basics

Label Description

1 Menu

2 Language bar

3 Login section

4 Navigation bar

5 Notification area

6 Content pane

7 Tasks

Language bar

The language bar allows you to change the language of the Thomson Gateway Web interface.

The language bar will only be shown if more than one language is available.

Login section

In this section you can see the current user name.

By clicking the user name, you can:

 Change your password.

 Switch to another user.

Navigation bar

The location bar displays your current position on the Thomson Gateway GUI.

Notification area

The notification area is used to display:

 Error messages, indicated by a red traffic light.

 Warnings, indicated by an orange traffic light.

 Information, indicated by a green traffic light.

If none of these events occur, the notification area will not be shown.

Content pane

The content pane displays the information and configurable items of the selected item.

Tas ks

To allow a quick configuration of your Thomson Gateway, some pages may offer you a number of related tasks in the Pick a task list. These tasks will guide you to the page where you can perform the selected task.

E-DOC-CTC-20090619-0001 v1.0

2 Thomson Gateway

Basics

2.3 Backing Up/Restoring your Configuration

Introduction

Once you have configured your Thomson Gateway to your needs, it is recommended to backup your configuration for later use. This way you can always return to your working configuration in case of problems.

Backing up your configuration

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Thomson Gateway menu, click Configuration.

3 In the Pick a task list, click Save or Restore Configuration.

4 Under Backup current configuration, click Backup Configuration Now.

5 The Thomson Gateway prompts you to save your backup file.

6 Save your file to a location of your choice.

Warning

Do not edit the backup files, this may result in corrupt files making them worthless as a configuration backup.

Restoring your configuration

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Thomson Gateway menu, click Configuration.

3 In the Pick a task list, click Save or Restore Configuration.

4 Under Restore saved configuration, click Browse.

5 Browse to your backup file and open it.

These files usually have .ini as extension.

6 The Thomson Gateway restores your configuration.

E-DOC-CTC-20090619-0001 v1.0

3 Wireless Access

Introduction

With the built-in wireless access point you do no longer need a cable connection between your computer and your Thomson Gateway.

What you need to set up a wireless network

To set up a wireless network, you need the following components:

 A Wireless Access Point (integrated into your Thomson Gateway)

 A Wireless client

Wireless Access Point

You can consider the wireless access point as the heart of your wireless network. The wireless access point:

 Connects different wireless devices with each other.

 Secures the data sent over wireless connection.

The Thomson Gateway comes with an integrated wireless access point.

Wireless client

The wireless client allows you to connect a device, typically a computer, to a wireless access point. Both builtin and external (for example via USB) clients are available.

Other devices like media players and smartphones may also have a built-in wireless client. Check the documentation of your device for more information.

Check the documentation of your computer if you are not sure if your computer is equipped with a wireless client.

Configuring your wireless clients

Before you can start surfing the internet with a wireless connection, you must first connect your wireless client to your Thomson Gateway wireless access point.

For more information, see “3.1 Connecting Your Wireless Client via WPS” on page 24 and “3.2 Connecting

Your Wireless Client without WPS” on page 26.

Secure your wireless connection!

Because you no longer need a physical connection, everyone who is within the range of your Thomson Gateway can access your network. If you do not protect your wireless network, the following could happen:

 People can use your connection to access the Internet.

 Hackers can use your connection to commit computer crimes.

You can easily prevent this by securing your wireless connection. For more information, see “3.3 Securing

Your Wireless Connection” on page 27.

E-DOC-CTC-20090619-0001 v1.0

3 Wireless Access

3.1 Connecting Your Wireless Client via WPS

WPS

Wi-Fi Protected Setup (WPS) allows you to add new wireless clients to your network in a swift and easy way, without the need to enter all your wireless settings (network name, wireless key, encryption type).

Requirements

 Your wireless client must support WPS. Check the documentation of your wireless client for this.

 Your Thomson Gateway must use WPA(2)-PSK encryption (default encryption) or no encryption. WPS

with WEP encryption is not possible.

Procedure

Proceed as follows:

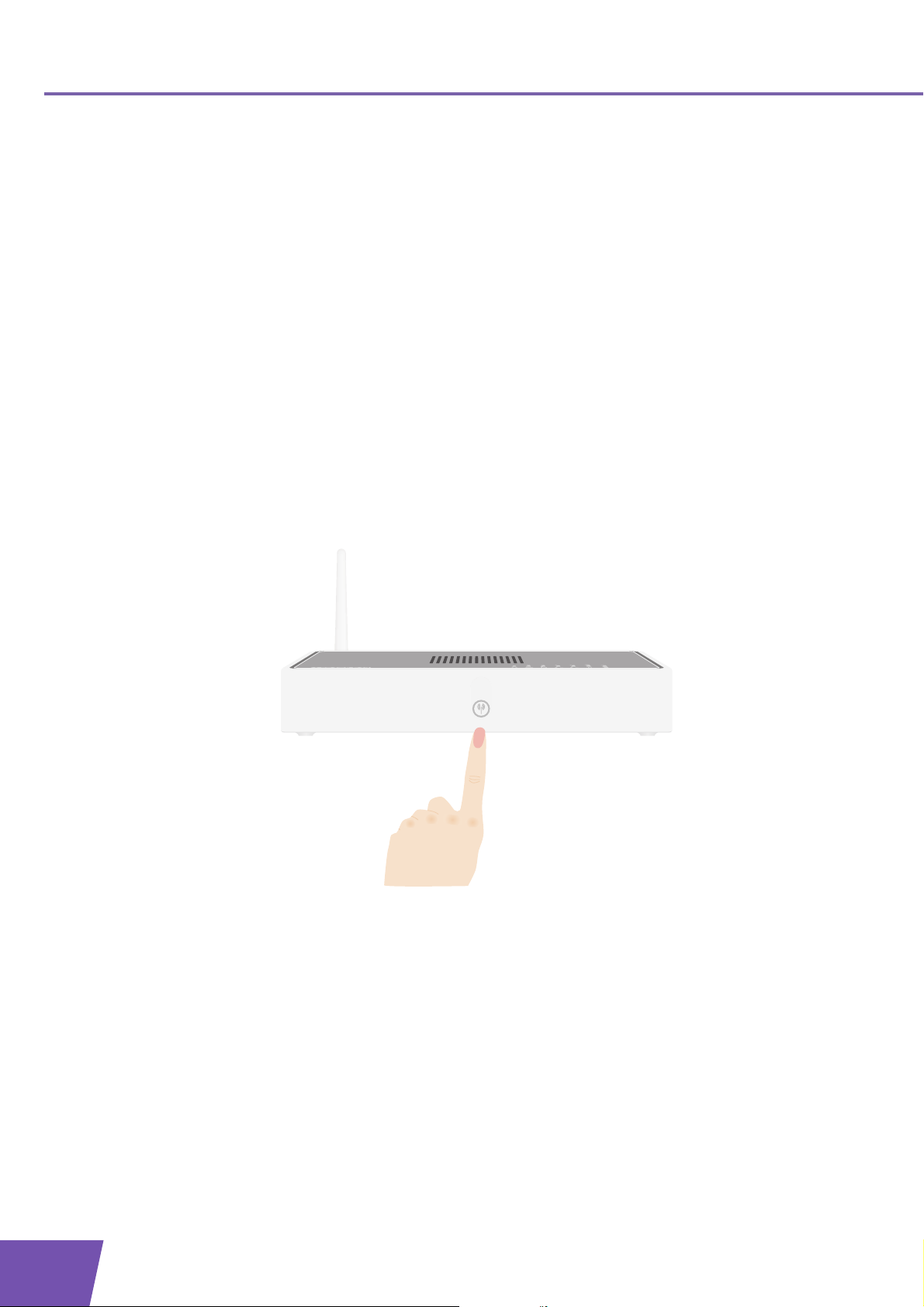

1 Shortly press the WPS button on the Thomson Gateway:

2 The WPS button LED starts blinking orange. This indicates that the Thomson Gateway is now searching

for wireless clients that are in registration mode. You now have two minutes to start WPS on your wireless client.

3 Start WPS on your wireless client.

The WPS button LED is solid green

This indicates that you have successfully registered your wireless client. You are now connected to the Thomson Gateway network.

E-DOC-CTC-20090619-0001 v1.0

3 Wireless Access

The WPS button LED is blinking red

This indicates that the Thomson Gateway could not find your wireless client. Make sure that the WPS button LED is blinking orange when you start WPS on your wireless client.

Troubleshooting

If you are having trouble connecting your wireless client via WPS, try to configure it manually. For more information, see “3.2 Connecting Your Wireless Client without WPS” on page 26.

E-DOC-CTC-20090619-0001 v1.0

3 Wireless Access

3.2 Connecting Your Wireless Client without WPS

Before you start

Before you can connect a computer to your wireless network you need to know the wireless settings that are currently used by the Thomson Gateway, i.e.:

 The Network Name (SSID)

 The wireless key

What Network Name (SSID) is my Thomson Gateway using?

If you did not change the SSID manually, your Thomson Gateway uses the Network Name that is printed on the bottom panel label of your Thomson Gateway.

What wireless security is my Thomson Gateway using?

You have not yet configured your Thomson Gateway

In this case, no wireless key is used.

You have already configured your Thomson Gateway using the Guided Installation

If you choose to use the wireless settings proposed by the Setup wizard, you can find the wireless key on the label on the bottom of your Thomson Gateway.

Forgot your wireless settings?

If you have changed the wireless settings manually and you can’t remember your settings, try one of the following:

 If one of your computers is already connected to your network:

1 Browse to the Thomson Gateway GUI on that computer.

2 On the Home Network menu, click Wireless.

3 In the upper-right corner, click Details.

4 Under:

 Configuration, you can find the network name (SSID).

 Security, you can find the encryption.

 If none of your computers is connected to your network, connect a computer using a wired connection

and follow the procedure above to find out what your wireless settings are.

The last option is to reset your Thomson Gateway (all your changes will be lost!) and reconfigure it. For more information, see “9.6 Reset to Factory Defaults” on page 81.

Procedure

Configure your computer with the same wireless settings as your Thomson Gateway. For more information, consult the documentation of your wireless client.

E-DOC-CTC-20090619-0001 v1.0

3 Wireless Access

3.3 Securing Your Wireless Connection

Introduction

By using encryption, you can protect the wireless communication between the wireless clients and your Thomson Gateway with a wireless key. This way, only clients which use the correct Network Name (SSID) and wireless key can connect to your network.

Encryption types

Over the years a number of encryption types have been developed. The list below gives you an overview of the supported encryption types ordered by descending security level, you will find the highest level of security at the top of the list:

 WPA-PSK Encryption:

The wireless data is being encrypted with a user-defined key. Wireless clients must be configured with this key before they can connect to the Thomson Gateway.

 WEP Encryption:

The first encryption type used for wireless connections. Like WPA-PSK it uses a user-defined key, but WEP has been proven to have some security issues. We strongly recommend you to use WPA-PSK instead.

Which encryption type should I use?

We strongly recommend you to WPA-PSK.

Although the Thomson Gateway allows you to use WEP or no security, it is not recommended to use these settings. Only use WEP if you have wireless clients that don’t support a higher encryption level.

Configuring the wireless encryption

Proceed as follows:

1 Open the Thomson Gateway GUI.

2 On the left menu, click Home Network.

3 Under Wireless, click your access point.

Your access point is listed in the following format: “WLAN:<Network Name> (<Actual Speed>)”. For example, WLAN: Thomson83C7C7 (54Mbps).

4 The Wireless Access Point page appears.

5 In the Navigation bar, click Configure.

6 Under Security, you can change the Encryption. If you want to use:

 WPA-PSK encryption, continue with “3.3.1 Configuring WPA-PSK Encryption” on page 28.

 WEP encryption, continue with “3.3.2 Configuring WEP Encryption” on page 29.

E-DOC-CTC-20090619-0001 v1.0

3 Wireless Access

3.3.1 Configuring WPA-PSK Encryption

Procedure

Continuing from “Configuring the wireless encryption” on page 27:

1 Select Use WPA-PSK Encryption.

2 In the WPA-PSK Encryption Key box, type a the key of your choice. The key must be in one of the

following formats:

 8 to 63 alphanumeric characters. For example: MyKey123

 8 to 64 hexadecimal characters (characters from 0 to 9 and from A to F). For example: C54F48A5.

3 In the WPA-PSK Version list, click the WPA-version of your choice. Following options are available:

 WPA2:

WPA2 is the most secure version, but not all wireless clients already support it. Before you select this version, make sure all of your wireless clients support it.

 WPA+WPA2:

If not all of your wireless clients support WPA2 or you are not sure if they support WPA2, we recommend you to choose WPA+WPA2. Wireless clients that support WPA2 will use WPA2, the others will use WPA.

 WPA:

If none of your wireless clients support WPA2 choose this option.

If you want to configure WPA2 on the built-in wireless utility of Windows XP Service Pack 2 (SP2), you first have to:

 Upgrade your Windows XP to Service Pack 3.

- or -

 Install the following update: http://support.microsoft.com/kb/917021.

4 Click Apply.

5 Configure your wireless client(s) with the same settings.

E-DOC-CTC-20090619-0001 v1.0

3 Wireless Access

3.3.2 Configuring WEP Encryption

Warning

Although the Thomson Gateway allows you to use WEP or no security, it is not recommended to use these settings. Only use WEP if you have wireless clients that do not support any higher encryption levels.

Procedure

Continuing from “Configuring the wireless encryption” on page 27:

1 Select Use WEP Encryption

2 In the WEP Key Length list, click the desired key length (a higher key length offers higher security).

3 In the Encryption key box, type a Network key of your choice. If you are using:

 A 64-bit key:

Type 10 hexadecimal characters (characters from 0 to 9 and from A to F) or 5 alphanumeric characters.

 A 128-bit key:

Type 26 hexadecimal characters (characters from 0 to 9 and from A to F) or 13 alphanumeric characters.

4 Click Apply.

5 Configure your wireless client(s) with the same settings.

E-DOC-CTC-20090619-0001 v1.0

3 Wireless Access

E-DOC-CTC-20090619-0001 v1.0

4 Telephony

Voice over IP (VoIP)

VoIP is a technology in which telephone calls are made over the Internet. This allows you to save on communication costs, especially for long-distance calls.

The expensive solution

To be able to make your phone calls over the Internet you could:

 Buy an IP phone.

These IP phones are special phones that you can connect to your Internet Gateway.

 Install VoIP software on your computer and make your phone calls via your computer.

The THOMSON solution

With the Thomson Gateway you can make both VoIP and traditional telephone calls using a traditional analogue phone or

If your Thomson Gateway is not powered, the traditional telephone network (if connected) will automatically selected. This way you are still able to make emergency calls.

In this chapter

This chapter covers following topics:

Setting Up Your Telephone Network 32

Address Book 37

Telephony Services 38

Viewing Telephony Statistics 44

Topi c Page

E-DOC-CTC-20090619-0001 v1.0

4 Telephony

4.1 Setting Up Your Telephone Network

Procedure

To set up your Thomson Gateway successfully, you must follow the following steps:

1 Connect your traditional phone(s) or fax to the green Phone port(s) on the Thomson Gateway’s back

panel.

2 Connect your Thomson Gateway to the traditional network.

For more information, see “4.1.1 Connection to the Traditional Telephone Network” on page 33.

3 Configure the VoIP service on your Thomson Gateway.

For more information, see “4.1.2 Configuring the Thomson Gateway VoIP Settings” on page 34.

E-DOC-CTC-20090619-0001 v1.0

4 Telephony

PSTN

4.1.1 Connection to the Traditional Telephone Network

Combining VoIP with the traditional telephone network

The Thomson Gateway allows you to use both the traditional telephone network (PSTN) as the VoIP network on the same device.

This way, you can still make calls over the traditional network if the VoIP service is down (e.g. your Thomson Gateway is powered off).

Be aware that, if you are not connected to the traditional telephone network, emergency calls will not be possible when your Internet connection is down or your Thomson Gateway is powered off.

What do I have to do to configure this?

If your Thomson Gateway:

 Does not have a PSTN port on its back panel then the Thomson Gateway has an integrated filter. Both

DSL and PSTN are coming in via the DSL port, so no extra connections are needed.

In this case the DSL port must be directly connected to your telephone outlet. Do not put any filter or splitter between them!

 Has a PSTN port on its back panel you have to connect this port to the Phone output of your filter or

splitter:

For more information about filters and splitters, see “Filters and splitters” on page 4.

E-DOC-CTC-20090619-0001 v1.0

4 Telephony

4.1.2 Configuring the Thomson Gateway VoIP Settings

Introduction

If you configured your Thomson Gateway using the Guided Installation, the VoIP settings may already be configured by the Setup wizard.

If you choose to configure your Thomson Gateway manually or you still need to configure the VoIP settings, you can follow the procedure below.

How can I check if the VoIP settings have already been configured?

If the Phone LED is:

 Solid or blinking green then the telephony service has already been configured. No configuration is

needed.

 Off then telephony service is not yet configured. Follow the instructions below.

Requirements

Your Internet connection must be up and running before you can configure Internet telephony.

Configuring the VoIP settings

Proceed as follows:

1 Enter the proxy and registrar settings.

2 Enter your VoIP account settings.

Enter the proxy and registrar settings

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Telephony.

3 In the Navigation bar, click Expert configure.

4 Complete the following fields with the settings provided by your VoIP provider:

 Proxy:

Type the URL (for example: sip.provider.com) or IP address of the proxy.

 Registrar:

Type the URL (for example: sip.provider.com) or IP address of the registrar.

 Registrar Port and Proxy Port.

In most cases the default port (5060) will be used. Only change these values if your provider is using other port numbers.

5 Click Apply.

E-DOC-CTC-20090619-0001 v1.0

Enter your VoIP account settings

Proceed as follows:

1 In the Navigation bar, click Configure.

2 Under Service Configuration, select Enable Telephony.

3 Under Telephone Numbers, complete the following fields:

 SIP URI:

The Uniform Resource Identifier (URI) of your SIP account (for example: 050579, john.doe,...). This is the telephone number that people have to dial to call you.

 Username:

The user name of your VoIP account (for example: 050579, john.doe,...).

 Password:

The password of your VoIP account.

 Displayname:

The name that you want people to see on the phone’s screen when you are calling. Your VoIP provider may not support this feature.

 Abbreviated number:

An internal number to call the phones associated with this VoIP account.

 Port:

The phone port that you want to associate with this VoIP account. If you want to use the same VoIP account for all ports, select Port ‘All’.

4 Click Apply.

4 Telephony

Verifying Telephone Connectivity

Proceed as follows to verify the voice connection:

1 Make sure the Thomson Gateway is turned on.

2 Check whether your phone is properly attached to the Thomson Gateway.

3 Make sure the Internet telephony service is enabled and configured.

4 The Phone LED must be solid green.

5 Pick up your phone, wait for the dialling tone, and dial the number. If you dial a ‘#’ after the phone

number, the phone number will be called over the traditional telephone network.

The phone(s) attached to the Thomson Gateway can only receive incoming VoIP calls, as long as your Thomson Gateway is turned on and the Phone LED is lit.

For calls over the traditional telephone, your phones are line-powered by the telephone company and can therefore always be reached, even if the Thomson Gateway is turned off.

Multiple Identities

You can assign up to three Internet telephone numbers or URIs to one or both phone ports, or you can assign a common number to both phone ports.

Using Multiple Identities

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Telephony.

3 In the Navigation bar, click Configure.

4 In the Pick a task list, click Use multiple identities.

E-DOC-CTC-20090619-0001 v1.0

4 Telephony

5 Click Add.

6 Enter another URI, your user name and password.

7 Choose the phone port for which you want to use this telephone number.

8 Click Apply.

E-DOC-CTC-20090619-0001 v1.0

4 Telephony

4.2 Address Book

Introduction

The Address Book page is located on the Thomson Gateway GUI and allows you to:

 Store your contacts on the Thomson Gateway GUI.

 Initiate a call or send a message by clicking the phone number or e-mail address in the contact details.

Accessing the Address Book page

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Address Book.

3 The Address Book page appears.

Managing contacts

To :

 Add a contact, click Add.

 Edit a contact, click Edit.

 Delete a contact, click Delete.

All information provided per contact is optional except for the last and first name, and can be updated or completed at any time.

The Address book resides on the Thomson Gateway, so everyone with access to the Thomson Gateway web interface can view and use the Address book.

Using the Address book

The contact details of a contact in your Address book allow you to directly make a call or send a message from out the Thomson Gateway web interface.

Per contact you can click (if available):

 Business: to make a call to the contact’s business telephone number

 Home: to make a call to the contacts home telephone number

 Mobile: to make a call to the contact’s mobile telephone number

 Other or SIP uri: to make a call to the contact’s VoIP telephone number

 E-mail to send an E-mail message to the contact with your e-mail client.

E-DOC-CTC-20090619-0001 v1.0

4 Telephony

4.3 Telephony Services

Introduction

Telephony services add extra functionality to your phone. For example: putting a call on hold, transferring calls,...

Requirements

Before you can use a service, it:

1 Must be supported by your service provider.

For more information, see “4.3.1 Services supported by Your Service Provider” on page 39.

2 Must be activated on your Thomson Gateway.

For more information, see “4.3.2 Activating a Telephony Service on your Thomson Gateway” on page 40.

Only if these two conditions are met, you will be able to use all functions associated to the service. For more information, see “4.3.3 Using Telephony Services” on page 41.

E-DOC-CTC-20090619-0001 v1.0

4.3.1 Services supported by Your Service Provider

Procedure

To see which services are supported by your provider:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Telephony.

3 In the Navigation bar, click Configure.

4 In the Pick a task list, click View Telephony Services.

5 Under Telephony Services, you can see the services that are supported by your provider.

Activation

If you want to use one of the supported services, make sure it is activated. For more information, see

“4.3.2 Activating a Telephony Service on your Thomson Gateway” on page 40.

4 Telephony

E-DOC-CTC-20090619-0001 v1.0

4 Telephony

4.3.2 Activating a Telephony Service on your Thomson Gateway

How can I (de)activate a service on my Thomson Gateway?

You can (de)activate services in two ways:

 Via (de)activation codes on your phone.

 Via the Thomson Gateway GUI.

Activating a Telephony Service via Your Phone

Where can I find the (de)activation codes?

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Telephony.

3 In the Navigation bar, click Configure.

4 In the Pick a task list, click View Telephony Services.

5 In the Telephony Services table, you can find the activation and deactivation codes.

Using the codes

To (de)activate one of the services just dial the corresponding code on your phone.

For example, to activate Call Hold dial *94; to deactivate the service dial #94.

Activating a Telephony Service via the Thomson Gateway GUI

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Telephony.

3 In the Navigation bar, click Configure.

4 In the Pick a task list, click View Telephony Services.

5 In the Navigation bar, click Configure.

6 To :

 Activate a service select the check box next to the service.

 Deactivate a service clear the check box next to the service.

7 Click Apply.

E-DOC-CTC-20090619-0001 v1.0

4 Telephony

Yo u

on hold

dial tone

Yo u

active

You press

R, 2

Yo u

active

Yo u

active

on hold

You press

R, 0

Yo u

active

Yo u

active

on hold

You press

R, 1

Yo u

dial tone

on hold

Yo u

active

on hold

You press

R, 9

4.3.3 Using Telephony Services

Introduction

This section provides an overview of the functions that will be available if you activate one of the following services:

 Call Hold service

 Call Waiting service

 Conference Call (3 Party) service

 Call Transfer

For more information on the other services, please contact your service provider.

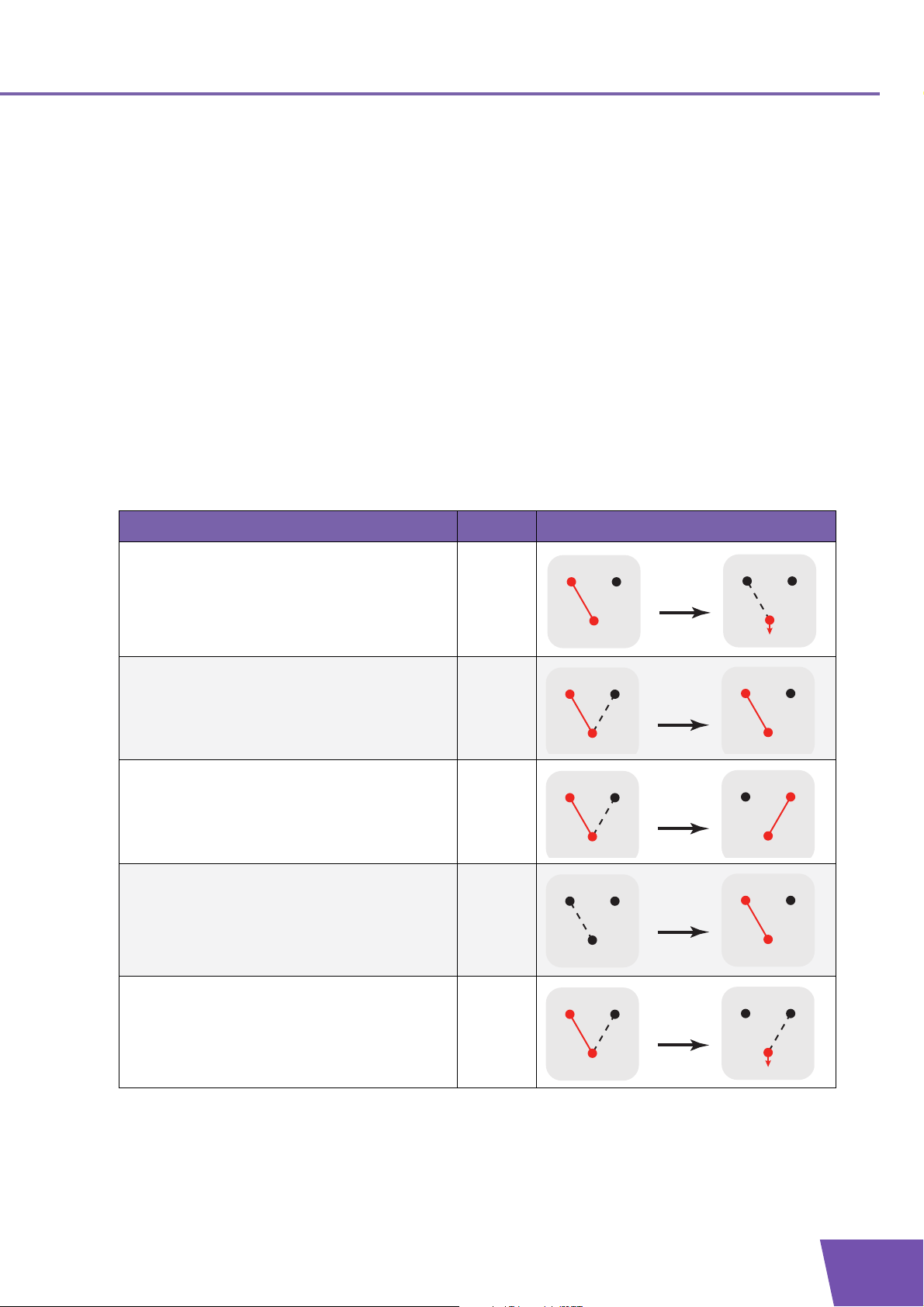

Call Hold service

If the Call Hold service is activated, you can use the following functions:

To... Press... Illustration

Put an active call on hold and enable a call set up (the dial tone is generated)

Terminate the call on hold R, 0

Terminate an active call and switch to the call on hold

Retrieve the call on hold (when there is no active call)

R, 2

R, 1

on hold

Yo u

You press

R, 1

active

Yo u

Terminate an active call and enables a call set up (the dial tone is generated)

E-DOC-CTC-20090619-0001 v1.0

R, 9

4 Telephony

Yo u

active

Yo u

active

incoming

You press

R, 1

Yo u

on hold

active

Yo u

active

on hold

You press

R, 2

Call Waiting service

If the Call Waiting service is activated, you can use the following functions:

To... Press... Illustration

Terminate an active call and switch to an

R, 1

incoming call

Reject an incoming call R, 0

Switch between an active call and a call on hold R, 2

Switch between an active call and an incoming

R, 2

call

active

Yo u

incoming

You press

R, 0

You press

R, 2

active

on hold

Yo u

active

Yo u

Conference Call (3 Party) service

If the Conference Call (3 Party) service is activated, you can use the following functions:

To... Press... Illustration

Establish a conference call (or 3 party connection)

During a conference call: put B and C on hold R, 2

During a conference call: retrieve B and C when they are on hold

R, 3

on hold

active

on hold

active

Yo u

active

Yo u

on hold

Yo u

You press

R, 3

You press

R, 2

You press

R, 3

active

on hold

active

Yo u

on hold

Yo u

active

Yo u

E-DOC-CTC-20090619-0001 v1.0

Call Transfer

Yo u

active

Yo u

on hold

active

You press

R, 4

If the Call Transfer service is activated, you can use the following functions:

To... Press... Illustration

Transfer a call R, 4

4 Telephony

E-DOC-CTC-20090619-0001 v1.0

4 Telephony

4.4 Viewing Telephony Statistics

Introduction

The Telephony Statistics page on the Thomson Gateway GUI lists:

 Successful incoming calls.

 Missed incoming calls.

 Successful outgoing calls.

 Failed outgoing calls.

Viewing the telephony statistics

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Telephony.

3 The Telephony page appears.

On this page you can see an overview of your last calls.

4 To view more detailed statistics, click View telephony statistics and logs in the Pick a task list.

5 The Telephony Statistics page appears and displays the number of:

 Successful incoming calls.

 Missed incoming calls.

 Successful outgoing calls.

 Failed outgoing calls.

for each phone separately and combined.

Used icons

To displays the call logs, the following icons are used:

Icon Description

Incoming call

Outgoing call

E-DOC-CTC-20090619-0001 v1.0

5 Saving Energy with Your Thomson Gateway

No user traffic

User traffic

Time

Power

Consumption

Full power limit

Low power limit

20:00

5 Saving Energy with Your Thomson Gateway

Code of Conduct v3

To prove its commitment to protect the environment, THOMSON has signed the Code of Conduct v3 (CoC v3), an agreement to reduce the power consumption of broadband devices.

It provides rules for the power consumption in:

 Full power state:

This is the normal operation mode of the device, where all functionality is enabled.

 Low power state:

When there is no user traffic on the device, the device should switch to low power mode. This is a state in which devices are only allowed to use a limited amount of energy to be able to power its components and respond to user activity.

Example:

Take the following example:

 The user switches off his computer at 20:00.

 There are no other devices connected to the Thomson Gateway.

The Thomson Gateway switches to low power mode. This results in a considerable drop in the overall power consumption of the Thomson Gateway.

THOMSON power saving innovations

On top of the CoC v3 measures, THOMSON has developed the Automatic Power Management to further reduce the power consumption.

Automatic Power Management

The Thomson Gateway constantly monitors the user activity and uses this information to optimise the power consumption:

For example:

 When there is no or low user activity, the Thomson Gateway reduces the clock frequency of the central

processor. The lowered clock frequency will result in a lower power consumption.

 Switch the wireless interface to a reduced power mode in which the access point is available for

connection, but other functions are turned off. This is only possible if there are no devices connected to the Thomson Gateway.

E-DOC-CTC-20090619-0001 v1.0

5 Saving Energy with

No User Traffic

User Traffic

Time

20:00

Time

Power

Consumption

Full power limit

Low power limit

Example:

If we use the same example as in the previous section, you can see that the Thomson Gateway is now able to further reduce the power consumption in periods where there is less action required from the Thomson Gateway (for example: no wireless devices connected, low user traffic,...).

Zero Power Consumption

If you will not be using your Thomson Gateway for a longer time (for example: you are going on holiday), you might consider to turn off the Thomson Gateway. This way no energy will be consumed at all.

Be aware that if you turn off the Thomson Gateway, all services provided by it will not be available. For example:

 No VoIP calls

You will no longer be able to make phone calls over the Internet. Your phone calls will automatically be done via the traditional phone network (if available).

 No Digital TV

If your set-top box is connected to your Thomson Gateway, he will no longer be able to connect to the Internet.

 ...

Your Thomson Gateway

E-DOC-CTC-20090619-0001 v1.0

6 Sharing Content on your Thomson Gateway

Introduction

The Thomson Gateway allows you to store your data on a centralised place in the network. This way you can share your files with everyone that is connected to your network.

Requirements

Your USB storage device must be formatted as FAT32.

To format your device for FAT32, consult the help of your operating system. Make sure to make a copy of your data before you doing this. Formatting your device will erase all data.

Connecting your USB storage device to the Thomson Gateway

Proceed as follows:

1 Plug your USB memory stick or external hard disk in (one of) the USB master port(s) of your Thomson

Gateway.

Do not remove your USB storage device without unmounting it first, otherwise data might be lost! For more information, see “6.5 Safely Removing your USB Storage Device” on page 56.

2 If you want to:

 Share your files with other devices on the network (for example: a computer) proceed with

“6.1 Using the Network File Server” on page 48.

 Share your media with UPnP AV media clients (for example: a media player or media centre),

proceed with “6.2 Using the UPnP AV Media Server” on page 51.

 Make your files available for FTP access, proceed with “6.3 Using the FTP Server” on page 52.

E-DOC-CTC-20090619-0001 v1.0

6 Sharing Content on

your Thomson Gateway

6.1 Using the Network File Server

Introduction

The Network Server allows you to share the content on your USB storage device with other devices that are connected to your Thomson Gateway network (mostly computers).

These devices have read and write access to this USB device.

Procedure

To enable the Network File Server:

1 Browse to the Thomson Gateway GUI.

2 On the Too ls menu, click Content Sharing.

3 In the Navigation bar, click Configure.

4 Under Network File Server (Windows Networking), click Server Enabled. It is also recommended to

complete in following fields:

 Server Name:

You will use this name to access the Thomson Gateway. If you leave this field empty you can only access your USB storage device by entering the IP address (by default: 192.168.1.253)

 Server Description:

Here you can add a short description for what kind of data is stored on the USB storage device.

 Workgroup:

Enter the same workgroup as your computer(s).

5 Click Apply.

6 All users connected to the Thomson Gateway can now connect to your USB storage device.

7 If you want to limit the number of folders users can access, continue with “6.4 Managing your Shared

Content” on page 54.

E-DOC-CTC-20090619-0001 v1.0

6 Sharing Content on your Thomson Gateway

Accessing the shared content on Windows

Proceed as follows:

1 Open Windows Explorer.

2 In the address bar type two backslashes followed by the name that you entered in the Server Name box

(in our example: \\Thomson).

If you did not provide a server name, type \\192.168.1.253.

3 All storage devices that are attached to your Thomson Gateway are listed as folders.

If the storage device has multiple partitions an index number will be added at the end (for example: Disk_a1 and Disk_a2).

If the partition is a managed partition, the Media and Shared folders will be displayed instead:

For more information on managed partitions, see “6.4 Managing your Shared Content” on page 54.

4 If you plan to frequently use this folder, it might be useful to map this folder as a network drive. For more

information, see your operating system’s help.

E-DOC-CTC-20090619-0001 v1.0

6 Sharing Content on

Accessing the shared content on Mac

Proceed as follows:

1 On the Go menu, click Connect To Server.

2 The Connect To Server window appears.

3 In the Server Address box, type smb://<server name>, where <server name> is the Server Name you

assigned to your USB storage device. So in our example we will type smb://Thomson.

If you did not provide a server name, type smb://192.168.1.253.

4 The SMB Mount window appears.

your Thomson Gateway

Select the shared folder you want to mount and click OK.

5 The SMB/CIFS Filesystem Authentication window appears. You do not need to authenticate, click OK.

6 Your USB storage device is now mounted and is displayed on your desktop.

E-DOC-CTC-20090619-0001 v1.0

6 Sharing Content on your Thomson Gateway

6.2 Using the UPnP AV Media Server

UPnP AV protocol

UPnP AV (AV stands for Audio and Video) is a protocol especially designed to share media files on your local

network.

UPnP AV network components

A UPnP AV network consists of the following components:

 The UPnP Server is directly connected to your media files and makes them available on the network. In

your network the Thomson Gateway will fulfil this role.

 The UPnP client is a software application or hardware device that allows you to play or view the media

files provided by your UPnP AV media server.

Setting up the UPnP AV server

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Too ls menu, click Content Sharing.

3 In the Navigation bar, click Configure.

4 Under UPnP AV Media Server, click Server Enabled.

5 Click Apply.

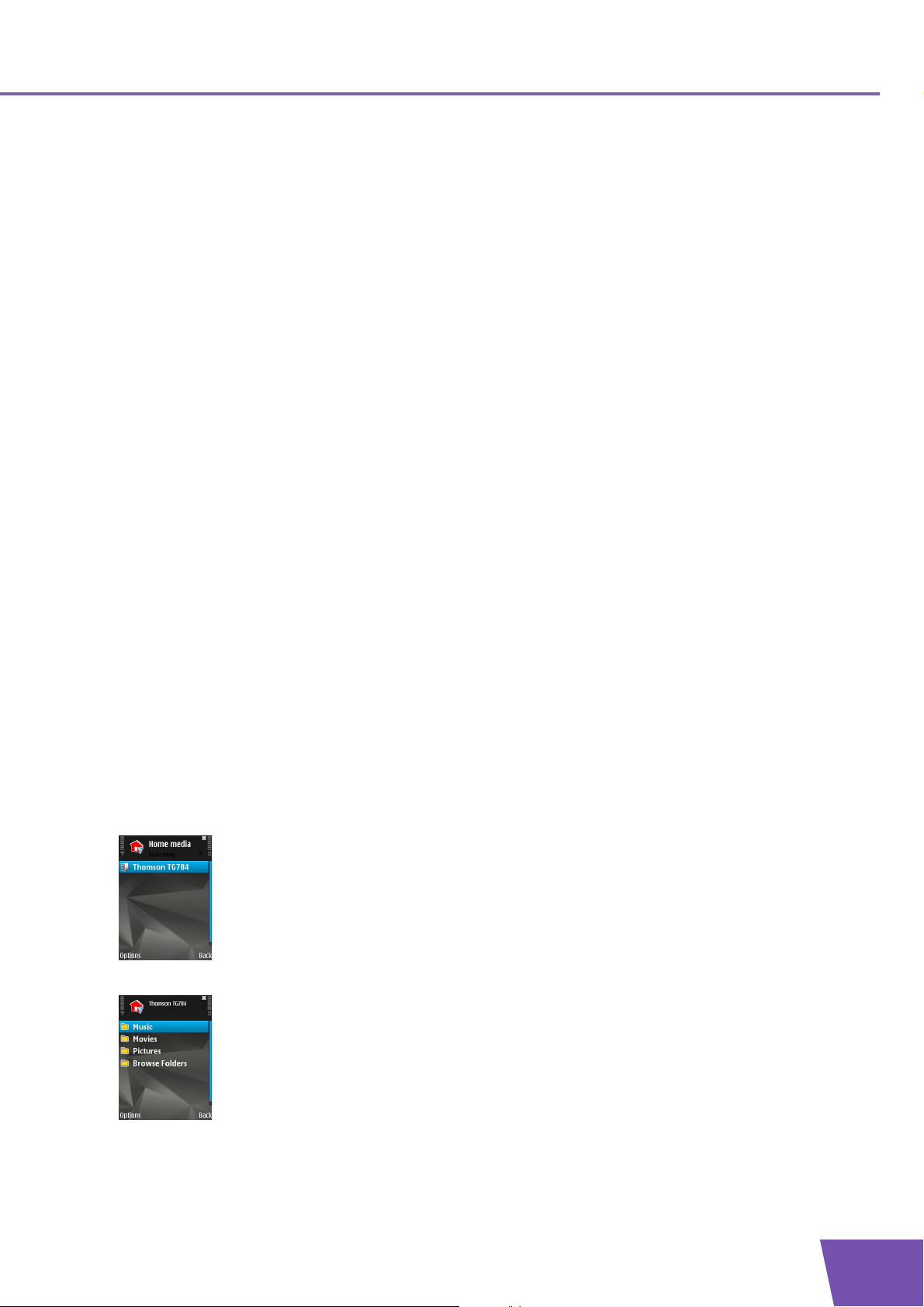

Result

The Thomson Gateway lists all audio, video and picture files located on the connected USB storage device. All UPnP AV clients that are connected to your network are now able to view this list and play or view items from this list.

On your UPnP AV client, the Thomson Gateway’s UPnP AV media server will be listed as THOMSON TGXXX or Thomson MediaGateway. Below you can find a screenshot taken on a smartphone with a UPnP AV client.

Via this entry, you can browse to your media files.

E-DOC-CTC-20090619-0001 v1.0

6 Sharing Content on

6.3 Using the FTP Server

Introduction

The Thomson Gateway allows you to access your shared content by FTP. This can be useful if you want to be able to access your shared content from the Internet.

Via FTP you can download or upload all types of files both from your local network and the Internet.

Setting up the FTP server

Proceed as follows:

1 Protect your account with a password.

2 Enable the FTP Server and select the managed partition.

Protect your account with a password

your Thomson Gateway

If you did not yet configure your login to the Thomson Gateway GUI with a password:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click User Management.

3 In the Pick a task list, click Change my password.

4 Leave the Old Password box empty.

5 Type your new password both in the New Password box and Confirm New Password box.

Enable the FTP Server and select the managed partition

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Too ls menu, click Content Sharing.

3 In the Navigation bar, click Configure.

4 Under FTP Server, click Server Enabled.

5 Under List of connected disks, click the radio button next to the partition that you want to access using

FTP.

6 The Thomson Gateway now creates a Media and Shared folder on the selected partition. The Shared

folder will be used as root location for FTP sessions.

7 Click Apply.

E-DOC-CTC-20090619-0001 v1.0

6 Sharing Content on your Thomson Gateway

Result

The Shared folder and its subfolders are now accessible using FTP. The other folders are not accessible via FTP.

If you are connected to the Internet, the link to the FTP server is displayed under FTP Server:

On the Thomson Gateway network, you can also access the FTP server using its local address (192.168.1.253).

Additional configuration

Because most service providers use dynamic IP addresses, the IP address of your Internet connection may change frequently. This implies that the link to the FTP server will also change every time the public IP changes. With Dynamic DNS, you can assign a host name to the IP address (for example mygateway.dyndns.org). For more information, see “7.3 Dynamic DNS” on page 66.

E-DOC-CTC-20090619-0001 v1.0

6 Sharing Content on

your Thomson Gateway

6.4 Managing your Shared Content

Managed Partition

If you select your drive or partition as managed partition, users only have access to the following folders:

 Media

 Shared

All other folders will be hidden from the user. These hidden folders are still on the USB storage device, but you can not access them. If you connected more than one USB storage device, those devices will also be hidden.

Media folder

Use the Media folder to share your audio, video and picture files. This folder can only be accessed via the following servers:

 The Network File Server

For more information, see “6.1 Using the Network File Server”.

 UPnP AV Media Server.

For more information, see “6.2 Using the UPnP AV Media Server”.

If your partition is managed, the UPnP AV server will only use the media files that are located in the Media folder.

Shared folder

The Shared folder is a folder to share files both on the local network and the Internet. This folder can only be accessed via the following server:

 The Network File Server

For more information, see “6.1 Using the Network File Server”.

 FTP Server

For more information, see “6.3 Using the FTP Server”.

The FTP Server can only be used with a managed partition.

Ummanaged vs managed

The following table compares the two modes:

Access via Accessible folders

Unmanaged Managed

Network File Server All Media and Shared folder.

UPnP AV Media Server All Media folder.

FTP Server Not available in this mode. Shared folder.

E-DOC-CTC-20090619-0001 v1.0

6 Sharing Content on your Thomson Gateway

Setting up the managed partition

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Too ls menu, click Content Sharing.

3 In the Navigation bar, click Configure.

4 Under List of connected disks, click the radio button next to the partition you want to configure as

Managed Partition.

5 Click Apply.

Result

The Thomson Gateway creates following folders:

 Media:

Use this folder to share your media files with others users on your network. You can store your media files in following subfolders:

 Movies

 Music

 Pictures

 Shared:

Use this folder to share your other data with other users on your network. Optionally, users can also access this folder using FTP. For more information, see “6.3 Using the FTP Server” on page 52.

If the above folders already exist, the existing folders are used.

E-DOC-CTC-20090619-0001 v1.0

6 Sharing Content on

your Thomson Gateway

6.5 Safely Removing your USB Storage Device

Introduction

If you just unplug your USB storage device from the Thomson Gateway you may loose your data. To avoid this you must first unmount your USB storage device.

Unmounting your USB storage device

Proceed as follows

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Content Sharing.

3 In the Navigation bar, click Configure.

4 Click Unmount.

5 Unplug your USB storage device from the Thomson Gateway.

E-DOC-CTC-20090619-0001 v1.0

7 Thomson Gateway Tools

In this chapter

In this chapter we will take a closer look at following features:

Topi c Page

UPnP 58

Assigning a service (HTTP, FTP,...) to a Computer 64

Dynamic DNS 66

Feature availability

Depending on the configuration offered by your service provider, some features may not be available on your Thomson Gateway. For more information, contact your service provider.

E-DOC-CTC-20090619-0001 v1.0

7 Thomson Gateway

7.1 UPnP

Introduction

UPnP is designed to automate the installation and configuration of a (small) network as much as possible. This means that UPnP-capable devices can join and leave a network without any effort of a network administrator.

Supported Operating Systems

The following operating systems support UPnP:

 Windows 7

 Windows Vista

 Windows XP

If your computer is running Windows XP, you first have to install the UPnP component. For more information, see “7.1.4 Installing UPnP on Windows XP” on page 62.

Tools

UPnP and the Thomson Gateway

With UPnP:

 You can access the Thomson Gateway GUI without having to remember the address of the Thomson

Gateway. For more information, see “7.1.1 Accessing Your Thomson Gateway with UPnP” on page 59.

 You can connect/disconnect without having to open the Thomson Gateway GUI.

For more information, see “7.1.2 Managing your Internet connection with UPnP” on page 60.

 You do not have to manually create port mappings to run services on a computer. The automatic port

configuration mechanism for UPnP-enabled games and applications will do this for you. If the application is UPnP-enabled, UPnP will create these entries automatically. For more information, see “7.2 Assigning

a service (HTTP, FTP,...) to a Computer” on page 64.

E-DOC-CTC-20090619-0001 v1.0

7 Thomson Gateway Tools

7.1.1 Accessing Your Thomson Gateway with UPnP

Windows 7/Vista

If you computer runs Windows 7/Vista:

1 On the Windows Start menu, click Network.

2 The Network window appears:

3 Right-click your Thomson Gateway (displayed as THOMSON TGXXX) and click View device web page.

4 The Thomson Gateway GUI appears.

Windows XP

If you computer runs Windows XP:

1 Go to My Network Places.

2 The My Network Places window appears:

3 Double-click your Thomson Gateway (displayed as THOMSON TGXXX).

4 The Thomson Gateway GUI appears.

E-DOC-CTC-20090619-0001 v1.0

7 Thomson Gateway

Tools

7.1.2 Managing your Internet connection with UPnP

Windows 7/Vista

If you computer runs Windows 7/Vista:

1 On the Windows Start menu, click Network.

2 The Network window appears:

3 Right-click your Thomson Gateway (displayed as THOMSON TGXXX).

4 If you are currently:

 Connected to the Internet, click Disable to disconnect from the Internet.

 Not connected to the Internet, click Enable to connect to the Internet.

Windows XP

Proceed as follows:

1 On the Windows Start menu, click (Settings >) Control Panel.

2 The Control Panel window appears.

Click (Network and Internet Connections) > Internet Connections.

3 The Network Connections window appears;

4 If you right-click the Internet Connection icon, you can connect/disconnect your connection to the

Internet.

Disabling this feature

To prevent that users can connect/disconnect you can enable Extended Security. For more information, see

“7.1.3 Configuring UPnP on the Thomson Gateway” on page 61.

E-DOC-CTC-20090619-0001 v1.0

7 Thomson Gateway Tools

7.1.3 Configuring UPnP on the Thomson Gateway

Introduction

On the Thomson Gateway GUI you can:

 Enable/Disable UPnP.

 Enable/Disable Extended Security.

Enable/Disable UPnP

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Game & Application Sharing.

3 Under Universal Plug and Play:

 Select the Use UPnP check box, to enable UPnP.

 Clear the Use UPnP check box, to disable UPnP.

4 Click Apply.

Extended Security

If Extended Security is enabled only limited UPnP operation between the host and the Thomson Gateway is allowed:

 A local host is not allowed to connect/disconnect the Thomson Gateway Internet connection. You can

then only connect/disconnect the Internet connection via the Thomson Gateway GUI

 Address translation mappings can only be added or changed via UPnP for the host on which the UPnP

application is running.

Enable/Disable Extended Security

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Game & Application Sharing.

3 Under Universal Plug and Play, select Use Extended Security.

4 Click Apply.

E-DOC-CTC-20090619-0001 v1.0

7 Thomson Gateway

Tools

7.1.4 Installing UPnP on Windows XP

Adding UPnP

If you are running Microsoft Windows XP, it is recommended to add the UPnP component to your system.

Proceed as follows:

1 In the Start menu, click (Settings >) Control Panel.

2 The Control Panel window appears.

Click Add or Remove Programs.

3 The Add or Remove Programs window appears.

Click Add/Remove Windows Components.

4 The Windows Components Wizard appears:

In the Components list, select Networking Services and click Details

5 The Networking Services window appears:

Select Universal Plug and Play or UPnP User Interface and click OK.

6 Click Next to start the installation and follow the instructions in the Windows Components Wizard.

7 At the end of the procedure the wizard informs you that the installation was successful. Click Finish to

quit.

E-DOC-CTC-20090619-0001 v1.0

7 Thomson Gateway Tools

Adding IGD Discovery and Control

Your Windows XP system is able to discover and control Internet Gateway Devices (IGD), like the Thomson Gateway on your local network. Therefore, it is recommended to add the IGD Discovery and Control client to your system.

Proceed as follows:

1 On the Windows taskbar, click Start.

2 Select (Settings >) Control Panel > Add or Remove Programs.

3 In the Add or Remove Programs window, click Add/Remove Windows Components.

4 The Windows Components Wizard appears:

Select Networking Services in the Components list and click Details.

5 The Networking Services window appears:

Select Internet Gateway Device Discovery and Control Client and click OK.

6 Click Next to start the installation and follow the instructions in the Windows Components Wizard.

7 At the end of the procedure, the wizard informs you that the installation was successful. Click Finish to

quit.

E-DOC-CTC-20090619-0001 v1.0

7 Thomson Gateway

Internet

Tools

7.2 Assigning a service (HTTP, FTP,...) to a Computer

Introduction

The Thomson Gateway allows you to use one internet connection for multiple computers. This means that all your computers share one public IP address, as if only one computer were connected to the outside world.

Issue

When the Thomson Gateway receives an incoming message, the Thomson Gateway has to decide to which computer he has to send this message.

If the incoming message is a response to an outgoing message originating from one of your computers, the Thomson Gateway sends the incoming message to this computer.

If your are running a server or an application that acts as a server (for example a HTTP server, internet game), the initial message will come from the internet and the Thomson Gateway has to decide to which computer he should forward the incoming message.

Internet

Solution

To avoid this problem you must:

 Enable UPnP.

 Assign a game or application to a local networking device.

E-DOC-CTC-20090619-0001 v1.0

7 Thomson Gateway Tools

UPnP

UPnP is a technology that enables seamless operation of a wide range of games and messaging applications. Your computer will use UPnP to communicate to the Thomson Gateway which services are running on the computer.

For example, when you start a UPnP-enabled application on your computer, it will automatically create the necessary port mappings to this computer.

For more information on UPnP, see “7.1 UPnP” on page 58.

Assign a game or application to a local networking device

If you assign a game or application to a local networking device, you will basically tell the Thomson Gateway that if it receives requests for a specific game or application, it has to forward these messages to a specific computer.

Proceed as follows to do so:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Game & Application Sharing.

3 In the Pick a task list, click Assign a game or application to a local network device.

4 In the Game or application list, click the service you want to run on the computer. For example, HTTP

Server (World Wide Web).

If the service is not available in the list, click Create a new game or application in the Pick a task list. For more information, click Help on the Thomson Gateway GUI.

5 In the Device list, select the computer to which you want to assign the service. Your computer will be

listed with it’s computer name.

6 All incoming request for the selected service will now be directed to the selected device. The Thomson

Gateway will also configure the its firewall to allow this service.

E-DOC-CTC-20090619-0001 v1.0

7 Thomson Gateway

7.3 Dynamic DNS

Introduction

The Dynamic DNS service allows you to assign a dynamic DNS host name (for example mywebpage.dyndns.org) to a broadband connection even if it is using a dynamic IP address. As soon as the device gets a new IP address, the dynamic DNS server updates its entry to the new IP address.

What you need

Before you can configure Dynamic DNS, you first have to create an account at a Dynamic DNS service provider. For example:

 www.dyndns.org

 www.no-ip.com

 www.dtdns.com

Tools

Procedure

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Dynamic DNS.

3 On the Navigation bar, click Configure.

4 Select the Enabled check box.

5 If necessary, select the broadband connection to which you want to assign the Dynamic DNS host name

in the Interface list.

6 Type the user name and password of your Dynamic DNS service account in the corresponding fields.

7 In the Service list, click the name of your Dynamic DNS service provider.

8 In the Host box, type the host name that you got from the Dynamic DNS service provider (for example

mywebpage.dyndns.org).

9 Click Apply.

E-DOC-CTC-20090619-0001 v1.0

8 Internet Security

Overview

The Thomson Gateway offers you various options to secure your network:

Topi c Page

Firewall 68

Parental Control 69

8 Internet Security

E-DOC-CTC-20090619-0001 v1.0

8 Internet Security

8.1 Firewall

Introduction

The Thomson Gateway comes with an integrated firewall. This firewall has a number of predefined levels to allow you to adjusted the firewall to your needs.

The Firewall is disabled by default.

Changing the security level

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Firewall.

3 The Firewall page appears. In the upper-right corner, click Configure.

4 A list with security settings with a brief description is displayed.

5 Select the security level of your choice and click Apply.

E-DOC-CTC-20090619-0001 v1.0

8 Internet Security

8.2 Parental Control

Introduction

The Thomson Gateway allows you to deny access to specific web sites.

Access Denied page

When a user tries to access a page that is being blocked, the following page is displayed:

Address-based filtering

With address-based filtering (or URL-filtering) you can block web sites based on their address (for example www.porn.com).

Content-based filtering

As you know, the Internet consists of a large number of web sites, and that number still increases every day. This makes it almost impossible to keep the list of addresses up-to-date.

To solve this problem Thomson Gateway introduced content-based filtering.

With content-based filtering you can block web sites based on their content category (for example pornography) instead of their URL. This way, you only need to select the appropriate categories and the content category server takes care of the rest. This content category server is updated at regular intervals.

Combining the two filters

Address-based filtering has priority over content-based filtering. This means that when you are blocking a

specific category, you can still access a specific address provided you create a rule to allow access to that URL.

For example, if you are blocking content from the Finance / Investment category, you can create a rule to make an exception for netbanking.mybank.com.

Activating content-based filtering

Before you can use content-based filtering you must first activate it by purchasing a license key at your service provider or by activating the 30-day trial.

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Parental Control.

E-DOC-CTC-20090619-0001 v1.0

8 Internet Security

3 In the Pick a task list, click Activate Web Filtering License.

4 The Web Filtering Activation page appears. Under License Type, select:

 30-days evaluation if you first want evaluate this feature.

 Standard if you have already purchased a license key. The License key box appears as soon as you

select this option. Type the license key that you received from your service provider in this box.

5 Click Apply.

Option 1: content-based filter (combined with the address-based filter)

If you want to use the content-based filtering:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Parental Control.

3 On the Navigation bar, click Configure.

4 Make sure that the Use Content-Based Filter check box is selected.

5 Configure the content-based filter. For more information, see “8.2.1 Configuring The Content-based

Filter” on page 71.

6 If you want to make exceptions for specific web sites, add the necessary rules in the address-based filter.

For more information, see “8.2.2 Adding Rules for the Address-Based Filter” on page 72.

Option 2: address-based filter only

Take this option if content filtering is not available on your Thomson Gateway or you don’t want to use it.

To configure address-based filtering:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Parental Control.

3 On the Navigation bar, click Configure.

4 Make sure that the Use Address-Based Filter check box is selected.

5 In the Action for Unknown Sites, select:

 Allow as the default rule if you want to allow access to all web sites and manually specify which web

sites may not be accessed.

 Block as the default rule if you want to deny access to all web sites and manually specify a number of

web sites that may be accessed.

6 Click Apply.

7 If you want to make exceptions for specific web sites, add the necessary rules in the address-based filter.

For more information, see “8.2.2 Adding Rules for the Address-Based Filter” on page 72.

E-DOC-CTC-20090619-0001 v1.0

8 Internet Security

8.2.1 Configuring The Content-based Filter

Accessing the configuration page

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Parental Control.

3 On the Navigation bar, click Configure.

4 Under Content-Based Filtering you can change the settings of the content-based filter.

Configuring the content-based filter

Under Content-Based Filtering:

1 Select Use Content-Based Filter check box (if needed).

2 In the Action for uncategorised sites list, select a default action for sites that have not yet been

categorised.

3 Under Content Level, select the content level you want to use.

If you want a more detailed view of the content that will be blocked for this level, click the Edit link next to the content level.

If needed, you can change the Name, Description and Configuration of the content level.

4 Click Apply after you have made your changes.

Creating your own content level

Proceed as follows:

1 In the Pick a task list, click Create a new content level.

2 Enter a Name and Description for your content level and click Next.

3 Under Configuration, select:

 Clone Existing Level if you want to start from an existing level. You can now select the level that you

want to clone.

 White list if you want to block everything and select which content should be allowed.

 Black list if you want to allow everything and select which content should be blocked.

Click Next.

4 Under Configuration:

 Select the check boxes of the categories/groups you want to allow.

 Clear the check boxes of the categories/groups you want to block.

5 Click Apply.

6 Configure the content-based filter with the new level. For more information, see “Configuring the

content-based filter” on page 71.

E-DOC-CTC-20090619-0001 v1.0

8 Internet Security

8.2.2 Adding Rules for the Address-Based Filter

Introduction

Address-based filtering has a higher priority than content-based filtering. This means that when you are blocking a specific category, you can still access a specific site if you allow it in the address-based filter.

Example

If you block content from the Finance / Investment category and allow access to netbanking.mybank.com, netbanking.mybank.com will still be accessible.

Options

With the address-based filter you can:

 Deny access to a specific web site.

 Allow access to a specific web site.

 Redirect a web site.

 Redirect all web sites.

Deny access to a specific web site

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Parental Control.

3 Make sure the Use Address-Based Filter check box is selected.

4 Type the URL of the Web site you want to block (for example “mail.provider.com”) in the Web Site box.

5 In the Action list, click Block.

6 Click Add.

Allow access to a specific web site

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Parental Control.

3 Make sure the Use Address-Based Filter check box is selected.

4 Type the URL of the Web site you want to allow (for example “netbanking.bank.com”) in the Web Site

box.

5 Click Allow in the Action list.

6 Click Add.

Redirect a web site

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Parental Control.

3 Make sure the Use Address-Based Filter check box is selected.

E-DOC-CTC-20090619-0001 v1.0

8 Internet Security

4 Type the URL of the Web site you want to redirect (for example “cracks.am”) in the Web Site box.

5 Click Redirect in the Action list.

6 Type the URL of the Web site you want to redirect to (for example “mycompany.com/internetpolicy.htm”)

in the Redirect box.

7 Click Add.

Redirect all web sites

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Toolbox menu, click Parental Control.

3 Make sure the Use Address-Based Filter check box is selected.

4 Type “*” in the Web Site box.

5 Click Redirect in the Action list.

6 Type the URL of the Web site you want to redirect to (for example “mycompany.com/internetpolicy.htm”)

in the Redirect box.

7 Click Add.

E-DOC-CTC-20090619-0001 v1.0

8 Internet Security

E-DOC-CTC-20090619-0001 v1.0

9 Troubleshooting

Introduction

This chapter suggests solutions for problems you may encounter while installing, configuring or using your Thomson Gateway.

If the suggestions do not resolve the problem, look at the support pages on www.thomson your service provider.

Topics

This chapter describes the following topics:

Topi c Page

Setup Troubleshooting 76

General Thomson Gateway Troubleshooting 77

.net or contact

Voice over IP Troubleshooting 80

Reset to Factory Defaults 81

E-DOC-CTC-20090619-0001 v1.0

9 Troubleshooting

9.1 Setup Troubleshooting

The Setup CD does not start automatically

If your computer runs:

 Microsoft Windows:

1 Click the Windows Start button.

2 Click Run.

3 In the Open field, type the following path: D:\Setup.exe, where D stands for the drive letter of your

CD- or DVD-ROM drive.

 Mac OS X:

1 On your desktop, double-click the CD icon.

2 Double-click Menu.

Your Thomson Gateway has not been found

If you see this error during setup, make sure that:

 The Thomson Gateway is turned on and fully initialized.

 Your computer has a valid IP address, that is any address but 0.0.0.0. For more information, consult the

help of your operating system.

 No dedicated firewall device or router is placed between your computer and the Thomson Gateway.

 No personal network security software (for example firewall software) is running on your computer.

 Your computer is correctly connected to the Thomson Gateway.

E-DOC-CTC-20090619-0001 v1.0

9 Troubleshooting

9.2 General Thomson Gateway Troubleshooting

None of the lights light up (Thomson Gateway does not work)

Make sure that:

 The Thomson Gateway is plugged into a power socket outlet.

 You are using the correct power supply for your Thomson Gateway device.

The power requirements for your Thomson Gateway are clearly indicated on the identification label of the Thomson Gateway. Only use the power adaptor supplied with your Thomson Gateway.

 The Thomson Gateway is turned on via the push button or rocker switch on the back panel.

The Broadband LED does not light up

Make sure that:

 The DSL cable is correctly connected. For more information, see “1.2 Installing your Thomson Gateway”.

 The DSL service is enabled on your telephone line. For more information, contact your Internet Service

Provider.

The Internet LED does not light up

Make sure that your user name and password are correct.

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Broadband menu, click Internet Services.

3 Under Internet, click View More.

4 Check your user name

5 Re-enter your password.

6 Click Connect.

Thomson Gateway unreachable

If your Thomson Gateway cannot be reached, you might consider a hardware reset as described in “9.6 Reset

to Factory Defaults” on page 81.

Poor Thomson Gateway performance

Make sure that the Thomson Gateway is installed and configured as instructed in “1 Installation” on page 3 or as instructed by the Service Provider.

E-DOC-CTC-20090619-0001 v1.0

9 Troubleshooting

9.3 Wired Connection Troubleshooting

Ethernet LED does not light up

Make sure that:

 The Ethernet cable is securely connected to the Ethernet port on your Thomson Gateway and your

computer.

 You are using the correct cable type for your Ethernet equipment, that is UTP CAT5 with RJ-45

connectors.

E-DOC-CTC-20090619-0001 v1.0

9 Troubleshooting

9.4 Wireless Connection Troubleshooting

No Wireless Connectivity

Try the following:

 Change the wireless channel.

 Make sure that the wireless client is configured for the correct wireless settings (Network Name, security

settings).

 Check the signal strength, indicated by the wireless client manager. If the signal is low, try repositioning

the Thomson Gateway or directing the Thomson Gateway’s antenna(s) for optimal performance.

 Make sure that the wireless client adapter is enabled (message like “radio on”).

Poor Wireless Connectivity or Range

Try the following:

 Change the wireless channel.

 Check the signal strength, indicated by the wireless client manager. If the signal is low, try to place the

Thomson Gateway or to direct the Thomson Gateway’s antenna(s) for optimal performance.

 Use WPA(2)-PSK as encryption.

For more information, see “3.3 Securing Your Wireless Connection” on page 27.

Change the wireless channel

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the left menu, click Home Network.

3 Under Wireless, click your access point.

Your access point will be listed in the following format: “WLAN:<Network Name> (<Actual Speed>)”. For example, WLAN: Thomson83C7C7 (54Mbps).

4 The Wireless Access Point page appears.

5 In the Navigation bar, click Configure.

6 Under Configuration, select the channel of your choice in the Channel Selection list.

7 Click Apply.

Can not connect via WPS

If you are having trouble connecting your wireless client via WPS, try to configure it manually. For more information, see “3.2 Connecting Your Wireless Client without WPS” on page 26.

E-DOC-CTC-20090619-0001 v1.0

9 Troubleshooting

9.5 Voice over IP Troubleshooting

Introduction

If you cannot make or receive any phone calls via your Thomson Gateway, try the suggestions in the following sections.

Calling over VoIP

If you have problems calling via VoIP, check whether:

 Your phone is correctly connected to the Thomson Gateway.

 Your phone is working on the traditional telephone network (PSTN):

 Connect your phone directly to the telephone wall outlet.

 Try to make a phone call.

 Your phone number, user name, and password are configured correctly.

 The registrar’s and proxy server’s IP address and port number are configured correctly.

 The Power, Broadband/DSL and Voice LEDs are on.

Calling over the traditional telephone network (PSTN)

If you have problems calling via the traditional telephone network, check whether:

 Your phone is correctly connected to the Thomson Gateway.

If the Thomson Gateway is turned off, phone calls are always routed over PSTN.

 Your phone is working on the PSTN network:

 Connect your phone directly to PSTN.

 Try to make a phone call.

 The Forced FXO service is activated, this means that your service provider may request you to dial an

extra prefix for making calls via PSTN.

Problems with Telephony Services

If you have a problem with a service, check whether the service is activated. For more information, see

“4.3.2 Activating a Telephony Service on your Thomson Gateway” on page 40.

E-DOC-CTC-20090619-0001 v1.0

9 Troubleshooting

9.6 Reset to Factory Defaults

Resetting your Thomson Gateway

If at some point you can no longer connect to the Thomson Gateway or you want to make a fresh install, it may be useful to perform a reset to factory defaults.

Warning

A reset to factory default settings deletes all configuration changes you made. Therefore, after the reset, a reconfiguration of your Thomson Gateway will be needed.

Also your wireless clients will have to be re-associated, as described in “3 Wireless Access” on page 23.

Methods

You can choose between:

 Resetting the Thomson Gateway via the Thomson Gateway GUI

 Reset the Thomson Gateway via the Reset button

Resetting the Thomson Gateway via the Thomson Gateway GUI

Proceed as follows:

1 Browse to the Thomson Gateway GUI.

2 On the Thomson Gateway menu, click Configuration.

3 In the Pick a task list, click Reset my Thomson Gateway.

4 The Thomson Gateway restores the initial configuration and restarts.

5 The Thomson Gateway returns to the Thomson Gateway home page (unless the IP address of your

computer is not in the same subnet as the default IP address of the Thomson Gateway, being

192.168.1.254).

E-DOC-CTC-20090619-0001 v1.0

9 Troubleshooting

Reset the Thomson Gateway via the Reset button

Proceed as follows:

1 Make sure the Thomson Gateway is turned on.

2 Push the Reset button until the Power LED lights red - this will take about 7 seconds.

3 Release the Reset button.

4 The Thomson Gateway restarts.

Your system administrator may have disabled the physical reset button of the Thomson Gateway. In this case, a hardware reset to defaults is not possible.

E-DOC-CTC-20090619-0001 v1.0

THOMSON Telecom Belgium

Prins Boudewijnlaan 47 2650 Edegem Belgium

www.thomson.net

Thomson TG782T, TG782 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

About this Setup and User Guide

Used Symbols

Terminology

Typographical Conventions

Documentation and software updates

1 Installation

Introduction

Main features

1.1 Before you start

DSL Service

Decoupling the voice and DSL signal

Filters and splitters

How do I know if my Thomson Gateway has an integrated filter?

Wireless connection

Wired connection

Internet connection

1.2 Installing your Thomson Gateway

Warning

Installation methods

1.2.1 Guided Installation

Requirements

Starting the wizard

CD menu

In case of problems

1.2.2 Manual Installation

Requirements

Procedure

Connect the Thomson Gateway to your broadband service

Power on the Thomson Gateway

Connect your computer to the Thomson Gateway

Configure the Thomson Gateway

1.3 Adding a New Computer to your Network

Guided Installation

Manual Installation

1.4 Connecting a Computer Using the Ethernet Cable

Requirements

Ethernet cable

Procedure

In this chapter

2 Thomson Gateway Basics

2.1 Thomson Gateway LED Behaviour

Content

2.1.1 Status LEDs

Introduction

Power LED

Ethernet LED

Wireless LED

Phone LED

Broadband LED

Internet LED

2.1.2 WPS Button LED

WPS button

WPS Button LED

2.1.3 Ethernet LEDs

Ethernet LED

2.2 Thomson Gateway GUI

Introduction

Requirements

Accessing the Thomson Gateway GUI

Access the Thomson Gateway via UPnP

Components

Menu

Language bar

Login section

Navigation bar

Notification area

Content pane

Tas ks

2.3 Backing Up/Restoring your Configuration

Introduction

Backing up your configuration

Warning

Restoring your configuration

3 Wireless Access

Introduction

What you need to set up a wireless network
