02.34.5 Technical Manual LDK 20(S) - Studio Camera I
LDK 20(S)
Studio Camera
Technical Manual
Contents
About This Manual ................................................ II
Safety Instructions ........................................... 1-1
Safety Summary ................................................ 1-2
Cautions and Warnings ...................................... 1-2
Earthing ............................................................. 1-3
Installation ........................................................ 2-1
Packing/Unpacking ............................................ 2-2
Local / Remote Power Supply ............................ 2-2
Hardware Setup and Customization ................... 2-3
Test Sawtooth .................................................... 2-4
Lens matching ................................................... 2-4
Analogue Ch1-Ch2 ............................................. 2-5
External Aspect Ratio Switch............................. 2-5
Dipswitch Settings ............................................. 2-5
Viewfinder Cadre Indication ................................ 2-6
Audio / Intercom settings ................................... 2-7
Private Data ....................................................... 2-8
Connectors and Cables ...................................... 2-9
Specifications LDK20 ....................................... 2-14
Replacements ................................................... 3-1
Introduction ........................................................ 3-2
Printed circuit boards ......................................... 3-2
Front module ...................................................... 3-3
Filterwheel Cassette ........................................... 3-4
Power supply ..................................................... 3-4
Adjustments ..................................................... 4-1
Introduction ........................................................ 4-2
Test Equipment ................................................. 4-3
Set-up Instructions ............................................. 4-3
Video Processor 1 Board ................................... 4-5
Digital Video Processor .................................... 4-10
Digital Video Processor .................................... 4-11
Digital Video Processor Subboard ................... 4-12
Digital Video Processor Subboard ................... 4-13
Digital Video Processor .................................... 4-14
Digital Video Processor .................................... 4-15
Video Miscellaneous Board .............................. 4-17
Sync./Shading Board ....................................... 4-27
Video Miscellaneous Board .............................. 4-35
Encoder Board PAL ......................................... 4-37
Encoder Board NTSC ....................................... 4-43
Audio/Intercom LF Board ................................. 4-51
Audio/Intercom LF Board RTS MODE ............. 4-55
Pre-Processor Board ........................................ 4-57
Drawings ........................................................... 5-1
Block Diagram Power Signals ............................ 5-2
Block Diagram Video Signals .............................5-3
Block Diagram Transmission Signals ................. 5-4
Block Diagram Control Signals ........................... 5-5
Page 4
II Technical Manual LDK 20(S) - Studio Camera 02.34.5
About This Manual
Service policy
The LDK 20(S) is a sophisticated camera containing
state-of-the-art electronic components which are
designed to provide long-life operation without the
need for maintenance. With this in mind, the service
policy of Thomson Multimedia Broadcast Solutions
endeavours to ensure that help will be quickly on hand
in the unlikely event of anything going wrong. The
guiding principles of the Thomson Multimedia Broadcast
Solutions first line maintenance philosophy are speed
and cost effectiveness. First line maintenance is
dedicated to keeping your camera operational, despite
a fault, by module replacement and the replacement of
minor mechanical parts by the user.
Purpose of this manual
The provision of correct information is the first step in
ensuring the operational integrity of the camera.
Information on the operation of the camera is to be
found in the User’s Guide.
This installation and first line maintenance manual is
an integral part of the service policy. It ensures that
you will be able to install and set-up your camera to
meet the requirements of your environment. This
information on the installation of the camera is contained
in Section 2 of the manual. The remaining sections of
the manual provide first line service information so that
suitably qualified service personnel can detect and
repair faults, normally by module replacement.
Because of the complexity of some of the components,
second line service can only be carried out at the
specially equipped service centres and information
concerning second line maintenance is not supplied
in this manual.
Intended audience
The manual is intended as a guide to those with a
working knowledge of camera systems and installation
techniques. The first line detection and repair of faults
requires a general knowledge of test and measurement
techniques.
Structure of this manual
The manual is divided into five sections:
Section 1: Safety Information.
Contains important safety information and should be
read before carrying out any work on the camera.
Section 2: Installation.
Gives instructions on the integration of the camera into
the operating environment and the customization of
certain hardware functions
Section 3: Replacements.
Gives information on the replacement of components
at first line level.
Section 4: Adjustments.
Contains the adjustment procedures to be followed to
obtain the best performance from the camera.
Section 5: Drawings.
Contains block diagrams of the camera.
Page 5
Safety Instructions Technical Manual LDK 20(S) - Studio Camera 1-1
Section 1
Safety Instructions
This section outlines the precautions that must be taken into account when using the LDK 20(S)
Studio Camera.
Contents
Safety Summary ........................................................ 1-2
Cautions and Warnings ............................................. 1-2
Earthing ..................................................................... 1-3
Page 6
1-2 Technical Manual LDK 20(S) - Studio Camera Safety Instructions
Safety Summary
This informaton is intended as a guide for trained and
qualified personnel who are aware of the dangers involved
in handling potentially hazardous electrical/electronic
equipment. It is not intended to contain a complete list of
all safety precautions which should be observed by
personnel in using this or other electronic equipment.
The installation, maintenance and service of this equipment
involves risks both to personnel and equipment and must
be performed only by qualified personnel exercising due
care.
Personnel engaged in the installation, operation,
maintenance or servicing of this equipment are urged to
become familiar with First Aid theory and practises.
During installation and operation of this equipment, local
building safety and fire protection standards must be
observed.
Before connecting the equipment to the power supply of
the installation, the proper functioning of the protective
earth lead of the installation needs to be verified.
Whenever it is likely that safe operation is impaired, the
apparatus must be made inoperative and secured against
any unintended operation. The appropriate servicing
authority must then be informed. For example, safety is
likely to be impaired if the apparatus fails to perform the
intended function or shows visible damage.
This product has been designed and tested according to
EN60065.
Cautions and Warnings
When performing service, be sure to read and comply with
the warning and caution notices appearing in the manuals.
Warnings indicate danger that requires correct procedures
or practices to prevent death or injury to personnel. Cautions
indicate procedures or practices that should be followed
to prevent damage or destruction to equipment or property.
WARNING
THE CURRENT AND VOLTAGES PRESENT IN THIS
EQUIPMENT ARE DANGEROUS. ALL PERSONNEL
MUST AT ALL TIMES FOLLOW THE SAFETY
REGULATIONS.
ALWAYS DISCONNECT POWER BEFORE REMOVING
COVERS OR PANELS.
ALWAYS DISCHARGE HIGH VOLTAGE POINTS
BEFORE SERVICING.
NEVER MAKE INTERNAL ADJUSTMENTS, PERFORM
MAINTENANCE OR SERVICE WHEN ALONE OR WHEN
FATIGUED.
IN CASE OF AN EMERGENCY ENSURE THAT THE
POWER IS DISCONNECTED.
ANY INTERRUPTION OF THE PROTECTION
CONDUCTOR INSIDE OR OUTSIDE THE APPARATUS,
OR DISCONNECTION OF THE PROTECTIVE EARTH
TERMINAL, IS LIKELY TO MAKE THE APPARATUS
DANGEROUS. INTENTIONAL INTERRUPTION IS
PROHIBITED.
FOR SAFETY REASONS THE CPU MUST BE MOUNTED
IN A 19-inch RACK WHICH HAS SAFETY COVERS
ACCORDING TO IEC65.
WHEN TWO CPUs ARE MOUNTED ABOVE EACH
OTHER THE MINIMUM DISTANCE BETWEEN THEM
MUST BE 50MM OR THE RACK MUST BE FORCE-AIR
COOLED.
USE ONLY FUSES OF THE TYPE AND RATING
SPECIFIED.
CAUTION
To prevent risk of overheating, ventilate the product
correctly.
Connect the product only to a power source with the
specified voltage rating.
Only connect a Triax cable from the LDK 6 camera
family to an LDK 6 CPU. Never connect it to any other
base station.
Never connect the Triax cable from a camera to a
CPU of a different family; never connect the LDK
family to the TTV family.
Do not allow system ground currents to exceed 1.5A
in the outer shield of the triax cable or 0.2A in other
cable shields.
It is strickly prohibited to short circuit the inner and
outer shields of a triax cable used to connect a
camera to a base station.
Page 7
Safety Instructions Technical Manual LDK 20(S) - Studio Camera 1-3
Symbol Colour Explanation
Red High voltage terminal at which a
voltage, with respect to an other
terminal, exists or may be
adjusted to 1000V or more.
Yellow/Black Live part.
Yellow/Black This marking indicates that the
operator must refer to an
explanation in the Instruction
Manual, or that a specific
component must be replaced by
the component specified in the
documentation for safety
reasons.
White/Black Protective earth (ground)
terminal.
Cathode ray tubes
Components marked
on the circuit diagram are critical
for safety and include those specified to comply with X-ray
emission standards for units using cathode ray tubes and
those specified for compliance with various regulations
regarding spurious radiation emission.
When servicing units that use cathode ray tubes (CRTs),
the cathode ray tubes themselves, the high voltage circuits
and related circuits are specifically chosen so that they
comply with recognized codes pertaining to X-ray emission.
Consequently, when servicing, replace the cathode ray
tubes and other parts with specified parts only. Do not
attempt to modify these circuits as any unauthorized
modification can increase the high voltage value and
cause X-ray emission from the cathode ray tube.
Handle the cathode ray tube only when wearing shatterproof
goggles and after discharging the high voltage completely.
Earthing
The rear of a CPU has two separate screw terminals for
protective earth (PE) and video earth (VE).
These are normally connected by a metal strap. The
protective earth terminal is internally connected to the
protective earth conductor of the power cable. If required,
the central earth connection wire of the studio can be
connected to terminal PE.
In normal circumstances the connection between the
protective earth and the video earth should not be broken.
The metal strap may be removed only if the studio (or OB
van) is equipped with separate protective and video earth
systems. Under these circumstances the video earth
terminal must be connected to the central functional earth
potential (video earth) of the studio. This earth potential
should have functional protective and noiseless earth
(FPE) qualities as stated in the VDE regulation 0800/part2.
A low impedance interconnection of both earth conductors
must be provided at the central studio earthing point.
WARNING
THE UNIT MUST ALWAYS BE CONNECTED TO
PROTECTIVE EARTH.
VE
PE
Metal
strap
Mains Lead Wiring for UK Users
The wires in the mains lead are coloured in accordance
with the following code:
GREEN AND YELLOW - EARTH
BLUE - NEUTRAL
BROWN - LIVE
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows:
• The wire coloured GREEN AND YELLOW must be
connected to the terminal on the plug marked with the
letter E or by the safety earth symbol
or coloured
GREEN or GREEN AND YELLOW.
• The wire coloured BROWN must be connected to the
terminal marked with the letter L or coloured RED.
• The wire coloured BLUE must be connected to the
terminal marked with the letter N or coloured BLACK.
Ensure that your equipment is connected correctly - if you
are in any doubt consult a qualified electrician.
Page 8
1-4 Technical Manual LDK 20(S) - Studio Camera Safety Instructions
Page 9
Installation Technical Manual LDK 20(S) - Studio Camera 2-1
Section 2
Installation
This section provides information which is relevant when the camera is to be used for the first time.
Packing and unpacking instructions together with information on the integration of the camera into
your studio system are provided. The procedures for the customization of certain hardware functions
and connector information is also provided.
Contents
Packing/Unpacking ............................................ 2-2
Local / Remote Power Supply ............................ 2-2
Hardware Setup and Customization ................... 2-3
Test Sawtooth .................................................... 2-4
Lens matching ................................................... 2-4
Analogue Ch1-Ch2 ............................................. 2-5
External Aspect Ratio Switch............................. 2-5
Dipswitch Settings ............................................. 2-5
Viewfinder Cadre Indication ................................ 2-6
Audio / Intercom settings ................................... 2-7
Private Data ....................................................... 2-8
Connectors and Cables ...................................... 2-9
Specifications LDK20 ....................................... 2-14
Page 10
2-2 Technical Manual LDK 20(S) - Studio Camera Installation
Packing/Unpacking
Inspect the shipping container for evidence of damage
immediately after receipt. If the shipping container or
cushioning material is damaged, it should be kept until
the contents of the shipment have been checked for
completeness and the units have been checked
mechanically and electrically.
The shipping container should be placed upright and
opened from the top. Remove the cushioning material
and lift out the contents.
The contents of the shipment should be checked
against the packing list. If the contents are incomplete,
if there is mechanical damage or defect, or if the units
do not perform correctly when unpacked, notify your
Thomson Multimedia Broadcast Solutions sales or
service centre within eight days. If the shipping
container shows signs of damage or stress, notify the
carrier as well.
If a unit is being returned to Thomson Multimedia
Broadcast Solutions for servicing, try to use the
containers and materials of the original packaging.
Attach a tag indicating the type of service required,
return address, model number, full serial number and
the return number which will be supplied by your
Thomson Multimedia Broadcast Solutions service
centre.
If the original packing can no longer be used, the
following general instructions should be used for
repacking with commercially available materials:
a. Wrap unit in heavy paper or plastic.
b. Use strong shipping container.
c. Use a layer of shock-absorbing material around all
sides of the unit to provide firm cushioning and
prevent movement inside container.
d. Seal shipping container securely.
e. Mark shipping container FRAGILE to ensure careful
handling.
Local / Remote Power Supply
The LDK 20 camera is delivered ready to operate in the
remote mode. If the camera has to be used in the local
(stand-alone) mode, carry out the following instructions
to allow the power to be supplied via the mains power
supply input connector on the right side connector
panel:
a. Disconnect the mains power supply or the triax
cable, whichever is connected.
b. Loosen two screws and remove the rear connector
panel of the camera.
c. Locate the remote/local switch - a large black
plastic box.
d. Set the switch to the local position. The camera is
delivered with the switch in the remote position.
f. Return the rear connector panel to its position.
R
E
M
O
T
E
230V 115V
Local/remote
Switch
Page 11
Installation Technical Manual LDK 20(S) - Studio Camera 2-3
The camera is delivered in a ready-to-use state,
however, there are occasions when it might be
necessary to re-adjust some functions after, for
example, fitting a new lens.
A large number of functions can be set-up using the
control facilities of the menu system. In addition to this
software set-up there are some functions which can be
selected or adjusted internally in the camera.
Refer to the next chapters for instructions.

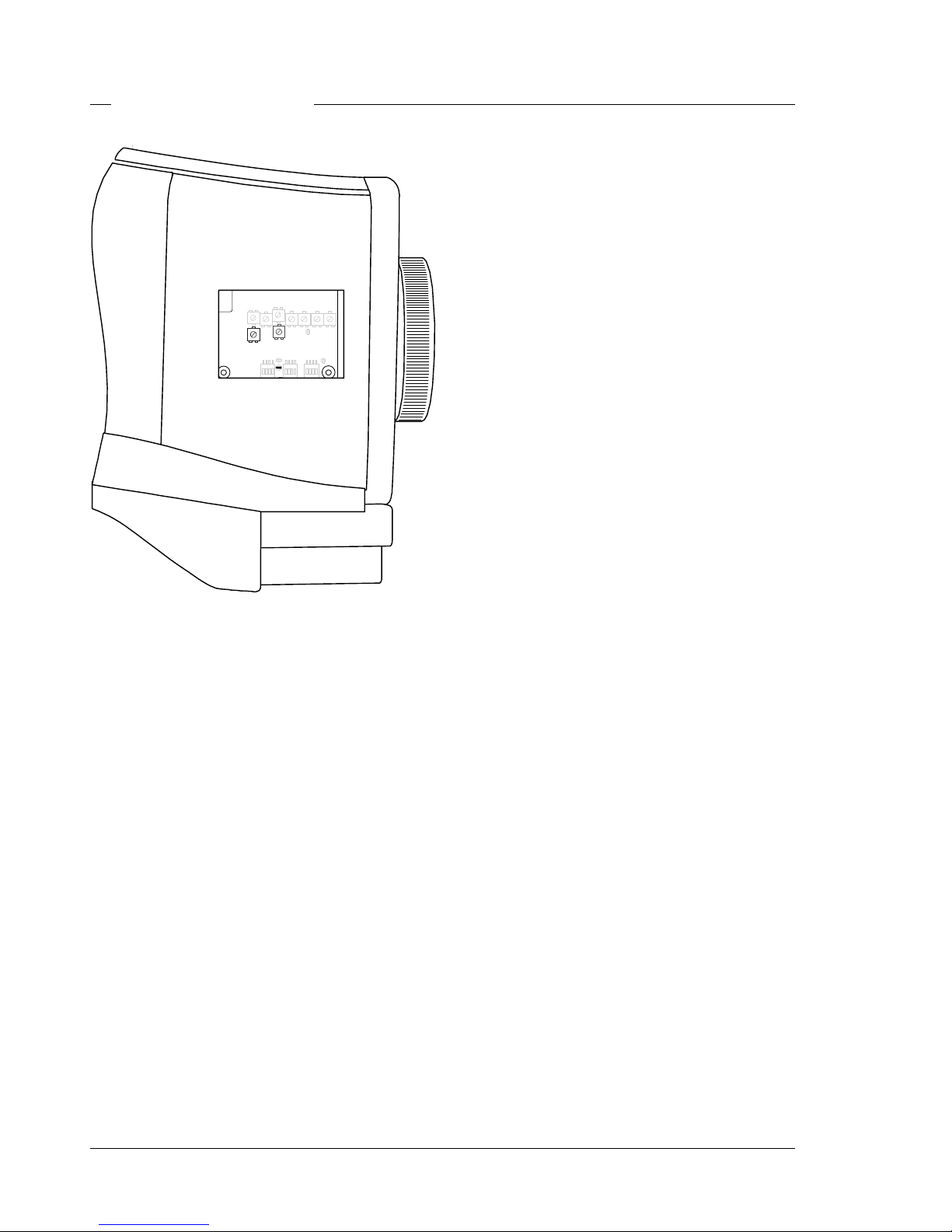

Location of adjustments
Turn the two screws on the left side panel 90°
counterclockwise and swing down the cover. Turn the
two screws on the right side panel 90° counterclockwise
and swing down the cover.
Hardware Setup and Customization
Unless mentioned otherwise the adjustments for
hardware setup and customization are located at the
side of the following modules:
1
Front Module
2
Video Processor 1
3
Digital Video Processing
4
Subboard DSP
5
Sync. Shading
6 Data Processor
7
Power
8
Video Miscellaneous
9
Encoder
10
Video Mux Ext-TP Rec
11
Audio/Intercom TX-Rec
12
RTS Power Miscellaneous
7
6
5
3
2
1
4
12
8
10
11
9
Page 12
2-4 Technical Manual LDK 20(S) - Studio Camera Installation
Lens matching
When a camera is supplied with a lens it is not
necessary to perform any of the following adjustments
as the lens is already matched to the camera. However,
if you wish to change to a different type of lens or the
lens is not supplied with your camera, back focus,
white shading and auto iris adjustment procedures
may have to be performed.
• Colour balance.
If required, perform the gain adjustment of the
preprocessor board and/or white shading adjustment
procedures, described in section 4.
• Auto Iris Adjustment
If a different lens either works too slow or overshoots
too much with the auto iris control, adjust the
potentiometer on the lens to obtain acceptable
operation. Refer to the lens documentation.
• Back Focus Adjustment
To adjust the back focus of the lens refer to the
documentation of the lens.
Test Sawtooth
A test sawtooth signal is normally only used for

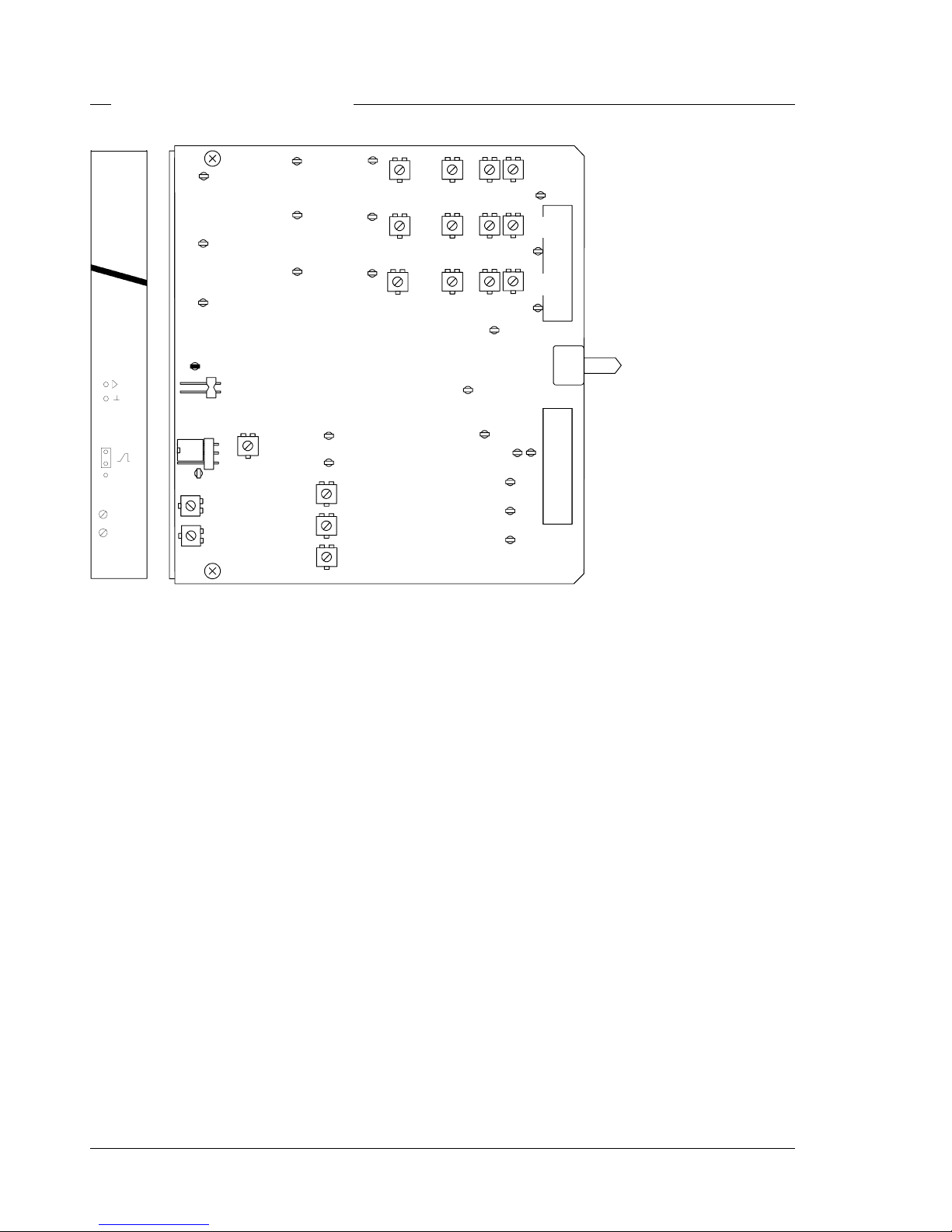

adjustment procedures. Jumper X3 on Video processor
1 board provides a choice between two internal signals
or an external signal.
Internal signals
Set jumper X3 to position BC to get the nominal
sawtooth. This is used for checking amplitudes.
Set jumper X3 to position AB to get a small sawtooth
(approximately 25% nom.). This small sawtooth is
used for checking painting or colour temperature
ranges.
External signal
To inject an external test signal first set jumper X3 to
position CD (test input). Connect the external test
signal to connector X4-1/2. The nominal value of this
signal is 700 mV without sync.
The test sawtooth signal is switched on by means of
the Operate menu of the camera or the Setup 1 menu
of the MCP.
X
5
5
X
5
6
TOP SIDE
A1
1
2
X4
A
TEST IN
Video processor 1
B
C
X3
Page 13
Installation Technical Manual LDK 20(S) - Studio Camera 2-5
Analogue Ch1-Ch2
Two analogue channels (AN 0 and AN 1) are available
from the base station to the camera via the triax cable
and can be used to transmit L.F. signals. For example,
joystick control or pan and tilt. The input signals are
applied to the Auxiliary connector of the base station.
The output signals are available on the Auxiliary
connector of the camera. The input signal and output
signal voltage is between 0 and 5Vdc.
The AN 1 channel is sometimes used for switching the
aspect ratio. This is selected by means of the software.
See next chapter for instructions.
External Aspect Ratio Switch
The analogue channel 1 (AN 1) input on the base
station can be used to switch the aspect ratio. This
allows multiple camera switching.
This function can be selected in the menu system of
the camera or MCP. To select this function on the
camera, set the Aspect ratio of the Operate/Sensor/
AspRatio menu to External.
Apply a voltage at TTL level to the Auxiliary base
station connector. See Installation Manual Base
Station.
Input high: aspect ratio 4:3
Input low: aspect ratio 16:9
X4
TEST IN
2
1
B
A
C
X56
X55
TOP SIDE
Video processor 1
Dipswitch Settings
On the Digital Video Processor 3922 406 84951 the
following functions can be selected with dipswitches
ZS110 and ZS111:
ZS110-1 Leaking Pixel Corrector
ZS110-2 Noise Reducer
ZS110-3 HW Gamma Low Pass Filter
ZS110-4 Contour Boost (Viewfinder)
ZS111-1 Status Bar (only LDK20P) Focus
value remains present.
Page 14
2-6 Technical Manual LDK 20(S) - Studio Camera Installation
Viewfinder Cadre Indication
Cadre On/Off
Switch S6 on the Sync./shading board allows the
cadre in the viewfinder to be switched on permanently
or to be controlled by the menu system. Position AB
selects (remote-) menu control (factory setting);
position AC switches the cadre on permanently.
If S6 is in the remote position then you can select in
Menu VF/Lens Cadre On or Off. The cadre is switched
to the 4:3 format or to the 16:9 format depending on the
position of the aspect ratio switch.
Cadre appearance
Switch S7 on the Sync./shading board allows the
cadre in the viewfinder to take the form of two dotted
lines or two low-contrast areas outside the picture
area. Position AB selects the dotted lines; position AC
selects the low-contrast areas.
The contrast of the cadre strips is adjusted with
potentiometer ZR247 on the Video/Miscellaneous
board.
16:9
dotted
lines
low-contrast area
low-contrast area
4:3
low-contrast areas
dotted lines
X
1
7
A
X
1
7
B
TOP SIDE
Video / Miscellaneous board
ZR247
Cadre
contrast
X
6
1
X
6
2
TOP SIDE Sync / Shading board
S7
C A B
S6
C
A
B
Page 15
Installation Technical Manual LDK 20(S) - Studio Camera 2-7
Audio / Intercom settings
Audio microphone signals
The high-pass filters in the audio channels reduce the
background noise in the audio microphone signals.
The high-pass filters can be set as follows:
Audio 1 at MCP on/off (off=default setting)
Audio 2 at MCP on/off (off=default setting)
The phantom power for different types of microphones
can be set as follows:
Audio 1 S100: D1-E1/D2-E2 +12Vdc
B1-C1/B2-C2 Ground *
A1-B1/A2-B2 +48Vdc
Audio 2 S200: D1-E1/D2-E2 +12Vdc
B1-C1/B2-C2 Ground *
A1-B1/A2-B2 +48Vdc
(* factory setting)
Intercom headset signals
The signal to the headset of the tracker can be
selected by S420 on the Audio/Intercom LF board.
Position AB (the factory setting) selects the tracker
microphone sidetone signal; position AC selects the
ENG signal.
Intercom microphone signals
The gain of the cameraman microphone signal can be
set at Camera Menu as follows:
40db (default setting) 0db
The gain of the tracker microphone signal can be set
at Camera Menu as follows:
40db (default setting) 0db
The factory settings are for headsets with a dynamic
microphone.
The phantom power for both cameraman and tracker
microphones can be set with S300 as follows:
AC +12Vdc
AB Ground (factory setting)
B
A
C
X
1
9
A
X
1
9
B
TOP SIDE
Audio Intercom LF
S740
S470
S450
S200
S100
S300
B
A
C
B A C
B
A
C
S
9
8
1
B
A
C
S
9
8
0
S
9
6
1
S
9
6
0
signal choice
prog or private data
signal choice
head set or RTS
signal choice
sidetone or eng
signal choice
tracker mic or
private data
E
D
C
B
A
E
D
C
B
A
Page 16
2-8 Technical Manual LDK 20(S) - Studio Camera Installation
Private Data
Private data channels can be used for the transmission
of serial data via the triax cable. For example, electronic
scriptboard or character data for a video display unit
can be transmitted to the camera.
The tracker microphone intercom channel is used for
the data channel from camera head to base station.
The program intercom channel is used for the data
channel from base station to camera head. The input
and output signals are available on the auxiliary
connectors of the camera and base station (for camera
see the connectors and cables section). If a channel
is used for private data, then of course the original
functions are no longer available.
To select the function of the base station to camera
channel use S801 on the Audio/intercom board. Position
AB selects the Progr function (factory setting); position
AC selects the private data function.
To select the function of the camera to base station
channel use S802 on the Audio/intercom board. Position
AB selects the tracker microphone function (factory
setting); position AC selects the private data function.
Remember that the propagation-delay times are different
for different triax cable lengths, especially if a return
signal is involved. At maximum lengths of 2400
metres the total delay is at least 25 µsec. and can be
more than 30 µsec, depending on the type of triax
cable.
Data signal specifications:
Baudrate: 2400
Input level: TLL, possible RS232
Input impedance: 100Kohm
Output impedance: ~300 ohm
Max load: ~1Kohm
S802
C A B
S801
C A B
X
1
9
A
X
1
9
B
TOP SIDE
Audio Intercom LF
A1
Program
Private data
Tracker
Private data
S801
S802
Basestation
Page 17
Installation Technical Manual LDK 20(S) - Studio Camera 2-9
23
18
12
7
1
6
11
17
22
24
A
B
Connectors and Cables
VTR connector
Triax connector
A. + Battery from VTR (10.7 to 17V)
B. Ground
1. CVBS (only available with encoder option present)
2. CVBS Return (only available with encoder option present)
3. Y + S Return
4. Y + S (luminance + sync.)
5. Pr: NTSC 700mV 75% saturated colour bar
Cr: PAL 525mV (EBU N10)
6. Pr/Cr Return
7. Pb: NTSC 700mV 75% saturated colour bar
Cb: PAL 525mV (EBU N10)
8. Pb/Cb Return
9. Not connected
10. Not connected
11. Not connected
12. VTR start/stop: +5V = recording; 0V = stop
13. Not connected
14. Not connected
15. Record/Tally
16. Not connected
17. Camera ground (shield)
18. Playback video input
19. Playback video return
20. Audio monitoring / VTR Save
21. Not connected
22. Not connected
23. Not connected
24. Not connected
26-pin male; panel view
part number 3922 040 02551
Fischer
1. Inner pin: Signals + power
2. Inner shield: Return
3. Outer shield: Camera housing
part number 2432 020 00009
Trilock
1. Inner pin: Signals + power
2. Inner shield: Return
3. Outer shield: Camera housing
part number 3922 040 02682
ARD
1. Inner pin: Signals + power
2. Inner shield: Return
3. Outer shield: Camera housing
part number 3922 040 01492
LEMO
1. Inner pin: Signals + power
2. Inner shield: Return
3. Outer shield: Camera housing
part number 3922 040 02541
3-pin; panel view
1
3
2
Page 18
2-10 Technical Manual LDK 20(S) - Studio Camera Installation
15-pin female; panel view
part number 3922 406
Viewfinder connector
1. Video VF (Y + Sync)
2. (R-Y) Video
3. (B-Y) Video
4. Power return
5. Housing
6. +12 Vdc
7. SCL
8. INTN
9. Video VF return
10. (R-Y)/(B-Y) return
11. +12 Vdc
12. Power return
13. Housing
14. On air lamp
15. SDA
81
159
Page 19
Installation Technical Manual LDK 20(S) - Studio Camera 2-11
Tuchel 6-pin female; panel view
part number 2422 026 02902
1. Microphone return
2. Microphone
3. Telephone return
4. Telephone left
5. Telephone right
• Microphone level -58dBm/-20dBm switchable
• Microphone impedance 200 ohm
• Telephone level +6dBm nominal
• Telephone output impedance <10 ohm
Camera headset connector
1. Telephone left
2. Not connected
3. Microphone
4. Microphone return
5. Telephone right
6. Telephone return
XLR 5-pin female; panel view
part number 2432 026 00176
XLR 3-pin female; panel view
part number 2422 026 02984
1. Audio Screen
2. Audio In
3. Audio Return
• Microphone impedance > 200 ohm
• Sensitivity remote controlled via base station:
range: -70 to -28 dBm
maximum input = -6 dBm
• Signal at pin 2 of audio input is in phase with
signal at pin 2 of audio output on Base Station
Audio microphone connectors
6
5
4
3
2
1
1
4
5
3
2
1
2
3
Page 20
2-12 Technical Manual LDK 20(S) - Studio Camera Installation
1. +5VL
2. 0VL
3. AN0
4. AN1
5. Spare
6. Not connected
7. Private Data Camera - Base Station
8. Ground
9. Private Data Base Station - Camera
10. Ground
11. Shield
Fischer 11-pin female; panel view
part number 3922 040 02512
1. On-air signal return
2. Tracker microphone return
3. Tracker microphone input
4. Production tracker
5. Sidetone tracker
6. Return
7. Program tracker
8. Cameraman microphone
9. Tally control tracker
(Cmos level, R out = 1k)
10. +12V; I max. = 100mA
11. +12V return
• Microphone level -58dBu/-20dBu switchable
• Microphone impedance 200 ohm
• Telephone level + 6dBu
• Telephone output impedance <10 ohm
Fischer 11-pin female; panel view
part number 3922 040 02463
A. Data
B. Data not
C. Not Connected
D. Shield
Souriau 4-pin male; panel view
part number 2411 020 11367
Auxiliary connector
Tracker communication connector
Data connector
2
9
8
7
6
10
3
4
11
5
1
2
9
10
8
7
3
4
11
5
6
1
DA
CB
Page 21
Installation Technical Manual LDK 20(S) - Studio Camera 2-13
Panel Connector Type Part number Cable part number
VTR 26-pin male 3922 040 02551 VTR cable LDL 2110/ *
Triax 3-pin Fischer female 2432 020 00009 LDK 8200/ **
Triax 3-pin Trilock 3922 040 02682 -Triax 3-pin ARD 3922 040 01492 -Triax 3-pin Lemo 3922 040 02541 -Viewfinder 15-pin Female 3922 406 -Headset 6-pin Tuchel female 2422 026 02902 -Headset 5-pin XLR female 2432 026 00176 -Audio Mic 3-pin XLR female 2422 026 02984 -Auxiliary 11-pin Fischer female (two slot) 3922 040 02512 2432 026 00254 male
Tracker 11-pin Fischer female (one slot) 3922 040 02463 2432 026 00252 male
Data 4-pin Souriau male 2411 020 11367 2411 020 12025 female
Script Light 3-pin Fischer female 3922 040 02881 2432 026 00253 male
Ext video/Tp 2-pin Coax female 2422 031 10529 --
* /02 is 2 m ** /00 for 8 mm cable
/05 is 5 m /10 for 11 mm cable
/10 is 10 m /20 for 14 mm cable
Script light connector
Fischer 3-pin female; panel view
part number 3922 040 02881
1. +12V (Maximum Dissipation 3W)
2. Power Return
3. Shield
Cable connector part numbers
2
3
1
Page 22
2-14 Technical Manual LDK 20(S) - Studio Camera Installation
Camera system
Transmission system
NTSC/PAL
Pick-up device
3 x 2/3-inch Thomson DPM Frame Transfer CCDs
Smear performance
No vertical smear
Aspect ratio
4:3/ 16:9 switchable
Picture elements
4:3 and 16:9 aspect ratio
NTSC: 1000(h) x 498(v)
PAL: 1000(h) x 594(v)
Optical system
F1.4 with quartz filter
Filter cassette with Optical filters
Exchangeable filter cassette with remote selectable 6
positions: Clear; ND 0.6; ND 1.2; ND 1.8; 4-point star;
6-point star
Video performance
Video processing
Hires Digital Processing with 12 bit A/D and 14 bit DSP
technology
Digital features
Flare; White shading; Contrast; Highlight Handling; 6 point
var. Matrix; Matrix-pos.; Gamma; Gamma Curve; Contour
include Skin detail and Extended Contour Gamma;
Leaking Pixel Corr.; VF video
Sensitivity
2000 lux (186 ft cd) at F8.0
Condition: 3200K, reflectance 89.9%, 0 dB gain
Minimum illumination
Approx. 2 lux at F 1.4 and +30 dB gain
S/N ratio at normal gain
Typical: 61 dB PAL and 63 dB NTSC
Remark: +6dB S/N improvement with High Resolution
Digital Noise Slicer
Modulation depth
>70% at 5Mhz in RGB Centre
equivalent 800 TV lines
Remark: >65% at 5Mhz in RGB Centre with High
Resolution Digital Noise Slicer
Registration
<25 ns (0.05%) in all three zones, normal operation and
not including lens errors
Exposure control
Down to 1/1000s
Lighting control
NTSC: nominal, 60 Hz +/-4 Hz
PAL: nominal, 50 Hz +/- 3 Hz
Clean scanning
NTSC: between 61.1 and 151.0 Hz
PAL: between 51.0 and 103.0 Hz
General data
Concept
Studio configuration with PIP on 7-inch VF
Triax cable length
2,400m (7,875 ft) max. with 16mm (0.63") cable
Options for Long Triax available
Head weight (approx.)
26 kg (57.4 lb) excl. 7-inch VF
Head dimensions (lxhxw) in mm (inches) - approx.
367 x 305 x 240 (14.4 x 12 x 9.4)
Ergonomics
Moving VF position for easy camera fixing
Operating ambient temperatures
-20 to +45°C (-4 to +113°F) for Camera Head
0 to +45°C (32 to +113°F) for all other items
Stand alone power required 115/230V ac +/- 15%
Utility power Nominal 70VA
Max. 200VA (cable/system
dep.)
Power consumption 50 W
(Head + VF)
Power consumption 220W incl. Camera Head, VF,
(Average system) 70VA Utility; 700m (2.297ft)
Triax cable and lens
Audio performance
Audio channels 2 channels
Microphone power Selectable 0/+12V/+48V
Input levels at Camera Head -64 dB/ -24 dB/0 dB
Output levels at Base Station 0/+6 dB
Intercom performance
Intercom Headsets on Head Cam.Man
Intercom Channels ENG/PROD/PROG
Input levels at Camera Head -64 dB/-24 dB
Output levels at Base Station 0/+6 dB
Connectors Camera Head
Triax Option: Fischer/ARD/Lemo/
Trilock
Power AC-power connector
Lens 36p
Viewfinder 15p D
Mic In (Audio) 2 x XLR3
Cameraman headset Option: XLR5/Tuchel
Video out Option: 1 Vpp; 75 Ohm; BNC
Genlock in 1 Vpp; 75 Ohm; BNC
VF-out 1 Vpp; 75 Ohm; BNC
TP-video out 1 Vpp; 75 Ohm; BNC
External Camera Control 4p DATA
VTR 26p SMPTE
Scriptlight power 3p; 12V
AUX 11p; private data
Tracker 11p; Communication/Signalling
Connectors Base Station
Triax Option: Fischer/ARD/Lemo/
Trilock
Power AC-power connector
Audio out 2x XLR3
Intercom ENG/PROD/PROG
via 15p D-connector
Signalling Call/Tally R/Y via 15p D-conn.
CVBS (3x) 1 Vpp; 75 Ohm; BNC
RGB 700 mVpp; 75 Ohm; BNC
Y, R-Y, B-Y 700, 525, 525 mVpp; 75 Ohm;
BNC
PXM 1 Vpp; 75 Ohm; BNC
WFM 1 Vpp; 75 Ohm; BNC
Serial Digital (2x) 270 MB/s Option: 800 mV; 75 Ohm; BNC
Ext 1, 2 1 Vpp; 75 Ohm; BNC
Genlock in 1 Vpp; 75 Ohm; BNC
TP-video input 1 Vpp; 75 Ohm; BNC
Ext. Camera Control 4p DATA
Viewfinder
Type 7-inch B/W
Features Picture in Picture; Crosshairs;
Cursorbox
Resolution > 700 TVL
Weight 7 kg (15.4 lb)
Power 30 W
These typical specifications are valid for PAL and NTSC
systems and are subject to change without notice
Specifications LDK20
Page 23
Replacements Technical Manual LDK 20(S) - Studio Camera 3-1
Section 3
Replacements
This section gives information on the procedures to follow when replacing printed circuit boards and
mechanical components at first line level.
Contents
Introduction ........................................................ 3-2
Printed circuit boards ......................................... 3-2
Front module ...................................................... 3-3
Filterwheel Cassette ........................................... 3-4
Power supply ..................................................... 3-4
Page 24
3-2 Technical Manual LDK 20(S) - Studio Camera Replacements
Introduction Printed circuit boards
The instructions given in this section are restricted to
those modules which can be replaced at the first line
level. After a printed circuit board has been replaced it
is sometimes necessary to carry out adjustments to
match the new boards to your camera and so maintain
the performance levels. The relevant adjustment
procedures are referenced in section 4.
The procedures for removing the modules should be
followed in reverse order when remounting the units.
To remove a printed circuit board proceed as follows:
a. Open the side cover (see section 2).
b. Swing the black cover 1 of the printed circuit board
open.
c. Pull horizontally on this cover to free the board from
its connector and slide it clear of the camera.
1
Page 25
Replacements Technical Manual LDK 20(S) - Studio Camera 3-3
To remove the front module proceed as follows:
a. On the frontside of the camera remove the four
screws 1 securing the front assembly.
b. Remove the front assembly from the camera.
c. Remove the Front Interconnection Board by
unscrewing two screws from the backside of the
front module.
d. Loosen the four screws 2 securing the front
module.
e. Slide the front module straight out of the front
assembly.
Front module
1
1
1
1
2
2
2
2
Page 26
3-4 Technical Manual LDK 20(S) - Studio Camera Replacements
To remove the filterwheel cassette proceed as follows:
a. Loosen the two screws 1 securing the cover to the
body of the front assembly.
b. Loosen the two screws securing the cassette to the
body of the front module.
c. Use the grip to pull the cassette horizontally out of
the camera.
To replace the filtherwheel cassette proceed as follows:
a. Push the cassette horizontally into the camera.
b. Tighten the two screws to secure the cassette to
the body of the front module.
c. Replace the cover and tighten the two screws 1.
Filterwheel Cassette
Before removing the power unit 1 unscrew the two
screws 2 on the top of the camera which secure the
power unit to the camera.
Power supply
1
1
Remote
On Air
Power
light Sys/Iso R
Auto
white
Script light Progr Prod E
Off
On
PTT
12V 0.25A
T
Select
R
Ext.1
G
Ext.2
B
Y/Ext.
-G Call
n
Filter1Filter2Filter3Filter4Filter5Filter
6
g
V
Camera
install
ABCD
View
finder
Audio
Function
Function Function Function
Intercom
2 2
1
Page 27
Adjustments Technical Manual LDK 20(S) - Studio Camera 4-1
Section 4
Adjustments
This section contains the adjustment procedures to be followed to obtain the best performance from
the camera. These procedures need only be used if, following a module replacement, the camera
does not perform according to specifications.
Contents
Introduction .......................................................... 4-2
Test Equipment ................................................... 4-3
Set-up Instructions............................................... 4-3
Video Processor 1 Board ..................................... 4-5
Digital Video Processor ..................................... 4-10
Digital Video Processor ..................................... 4-11
Digital Video Processor Subboard .................... 4-12
Digital Video Processor Subboard .................... 4-13
Digital Video Processor ..................................... 4-14
Digital Video Processor ..................................... 4-15
Video Miscellaneous Board ............................... 4-17
Sync./Shading Board ......................................... 4-27
Video Miscellaneous Board ............................... 4-35
Encoder Board PAL ........................................... 4-37
Encoder Board NTSC ........................................ 4-43
Audio/Intercom LF Board ................................... 4-51
Audio/Intercom LF Board RTS MODE .............. 4-55
Pre-Processor Board ......................................... 4-57
Page 28
4-2 Technical Manual LDK 20(S) - Studio Camera Adjustments
Introduction
This camera is factory tested and adjusted for operational
use. Under normal circumstances, the internal
potentiometers do not need to be adjusted.
If it is discovered that the camera is misaligned, the
following procedures are given as a guide for competent
service personnel, who have a thorough knowledge of
the camera and have the use of calibrated equipment,
to realign the camera.
If no improvement can be achieved or an adjustment is
out of range, please contact your local supplier or the
nearest Thomson Multimedia Broadcast Solutions
Service Centre.
The camera head adjustment procedures are designed
as separate units. Within a numbered procedure do not
change the position of switches or jumpers unless
instructed to do so in the procedure.
These adjustment procedures are for the Camera Head.
The adjustments require the use of a Master Control
Panel in combination with an Operational Control
Panel if possible. The intercom adjustments are given
for a four-wire system.
Page 29
Adjustments Technical Manual LDK 20(S) - Studio Camera 4-3
Test Equipment
The following is a list of equipment required to carry out
the adjustment procedure:
• Set of board extenders LDK 4830/21
• Oscilloscope (with cursor measurement)
• Spotlight 3200K
• Gamma Test chart 4:3 / 16:9
• Waveform monitor
• Colour monitor
• Multimeter
• Master Control Panel LDK 4607 / LDK 4609
• Operational Control Panel LDK 4624 / LDK 4628 /
LDK 4629
• Audio Analyser
• Base Station LDK 4053
Set-up Instructions
Before carrying out any adjustments the following steps
are recommended:
• Install the camera on a tripod.
• Attach the lens and the necessary cables.
• Allow the camera to warm-up.
• Operate the camera in stand-alone mode
• Connect an MCP and OCP to the data connector on
the right connector panel of the camera.
• When the camera is used in the stand-alone mode,
MCP and OCP always operate in camera select
position 1 (OCP camera select switch in position 1).
CAUTION:
Do not attempt to improve camera performance
by adjusting individual potentiometers, jumpers or switches
as this may lead to complete misalignment of the camera.
CAUTION:
Do not realign individual potentiometers, jumpers or switches
not mentioned in this chapter or earlier in this manual.
These adjustment points are for factory use only.
CAUTION:
Switch off the power supply to the camera
before removing or replacing printed circuit boards.
Page 30

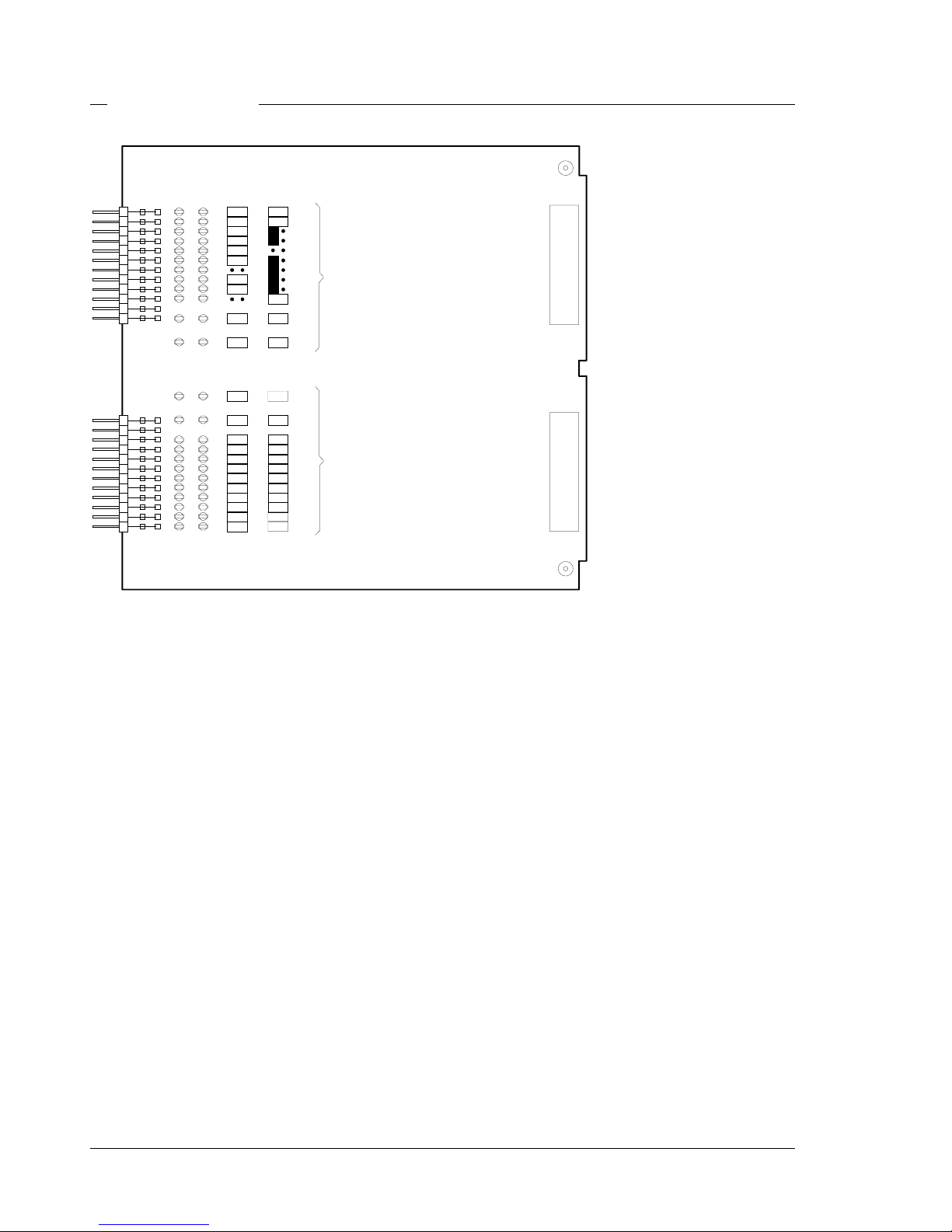

4-4 Technical Manual LDK 20(S) - Studio Camera Adjustments
Extender Board
23 24
1
2
2
1
24
TOP SIDE
MP
23
MP
BA
1
3
5
7
9
11
13
15
17
19
21
23
4
6
8
10
12
14
16
18
20
22
24
2
S1
S3
S5
S7
S9
S11
S13
S15
S17
S19
S21
S23
S4
S6
S8
S10
S12
S14
S16
S18
S20
S22
S24
S2
B - CONNECTOR
MP
MP
1
2
3
4
56
8
10
12
14
16
18
20
22
24
7
9
11
13
15
17
19
21
23
S1
S3
S5
S7
S9
S11
S13
S15
S17
S19
S21
S23
S4
S6
S8
S10
S12
S14
S16
S18
S20
S22
S24
S2
A - CONNECTOR
BA
BA BA
Page 31
Adjustments Technical Manual LDK 20(S) - Studio Camera 4-5
Video Processor 1 Board
Setting-up the Camera
Note:
Video Processor 1 must be adjusted in combination with the Sync./Shading board.
1. For local powering of the camera in the stand-alone mode (see User Guide, Section 4).
2. Recall Factory Standard File on MCP or OCP.
On MCP set:
OPERATE MENU
Knee : Off
Contour : Off
Gamma : Lin.
Blk. Str. : Off
Auto Iris : Off
SETUP 1 MENU
Studio mode: Off
Flare : Off
White clip : Off
SETUP 2 MENU
Soft cont. : Off
SETUP 3 MENU
Skin cont. : Off
SETUP 4 MENU
Notch : Off
Chroma : Off
Asp. Ratio : 4:3
SETUP 5 MENU
Matrix sel. : 1:1
MAINT. 1 MENU
Wh. shading: Off
Oscilloscope: 10mV/div. probe 10:1
3. Put Video Processor 1 on a service extender.
4. Remove jumpers 7, 9, 11, 13, 17 and 19 from connector B of the service extender to interrupt the input from
the front and jumpers 6, 12 and 15 to interrupt the black shading correction.
5. Short circuit the input to video processor 1 by connecting the following jumpers on connector B of the service
extender:
B7 to B9
B11 to B13
B17 to B19
Page 32

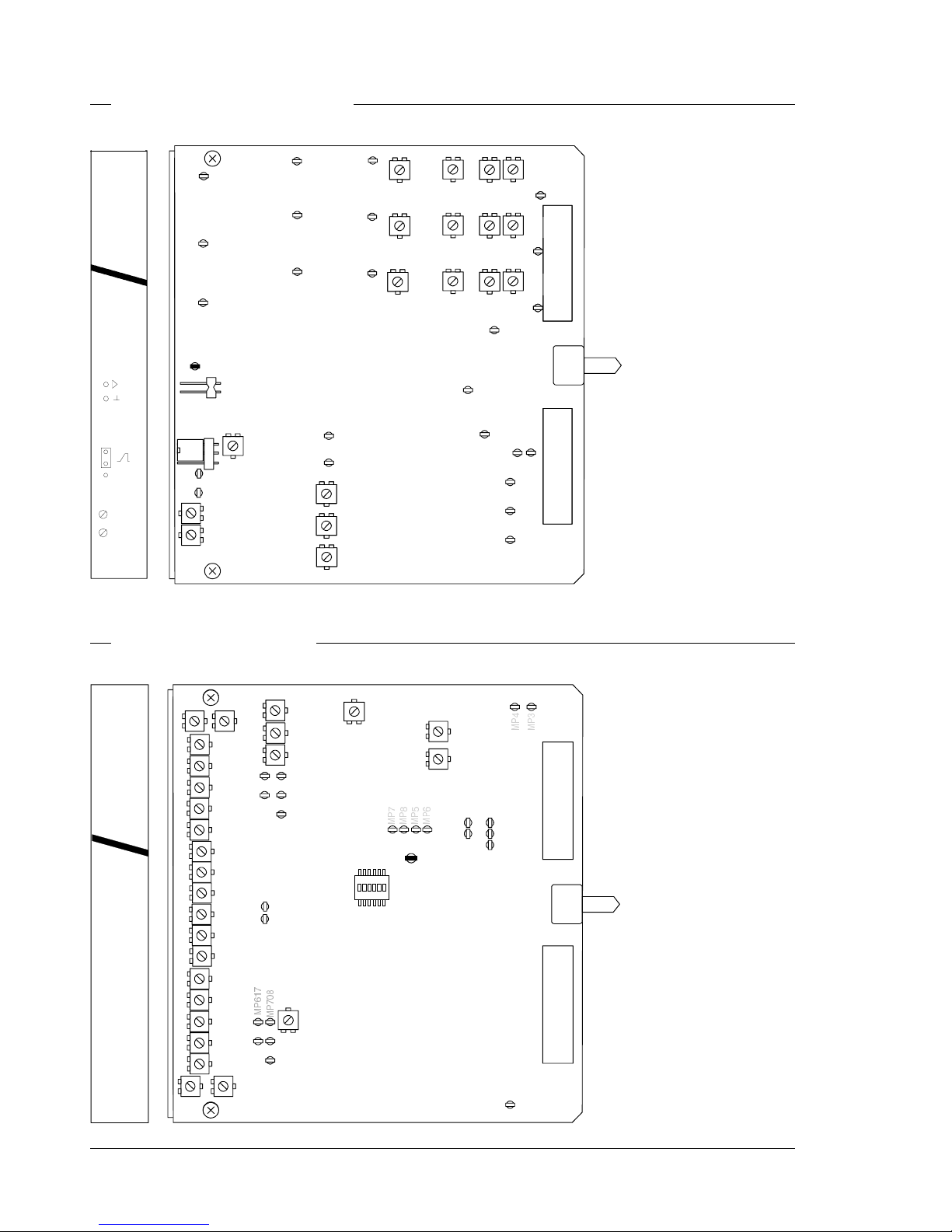

4-6 Technical Manual LDK 20(S) - Studio Camera Adjustments
Video Processor 1 Board
Sync./Shading Board
TOP SIDE
Video Processor 1
3922 406 85840
Test
VP 1
Test
Slope
Shift
2
24
X55
1
23
X56
R - 12
G - 6
B - 15
X4
1
2
ZR111
Ampl
Test
A
B
C
X3
R112
Slope Test
R108
Shift Test
Shading
crosstalk B
Shading
crosstalk G
Shading
crosstalk R
R656
R456
R256
MP110
MP100
MP630
MP450
MP250
MP650
MP90
MP41
MP44
MP40
MP80
MP240
MP640
Dummy
offset R
MP420
MP220
MP620
1
23
ZR611
ZR614
ZR606
ZR608
MP610
Black
offset B
Ampl B
Saw
offset B
Dummy
offset B
ZR411
ZR414
ZR406
ZR408
MP410
Black
offset G
Ampl G
Saw
offset G
Dummy
offset G
MP210
MP
211
ZR211
ZR214
ZR206
ZR208
Black
offset R
Ampl R
Saw
offset R
MP411
MP611
MP230
MP430
MP0
1
2
23
24
X55
G - 6
R - 12
B - 15
MP611
ZR614
ZR608
Black
offset B
Saw
offset B
MP411
ZR414
ZR408
Black
offset G
Saw
offset G
MP
211
ZR214
ZR208
Black
offset R
Saw
offset R
12
2324
X56
R656
Shading
crosstalk B
R456
Shading
crosstalk G
R256
Shading
crosstalk R
G - 8
R - 14
B - 20
TOP SIDE
Sync./Shading
3922 406 85860
Sync
Shad
1
2
23
24
1
2
23
24
X61
X62
ZR665
ZR636
ZR637
ZR638
ZR639
ZR666
ZR466
ZR436
ZR437
ZR438
ZR439
ZR465
ZR236
ZR238
ZR239
ZR700
ZR237
ZR266
ZR265
MP703
MP704
MP705
MP217
MP209
MP0
MP10
MP11
MP13
MP9
MP12
MP417
MP409
MP707
MP706
MP609
MP1
654321
S1
ZR137
ZR263
ZR463
ZR663
ZR710
ZR300
ZR92
ZR73
ZR663
ZR463
ZR263
VP1
Page 33

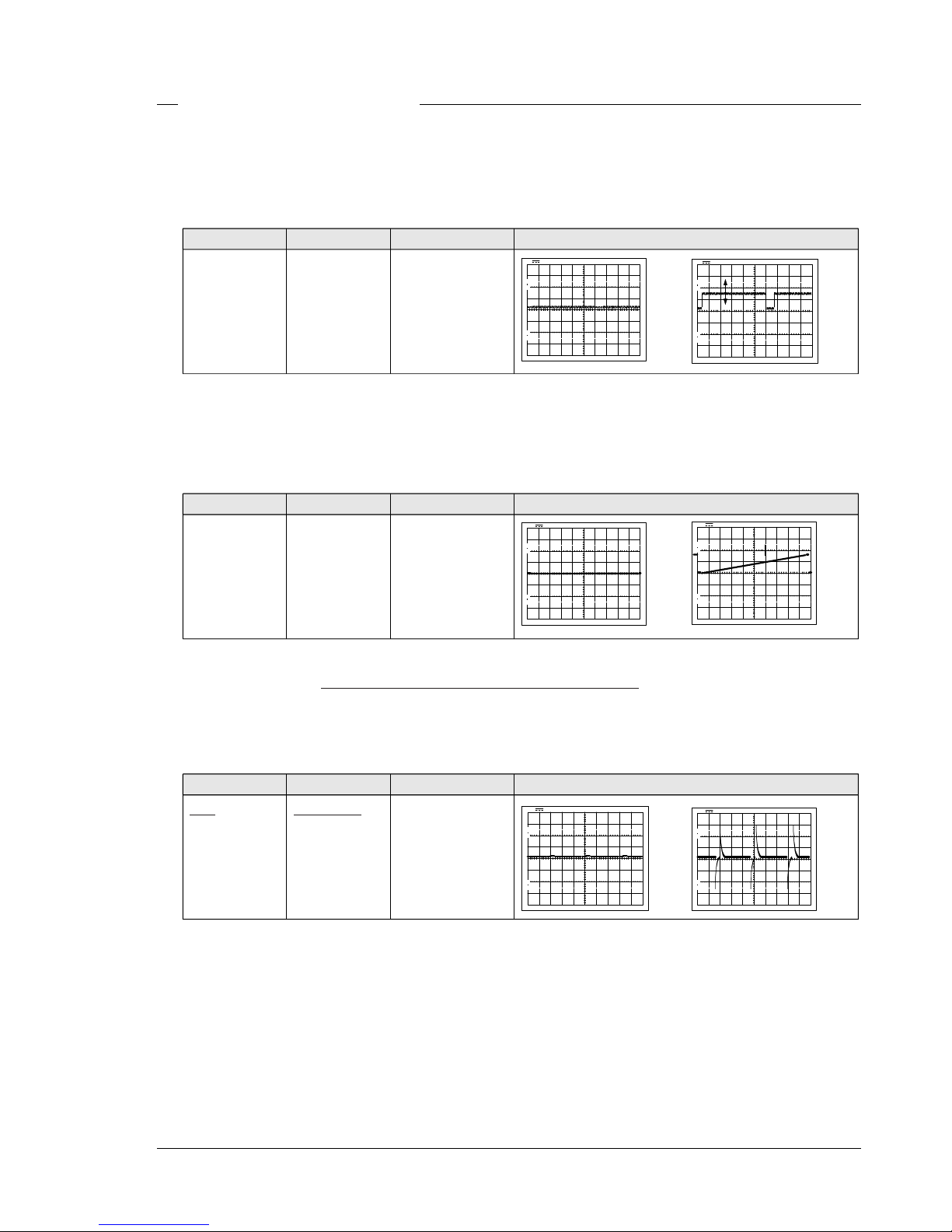

Adjustments Technical Manual LDK 20(S) - Studio Camera 4-7
Video Processor 1 Board
Black Offset
6. In the Install/Gain menu set the gain for + to 12dB and for ++ to 30dB (the standard values are 6dB and 12dB).
7. While switching between 0dB gain and 30dB gain, adjust black level during the active line to the same as the
clamp level.
Measure at: Adjust with: Required result: Correct: Incorrect:
X56-14(R) ZR208 (R) 0mV (R)
0%
10
90
100
10mV
10µS
0%
10
90
100
10mV
10µS
X56-8(G) ZR408 (G) 0mV (G)
X56-20(B) ZR608 (B) 0mV (B)
Note:
When the standard file is recalled the black levels are set as follows: Master=50, R=50, G=50, B=50.
Vertical sawtooth offset
8. Adjust for no sawtooth information.
Measure at: Adjust with: Required result: Correct: Incorrect:
MP211 ZR214
0%
10
90
100
50mV
2mS
0%
10
90
100
50mV
2mS
MP411 ZR414
MP611 ZR614
9. In the Install/Gain menu reset the gain for + to 6dB and for ++ to 12dB.
10. On service extender, return jumpers 6, 12 and 15 to their positions.
Horizontal Sawtooth
11. Place Sync./Shading board on extender and minimise the horizontal spike information.
Measure at: Adjust with: Required result: Correct: Incorrect:
VP1 Sync/Shad.
0%
10
90
100
50mV 20µS
0%
10
90
100
50mV
20µS
X55-12 (R) ZR263 (R) No spike
X55-6 (G) ZR463 (G) No spike
X55-15 (B) ZR663 (B) No spike
12. Remove Sync./Shading board from service extender and return it to its position in the camera.
Page 34
4-8 Technical Manual LDK 20(S) - Studio Camera Adjustments
Video Processor 1 Board
TOP SIDE
Video Processor 1
3922 406 85840
Test
VP 1
Test
Slope
Shift
2
24
X55
1
23
X56
G - 6
R - 12
B - 15
X4
1
2
ZR111
Ampl
Test
A
B
C
X3
R112
Slope Test
R108
Shift Test
Shading
crosstalk B
Shading
crosstalk G
Shading
crosstalk R
R656
R456
R256
MP110
MP100
MP630
MP450
MP250
MP650
MP90
MP41
MP44
MP40
MP80
MP240
MP640
Dummy
offset R
MP420
MP220
MP620
1
23
ZR611
ZR614ZR606
ZR608
MP610
Black
offset B
Ampl B
Saw
offset B
Dummy
offset B
ZR411
ZR414ZR406
ZR408
MP410
Black
offset G
Ampl G
Saw
offset G
Dummy
offset G
MP210
MP
211
ZR211
ZR214ZR206
ZR208
Black
offset R
Ampl R
Saw
offset R
MP411
MP611
MP230
MP430
MP0
ZR111
Ampl
Test
R112
Slope Test
R108
Shift Test
12
2324
X56
ZR606
Ampl B
ZR406
Ampl G
ZR206
Ampl R
MP110
G - 8
R - 14
B - 20
VP1
G - 8
R - 14
B - 20
Page 35

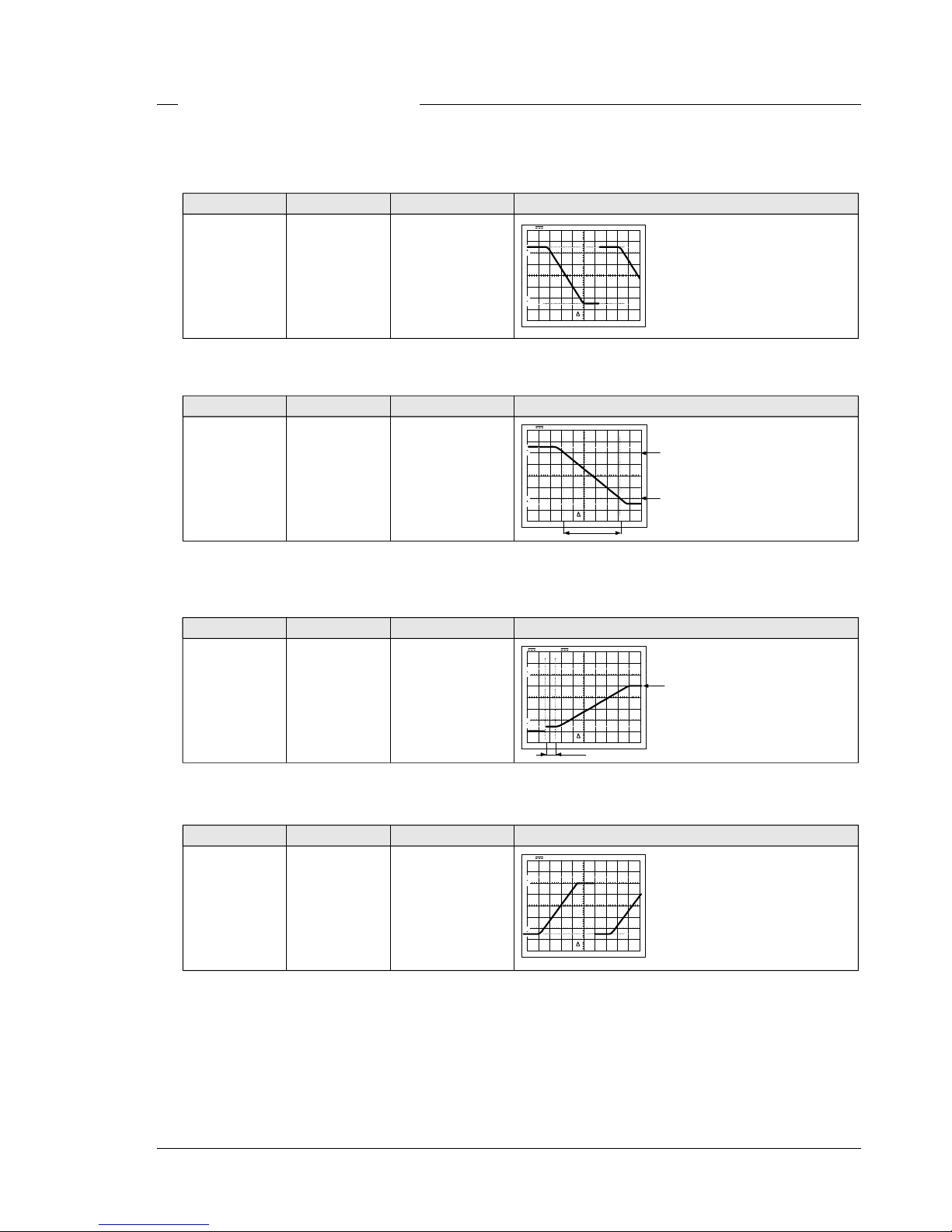

Adjustments Technical Manual LDK 20(S) - Studio Camera 4-9
Video Processor 1 Board
Test Sawtooth Nominal Settings
15. Sawtooth amplitude
Measure at: Adjust with: Required result: Correct:
MP110 ZR111 -1000mV
0%
10
90
100
0.2V
10µS
VA+1.00V
16. Sawtooth slope
Set sawtooth amplitude to 100% on oscilloscope, measure between 10% and 90% and adjust slope test.
Measure at: Adjust with: Required result: Correct:
MP110 R112 25 µS
0%
10
90
100
0.2V
5µS
25µS
t+25.0µS
90%
10%
17. Sawtooth horizontal shift
Set master black level to +10%.
Adjust start sawtooth for 4.5 µS after system blanking.
Measure at: Adjust with: Required result: Correct:
CVBS out R108
0%
10
90
100
0.2V
5µS
4.5µS
t+4.50µS
0.2V
CVB
S
Video output
18. Adjust the video output amplitude
Measure at: Adjust with: Required result: Correct:
X56-14 (R) ZR206 (R) 450mV (R)
0%
10
90
100
0.1V
10µS
VA+450mV
X56-8 (G) ZR406 (G) 450mV (G)
X56-20 (B) ZR606 (B) 450mV (B)
Page 36
4-10 Technical Manual LDK 20(S) - Studio Camera Adjustments

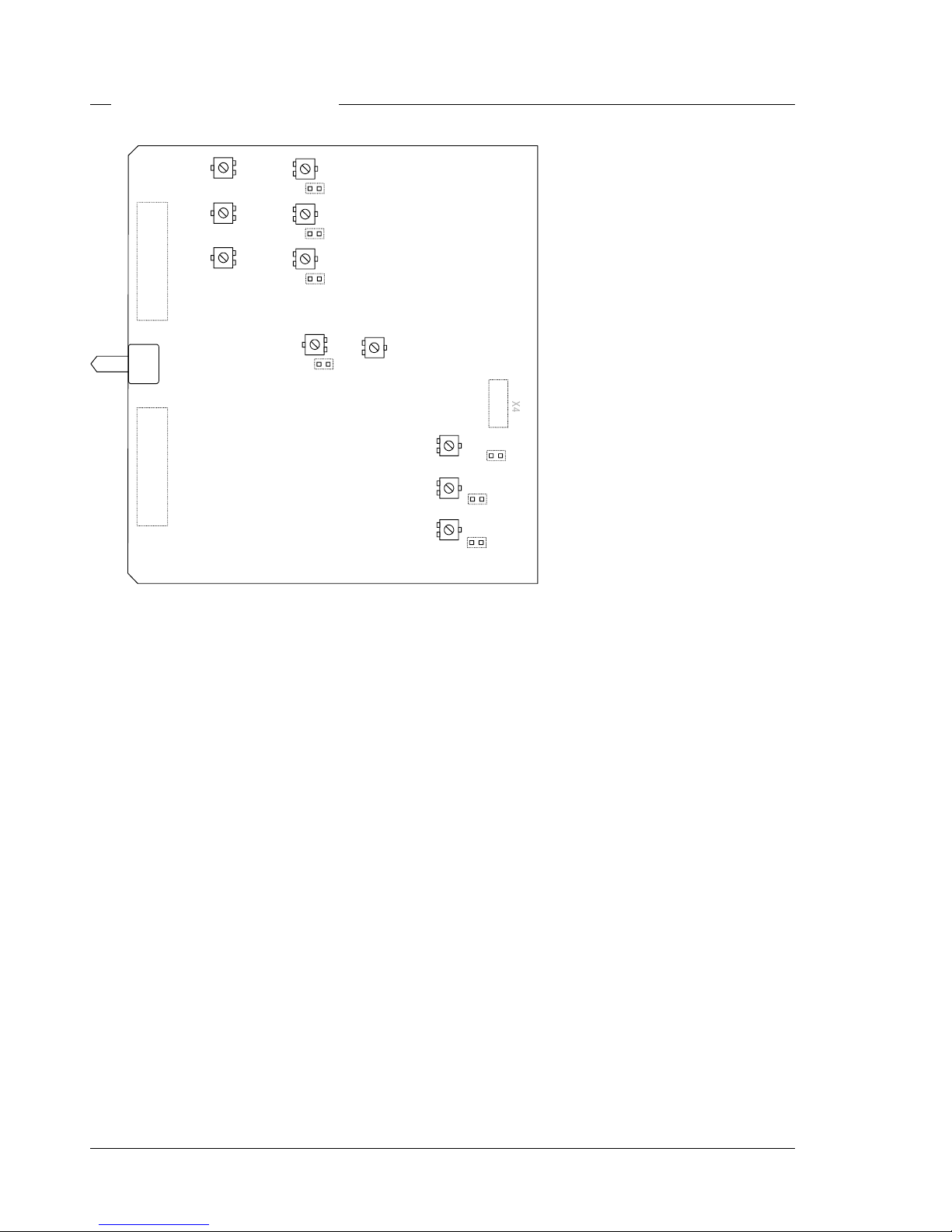

Digital Video Processor
BOTTOM SIDE
Digital Video Processing
3922 406 84950
21
24 23
X52
21
2423
X51
ZR632
Amplitude
Black B
ZR232
Amplitude
Black R
ZR432
Amplitude
Black G
ZR525
Black off set
limiter sharp G
ZR325
Black off set
limiter sharp R
ZR725
Black off set
limiter sharp B
ZR541
ZR341
ZR741
ZR841
ZR830
Black off set
limiter sharp Y
MP230
MP430
MP630
MP500
MP300
MP700
MP840
G - 11
R - 21
B - 22
Page 37

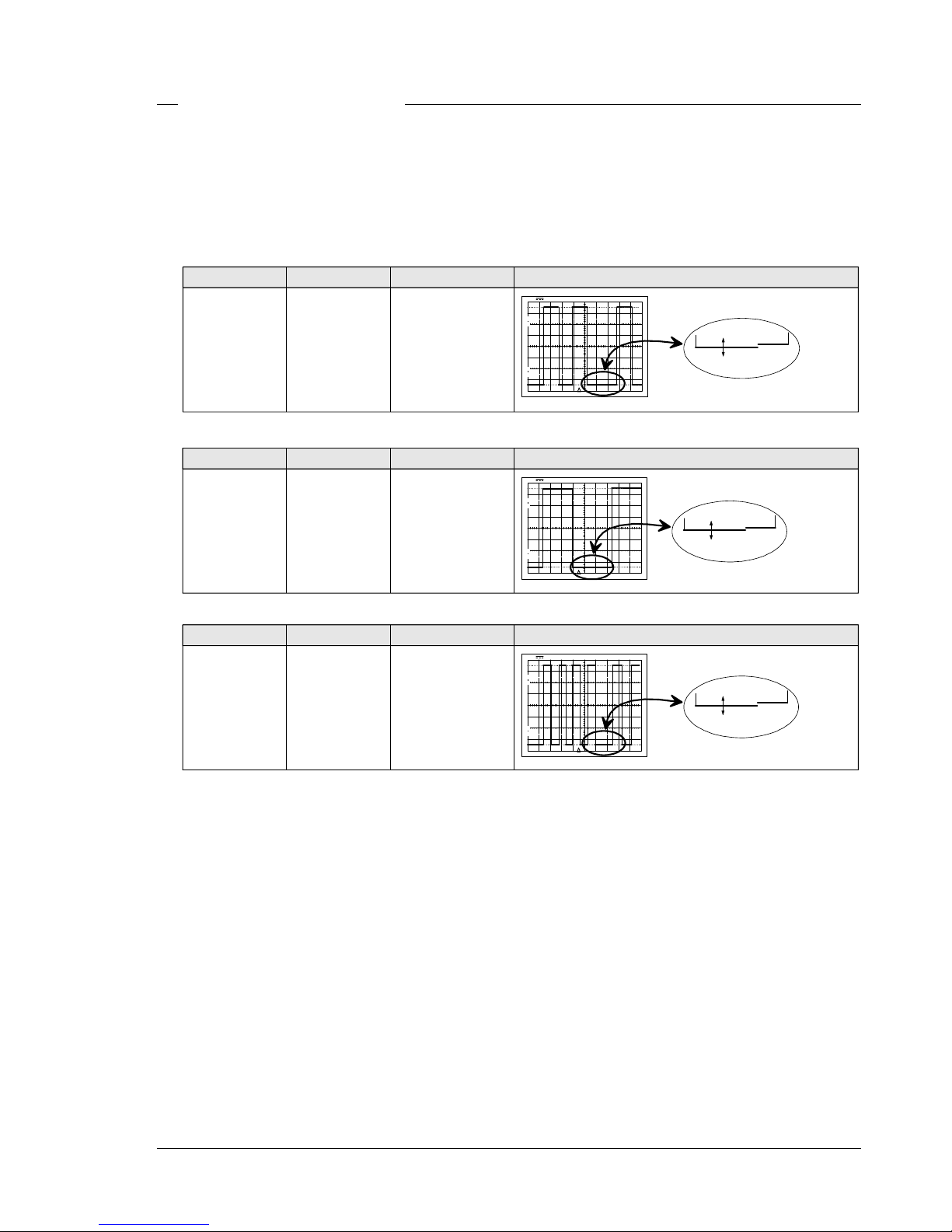

Adjustments Technical Manual LDK 20(S) - Studio Camera 4-11
Digital Video Processor
1. Place Digital Video Processor on service extender. Set master black level to 50. Check that individual R, G
and B black levels are set to 50. Switch off test sawtooth.
Black Offset Level
2. Switch on colour bar.
3. Adjust black offset during the active line to the same as the clamp level.
Measure at: Adjust with: Required result: Correct:
X51-21 (R) ZR325 (R) 0mV (R)
0%
10
90
100
Clamp
level
0.2V
10µS
VA+1.40V
Measure at: Adjust with: Required result: Correct:
X51-11 (G) ZR525 (G) 0mV (G)
0%
10
90
100
Clamp
level
0.2V
10µS
VA+1.40V
Measure at: Adjust with: Required result: Correct:
X51-22 (B) ZR725 (B) 0mV (B)
0%
10
90
100
Clamp
level
0.2V
10µS
VA+1.40V
Page 38
4-12 Technical Manual LDK 20(S) - Studio Camera Adjustments

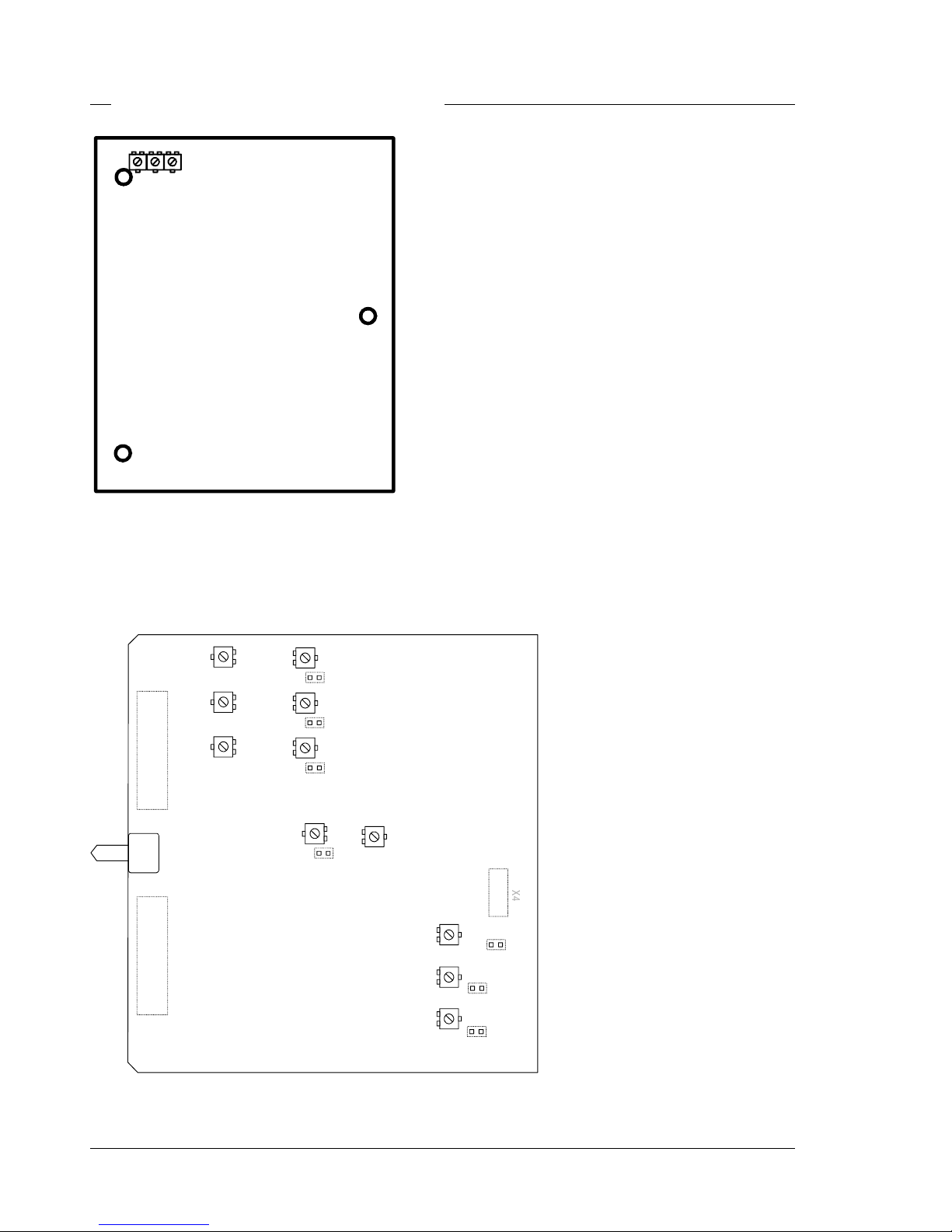

Digital Video Processor Subboard
BOTTOM SIDE
Subboard DSP
3922 406 84960
ZR671
ZR471
ZR271
BOTTOM SIDE
Digital Video Processing
3922 406 84950
21
24 23
X52
21
2423
X51
ZR632
Amplitude
Black B
ZR232
Amplitude
Black R
ZR432
Amplitude
Black G
ZR525
Black off set
limiter sharp G
ZR325
Black off set
limiter sharp R
ZR725
Black off set
limiter sharp B
ZR541
ZR341
ZR741
ZR841
ZR830
Black off set
limiter sharp Y
MP230
MP430
MP630
MP500
MP300
MP700
MP840
G - 11
R - 21
B - 22
Digital Video Processor
Page 39

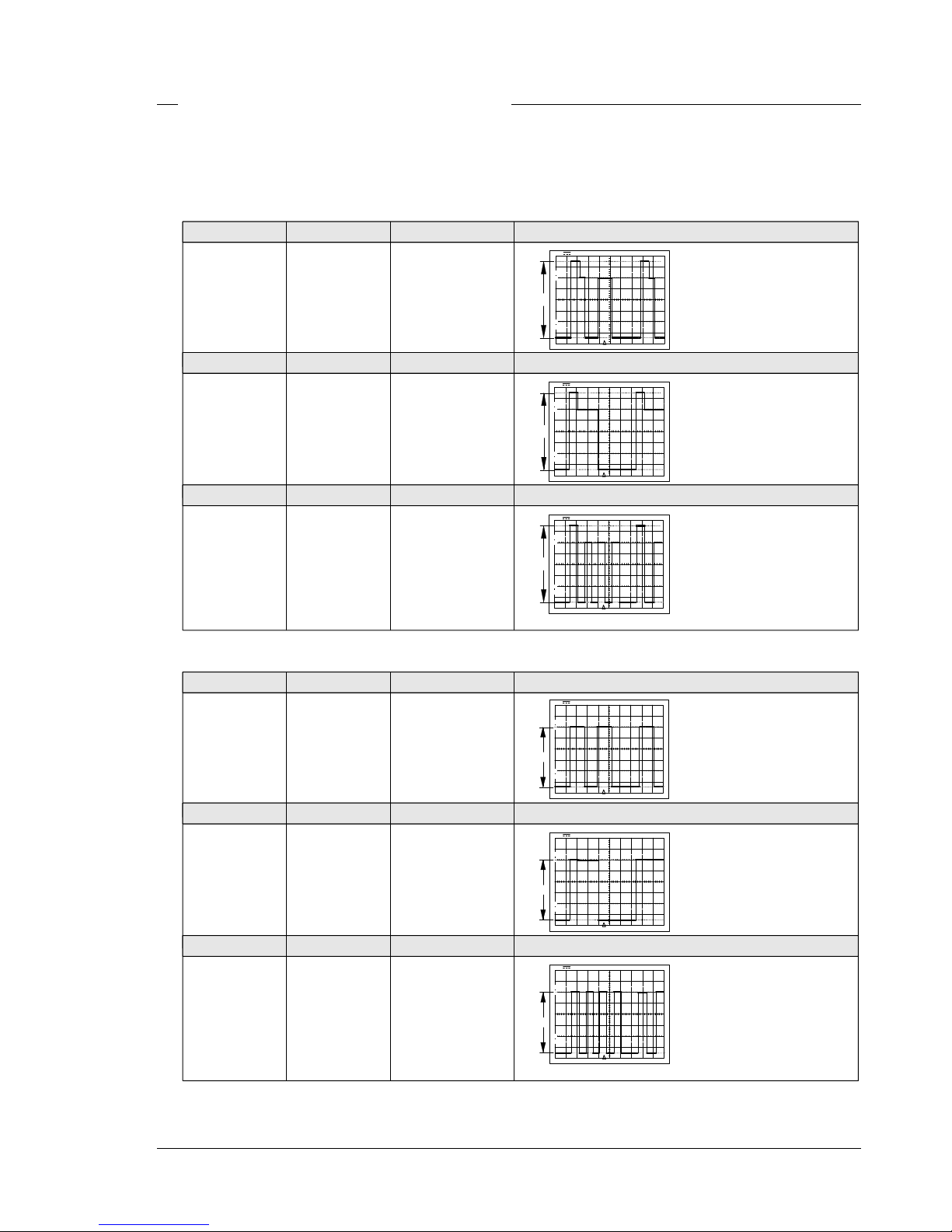

Adjustments Technical Manual LDK 20(S) - Studio Camera 4-13
Digital Video Processor Subboard
Gain DAC.
1. Adjust bar output amplitude.
PAL
Measure at: Adjust with: Required result: Correct:
X51-21 ZR271 (R) +1400mV (R)
0%
10
90
100
0.2V
10µS
VA+1.40V
1400 mV
Measure at: Adjust with: Required result: Correct:
X51-11 ZR471 (G) +1400mV (G)
0%
10
90
100
1400 mV
0.2V
10µS
VA+1.40V
Measure at: Adjust with: Required result: Correct:
X51-22 R671 (B) +1400mV (B)
0%
10
90
100
1400 mV
0.2V
10µS
VA+1.40V
NTSC
Measure at: Adjust with: Required result: Correct:
X51-21 ZR271 (R) +1050mV (R)
0%
10
90
100
0.2V
10µS
VA+1.05V
1050 mV
Measure at: Adjust with: Required result: Correct:
X51-11 ZR471 (G) +1050mV (G)
0%
10
90
100
0.2V
10µS
VA+1.05V
1050 mV
Measure at: Adjust with: Required result: Correct:
X51-22 R671 (B) +1050mV (B)
0%
10
90
100
0.2V
10µS
VA+1.05V
1050 mV
Page 40

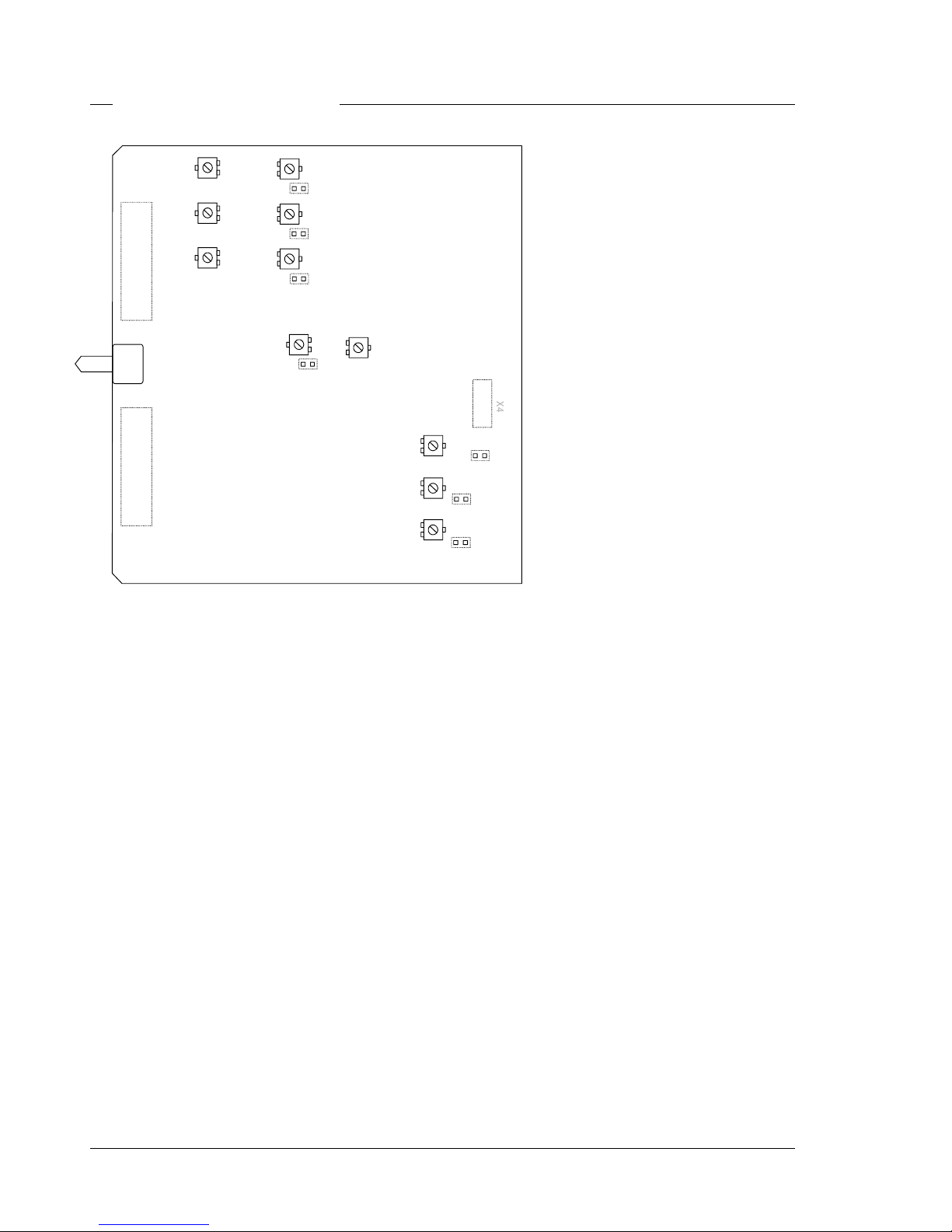

4-14 Technical Manual LDK 20(S) - Studio Camera Adjustments
Digital Video Processor
BOTTOM SIDE
Digital Video Processing
3922 406 84950
21
24 23
X52
21
2423
X51
ZR632
Amplitude
Black B
ZR232
Amplitude
Black R
ZR432
Amplitude
Black G
ZR525
Black off set
limiter sharp G
ZR325
Black off set
limiter sharp R
ZR725
Black off set
limiter sharp B
ZR541
ZR341
ZR741
ZR841
ZR830
Black off set
limiter sharp Y
MP230
MP430
MP630
MP500
MP300
MP700
MP840
G - 11
R - 21
B - 22
Y - 24
Page 41

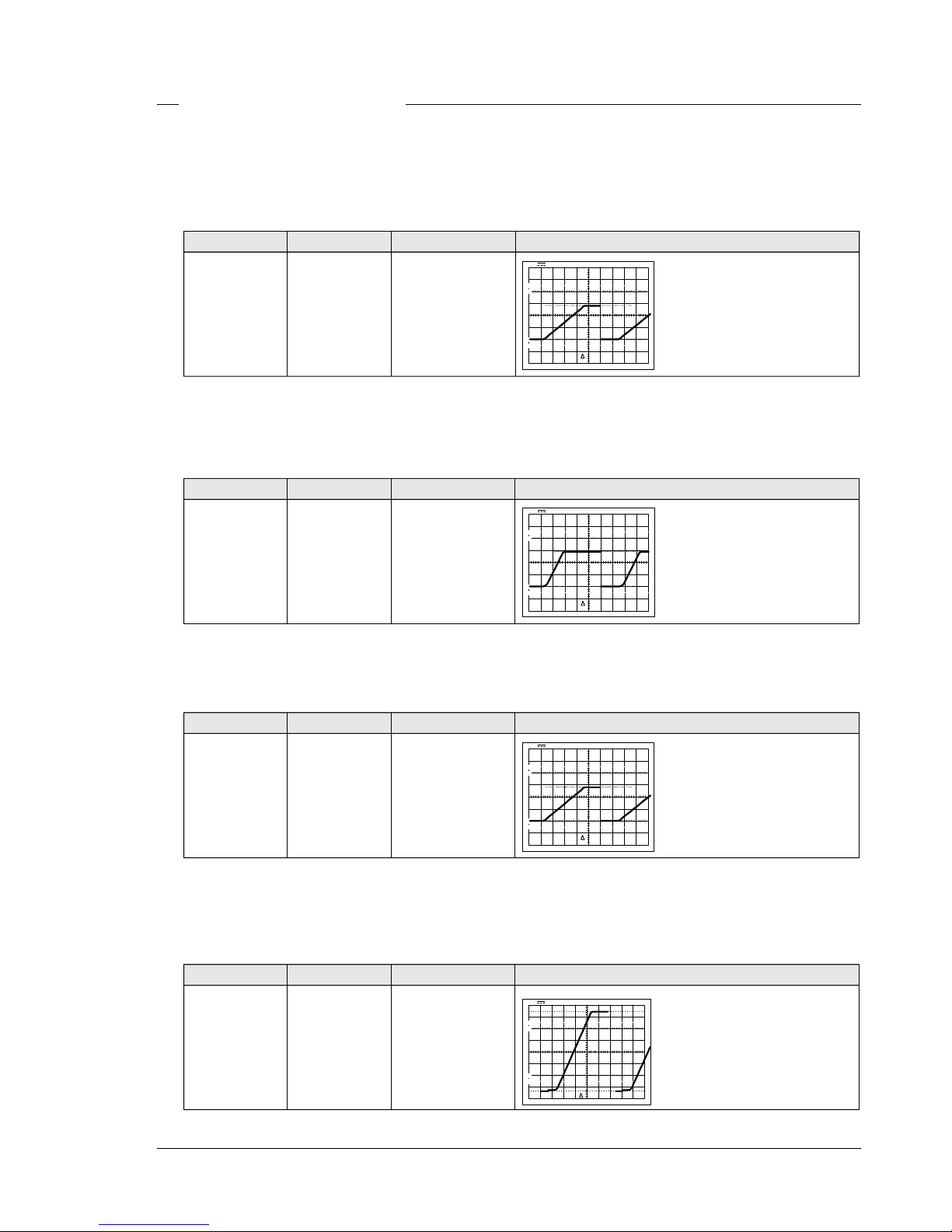

Adjustments Technical Manual LDK 20(S) - Studio Camera 4-15
Digital Video Processor
Gain Video
1. Place Digital Video Processor on service extender.
2. Switch off colour bar and Test sawtooth on.
3. Adjust white output amplitude.
Measure at: Adjust with: Required result: Correct:
X51-21 (R) ZR232 (R) +1400mV (R)
0%
10
90
100
0.5V
10µS
VA+1.40V
X51-11 (G) ZR432 (G) +1400mV (G)
X51-22 (B) ZR632 (B) +1400mV (B)
White limiter
4. Set gain to +6dB. In setup 1 menu set white clip on.
Set individual white limiter to: Master G = 60, R = 60, B = 60.
5. Adjust output for a video clip level of 102%.
Measure at: Adjust with: Required result: Correct:
X51-21 (R) ZR341 (R) +1428mV (R)
0%
10
90
100
0.5V
10µS
VA+1.43V
X51-11 (G) ZR541 (G) +1428mV (G)
X51-22 (B) ZR741 (B) +1428mV (B)
Output amplitude readjustment
6. Set gain to 0dB. In setup 1 menu set white clip off.
7. Readjust white output amplitude.
Measure at: Adjust with: Required result: Correct:
X51-21 (R) ZR232 (R) +1400mV (R)
0%
10
90
100
0.5V
10µS
VA+1.40V
X51-11 (G) ZR432 (G) +1400mV (G)
X51-22 (B) ZR632 (B) +1400mV (B)
VF-Mon output
8. Test sawtooth on.
9. Adjust Y-output amplitude.
10. Adjust output dc level
Measure at: Adjust with: Required result: Correct:
X52-24 ZR841 +1400mV
0%
10
90
100
0.2V
10µS
VA+1400mV
ZR830 0mVdc
11. Return Digital Video Processor to its position in the camera.
Page 42
4-16 Technical Manual LDK 20(S) - Studio Camera Adjustments
Video Miscellaneous Board
Video Miscellaneous
3922 406 85070
TOP SIDE
Video
Misc
12
36
12
36
ZR601
Gain
BMux
ZR600
Wh. Pulse
BMux Ampl.
ZR401
Gain GMux
ZR400
White Pulse GMux Ampl.
ZR93 R-Y Level
ZR94 B-Y Level
White
Balance
ZR91
Mon.Video Level
R/G/B/Y/VFCNT
ZR111
ZR247
Cadre
Contrast
MP6
MP5
MP7
ZR85
ZR92
Sync.
Ampl.
Composite
Y Level
MP0
ZR283
ZR47
ZR88
ZR90
Start
Focus Bar
Start
Zoom Bar
End Stop
Viewfinder
Indicator
Black
Indicator
Level
Peak/Average
ZR187
MP8
MP9
MP11
MP10
MP2
MP3
MP4
ZR200
White Pulse
RMux Ampl.
ZR201
Gain
RMux
ZL4
12
36
White
Balance
ZR91
ZR85
ZR92
Sync.
Ampl.
Composite
Y Level
Y - 11
ZL4
Video
Misc
Page 43

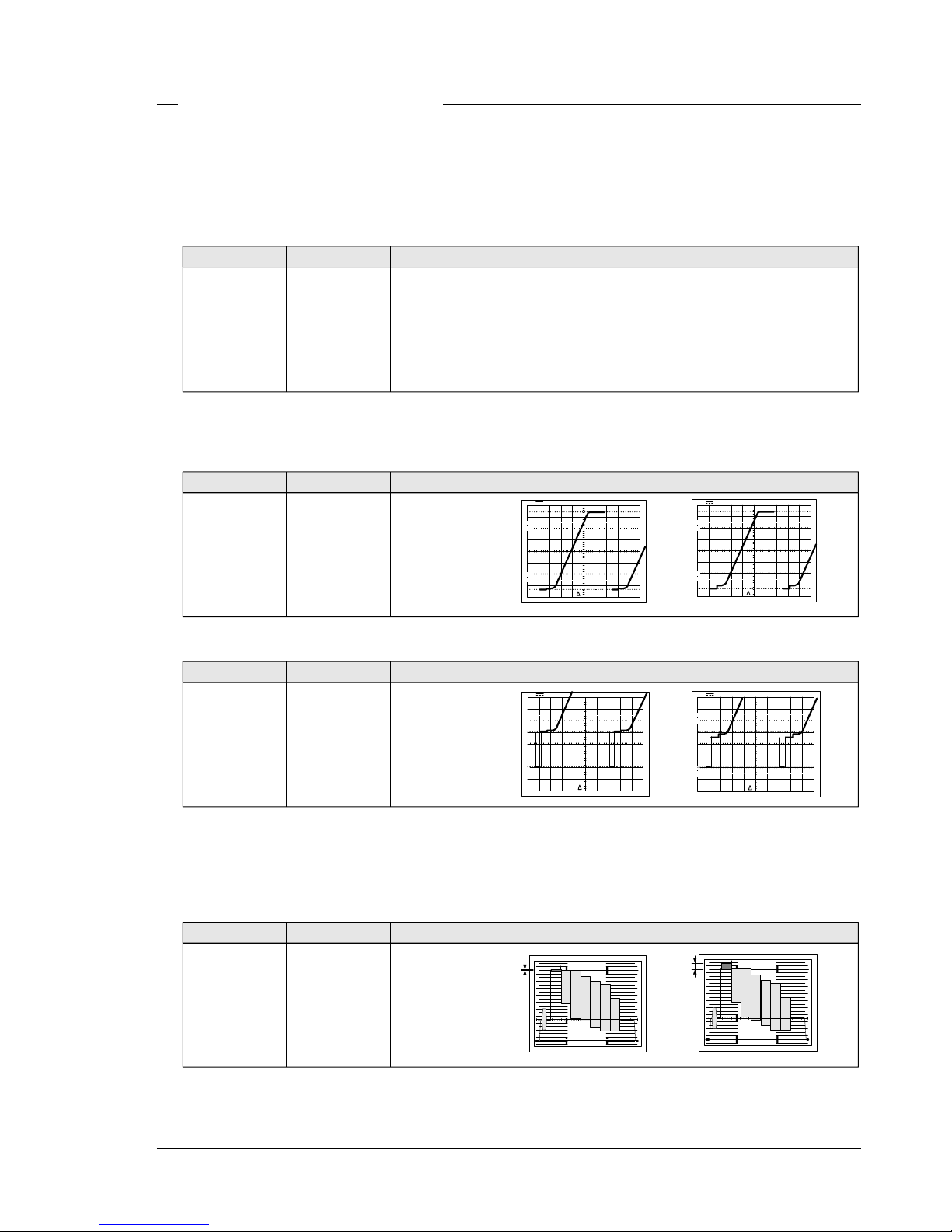

Adjustments Technical Manual LDK 20(S) - Studio Camera 4-17
Video Miscellaneous Board
1. Place Video Miscellaneous Board on service extender.
VF sync. oscillator
2. Test sawtooth off.
3. Adjust VF sync. frequency.
Measure at: Adjust with: Required result:
MP2 ZL4 +2.5V DC level
Output amplitude
4. Test sawtooth on.
5. Adjust Y output amplitude.
Measure at: Adjust with: Required result: PAL NTSC
X17A-11 ZR92 +1400mV PAL
0%
10
90
100
0.2V
10µS
VA+1400mV
0%
10
90
100
0.2V
10µS
VA+1428mV
+1428mV NTSC
6. Adjust Y sync. output amplitude.
Measure at: Adjust with: Required result: PAL NTSC
X17A-11 ZR85 -600mV PAL
0%
10
90
100
0.2V
10µS
VA-600mV
0%
10
90
100
0.2V
10µS
VA-572mV
-572mV NTSC
R-Y / B-Y white balance
7. Test sawtooth off
8. Colour bar on.
9. Connect oscilloscope, via a vectorscope terminated with 75 Ohm, to the CVBS output of the camera and
adjust for a minimum unbalance in white.
Measure at: Adjust with: Required result: Correct: Incorrect:
CVBS out ZR91
0.1
0.2
0.4
0.5
0.6
0.7
0.8
0.9
10
11
0.1
0.2
0.4
0.5
0.6
0.7
0.8
0.9
10
11
Page 44
4-18 Technical Manual LDK 20(S) - Studio Camera Adjustments
Video Miscellaneous Board
Video Miscellaneous
3922 406 85070
TOP SIDE
Video
Misc
12
36
12
36
ZR601
Gain
BMux
ZR600
Wh. Pulse
BMux Ampl.
ZR401
Gain GMux
ZR400
White Pulse GMux Ampl.
ZR93 R-Y Level
ZR94 B-Y Level
White
Balance
ZR91
Mon.Video Level
R/G/B/Y/VFCNT
ZR111
ZR247
Cadre
Contrast
MP6
MP5
MP7
ZR85
ZR92
Sync.
Ampl.
Composite
Y Level
MP0
ZR283
ZR47
ZR88
ZR90
Start
Focus Bar
Start
Zoom Bar
End Stop
Viewfinder
Indicator
Black
Indicator
Level
Peak/Average
ZR187
MP8
MP9
MP11
MP10
MP2
MP3
MP4
ZR200
White Pulse
RMux Ampl.
ZR201
Gain
RMux
ZL4
12
36
ZR94 B-Y Level
ZR601
Gain
BMux
ZR401
Gain GMux
ZR93 R-Y Level
ZR201
Gain
RMux
R/Y - 1
0
B/Y - 16
R -27
G - 19
B - 23
Video
Misc
Page 45

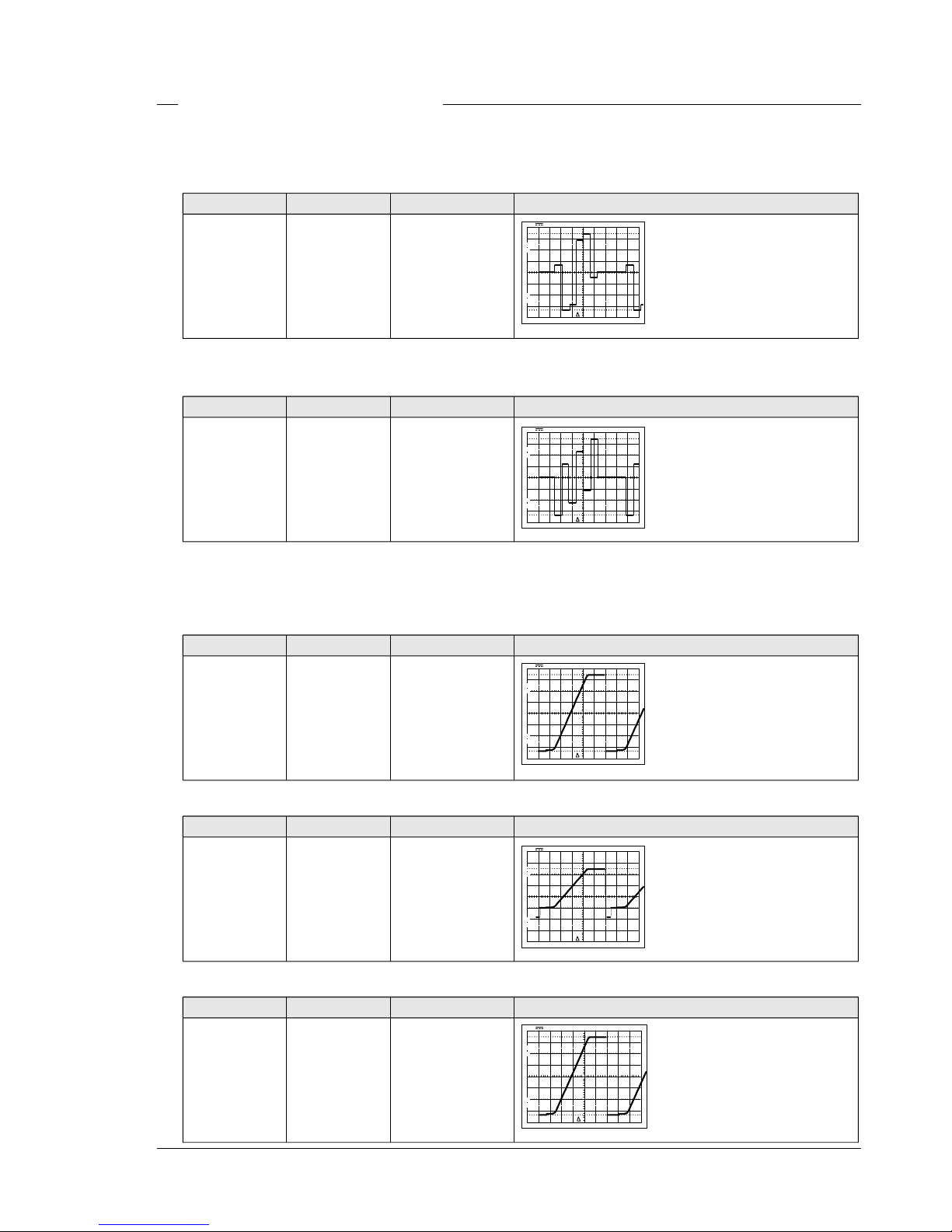

Adjustments Technical Manual LDK 20(S) - Studio Camera 4-19
Video Miscellaneous Board
R-Y amplitude
10. Adjust R-Y output amplitude.
Measure at: Adjust with: Required result: Correct:
X17A-10 ZR93 1400mV
0%
10
90
100
0.2V
10µS
VA+1400mV
B-Y amplitude
11. Adjust B-Y output amplitude.
Measure at: Adjust with: Required result: Correct:
X17A-16 ZR94 1400mV
0%
10
90
100
0.2V 10µS
VA+1400mV
Video Mux output
12. Colour bar off.
13. Test sawtooth on.
14. Adjust R-Mux output.
Measure at: Adjust with: Required result: Correct:
X17A-27 ZR200 700mV
0%
10
90
100
0.1V
10µS
VA+700mV
15. Adjust G-Mux output.
Measure at: Adjust with: Required result: Correct:
X17A-19 ZR400 700mV
0%
10
90
100
0.2V 10µS
VA+700mV
16. Adjust B-Mux output.
Measure at: Adjust with: Required result: Correct:
X17A-23 ZR600 700mV
0%
10
90
100
0.1V
10µS
VA+700mV
Page 46
4-20 Technical Manual LDK 20(S) - Studio Camera Adjustments
Video Miscellaneous Board
Video Miscellaneous
3922 406 85070
TOP SIDE
Video
Misc
12
36
12
36
ZR601
Gain
BMux
ZR600
Wh. Pulse
BMux Ampl.
ZR401
Gain GMux
ZR400
White Pulse GMux Ampl.
ZR93 R-Y Level
ZR94 B-Y Level
White
Balance
ZR91
Mon.Video Level
R/G/B/Y/VFCNT
ZR111
ZR247
Cadre
Contrast
MP6
MP5
MP7
ZR85
ZR92
Sync.
Ampl.
Composite
Y Level
MP0
ZR283
ZR47
ZR88
ZR90
Start
Focus Bar
Start
Zoom Bar
End Stop
Viewfinder
Indicator
Black
Indicator
Level
Peak/Average
ZR187
MP8
MP9
MP11
MP10
MP2
MP3
MP4
ZR200
White Pulse
RMux Ampl.
ZR201
Gain
RMux
ZL4
12
36
Mon.Video Level
R/G/B/Y/VFCNT
ZR111
ZR600
Wh. Pulse
BMux Ampl.
ZR400
White Pulse GMux Ampl.
ZR200
White Pulse
RMux Ampl.
R -27
G - 19
B - 23
Video
Misc
Page 47
Adjustments Technical Manual LDK 20(S) - Studio Camera 4-21

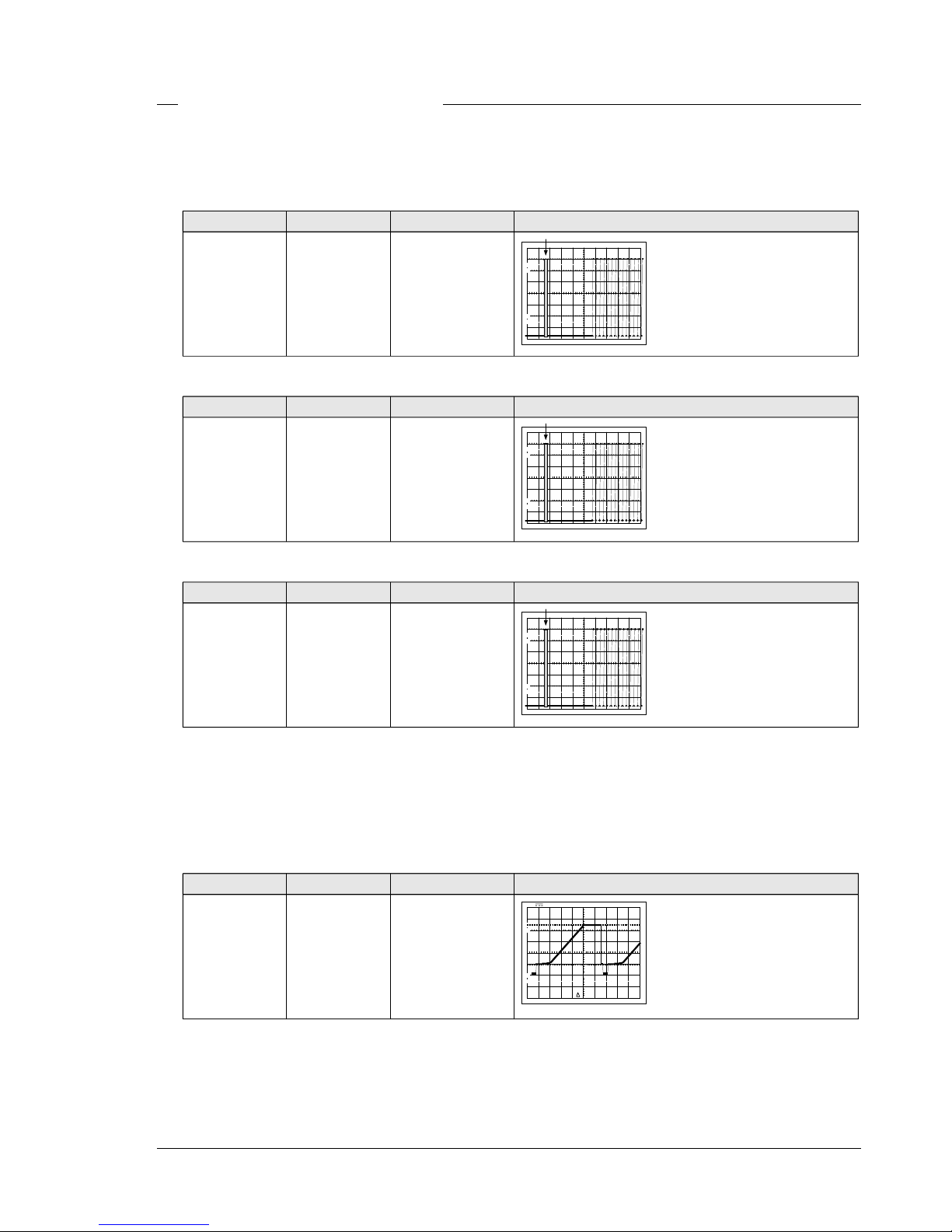

Video Miscellaneous Board
White pulse amplitude
17. Connect camera to a base station and switch to Triax mode.
18. Adjust the white pulse in line 10 (PAL), in line 13 (NTSC) for the R-Mux output.
Measure at: Adjust with: Required result: Correct:
X17A-27 ZR201 700mV
0%
10
90
100
19. Adjust the white pulse in line 10 (PAL), in line 13 (NTSC) for the G-Mux output.
Measure at: Adjust with: Required result: Correct:
X17A-19 ZR401 700mV
0%
10
90
100
20. Adjust the white pulse in line 11 (PAL), in line 14 (NTSC) for the B-Mux output.
Measure at: Adjust with: Required result: Correct:
X17A-23 ZR601 700mV
0%
10
90
100
21. Set up camera in the stand-alone mode again.
Monitoring camera output
22. Use the controls at the rear panel of the camera to select the Y signal for the monitoring output by navigating
through the menu system.
23. Connect oscilloscope terminated with 75 Ohm to the VF output of the camera.
24. Adjust the amplitude of the VF output signal.
Measure at: Adjust with: Required result: Correct:
VF output ZR111 PAL 700mV
0%
10
90
100
0.2V
10µS
VB+700mV
NTSC 714mV
(100IRE)
Page 48
4-22 Technical Manual LDK 20(S) - Studio Camera Adjustments

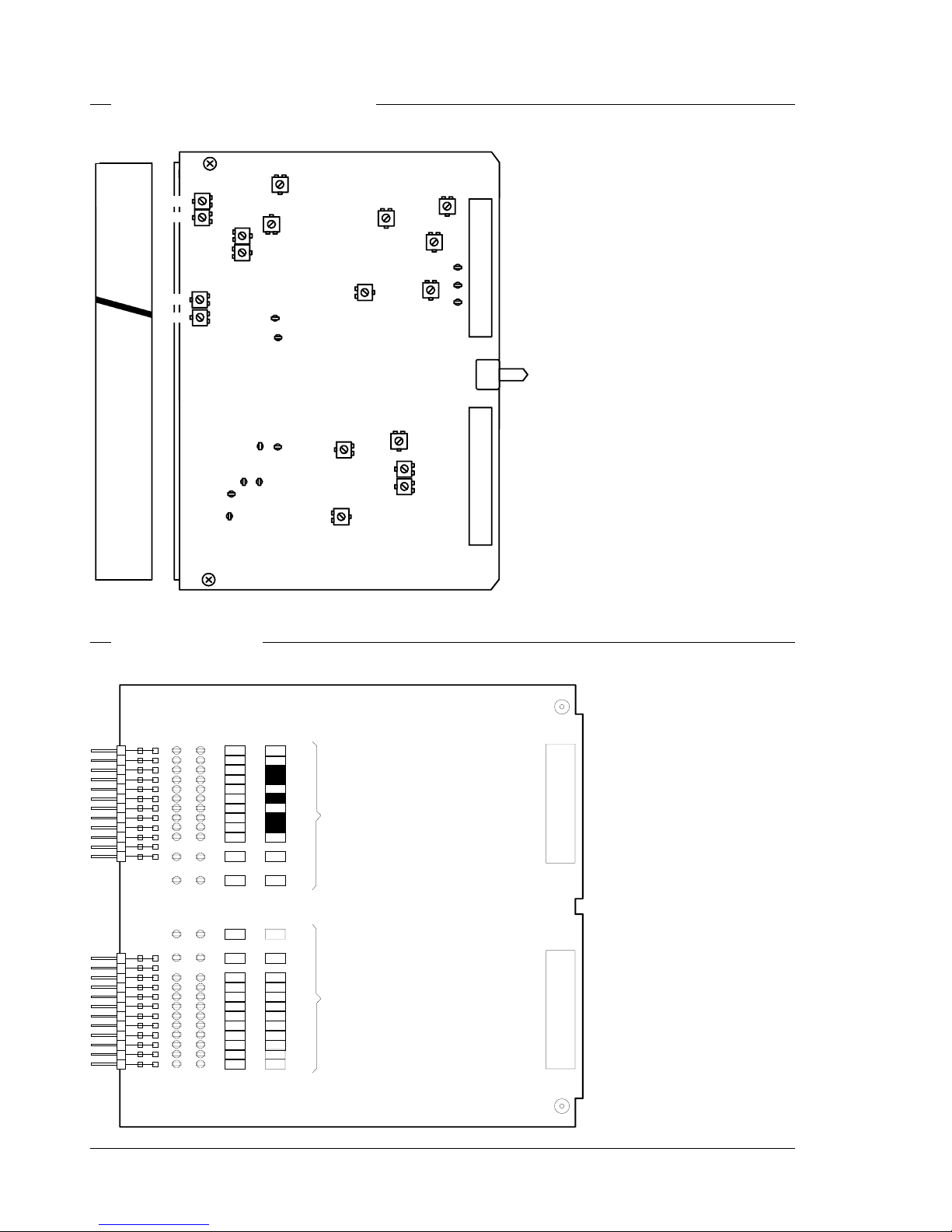

23 24
1
2
2
1
24
TOP SIDE
MP
23
MP
BA
1
3
5
7
9
11
13
15
17
19
21
23
4
6
8
10
12
14
16
18
20
22
24
2
S1
S3
S5
S7
S9
S11
S13
S15
S17
S19
S21
S23
S4
S6
S8
S10
S12
S14
S16
S18
S20
S22
S24
S2
B - CONNECTOR
MP
MP
1
2
3
4
56
8
10
12
14
16
18
20
22
24
7
9
11
13
15
17
19
21
23
S1
S3
S5
S7
S9
S11
S13
S15
S17
S19
S21
S23
S4
S6
S8
S10
S12
S14
S16
S18
S20
S22
S24
S2
A - CONNECTOR
BA
BA BA
Video Miscellaneous Board
Extender Board
Video Miscellaneous
3922 406 85070TOP SIDE
Video
Misc
12
36
X17A
12
36
X17B
ZR601
Gain
BMux
ZR600
Wh. Pulse
BMux Ampl.
ZR401
Gain GMux
ZR400
White P ulse GMux Ampl.
ZR93 R-Y Level
ZR94 B-Y Level
White
Balance
ZR91
Mon.Video Level
R/G/B/Y/VFCNT
ZR111
ZR247
Cadre
Contrast
MP6
MP5
MP7
ZR85
ZR92
Sync.
Ampl.
Composite
Y Level
MP0
ZR283
ZR47
ZR88
ZR90
Start
Focus Bar
Start
Zoom Bar
End Stop
Viewfinder
Indicator
Black
Indicator
Level
Peak/Average
ZR187
MP8
MP9
MP11
MP10
MP2
MP3
MP4
ZR200
White Pulse
RMux Ampl.
ZR201
Gain
RMux
Video
Misc
Page 49

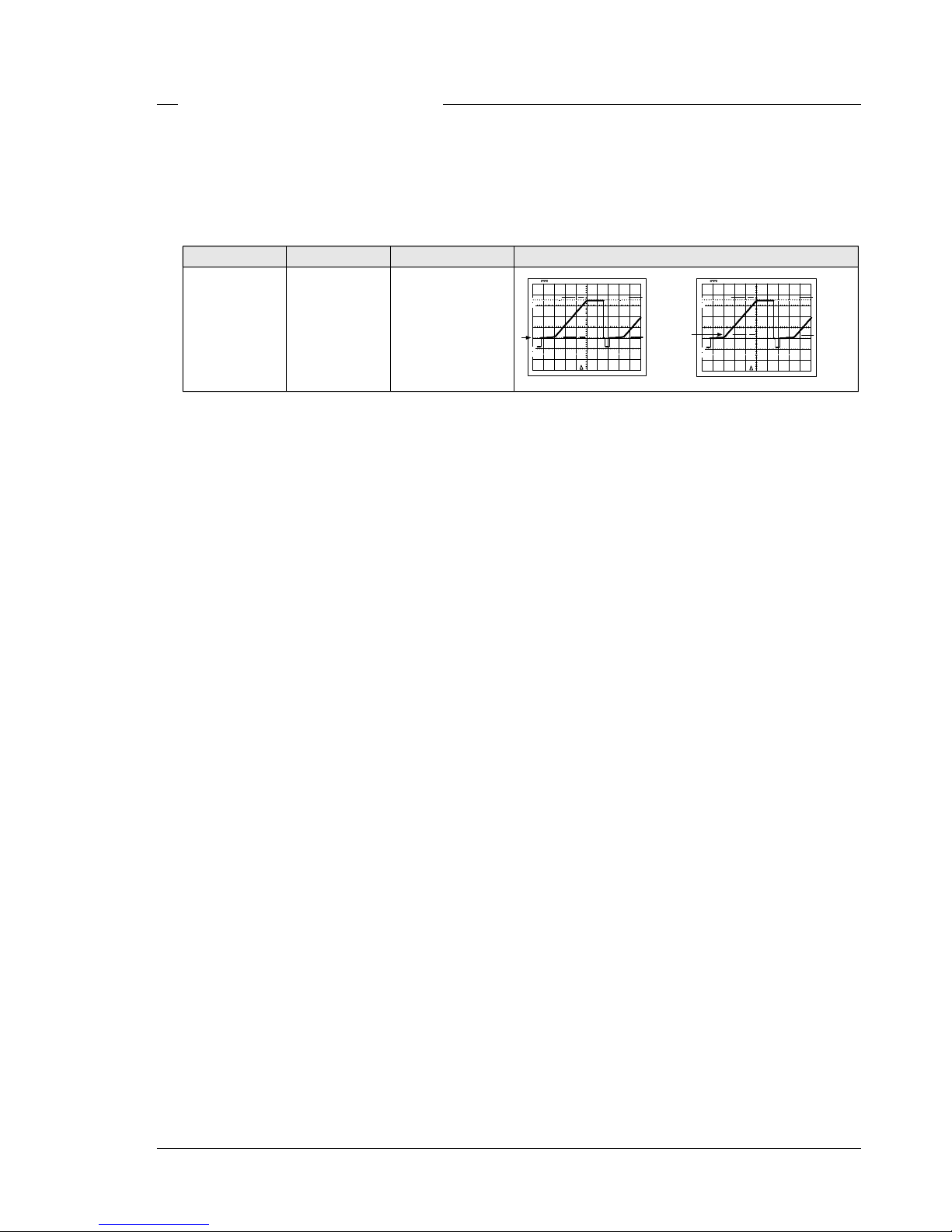

Adjustments Technical Manual LDK 20(S) - Studio Camera 4-23
Video Miscellaneous Board
Black indicator level
25. Use the controls at the rear of the camera to set the white indicator level for the monitoring output by navigating
through the menu system to menu number 318 and setting the value to 85.
26. Connect oscilloscope terminated with 75 Ohm to the VF output of the camera.
27. Adjust the black level of the indicators of the VF output signal to the same level as the blanking.
Measure at: Adjust with: Required result: Correct: Incorrect:
VF output ZR47
0%
10
90
100
0.2V
10µS
VB+714mV
0%
10
90
100
0.2V
10µS
VB+714mV
28. On connector B of the service extender remove the short circuits on the input to Video Processor 1 Board
by disconnecting the jumpers fromB7 to B9
B11 to B13
B17 to B19
Reconnect A7 to B7
A9 to B9
A11 to B11
A13 to B13
A17 to B17
A19 to B19 on connector B of the service extender.
Page 50
4-24 Technical Manual LDK 20(S) - Studio Camera Adjustments
Video Miscellaneous Board
Video Miscellaneous
3922 406 85070
TOP SIDE
Video
Misc
12
36
12
36
ZR601
Gain
BMux
ZR600
Wh. Pulse
BMux Ampl.
ZR401
Gain GMux
ZR400
White Pulse GMux Ampl.
ZR93 R-Y Level
ZR94 B-Y Level
White
Balance
ZR91
Mon.Video Level
R/G/B/Y/VFCNT
ZR111
ZR247
Cadre
Contrast
MP6
MP5
MP7
ZR85
ZR92
Sync.
Ampl.
Composite
Y Level
MP0
ZR283
ZR47
ZR88
ZR90
Start
Focus Bar
Start
Zoom Bar
End Stop
Viewfinder
Indicator
Black
Indicator
Level
Peak/Average
ZR187
MP8
MP9
MP11
MP10
MP2
MP3
MP4
ZR200
White Pulse
RMux Ampl.
ZR201
Gain
RMux
ZL4
ZR283
ZR47
ZR90
Start
Zoom Bar
End Stop
Viewfinder
Indicator
Black
Indicator
Level
Video
Misc
Page 51

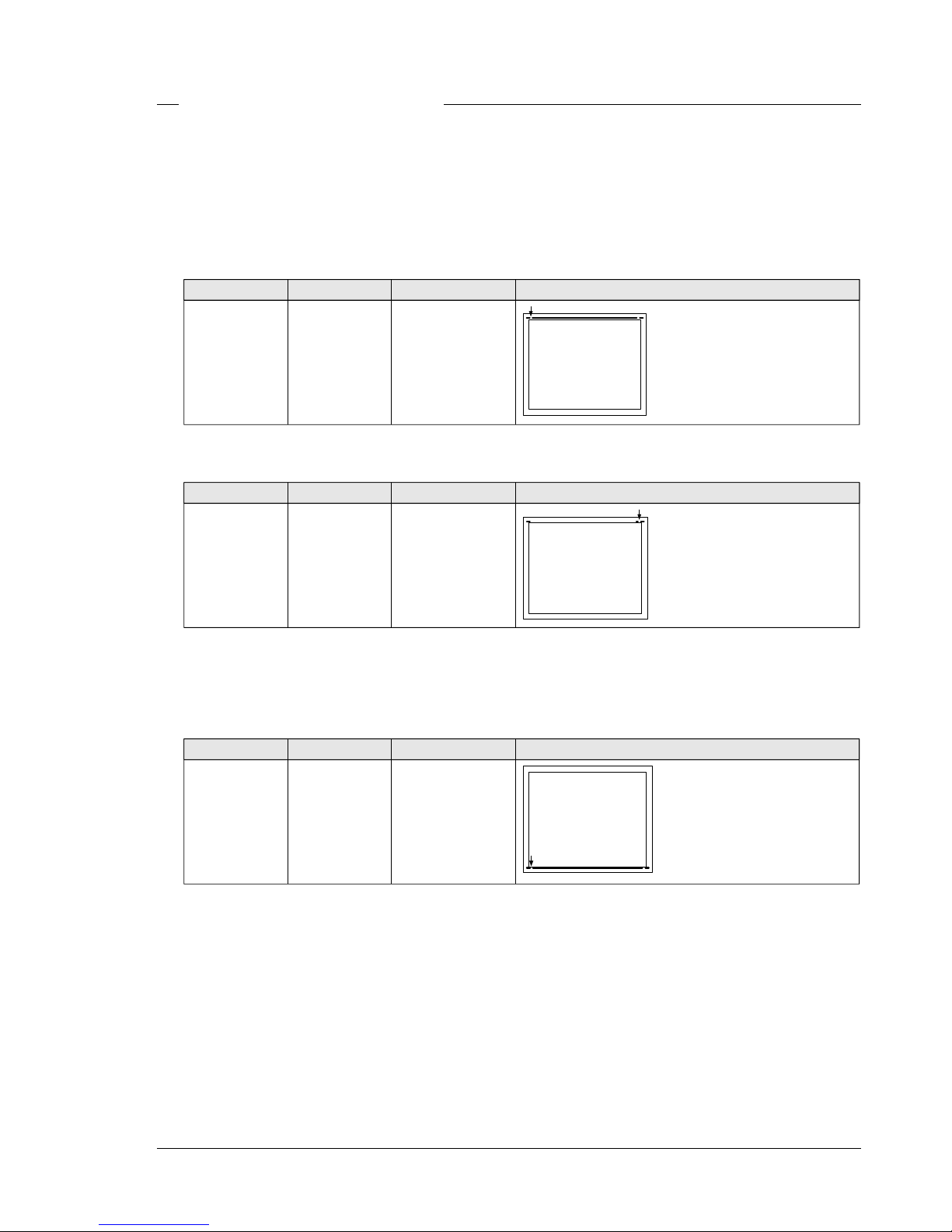

Adjustments Technical Manual LDK 20(S) - Studio Camera 4-25
Video Miscellaneous Board
Zoom bar
29. Mount lens on camera.
30. Test sawtooth off and set filter to clear.
31. Open iris for nominal video.
32. Set potentiometers ZR90 and ZR283 to their mid-position.
33. Set lens to the wide angle position and adjust the start zoom bar potentiometer ZR90 so that there is just a
small gap in the zoom bar at the left side of the viewfinder display.
Measure at: Adjust with: Required result: Correct:
VF display ZR90
34. Set lens to the tele position and adjust the stop zoom bar potentiometer ZR283 so that there is just a small
gap in the zoom bar at the right side of the viewfinder display.
Measure at: Adjust with: Required result: Correct:
VF display ZR283
35. Repeat steps 35 and 36 to obtain the best result.
Focus bar
36. Set lens focus to the minimum focus distance position and adjust the start focus bar potentiometer so that
there is just a small gap in the focus bar at the left side of the viewfinder display.
Measure at: Adjust with: Required result: Correct:
VF display ZR88
Page 52

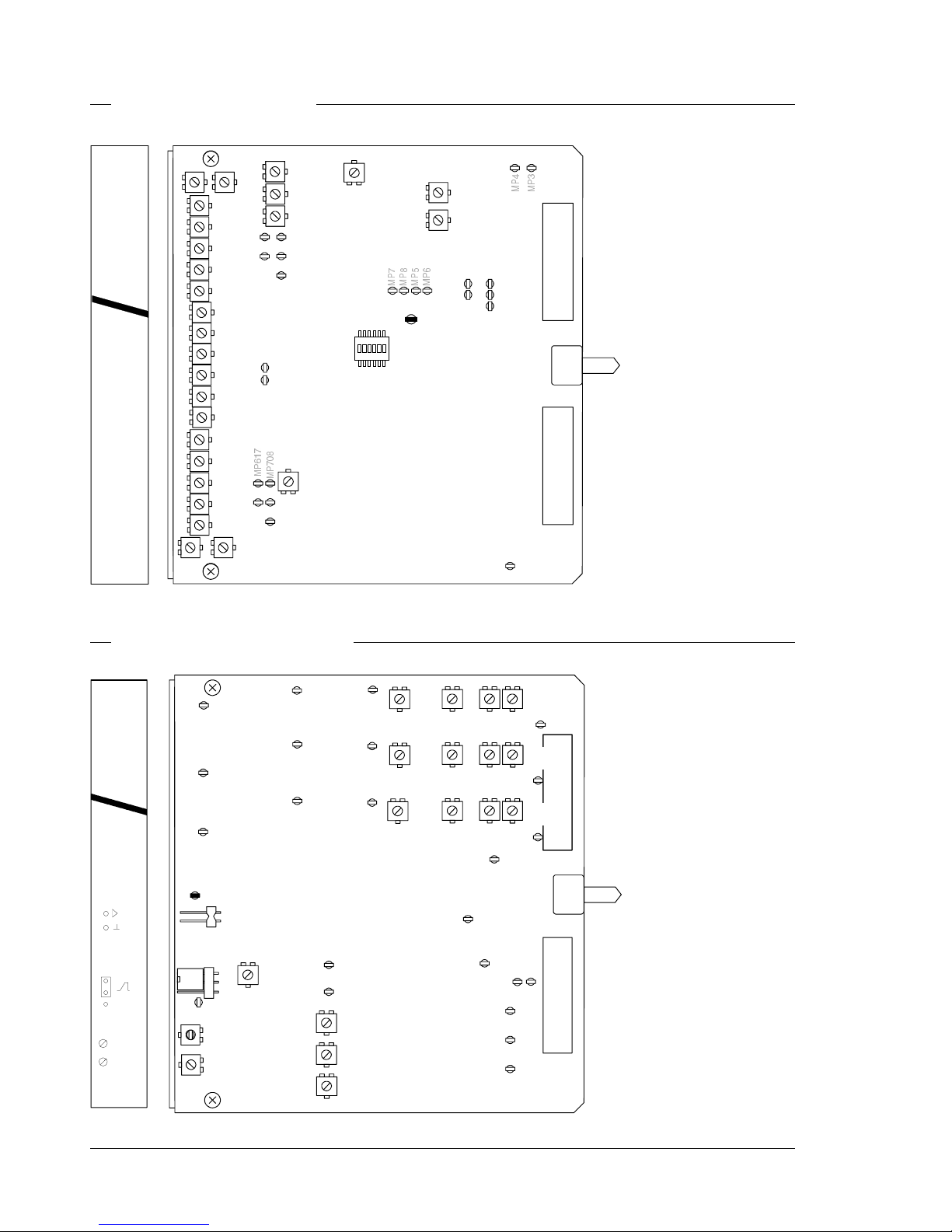

4-26 Technical Manual LDK 20(S) - Studio Camera Adjustments
Sync./Shading Board
Video Processor 1 Board
TOP SIDE
Video Processor 1
3922 406 85840
Test
VP 1
Test
Slope
Shift
2
24
X55
1
23
X56
G - 6
R - 12
B - 15
X4
1
2
ZR111
Ampl
Test
A
B
C
X3
R112
Slope Test
R108
Shift Test
Shading
crosstalk B
Shading
crosstalk G
Shading
crosstalk R
R656
R456
R256
MP110
MP100
MP630
MP450
MP250
MP650
MP90
MP41
MP44
MP40
MP80
MP240
MP640
Dummy
offset R
MP420
MP220
MP620
1
23
ZR611ZR614ZR606
ZR608
MP610
Black
offset B
Ampl B
Saw
offset B
Dummy
offset B
ZR411ZR414ZR406
ZR408
MP410
Black
offset G
Ampl G
Saw
offset G
Dummy
offset G
MP210
MP
211
ZR211
ZR214ZR206
ZR208
Black
offset R
Ampl R
Saw
offset R
MP411
MP611
MP230
MP430
MP0
Dummy
offset R
1
2
23
24
X55
G - 6
R - 12
B - 15
ZR611
Dummy
offset B
ZR411
Dummy
offset G
ZR211
TOP SIDE
Sync./Shading
3922 406 85860
Sync
Shad
1
2
23
24
1
2
23
24
X61
X62
ZR665
ZR636
ZR637
ZR638
ZR639
ZR666
ZR466
ZR436
ZR437
ZR438
ZR439
ZR465
ZR236
ZR238
ZR239
ZR700
ZR237
ZR266
ZR265
MP703
MP704
MP705
MP217
MP209
MP0
MP10
MP11
MP13
MP9
MP12
MP417
MP409
MP707
MP706
MP609
MP1
654321
S1
ZR137
ZR263
ZR463
ZR663
ZR710
ZR300
ZR92
ZR73
ZR663
ZR463
ZR263
VP1
Page 53
Adjustments Technical Manual LDK 20(S) - Studio Camera 4-27
Sync./Shading Board
Setting-up
Note: Sync./Shading board must be adjusted in combination with Video Processor 1 Board.
1. Put Sync./Shading Board on a service extender.
2. Put Video Processor 1 Board on a service extender and remove jumpers 7, 9, 11, 13, 17 and 19 from
connector B of the service extender to interrupt the input from the front and jumpers 6, 12 and 15 to interrupt
the black shading correction.
3. Short circuit the input to video processor 1 by connecting the following jumpers on connector B of the service
extender: B7 to B9, B11 to B13, B17 to B19
4. Recall Factory Standard File on MCP or OCP and close iris. On MCP set:
OPERATE MENU Knee : Off
Contour : Off
Gamma sel. : Lin.
Blk. Str. : Off
Filter : Cap
Auto Iris : Off
SETUP 1 MENU Flare : Off
White clip : Off
Sawtooth : Off
SETUP 2 MENU Soft cont. : Off
SETUP 3 MENU Skin cont. : Off
SETUP 4 MENU Asp.Ratio : 4:3
SETUP 5 MENU Matrix sel : 1:1
MAINT. 1 MENU Wh. shading : Off and User level : 4
Black Shading Correction
1. Carry out this adjustment in an ambient temperature of 20°C / 25°C.
2. On Sync./Shading Board set the DC potentiometers ZR265(R), ZR465(G) and ZR665(B) fully clockwise.
3. On Sync./Shading Board set the Edge potentiometers ZR237(R), ZR437(G) and ZR637(B) fully
counterclockwise.
4. On Sync./Shading Board set the Pulse Comp. potentiometers ZR266(R), ZR466(G) and ZR666(B) fully
counterclockwise.
5. On Sync./Shading Board set Horizontal Sawtooth potentiometers ZR236(R), ZR436(G) and ZR636(B) in
their midposition.
6. On Sync./Shading Board adjust the horizontal sawtooth potentiometers for no sawtooth information
(measure on Video Processor 1 Board).
Measure at: Adjust with: Required result:
VP1 Sync./Shad. minimum
X55-12 (R) ZR263 (R) horizontal
X55-6 (G) ZR463 (G) spike
X55-15 (B) ZR663 (B) information
7. Adjust video level equal to blanking DC level.
Measure at: Adjust with: Required result: Correct:
VP1 VP1
X55-12 (R) ZR211 (R)
X55-6 (G) ZR411 (G)
X55-15 (B) ZR611 (B)
Page 54
4-28 Technical Manual LDK 20(S) - Studio Camera Adjustments
Sync./Shading Board
Video Processor 1 Board
TOP SIDE
Video Processor 1
3922 406 85840
Test
VP 1
Test
Slope
Shift
2
24
X55
1
23
X56
G - 6
R - 12
B - 15
X4
1
2
ZR111
Ampl
Test
A
B
C
X3
R112
Slope Test
R108
Shift Test
Shading
crosstalk B
Shading
crosstalk G
Shading
crosstalk R
R656
R456
R256
MP110
MP100
MP630
MP450
MP250
MP650
MP90
MP41
MP44
MP40
MP80
MP240
MP640
Dummy
offset R
MP420
MP220
MP620
1
23
ZR611ZR614ZR606
ZR608
MP610
Black
offset B
Ampl B
Saw
offset B
Dummy
offset B
ZR411ZR414ZR406
ZR408
MP410
Black
offset G
Ampl G
Saw
offset G
Dummy
offset G
MP210
MP
211
ZR211
ZR214ZR206
ZR208
Black
offset R
Ampl R
Saw
offset R
MP411
MP611
MP230
MP430
MP0
Dummy
offset R
1
2
23
24
X55
G - 6
R - 12
B - 15
ZR611
Dummy
offset B
ZR411
Dummy
offset G
ZR211
TOP SIDE
Sync./Shading
3922 406 85860
Sync
Shad
1
2
23
24
1
2
23
24
X61
X62
ZR665
ZR636
ZR637
ZR638
ZR639
ZR666
ZR466
ZR436
ZR437
ZR438
ZR439
ZR465
ZR236
ZR238
ZR239
ZR700
ZR237
ZR266
ZR265
MP703
MP704
MP705
MP217
MP209
MP0
MP10
MP11
MP13
MP9
MP12
MP417
MP409
MP707
MP706
MP609
MP1
654321
S1
ZR137
ZR263
ZR463
ZR663
ZR710
ZR300
ZR92
ZR73
ZR665
MP609
ZR666
MP409
ZR466
ZR465
ZR266
MP209
ZR265
VP1
Sync
Shad
Page 55
Adjustments Technical Manual LDK 20(S) - Studio Camera 4-29
Sync./Shading Board
8. On connector B of the service extender remove the short circuits on the input to Video Processor 1 Board
by disconnecting the jumpers from B7 to B9, B11 to B13 and B17 to B19,
Reconnect A6 to B6
A7 to B7
A9 to B9
A11 to B11
A12 to B12
A13 to B13
A15 to B15
A17 to B17
A19 to B19 on connector B of the service extender.
Dummy offset adjustment
9. On Video Processor 1 Board adjust video level equal to blanking DC level.
Measure at: Adjust with: Required result: Correct:
VP1 VP1
X55-12 (R) ZR211 Dummy offset
X55-6 (G) ZR411
X55-15 (B) ZR611
DC level adjustment at 45oC
10. The following adjustment is temperature sensitive.
If an oven is used to adjust at 45°C (the recommended adjustment temperature) ensure that the temperature
does not rise above 45°C as this will damage the camera.
11. On Sync./Shading Board adjust the DC level potentiometer.
Measure at: Adjust with: Required result:
MP209 (R) ZR265 -250mVdc at 45°C
MP409 (G) ZR465 -250mVdc at 45°C
MP609 (B) ZR665 -250mVdc at 45°C
12. Remove camera from oven and carry out the following adjustments while the camera is cooling down.
Pulse compensation
13. In the Install/Gain menu set the gain for + to 12dB and for ++ to 30dB
14. On MCP set:
OPERATE MENU Gamma : 1
Gain : Max gain
15. While switching between Nom. and 1\1000 exposure time on MCP or OCP adjust for no difference between
in set-up levels (make the adjustment when the switch is in the Nom. position).
Measure at: Adjust with: Required result:
VF out R ZR266 No difference in
VF out G ZR466 set-up level
VF out B ZR666
Page 56
4-30 Technical Manual LDK 20(S) - Studio Camera Adjustments
Video Processor 1 Board
Sync./Shading Board
TOP SIDE
Video Processor 1
3922 406 85840
Test
VP 1
Test
Slope
Shift
2
24
X55
1
23
X56
G - 6
R - 12
B - 15
X4
1
2
ZR111
Ampl
Test
A
B
C
X3
R112
Slope Test
R108
Shift Test
Shading
crosstalk B
Shading
crosstalk G
Shading
crosstalk R
R656
R456
R256
MP110
MP100
MP630
MP450
MP250
MP650
MP90
MP41
MP44
MP40
MP80
MP240
MP640
Dummy
offset R
MP420
MP220
MP620
1
23
ZR611ZR614
ZR606
ZR608
MP610
Black
offset B
Ampl B
Saw
offset B
Dummy
offset B
ZR411ZR414ZR406
ZR408
MP410
Black
offset G
Ampl G
Saw
offset G
Dummy
offset G
MP210
MP
211
ZR211
ZR214ZR206
ZR208
Black
offset R
Ampl R
Saw
offset R
MP411
MP611
MP230
MP430
MP0
Dummy
offset R
12
23 24
X55
G - 6
R - 12
B - 15
ZR611ZR614
Saw
offset B
Dummy
offset B
ZR411ZR414
Saw
offset G
Dummy
offset G
ZR211
ZR214
Saw
offset R
TOP SIDE
Sync./Shading
3922 406 85860
Sync
Shad
1
2
23
24
1
2
23
24
X61
X62
ZR665
ZR636
ZR637
ZR638
ZR639
ZR666
ZR466
ZR436
ZR437
ZR438
ZR439
ZR465
ZR236
ZR238
ZR239
ZR700
ZR237
ZR266
ZR265
MP703
MP704
MP705
MP217
MP209
MP0
MP10
MP11
MP13
MP9
MP12
MP417
MP409
MP707
MP706
MP609
MP1
654321
S1
ZR137
ZR263
ZR463
ZR663
ZR710
ZR300
ZR92
ZR73
ZR636
ZR436
ZR236
ZR237
ZR238
ZR239
ZR263
ZR437
ZR438
ZR439
ZR463
ZR663
ZR637
ZR638
ZR639
VP1
Sync
Shad
Page 57
Adjustments Technical Manual LDK 20(S) - Studio Camera 4-31
Sync./Shading Board
Edge clip level
16. Set edge clip level potentiometers in their mid-position.
Measure at: Adjust with: Required result:
VF out R ZR237 Mid-position
VF out G ZR437 Mid-position
VF out B ZR637 Mid-position
Edge gain correction
17. On MCP set:
OPERATE MENU
Gain : ++
Exposure : Nom.
18. Adjust the parabola correction potentiometers.
Measure at: Adjust with: Required result:
VF out R ZR239 Flat shading signal
VF out G ZR439
VF out B ZR639
19. Adjust the edge gain vertical sawtooth potentiometers for a flat vertical shading signal.
Measure at: Adjust with: Required result:
VF out R ZR238 Flat vertical
VF out G ZR438 shading signal
VF out B ZR638
20. Repeat steps 29. to 33. until the best result is obtained.
Hor. sawtooth correction (Nom. Exp.)
21. On Sync./Shading Board adjust the horizontal sawtooth potentiometer for no sawtooth information (Exp.
Nom.).
Measure at: Adjust with: Required result:
VF out R ZR236 Flat horizontal
VF out G ZR436 shading signal
VF out B ZR636
Hor. sawtooth correction (1/1000 Exp.)
22. Set exposure to 1/1000.
23. On Sync./Shading Board adjust the horizontal sawtooth potentiometer for no sawtooth information
(Exp. 1/1000).
Measure at: Adjust with: Required result:
VF out R ZR263 Flat horizontal
VF out G ZR463 shading signal
VF out B ZR663

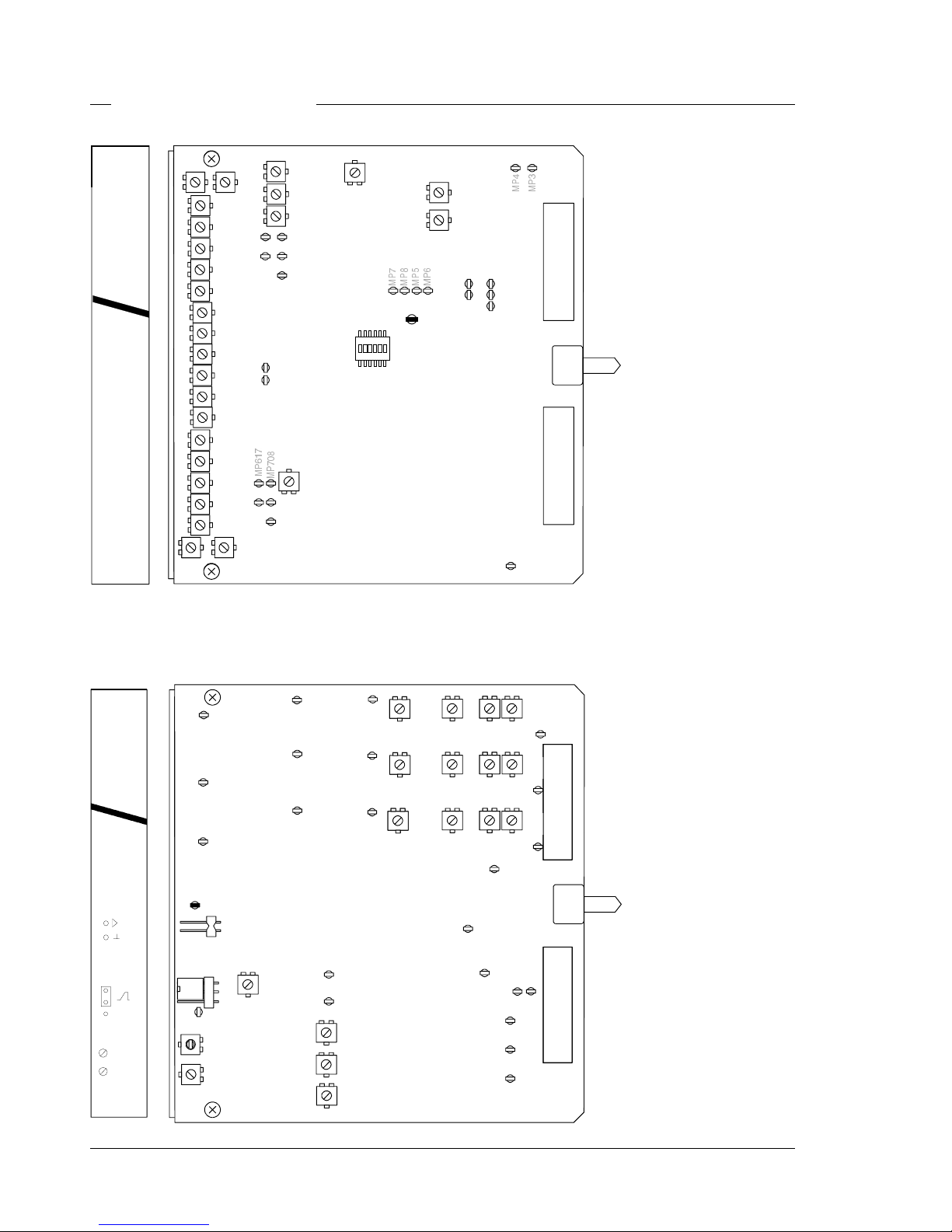

Page 58
4-32 Technical Manual LDK 20(S) - Studio Camera Adjustments
Sync./Shading Board
Video Processor 1 Board
TOP SIDE
Sync./Shading
3922 406 85860
Sync
Shad
1
2
23
24
1
2
23
24
X61
X62
ZR665
ZR636
ZR637
ZR638
ZR639
ZR666
ZR466
ZR436
ZR437
ZR438
ZR439
ZR465
ZR236
ZR238
ZR239
ZR700
ZR237
ZR266
ZR265
MP703
MP704
MP705
MP217
MP209
MP0
MP10
MP11
MP13
MP9
MP12
MP417
MP409
MP707
MP706
MP609
MP1
654321
S1
ZR137
ZR263
ZR463
ZR663
ZR710
ZR300
ZR92
ZR73
ZR300
TOP SIDE
Video Processor 1
3922 406 85840
Test
VP 1
Test
Slope
Shift
2
24
X55
1
23
X56
X4
1
2
ZR111
Ampl
Test
A
B
C
X3
R112
Slope Test
R108
Shift Test
Shading
crosstalk B
Shading
crosstalk G
Shading
crosstalk R
R656
R456
R256
MP110
MP100
MP630
MP450
MP250
MP650
MP90
MP41
MP44
MP40
MP80
MP240
MP640
Dummy
offset R
MP420
MP220
MP620
1
23
ZR611
ZR614
ZR606
ZR608
MP610
Black
offset B
Ampl B
Saw
offset B
Dummy
offset B
ZR411
ZR414
ZR406ZR408
MP410
Black
offset G
Ampl G
Saw
offset G
Dummy
offset G
MP210
MP
211
ZR211
ZR214
ZR206
ZR208
Black
offset R
Ampl R
Saw
offset R
MP411
MP611
MP230
MP430
MP0
1
2
23
24
X55
ZR614
ZR608
Black
offset B
Saw
offset B
ZR414
ZR408
Black
offset G
Saw
offset G
ZR214
ZR208
Black
offset R
Saw
offset R
12
2324
X56
G - 8
R - 14
B - 20
VP1
Sync
Shad
Page 59

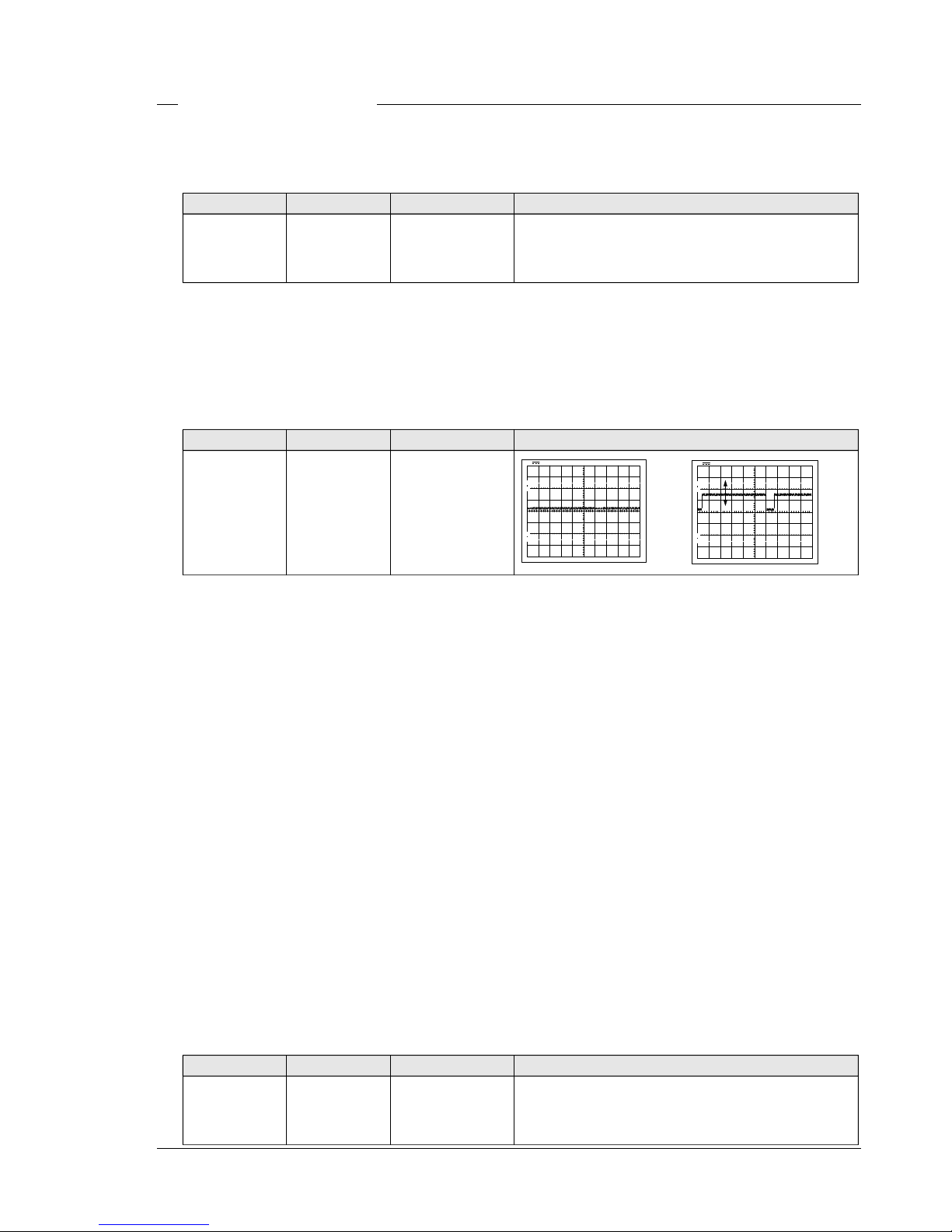

Adjustments Technical Manual LDK 20(S) - Studio Camera 4-33
Sync/Shading Board
24. On Video Processor 1 Board adjust the vertical sawtooth potentiometer for no sawtooth information. (Select
the viewfinder R, G and B output signals in the VF/Lens - VF Inst menu.)
Measure at: Adjust with: Required result:
VF out R ZR214 Video signal as flat
VF out G ZR414 as possible in
VF out B ZR614 vertical direction.
Video Processor 1 Board
Black Offset
25. In the Install/Gain menu set the gain for + to 12dB and for Max gain (the standard values are 6dB and 12dB).
26. While switching between 0dB gain and Max gain, adjust black level during the active line to the same as the
clamp level.
Measure at: Adjust with: Required result: Correct: Incorrect:
X56-14(R) ZR208 (R) 0mV (R)
0%
10
90
100
10mV
10µS
0%
10
90
100
10mV
10µS
X56-8(G) ZR408 (G) 0mV (G)
X56-20(B) ZR608 (B) 0mV (B)
Note: When the standard file is recalled the black levels are set as follows: Master=50, R=50, G=50, B=50.
Sync/Shading Board
27. In the Install/Gain menu reset the gain for + to 6dB and for ++ to 12dB.
28. Switch to Aspect Ratio 16:9 and check black shading.
29. Remove sync/shading board and Video Processor 1 board from service extender and return it to its position
in the camera.
White shading exposure
30. Mount lens on camera. Switch on power.
Recall Factory Standard File on MCP or OCP or Camera.
On MCP set:
OPERATE MENU
Knee : Off
Gamma : Lin.
Auto Iris : Off
Exposure : 1/1000
SETUP 5 MENU
Matrix : 1:1
MAINT 1 MENU
Wh. shading: On
31. Point camera at a white uniformly illuminated test chart (preferable a spherical illuminator). Set diaphragm
to F5.6 and zoom for no vignetting. Adjust illumination for an 80% video level.
32. Select the red viewfinder signal.
33. Observe the CVBS output on the waveform monitor and adjust the frame flicker potentiometer for minimum
flicker between odd and even fields.
Measure at: Adjust with: Required result:
CVBS out R300 Minimum variation
between fields
Page 60

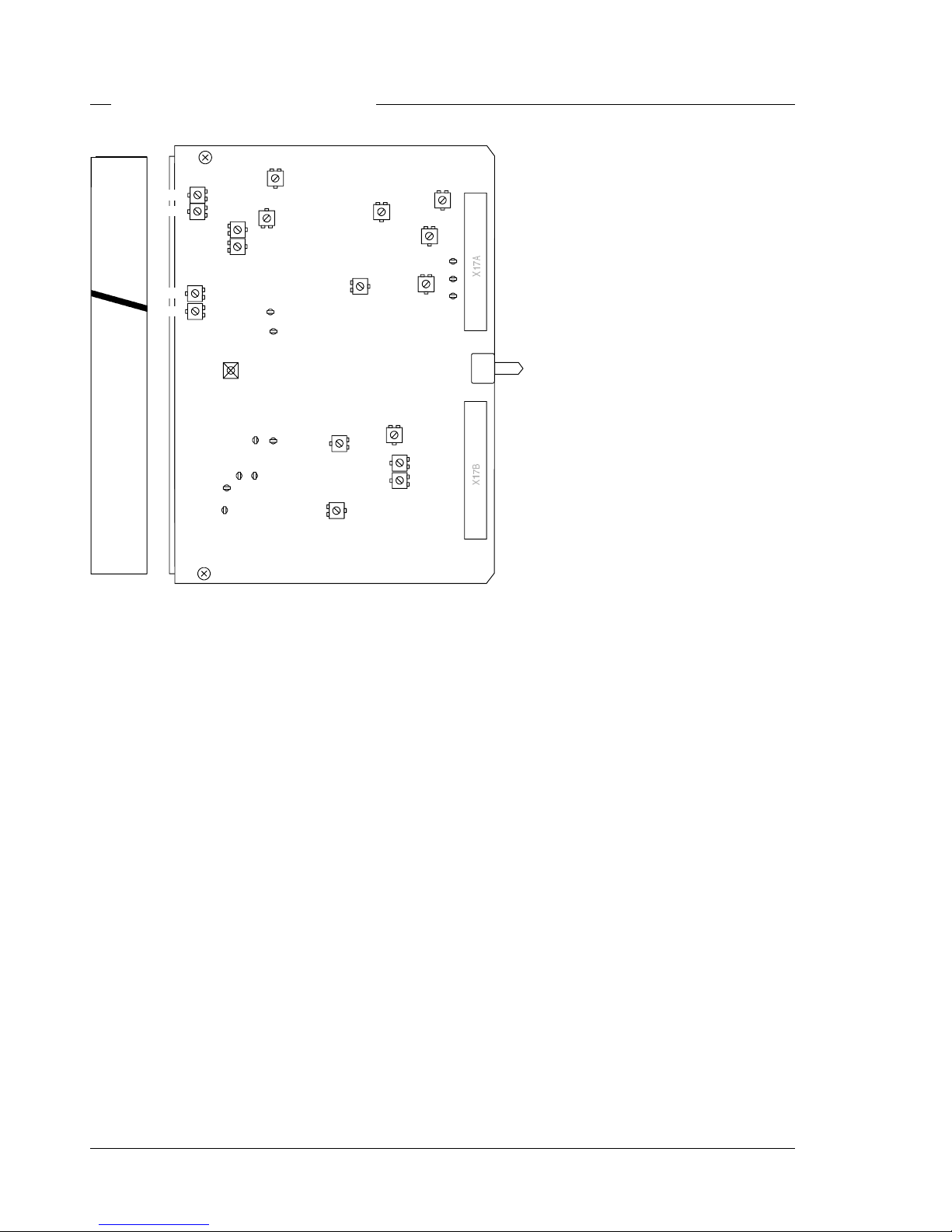

4-34 Technical Manual LDK 20(S) - Studio Camera Adjustments
Video Miscellaneous Board
Video Miscellaneous
3922 406 85070
TOP SIDE
Video
Misc
12
36
12
36
ZR601
Gain
BMux
ZR600
Wh. Pulse
BMux Ampl.
ZR401
Gain GMux
ZR400
White Pulse GMux Ampl.
ZR93 R-Y Level
ZR94 B-Y Level
White
Balance
ZR91
Mon.Video Level
R/G/B/Y/VFCNT
ZR111
ZR247
Cadre
Contrast
MP6
MP5
MP7
ZR85
ZR92
Sync.
Ampl.
Composite
Y Level
MP0
ZR283
ZR47
ZR88
ZR90
Start
Focus Bar
Start
Zoom Bar
End Stop
Viewfinder
Indicator
Black
Indicator
Level
Peak/Average
ZR187
MP8
MP9
MP11
MP10
MP2
MP3
MP4
ZR200
White Pulse
RMux Ampl.
ZR201
Gain
RMux
ZL4
Peak/Average
ZR187
Video
Misc
Page 61
Adjustments Technical Manual LDK 20(S) - Studio Camera 4-35
Video Miscellaneous Board
Auto iris
1. Point camera at and fill frame with a white 90% reflecting test chart, illuminated with a 3200K spotlight. Set
iris to F5.6.
Measure at: Adjust with: Required result:
CVBS out Waveform monitor
100% video level.
2. On OCP, ensure that the IRIS CENTRE control is turned fully counterclockwise and the IRIS RANGE control
is turned fully clockwise. Move iris control first fully up and then fully down. Then set iris control to its midposition.
3. On OCP, switch AUTO IRIS to AUTO.
4. Observe waveform monitor and adjust auto iris level on camera control panel for 70% white with setpoint
potentiometer.
Measure at: Adjust with: Required result:
CVBS out Setpoint 70% white
pos. = 42 (490mV)
5. On OCP, set COLOUR TEMP. switch to position AW1.
6. Press AW button once so that the AW window is visible in the viewfinder and on the PXM monitor.
7. Press the AW button a second time to start the automatic white process.
8. During the automatic white process observe the waveform monitor. The mom. iris should be 70% white.
Measure at: Adjust with: Required result:
CVBS out 70% white
(490mV)
9. Point camera at gamma test chart illuminated with a 3200K spotlight.
10. Observe waveform monitor and with the peak/average value set to 50 on the camera control panel, adjust
the peak/average potentiometer on the miscellaneous board for 90% white.
Measure at: Adjust with: Required result:
CVBS out ZR187 90% white
(630mV)
Page 62
4-36 Technical Manual LDK 20(S) - Studio Camera Adjustments
Encoder Board PAL
Encoder Board
PAL 3922 406 82760
TOP SIDE
CVBS
Encoder
Chroma
12
36
12
36
L8
MP14
Chroma
MP7
MP12
MP8
MP13
MP6
MP17
MP0
MP18
MP2
MP5
MP4
MP3
MP16
MP20
MP21
MP19
MP11
MP9
MP10
MP26
MP25
MP24
MP22
R4
R14
CVBS
ZR203
Q Balance
ZR206
I Balance
ZR202
B-Y Gain
ZR205
R-Y Gain
ZR211
Burst Phase
ZR209
Burst
ZR210
Burst
ZR215
Lock Range
ZR216
Osc. Preset
ZR217
Sc-H Phase
Chroma
R4
R14
CVBS
ZR203
Q Balance
ZR206
I Balance
Encoder
Chroma
Page 63

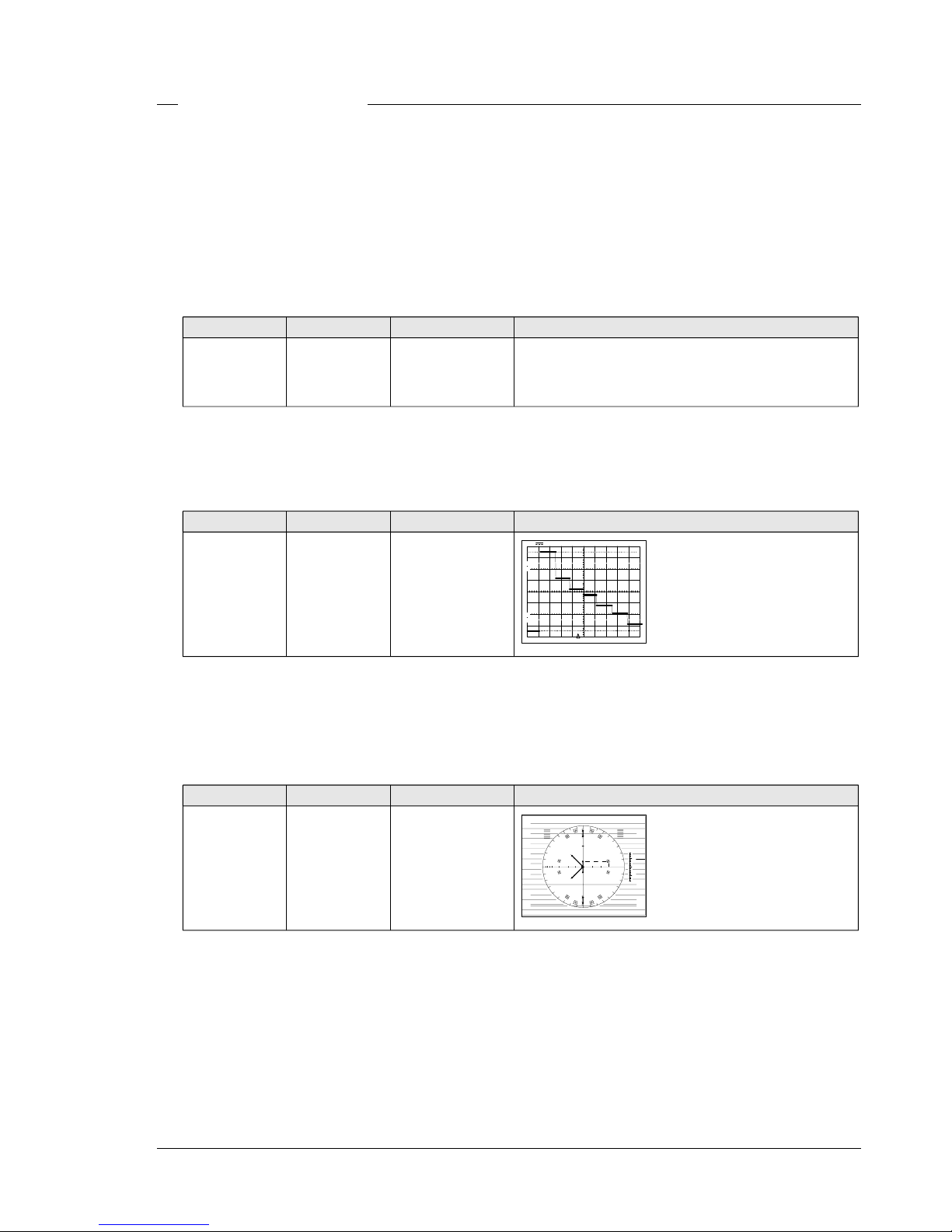

Adjustments Technical Manual LDK 20(S) - Studio Camera 4-37
Encoder Board PAL
Set-up
1. Switch off power. Place encoder board on service extender. Genlock camera with black burst signal. Switch
on power.
2. Connect oscilloscope via a vectorscope terminated with 75Ohm to the CVBS output of the camera.
3. Switch on colour bar.
Black balance
4. Turn chroma potentiometer R4 on encoder board fully clockwise (max. chroma).
5. Adjust the I and Q balance potentiometers for minimum unbalance in black.
Measure at: Adjust with: Required result:
CVBS out ZR203 Smallest possible
ZR206 dot in centre of
vectorscope
6. Turn chroma potentiometer R4 on encoder board fully counterclockwise (zero chrominance).
CVBS amplitude
7. Adjust the CVBS gain potentiometer to obtain an output amplitude of 700mV for Y.
Measure at: Adjust with: Required result: Correct:
CVBS out R14 700mV
0%
10
90
100
0.1V
5µS
VA+700mV
R-Y amplitude
8. Turn R-Y gain potentiometer ZR205 fully clockwise.
9. Connect MP7 on the encoder board to ground.
10. Adjust with the chroma potentiometer until the colour vector dots correspond with the indication marks on the
V-axis of the graticule.
Measure at: Adjust with: Required result: Correct:
CVBS out R4
20
40
R
60
80
0.7
100
120
20
43
0.3
g
YL
MG
cy
b
Byl
G
r
CY
mg
75
100
U
V
0
0
5
-5
% VOLT
Page 64
4-38 Technical Manual LDK 20(S) - Studio Camera Adjustments
Encoder Board PAL
Encoder Board
PAL 3922 406 82760
TOP SIDE
CVBS
Encoder
Chroma
12
36
12
36
L8
MP14
Chroma
MP7
MP12
MP8
MP13
MP6
MP17
MP0
MP18
MP2
MP5
MP4
MP3
MP16
MP20
MP21
MP19
MP11
MP9
MP10
MP26
MP25
MP24
MP22
R4
R14
CVBS
ZR203
Q Balance
ZR206
I Balance
ZR202
B-Y Gain
ZR205
R-Y Gain
ZR211
Burst Phase
ZR209
Burst
ZR210
Burst
ZR215
Lock Range
ZR216
Osc. Preset
ZR217
Sc-H Phase
L8
ZR202
B-Y Gain
ZR211
Burst Phase
Encoder
Chroma

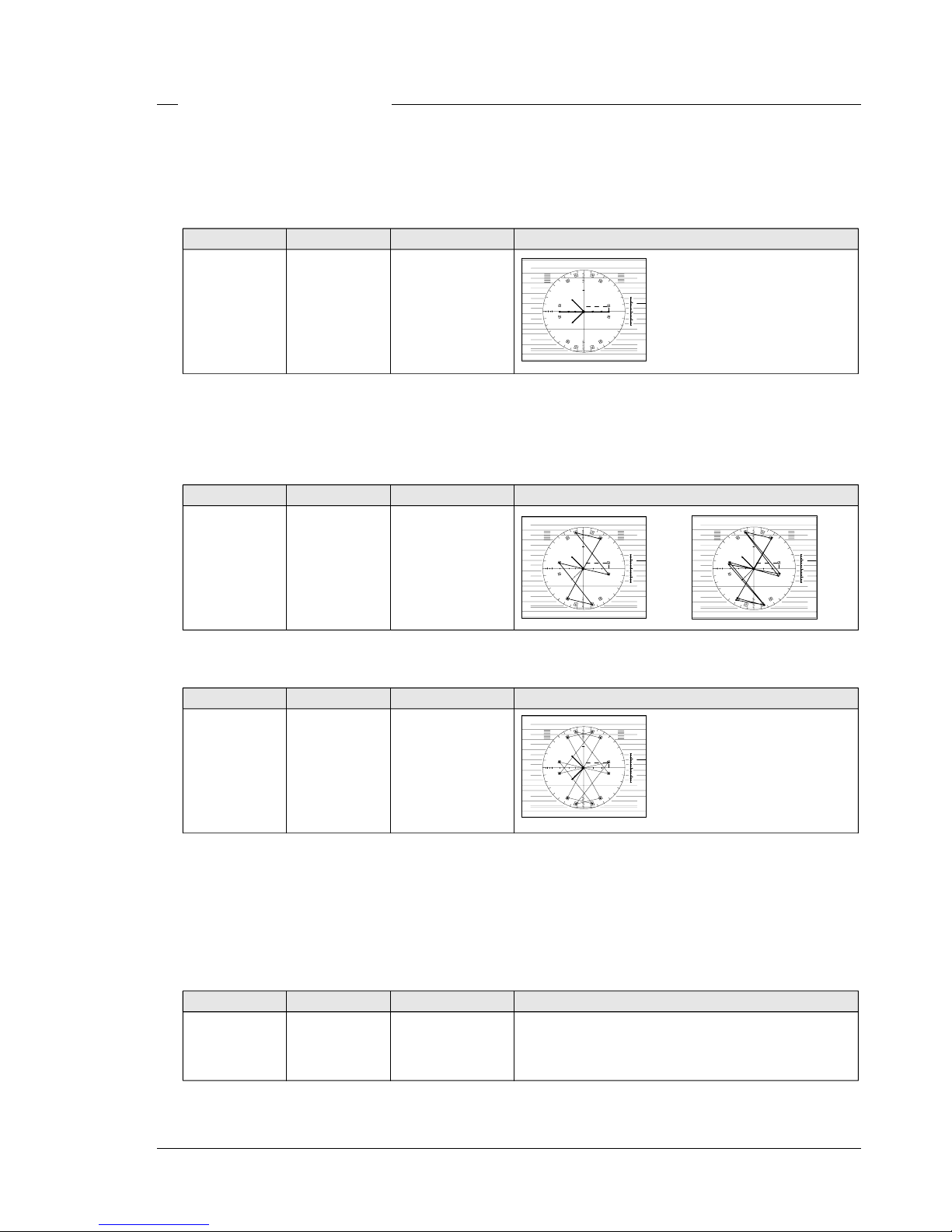

Page 65
Adjustments Technical Manual LDK 20(S) - Studio Camera 4-39
Encoder Board PAL
B-Y amplitude
11. On the encoder board disconnect MP7 from ground and connect MP8 to ground.
12. Adjust with the B-Y gain potentiometer until the colour vector dots correspond with the indication marks on
the U-axis of the graticule.
Measure at: Adjust with: Required result: Correct:
CVBS out ZR202
20
40
R
60
80
0.7
100
120
20
43
0.3
g
YL
MG
cy
b
Byl
G
r
CY
mg
75
100
U
V
0
0
5
-5
% VOLT
13. Disconnect MP8 from ground.
R-Y / B-Y phase
14. Switch vectorscope from Standard to PAL mode.
15. If the vector dots are not superimposed on each other adjust the phase with L8.
Measure at: Adjust with: Required result: Correct: Incorrect:
CVBS out L8
20
40
R
60
80
0.7
100
120
20
43
0.3
g
YL
MG
cy
b
Byl
G
r
CY
mg
75
100
U
V
0
0
5
-5
% VOLT
20
40
R
60
80
0.7
100
120
20
43
0.3
g
YL
MG
cy
b
Byl
G
r
CY
mg
75
100
U
V
0
0
5
-5
% VOLT
16. Switch vectorscope from PAL to Standard mode and check that the vector dots are exactly in the vectorscope
boxes.
Measure at: Adjust with: Required result: Correct:
20
40
R
60
80
0.7100
120
20
43
0.3
g
YL
MG
cy
b
Byl
G
r
CY
mg
75
100
U
V
0
0
5
-5
% VOLT
BURST ADJUSTMENTS
Burst phase
17. Measure in second quadrant of vectorscope.
Adjust the input sensitivity potentiometer of the vectorscope so the burst vectors just touch the circle graticule.
18. Adjust the burst phase potentiometer for 90° phase output.
Measure at: Adjust with:
CVBS out ZR211

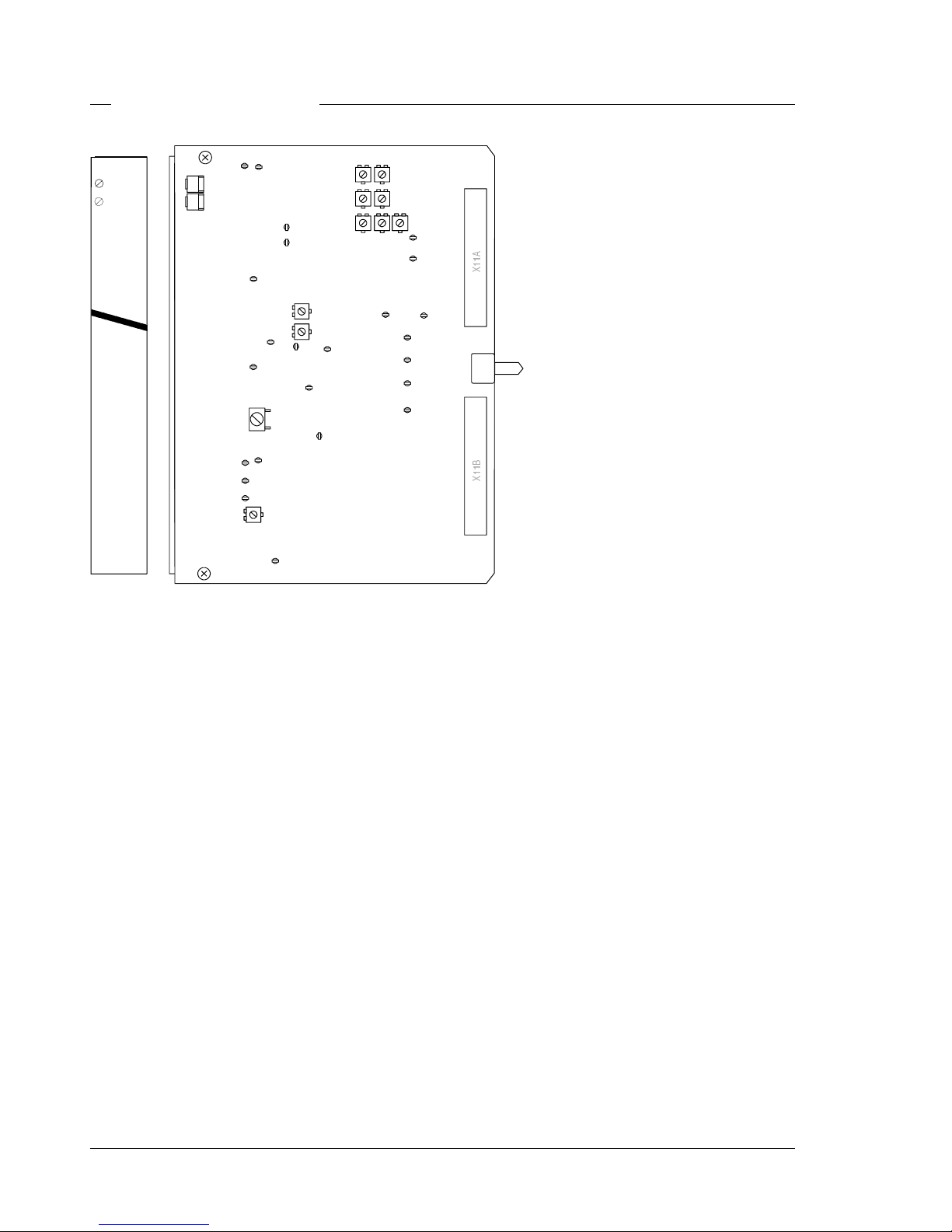

Page 66
4-40 Technical Manual LDK 20(S) - Studio Camera Adjustments
Encoder Board PAL
Encoder Board
PAL 3922 406 82760
TOP SIDE
CVBS
Encoder
Chroma
12
36
12
36
L8
MP14
Chroma
MP7
MP12
MP8
MP13
MP6
MP17
MP0
MP18
MP2
MP5
MP4
MP3
MP16
MP20
MP21
MP19
MP11
MP9
MP10
MP26
MP25
MP24
MP22
R4
R14
CVBS
ZR203
Q Balance
ZR206
I Balance
ZR202
B-Y Gain
ZR205
R-Y Gain
ZR211
Burst Phase
ZR209
Burst
ZR210
Burst
ZR215
Lock Range
ZR216
Osc. Preset
ZR217
Sc-H Phase
ZR209
Burst
ZR210
Burst
ZR216
Osc. Preset
ZR217
Sc-H Phase
Encoder
Chroma

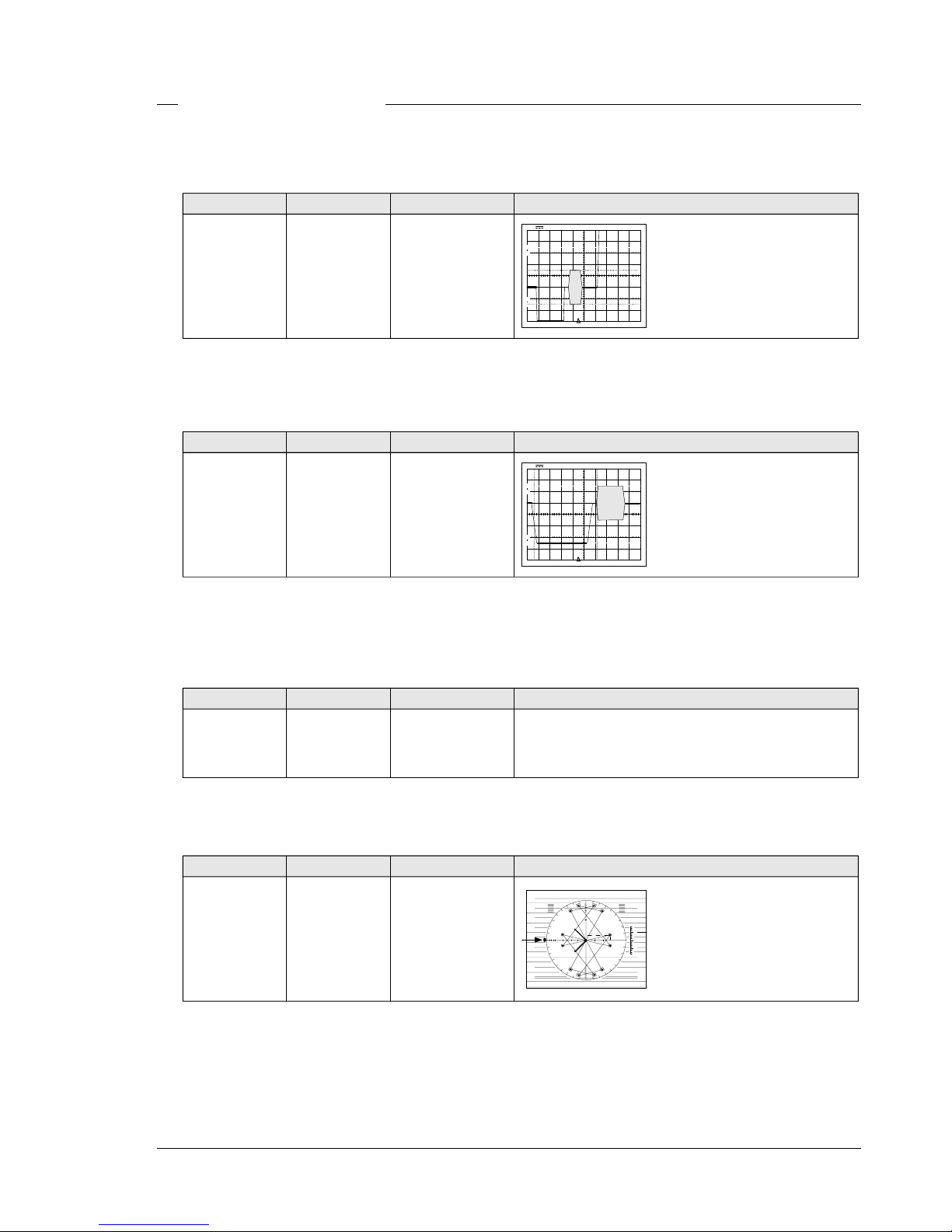

Page 67
Adjustments Technical Manual LDK 20(S) - Studio Camera 4-41
Encoder Board PAL
Burst amplitude
19. Adjust the burst amplitude potentiometer to obtain a burst amplitude of 300mV.
Measure at: Adjust with: Required result: Correct:
CVBS out ZR210 300mV
0%
10
90
100
0.1V
2µS
VA+300mV
Burst timing
20. Observe waveform monitor or oscilloscope and adjust the burst position so that it is 5.6µS from the leading
edge of the line synchronisation.
Measure at: Adjust with: Required result: Correct:
CVBS out ZR209
0%
10
90
100
50mV
1µS
t+5.6µs 178kHz
Genlock free-running preset
21. Remove genlock signal from camera.
22. Turn lock range potentiometer ZR215 fully counterclockwise.
23. Observe colour monitor, waveform monitor or vectorscope and adjust oscillator preset potentiometer.
Measure at: Adjust with: Required result:
CVBS out ZR216 Minimum freerunning speed
Sc-H phase relationship
24. Switch vectorscope to internal synchronisation.
25. Adjust Sc-H phase potentiometer for 180°.
Measure at: Adjust with: Required result: Correct:
CVBS out ZR217
20
40
R
60
80
0.7
100
120
20
43
0.3
g
YL
MG
cy
b
Byl
G
r
CY
mg
75
100
U
V
0
0
5
-5
% VOLT
26. Switch off power and return encoder board to its position in the camera.

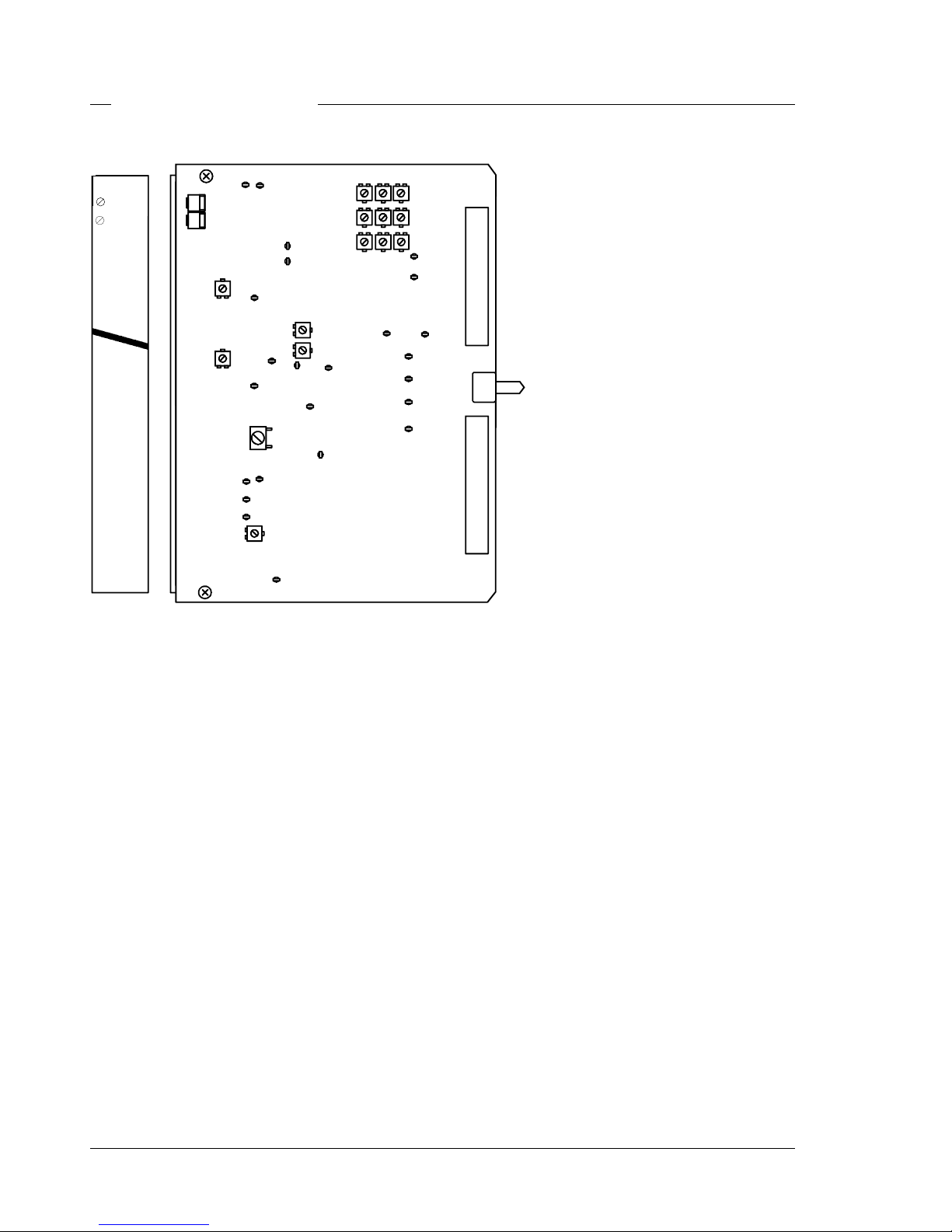

Page 68
4-42 Technical Manual LDK 20(S) - Studio Camera Adjustments
Encoder Board NTSC
Encoder Board
NTSC 3922 406 82770
TOP SIDE
CVBS
Encoder
Chroma
12
36
X11A
12
36
X11B
L8
MP14
Chroma
MP7
MP12
MP8
MP13
MP6
MP17
MP0
MP18
MP2
MP5
MP4
MP3
MP16
MP20
MP21
MP19
MP11
MP9
MP10
MP26
MP25
MP24
MP22
R4
R14
CVBS
ZR203
Q Balance
ZR202
B-Y Gain
ZR205
R-Y Gain
ZR211
Burst Phase
ZR209
Burst
ZR210
Burst
ZR215
Lock Range
ZR216
Osc. Preset
ZR217
Sc-H Phase
ZR213
White Bar
Ampl.
ZR206
I Balance
ZR207
I Amplitude
ZR201
Q Amplitude
ZR212
Bar Width
Chroma
R4
R14
CVBS
ZR203
Q Balance
ZR206
I Balance
Encoder
Chroma
Page 69

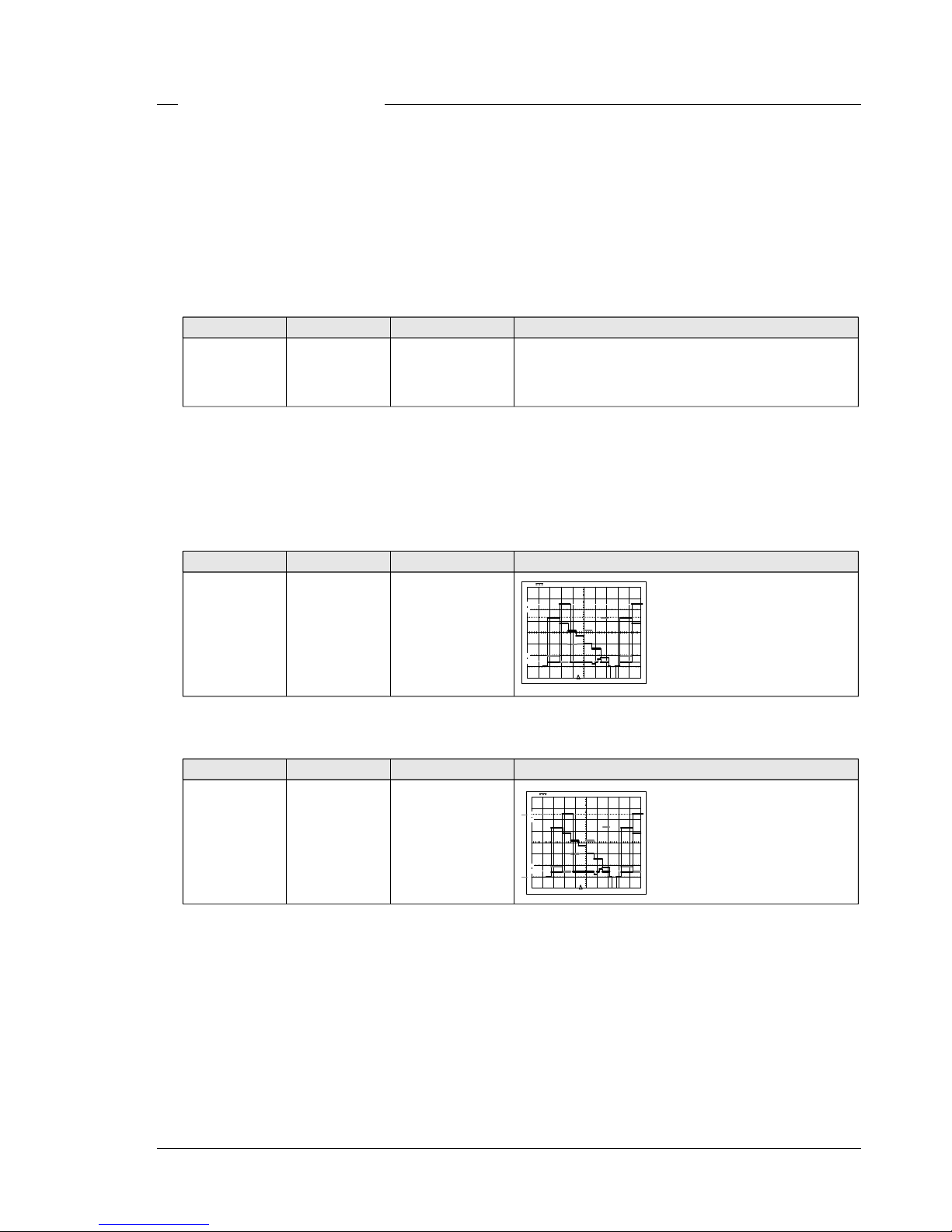

Adjustments Technical Manual LDK 20(S) - Studio Camera 4-43
Encoder Board NTSC
Set-up
1. Switch off power. Place encoder board on service extender.
Genlock camera with black burst signal. Switch on power.
2. Connect oscilloscope via a vectorscope terminated with 75Ohm to the CVBS output of the camera.
3. Switch on colour bar.
Black balance
4. Turn chroma potentiometer R4 on encoder board fully clockwise (max. chroma).
5. Adjust the I and Q balance potentiometers for minimum unbalance in black.
Measure at: Adjust with: Required result:
CVBS out ZR203 Smallest possible
ZR206 dot in centre of
vectorscope
6. Turn chroma potentiometer R4 on encoder board fully counterclockwise (zero chrominance).
CVBS amplitude
7. Adjust the CVBS gain potentiometer to obtain an output amplitude of 549mV (77 IRE).
Measure at: Adjust with: Required result: Correct:
CVBS out R14 549mV
0%
10
90
100
0.1V
10µS
VA+549mV
(77 IRE)
White bar amplitude
8. Adjust the white amplitude potentiometer to obtain an output of 714mV (100 IRE).
Measure at: Adjust with: Required result: Correct:
CVBS out ZR213 714mV
0%
10
90
100
0.1V
10µS
VA+714mV
Page 70

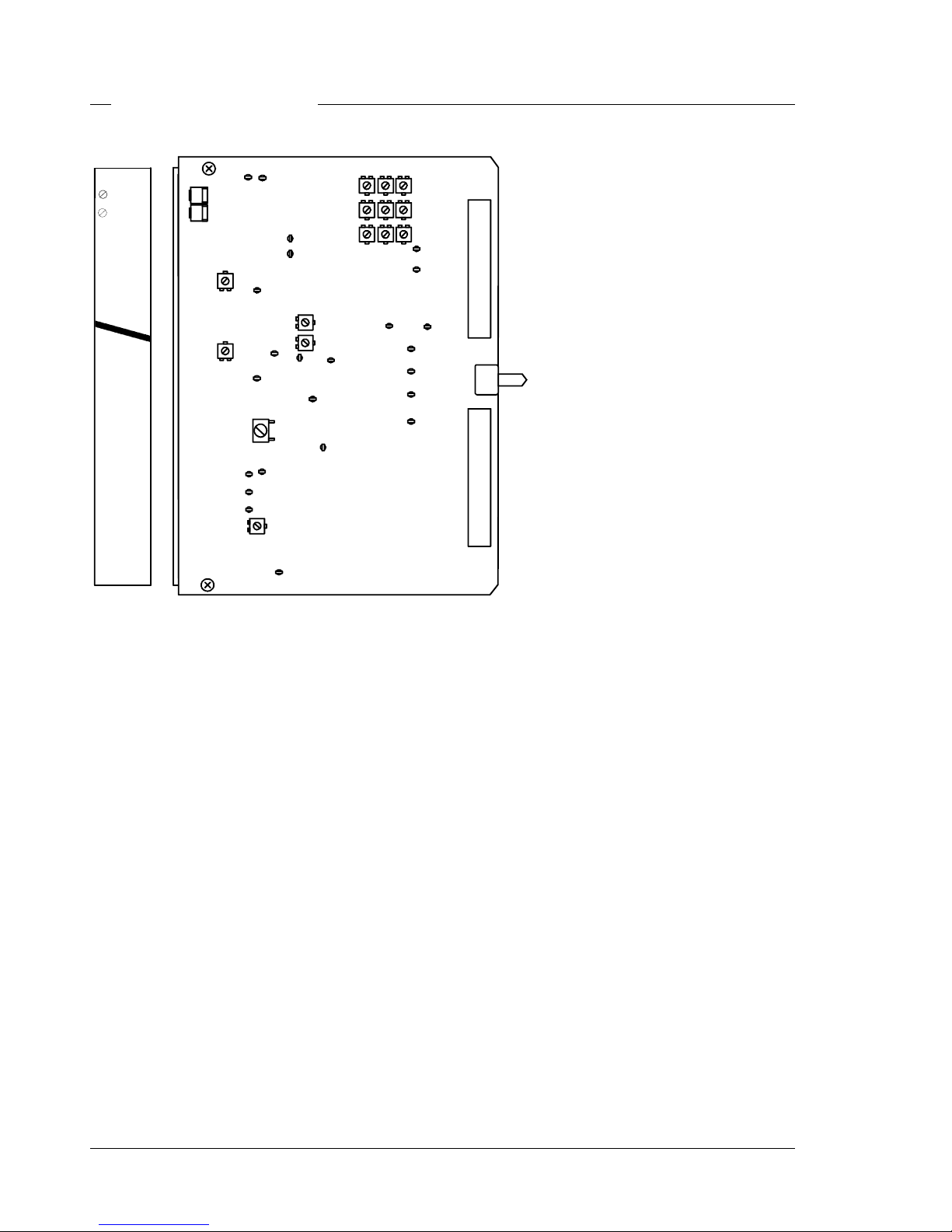

4-44 Technical Manual LDK 20(S) - Studio Camera Adjustments
Encoder Board NTSC
Encoder Board
NTSC 3922 406 82770
TOP SIDE
CVBS
Encoder
Chroma
12
36
X11A
12
36
X11B
L8
MP14
Chroma
MP7
MP12
MP8
MP13
MP6
MP17
MP0
MP18
MP2
MP5
MP4
MP3
MP16
MP20
MP21
MP19
MP11
MP9
MP10
MP26
MP25
MP24
MP22
R4
R14
CVBS
ZR203
Q Balance
ZR202
B-Y Gain
ZR205
R-Y Gain
ZR211
Burst Phase
ZR209
Burst
ZR210
Burst
ZR215
Lock Range
ZR216
Osc. Preset
ZR217
Sc-H Phase
ZR213
White Bar
Ampl.
ZR206
I Balance
ZR207
I Amplitude
ZR201
Q Amplitude
ZR212
Bar Width
Chroma
MP7
MP8
R4
ZR202
B-Y Gain
ZR205
R-Y Gain
ZR212
Bar Width
Encoder
Chroma
Page 71

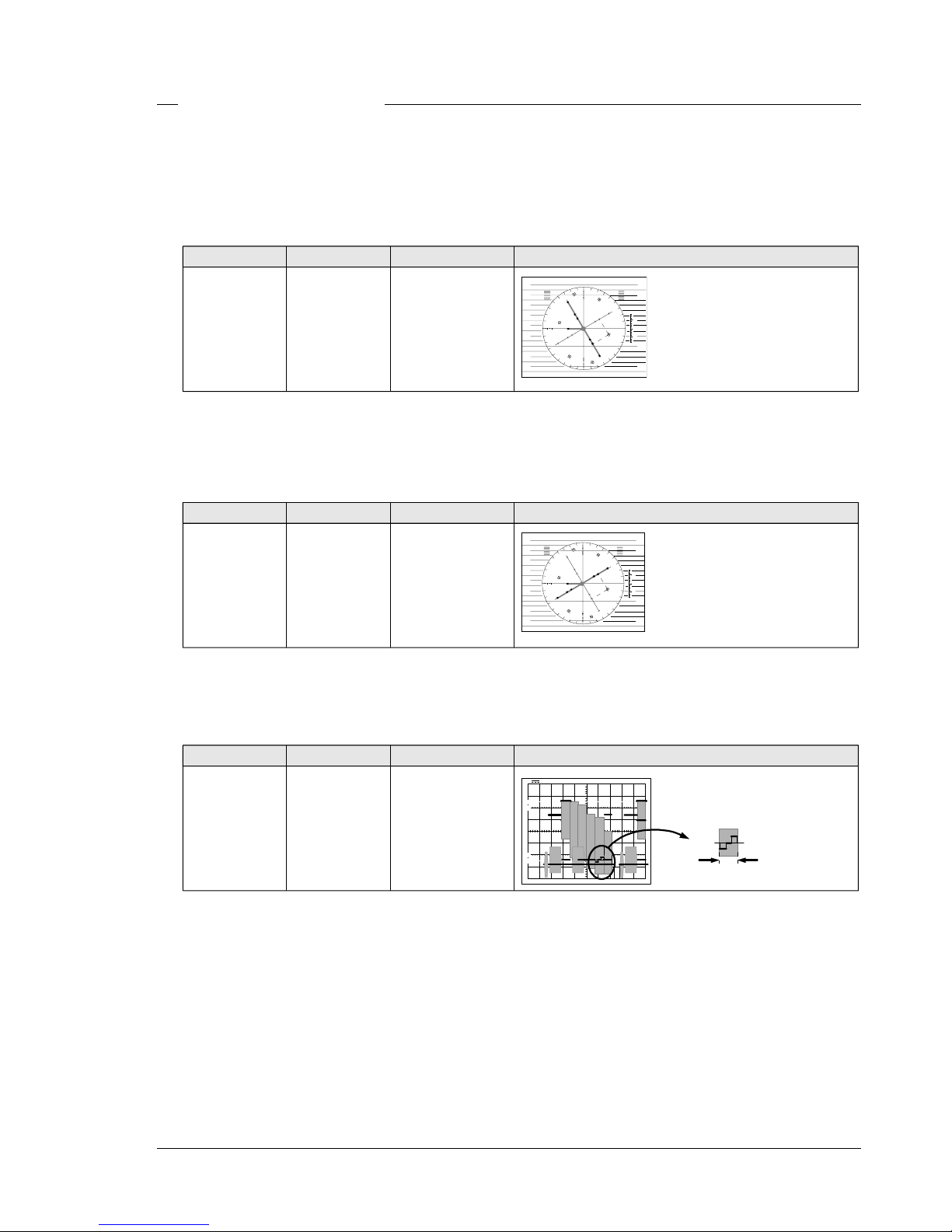

Adjustments Technical Manual LDK 20(S) - Studio Camera 4-45
Encoder Board NTSC
I amplitude
9. Set I gain potentiometer ZR205 in its mid-position.
10. Connect MP7 on the encoder board to ground.
11. Adjust with the chroma potentiometer until the colour vector dots correspond with the indication marks on the
I-axis of the graticule.
Measure at: Adjust with: Required result: Correct:
CVBS out R4
20
40
R
60
80
12.5%
100
120
20
40 100%
YL
MG
B
G
CY
75
100
I
Q
75%
0
5
-5
IRE
0%
Q amplitude
12. On the encoder board disconnect MP7 from ground and connect MP8 to ground.
13. Adjust with the Q gain potentiometer until the colour vector dots correspond with the indication marks on the
Q-axis of the graticule.
Measure at: Adjust with: Required result: Correct:
CVBS out ZR202
20
40
R
60
80
12.5%
100
120
20
40 100%
YL
MG
B
G
CY
75
100
I
Q
75%
0
5
-5
IRE
0%
14. Disconnect MP8 from ground and check that the SMPTE colour bar signal is correct.
SMPTE bar shift
15. Adjust the SMPTE shift so that the PLUGE signal is within the red bar.
Measure at: Adjust with: Required result: Correct:
CVBS out ZR212
0%
10
90
100
Red bar
PLUGE signal
>50mV
10µS
Page 72

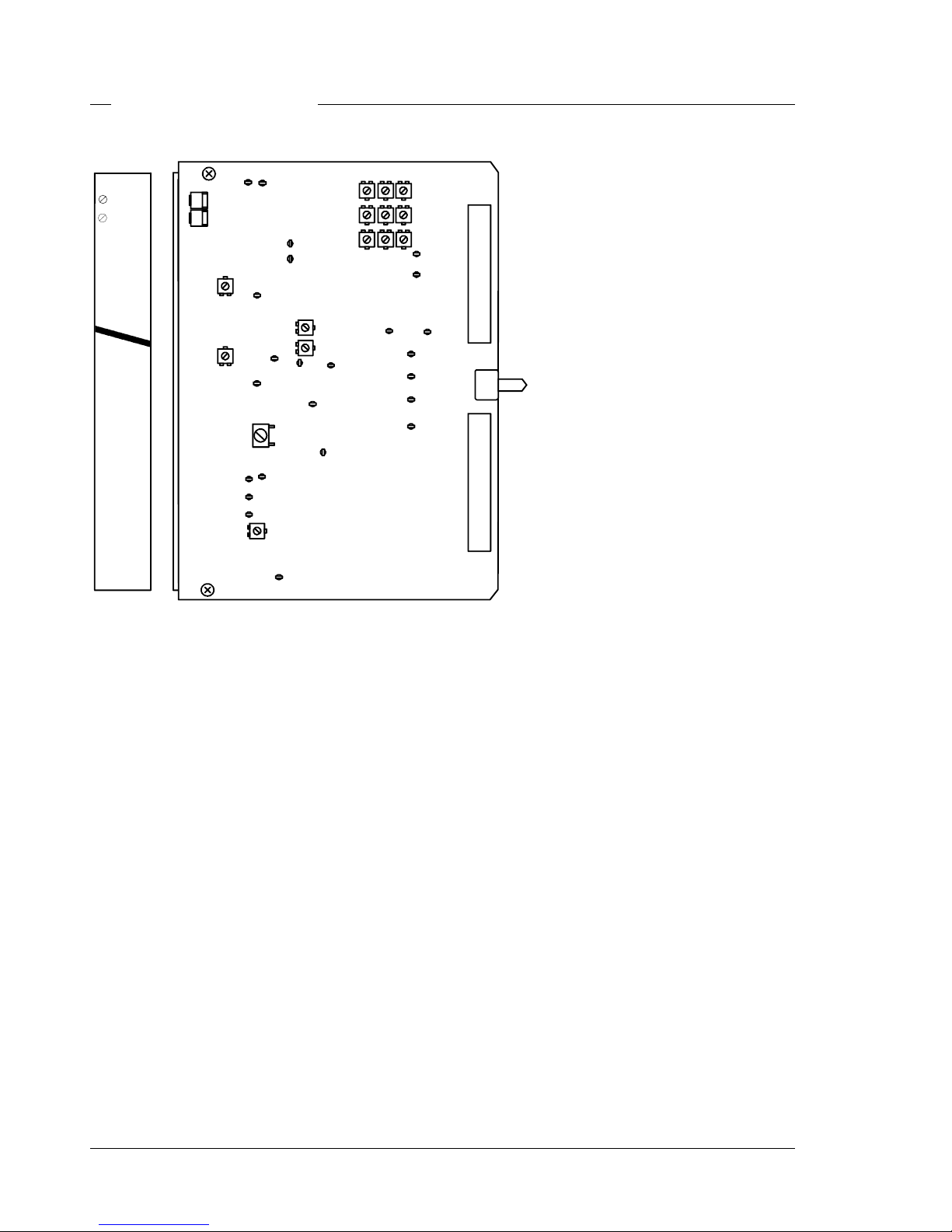

4-46 Technical Manual LDK 20(S) - Studio Camera Adjustments
Encoder Board NTSC
Encoder Board
NTSC 3922 406 82770
TOP SIDE
CVBS
Encoder
Chroma
12
36
X11A
12
36
X11B
L8
MP14
Chroma
MP7
MP12
MP8
MP13
MP6
MP17
MP0
MP18
MP2
MP5
MP4
MP3
MP16
MP20
MP21
MP19
MP11
MP9
MP10
MP26
MP25
MP24
MP22
R4
R14
CVBS
ZR203
Q Balance
ZR202
B-Y Gain
ZR205
R-Y Gain
ZR211
Burst Phase
ZR209
Burst
ZR210
Burst
ZR215
Lock Range
ZR216
Osc. Preset
ZR217
Sc-H Phase
ZR213
White Bar
Ampl.
ZR206
I Balance
ZR207
I Amplitude
ZR201
Q Amplitude
ZR212
Bar Width
L8
MP7
MP8
ZR211
Burst Phase
ZR210
Burst
Encoder
Chroma

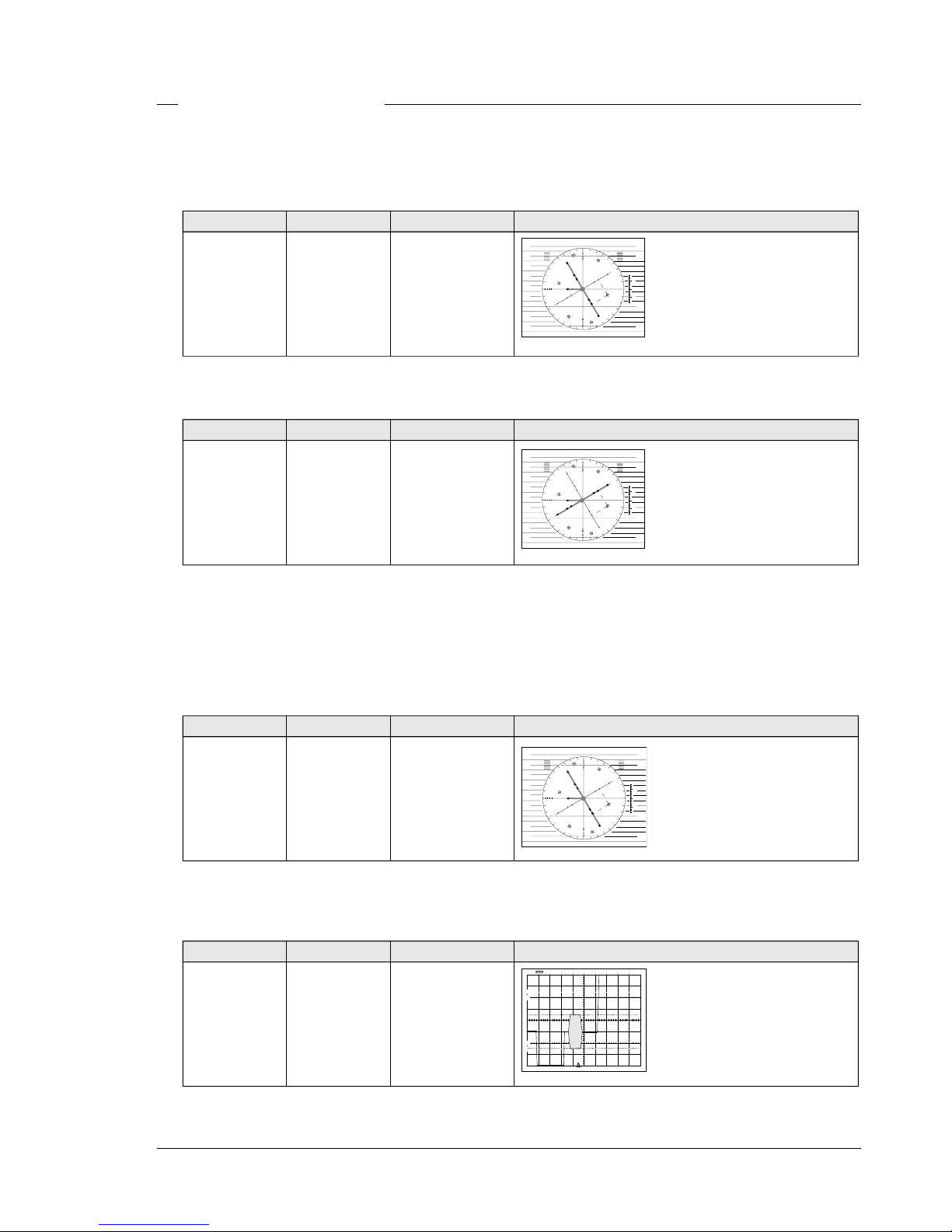

Page 73
Adjustments Technical Manual LDK 20(S) - Studio Camera 4-47
Encoder Board NTSC
I / Q 90° phase
16. Connect MP7 on the encoder board to ground.
17. With the phase potentiometer on the vectorscope, place the I vectors along the I-axis of the graticule.
Measure at: Adjust with: Required result: Correct:
20
40
R
60
80
12.5%
100
120
20
40 100%
YL
MG
B
G
CY
75
100
I
Q
75%
0
5
-5
IRE
0%
18. On the encoder board disconnect MP7 from ground and connect MP8 to ground.
19. Adjust the phase of the Q vectors with L8 so that they lie along the Q-axis of the graticule.
Measure at: Adjust with: Required result: Correct:
CVBS out L8
20
40
R
60
80
12.5%
100
120
20
40 100%
YL
MG
B
G
CY
75
100
I
Q
75%
0
5
-5
IRE
0%
20. Repeat steps 16. to 20. until the best results are obtained.
BURST ADJUSTMENTS
Burst phase
21. Adjust the burst phase potentiometer to place the burst vector along the horizontal axis
Measure at: Adjust with: Required result: Correct:
CVBS out ZR211
20
40
R
60
80
12.5%
100
120
20
40 100%
YL
MG
B
G
CY
75
100
I
Q
75%
0
5
-5
IRE
0%
Burst amplitude
22. Adjust the burst amplitude potentiometer to obtain a burst amplitude of 286mV (40 IRE).
Measure at: Adjust with: Required result: Correct:
CVBS out ZR210 286mV
0%
10
90
100
0.1V
2µS
VA+286mV
(40 IRE)
Page 74
4-48 Technical Manual LDK 20(S) - Studio Camera Adjustments
Encoder Board NTSC
Encoder Board
NTSC 3922 406 82770
TOP SIDE
CVBS
Encoder
Chroma
12
36
X11A
12
36
X11B
L8
MP14
Chroma
MP7
MP12
MP8
MP13
MP6
MP17
MP0
MP18
MP2
MP5
MP4
MP3
MP16
MP20
MP21
MP19
MP11
MP9
MP10
MP26
MP25
MP24
MP22
R4
R14
CVBS
ZR203
Q Balance
ZR202
B-Y Gain
ZR205
R-Y Gain
ZR211
Burst Phase
ZR209
Burst
ZR210
Burst
ZR215
Lock Range
ZR216
Osc. Preset
ZR217
Sc-H Phase
ZR213
White Bar
Ampl.
ZR206
I Balance
ZR207
I Amplitude
ZR201
Q Amplitude
ZR212
Bar Width
ZR209
Burst
ZR215
Lock Range
ZR216
Osc. Preset
ZR207
I Amplitude
ZR201
Q Amplitude
Encoder
Chroma
Page 75

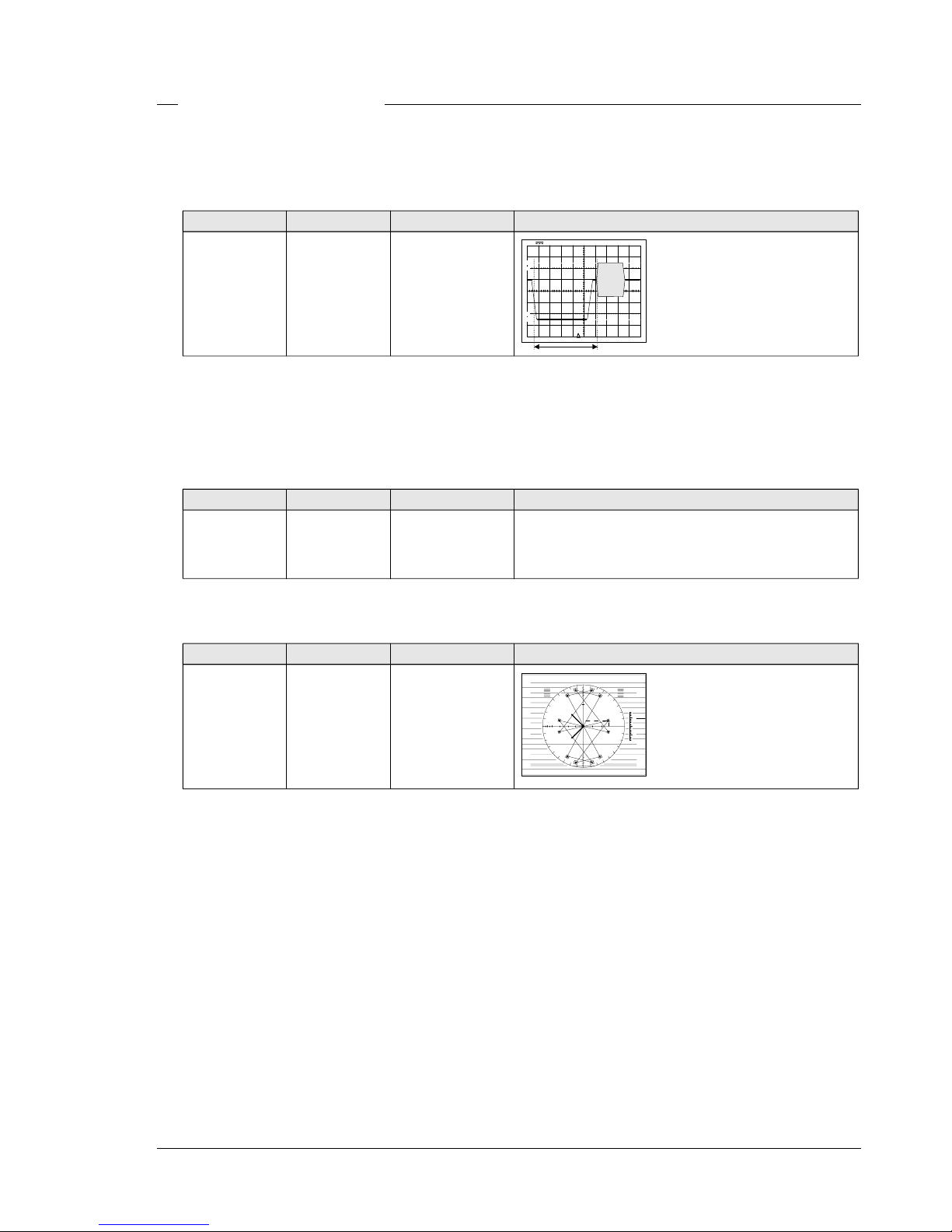

Adjustments Technical Manual LDK 20(S) - Studio Camera 4-49
Encoder Board NTSC
Burst timing
23. Observe waveform monitor or oscilloscope and adjust the burst position so that it is 5.3µS from the leading
edge of the line synchronisation.
Measure at: Adjust with: Required result: Correct:
CVBS out ZR209 5.3µS
0%
10
90
100
50mV
1µS
t+5.3µs 178kHz
5.3µs
Genlock free-running preset
24. Remove genlock signal from camera.
25. Turn lock range potentiometer ZR215 fully counterclockwise.
26. Observe colour monitor, waveform monitor or vectorscope and adjust oscillator preset potentiometer for
minimum free-running.
Measure at: Adjust with: Required result:
CVBS out ZR216 Minimum free-
running speed
I/Q bar amplitude
27. Adjust the I and Q bars for an amplitude of 286mV (40 IRE).
Measure at: Adjust with: Required result: Correct:
CVBS out ZR207 I-bar amplitude
20
40
R
60
80
0.7
100
120
20
43
0.3
g
YL
MG
cy
b
Byl
G
r
CY
mg
75
100
U
V
0
0
5
-5
% VOLT
CVBS out ZR201 Q-bar amplitude
I bar Q bar
28. Switch off power and return encoder board to its position in the camera.
Page 76

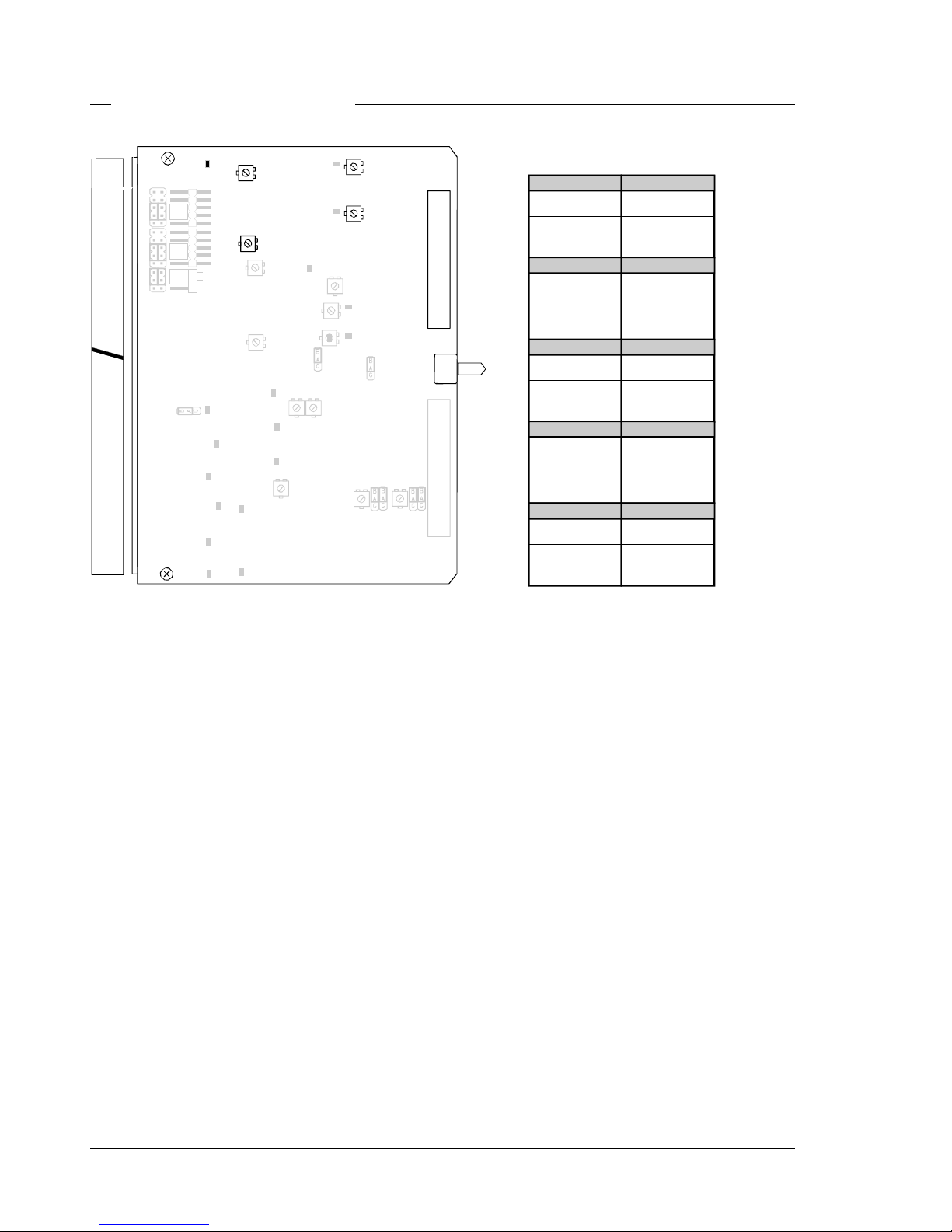

4-50 Technical Manual LDK 20(S) - Studio Camera Adjustments
Audio/Intercom LF Board
Audio/Intercom LF Board 3922 406 85940
Audio
Int LF
TOP SIDE
12
36
12
36
E
D
C
B
A
B
A
C
S200
S300
E
D
C
B
A
S100
ZR260
Audio 2
Limiter
Level
ZR160
Audio 1
Limiter
Level
ZMP0
ZMP200
ZMP100
ZMP340
ZR210
Audio 2
Preset
Level
ZR110
Audio 1
Preset
Level
ZMP300
ZMP400
ZMP440
ZR330
Cam-Mic-TRS
Preset
Level
ZR310
Cam-Mic
Preset
Level
ZR360
Cam-Mic
Limiter
Level
ZR460
Tracker
Limiter
Level
ZMP721
ZMP701
ZMP700
S740
S470
S450
ZR820
Side Tone
Preset
Level
ZR920
Side Tone
Preset
Level
ZMP620
ZMP600
ZMP601
ZMP520
ZMP521
ZR910
Side Tone
Preset
Level
ZMP500
ZR970
RTS
ENG
Level
ZMP1
ZMP501
ZR990
RTS
Prod
Level
ZR410
Tracker
Preset
Level
Jumper settings:
Camera Menu
Audio 2
High Pass Filter
Off
On
S200
Audio 2
Phan tom Powe r
B1-C1/B2-C2: GND
A1-B1/A2-B2: +48V
D1-E1/D2-E2: +12V
Camera Menu
Audio 2
High Pass Filter
40dB
0dB
S100
Audio 1
Phan tom Powe r
B1-C1/B2-C2: GND
A1-B1/A2-B2: +48V
D1-E1/D2-E2: +12V
ZR260
Audio 2
Limiter
Level
ZR160
Audio 1
Limiter
Level
ZR210
Audio 2
Preset
Level
ZR110
Audio 1
Preset
Level
12
36
35
33
Page 77
Adjustments Technical Manual LDK 20(S) - Studio Camera 4-51
Audio/Intercom LF Board
Set-up
1. Set up camera in triax mode. Switch off power.
Place audio/intercom LF board on service extender. Switch on power.
Audio 1 level
2. Select an audio 1 level of -64dBu.
3. Apply a 1kHz test signal at -64dBu symmetrical to the audio 1 input of the camera
4. Adjust the audio preset potentiometer for a 1kHz signal at -12dBu on the audio 1 output pin.
Measure at: Adjust with: Required result:
X19A-35 ZR110 -12dBu
Audio 1 limiter
5. Apply a 1kHz test signal at -46dBu to the audio 1 input of the camera.
6. Adjust the limiter potentiometer for a 1kHz signal at 0dB on audio 1 output pin.
Measure at: Adjust with: Required result:
X19A-35 ZR160 0dBu
Audio 2 level
7. Select an audio 2 level of -64dBu.
8. Apply a 1kHz test signal at -64dBu symmetrical to the audio 2 input of the camera
9. Adjust the audio preset potentiometer for a 1kHz signal at -12dBu on the audio 2 output pin.
Measure at: Adjust with: Required result:
X19A-33 ZR210 -12dBu
Audio 2 limiter
10. Apply a 1kHz test signal at -46dBu to the audio 2 input of the camera.
11. Adjust the limiter potentiometer for a 1kHz signal at 0dB on audio 2 output pin.
Measure at: Adjust with: Required result:
X19A-33 ZR260 0dBu
Page 78
4-52 Technical Manual LDK 20(S) - Studio Camera Adjustments
Audio/Intercom LF Board
Audio/Intercom LF Board 3922 406 85940
Audio
Int LF
TOP SIDE
12
36
X
1
9
A
12
36
X
1
9
B
E
D
C
B
A
B
A
C
S200
S300
E
D
C
B
A
S100
ZR260
Audio 2
Limiter
Level
ZR160
Audio 1
Limiter
Level
ZMP0
ZMP200
ZMP100
ZMP340
ZR210
Audio 2
Preset
Level
ZR110
Audio 1
Preset
Level
ZMP300
ZMP400
ZMP440
ZR330
Cam-Mic-TRS
Preset
Level
ZR310
Cam-Mic
Preset
Level
ZR360
Cam-Mic
Limiter
Level
ZR460
Tracker
Limiter
Level
ZMP721
ZMP701
ZMP700
S740
S470
S450
ZR820
Side Tone
Preset
Level
ZR920
Side Tone
Preset
Level
ZMP620
ZMP600
ZMP601
ZMP520
ZMP521
ZR910
Side Tone
Preset
Level
ZMP500
ZR970
RTS
ENG
Level
S
9
6
0
S
9
6
1
ZMP1
ZMP501
S
9
8
0
S
9
8
1
ZR990
RTS
Prod
Level
ZR410
Tracker
Preset
Level
Jumper settings:
S961
Signal Choice
Floor L
AB: Headset
AC: RTS
S740
Signal Choice
AB: Prog.
AC: Private Data
S470
Signal Choice
AB: Sidetone
AC: ENG
S300
Cam. + Tracker Mic.
Phantom Power
A-C: +12V
A-B: Gnd
S981
Channel Choice
Floor R
AB: Headset
AC: RTS
Camera Menu
Cam. Mic. Gain
40dB
0dB
S450
Signal Choice
AB: Tracker Mic.
AC: Private Data
S960
Signal Choice
Floor L
AB: Headset
AC: RTS
Camera Menu
Tracker
Mic. Gain
40dB
0dB
S980
Channel Choice
Floor R
AB: Headset
AC: RTS
ZR920
Side Tone
Preset
Level
ZR910
Side Tone
Preset
Level
ZR970
RTS
ENG
Level
ZR990
RTS
Prod
Level
Page 79
Adjustments Technical Manual LDK 20(S) - Studio Camera 4-53
Audio/Intercom LF Board
Cameraman intercom microphone
12.Apply a 1kHz test signal at -64dBu to the cam. intercom mic. input of Audio/Intercom LF Board (X19A-25).
13.Adjust the cam. mic. preset potentiometer for a 1kHz signal at -6dBu on the microphone output pin of the
board.
Measure at: Adjust with: Required result:
X19B-10 ZR310 -6dBu
Cameraman intercom microphone PL
14. Adjust the side tone potentiometer for a 1kHz signal at 0dBu on the telephone output pin.
Measure at: Adjust with: Required result:
X19B-13 ZR920 0dBu
Limiter level camera microphone
15.Apply a 1kHz test signal at -52dBu to the cam. intercom mic. input of Audio/Intercom LF Board (X19A-25).
16. Adjust the cam. mic. limiter level potentiometer for a 1kHz signal at 0dB the microphone output pin of the board.
Measure at: Adjust with: Required result:
X19B-10 ZR360 0dBu
Cameraman intercom microphone TRS
17.Apply a 1kHz test signal at -64dBu to the cam. intercom mic. input of Audio/Intercom LF Board (X19A-29).
18.Adjust the cam. mic. preset potentiometer for a 1kHz signal at -6dBu on the microphone output pin of the
board.
Measure at: Adjust with: Required result:
X19B-10 ZR330 -6dBu
Tracker intercom microphone
19.Apply a 1kHz test signal at -64dBu to the tracker intercom mic. input of Audio/Intercom LF board (X19A-13).
20. Adjust the tracker mic. preset potentiometer for a 1kHz signal at -6dBu on the mic. output pin of the board.
Measure at: Adjust with: Required result:
X19B-8 ZR410 -6dBu
Tracker intercom microphone PL
21.Adjust the tracker preset potentiometer for a 1kHz signal at 0dBu on the telephone cam. output pin.
Measure at: Adjust with: Required result:
X19B-16 ZR820 0dBu
Tracker intercom microphone PL (sidetone)
22.Adjust the tracker mic. sidetone level potentiometer for a 1kHz signal at 0dBu on the output pin of the board.
Measure at: Adjust with: Required result:
X19B-13 ZR910 0dBu
Limiter level tracker microphone
23.Apply a 1kHz test signal at -52dBu to the tracker intercom mic. input of Audio/Intercom LF board (X19A-13).
24.Adjust the tracker mic. limiter level potentiometer for a 1kHz signal at 0dB on the microphone output pin of
the board.
Measure at: Adjust with: Required result: Correct: Incorrect:
X19B-8 ZR460 0dBu
25.Switch off power. Return Audio/Intercom LF Board to its position in the camera.
Page 80

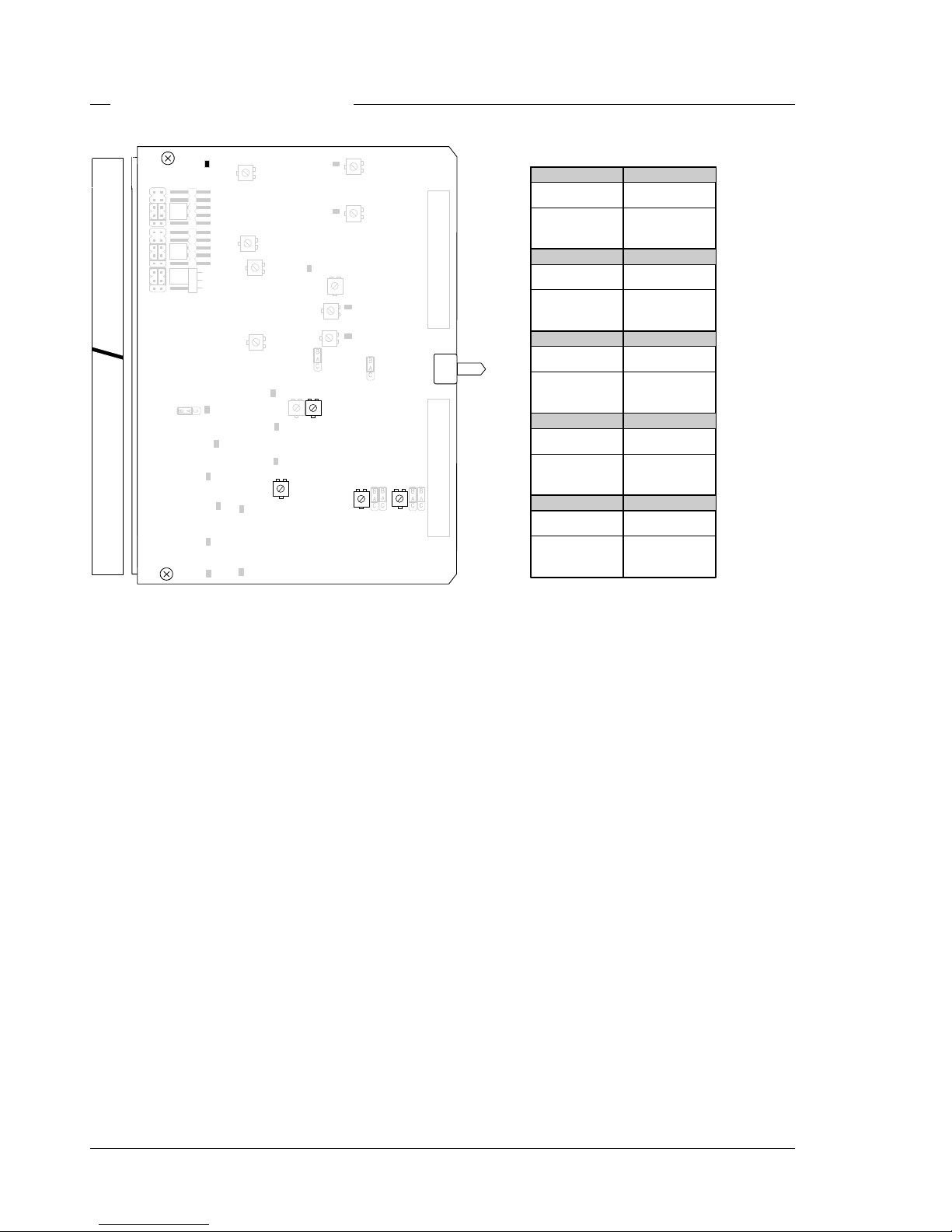

4-54 Technical Manual LDK 20(S) - Studio Camera Adjustments
Audio/Intercom LF Board
Audio/Intercom LF Board 3922 406 85940
Audio
Int LF
TOP SIDE
12
36
X
1
9
A
12
36
X
1
9
B
E
D
C
B
A
B
A
C
S200
S300
E
D
C
B
A
S100
ZR260
Audio 2
Limiter
Level
ZR160
Audio 1
Limiter
Level
ZMP0
ZMP200
ZMP100
ZMP340
ZR210
Audio 2
Preset
Level
ZR110
Audio 1
Preset
Level
ZMP300
ZMP400
ZMP440
ZR330
Cam-Mic-TRS
Preset
Level
ZR310
Cam-Mic
Preset
Level
ZR360
Cam-Mic
Limiter
Level
ZR460
Tracker
Limiter
Level
ZMP721
ZMP701
ZMP700
S740
S470
S450
ZR820
Side Tone
Preset
Level
ZR920
Side Tone
Preset
Level
ZMP620
ZMP600
ZMP601
ZMP520
ZMP521
ZR910
Side Tone
Preset
Level
ZMP500
ZR970
RTS
ENG
Level
S
9
6
0
S
9
6
1
ZMP1
ZMP501
S
9
8
0
S
9
8
1
ZR990
RTS
Prod
Level
ZR410
Tracker
Preset
Level
Jumper settings:
S961
Signal Choice
Floor L
AB: Headset
AC: RTS
S740
Signal Choice
AB: Prog.
AC: Private Data
S470
Signal Choice
AB: Sidetone
AC: ENG
S300
Cam. + Tracker Mic.
Phantom Power
A-C: +12V
A-B: Gnd
S981
Channel Choice
Floor R
AB: Headset
AC: RTS
Camera Menu
Cam. Mic. Gain
40dB
0dB
S450
Signal Choice
AB: Tracker Mic.
AC: Private Data
S960
Signal Choice
Floor L
AB: Headset
AC: RTS
Camera Menu
Tracker
Mic. Gain
40dB
0dB
S980
Channel Choice
Floor R
AB: Headset
AC: RTS
ZR920
Side Tone
Preset
Level
ZR910
Side Tone
Preset
Level
ZR970
RTS
ENG
Level
ZR990
RTS
Prod
Level
Page 81
Adjustments Technical Manual LDK 20(S) - Studio Camera 4-55
Audio/Intercom LF Board RTS MODE
Cameraman intercom microphone PL
1. Apply a 1kHz test signal at -64dBu to the cam. intercom mic. input of Audio/Intercom LF Board (X19A-25).
2. Adjust the cam. mic. preset potentiometer for a 1kHz signal at -10dBu on the microphone output pin of the
board.
Measure at: Adjust with: Required result:
X19B-13 ZR920 -10dBu
Tracker intercom microphone PL
3. Apply a 1kHz test signal at -64dBu to the tracker intercom mic. input of Audio/Intercom LF board (X19A-13).
4. Adjust the tracker mic. sidetone potentiometer for a 1kHz signal at -10dBu on the mic. output pin of the board.
Measure at: Adjust with: Required result:
X19B-13 ZR910 -10dBu
CH1 fork attenuation PROD
5. Apply a 1kHz test signal at -6dBu to the prod intercom input of Audio/Intercom LF board (X19B-28).
6. Adjust the fork attenuation level potentiometer for a 1kHz signal <-22dBu at the output pin of the board.
Measure at: Adjust with: Required result: Correct: Incorrect:
X19B-8 ZR990 <-22dBu
CH2 fork attenuation ENG
5. Apply a 1kHz test signal at -6dBu to the eng intercom input of Audio/Intercom LF board (X19B-30).
6. Adjust the fork attenuation level potentiometer for a 1kHz signal <-35dBu at the output pin of the board.
Measure at: Adjust with: Required result: Correct: Incorrect:
X19B-8 ZR970 <-35dBu
22.Switch off power. Return Audio/Intercom LF Board to its position in the camera.
Page 82
4-56 Technical Manual LDK 20(S) - Studio Camera Adjustments
Pre Processor Board
Pre Processor Board
3922 406 83830
TOP SIDE
Z
R
3
2
2
G
a
i
n
G
ZR122
Gain R
ZR522
Gain B
Z
R
5
6
0
Z
R
5
4
0
Z
R
1
6
0
Z
R
1
4
0
Z
R
3
6
0
Z
R
3
4
0
MP100
MP300
MP500
M
P
0
ZS100ZS700ZS500
Page 83
Adjustments Technical Manual LDK 20(S) - Studio Camera 4-57
Pre-Processor Board
Gain Adjustment
1. Recall Factory Standard File on MCP or OCP.
On MCP set:
OPERATE MENU
Knee : Off
Auto Iris : Off
Matrixsel. : 1:1
SETUP 1 MENU
Wh. Limiter : Off
Gamma : Lin.
SETUP 4 MENU
Asp. ratio : 4:3
2. Set the lighting conditions for 100% video output as follows:
Colour temp. : 3200K
Illumination : 2000lux
Lens aperture : F8
Scene reflection : Reference white 90% (Minolta reference white tile)
(2000 Lux with 90% reflectance is 573 cd/m2)
3. Open the right side cover of the camera.
4. Remove adjustment hatch on right side of front module of the camera.
5. Place Video Miscellaneous Board on a service extender
6. Open Iris at the lens to obtain 700mV at X17A point 19 of Video Miscellaneous Board (Green)
Measure at: Adjust with: Required result: Correct: Incorrect:
Vid.Misc. Pre-Proc.
X17A-23 (B) ZR522 700mV
X17A-27 (R) ZR122 700mV
7. Replace adjustment hatch on right side of front module of the camera.
8. Return Video Miscellaneous Board to its position in the camera.
9. Close camera right side cover.
10. Recall Factory Standard File on MCP or OCP.
Page 84
4-58 Technical Manual LDK 20(S) - Studio Camera Adjustments
Page 85
Drawings Technical Manual LDK 20(S) - Studio Camera 5-1
Section 5
Drawings
This section contains block diagrams of the camera. The block diagrams are a useful help for tracing
signals when fault finding.
Contents
Block Diagram Power Signals ............................ 5-2
Block Diagram Video Signals .............................5-3
Block Diagram Transmission Signals ................. 5-4
Block Diagram Control Signals ........................... 5-5
Page 86

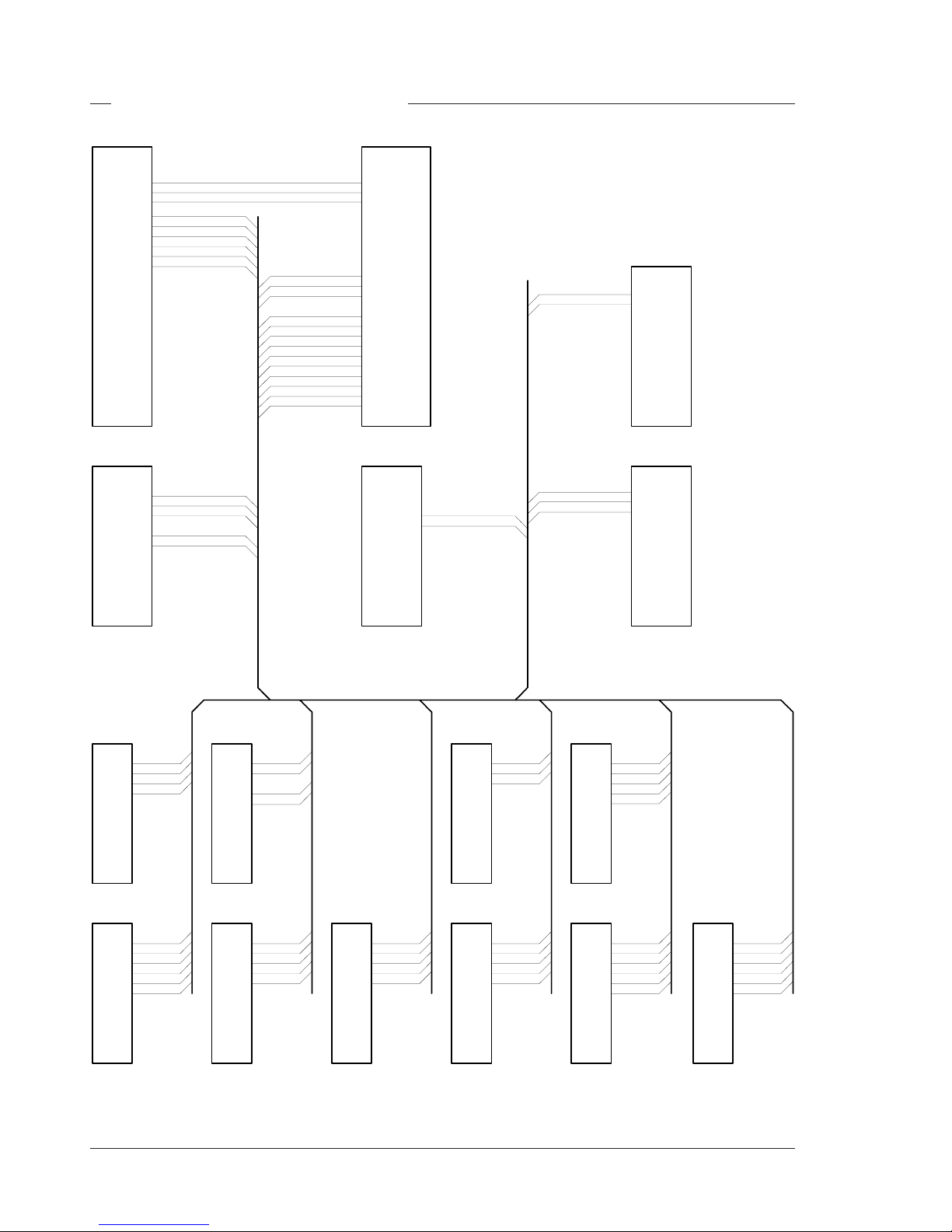

5-2 Technical Manual LDK 20(S) - Studio Camera Drawings
Block Diagram Power Signals
2/3" Front
Camera
Switch
Panel
Power
Video
Proc. 1
X23-16
X23-36
X23-38
X937-B16
X937-B14
X937-Z22
+18V
-12Va
+V peltier
+18V
-12Va
+V peltier
+13V
+13V RET
+5V
GND
-5V
+3.3V
+5V data
+13V
+13V RET
+12V
+5V
+3.3V
P GND
-5V
-12V
-12V
+48V
+5v sense
-5v sense
X937-Z24
X937-Z26,B26
X937-B28
X937-Z20
X937-B29
X937-B20
X937-B22,B24
X937-B30
X937-Z12
X937-B18
X937-B32
X937-Z30
X937-Z32
X23-39,40
X23-19,20
X23-14,34
X23-8,21,28,29
X23-15,35
X23-
+5V
GND
+13V
PGND
X4-2
X4-1
X4-9,10
X4-7,8
+5V
+3.3V
GND
-5V
X55-3,4
X56-21,22
X55,56-1,2
X56-3,4
+5V
+3.3V
GND
-5V
X51-3,4
X51-16,18
X51-1,13
X52-1
X52-3,4
Digital
Video
Proces-
sing
+5V
+3.3V
-5V
X61-3,4
X61,62-1
X62-3,4
Sync./
Shading
Data
Board
+12V
+5V
+3.3V
GND
-5V
X41-2
X41-3,4
X42-2
X41,42-1
X42-4
Video
Misc.
Encoder
Video
Mux.
Audio
Intercom
TX/REC.
Audio
Intercom
LF
+12V
+5V
+3.3V
GND
-5V
-12V
X17A-5,6
X17A-3,4
X17A-12
X17A,B-1,2
X17B-3,4
X17B-5,6
+12V
+5V
GND
-5V
-12V
X11A-5,6
X11A-3,4
X11A,B-1,2
X11B-3,4
X11B-5,6
+12V
+5V
GND
-5V
-12V
X12A-5,6
X12A-3,4
X12A,B-1,2
X12B-3,4
X12B-5,6
+12V
+5V
GND
-5V
-12V
X18A-5,6
X18A-3,4
X18A,B-1,2
X18B-3,4
X18B-5,6
+12V
+5V
GND
-5V
-12V
+48V
X19A-5,6
X19A-3,4
X19A,B-1,2
X19B-3,4
X19B-5,6
X19A-20
Viewfinder
Connector
+13V
+13V RET
X202-6,11
X202-12
X180-1
X180-2
+12V
+12V RET
RTS
Power
Misc.
+13V
+5V data
+5V
GND
-5V
+28V
X21-5
X21-4
X21-3
X21,22-1,2
X22-3,4
X21-7,8
Connector
Panel
Left
X174-10
X174-11
X174-12
+12VA
GND
+5V REF
Connector
Panel
Right
Page 87

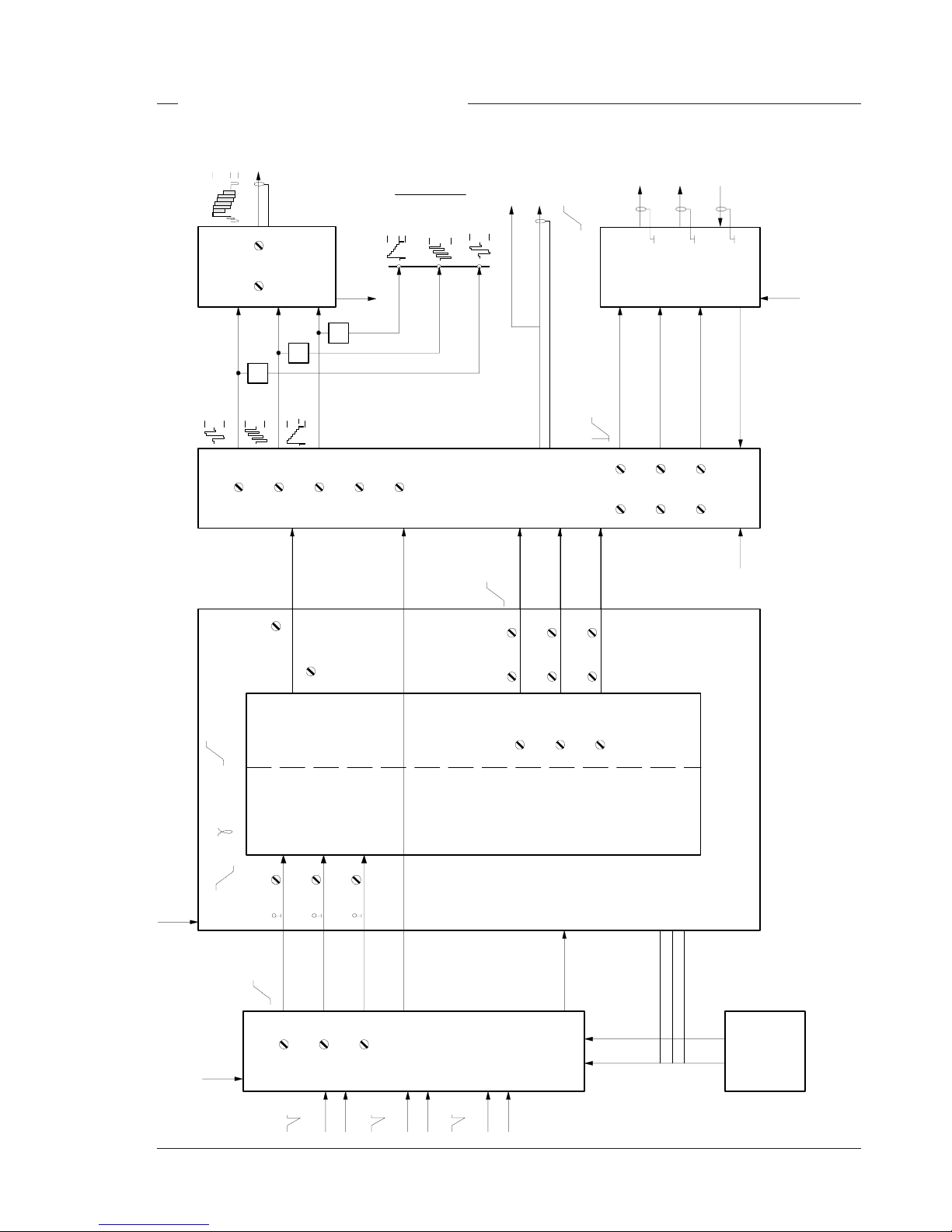

Drawings Technical Manual LDK 20(S) - Studio Camera 5-3
Block Diagram Video Signals
7
0
0
m
V
3
0
0
m
V
X
5
5
-
1
3
X
5
5
-
1
1
X
5
5
-
9
X
5
5
-
7
X
5
5
-
1
9
X
5
5
-
1
7
V
i
d
e
o
P
r
o
c
e
s
s
o
r
1
1
3
0
m
V
R
p
p
R
e
t
.
G
p
p
R
e
t
.
B
p
p
R
e
t
.
2
1
5
m
V
5
5
m
V
*
B
l
a
c
k
S
h
a
d
i
n
g
*
V
-
C
l
a
m
p
*
P
r
e
b
l
a
n
k
i
n
g
*
G
a
i
n
S
w
i
t
c
h
*
P
a
i
n
t
i
n
g
*
S
k
i
n
V
i
e
w
*
W
h
i
t
e
S
h
a
d
i
n
g
m
u
l
t
i
p
l
i
e
r
*
N
a
m
-
V
i
d
e
o
(
a
u
t
o
i
r
i
s
)
Z
R
2
0
6
Z
R
4
0
6
Z
R
6
0
6
X
5
6
-
1
4
4
5
0
m
V
X
5
6
-
8
4
5
0
m
V
X
5
6
-
2
0
4
5
0
m
V
R
G
B
X
5
2
-
1
3
X
5
2
-
9
X
5
2
-
2
3
G
A
I
N
D
A
C
Z
R
2
7
1
R
Z
R
4
7
1
G
Z
R
6
7
1
B
B
L
A
C
K
O
F
F
_
S
E
T
Z
R
3
2
5
Z
R
5
2
5
Z
R
7
2
5
L
I
N
K
n
e
e
F
l
a
r
e
B
l
a
c
k
c
o
n
t
r
o
l
G
a
m
m
a
B
l
a
c
k
a
n
d
W
h
i
t
e
L
i
m
i
t
e
r
S
y
s
t
e
m
b
l
a
n
k
i
n
g
C
o
l
o
r
b
a
r
V
F
M
o
n
1
/
2
p
i
x
e
l
o
f
f
s
e
t
V
e
r
t
i
c
a
l
C
o
n
t
o
u
r
C
o
n
t
o
u
r
(
s
o
f
t
/
s
k
i
n
)
E
q
u
a
l
i
z
i
n
g
M
a
t
r
i
x
V
i
e
w
R
-
X
5
5
-
1
2
G
-
X
5
5
-
6
B
-
X
5
5
-
1
5
R
-
X
5
6
-
1
1
G
-
X
5
6
-
9
B
-
X
5
6
-
1
6
R
-
X
6
2
-
2
G
-
X
6
2
-
5
B
-
X
6
1
-
2
R
-
X
6
2
-
1
6
G
-
X
6
2
-
1
4
B
-
X
6
2
-
2
4
B
l
a
c
k
S
h
a
d
i
n
g
W
h
i
t
e
S
h
a
d
i
n
g
X
5
1
-
2
1
1
4
0
0
m
V
X
5
1
-
1
1
1
4
0
0
m
V
X
5
1
-
2
2
1
4
0
0
m
V
X
5
1
-
1
0
X
5
5
-
2
3
X
5
2
-
2
4
1
4
0
0
m
V
X
1
7
A
-
2
2
X
1
7
B
-
3
0
X
1
7
A
-
3
3
X
1
7
A
-
3
2
X
1
7
A
-
3
6
M
P
2
0
0
2
1
5
m
V
M
P
4
0
0
2
1
5
m
V
M
P
6
0
0
2
1
5
m
V
G
a
i
n
V
i
d
e
o
Z
R
2
3
2
Z
R
4
3
2
Z
R
6
3
2
Z
R
9
3
R
-
Y
Z
R
9
4
B
-
Y
Z
R
9
2
Y
Z
R
8
5
Y
-
S
Y
N
C
Z
R
1
1
1
M
o
n
.
V
i
d
e
o
L
e
v
e
l
R
/
G
/
B
/
Y
/
V
F
C
N
T
W
h
i
t
e
P
u
l
s
e
M
u
x
A
m
p
l
.
M
u
x
G
a
i
n
Z
R
2
0
1
Z
R
4
0
1
Z
R
6
0
1
Z
R
2
0
0
Z
R
4
0
0
Z
R
6
0
0
X
1
7
A
-
1
0
X
1
7
A
-
1
6
X
1
7
A
-
1
1
1
4
0
0
m
V
1
4
0
0
m
V
1
4
0
0
m
V
-
6
0
0
m
V
X
1
1
A
-
2
7
X
1
1
A
-
3
1
X
1
1
A
-
2
3
7
0
0
m
V
7
0
0
m
V
7
0
0
m
V
-
3
0
0
m
V
V
T
R
2
7
3
1
2
4
C
h
r
o
m
a
R
4
A
m
p
l
.
R
1
4
X
1
1
A
-
1
5
C
V
B
S
X
3
X
1
7
A
-
2
7
7
0
0
m
V
X
1
7
A
-
1
9
7
0
0
m
V
X
1
7
A
-
2
3
7
0
0
m
V
X
1
2
A
-
2
3
X
1
2
A
-
1
9
X
1
2
A
-
1
6
W
h
i
t
e
B
a
r
o
n
l
y
i
n
T
r
i
a
x
M
o
d
e
X
1
7
A
-
2
6
M
O
N
V
I
D
E
O
X
9
7
0
0
m
V
V
F
X
1
2
B
-
3
0
X
1
2
A
-
9
X
1
2
B
-
1
0
T
P
V
I
D
E
O
M
O
D
-
V
I
D
E
O
M
O
D
-
E
X
T
/
T
P
E
X
T
.
V
I
D
E
O
P
L
A
Y
B
A
C
K
V
I
D
E
O
X
1
7
A
-
7
X
5
5
-
5
N
a
m
V
i
d
e
o
X
1
2
B
-
2
6
X
1
7
B
-
8
D
i
g
i
t
a
l
V
i
d
e
o
P
r
o
c
e
s
s
i
n
g
S
y
n
c
.
/
S
h
a
d
i
n
g
R
G
B
V
i
d
e
o
M
i
s
c
e
l
l
a
n
e
o
u
s
V
i
d
e
o
M
u
x
.
V
F
/
T
P
R
e
c
.
E
n
c
o
d
e
r
E
x
t
.
t
e
s
t
i
n
p
u
t
Z
X
1
-
3
7
A
Z
X
1
-
3
9
A
Z
X
1
-
3
5
A
A
D
C
o
n
v
.
D
A
C
o
n
v
.
W
H
I
T
E
L
I
M
Z
R
3
4
1
Z
R
5
4
1
Z
R
7
4
1
Z
X
1
8
A
Z
X
1
6
A
Z
X
1
1
0
A
X
1
1
A
-
1
0
C
V
B
S
3
X
1
7
A
-
1
3
C
V
B
S
3
L
P
i
x
O
n
/
O
f
f
G
a
i
n
V
F
Z
R
8
4
1
O
f
f
s
e
t
V
F
Z
R
8
3
0
X
5
1
-
1
7
X
5
1
-
7
X
5
1
-
2
3
Page 88

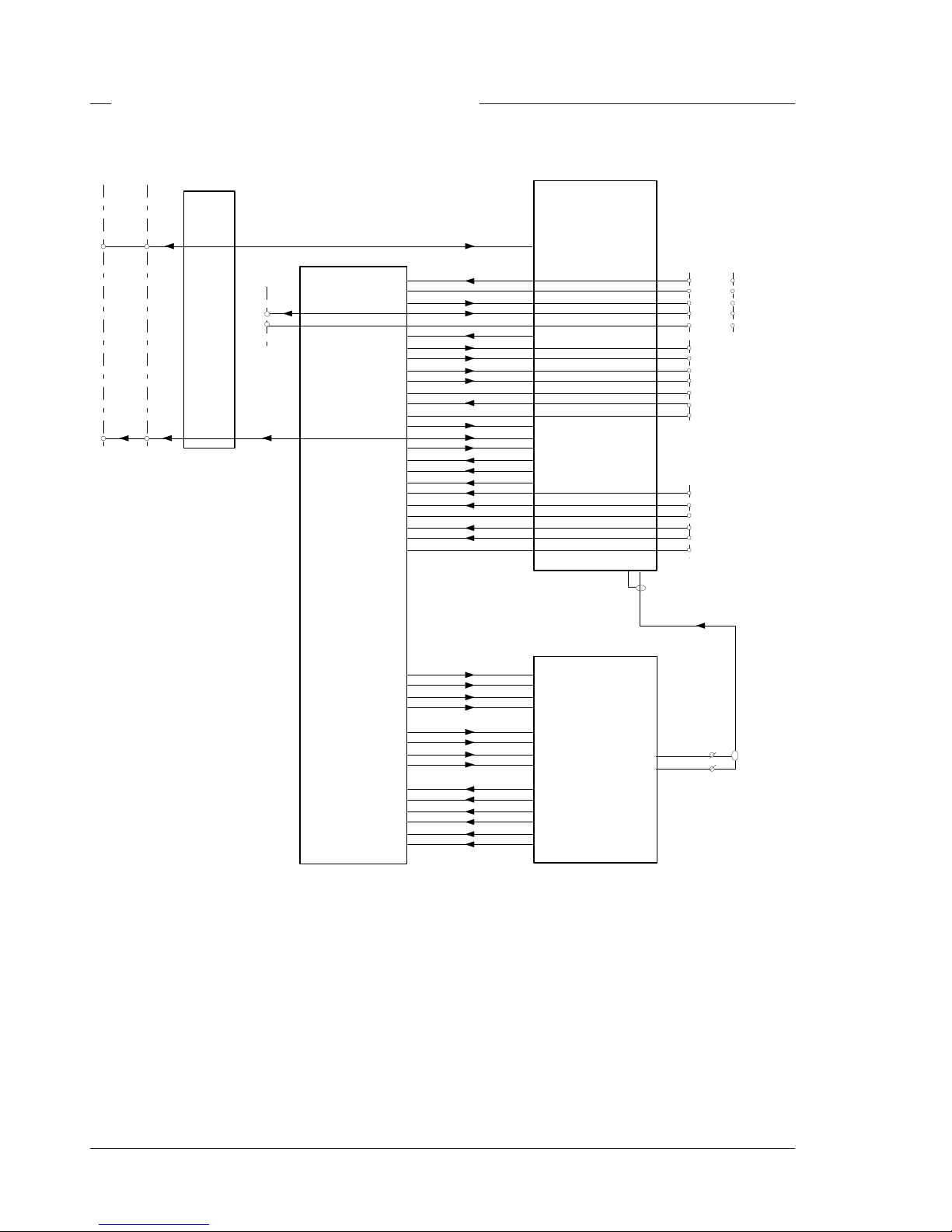

5-4 Technical Manual LDK 20(S) - Studio Camera Drawings
Block Diagram Transmission Signals
CAMERA
CONTROL
UNIT
Volume
Prod
Front
Ref Prod
X27-4
X27-6
AUDIO
INTERCOM
TX/REC
AUDIO
INTERCOM
LF
Audio 1 TX
ret
Audio 2 TX
ret
Cam Mic TX
ret
Tracker Mic TX
ret
Prog
ret
Prod
ret
ENG
ret
X18A-21
X18A-22
X18A-17
X18A-18
X18B-30
X18B-29
X18B-18
X18B-17
X18B-12
X18B-11
X18A-9
X18A-10
X18A-13
X18A-14
Audio 1 TX
ret
Audio 2 TX
ret
Cam Mic TX
ret
Tracker Mic TX
ret
Prog
ret
Prod
ret
ENG
ret
X19A-35
X19A-36
X19A-33
X19A-34
X19B-10
X19B-9
X19B-8
X19B-7
X19B-26
X19B-23
X19B-28
X19B-25
X19B-30
X19B27
TRIAX
BACK
PANEL
Cam Mic
Cam Mic ret
Cam Tel R
Cam Tel L
Cam Tel ret
Audio Mon
Prod To Tracker
Prog To Tracker
ENG/Side Tone To Tracker
Cam Mic To Tracker
Tracker ret
Tracker Mic
Tracker Mic ret
Ref Prog
Ref Prod
Ref ENG
Cam Vol Prog
Cam Vol Prod
Cam Vol ENG
Audio 1 +
Audio 1 -
Shield Audio 1
Audio 2 +
Audio 2 -
Shield Audio 2
X19A-25
X19A-26
X19B-14
X19B-16
X19B-15
X19B-17
X19B-36
X19B-35
X19B-32
X19B-34
X19B-29
X19A-13
X19A-14
X19A-11
X19A-10
X19A-12
X19B-12
X19B-18
X19B-24
X19A-17
X19A-18
X19A-15
X19A-21
X19A-22
X19A-19
X24-9
X24-10
X24-8
X24-11
X24-7
X24-12
X25-19
X25-33
X25-32
X25-37
X25-36
X25-35
X25-40
X25-39
X24-2
X24-1
X24-3
X24-5
X24-4
X24-6
X24-16
X24-15
X24-18
X24-40
X24-39
X24-42
X18A-33
X18A-31,
32,34-36
HF-Audio/INT
X37
1
2
Volume Prod Front
Cam Mic
Cam Mic ret
Cam Tel R
Cam Tel L
Cam Tel ret
Audio Mon
Prod To Tracker
Prog To Tracker
ENG/Side Tone To Tracker
Cam Mic To Tracker
Tracker ret
Tracker Mic
Tracker Mic ret
Ref Prog
Ref Prod
Ref ENG
Cam Vol Prog
Cam Vol Prod
Cam Vol ENG
Audio 1 +
Audio 1 Shield Audio 1
Audio 2 +
Audio 2 Shield Audio 2
7
5
X107
2
1
X29
X191
2
3
1
Audio1
2
3
1
X192
Audio2
Tracker
X174
4
7
5
8
6
3
2
3
4
5
1
6
X42-2
X42-1
X42-6
X42-5
X42-4
Headset cam
X181
Tuchel XLR
5
2
1
5
4
3
3
4
X102A
SW.board
Front
VF.conn.
board
X27
Page 89

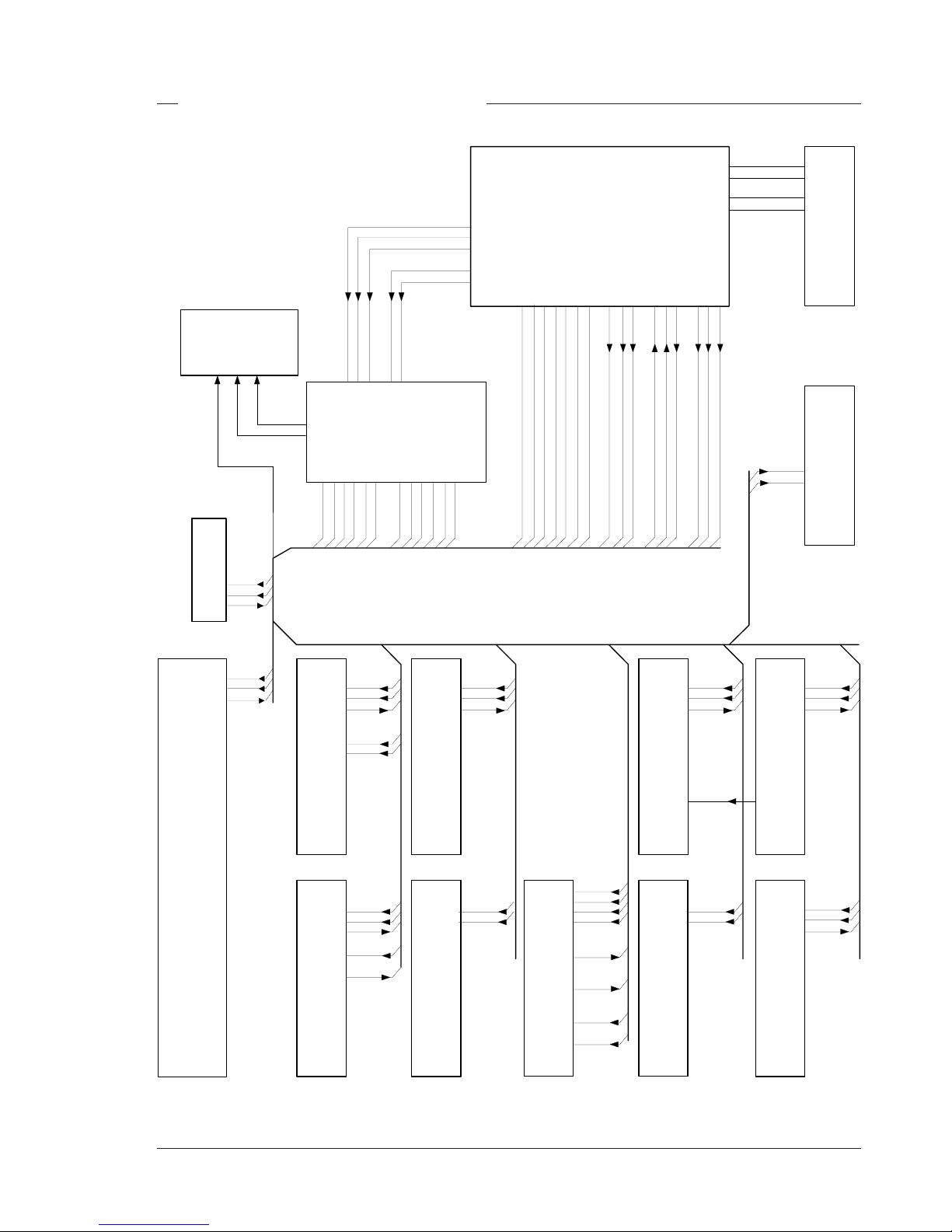

Drawings Technical Manual LDK 20(S) - Studio Camera 5-5
Block Diagram Control Signals
2/3"
FRONT
CAMERA
SWITCH
PANEL
INTERCONN.
BOARD
VIDEO
PROCESSOR 1
X140-27
X140-28
D-SDA
D-SCL
C-SDA
C-SCL
C-INT N
A
-
S
D
A
B
-
S
D
A
C
-
S
D
A
E
-
S
D
A
F
-
S
D
A
H
-
S
D
A
A
-
S
C
L
B
-
S
C
L
C
-
S
C
L
E
-
S
C
L
F
-
S
C
L
H
-
S
C
L
X
1
4
0
-
3
0
X
1
4
0
-
3
2
X
2
3
1
-
1
0
X
1
4
0
-
2
6
X
1
4
0
-
3
4
X
1
4
0
-
3
6
X
1
4
0
-
2
9
X
1
4
0
-
3
1
X
2
3
1
-
1
2
X
1
4
0
-
2
5
X
1
4
0
-
3
3
X
1
4
0
-
3
5
X23-32
X23-33
X23-31
H-SDA
H-SCL
H-INT N
X4-3
X4-4
X4-5
A-SDA
A-SCL
A-INT N
R-GAIN
B-GAIN
X56-15
X56-17
X56-5
X56-23
X56-24
F-SDA
F-SCL
F-INT N
X52-17
X52-19
X52-15
DIGITAL
VIDEO
PROCESSING
B-SDA
B-SCL
B-INT N
H-PHASE
CONTROL
X62-17
X62-19
X62-15
X61-18
SYNCSHADING
ENCODER
B-SDA
B-SCL
B-INT N
X11B-31
X11B-33
X11B-35
VIDEO
MISCELLANEOUS
VIDEOMUX
AUDIO
INTERCOM
TX/REC
AUDIO
INTERCOM
LF
B-SDA
B-SCL
B-INT N
IRIS
CONTROL
H-V LOCK
X17B-31
X17B-33
X17B-35
X17B-34
X17B-26
E-SDA
E-SCL
X12B-31
X12B-33
HV-lock
HV-lock ret
E-SDA
E-SCL
Data
BS-Cam
Data
BS-Cam ret
Data
Cam-BS
Triax
X18B-24
X18B-23
X18B-31
X18B-33
X18B-36
X18B-35
X18A-25
X18A-29
E-SDA
E-SCL
X19B-31
X19B-33
DATA BOARD
CONN
PANEL
RIGHT
X
1
3
-
5
X
1
3
4
-
6
X
1
3
4
-
7
X
1
3
4
-
3
X
1
3
4
-
4
X41-10
X41-12
X41-14
X41-16
X41-18
X
4
1
-
2
4
X
4
1
-
2
3
X
4
1
-
2
2
X
4
1
-
2
1
X
4
1
-
2
0
X
4
1
-
1
9
X
4
1
-
1
7
X
4
2
-
1
3
X
4
2
-
1
5
X
4
2
-
1
7
X
4
1
-
7
X
4
1
-
5
X
4
1
-
1
3
X
4
2
-
2
1
X
4
2
-
1
4
X
4
2
-
9
VIEWFINDERS
I
I
C
M
U
X
0
I
I
C
M
U
X
1
I
I
C
M
U
X
2
S
D
A
S
C
L
A
-
I
N
T
N
B
-
I
N
T
N
C
-
I
N
T
N
D
-
I
N
T
N
E
-
I
N
T
N
F
-
I
N
T
N
H
-
I
N
T
N
M
B
L
A
C
K
R
B
L
A
C
K
B
B
L
A
C
K
D
A
T
A
B
S
-
C
A
M
D
A
T
A
B
S
-
C
A
M
R
E
T
D
A
T
A
C
A
M
-
B
S
G
-
G
A
I
N
B
-
G
A
I
N
I
R
I
S
C
O
N
T
R
O
L
IICMUX0
IICMUX1
IICMUX2
SDA
SCL
DATA
DATA N
AN 0
AN 1
DATA
DATA N
AN 0
AN 1
X41-11
X41-9
X42-14
X42-16
X128-15
X128-16
X128-5
X128-6
X11B-15
H-PHASE
CONTROL
RTS
POWER
MISC.
E-SDA
E-SCL
E-INT N
X22B-17
X22B-19
X22B-15
D
-
I
N
T
N
D
-
S
C
L
D
-
S
D
A
X
2
0
2
-
8
X
2
0
2
-
7
X
2
0
2
-
1
5
CAMERA
POWER
D-SCL
D-SDA
X937-Z14
X937-Z16
Page 90
5-6 Technical Manual LDK 20(S) - Studio Camera Drawings
Loading...
