THOMSON Platium User Manual

Download
Page 1

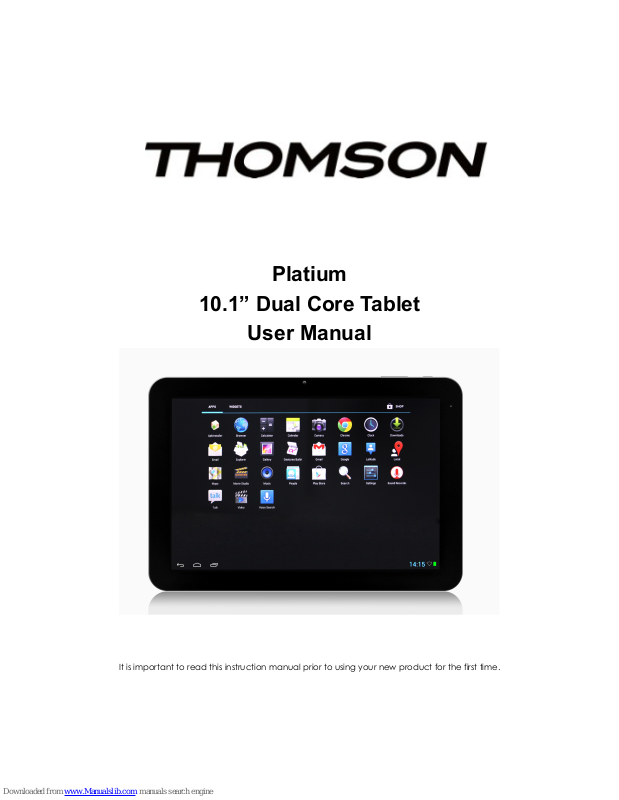

Platium
10.1” Dual Core Tablet User Manual
It is important to read this instruction manual prior to using your new product for the first time.
Page 2
2
Page 3
1.1 Appearance and Accessories ...................................................................................................... 8
1.2 Tablet state and notice ................................................................................................................ 9
Icons for notifications ....................................................................................................................................... 9
2.1 Battery Charging ........................................................................................................................ 9
Power adapter ................................................................................................................................................... 9
Battery Charging Indicator .............................................................................................................................. 9
2.2 Getting Started .......................................................................................................................... 10
Turn the Tablet on ........................................................................................................................................... 10
Turn the Tablet off .......................................................................................................................................... 10
2.3 Turn the Screen On And Off .................................................................................................... 10
2.4 Unlocking the Screen ................................................................................................................ 11
2.5 Use of touch screen ................................................................................................................... 11
Click to select .................................................................................................................................................. 11
Click to Activate ............................................................................................................................................. 11
Scrolling or Sliding ......................................................................................................................................... 11
Drag ................................................................................................................................................................ 11
Rotate .............................................................................................................................................................. 12
2.6 Homepage Interface .................................................................................................................. 12
Scrolling between homepage screens ............................................................................................................. 12
Change desktop wallpaper ............................................................................................................................. 13
Add widgets .................................................................................................................................................... 13
2.7 Accessing Apps .......................................................................................................................... 14
How to launch an application on your tablet .................................................................................................. 14
2.8 USB connection ......................................................................................................................... 14
Storage setting of Tablet ................................................................................................................................. 14
Copy data to storage card ................................................................................................................................ 15
Tablet storage memory ................................................................................................................................... 15
2.9 Character input ......................................................................................................................... 15
Use screen keyboard ....................................................................................................................................... 15
Select the input method you need to use ......................................................................................................... 15
Use and switch input method .......................................................................................................................... 15
2.10 Application Technique ............................................................................................................ 16
Open an application that is used recently. ..................................................................................................... 16
Adding widgets and shortcuts to the homescreen ........................................................................................... 17
Switch of Input Language .............................................................................................................................. 17
Factory Default .............................................................................................................................................. 17
3
Page 4
Rapid Screenshot ........................................................................................................................................... 18
Quickly Access Settings Page ........................................................................................................................ 18
3.1WIFI Connection ...................................................................................................................... 18
4.1E-mail ......................................................................................................................................... 19
Setting for E-mail ........................................................................................................................................... 19
Setting guide for E-mail ................................................................................................................................. 19
Delete the E-mail account .............................................................................................................................. 19
Send E-mail information ................................................................................................................................ 20
5.1 Music ......................................................................................................................................... 20
Launch Music App and play the music ......................................................................................................... 21
Add the songs onto the new play list .............................................................................................................. 21
Delete the play list ......................................................................................................................................... 21
5.2 Camera ..................................................................................................................................... 21
Camera functions ........................................................................................................................................... 21
Video function ................................................................................................................................................ 22
5.3 HDMI ......................................................................................................................................... 22
HDMI High-definition video interface ........................................................................................................... 22
5.4 Media Browser .......................................................................................................................... 23
View pictures .................................................................................................................................................. 23
Edit and set the picture .................................................................................................................................... 23
Video preview and playback ........................................................................................................................... 24
Find texts within the webpage ........................................................................................................................ 25
Manage bookmarks ......................................................................................................................................... 25
Use browser window ...................................................................................................................................... 26
7.1 Alarm clock ............................................................................................................................... 26
7.2 Calculator .................................................................................................................................. 27
7.3 File Management ....................................................................................................................... 27
Browse files .................................................................................................................................................... 27
Cut and copy files ........................................................................................................................................... 27
Folder setup ..................................................................................................................................................... 28
Quick search ................................................................................................................................................... 28
8.1 Sound and Display .................................................................................................................... 28
Volume setting: Setting-Sound-Volume ........................................................................................................ 28
4
Page 5
Screen key tone and screen lock alert tone ..................................................................................................... 28
Display settings ............................................................................................................................................... 28
8.2 Security and Location ............................................................................................................... 28
Set unlock pattern ........................................................................................................................................... 28
Other settings .................................................................................................................................................. 29
8.3 Storage ....................................................................................................................................... 29
View storage settings ...................................................................................................................................... 29
Safe uninstall of SD card ................................................................................................................................ 29
8.4 Date and Time ........................................................................................................................... 29
Adjust the date, time and time zone ................................................................................................................ 29
8.5 Language and Input Method .................................................................................................... 29
Select language for the device ........................................................................................................................ 29
Keyboard and input method ............................................................................................................................ 30
8.6 About Tablet PC ....................................................................................................................... 30
View Tablet status .......................................................................................................................................... 30
View system version ....................................................................................................................................... 30
9.1 Installation ................................................................................................................................. 30
Install third-party applications ........................................................................................................................ 30
9.2 Management and Uninstall ...................................................................................................... 30
Management applications ............................................................................................................................... 30
Uninstall applications ..................................................................................................................................... 31
9.3 Update Approach ...................................................................................................................... 31
10.1 System Upgrade Preparation ................................................................................................. 31
10.2 Restore Factory Settings ......................................................................................................... 31
5
Page 6
Safety precautions
Read these safety instructions before using your device and store them for possible future reference
BATTERY, CHARGER, AND OTHER ACCESSORIES
- If the charger cord is damaged, have it repaired by qualified service technician
or replace with a compatible part.
- The charger is not intended for use by persons (including children) with reduced physical, sensory or mental capacity. Persons who have not read the manual, unless they have received explanations by a person responsible for their safety and supervision should not use this unit.
- Children should be monitored to ensure that they do not play with the charger.
- The charger should always be readily accessible.
- The device and charger should not be exposed to dripping or splashing water.
- No objects filled with liquids such as vases shall be placed on the device.
- Always leave a minimum distance of 10 cm around the unit to ensure sufficient ventilation.
- Naked flame sources, such as candles, should not be placed on top of the device.
- The device is intended for use only in a temperate climate.
- CAUTION: Danger of explosion if battery is incorrectly replaced or not replaced by the same type or equivalent.
- The device should not be exposed to excessive heat such as sunshine, fire or similar.
6
Page 7
Safety Instructions
SWITCH OFF IN RESTRICTED AREAS
Switch the device off where the use of WiFi equipped devices are not allowed or where there is a risk of causing interference or danger, for example on board an aircraft, near medical equipment, fuel, chemicals or blasting sites.
INTERFERENCE
All wireless devices are susceptible to interference which may affect their performance.
AUTHORISED PERSONNEL
Only qualified people are authorized to install or repair this product
ACCESSORIES
Only use batteries, chargers and other accessories which are compatible with this equipment. Do not connect incompatible products.
7
Page 8
1. Introduce Tablet
1.1 Appearance and Accessories
No. Name Description
1
Camera
0.3 MP Front-facing camera.
2
Earphone jack
Audio output jack for earphone.
3
Micro SD card slot
Slot to insert the micro SD card.
4
Vol +
To increase the volume.
5
Vol -
To decrease the volume.
6
Power key
Press to turn the device on, or to turn the screen on and off. Press and hold to access the power off menu.
7
Micro-USB2.0 Hi­speed port
Using micro-USB to USB data can be tablet can be connected to the computer as device.
8
HDMI
High definition multimedia interface.
9
DC input Used for connecting charging cable for charging the
device battery.
8
1
7
654
7
Page 9
1.2 Tablet state and notice
Icons for notifications
The Android operating system on your tablet provides notifications in the bottom right corner of the screen. Notifications are displayed with icons. Click on the notifications to open detailed information about the notification. The following are icons used in status bar:
Back button Home button
Display recently­used application
Screenshot button
Hide status bar CPU mode setting
USB Adjustment connected
Micro SD card
WiFi Battery
Menu New email
Downloading
2. Getting Started Guide
Statement: This User Manual reflects the version of the Android operating system on this product at the time of publication. As Android is frequently updated, there may be differences between the contents of this User Manual and the product. Thank you!
2.1 Battery Charging
Your new Tablet has an internal rechargeable battery. We recommend to charging the device fully before using for the first time.
Power adapter
Connect the included power adapter to the jack on the side of the tablet and any standard AC wall socket.
Battery Charging Indicator
1．
The battery charging indicator turns red indicating charging when the AC adapter is plugged in. The charging indicators will change to green when the battery has a full charge.
2．
The tablet can be used while charging.
9
Page 10
2.2 Getting Started
Turn the Tablet on
Press and hold the Power Key until the LCD screen turns on. Wait until the Home screen appears. The tablet is now ready for use.
Turn the Tablet off
1. Press and hold the
Power Key
until the Tablet options menu appears.
2.
Press ok to turn off the Tablet.
2.3 Turn the Screen
On And Off
When the Tablet is on, you can turn off the screen to conserve battery power. Simply press the Power Key once to turn the screen off. Press the Power Key again to turn the screen back on.
Note: The charging time will be longer when operating and charging at same time.
10
Page 11
2.4 Unlocking the Screen
Unlock the screen by touching and sliding the lock icon towards unlock icon.
2.5 Use of touch
screen
Your new tablet is equipped with a capacitive touch screen. You can navigate the Android operating system using your finger tips to click, scroll, and type directly on the screen.
Click to select
When you want to use screen keyboard entry, and you want to select items on the homepage interface such as application program, tap with your finger tip to select or ‘click’.
Click to Activate
If you want to activate an item (such as textbox or hyperlink in a webpage), tap on the item with your finger tip.
Scrolling or Sliding
Scrolling or sliding is done by sliding your finger tip along the screen rapidly up or down or left to right.
Drag
To press and hold item with your finger tip and slide your finger to the desired location on the screen. Lift your finger to release the item. (Keep your finger pressed against the screen while dragging.)
11
Note: To conserve battery power, the screen can be set to turn off automatically when the tablet is not in use (between 15 seconds and 30 minutes). This screen timeout option can be found in the display setting menu.
Page 12
Rotate
Aiming at most of pictures, only turn the Tablet in side direction, the screen direction can be shifted from cross direction to vertical direction. For example, when you input characters, watch cinema, etc.
2.6 Homepage Interface
The homepage on your tablet is used to display shortcuts to your applications, widgets, and to access other menus on the tablet. The background wallpaper can be changed to suit your personal tastes using included wallpapers or one of your own photos.
Scrolling between homepage screens
Your tablet homepage is comprised of 5 screens that can be scrolled back and forth to provide an extended space for application icons, shortcuts, and widgets. You can scroll between the multiple home pages by sliding your finger left or right on the side of the screen.
All apps luncher
Virtual buttons in the system bar
Search bar
Notification window
12
Page 13

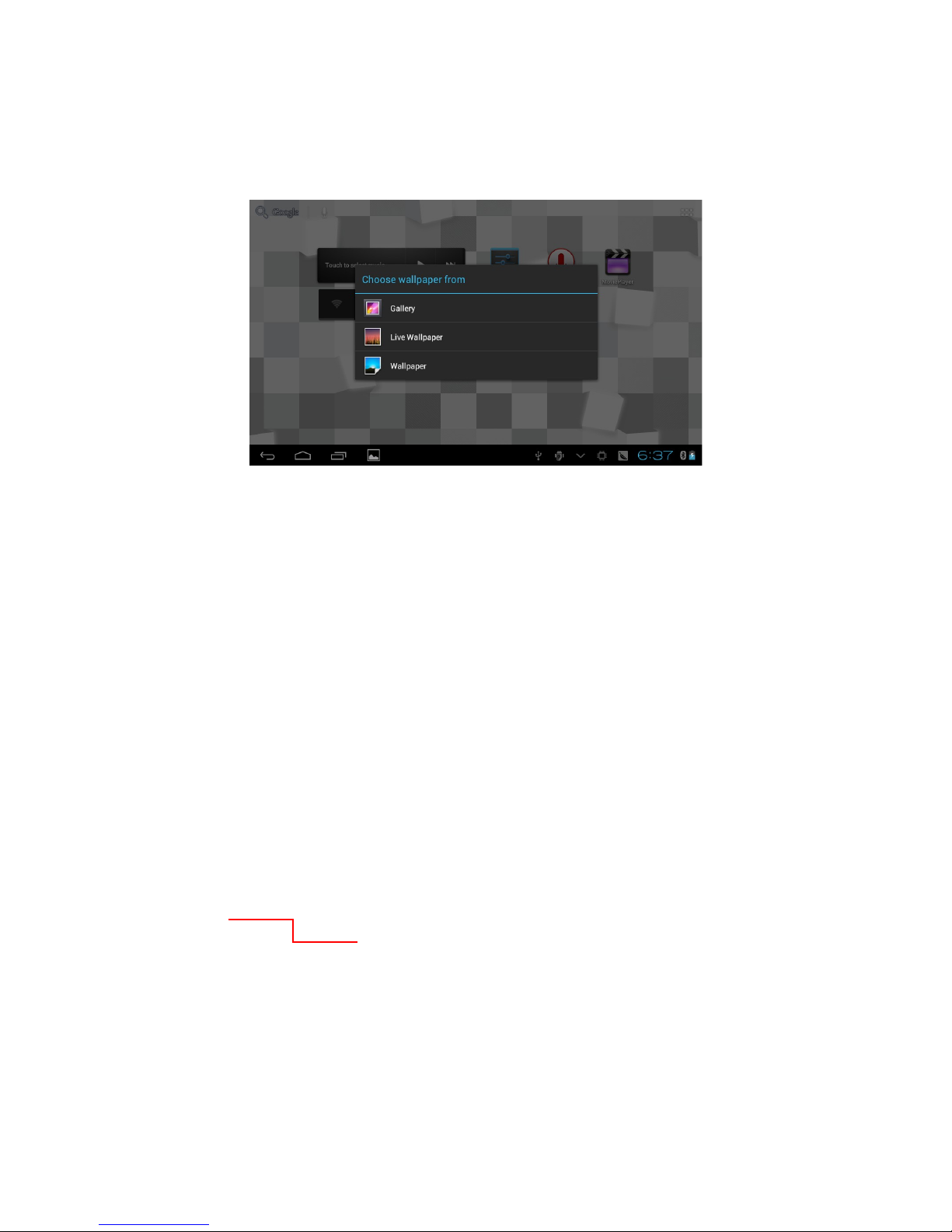

Change desktop wallpaper
1.
Long press the screen.
2. A pop-up menu will prompt you to choose a location to find the image you would
like to use as your new homepage wallpaper.
3. After clicking source of wallpaper, click picture you want, and then select “setting
wallpaper”.
Add widgets
Widgets are small, interactive tools that can be placed on your homescreen to provide information, such as weather or time, or provide quick actions, like frequently called numbers, etc. To add widgets to your home page :
1. Click application program menu in the upper right corner of the homepage.
2. After entering application program menu, click “WIDGETS” button on the top left of interface.
3. Press and hold the widget you want. The system will return back homepage, while holding the widget, drag it to the location on the screen where you want to place it and let go. The widget will now be available on the homepage.
13
Widgets
Page 14
2.7 Accessing Apps
How to launch an application on your tablet
1. Please click application program menu in the upper right hand corner of the homepage to display the APPS page.
2. Scroll left or right to view icons for your APPS. Press the icon to launch the APP.
3. You can exit the APP by pressing the back key to the last interface, or press the homepage key to return homepage interface directly.
2.8 USB connection
Storage setting of Tablet
Before transferring data to or from your tablet, you must set storage mode first:
1. Connect tablet with computer by using the included Micro USB data cable. Notice bar will show the notice prompt.
2. Click status bar, options of status bar show.
3.
Among options of status, click to choose
USB connected
, then click to open USB
storage device.
4. At this time, USB has already been connected.
14
App s
Page 15
Copy data to storage card
1. Connect Tablet and computer together with USB cable.
2.
After setting according to storage of Tablet, connect with computer successfully.
3.
Open your computer, in my computer; examine content in “removable disk (x)”.
4. Find the document you want to copy, copy it to “removable disk(x)”.
5. After completion of copying, click “safely remove hardware” in taskbar of your computer to unload.
Tablet storage memory
1. Your tablet has onboard FLASH memory to store data and applications.
2. You can supplement the onboard storage by inserting a removable SD memory card.
3. Both types of storage can be accessed on your computer by connecting the tablet via the USB data cable.
2.9 Character input
Use screen keyboard
When you start the program or select text edit box needing to input characters or numbers, the touch screen virtual keyboard will appear on the screen. The following input methods are provided for the keyboard to select.
1. Android keyboard
2. Input method of a third party (user can install additional keyboards from the Google Play store).
Select the input method you need to use
According to presetting, Tablet will display Android keyboard when you want to
input characters.
1.
Press menu key in homepage interface, then click setting.
2.
Click
language
and
keyboard
.
3. All of the input methods already installed on your Tablet will be listed in the text setting region.
4. Select the input method you want...
Use and switch input method
In the character input interface, click keyboard icon under the status bar, until popping up of editing text menu.
1. Select input method you need.
15
Note: when your tablet is connected with USB cable and the memory card is mounted as a drive on your computer, the contents of storage card will be unavailable on the tablet until the USB has been disconnected.
1
4
6
5
3
2
Page 16
2.10 Application Technique
Open an application that is used recently.
You can open a list of recently used applications by clicking on the button (located
to the right of the home button). Figure.
1
Switch input capital and small letters
2
Switch character input mode and symbol/figure input mode
3
Click to insert space
4
Click to execute carriage return
5
Click and press on to delete characters on the left of the cursor
6
Click here to switch input method
16
Page 17
Adding widgets and shortcuts to the homescreen
On the application procedure menu, click “WIDGETS” button and enter into the interface of small parts, the icon and name for added small parts can appear on this interface, such as: music, photo frame, clock and searching.
Switch of Input Language
Click the keyboard icon at the lower right corner of interface for input box; after clicking, pop up all input methods installed on this equipment by you, click and select the Input method.
Rapidly shut off the procedure
Click the Back Key to return to the homepage interface, or click the Homepage key to instantly exit the application and return to the homepage.
Factory Default
In the event your tablet produces a serious system error or the password is forgotten, the Factory Default can be used to reset the tablet to the original configuration. There are two methods of setting the Factory Default:
1. On the homepage interface, click the menu key and pop up the setting menu.
2.
Click and select the Setting
3.
Click and select the
Backup and Reset
4.
Click and select the Factory Default
5.
Click and select the
Tablet Computer Resetting
6. Wait for system resetting
17
Application
procedure used
Page 18
Rapid Screenshot
From any application, you can make a screenshot by pressing Volume Down key and Power key simultaneously. The image file will be saved in the gallery.
Quickly Access Settings Page
Click the status bar on the lower right corner of the homepage to display a popup menu click on Settings.
3 Connection Establishment
3.1WIFI Connection
Your Tablet is equipped with WiFi networking. To connect a WiFi network:
1. On the homepage interface, click and select the menu key and pop up the menu setting;
2.
Click and select the System Setting;
3. Click Wi-Fi and ensure Wi-Fi is switched to “On”;
4. After opening Wi-Fi, a list of nearby Wi-Fi networks will appear on the right.
5. Select the Wi-Fi network you wish to connect to and enter the password if required.
6.
Click the Connect.
18
Click here and select WiFi network
Advanced Wifi setting option
Page 19
4 Communication
4.1E-mail
Setting for E-mail
The E-mail application procedure is attached with the setting guide for E-mail, the external POP3 or IMAP E-mail account for common Web E-mail service provider ( such as: Yahoo, Gmail, Hotmail) can be added.
Setting guide for E-mail
1. After clicking and selecting the E-mail icon, the produced E-mail setting guide will help you perform the setting;
2.
Click and select
Next
button;
3.
Input E-mail address and password of your E-mail account;
4.
Click and select
Next
button to select that your E-mail type either is POP3 or
IMAP.
5.
Click and select Next button again to inspect whether the send-receive server of E-mail is available.
6.
Input the name of account and display the name of E-mail to be sent, and then, click and select OK.
7. If the E-mail is available, automatically enter into your inbox.
Delete the E-mail account
You can delete the account of POP3 or IMAP E-mail.
1.
Click and select the
E-mail
;
2. Enter into your inbox;
3. Click the menu key;
4.
Click and select the Account;
19
Page 20
5. Press the account that you want to delete.
6.
Pop up the menu list; click and select the
Deleted Account
.
7.
Click OK to remove it.
Send E-mail information
1.
Click and select the E-mail to show your inbox.
2. Click inbox to enter, automatically refresh the new e-mail, click and read it.
3. Press down the menu key and pop up the menu.
4.
Click and select the
Composing
to enter into the new E-mail interface;
5. Input the E-mail address of your recipient in the recipient bar;
6. Input the theme and information contents;
7.
If you want to add the attachment, press the menu key and pop up the menu option.
8.
Click and select the
Add Attachment
.
9. Select the attachment that you will send (such as: picture and video).
10.
After clicking and selecting the
“Send”
, send out the E-mail.
5 Multi-media
5.1 Music
The included Music App organizes your music files in four views: as Artist, Albums, Songs, Play List and Playing. Select the view from the top of the app to display the contents. You can view and search music using the Artist, Song, or Album views. The Playlist function allows you to create custom playlists of songs. The Playing option shows you the queue of songs that are currently playing.
Note: If you have more than one email account configured, when composing a new message you can choose which account to send it from by clicking on the from address.
.
20
The cycle has been opened
Replay all songs
Check current play list
Played time
Music
Artist
Remaining time
Play progress bar
Page 21
Launch Music App and play the music
1. Click and select the music;
2.
Click and select the songs, click and select the Artist, Special Edition and Song List.
3. Select one of songs for play.
Add the songs onto the new play list
1. Click and select the music;
2.
Click and select the songs,
3. Press the songs that you will add onto the play list ;
4.
Pop up the music setting menu, click and select add onto the play list.
5.
Click and select the
Newly-established
;
6. Input the name of play list;
7.
Click and select the
Save
;
Delete the play list
1. Click and select the music;
2.
Click and select the songs,
3. Press the songs that you will add onto the play list ;
4.
Pop up the music setting menu, click and select Delete.
5.2 Camera
Camera functions
1.
Click and select the camera;
2. The system enters into the camera interface;
3. Click and select the Photo button and easily take the photos;
4. Set such functions as photo six, storage location, white balance and focal length
21
Special edition
Page 22
regulating;
5. After completion of taking photo, there is the display for previewed mini-map.
Video function
1. Click the video icon and convert it as video recorder mode;
2. Click and select the red video button to take video ;
3. Set such setting functions as color effect, white balance and video quality;
4. Switch 720P and 480P high-definition video recording.
5. Click and select the video recording button, end the video recording, and observe the previewed video.
5.3 HDMI
HDMI High-definition video interface
The Tablet and the high-definition television are connected by a standard HDMI
cable. This interface supports the picture with highest quality of 1080p resolution ratio.
22
Videotape function
Photo function
Page 23
4. Tablet is in the boot status.
5. The Tablet and the high-definition television are connected by a standard HDMI cable.
6. The system interface on Tablet is automatically synchronized with the high­definition TV screen.
7.
Click
Display
in the settings menu.
8.
Click Output Select to switch HDMI mode.
9.
Click
Resolution
to set the resolution ratio of HD TV.
5.4 Media Browser
The media browser application capable of automatically searching and classifying all photos and video files on the tablet and the SD card and can be used to view and edit photos and to watch videos.
View pictures
1. Click the folder containing the pictures that you want to see.
2. Select the picture you want to see and the system will automatically view in full screen mode.
3. Drag the picture to left or to right to browse the previous or the next picture.
4. Double-click the picture to zoom in or zoom out the picture.
Edit and set the picture
When view the pictures in full screen mode, presses the Menu key to show the menu
options, through which the pictures are edited and set.
Slide show
23
Tips: the picture browser is capable of automatic rotation. When the tablet is rotated, the picture will automatically adjust along with the rotation direction.
Page 24
Press the Menu key to show the menu options, and then click Play slide show, which shows the pictures in all folders.
Share
1.
Press the Menu key to show the menu options, and then click Share.
2.
The picture will be shared with your friends through the attachments in the
E-
mail
and
Bluetooth
.
Rotation
1.
Press the Menu key to show the menu options, and then click
Rotation
.
2.
Click Rotate to left or Rotate to right.
Cut
1.
Press the Menu key to show the menu options, and then click Cut.
2. Click and drag relevant area to adjust the cutter.
3. Click and drag the cutter to adjust the size.
4.
Adjust the size and click
Save
.
5.
Click Return to go back to the picture browse.
Video preview and playback
The Media Browser will scan all video files in the Tablet and SD card, and preview the
playable ones. Click on the thumbnail image to play the video files.
In the video preview interface, press the Menu key, and the function window of
editing video files appears.
24
Page 25
6 Internet
Find texts within the webpage
1. While browsing the web, press the Menu key to pop up the menu options.
2.
Click Find on web.
3. Enter the item you want to search.
4. The matched texts are highlighted in green while inputting the characters.
5.
Click left-to-right arrow before the search bar to move to the previous or the next matched word.
Manage bookmarks
Set web page bookmark
1. Go to certain web page in the browser interface.
2.
Click the icon
‘Click here to add a web page as bookmark’
in Fig. 7-2, and a
Bookmark this page
window pops up, click OK to set the page you want as
the bookmark.
Open bookmark
1. Enter the interface similar to the following picture by clicking the icon ‘Click here to enter the Manage bookmarks’ as in fig. 7-2 in the browser interface.
2. Click the bookmark that you want to open the web page.
Edit bookmark
1. Enter the interface similar to the following picture just like opening the bookmark in the browser interface.
2. Click and press down the bookmark to open the menu options.
3.
Click Edit bookmark to edit and click OK.
25
B
o
o
k
m
a
r
k
s
History
Saved pages
Enter setup menu
Page 26
Use browser window
Open a new browser window
1.
In the browser window, press the Menu key and click new window or simply click the + at the top of the address bars to open a new window.
Switch browser window
1. In the browser window, the pages you have visited appear above the address bar.
2. Click the window that you want to switch to the page you want.
Set browser
In the browser interface, press the Menu key and click '
Set'
to set the browse
7 Other Applications
7.1 Alarm clock
1. Click clock icon in the main interface.
2. Enter program interface. (Fig. 8-2)
3. Click the time periods need to set, and the alarm setup menu pops up.
4.
After setup, click '
Done'
on the corresponding clock
26
Page 27
7.2 Calculator
1.
Click
Calculator
.
2. The calculator panel will appear. Use like any handheld calculator.
7.3 File Management
Browse files
Open apps menu to locate the File browser. You can use the file browser to manage, edit and delete the files and folders, or to
create sharing and FTP server to achieve resource sharing.
Cut and copy files
1. In the file browser, press and select the file you want to operate.
2.
Pop up operating menus, including
Cut, Copy, Delete, Rename, Move to, Copy
to, Play music, Select all, Set home directory and Attributes
, etc.
3.
Click Cut or Copy file or folder.
4. Click into the folder you want to paste, and pop up menu by pressing the Menu key.
27
Page 28
5.
Click Operate and then click Paste.
Folder setup
1. In the file browser, pop up menu by pressing the Menu key.
2.
Click
Create
.
3.
Click Folder.
4. Click pop-up window and input the name of the new folder in the text box.
5.
Click OK to create the folder.
Quick search
1. In the toolbar of the file browser
2.
Click
Search icon
.
3. Pop up the search panel and enter the keywords you need to find.
4.
Click OK and the search progress bar will appear in the notification bar.
5. When the search is completed, pop up the dialog box to confirm whether to show the results.
6.
Click OK to show the search results.
8 Basic Settings
8.1 Sound and Display
Volume setting: Setting-
Sound-Volume
Screen key tone and screen lock alert tone
You can set the Tablet to emit sound when you use the soft keyboard or touch
screen as well as lock the screen.
Setting-Sound-the Screen key tone and screen lock alert tone.
Display settings
Adjust screen brightness
Click
Setting-Display-Brightness,
and drag the brightness bar to left or to right to adjust
the brightness.
Adjust screen standby time
Setting--Display,
Scroll down the screen and then click
Sleep
, Pop up screen standby
time settings and choose the standby time you want.
8.2 Security and Location
Set unlock pattern
You can set your own unlock pattern (equivalent to the password) to protect the
privacy of your Tablet.
1.
Setting- Security
--
Set screen lock--Pattern,
Pop up unlock pattern panel with 9
28
Page 29
contacts, at least four of which are connected vertically, horizontally or diagonally. Put fingers away from the screen upon completion and the system will record the pattern you set.
2.
Click
Continue,
draw the screen unlock pattern again when the prompt appears
and click OK.
Other settings
In the security settings, functions such as encryption setup, equipment management
and credential storage can be added to the tablet PC.
8.3 Storage
View storage settings
Setting-Storage, View storage space of SD card or onboard FLASH memory.
Safe uninstall of SD card
Safe removal of the SD card can effectively protect and prolong the service life of
the SD card.
Setting-Storage--Uninstall SD card.
8.4 Date and Time
Adjust the date, time and time zone
1.
Setting-Date and time settings-Select time zone- Set date, and click Settings when finish.
2.
You can choose '
Automatically determine date and time'
, which automatically
uses the time from the network, so effective network is require
8.5 Language and Input Method
Select language for the device
1.
Press the Menu key to pop up Settings menu on the Homepage-
Settings
-
29
Tips: If you do not want the unlock graphics display on the
screen while unlocking, please clear the check box of Use
visible pattern.
Page 30
Language and Input Method-Select language areas and choose the language you need.
Keyboard and input method
The default input keyboard is the Android keyboard, and you can select your
favorite keyboard and input method by installing third-party software.
8.6 About Tablet PC
View Tablet status
1.
Setting-About Tablet PC-Status Message
to view the B
attery status, Network
status, Bluetooth address, Serial number and Running time
, etc.
View system version
1. Click the application icon to enter the settings application on the Homepage.
2.
Click About Device.
3.
View
Tablet model, Android version, Firmware version
and
Build-in version
, etc.
9 Installation and Management of Program
9.1 Installation
Install third-party applications
Additional third-party Android applications are available from the Internet.
Download and copy 3rd party applications to the SD card and insert into the Tablet.
Method 1
：
1.
Click
File Manager
to find the applications need to install in the SD card.
2. Click the applications that you want to install.
3.
Pop up installation option and click
Install
.
4.
Operate after completion in accordance with the installation guide.
Method 2
：
You can download and install your favorite third-party software according to the
Method 1, and after that, you can install the software you want through this software.
9.2 Management and Uninstall
Management applications
You can enter the applications and select one to Forcibly stop, Clear data, Uninstall,
and Remove storage location.
30
Note: 3rd Party Android apps have the suffix of .apk. You can search for the third-party apps or apps marketplaces in internet search engines
Page 31
Uninstall applications
1. Click the application icon to enter the settings application on the Homepage.
2.
Click
Applications
.
3.
Click Management applications, and list all the applications installed in the system.
4.
Click
Uninstall
.
5.
Click OK to complete uninstall.
9.3 Update Approach
Update Android system applications
Download the latest application from our designated websites.
Download through the relevant forums about Android system software from the Internet.
Download through the software shops installed in the Tablet.
10 System Upgrade
10.1 System Upgrade Preparation
1. Download the system upgrade package from relevant websites to your computer.
2.
Prepare the system upgrade tool: a TF card with storage capacity ≥512MB.
10.2 Restore Factory Settings
When significant error occurs or the unlock password is forgotten, factory settings can be restored by resetting. The restore of the factory settings will lead to the lost of downloaded applications and user setups, so do remember to back up your data.
1.
Press the Menu key to pop up Settings menu on Homepage-
Settings-Backup and
Reset-Restore Factory Settings-Restore Tablet PC
.
2.
Wait for system rebooting.
11 Troubleshooting
1. Slow initial boot for Tablet
After system upgrade of Tablet, initial boot needs installation of the pre­installed software applications, and for about 2-3 minutes, it runs faster.
2. Tablet can not connect to WIFI network
Ensure WiFi is enabled on the tablet.
31
Page 32
Ensure that the wireless router providing the network services works properly.
Ensure the Tablet and the wireless router are kept with certain distance, and between which no wall or other obstacles exist.
Ensure the user name and the password are correct
3. Tablet feels hot
When multiple applications are running at the same time, or the screen is adjusted to the brightest, or it is recharging, this situation is normal.
4. System is disordered and does not work properly
Installation of some third-party applications may lead to system failure, and you can press the reset button (next to the power port) to reset the system.
5. Unable to create e-mail or register applications
Ensure your network is properly connected to the Internet.
Ensure the e-mail is set up correctly.
Ensure your system time and the local time are consistent.
Appendix 1
Specification Product Parameter
Type Details Descriptions
Basical par
ameter
Tablet
model
PLATIUM
CPU type RK3066
CPU speed 1.5GHz
DDR 1GB NAND FLASH
8GB
Operating
system version
Andriod 4.1
Network
connectio
ns
WIFI802.11b/g/n
MICRO USB switch to Ethernet Network
USB
interface
MICRO USB*1 HOST
HDMI
interface
HDMI 1.4a
battery Lithium-ion polymer battery, 3.7V/6000mAH
Power
adapter
Input: AC 100V-240V; output: DC 5V, 2A
External
memory
card
Support SDHC/SDXC
Product
Product
form
Straight plate
32
Page 33
appearanc
e
LCD 10.1inch (16:9),1280*800
Dimensions 25.1*16.4*10.8mm
Weight 370g
Application
Video Support DIVX, XVID, MP4 (MPEG, DIVX, XVID), WMV,
MOV, MKV, RMBV, MPEG, KFLV.HD2160 max
Audio Support MP3,WMA,WAV,OGG,APE,DTS,etc. (need
license)
Games Support to the third party programs
Input
method
Andriod keyboard
photos Support browsing BMP, JPG, GIF, PNG.
Office
software
Support reading and editing office files;Support
browsing PDF
33
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
