02.38.2 Operator's Manual LDK 5411 - Betacam Adapter for LDK 100 Series i
LDK 5411
Betacam Adapter for LDK 100 Series
Operator's Manual
Contents
About this Manual ................................................. ii
Introduction ...................................................... 1-1
Technology ........................................................ 1-2
Smart Card ........................................................ 1-3
Features ............................................................ 1-4
Important Precautions ........ ................................ 1-5
Assembling the Units ...................................... 2-1
Transport Case .................................................. 2-2
Lens ................................................................... 2-3
1.5-inch Viewfinder ............................................. 2-4
1.5-inch Viewfinder Accessories ........................ 2-6
Shoulder Pad ..................................................... 2-7
Zoom Controls ................................................... 2-7
Microphone ........................................................ 2-8
Tripod Adapter Plate .......................................... 2-9
Top Light .......................................................... 2-10
Local Control Panel .......................................... 2-10
Rain and Off-use Cover .................................... 2-11
Configurations ................................................. 3-1
Basic Configurations .......................................... 3-2
Location of Controls and Functions ............... 4-1
Power Supply ..................................................... 4-2
Security and Access .......................................... 4-2
Monitoring Functions .......................................... 4-3
Video Functions ................................................. 4-4
Viewfinder .......................................................... 4-6
Viewfinder Indicators .......................................... 4-7
Control Functions ...............................................4-8
Audio ................................................................. 4-9
Shooting ...........................................................5-1
Using the Camera .............................................. 5-2
Standard settings ............................................... 5-3
Colour Bar .......................................................... 5-4
Gain selection .................................................... 5-4
Optical filter selection ........................................ 5-4
Colour temperature selection .............................. 5-5
Auto-White Balance ........................................... 5-5
Shooting Screens ............................................... 5-6
Exposure Time ................................................... 5-7
Using the Menu System ................................... 6-1
Introduction ........................................................ 6-2
Systems Menu................................................... 6-3
Appendix ......................................................... A-1
System Menu Structure .................................... A-3
List of System Menu Functions ....................... A-17
List of Abbreviations ........................................ A-19
ii Operator's Manual LDK 5411 - Betacam Adapter for LDK 100 Series 02.38.2
About this Manual
This operator's manual is part of a complete
documentation set for the camera which also includes
a Technical Manual, and a Service Manual.
Purpose of this manual
The purpose of this manual is to present a detailed
description of how to operate the LDK 100 Multi-role
Camera equipped with an LDK 5411 Betacam SP
Adapter. It provides the information necessary to use
the camera with various attachments. With this manual
it is possible to discover all the operating features of
the camera and so use it to its full potential. The
manual should be used together with the camera to
explore and learn about the many sophisticated control
functions available.
Intended audience
This operator's manual can be used by inexperienced
camera operators who are new to Thomson Multimedia
Broadcast Solutions cameras as well as those who
have previous experience of operating cameras. The
guide is so designed that it can be used as an
introduction to those who are new to the camera, as a
simple procedural guide to those who wish to set-up
and start shooting immediately, and as a reference
work to be consulted as required during the long life of
the camera.
Structure of this manual
The manual is divided into six sections and an appendix:
Section 1: Introduction
This section outlines the technology used in the
LDK 100 camera. It lists the main features of the
camera and also the precautions that must be taken
into account when using it.
Section 2: Assembling the Units
Section 2 provides information on the physical
assembly of the camera and on how accessories can
be used to expand the possibilities of the camera. The
mounting of accessories and packing for transport is
also explained.
Section 3: Configurations
The LDK 100 is a multi-functional camera and this
section describes how to connect it.
Section 4: Location of Controls and Functions
This section shows the physical location of the controls
and connectors on the camera. These are grouped
according to their function so as to provide a quick
reference guide to the operation of a particular aspect
of the camera.
Section 5: Shooting
This section contains information on the practical use
of the camera using the viewfinder display and the
switches to control the camera.
Section 6: Operating the Menu System
Because the LDK 100 offers such a wide range of
functions, this section describes the structure of the
control system.
Appendix
The appendix contains a list of the menu functions
available on the camera.
Camera versions
Throughout the manual [FT] refers to functions that
are only available for Frame Transfer cameras. [IT]
refers to functions that are only available for Interline
Transfer cameras.
Introduction Operator's Manual LDK 5411 - Betacam Adapter for LDK 100 Series 1-1
This section outlines the technology used in the LDK 100 Betacam Sp camera and adapter. It lists the
main features of the camera and also the precautions that must be taken into account when using it.
Contents
Section 1
Introduction
Technology ........................................................ 1-2
Smart Card ........................................................ 1-3
Features ............................................................ 1-4
Important Precautions ......... ............................... 1-5
1-2 Operator's Manual LDK 5411 - Betacam Adapter for LDK 100 Series Introduction
Technology
The LDK 100 Betacam Sp camera combines a multirole digital camera head using 2/3-inch CCD sensors
with a Betacam Sp adapter. The result is a flexible
camera that is able to dock with a Betacam Sp
recorder.
Digital Processing
The advanced digital processing of the camera is
based on 12-bit A/D converters and more than 20-bit
internal processing. Two DSPs combine all major
camera functions in the digital domain, including knee,
gamma, contour, matrix and colour correction.
The intelligent continuous automatics facility provides
automatic control of black levels and black shading.
Each sensor provides black reference signals that are
used to monitor temperature changes. This means
that continuous automatic correction is applied without
operator intervention.
The digital contour processing uses full amplitude
video RGB signals via an extended dynamic range
contour circuit.
Colorimetry is selected by means of a variable 6-point
digital matrix or via preset matrices. Digital gamma
circuits provide a wide range of standardised gamma
curves and enable soft contrast in black scenes to be
enhanced, together with hard contrast and saturated
colour in bright scenes. The matrix and gamma
sequence is software programmable for precise colour
matching.
Film-like characteristics
The pivoting knee circuit adapts both the knee point
and the compression ratio according to the highlight
content of the picture to emulate the softly limiting Sshaped transfer characteristics of film. Digital True
Colour Knee circuitry maintains the correct hue for
compressed highlights, reproducing colours faithfully,
even overexposed skin tones.
Digital contrast circuitry provides a black stretch
function for more detail in black areas and a black
press function for improving the contrast impression
by simulating the S-curve of film.
Camera Head Versions
The camera head can be supplied in three different
versions depending on the type of sensor required.
The Frame Transfer CCD sensor version offers superior
performance and can handle highlights of up to 600%.
The 2/3-inch sensors have a high dynamic range and
high linear sensitivity over all camera lens apertures.
Frame Transfer technology ensures that there is no lag
nor smear.
The Frame Transfer DPM version uses Dynamic Pixel
Management which allows the format of the sensors to
be switched between 4:3 and 16:9 aspect ratios at the
touch of a switch without loss of horizontal or vertical
resolution. The 1000 pixels per line in both formats
ensures that there is no loss in the horizontal viewing
angle but also ensures high resolution in the red, green
and blue channels.
The Interline Transfer sensor version is a very costeffective camcorder that still provides superior digital
signal processing.
The Interline Transfer Wide (ITW) Switchable sensor
version is fitted with switchable aspect ratio IT CCD
sensors. This version enables the format of the sensors
to be switched between 4:3 and 16:9 aspect ratios at
the touch of a switch. Aspect ratio switching to 4:3
ratio is achieved by activating two horizontal side
panels.
Introduction Operator's Manual LDK 5411 - Betacam Adapter for LDK 100 Series 1-3
Smart Card
Three smart cards are delivered with each camera.
These comprise of two user cards and one owner card.
The owner's smart card has three functions:
• As an access control device to the security settings
of the camera.
• As a storage device for four scene files.
• As a storage device for two operator files.
The owner card is unique to every camera. Owner card
and camera must have the same serial number.
The user smart card has two functions:
• As a storage device for four scene files.
• As a storage device for two operator files.
Access control
The owner card is used to set the user level. There are
four user levels present in the camera. These restrict
access, in varying degrees, to the operational controls.
The Appendix indicates which functions are available
at each user level. (The owner card also gives access
to a service level; refer to the Technical Manual for
more information about this level.)
Scene files
Both the user card and the owner card allow four
different scene files to be stored on the card. The recall
and storage of a scene file is carried out via the Files
menu of the menu system. A scene file contains
information relating to the video settings.
Operator files
Both the user card and the owner card allow two
different operator files to be stored on the card. The
recall and storage of a operator file is carried out via the
Files menu of the menu system. An operator file
contains information relating to the set-up of general
camera preferences.
Note
Only use an original Thomson camera card.
Store the owner card in a safe place.
User cardOwner card
USER:
COMPANY:
DATE:
1.
2.
1.
2.
3.
4.
LDK 100
Use waterproof marker or pencil to fill in
Printed by DocuCards, The Netherlands
SCENE FILE
OPERATOR FILE
User card
USER:
COMPANY:
DATE:
1.
2.
1.
2.
3.
4.
Use waterproof marker or pencil to fill in
Printed by DocuCards, The Netherlands
SCENE FILE
OPERATOR FILE
Made in Holland
TYPE
FACT/NC
SERIAL NR.
OWNER CARD
3922 407 24981
5038
1-4 Operator's Manual LDK 5411 - Betacam Adapter for LDK 100 Series Introduction
Features
• 12-bit digital processing with unique software
programmable video path.
• Superior all digital highlight handling with a wide
dynamic.
• Unique circuitry for pivoting knee and True Colour
Knee.
• Wide range of presets and variable 6-point digital
matrix assure accurate colour matching.
• Fluorescent light matrix
• Digital gamma with unique standard preset values
and highest accuracy.
• Digital contour with an extensive range of
parameters.
• Advanced contour correction includes two automatic
skin settings.
• Intelligent Continuous Automatics black levels,
black shading and video levels - no set-up time
required.
• Digital contrast with standard black stretch and
black press.
• International standard 2/3-inch lens interface.
• 4-position standard filter wheel.
• Electronic colour filter can be used for creating a
special look (warm / cold) of a scene, or for a
smooth colour temperature control around the white
balance setting.
• Smart card for personal settings and security.
• Owner card for setting user levels, and for copying
and storing control settings.
• Protected, easy-to-operate controls and switches
with read-out of all settings.
• Viewfinder status read-out of primary camera
functions.
• Clean scan feature allows capture of computer and
other monitor pictures.
Frame Transfer version
• 3 x 2/3-inch Thomson Frame Transfer CCD sensors
ensure no vertical smear.
• Dynamic range of up to 600%.
DPM version
• 3x 2/3-inch switcheable DPM sensors ensure no
vertical smear.
• DPM Frame Transfer sensors with 1000 horizontal
pixels in 4:3 and 16:9 aspect ratios, and the same
number of vertical lines in both formats. No change
in horizontal viewing angle - so no optical wide
angle convertors required.
Interline Transfer version
• 3 x 2/3-inch Interline Transfer CCD sensors.
• Dynamic range of up to 500%.
Interline Transfer Wide Switchable version
• 3x 2/3-inch Interline Transfer Wide Switchable low
smear CCD sensors.
Options
• Zoom control handgrip makes awkward shots easy.
• Transport case.
• Smart-Touch™ gives the operator instant, onebutton access to 14 predefined shooting
characteristics.
Introduction Operator's Manual LDK 5411 - Betacam Adapter for LDK 100 Series 1-5
Warnings
If the unit is in a wet or damp environment, a rain cover
must be used to protect it for personal safety reasons
(EN60065). The rain cover supplied with the unit
protects it according to safety specification EN60529
up to level IPX2 (spraying water).
FCC Class A Statement
This equipment generates, uses, and can radiate radio
frequency energy and if not installed and used in
accordance with the instructions, may cause
interference to radio communications.
It has been tested and found to comply with the limits
for a class A computing device pursuant to Subpart J
of part 15 of FCC rules, which are designed to provide
reasonable protection against such interference when
operated in a commercial environment.
Operation of this equipment in a residential area is
likely to cause interference in which case the user at
his own expense will be required to take whatever
measures may be required to correct the interference.
Important Precautions
To ensure continual high performance from the camcorder
take the following precautions into consideration:
Avoid very damp places. If the
environment is wet or damp a rain
cover must be used to protect the
unit.
Do not subject the unit to severe
shocks or vibration.
Do not expose the camera to
extremes of temperature.
Do not leave the unit in direct
sunlight or close to heating
appliances for extended periods.
Do not allow sunlight to shine into
the viewfinder.
Avoid extreme highlights as these
can cause various kinds of optical
reflections.
1-6 Operator's Manual LDK 5411 - Betacam Adapter for LDK 100 Series Introduction
Assembling the Units Operator's Manual LDK 5411 - Betacam Adapter for LDK 100 Series 2-1
Section 2 provides information on the physical assembly of the camera and on how accessories can
be used to expand the possibilities of the camera. The mounting of accessories and packing for
transport are also explained.
Section 2
Assembling the Units
Microphone ........................................................ 2-8
Tripod Adapter Plate .......................................... 2-9
Top Light .......................................................... 2-10
Local Control Panel .......................................... 2-10
Rain and Off-use Cover .................................... 2-11
Contents
Transport Case .................................................. 2-2
Lens ................................................................... 2-3
1.5-inch Viewfinder ............................................. 2-4
1.5-inch Viewfinder Accessories ........................ 2-6
Shoulder Pad ..................................................... 2-7
Zoom Controls ................................................... 2-7
2-2 Operator's Manual LDK 5411 - Betacam Adapter for LDK 100 Series Assembling the Units
Transport Case
It is important to protect your camera against damage
when transporting it. To do this, a transport case
(LDK 5020/00) is optionally available for the camera,
lens, viewfinder and some accessories.
The camera is packed in the transport case as shown
in the figure above. This ensures that the camera is
not damaged during transport.
Turn the 1.5-inch viewfinder downwards so that it
does not protrude above the top of the camera.
Several foam packing inserts are provided to enable
different configurations of the camera to be packed
securely. These inserts are used to support the rear
of the camera. Make sure you use the correct foam
insert for your particular configuration.
L
ow
R
F
c
h
1
c
h
2
CT
L
-
T
ap
e
+
-
B
a
t
t
+
-
6
0
-
3
0
-
1
5
-
1
0
-
5
0
1
6:4
5
:
12
:
1
4
.
......
......
..... .
.
..
h
m
s
f
Top light
Tripod Plate
Battery
Additional Supplies
Packing inserts
Documentation
Assembling the Units Operator's Manual LDK 5411 - Betacam Adapter for LDK 100 Series 2-3
Lens

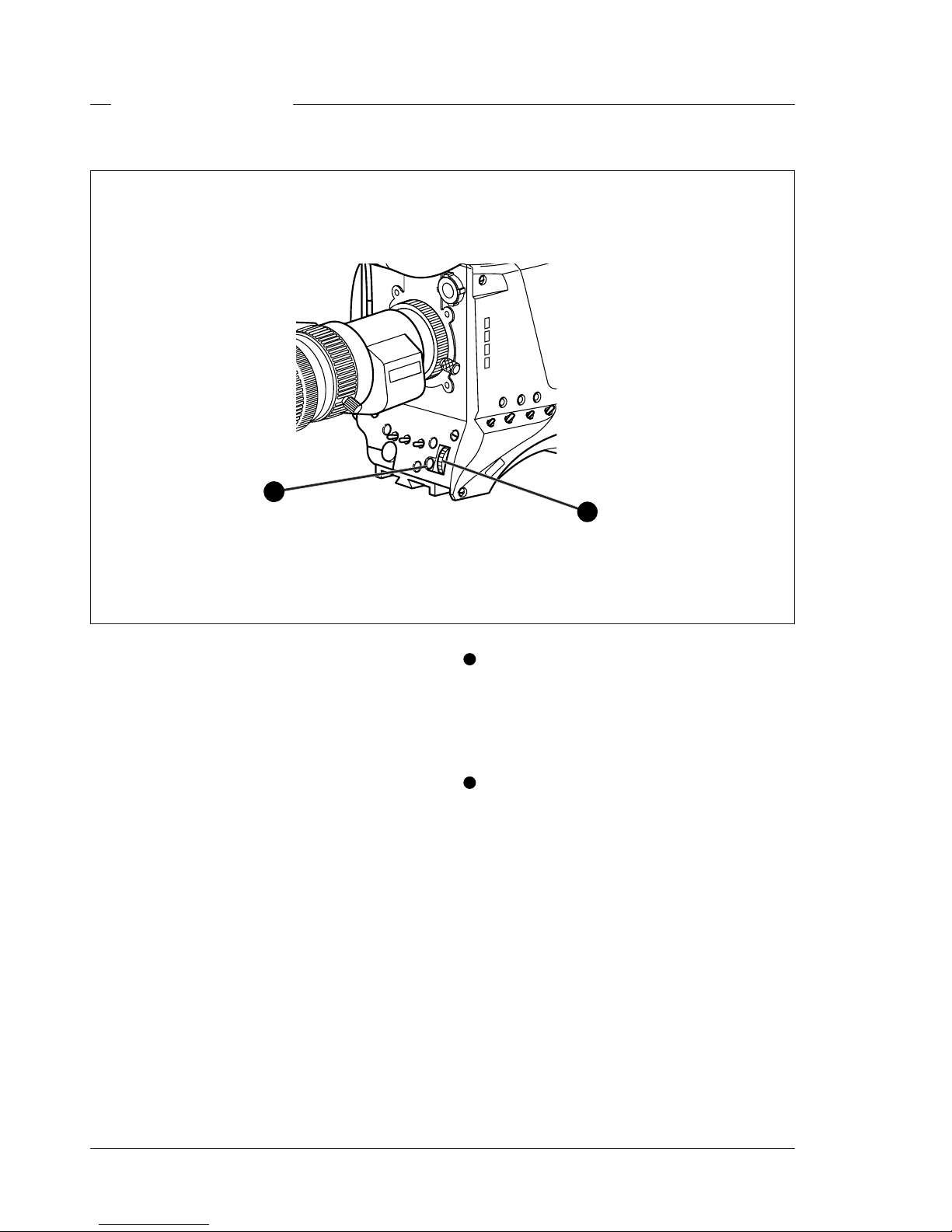

To attach a lens to the camera head proceed as
follows:
a. Ensure that the lens locking ring 1 is in the
unlocked position - turned counterclockwise.
b. Remove the dust protection cap 2.
c. Slot the lens into the lens mount 3.
d. Turn the lens locking ring 1 clockwise to lock the
lens in place.
e. Connect the lens cable to the lens connector 4 at
the right side of the camera.
f. Place the lens cable into the bottom clip at the front
of the camera and clip 5 located at the side. (Pull
and twist clip 5 to open it.)
g. Select the lens type in the Lens menu. Set the Lens
Type item to Std for a standard lens or to WA if an
wide angle lens is mounted.
h. Select the lens manufacturer in the Lens menu.
Select Ang for Angenieux, Can for Canon, Fuj1 or
Fuj2 for Fujinon or select Other for other lens
manufacturers.
Caution
Do not attach a lens weighting more than
5 kg to the camera without a support.
Note
Always mount the dust protection cap when the
lens is not connected to the camera.
When a new lens is fitted to the camera it may be
necessary to carry out some adjustments to optimize
its use, for example, back focus or shading. For more
information about these adjustments refer to Section
5 and to the lens manufacturer’s documentation.
bts1009
1
2
3
4
5
2-4 Operator's Manual LDK 5411 - Betacam Adapter for LDK 100 Series Assembling the Units
1.5-inch Viewfinder

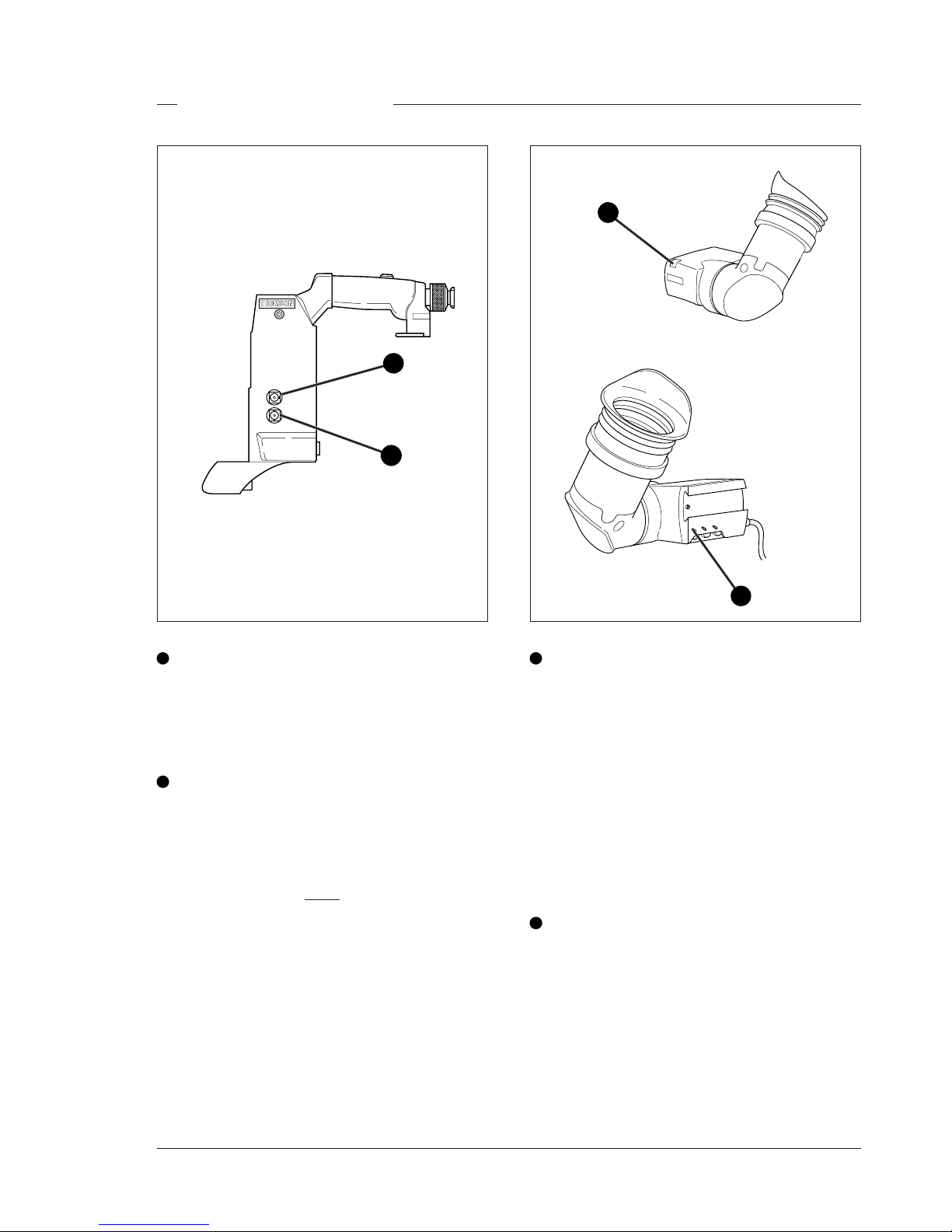

Mounting the 1.5-inch viewfinder and microphone holder
To mount the 1.5-inch viewfinder proceed as follows:
a. Loosen locking ring 1 of viewfinder support bracket
2
at the front of the camera handle. (As seen from
the rear of the camera, turning the locking ring
counterclockwise moves it towards the handle.)
b. Slide the viewfinder onto the viewfinder support
bracket.
c. Tighten the locking ring 1 by turning it clockwise
(as seen from rear) so that the viewfinder is
mounted securely to the support.
d. Connect the viewfinder cable to the viewfinder
connector socket 3 at the top right of the camera.
e. Slide the microphone holder 4 onto the viewfinder
and secure with the knurled screw 5.
Caution
Always fit the microphone holder 4 as it functions
as a safety stop for the viewfinder.
f. To improve the comfort of the skin contact when
using the viewfinder, fit the soft cover to the rubber
eyepiece.
1
2
3
4
5
Assembling the Units Operator's Manual LDK 5411 - Betacam Adapter for LDK 100 Series 2-5
Positioning the 1.5-inch viewfinder
The horizontal position of the viewfinder can be adjusted
as follows to suit your requirements:
a. Loosen the locking ring 1. (As seen from the rear
of the camera, turning the locking ring
counterclockwise moves it towards the handle.)
b. Slide the viewfinder horizontally along the rail to
the desired position.
c. Tighten the locking ring 1 by turning clockwise.
The dioptre hood and eyepiece of the viewfinder can be
rotated vertically.
The viewfinder can be positioned backwards and
forwards along the camera axis. Loosen the support
bracket round bar retaining lever 2 and slide the round
bar 3 forwards or backwards. When the desired position
is reached tighten the support bracket round bar
retaining lever 2 again.
To use the viewfinder at a distance press the button
4
below or above the eyepiece tube and swing it free of
the associated clip 5. The display can now be seen
from further away.
When wearing headphones it may be necessary to
move the viewfinder further to the left to obtain a more
comfortable viewing position. A right eye adapter 6 i s
supplied for this purpose. Mount the right eye adapter
as follows:
a. Remove the viewfinder from the support bracket.
b. Unscrew and remove the two screws 7 that hold
the bracket in place.
c. Attach the adapter 6 to the end of the sliding tube
8
so that it protrudes to the right (as seen from the
front) ensuring that the pins fit snugly into the slots.
d. Use the short screw 9 and the washers supplied
with the adapter to secure it to the left hole (as seen
from the front) of the sliding bar 8.
e. Attach the support bracket to the adapter ensuring
that the pins fit snugly (if necessary turn locking
ring to move it away from the adapter).
f. Use the long screw 10 supplied with the adapter and
a washer in the left screw hole to secure the
bracket.
g. Use one of the screws 7 and the washer removed
at the start to completely secure the bracket.
h. Remount the viewfinder.
Right eye adapter
1
2
3
4
5
6
7
8
9
10
2-6 Operator's Manual LDK 5411 - Betacam Adapter for LDK 100 Series Assembling the Units
1.5-inch Viewfinder Accessories
If you regularly use the viewfinder at a distance, for
example, when you use the camera in the hand-held
position, it is recommended that you fit the optionally
available wide angle eyepiece (LDK 5390/00).
To fit the wide angle eyepiece proceed as follows:

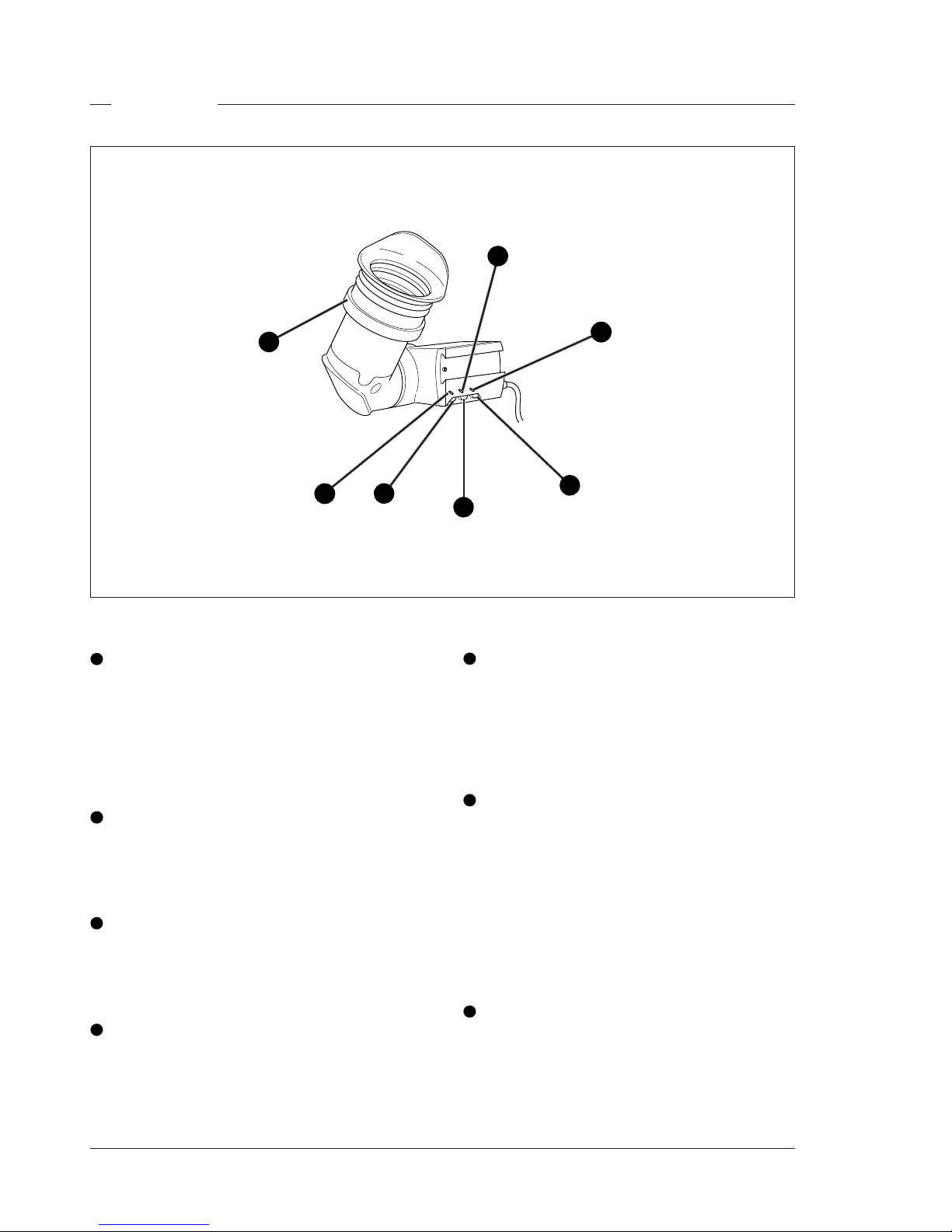

a. Hold the eyepiece 1 securely.
b. Press the button 2 below the eyepiece tube and
swing it free of the button clip 3.
c. Press the button 4 above the eyepiece tube and
remove the eyepiece.
d. Fit the wide angle eyepiece 1 to the two clips
3
ensuring that they both click into place.
Wide angle eyepiece
A left eye adapter is optionally available (LDK 5390/10)
to allow the viewfinder to be used with the left eye.
Before mounting the viewfinder onto the camera,
attach the left eye adapter 1 to the viewfinder and
secure it using the screw 2. Do not forget to mount the
microphone support bracket 3 at the end of the left
eye adapter.
Left eye adapter
1
1
2
2
3
3
4
Assembling the Units Operator's Manual LDK 5411 - Betacam Adapter for LDK 100 Series 2-7
Zoom Controls
An optional zoom control unit 1 can be mounted on the
carrying handle. The three available versions for different
types of lens are:
- LDK 6113 / 16 for Fujinon.
- LDK 6113 / 26 for Canon.
- LDK 6113 / 36 for Angenieux.
This control unit not only controls the zoom but also
has mini-button controls for the VTR start/stop function
and the VTR Ret. function. These are located under
the front of the carrying handle 2.
The instructions for mounting the zoom control unit
and the function of the controls are supplied with the
unit.
Shoulder Pad
To change the position the shoulder pad press and
hold lever 1. The shoulder pad can now be moved
backwards and forwards along the axis of the camera.
Adjust the shoulder pad when all units have been
mounted so that the best balanced position can be
obtained.
1
1
2
2-8 Operator's Manual LDK 5411 - Betacam Adapter for LDK 100 Series Assembling the Units
To attach the optional microphone (AJ MC700) to the
camera proceed as follows:
a. Open the microphone holder by unscrewing the
knurled screw 1 of the microphone support bracket
2
on the viewfinder and open.
b. Slide the microphone into the split tube until the
microphone shoulder reaches the mark 5 in the
tube.
c. Place the tube with the microphone into the holder
with the split facing upwards.
d. Ensure that the rubber support at the back of the
holder fits into the groove 6 at the back of the tube.
e. Close the holder and tighten the knurled screw at
the top.
f. Connect the microphone cable to audio connector
3
(mic) on the right side of the camera.
g. Place the microphone cable into the top clip at the
front of the camera and into clip 4 at the side of
the camera.(Pull and twist clip 4 to open it.)
Other microphones with a diameter of 21mm can also
be used, however, ensure that the phantom power
and the sensitivity of the input that match that type of
microphone are correctly selected in the camera
systems menu. Refer to Section 6 for more information
on selecting the audio inputs and controlling the
audio level.
Note:
• When longer microphones are used, it is not
necessary to place them in the split tube.
• For optimum operation, the microphone should be
mounted as straight as possible.
• Don’t allow the wind hood to touch the holder 7 as
this reduces the damping effect.
• By placing the split facing upwards, the microphone
cable does not touch the holder thus avoiding
mechanical pick-up.
Microphone
1
2
3
4
5
6
7
Assembling the Units Operator's Manual LDK 5411 - Betacam Adapter for LDK 100 Series 2-9
Tripod Adapter Plate
To mount the camera on a tripod, the tripod plate
(SHAN-TM700 is delivered as standard) must first be
attached to the tripod.
Follow the tripod manufacturer’s instructions to mount
the wedge plate supplied with the tripod and the tripod
adapter plate firmly onto the tripod.
To attach the camera to the tripod adapter plate
proceed as follows:
a. Slide the camera horizontally along the tripod
adapter plate from back to front ensuring that the
front of the camera engages the V-slot 1 at the
front of the tripod adapter plate, and that the slot on
the bottom of the camera engages the stud 2 at the
rear of the tripod adapter plate.
b. Firmly push the camera forward until it clicks into
place.
Caution
Failure to attach the camera to the tripod
adapter plate in the correct manner could
result in an unsecured camera . Ensure that
the rear stud 2 is engaged and that the
camera clicks into place.
To remove the camera from the tripod proceed as
follows:
a Press the red locking lever 3 against release
handle 4 on the tripod adapter plate and hold.
b. Ensure that you have a firm hold of the camera .
c. Pull the release handle 4 forward.
d. Move the camera backwards and up. The camera
is now free from the tripod adapter plate.
When a 5-inch viewfinder is used with the camera it is
recommended that the optionally available tripod
adapter plate LDK 5030 be used. This tripod plate has
an extra locking lever 5 at the rear which provides an
additional clamp for the rear stud and so gives extra
stability to the mount.
When the camera is mounted on the tripod tighten this
locking lever 5 to ensure that the stud 2 at the rear
of the plate is locked firmly in place.
When removing the camera first open the locking
lever 5 to free the rear stud 2.
1
2
3
4
5
2-10 Operator's Manual LDK 5411 - Betacam Adapter for LDK 100 Series Assembling the Units
Top Light
To mount a top light 1 onto the camera, proceed as
follows:
a. Screw the top light 1 into either the WW1/4”-20
screw hole 2 located on the carrying handle or the
screw hole 2 on the top of the microphone holder.
b. Power the top light according to the instructions
delivered with the light.
Local Control Panel
The optional Local Control Panel, the LCP100 for the
LDK 100 series (LDK5201/00), allows the operator to
control the camera remotely. The LCP 100 controls
the Iris, the Master Black, and black and white painting.
The LCP 100 menu is used to access the major
camera settings. The LCP 100 menu settings and the
associated values are displayed on the 16 character
LCD.
Refer to the User’s Guide of the LCP 100 for more
information on connecting the camera as well as
information on the accessories and functions of the
Local Control Panel.
LCP 100
local control panel
VTR on/off
Operate
VTR start/stop
Gain
Black
Function
!
Batt
Tape
nd/re
1
1
2
2
Assembling the Units Operator's Manual LDK 5411 - Betacam Adapter for LDK 100 Series 2-11
The rain and off-use cover must be used when the
camera system is in a wet or damp environment. This
protection is necessary for personal safety reasons.
The cover can also be used indoors to protect the
camera when it is used in dusty environments. It can
also be useful if the camera is being put into storage.
For more information on how to put on the cover refer
to the User's Guide which is supplied with it.
Rain and Off-use Cover
L
ow
R
F c
h
1
ch
2
C
T
L
Low RF ch1 ch2 CTL
-
T
a
pe
+
- B
att
+
- Tape + - Bat
t +
-
6
0
-
3
0
-
1
5
-
1
0
-
5
0
-60 -30 -15 -10 -5 0
16:45:12:14
16:45:12:14
....... ...... ..... ....
....... ...... ..... ....
h
m
s
f
Loading...
