02.35.4 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 1-1
LDK 5310/00
5-inch SDTV Viewfinder
User's Guide
Contents
Safety Instructions ............................................ 1-2
About This Manual ............................................. 1-4
Operating Instructions ........................................ 1-5
Connections....................................................... 1-7
Specifications ....................................................1-7
Electrical Drawings .......................................... 2-1
On Air Board ...................................................... 2-2
Video Pre Amp /IIC Interface Board .................. 2-4

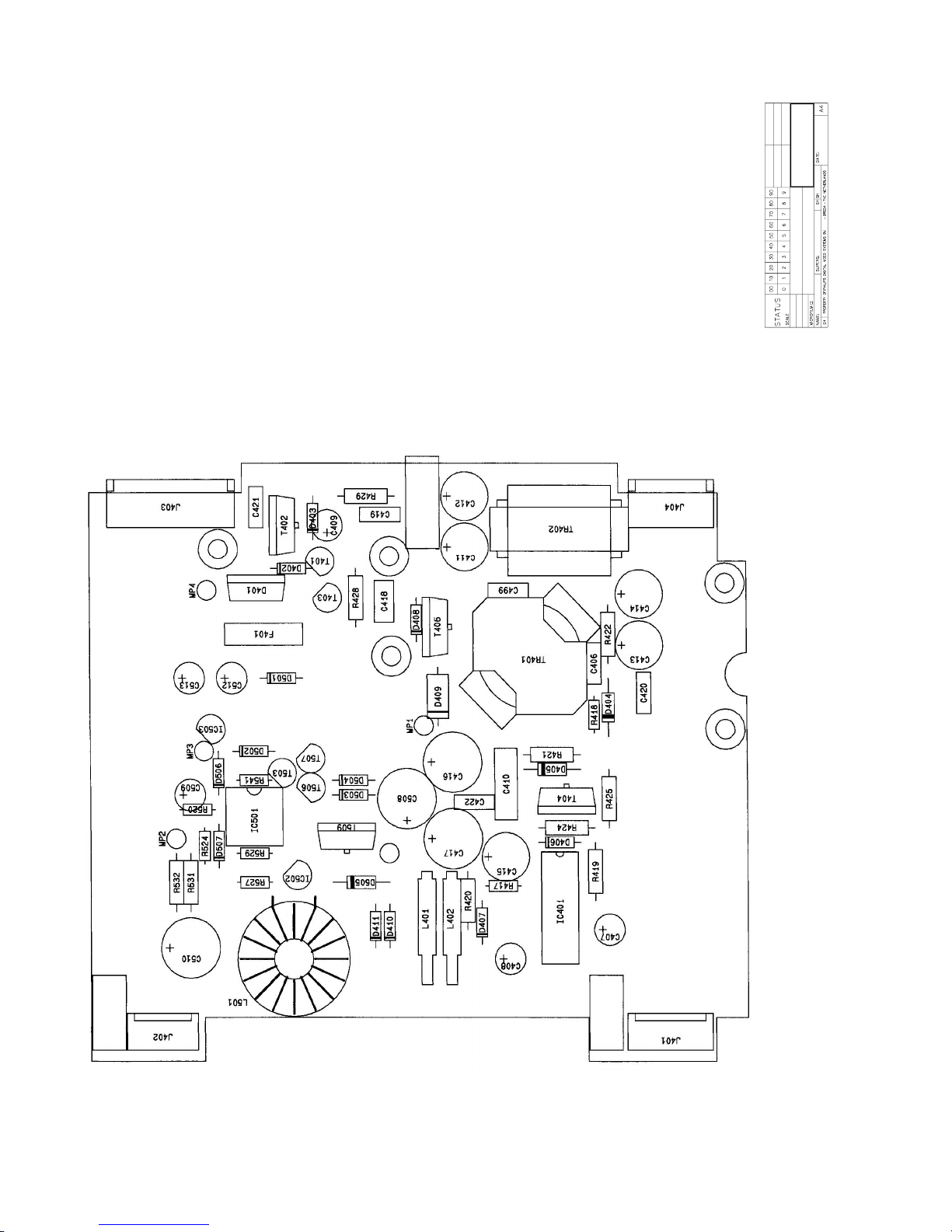

SMPS DC-DC Converter Board ......................... 2-8
CRT Board ....................................................... 2-12
Deflection Board .............................................. 2-14

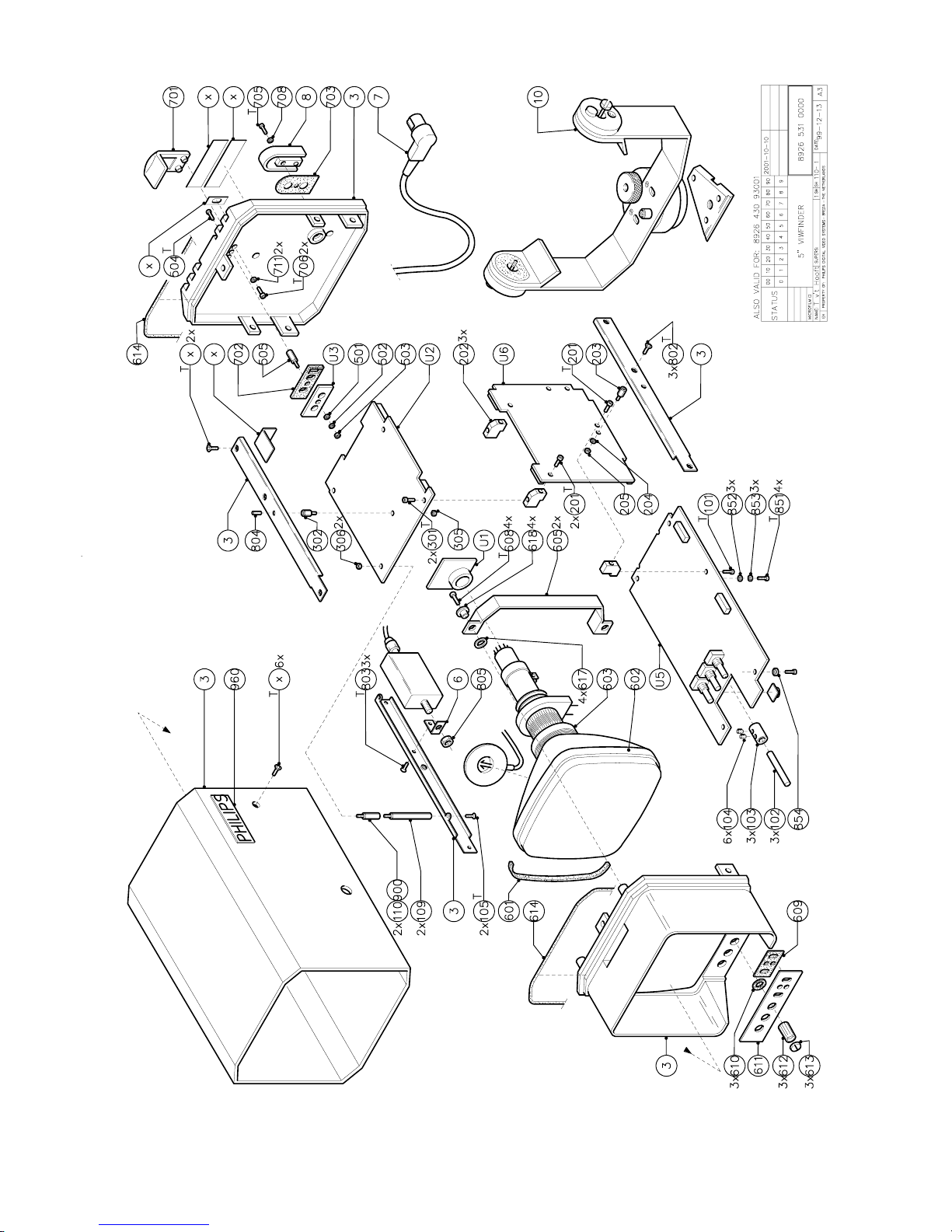

Mechanical Exploded Views ............................ 3-1

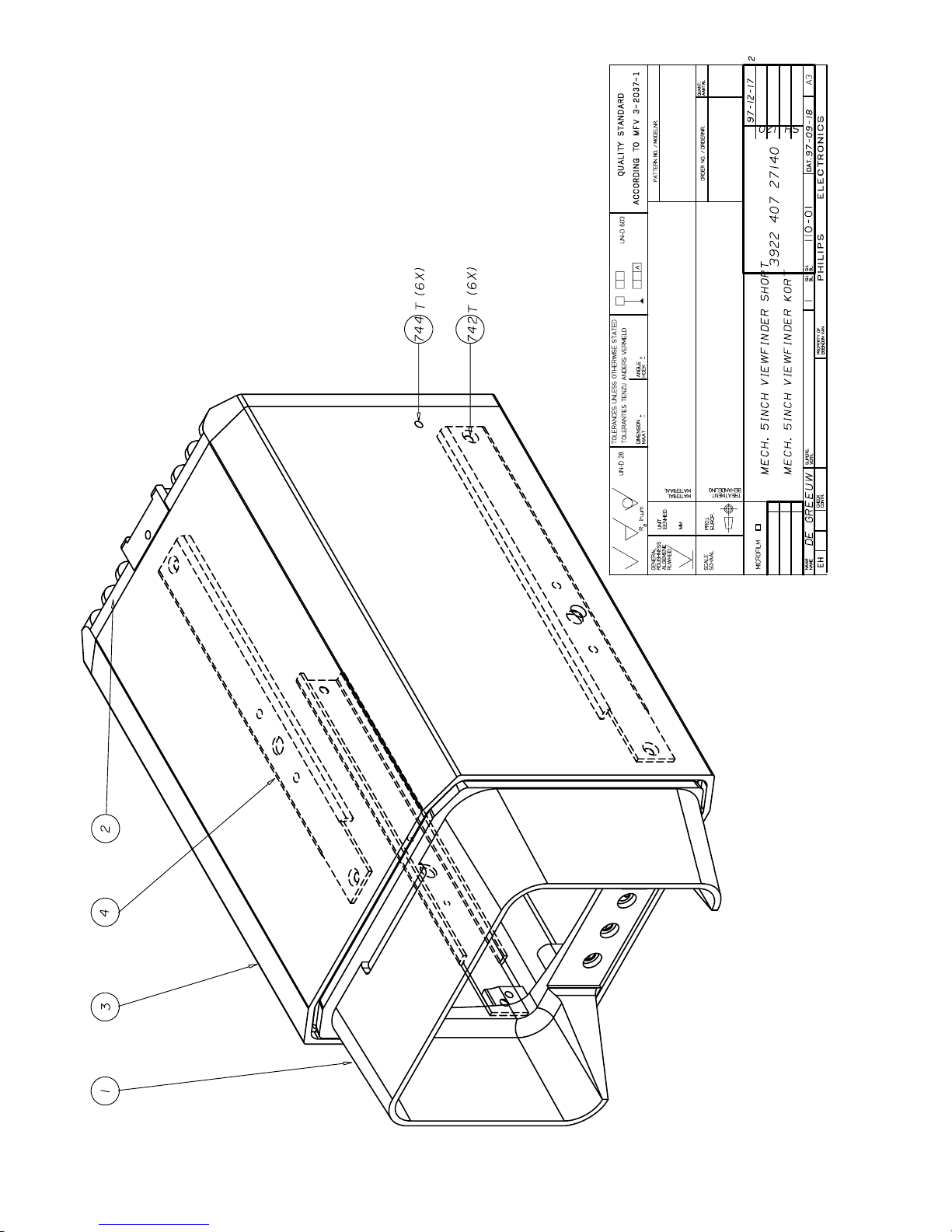

Mech. 5-inch Viewfinder short............................ 3-2

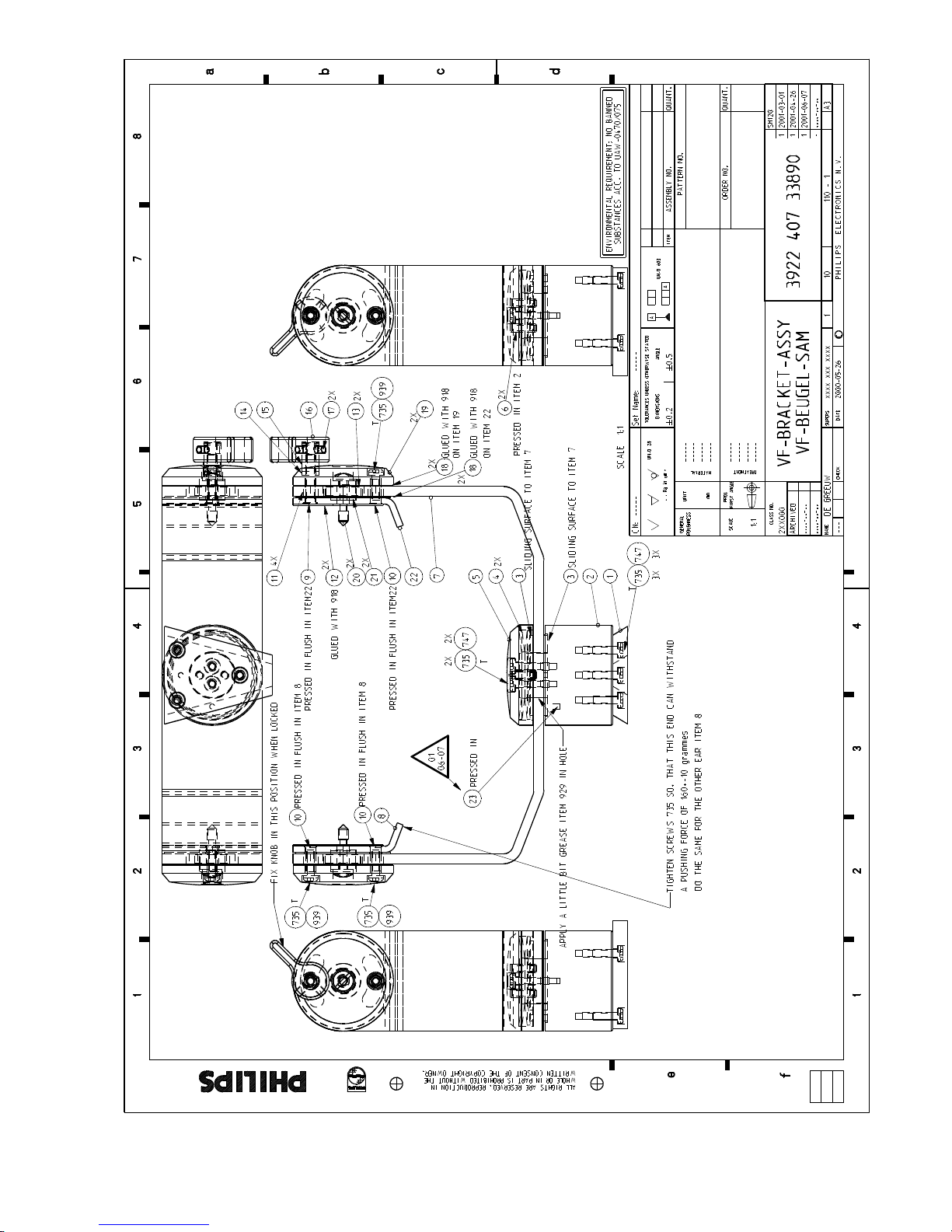

VF-Bracket-ASSY ............................................. 3-3
5-inch Viewfinder ............................................... 3-4
Parts Lists ........................................................ 4-1
Page 4
1-2 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 02.35.4
Safety Instructions
Safety Summary
This informaton is intended as a guide for trained and qualified personnel who are aware of the dangers involved in handling potentially hazardous electrical/ electronic equipment. It is not intended to contain a complete list of all safety precautions which should be observed by personnel in using this or other electronic equipment.
The installation, maintenance and service of this equipment involves risks both to personnel and equipment and must be performed only by qualified personnel exercising due care.
Personnel engaged in the installation, operation, maintenance or servicing of this equipment are urged to become familiar with First Aid theory and practises.
During installation and operation of this equipment, local building safety and fire protection standards must be observed.
Before connecting the equipment to the power supply of the installation, the proper functioning of the protective earth lead of the installation needs to be verified.
Whenever it is likely that safe operation is impaired, the apparatus must be made inoperative and secured against any unintended operation. The appropriate servicing authority must then be informed. For example, safety is likely to be impaired if the apparatus fails to perform the intended function or shows visible damage.
This product has been designed and tested according to EN60065.
Cautions and Warnings
When performing service, be sure to read and comply with the warning and caution notices appearing in the manuals. Warnings indicate danger that requires correct procedures or practices to prevent death or injury to personnel. Cautions indicate procedures or practices that should be followed to prevent damage or destruction to equipment or property.
WARNING
THE CURRENT AND VOLTAGES PRESENT IN THIS
EQUIPMENT ARE DANGEROUS. ALL PERSONNEL
MUST AT ALL TIMES FOLLOW THE SAFETY
REGULATIONS.
ALWAYS DISCONNECT POWER BEFORE REMOVING
COVERS OR PANELS.
ALWAYS DISCHARGE HIGH VOLTAGE POINTS
BEFORE SERVICING.
NEVER MAKE INTERNAL ADJUSTMENTS, PERFORM
MAINTENANCE OR SERVICE WHEN ALONE OR WHEN
FATIGUED.
IN CASE OF AN EMERGENCY ENSURE THAT THE
POWER IS DISCONNECTED.
ANY INTERRUPTION OF THE PROTECTION
CONDUCTOR INSIDE OR OUTSIDE THE APPARATUS,
OR DISCONNECTION OF THE PROTECTIVE EARTH
TERMINAL, IS LIKELY TO MAKE THE APPARATUS
DANGEROUS. INTENTIONAL INTERRUPTION IS
PROHIBITED.
FOR SAFETY REASONS THE CPU MUST BE MOUNTED
IN A 19-inch RACK WHICH HAS SAFETY COVERS
ACCORDING TO IEC65.
WHEN TWO CPUs ARE MOUNTED ABOVE EACH
OTHER THE MINIMUM DISTANCE BETWEEN THEM
MUST BE 50MM OR THE RACK MUST BE FORCE-AIR
COOLED.
USE ONLY FUSES OF THE TYPE AND RATING
SPECIFIED.
CAUTION
To prevent risk of overheating, ventilate the
product correctly.
Connect the product only to a power source with
the specified voltage rating.
Only connect a Triax cable from the LDK 6
camera family to an LDK 6 CPU. Never connect it
to any other base station.
Never connect the Triax cable from a camera to a
CPU of a different family; never connect the LDK
family to the TTV family.
Do not allow system ground currents to exceed
1.5A in the outer shield of the triax cable or 0.2A in other cable shields.
It is strickly prohibited to short circuit the inner
and outer shields of a triax cable used to connect
a camera to a base station.
Page 5
02.35.4 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 1-3
Symbol Colour Explanation
Red High voltage terminal at which
a voltage, with respect to an other terminal, exists or may be adjusted to 1000V or more.
Yellow/Black Live part.
Yellow/Black This marking indicates that the
operator must refer to an explanation in the Instruction Manual, or that a specific component must be replaced by the component specified in the documentation for safety reasons.
White/Black Protective earth (ground)
terminal.
Cathode ray tubes
Components marked on the circuit diagram are critical for safety and include those specified to comply with X-ray emission standards for units using cathode ray tubes and those specified for compliance with various regulations regarding spurious radiation emission.
When servicing units that use cathode ray tubes (CRTs), the cathode ray tubes themselves, the high voltage circuits and related circuits are specifically chosen so that they comply with recognized codes pertaining to X-ray emission.
Consequently, when servicing, replace the cathode ray tubes and other parts with specified parts only. Do not attempt to modify these circuits as any unauthorized modification can increase the high voltage value and cause X-ray emission from the cathode ray tube.
Handle the cathode ray tube only when wearing shatterproof goggles and after discharging the high voltage completely.
Earthing
The rear of a CPU has two separate screw terminals for protective earth (PE) and video earth (VE).
These are normally connected by a metal strap. The protective earth terminal is internally connected to the protective earth conductor of the power cable. If required, the central earth connection wire of the studio can be connected to terminal PE. In normal circumstances the connection between the protective earth and the video earth should not be broken. The metal strap may be removed only if the studio (or OB van) is equipped with separate protective and video earth systems. Under these circumstances the video earth terminal must be connected to the central functional earth potential (video earth) of the studio. This earth potential should have functional protective and noiseless earth (FPE) qualities as stated in the VDE regulation 0800/part2. A low impedance interconnection of both earth conductors must be provided at the central studio earthing point.
WARNING
THE UNIT MUST ALWAYS BE CONNECTED TO
PROTECTIVE EARTH.
Mains Lead Wiring for UK Users
The wires in the mains lead are coloured in accordance with the following code:
GREEN AND YELLOW - EARTH BLUE - NEUTRAL
BROWN - LIVE As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:
• The wire coloured GREEN AND YELLOW must be
connected to the terminal on the plug marked with the letter E or by the safety earth symbol or coloured GREEN or GREEN AND YELLOW.
• The wire coloured BROWN must be connected to the
terminal marked with the letter L or coloured RED.
• The wire coloured BLUE must be connected to the
terminal marked with the letter N or coloured BLACK. Ensure that your equipment is connected correctly - if you are in any doubt consult a qualified electrician.
VE
PE
Metal strap
Page 6
1-4 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 02.35.4
About This Manual
Purpose of this manual
The purpose of this manual is to present a global description of how to operate the viewfinder. Consult the Operator's manual of your camera as required during and after the installation process. This manual is an integral part of the service policy. It ensures that you will be able to install your viewfinder to meet the requirements of your environment. The manual provides first line service information so that suitably qualified service personnel can detect and repair faults, normally by module replacement. Because of the complexity of some of the components, second line service can only be carried out at the specially equipped service centres and information concerning second line maintenance is not supplied in this manual.
Intended audience
The manual is intended as a guide to those with a working knowledge of camera systems and installation techniques. The first line detection and repair of faults requires a general knowledge of test and measurement techniques. The guide is so designed that it can be used as wel to the viewfinder, as wel a simple procedural guide to those who wish to setup and start shooting immediately, and as a reference work to be consulted as required during the long life of the viewfinder.
Service policy
The LDK5310 is a sophisticated viewfinder containing state-of-the-art electronic components which are designed to provide long-life operation without the need for maintenance. With this in mind, the service policy of Thomson Multimedia Broadcast Solutions endeavours to ensure that help will be quickly on hand in the unlikely event of anything going wrong. The guiding principles of the Thomson Multimedia Broadcast Solutions first line maintenance philosophy are speed and cost effectiveness. First line maintenance is dedicated to keeping your viewfinder operational, despite a fault, by replacement boards and the replacement of minor mechanical parts by the user.
CAUTION
Without additional protection the LDK5310 is
protected according to safety specification
EN60529 up to level IPX3 (spraying water).
Exposure to splashing or jetting water can
result in harmful effects.
Packing/Unpacking
Inspect the shipping container for evidence of damage immediately after receipt. If the shipping container or cushioning material is damaged, it should be kept until the contents of the shipment have been checked for completeness and the units have been checked mechanically and electrically.
The contents of the shipment should be checked against the packing list. If the contents are incomplete, if there is mechanical damage or defect, or if the units do not perform correctly when unpacked, notify your Thomson Multimedia Broadcast Solutions sales or service centre within eight days. If the shipping container shows signs of damage or stress, notify the carrier as well.
If a unit is being returned to Thomson Multimedia Broadcast Solutions for servicing, try to use the containers and materials of the original packaging. Attach a tag indicating the type of service required, return address, model number, full serial number and the return number which will be supplied by your Thomson Multimedia Broadcast Solutions service centre.
If the original packing can no longer be used, the following general instructions should be used for repacking with commercially available materials: a. Wrap unit in heavy paper or plastic. b. Use strong shipping container. c. Use a layer of shock-absorbing material around all
sides of the unit to provide firm cushioning and
prevent movement inside container. d. Seal shipping container securely. e. Mark shipping container FRAGILE to ensure careful
handling.
Page 7
02.35.4 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 1-5
Operating Instructions
The 5 inch viewfinder LDK 5310/00 is intended for use with LDK100 series cameras.
Attaching the 5" viewfinder to the camera
Caution
Before connecting, make sure that the camera is
switched off.
a. Slide the top mount into the slot on the camera,
until you hear it click into place.
b. Connect the viewfinder cable to the viewfinder
connector on the camera.
c. Fasten the cable with the two cable clamps on the
camera.
To release the viewfinder push the release lever in and slide the viewfinder out of the slot.
Adjusting the 5" viewfinder position
You can rotate the viewfinder freely. To tilt the viewfinder:
a. Loosen the tilt locking knob by turning it
counterclockwise. b. Tilt the viewfinder to the desired position. c. Secure the tilt locking knob by turning it clockwise.
Page 8
1-6 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 02.35.4
ON
DIM
OFF
Brightness Contrast Peaking Optional Power
Onair
Iso
MomOnOn
Off
Location of Controls and Functions
1
Front on-air indicator switch
Switches the front on-air indicator on and off.
2 Front on-air indicator
Lights to indicate that the camera is on air.
3
Tilt locking knob
Locks the tilting mechanism of the viewfinder.
4
Power switch
Switches the viewfinder on and off.
5
On-air indicator
Lights to indicate that the camera is on air.
ISO indicator
Lights to indicate that the camera is selected and ready to be switched on-air.
6 Optional switch
This switch is mounted on the viewfinder to allow future features to be incorporated.
7
Peaking control
Adjusts the peaking (crisp) on and off.
8
Contrast control
Adjusts the contrast of the viewfinder display.
9 Brightness control
Adjusts the brightness of the viewfinder display.
10
Camera number attachment slots
Attach a camera number to these slots.
1
2
3
45
6
789
10
Page 9
02.35.4 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 1-7
Connections Specifications
Dimensions
Length x width x height: 255 x 126 x 135 (without sunhood) Weight approx. 3.1 kg including tilt mechanism
Systems
625 lines, 50 Hz, CCIR/PAL 525 lines. 60 Hz, EIA/NTSC automatic control of vertical picture amplitude, automatic aspect ratio control 16:9 and 4:3,
Power Supply
-50 Vdc to -100 Vdc or +10.5 to 17 Vdc (automatically selected if -80V
not available)
Power Consumption
Max: 12 W at -80 Vdc Max: 10 W at +10.5 to 17 Vdc
CRT
5" CRT High Resolution type
Linearity and geometry
Distorsion: 1% within a circle with a diameter of picture height, rest 1.5%
Resolution (horizontal)
Min. 650 lines in centre of screen at 400 cd/m
2
Frequency response
5 MHz within -1 dB to +2 dB with resp. to
0.1 MHz 10 MHz - 3 dB
Peaking
0-12dB at approx. 3.5MHz
Black level stability
Change of black level 1.5% with respect to white level
Environmental conditions:
Operating temp.: -20 to +45 °C Non-operating temp.: -25 to +70 °C Operating humidity: 93%
Viewfinder Connector, frontview
Hirose 20-pin female, shielded cable
1
6
5
10
11
15
20
16
1. -80V
2. n.c.
3. GND
4. INTN-D
5. n.c.
6. n.c.
7. vf video ret
8. SDA-D
9. SCL-D
10. n.c.
11. GND
12. vf video
13. n.c.
14. n.c.
15. GND
16. +batt
17. +batt
18. n.c.
19. n.c.
20. shield
Note: shield cable to pin marked shield
Page 10
1-8 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 02.35.4
Page 11
Electrical Drawings User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 2-1
Section 2
Electrical Drawings
On Air Board ...................................................... 2-2
Video Pre Amp /IIC Interface Board ................... 2-4
SMPS DC-DC Converter Board .......................... 2-8
Contents
CRT Board ....................................................... 2-12
Deflection Board .............................................. 2-14
Page 12

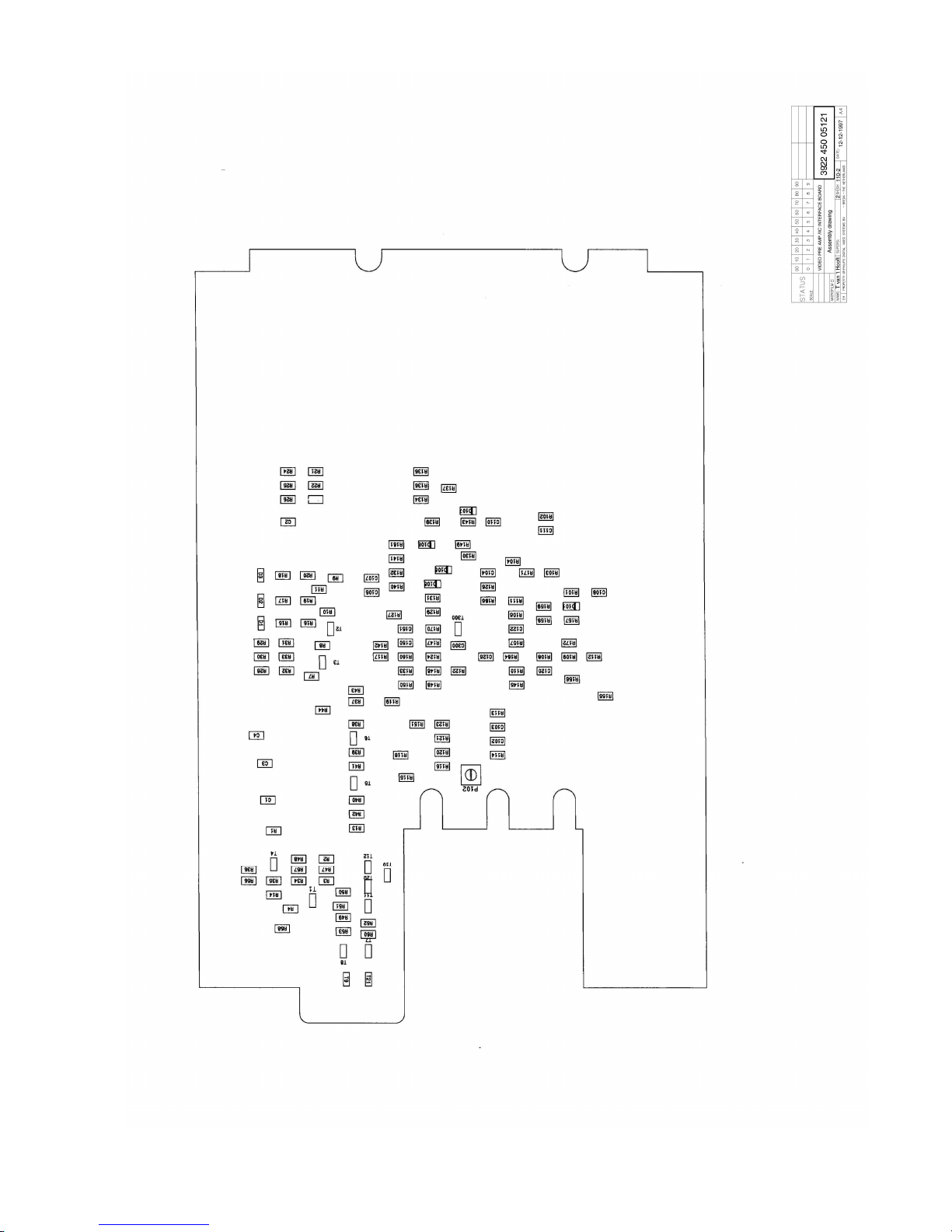

2-2 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Electrical Drawings
On Air Board
Assembly
1 110-1
3922 450 04501
24-03-1999
PCB 701321-1
Page 13
Electrical Drawings User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 2-3
On Air Board

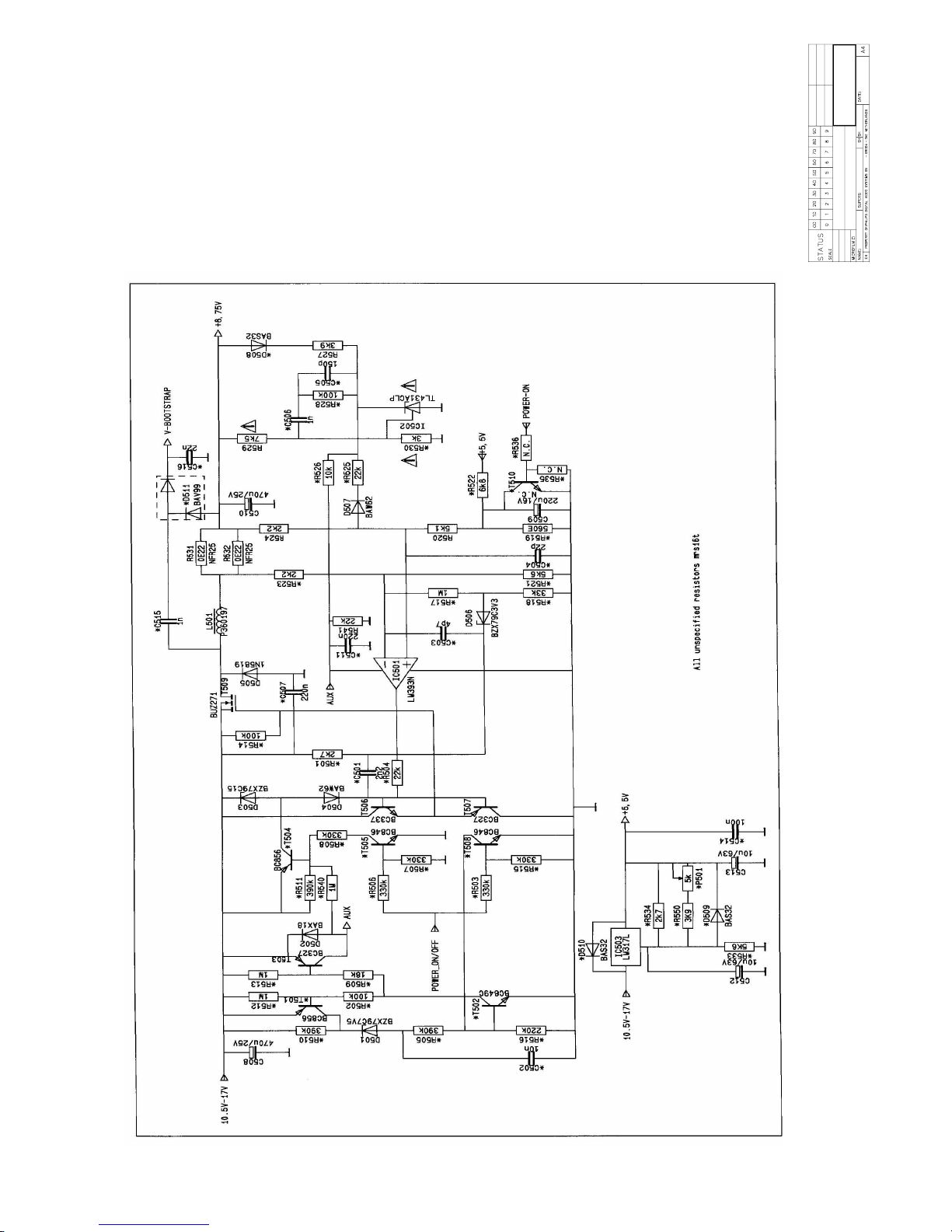

Circuit diagram
1 130-1
3922 450 04501
24-03-1999
PCB 701321-1
Page 14

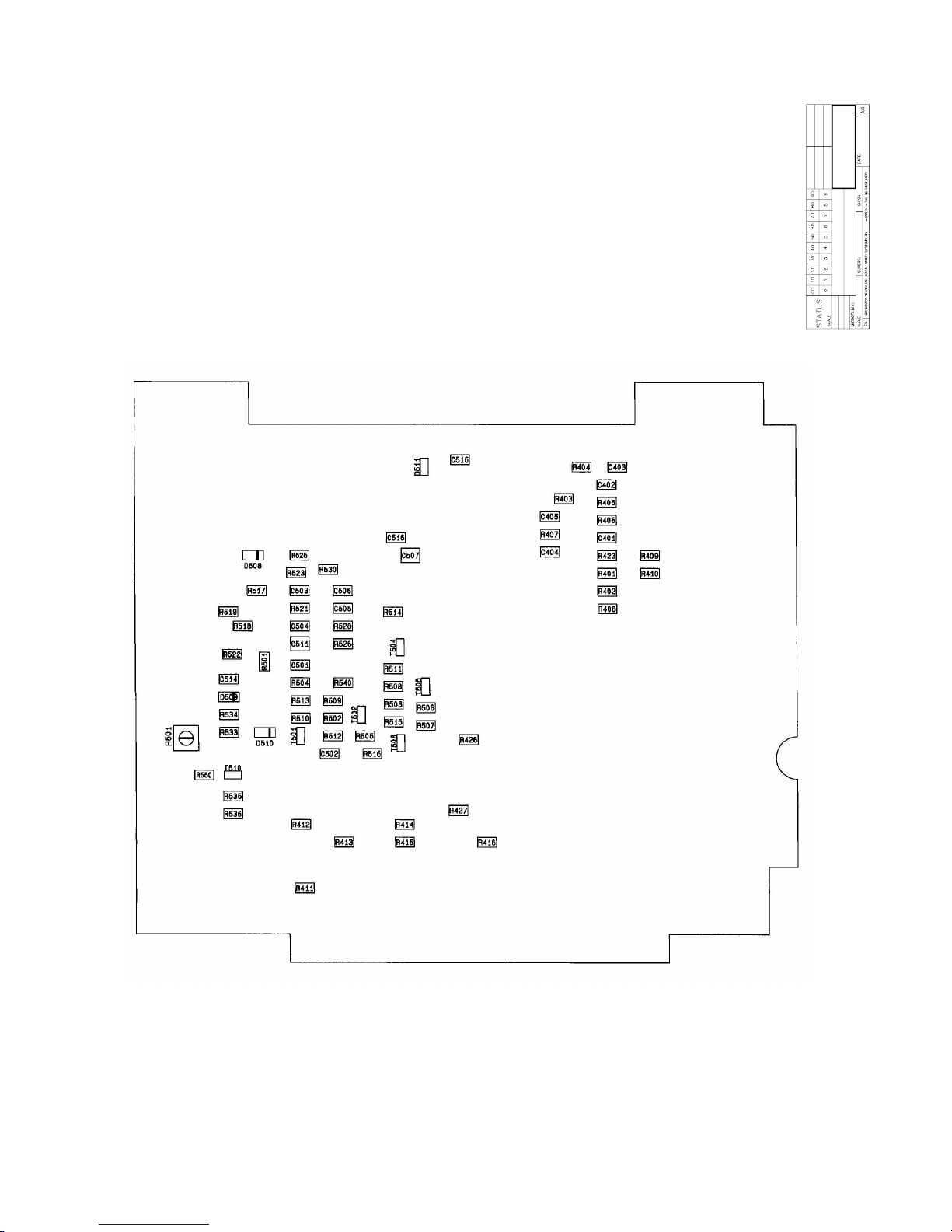

2-4 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Electrical Drawings
12-12-1997
2
110-1
T van 't Hooft
3922 450 05121
VIDEO PRE AMP /IIC INTERFACE BOARD

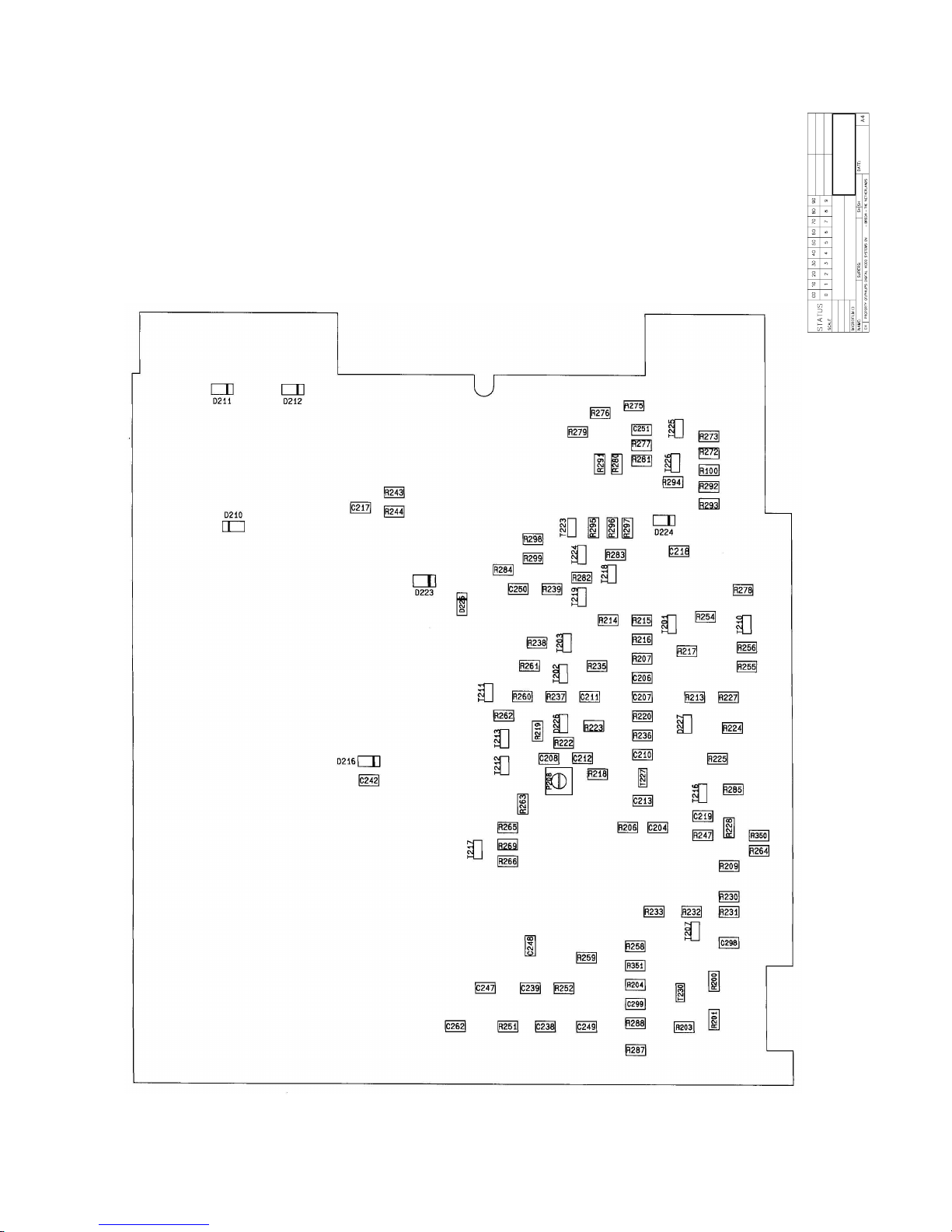

Assembly drawing
Page 15
Electrical Drawings User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 2-5
Page 16

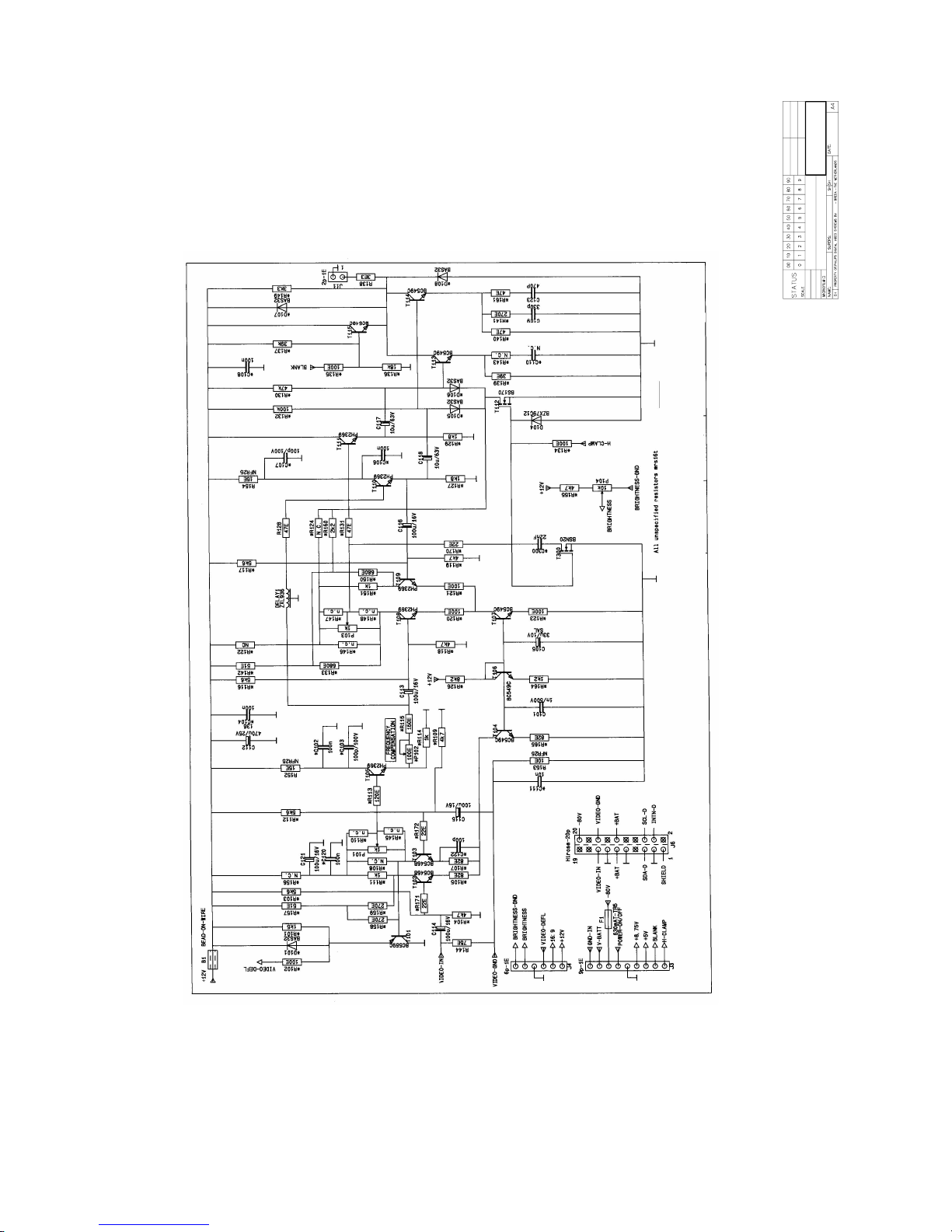

2-6 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Electrical Drawings
12-12-1997
2
130-1
T van 't Hooft
3922 450 05121
VIDEO PRE AMP /IIC INTERFACE BOARD
Circuit Diagram
Page 17
Electrical Drawings User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 2-7
12-12-1997
2
130-2
T van 't Hooft
3922 450 05121

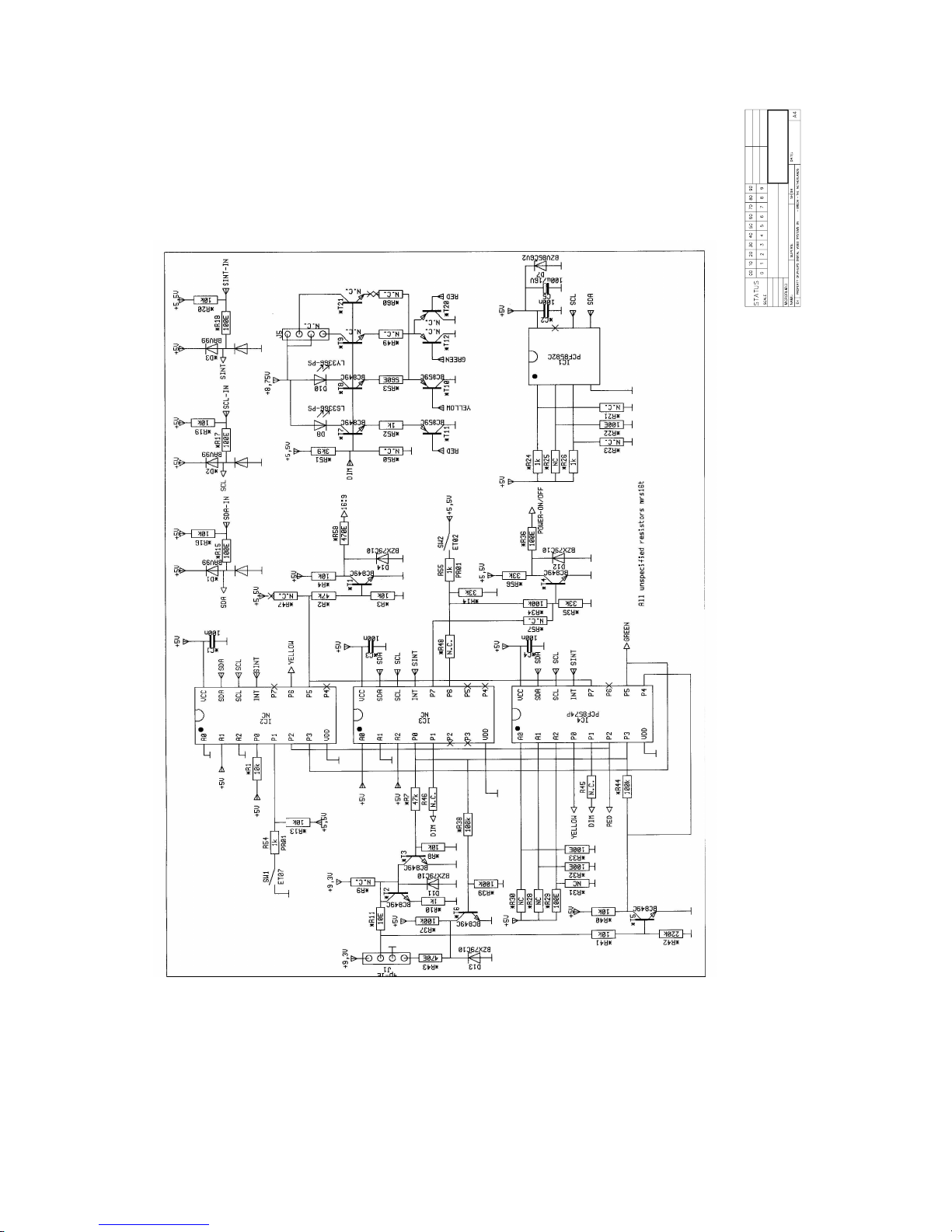

VIDEO PRE AMP /IIC INTERFACE BOARD
Circuit Diagram
Page 18
2-8 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Electrical Drawings
17-11-1998
2
110-1
T van 't Hooft
3922 450 05101
SMPS / DC-DC CONVERTER BOARD

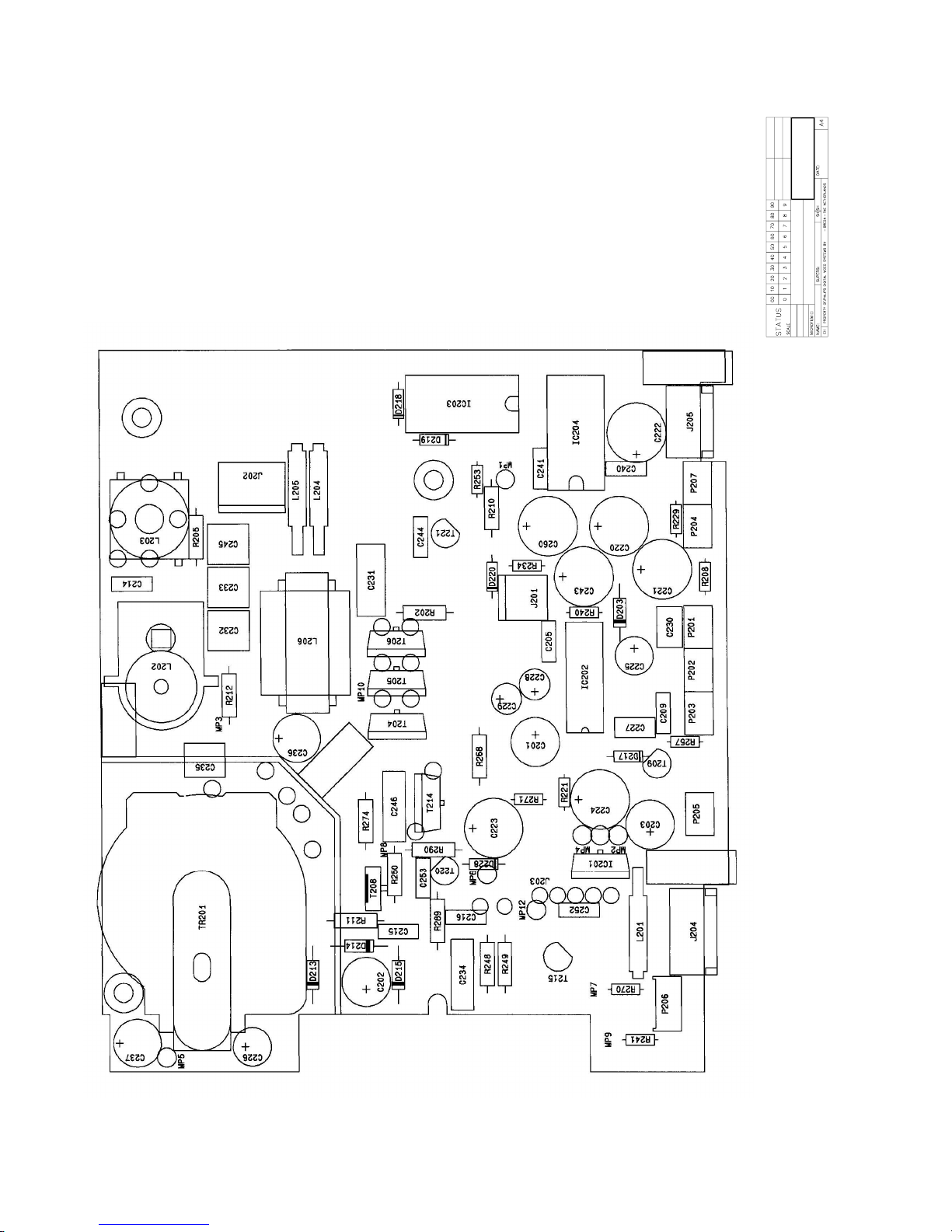

Assembly drawing
Page 19
Electrical Drawings User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 2-9
17-11-1998
2
110-2

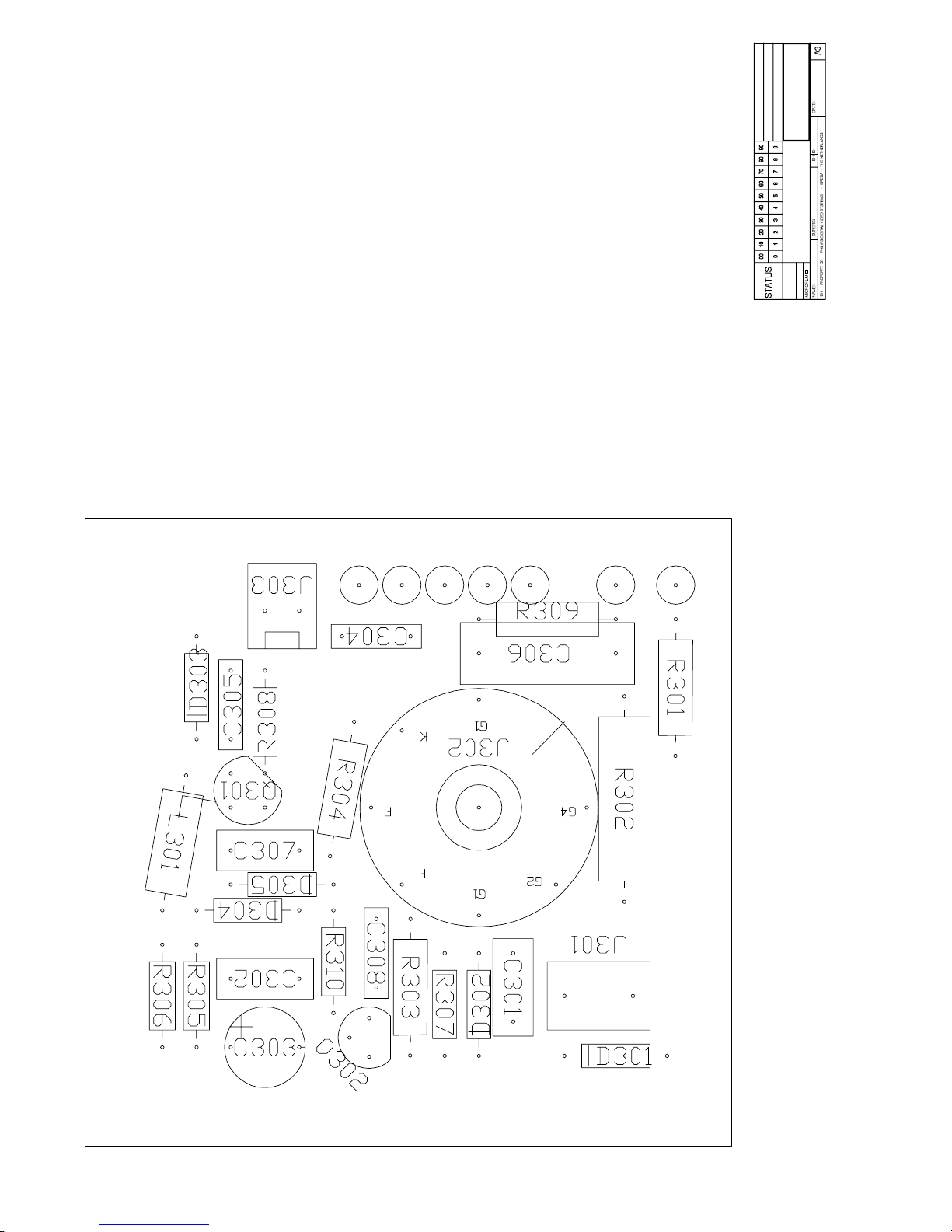

T van 't Hooft
3922 450 05101
SMPS / DC-DC CONVERTER BOARD
Assembly drawing
Page 20
2-10 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Electrical Drawings
17-11-1998
2
130-1
T van 't Hooft
3922 450 05101
SMPS / DC-DC CONVERTER BOARD

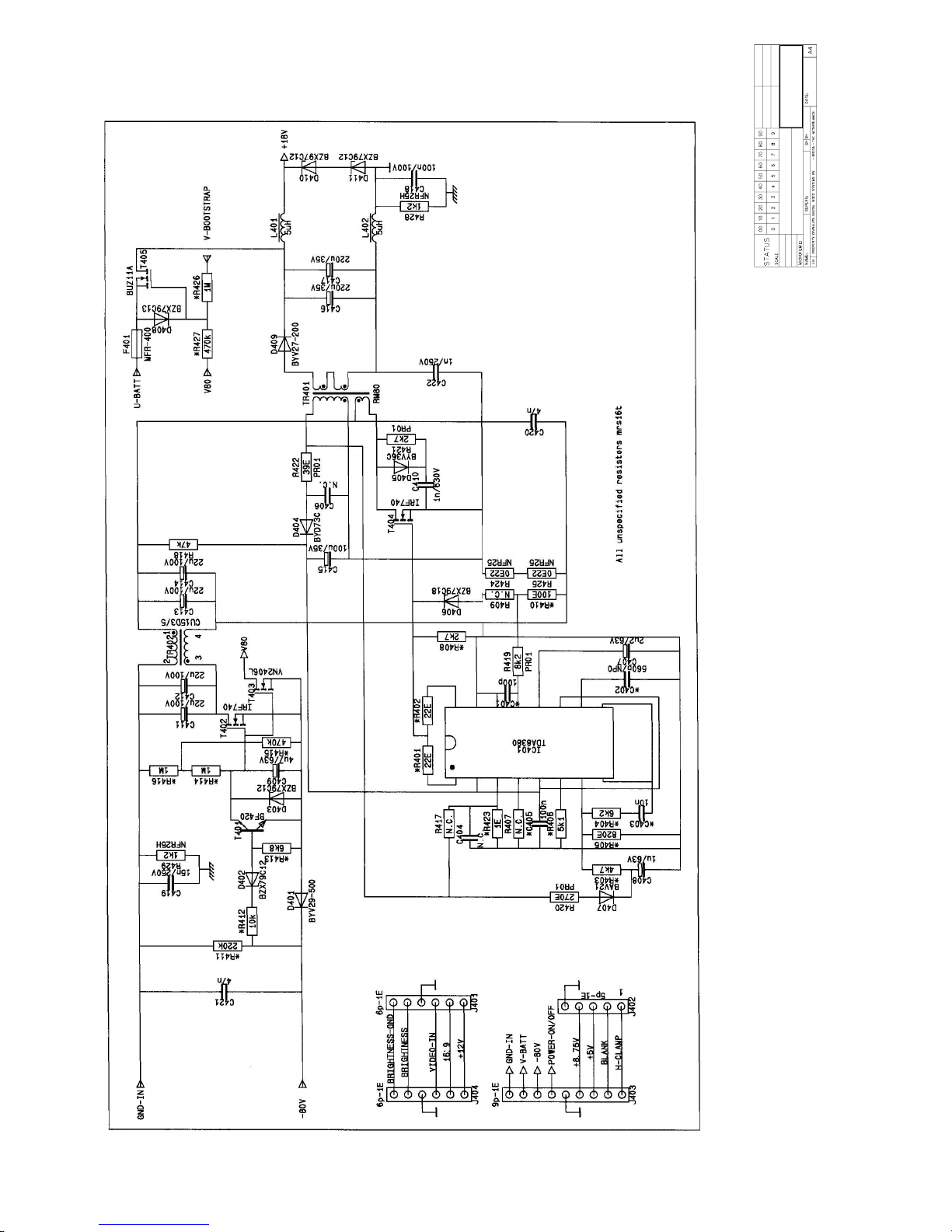

Circuit diagram
SMPS
Page 21
Electrical Drawings User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 2-11
17-11-1998
2
130-2

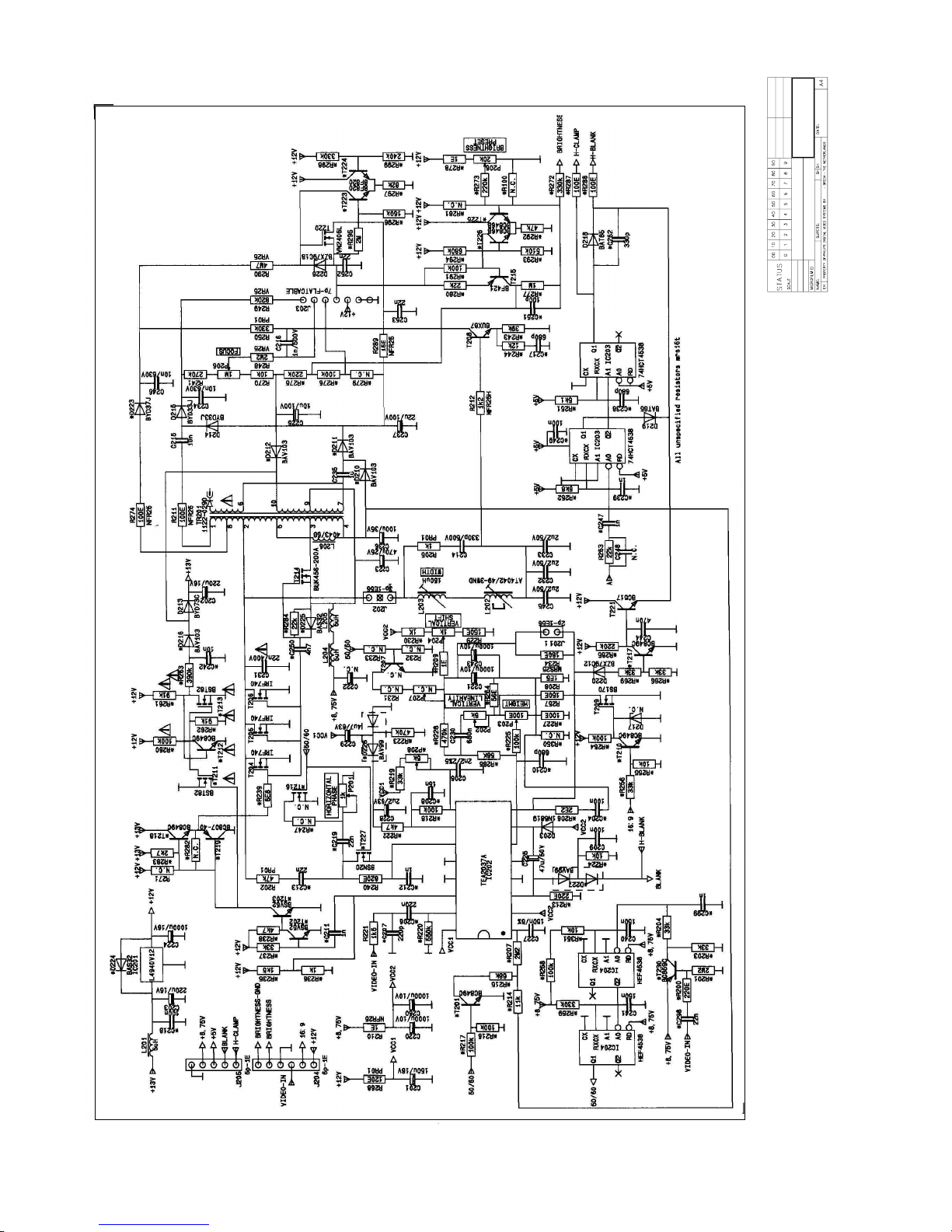

T van 't Hooft
3922 450 05101
SMPS / DC-DC CONVERTER BOARD
Circuit diagram
DC-DC Converter
Page 22
2-12 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Electrical Drawings
CRT Board
Assembly
1 110-1
3922 450 16301
24-03-1999
PCB 300321-1
Page 23
Electrical Drawings User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 2-13
CRT Board

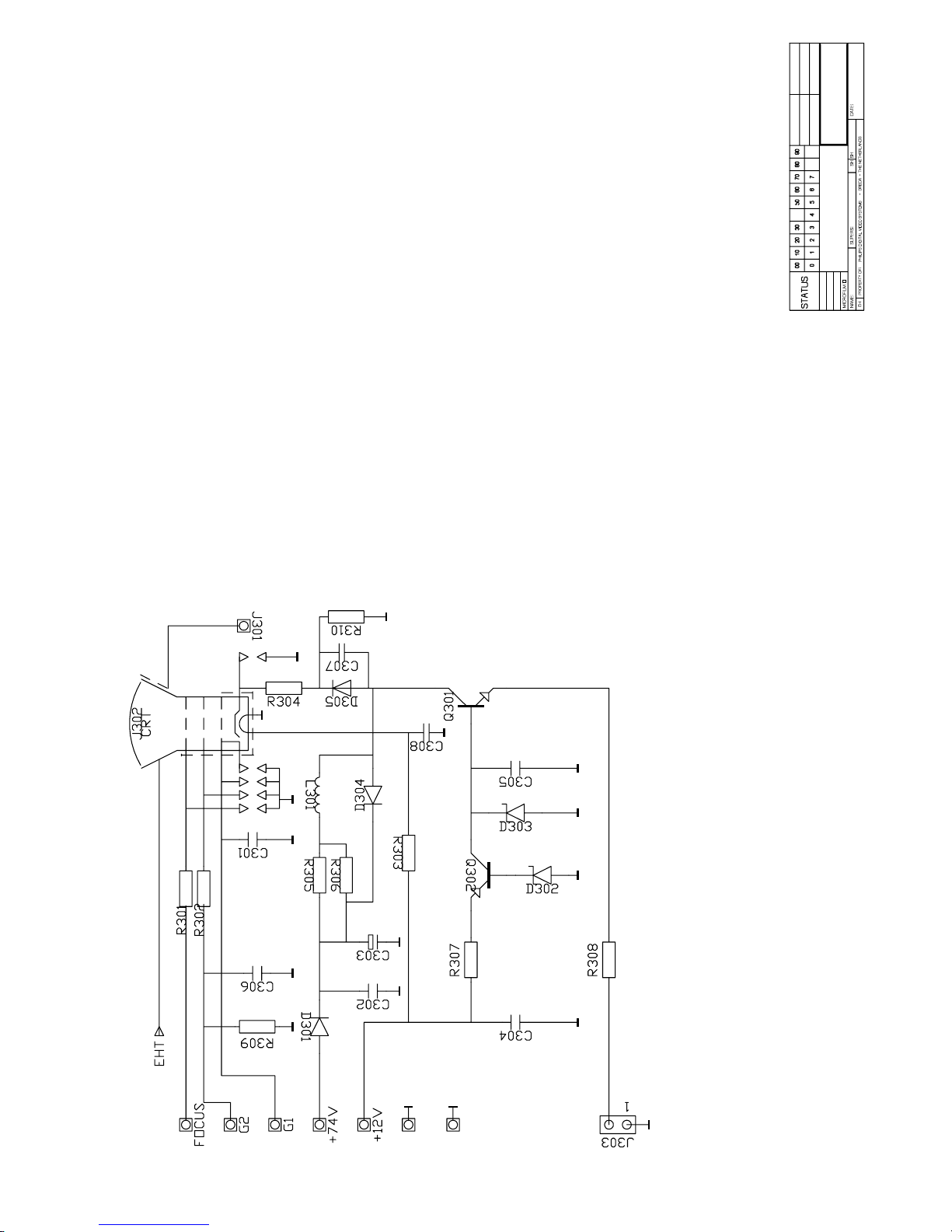

Circuit diagram
1 130-1
3922 450 16301
24-03-1999
PCB 300321-1
Page 24
2-14 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Electrical Drawings
17-11-1998
2
110-1
T van 't Hooft
3922 450 16311
DEFLECTION BOARD
Assembly drawing
Page 25
Electrical Drawings User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 2-15
17-11-1998
2
110-2
T van 't Hooft
3922 450 16311
DEFLECTION BOARD
Assembly drawing
Page 26
2-16 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Electrical Drawings
17-11-1998
1
130-1
T van 't Hooft
3922 450 16311
DEFLECTION BOARD
Circuit Diagram
Page 27
Mecanical Exploded Views User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 3-1
Section 3
Mechanical Exploded Views
Contents
Mech. 5-inch Viewfinder short ............................ 3-2
VF-Bracket-ASSY .............................................. 3-3
5-inch Viewfinder ................................................ 3-4
Page 28
3-2 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Mecanical Exploded Views
Page 29
Mecanical Exploded Views User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 3-3
Page 30
3-4 User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder Mecanical Exploded Views
Page 31
Parts Lists User's Guide LDK 5310/00 - 5-inch SDTV Viewfinder 4-1
Section 4
Parts Lists
Page 32
SERVICE PARTS LIST
Item Code Number Description Item Code Number Description
2
USER’S GUIDE LDK5310
s
3
RINGCORE TN23/14/7 4C65
3922 450 04781
s
4
FERRITE CORE D14.5 D8.4 X 5.5
3922 450 04791
s
6
LED DISTANCE HOLDER
3922 450 05011
8
USER’S GUIDE LDK5310
11
TYPE PLAAT 12X50
s
12
KNOB BLACK 11MM D4
3922 450 04561
s
80A
WIRE ASSY IIC TO ON-AIR PCB
3922 450 05131
s
80B
WIRE ASSY VIDEO PREAMP CRT-BOA
3922 450 05141
BM001
TY-RAP 100MM WIT KL
BM003
MECH.5INCH VIEWFINDER SHORT
3922 407 27142
s
BM006
HS-MOUNTING BRACKET
3922 450 04461
s
BM007
V.F CABLE ASSY
3922 045 01771
s
BM008
CLAMPING PLATE
3922 404 24141
s
BM009A
V-BLOCK
5322 466 10936
s
BM009B
BRACKET ASSY
3922 407 11951
s
BM009C
VF BRACKET ASSY
3922 407 33891
s
BM101
PAN TAP SCR F ST T8 2,9X9,5
2522 202 07014
s
BM102
SPINDLE
3922 401 48051
s
BM103
BUSH
3922 404 20821
s
BM104
ADJUSTING SCREW M3X3 INBUS
3922 450 04851
s
BM105
CSK SCR STL ST M3X12
2522 203 04026
s
BM109
NYLON DISTANCE PIECE M3 L=50
3922 450 04961
s
BM110
DISTANCE PIECE 6X25 M3
3922 450 04951
s
BM201
PAN TAP SCR F ST T8 2,9X9,5
2522 202 07014
s
BM202
PCB MOUNTNG PIECE
3922 450 04971
s
BM203
DISTANCE PIECE M3X8
3922 450 04921
s
BM204
LOCKWASHER M3 A2 RVS
3922 450 04911
s
BM205
NUT M3
3922 450 04871
s
BM301
PAN TAP SCR F ST T8 2,9X9,5
2522 202 07014
s
BM302
DISTANCE PIECE M4X5
3922 450 04941
s
BM305
HEXAGON FLANGE NUT WITH THEET
3922 450 04891
s
BM306
NUT M3 NYLON
3922 450 04981
BM401
TY-RAP 100MM WIT KL
s
BM501
WASHER M3 A2
3922 450 04901
s
BM502
SPRING M3
3922 450 04471
s
BM503
NUT M3
3922 450 04871
s
BM504
PAN SCR STL ST M3X8
5322 502 14405
s
BM505
DISTANCE PIECE M3X12
3922 450 04931
s
BM601
GASKET
3922 401 13341
s
BM602
PICTURE TUBE
3922 450 05271
s
BM603
5,5-6 COIL
3922 450 05151
s
BM604
5,5-6 AQUADAGASSEMBLY
3922 450 05161
s
BM605
BRACKET
3922 404 25171
BM606
INSULATING TAPE
BM607
INSULATING TAPE
s
BM608
PAN SCR STL ST M3X8
5322 502 14405
s
BM609
PACKING
3922 450 04821
s
BM610
O-RING 3,68X1,78
2622 080 90691
s
BM611
FRONTPANEL OPTIONAL
3922 450 04811
s
BM612
KNOB BLACK 11MM D4
3922 450 05021
s
BM613
KNOB COVER BLACK 11MM 1.L
3922 450 05031
s
BM614
PACKING RING
5322 466 64201
s
BM615
MELINEX 0,125MMX60CM
3922 450 05081
s
BM617
WASHER M4 OD8 NYLON
3922 450 04481
s
BM618
ISOL MANCH M3 OD75 NYLON
3922 450 05001
s
BM701
ON-AIR-LENS
3922 400 09311
s
BM702
LED-SEAL
3922 401 49591
s
BM703
CABLE-SEAL
3922 401 49601
s
BM705
PAN SCR STL ST M3X8
5322 502 14405
s
BM706
PAN TAP SCR F ST T8 2,9X6,5
5322 502 14037
s
BM708
SPRING M3
3922 450 04471
s
BM709
PAN SCR STL ST M3X8
5322 502 14405
s
BM711
WASHER M3 A2
3922 450 04901
s
BM801
TORX CS M3X5
2522 203 04022
s
BM802
TORX CS M3X5
2522 203 04022
s
BM803
TORX CS M3X5
2522 203 04022
s
BM804
ADJUSTING SCREW M4X6
3922 450 04861
s
BM805
NUT M8
3922 450 04881
s
BM851
PAN SCR STL ST M3X8
5322 502 14405
s
BM852
WASHER M3 A2
3922 450 04901
s
BM853
SPRING M3
3922 450 04471
s
BM854
LOCKWASHER M3 A2 RVS
3922 450 04911
s
BM901
CSK SCR STL ST M3X12
2522 203 04026
s
BM902
CSK SCR STL ST M3X8
4822 502 13964
s
BM950
PAN SCR STL ST M3X8
5322 502 14405
s
BM951
SPRING M3
3922 450 04471
s
BM960
WORDMARK 62MM
3922 402 04741
s
SD8D10A
LED-HOLDER (DOUBLE)
5322 255 40432
s
SD8D10B
BUS ID2.6 OD4 NYLON (S=2 MM)
3922 450 04991
s
SS D10
LED 3MM HI-BRI YELLOW
3922 450 05241
s
SS D8
LED 3MM HI-BRI RED
3922 450 05231
STATUS
STICKER
s
U1
CRT BOARD
3922 450 16301
s
U2
DEFLECTION BOARD
3922 450 16311
s
U3
ON AIR BOARD
3922 450 04501
U4
PCB 15000321
s
U5
VIDEO PRE AMP / IIC INTERFACE BOA
3922 450 05121
s
U6
SMPS / DC-DC CONVERTER BOARD
3922 450 05101
1 1
SHEET: OF
© Philips Digital Video Systems BV, Breda, The Netherlands
8926 531 00001
DATE:
2002-05-01
REF NR:
ORDERING CODE:
STATUS:
008926 531 00001
5" VIEWFINDER 50/60HZ
products market with "s" are available as spare part, other parts are printed for information only.
alt. code: LDK5310/00
Page 33
Item Code Number Description
SERVICE PARTS LIST
s
1
FRONT 5INCH VF REVISED
3922 402 04242
s
2
CAP
3922 407 26752
s
3
EXTRUSION
3922 404 24101
s
4
RAIL
3922 404 24161
s
742T
CSK SCR STL ST M3X6
5322 502 14498
s
744T
CSK SCR STL ST M3X12
2522 203 04026
1 1
SHEET: OF
© Philips Digital Video Systems BV, Breda, The Netherlands
3922 407 27142
DATE:
1998-05-18
REF NR:
ORDERING CODE:
STATUS:
not a spare part
MECH.5INCH VIEWFINDER SHORT
products market with "s" are available as spare part, other parts are printed for information only.
Page 34
Item Code Number Description
SERVICE PARTS LIST
s
1
V-BLOCK
5322 466 10936
s
2
VF SHAFT
3922 404 29041
s
5
VF SPRING CAP
3922 404 29051
s
6
SPRING POWEL ST BLK. 3X8
5322 529 50221
s
7
VF BRACKET
3922 404 29061
s
8
EAR
5322 401 11147
s
10
STANDOFF M3X10
2531 499 05013
11
PE SHRINK SL BL RNF 1/8INCH
s
12
WASHER
3922 401 13531
s
13
RING
5322 532 51507
s
14
RING
3922 405 01211
s
15
VF NUT
3922 404 29071
s
16
VF KNOB
3922 404 29081
s
17
SET SCREW HEX CUP STL ST M3X4
5322 502 13916
s
18
DISC
3922 405 01231
s
19
DISC
3922 404 29021
s
20
RSD CH NK SCR STL ST M4X18
5322 502 12942
s
21
SPACER
5322 532 20997
s
22
EAR
3922 404 29741
s
23
DOWEL H6 STL ST A2 2X6
5322 529 50239
s
735T
PAN SCR STL ST M3X10
5322 502 21212
s
747
SPR WASH STL ST 3,1X5,7
4822 530 80188
918
RUBBER GLUE SYN CR 060
929
GREASE FS 1292
939
SCREW LOCK 222
1 1
SHEET: OF
© Philips Digital Video Systems BV, Breda, The Netherlands
3922 407 33891
DATE:
2001-06-07
REF NR:
ORDERING CODE:
STATUS:
3922 407 33891
VF BRACKET ASSY
products market with "s" are available as spare part, other parts are printed for information only.
Page 35
Item Code Number Description
SERVICE PARTS LIST
s
C702
MKTPHI P 10N 10% 2E 250V
2222 370 35103
s
D701
BZX79-C10 DIODE DO-35
4822 130 61219
s
J701
HDR L 1E 4P ANGLED GOLD/BROWN
3922 450 04641
s
LD701
LED 5MM HI-BRI TOSHIBA
3922 450 05301
s
LD702
LED 5MM HI-BRI TOSHIBA
3922 450 05301
s
LD703
LED 5MM HI-BRI TOSHIBA
3922 450 05301
s
R701
MRSPHI P 100K0 1% 3E C
2322 157 11004
s
R702
MRSPHI P 100E0 1% 3E C
2322 157 11001
s
R703
MRSPHI P 10K00 1% 3E C
2322 157 11003
s
R704
MRSPHI P 39K00 1% 3E C
2322 157 13903
s
R705
MRSPHI P 15E00 1% 3E C
2322 157 11509
s
R706
MRSPHI P 470E0 1% 3E C
2322 157 14701
s
R707
PR1PHI P 1K0 5% 4E C 1W
2322 193 13102
s
SW701
SCHAK C&K ET03LD1V31BE
3922 450 04741
s
T701
TRAPHI P SMSIG TO92 C
4822 130 44246
s
T702
TRANSISTOR BS170
4822 130 41937
1 1
SHEET: OF
© Philips Digital Video Systems BV, Breda, The Netherlands
3922 450 04501
DATE:
1997-10-01
REF NR:
ORDERING CODE:
STATUS:
3922 450 04501
ON AIR BOARD
products market with "s" are available as spare part, other parts are printed for information only.
alt. code: 900015071321
Page 36
SERVICE PARTS LIST
Item Code Number Description Item Code Number Description
s
401
MULTIFUSE 4A/30V
3922 450 04761
s
C401
NP0PHI P 100P 10% 1206 100V
2222 863 13101
s
C402
NP0PHI P 560P 5% 1206 63V
2222 863 12561
s
C403
CERCAP 10N X7R 1206 PM10
2222 591 16627
s
C405
X7RPHI P 100N 10% 1206 63V
2222 591 16641
s
C407
ELCPHI P 2U2 20% 2E 63V
2222 037 68228
s
C408
ELCPHI P 1U 20% 2E 63V
2222 037 38108
s
C409
ELCPHI P 4U7 20% 2E 63V
2222 037 28478
s
C410
MKTPHI P 1N 20% 4E 630V
2222 347 60102
s
C411
ELCPHI P 22U 20% 1E4 100V
2222 135 89229
s
C412
ELCPHI P 22U 20% 1E4 100V
2222 135 89229
s
C413
ELCPHI P 22U 20% 1E4 100V
2222 135 89229
s
C414
ELCPHI P 22U 20% 1E4 100V
2222 135 89229
s
C415
ELCPHI P 100U 20% 1E4 35V
2222 135 50101
s
C416
ELCPHI P 220U 20% 2E 35V
2222 046 50221
s
C417
ELCPHI P 220U 20% 2E 35V
2222 046 50221
s
C418
MKTPHI P 100N 10% 2E 100V
2222 370 85104
s
C419
MKTPHI P 15N 10% 2E 250V
2222 370 35153
s
C420
MKTPHI P 47N 10% 2E 100V
2222 370 85473
s
C421
MKTPHI P 47N 10% 2E 100V
2222 370 85473
s
C422
MKTPHI P 1N 10% 2E 400V
2222 370 65102
s
C501
NPOPHI P 2N2-5%-1206-50V
2222 863 12222
s
C502
CERCAP 10N X7R 1206 PM10
2222 591 16627
s
C503
CERCAP 4P7 NPO 1206 +/-0,25P
2222 863 12478
s
C504
NP0PHI P 22P 5% 1206 63V
2222 863 12229
s
C505
NP0PHI P 150P 10% 1206 100V
2222 863 13151
s
C506
NP0PHI P 1N 5% 1210 63V
2222 862 12102
s
C507
X7RPHI P 220N 10% 1210 63V
2222 592 16645
s
C508
ELCPHI P 470U 20% 2E 25V
2222 136 66471
s
C509
ELCPHI P 47U 20% 2E 50V
2222 037 90072
s
C510
ELCPHI P 470U 20% 2E 25V
2222 136 66471
s
C511
X7RPHI P 220N 10% 1210 63V
2222 592 16645
s
C512
ELCPHI P 10U 20% 2E 63V
2222 037 28109
s
C513
ELCPHI P 10U 20% 2E 63V
2222 037 28109
s
C514
X7RPHI P 100N 10% 1206 63V
2222 591 16641
s
C515
CERCAP 1N NPO 1206 PM2
2222 863 11102
s
C516
CERCAP 22N X7R 1206 PM10
2222 591 16632
s
D401
BYV29-500
3922 450 04511
s
D402
DIODE BZX79 C12 SOD27
4822 130 34179
s
D403
DIODE BZX79 C12 SOD27
4822 130 34179
s
D404
DIOPHI P RECT SOD81 4E C
4822 130 83121
s
D405
DIOPHI P RECT SOD57 4E C
4822 130 83848
s
D406
DIODE BZX79 C18 SOD27
4822 130 31024
s
D407
DIODE BAV21 SOD27
4822 130 30482
s
D408
DIODE BZX79 C13 SOD27
4822 130 34195
s
D409
DIOPHI P RECT SOD57 4E C
5322 130 31938
s
D501
DIODE BZX79C7V5
3922 450 05221
s
D502
DIODE BAX 18 SOD27
4822 130 34121
s
D503
DIODE BZX79C15
3922 450 05211
s
D504
BAW62 DIODE SOD-27
4822 130 30613
s
D505
DIOPHI P RECT SOD81 4E C
4822 130 81234
s
D506
BZX79-C3V3 DIODE DO-35
5322 130 31504
s
D507
BAW62 DIODE SOD-27
4822 130 30613
s
D508
DIOPHI P FAST SOD80C S
4822 230 80466
s
D509
DIOPHI P FAST SOD80C S
4822 230 80466
s
D510
DIOPHI P FAST SOD80C S
4822 230 80466
s
D511
BAV99 DIODE SOT-23
9332 153 70215
s
IC401
IC TDA8380
3922 450 05281
s
IC501
LM393N
4822 209 80797
s
IC502
ADJUSTABLE ZENER TL431CLP 1%
3922 450 05291
s
IC503
IC SGS P VOLTREG T092 C
5322 209 17304
s
J401
HDR L 1E 6P GOLD/BROWN
3922 450 04621
s
J402
HDR L 1E 5P GOLD/BROWN
3922 450 04611
s
J403
CONTRAHDR L 1E 9P GOLD/BROWN
3922 450 04671
s
J404
CONTRAHDR L 1E 6P GOLD/BROWN
3922 450 04661
s
L401
5UH/3A
3922 450 04541
s
L402
5UH/3A
3922 450 04541
s
L501
TOROIDE 1OOUH 2A
3922 450 05251
s
MP
PIN 1 MM PCB
3922 450 04711
s
P501
TRIMMER SMD 3314G 5K
2340 100 16502
s
R401
RC2PHI P 22E 1% 1206
2322 724 50221
s
R402
RC2PHI P 22E 1% 1206
2322 724 50221
s
R403
RC2PHI P 4K70 1% 1206 S
2322 724 54702
s
R404
RC2PHI P 6K20 1% 1206 S
2322 724 56202
s
R405
RC2PHI P 820E 1% 1206
2322 724 18201
s
R406
RC2PHI P 5K10 1% 1206 S
2322 724 55102
s
R408
RC2PHI P 2K70 1% 1206 S
2322 724 52702
s
R410
RC2PHI P 100E 1% 1206
2322 724 51001
s
R411
RC2PHI P 220K 1% 1206 S
2322 724 52204
s
R412
RC2PHI P 10K0 1% 1206 S
2322 724 51003
s
R413
RC2PHI P 6K80 1% 1206 S
2322 724 56802
s
R414
RC2PHI P 1M 1% 1206 S
2322 724 51005
s
R415
RC2PHI P 470K 1% 1206
2322 724 54704
s
R416
RC2PHI P 1M 1% 1206 S
2322 724 51005
s
R418
MRSPHI P 47K00 1% 3E C
2322 157 14703
s
R419
PR1PHI P 8K2 5% 4E C 1W
2322 193 13822
s
R420
PR1PHI I 270E 5% 4E C 1W
2322 193 13271
s
R421
PR1PHI I 2K7 5% 4E C 1W
2322 193 13272
s
R422
PR1PHI P 39E 5% 4E C 1W
2322 193 13399
s
R423
RC2PHI P 1E 1% 1206
2322 724 50011
s
R424
NFRPHI P 0E22 5% 4E NFR25
2322 205 90005
s
R425
NFRPHI P 0E22 5% 4E NFR25
2322 205 90005
s
R426
RC2PHI P 1M 1% 1206 S
2322 724 51005
s
R427
RC2PHI P 470K 1% 1206
2322 724 54704
s
R428
NFRPHI P 1K2 5% 4E NFR25H
2322 207 13122
s
R429
NFRPHI P 1K2 5% 4E NFR25H
2322 207 13122
s
R501
RC2PHI P 2K70 1% 1206 S
2322 724 52702
s
R502
RC2PHI P 100K0 1% 1206 S
2322 724 51004
s
R503
RC2PHI P 330K 1% 1206
2322 724 53304
s
R504
RC2PHI P 22K 1% 1206 S
2322 724 52203
s
R505
RC2PHI P 390K 1% 1206
2322 724 53904
s
R506
RC2PHI P 330K 1% 1206
2322 724 53304
s
R507
RC2PHI P 330K 1% 1206
2322 724 53304
s
R508
RC2PHI P 330K 1% 1206
2322 724 53304
s
R509
RC2PHI P 18K 1% 1206
2322 724 51803
s
R510
RC2PHI P 390K 1% 1206
2322 724 53904
s
R511
RC2PHI P 390K 1% 1206
2322 724 53904
s
R512
RC2PHI P 1M 1% 1206 S
2322 724 51005
s
R513
RC2PHI P 1M 1% 1206 S
2322 724 51005
s
R514
RC2PHI P 100K0 1% 1206 S
2322 724 51004
2 1
SHEET: OF
© Philips Digital Video Systems BV, Breda, The Netherlands
3922 450 05101
DATE:
1997-10-01
REF NR:
ORDERING CODE:
STATUS:
3922 450 05101
SMPS / DC-DC CONVERTER BOARD
products market with "s" are available as spare part, other parts are printed for information only.
alt. code: 900015010321
Page 37
Item Code Number Description
SERVICE PARTS LIST
s
R515
RC2PHI P 330K 1% 1206
2322 724 53304
s
R516
RC2PHI P 220K 1% 1206 S
2322 724 52204
s
R517
RC2PHI P 1M 1% 1206 S
2322 724 51005
s
R518
RC2PHI P 33K 1% 1206 S
2322 724 53303
s
R519
RC2PHI P 560E 1% 1206 S
2322 724 55601
s
R520
MRSPHI P 5K10 1% 3E C
2322 157 15102
s
R521
RC2PHI P 5K60 1% 1206 S
2322 724 55602
s
R522
RC2PHI P 6K80 1% 1206 S
2322 724 56802
s
R523
RC2PHI P 2K20 1% 1206 S
2322 724 52202
s
R524
MRSPHI P 2K20 1% 3E C
2322 157 12202
s
R525
RC2PHI P 22K 1% 1206 S
2322 724 52203
s
R526
RC2PHI P 10K0 1% 1206 S
2322 724 51003
s
R527
MRSPHI P 3K90 1% 3E C
2322 157 13902
s
R528
RC2PHI P 100K0 1% 1206 S
2322 724 51004
s
R529
MRSPHI P 7K50 1% 3E C
2322 157 17502
s
R530
RC2PHI P 3K 1% 1206
2322 724 53002
s
R531
NFRPHI P 0E22 5% 4E NFR25
2322 205 90005
s
R532
NFRPHI P 0E22 5% 4E NFR25
2322 205 90005
s
R533
RC2PHI P 6K80 1% 1206 S
2322 724 56802
s
R534
RC2PHI P 2K70 1% 1206 S
2322 724 52702
s
R540
RC2PHI P 1M 1% 1206 S
2322 724 51005
s
R541
MRSPHI P 22K00 1% 3E C
2322 157 12203
s
R550
RC2PHI P 4K70 1% 1206 S
2322 724 54702
s
T401
TRANSISTOR BF420
4822 130 42148
s
T402
POWERFET
5322 130 62264
s
T403
TRANSISTOR VN2406L
3922 450 05311
s
T404
POWERFET
5322 130 62264
s
T405
POWERFET
4822 130 61253
s
T501
BCX53 TRANSISTOR PNP SOT-89
5322 130 60596
s
T502
TRAPHI P SMSIG SOT 2 1206
4822 130 42614
s
T503
BC327 TRANSISTOR TO-92VAR
4822 130 40854
s
T504
BCX53 TRANSISTOR PNP SOT-89
5322 130 60596
s
T505
TRAPHI P BC846 SOT 23 S
3922 450 05171
s
T506
BC337 TRANSISTOR TO-92VAR
4822 130 40855
s
T507
BC327 TRANSISTOR TO-92VAR
4822 130 40854
s
T508
TRAPHI P BC846 SOT 23 S
3922 450 05171
s
T509
POWER FET BUZ271
3922 450 05191
s
TR401
TRAFO
3922 450 04521
s
TR402
CU15D3/1 CURRENTTRANSFORMER
3922 450 04421
2 2
SHEET: OF
© Philips Digital Video Systems BV, Breda, The Netherlands
3922 450 05101
DATE:
1997-10-01
REF NR:
ORDERING CODE:
STATUS:
3922 450 05101
SMPS / DC-DC CONVERTER BOARD
products market with "s" are available as spare part, other parts are printed for information only.
alt. code: 900015010321
Page 38
SERVICE PARTS LIST
Item Code Number Description Item Code Number Description
s
1
FUSE T630MA TR5 WICKMANN
3922 450 04451
s
B1
FERRITE CORE ON WIRE 2UH
3922 450 04801
s
C1
X7RPHI P 100N 10% 1206 63V
2222 591 16641
s
C2
X7RPHI P 100N 10% 1206 63V
2222 591 16641
s
C3
X7RPHI P 100N 10% 1206 63V
2222 591 16641
s
C4
X7RPHI P 100N 10% 1206 63V
2222 591 16641
s
C5
ELCPHI P 100U 20% 2E 16V
2222 036 25101
s
C7
MKTPHI P 10N 10% 2E 250V
2222 370 35103
s
C8
MKTPHI P 10N 10% 2E 250V
2222 370 35103
s
C102
X7RPHI P 100N 10% 1206 63V
2222 591 16641
s
C103
NP0PHI P 100P 10% 1206 100V
2222 863 13101
s
C104
X7RPHI P 100N 10% 1206 63V
2222 591 16641
s
C105
SALPHI P 33U 20% 2E 10V
2222 122 54339
s
C106
X7RPHI P 100N 10% 1206 63V
2222 591 16641
s
C107
NP0PHI P 100P 10% 1206 100V
2222 863 13101
s
C108
X7RPHI P 100N 10% 1206 63V
2222 591 16641
s
C109
KERPHI P 330P 10% 2E 500V
2222 655 09331
s
C111
CERCAP 10N X7R 1206 PM10
2222 591 16627
s
C112
ELCPHI P 470U 20% 2E 25V
2222 136 66471
s
C113
ELCPHI P 100U 20% 2E 16V
2222 036 25101
s
C114
ELCPHI P 100U 20% 2E 16V
2222 036 25101
s
C115
ELCPHI P 100U 20% 2E 16V
2222 036 25101
s
C116
ELCPHI P 100U 20% 2E 16V
2222 036 25101
s
C117
ELCPHI P 10U 20% 2E 63V
2222 037 28109
s
C118
ELCPHI P 10U 20% 2E 63V
2222 037 28109
s
C120
X7RPHI P 100N 10% 1206 63V
2222 591 16641
s
C121
ELCPHI P 100U 20% 2E 16V
2222 036 25101
s
C122
NP0PHI P 100P 10% 1206 100V
2222 863 13101
s
C123
KERPHI P 470P 10% 2E 100V
2222 630 19471
s
C300
CERCAP 22N X7R 1206 PM10
2222 591 16632
s
D1
BAV99 DIODE SOT-23
9332 153 70215
s
D2
BAV99 DIODE SOT-23
9332 153 70215
s
D3
BAV99 DIODE SOT-23
9332 153 70215
s
D7
DIODE BZV85 C6V2
3922 450 05201
s
D11
BZX79-C10 DIODE DO-35
4822 130 61219
s
D12
BZX79-C10 DIODE DO-35
4822 130 61219
s
D13
BZX79-C10 DIODE DO-35
4822 130 61219
s
D14
BZX79-C10 DIODE DO-35
4822 130 61219
s
D101
DIOPHI P FAST SOD80C S
4822 230 80466
s
D104
DIODE BZX79 C12 SOD27
4822 130 34179
s
D105
DIOPHI P FAST SOD80C S
4822 230 80466
s
D106
DIOPHI P FAST SOD80C S
4822 230 80466
s
D107
DIOPHI P FAST SOD80C S
4822 230 80466
s
D108
DIOPHI P FAST SOD80C S
4822 230 80466
s
DELAY1
DELAYLINE 140NS 200OHM
3922 450 05321
s
IC1
IC EEPROM DIL8 C
3922 450 05261
s
IC4
IC PHI P I/O EXPANDER DIL16 C
5322 209 10883
s
J1
HDR L 1E 4P GOLD/BROWN
3922 450 04431
s
J3
HDR L 1E 9P GOLD/BROWN
3922 450 04631
s
J4
HDR L 1E 6P GOLD/BROWN
3922 450 04621
s
J6
SOCKET 20p ANGLED HIROSE
3922 450 04691
s
J11
HDR L 1E 2P GOLD/BROWN
3922 450 04601
s
P101
POTMETER 1K SFERNICE 10%
2340 200 35102
s
P102
TRIMMER SMD 3314G 100E
2340 100 16101
s
P103
POTMETER 1K SFERNICE 10%
2340 200 35102
s
P104
POTMETER 10K SFERNICE 10%
2340 200 35103
s
R1
RC2PHI P 10K0 1% 1206 S
2322 724 51003
s
R2
RC2PHI P 47K 1% 1206 S
2322 724 54703
s
R3
RC2PHI P 10K0 1% 1206 S
2322 724 51003
s
R4
RC2PHI P 10K0 1% 1206 S
2322 724 51003
s
R7
RC2PHI P 47K 1% 1206 S
2322 724 54703
s
R8
RC2PHI P 47K 1% 1206 S
2322 724 54703
s
R10
RC2PHI P 1K00 1% 1206 S
2322 724 51002
s
R11
RC2PHI P 10E 1% 1206 S
2322 724 51009
s
R13
RC2PHI P 10K0 1% 1206 S
2322 724 51003
s
R14
RC2PHI P 33K 1% 1206 S
2322 724 53303
s
R15
RC2PHI P 100E 1% 1206
2322 724 51001
s
R16
RC2PHI P 10K0 1% 1206 S
2322 724 51003
s
R17
RC2PHI P 100E 1% 1206
2322 724 51001
s
R18
RC2PHI P 100E 1% 1206
2322 724 51001
s
R19
RC2PHI P 10K0 1% 1206 S
2322 724 51003
s
R20
RC2PHI P 10K0 1% 1206 S
2322 724 51003
s
R22
RC2PHI P 100E 1% 1206
2322 724 51001
s
R24
RC2PHI P 1K00 1% 1206 S
2322 724 51002
s
R26
RC2PHI P 1K00 1% 1206 S
2322 724 51002
s
R29
RC2PHI P 100E 1% 1206
2322 724 51001
s
R32
RC2PHI P 100E 1% 1206
2322 724 51001
s
R33
RC2PHI P 100E 1% 1206
2322 724 51001
s
R34
RC2PHI P 100K0 1% 1206 S
2322 724 51004
s
R35
RC2PHI P 33K 1% 1206 S
2322 724 53303
s
R36
RC2PHI P 100E 1% 1206
2322 724 51001
s
R37
RC2PHI P 100K0 1% 1206 S
2322 724 51004
s
R38
RC2PHI P 100K0 1% 1206 S
2322 724 51004
s
R39
RC2PHI P 100K0 1% 1206 S
2322 724 51004
s
R40
RC2PHI P 10K0 1% 1206 S
2322 724 51003
s
R41
RC2PHI P 10K0 1% 1206 S
2322 724 51003
s
R42
RC2PHI P 220K 1% 1206 S
2322 724 52204
s
R43
RC2PHI P 470E0 1% 1206 S
2322 724 54701
s
R44
RC2PHI P 100K0 1% 1206 S
2322 724 51004
s
R51
RC2PHI P 3K90 1% 1206
2322 724 53902
s
R52
RC2PHI P 470E0 1% 1206 S
2322 724 54701
s
R53
RC2PHI P 270E0 1% 1206 S
2322 724 52701
s
R54
PR1PHI P 1K0 5% 4E C 1W
2322 193 13102
s
R55
PR1PHI P 1K0 5% 4E C 1W
2322 193 13102
s
R56
RC2PHI P 33K 1% 1206 S
2322 724 53303
s
R58
RC2PHI P 470E0 1% 1206 S
2322 724 54701
s
R101
RC2PHI P 1K5 1206 S
2322 724 51502
s
R102
RC2PHI P 100E 1% 1206
2322 724 51001
s
R103
RC2PHI P 5K60 1% 1206 S
2322 724 55602
s
R104
RC2PHI P 4K70 1% 1206 S
2322 724 54702
s
R105
RC2PHI P 82E 1% 1206 S
2322 724 58209
s
R107
RC2PHI P 82E 1% 1206 S
2322 724 58209
s
R109
RC2PHI P 4K70 1% 1206 S
2322 724 54702
s
R111
RC2PHI P 1K00 1% 1206 S
2322 724 51002
s
R112
RC2PHI P 5K60 1% 1206 S
2322 724 55602
s
R113
RC2PHI P 120E 1% 1206
2322 724 51201
s
R114
RC2PHI P 1K00 1% 1206 S
2322 724 51002
s
R115
RC2PHI P 150E0 1% 1206 S
2322 724 51501
s
R116
RC2PHI P 5K60 1% 1206 S
2322 724 55602
s
R117
RC2PHI P 5K60 1% 1206 S
2322 724 55602
2 1
SHEET: OF
© Philips Digital Video Systems BV, Breda, The Netherlands
3922 450 05121
DATE:
1997-10-01
REF NR:
ORDERING CODE:
STATUS:
3922 450 05121
VIDEO PRE AMP / IIC INTERFACE BOARD
products market with "s" are available as spare part, other parts are printed for information only.
alt. code: 900015370321
Page 39
SERVICE PARTS LIST
Item Code Number Description Item Code Number Description
s
R118
RC2PHI P 4K70 1% 1206 S
2322 724 54702
s
R119
RC2PHI P 4K70 1% 1206 S
2322 724 54702
s
R120
RC2PHI P 100E 1% 1206
2322 724 51001
s
R121
RC2PHI P 100E 1% 1206
2322 724 51001
s
R123
RC2PHI P 100E 1% 1206
2322 724 51001
s
R126
RC2PHI P 8K20 1% 1206 S
2322 724 58202
s
R127
RC2PHI P 1K80 1% 1206 S
2322 724 51802
s
R128
MRSPHI P 47E00 1% 3E C
2322 157 14709
s
R129
RC2PHI P 1K80 1% 1206 S
2322 724 51802
s
R130
RC2PHI P 47K 1% 1206 S
2322 724 54703
s
R131
RC2PHI P 47E 1% 1206
2322 724 50471
s
R132
RC2PHI P 100K0 1% 1206 S
2322 724 51004
s
R133
RC2PHI P 680E 1% 1206
2322 724 56801
s
R134
RC2PHI P 100E 1% 1206
2322 724 51001
s
R135
RC2PHI P 100E 1% 1206
2322 724 51001
s
R136
RC2PHI P 18K 1% 1206
2322 724 51803
s
R137
RC2PHI P 39K 1% 1206 S
2322 724 53903
s
R138
SFRPHI P 3E3 5% 3E C
2322 187 73338
s
R139
RC2PHI P 39E 1% 1206 S
2322 724 53909
s
R140
RC2PHI P 47E 1% 1206
2322 724 50471
s
R141
RC2PHI P 270E0 1% 1206 S
2322 724 52701
s
R142
RC2PHI P 51E 1% 1206 S
2322 724 55109
s
R144
MRSPHI P 75E00 1% 3E C
2322 157 17509
s
R149
RC2PHI P 3K30 1% 1206 S
2322 724 53302
s
R150
RC2PHI P 680E 1% 1206
2322 724 56801
s
R151
RC2PHI P 1K00 1% 1206 S
2322 724 51002
s
R152
NFRPHI P 15E 5% 4E NFR25
2322 205 13159
s
R153
NFRPHI P 10E 5% 4E NFR25H
2322 207 13109
s
R154
NFRPHI P 15E 5% 4E NFR25
2322 205 13159
s
R155
RC2PHI P 4K70 1% 1206 S
2322 724 54702
s
R157
RC2PHI P 51E 1% 1206 S
2322 724 55109
s
R158
RC2PHI P 270E0 1% 1206 S
2322 724 52701
s
R159
RC2PHI P 270E0 1% 1206 S
2322 724 52701
s
R160
RC2PHI P 2K20 1% 1206 S
2322 724 52202
s
R161
RC2PHI P 47E 1% 1206
2322 724 50471
s
R164
RC2PHI P 1K2 1% 1206 S
2322 724 51202
s
R165
RC2PHI P 82E 1% 1206 S
2322 724 58209
s
R170
RC2PHI P 22E 1% 1206
2322 724 50221
s
R171
RC2PHI P 22E 1% 1206
2322 724 50221
s
R172
RC2PHI P 22E 1% 1206
2322 724 50221
s
SW1
SCHAK C&K ET07MD1AVBE
3922 450 04751
s
SW2
SCHAK C&K ET02MD1AVBE
3922 450 04731
s
T1
TRAPHI P SMSIG SOT 2 1206
4822 130 42614
s
T2
TRAPHI P SMSIG SOT 2 1206
4822 130 42614
s
T3
TRAPHI P SMSIG SOT 2 1206
4822 130 42614
s
T4
TRAPHI P SMSIG SOT 2 1206
4822 130 42614
s
T5
TRAPHI P SMSIG SOT 2 1206
4822 130 42614
s
T6
TRAPHI P SMSIG SOT 2 1206
4822 130 42614
s
T7
TRAPHI P SMSIG SOT 2 1206
4822 130 42614
s
T8
TRAPHI P SMSIG SOT 2 1206
4822 130 42614
s
T10
TRAPHI P SMSIG SOT 23 S
4822 130 60516
s
T11
TRAPHI P SMSIG SOT 23 S
4822 130 60516
s
T101
TRAPHI P SMSIG TO92 C
4822 130 61755
s
T102
TRAPHI P SMSIG TO92 C
4822 130 44461
s
T103
TRAPHI P SMSIG TO92 C
4822 130 44461
s
T104
TRAPHI P SMSIG TO92 C
4822 130 44246
s
T105
TRANSISTOR PH2369
4822 130 41594
s
T106
TRAPHI P SMSIG TO92 C
4822 130 44246
s
T107
TRAPHI P SMSIG TO92 C
4822 130 44246
s
T108
TRANSISTOR PH2369
4822 130 41594
s
T109
TRANSISTOR PH2369
4822 130 41594
s
T110
TRANSISTOR PH2369
4822 130 41594
s
T111
TRANSISTOR PH2369
4822 130 41594
s
T112
TRANSISTOR BS170
4822 130 41937
s
T113
TRAPHI P SMSIG TO92 C
4822 130 44246
s
T114
TRAPHI P SMSIG TO92 C
4822 130 44246
s
T115
TRAPHI P SMSIG TO92 C
4822 130 44246
s
T300
FETPHI P SWITCH SOT23 S
5322 130 63289
2 2
SHEET: OF
© Philips Digital Video Systems BV, Breda, The Netherlands
3922 450 05121
DATE:
1997-10-01
REF NR:
ORDERING CODE:
STATUS:
3922 450 05121
VIDEO PRE AMP / IIC INTERFACE BOARD
products market with "s" are available as spare part, other parts are printed for information only.
alt. code: 900015370321
Page 40
Item Code Number Description
SERVICE PARTS LIST
s
C301
MKTPHI P 100N 10% 2E 100V
2222 370 85104
s
C302
MKTPHI P 100N 10% 2E 100V
2222 370 85104
s
C303
ELCPHI P 22U 20% 1E4 100V
2222 135 89229
s
C304
MKTPHI P 100N 10% 2E 63V
2222 370 75104
s
C305
KERPHI P 4N7 10% 2E 100V
2222 630 19472
s
C306
MKTPHI P 10N 10% 4E 630V
2222 369 61103
s
C307
MKTPHI P 470N 10% 2E 63V
2222 370 75474
s
C308
MKTPHI P 100N 10% 2E 63V
2222 370 75104
s
D301
DIODE BAV21 SOD27
4822 130 30482
s
D303
DIODE PHI BZX79C5V1 SOD27
3922 450 16271
s
D304
DIODE BAV21 SOD27
4822 130 30482
s
D305
DIODE BAV21 SOD27
4822 130 30482
s
J302
CRT SOCKET 1061Z JUNGBECKER
3922 450 04721
s
J303
HDR L 1E 2P GOLD/BROWN
3922 450 04601
s
L301
COIL BC 15UH 10% 610MA
3922 450 04571
s
Q301
TRANSISTOR BF420
4822 130 42148
s
Q302
TRANSISTOR BC556 TO92
4822 130 40989
s
R301
AB RCR07G393JS 39K 1/4W/10%
2323 211 11393
s
R304
AB RCR07G471JS 470E 1/4W/10%
2323 211 11471
s
R305
MRSPHI P 4K30 1% 3E C
2322 157 14302
s
R306
MRSPHI P 4K30 1% 3E C
2322 157 14302
s
R308
SFRPHI P 3E3 5% 3E C
2322 187 73338
s
R310
MRSPHI P 560K0 1% 3E C
2322 157 15604
1 1
SHEET: OF
© Philips Digital Video Systems BV, Breda, The Netherlands
3922 450 16301
DATE:
1997-10-01
REF NR:
ORDERING CODE:
STATUS:
3922 450 16301
CRT BOARD
products market with "s" are available as spare part, other parts are printed for information only.
alt. code: 900015020321B
Page 41
SERVICE PARTS LIST
Item Code Number Description Item Code Number Description
s
C201
ELCPHI P 150UF 20% 2E 16V
2222 036 55151
s
C202
ELCPHI P 220U 20% 2E 16V
2222 135 25221
s
C204
X7RPHI P 100N 10% 1206 63V
2222 591 16641
s
C205
FKCWIM P 2N2 2%5 2E 100V
2223 284 18222
s
C206
X7RPHI P 220N 10% 1206 25V
2222 911 16654
s
C207
NP0PHI P 220P 10% 1206 100V
2222 863 13221
s
C208
X7RPHI P 15N 10% 1206 63V
2222 591 16629
s
C209
MKTPHI P 100N 10% 2E 63V
2222 370 75104
s
C210
NP0PHI P 680P 5% 1206 63V
2222 863 12681
s
C211
NPOPHI P 1N 5% 1206 63V
2222 863 12102
s
C212
NPOPHI P 1N 5% 1206 63V
2222 863 12102
s
C213
CERCAP 22N X7R 1206 PM10
2222 591 16632
s
C214
KERPHI P 330P 10% 2E 500V
2222 655 09331
s
C215
MKTPHI P 10N 10% 2E 250V
2222 370 35103
s
C216
KERPHI P 1N 10% 2E 500V
2222 655 09102
s
C217
NP0PHI P 680P 5% 1206 63V
2222 863 12681
s
C218
X7RPHI P 100N 10% 1206 63V
2222 591 16641
s
C219
CERCAP 22N X7R 1206 PM10
2222 591 16632
s
C220
ELCPHI P 1000U 20% 2E 10V
2222 048 64102
s
C221
ELCPHI P 1000U 20% 2E 10V
2222 048 64102
s
C223
ELCPHI P 470U 20% 2E 25V
2222 136 66471
s
C224
ELCPHI P 1000U 20% 2E 16V
2222 047 55102
s
C225
ELCPHI P 47U 20% 2E 50V
2222 037 90072
s
C226
ELCPHI P 10U 20% 2E 100V
2222 037 69109
s
C227
MKTPHI P 150N 5% 2E 63V
2222 370 76154
s
C228
ELCPHI P 2U2 20% 2E 63V
2222 037 68228
s
C229
ELCPHI P 4U7 20% 2E 63V
2222 037 28478
s
C230
MKTPHI P 680N 10% 2E 63V
2222 370 75684
s
C231
MKPPHI P 22N 5% 4E-400V
2222 379 54223
s
C232
MKSWIM P 2U2 10% 2E 50V
2223 161 10225
s
C233
MKSWIM P 2U2 10% 2E 50V
2223 161 10225
s
C234
MKTPHI P 10N 10% 4E 630V
2222 369 61103
s
C235
MKTPHI P 1U 10% 2E 63V
2222 370 75105
s
C236
ELCPHI P 100U 20% 1E4 35V
2222 135 50101
s
C237
ELCPHI P 22U 20% 1E4 100V
2222 135 89229
s
C238
NP0PHI P 680P 5% 1206 63V
2222 863 12681
s
C239
NPOPHI P 1N 5% 1206 63V
2222 863 12102
s
C240
MKTPHI P 150N 5% 2E 63V
2222 370 76154
s
C241
MKTPHI P 150N 5% 2E 63V
2222 370 76154
s
C242
CERCAP 10N X7R 1206 PM10
2222 591 16627
s
C243
ELCPHI P 1000U 20% 2E 10V
2222 048 64102
s
C244
MKTPHI P 470N 10% 2E 63V
2222 370 75474
s
C245
MKSWIM P 2U2 10% 2E 50V
2223 161 10225
s
C246
MKTPHI P 10N 10% 4E 630V
2222 369 61103
s
C247
CERCAP 1N NPO 1206 PM2
2222 863 11102
s
C249
X7RPHI P 100N 10% 1206 63V
2222 591 16641
s
C250
X7RPHI P 4N7 10% 1206 63V
2222 591 16623
s
C251
NP0PHI P 100P 10% 1206 100V
2222 863 13101
s
C252
MKTPHI P 22N 10% 2E 100V
2222 370 85223
s
C253
MKTPHI P 22N 10% 2E 100V
2222 370 85223
s
C260
ELCPHI P 1000U 20% 2E 10V
2222 048 64102
s
C262
NP0PHI P 330P 10% 1206 100V
2222 863 13331
s
C298
CERCAP 22N X7R 1206 PM10
2222 591 16632
s
C299
NPOPHI P 1N 5% 1206 63V
2222 863 12102
s
C301
MKTPHI P 100N 10% 2E 100V
2222 370 85104
s
C302
MKTPHI P 100N 10% 2E 100V
2222 370 85104
s
C303
ELCPHI P 22U 20% 1E4 100V
2222 135 89229
s
C304
MKTPHI P 100N 10% 2E 63V
2222 370 75104
s
C305
KERPHI P 4N7 10% 2E 100V
2222 630 19472
s
C306
MKTPHI P 10N 10% 4E 630V
2222 369 61103
s
C307
MKTPHI P 470N 10% 2E 63V
2222 370 75474
s
C308
MKTPHI P 100N 10% 2E 63V
2222 370 75104
s
D203
DIOPHI P RECT SOD81 4E C
4822 130 81234
s
D210
DIOPHI P SWITCH SOD 80C S
4822 130 80877
s
D211
DIOPHI P SWITCH SOD 80C S
4822 130 80877
s
D212
DIOPHI P SWITCH SOD 80C S
4822 130 80877
s
D213
DIOPHI P RECT SOD81 4E C
4822 130 83121
s
D214
DIOPHI P RECT SOD81 4E C
4822 130 42606
s
D215
DIOPHI P RECT SOD81 4E C
4822 130 42606
s
D216
DIOPHI P SWITCH SOD 80C S
4822 130 80877
s
D218
DIODE BAT 85 SOD68
4822 130 31983
s
D219
DIODE BAT 85 SOD68
4822 130 31983
s
D220
DIODE BZX79 C12 SOD27
4822 130 34179
s
D223
DIOPHI P RECT SOD87 C
5322 130 83619
s
D224
DIOPHI P FAST SOD80C S
4822 230 80466
s
D225
DIOPHI P FAST SOD80C S
4822 230 80466
s
D226
DIODE BAV99 SOD23
3922 450 16291
s
D227
DIODE BAV99 SOD23
3922 450 16291
s
D228
DIODE BZX79 C18 SOD27
4822 130 31024
s
D301
DIODE BAV21 SOD27
4822 130 30482
s
D302
DIODE BZX79 C10
3922 450 16261
s
D303
DIODE PHI BZX79C5V1 SOD27
3922 450 16271
s
D304
DIODE BAV21 SOD27
4822 130 30482
s
D305
DIODE BAV21 SOD27
4822 130 30482
s
IC201
T0220 VOLTREG L4940V12
4822 209 15867
s
IC202
IC SGS P HOR VER DEF DIL 16 C
4822 209 63819
s
IC203
IC PHI P MON MULTIV DIL16 C
4822 209 71585
s
IC204
IC HEF4538BP
3922 450 16281
s
J201
HDR L 1E56 2P GOLD
3922 450 04681
s
J202
HDR L 1E56 3P GOLD/TRANSP
3922 450 04441
s
J203
7A 1E 13CM FLATCABLE MET CONT.
3922 450 04771
s
J204
CONTRAHDR L 1E 6P GOLD/BROWN
3922 450 04661
s
J205
CONTRAHDR L 1E 5P GOLD/BROWN
3922 450 04651
s
J301
FASTON 6.3mm
3922 450 04701
s
L201
ROD COIL 6UH
4822 158 10101
s
L202
AT4042/49 MINUS 3 WINDINGS
3922 450 04531
s
L203
COIL 28-150UH
3922 450 04591
s
L204
ROD COIL 6UH
4822 158 10101
s
L205
ROD COIL 6UH
4822 158 10101
s
L206
COIL AT4063/68
3922 450 04551
s
L301
COIL BC 15UH 10% 610MA
3922 450 04571
s
MP
PIN 1 MM PCB
3922 450 04711
s
P201
TRIMMER 3323W 1K
2340 100 50102
s
P202
TRIMMER 3323W 5K
2340 100 50502
s
P203
TRIMMER 3323W 100E
2340 100 50101
s
P204
TRIMMER 3323W 1K
2340 100 50102
s
P205
TRIMMER 3323W 20K
2340 100 50203
s
P206
TRIMMER 3386H 1M
2340 100 14105
s
P208
TRIMMER SMD 3314G 5K
2340 100 16502
s
Q301
TRANSISTOR BF420
4822 130 42148
3 1
SHEET: OF
© Philips Digital Video Systems BV, Breda, The Netherlands
3922 450 16311
DATE:
1997-10-01
REF NR:
ORDERING CODE:
STATUS:
3922 450 16311
DEFLECTION BOARD
products market with "s" are available as spare part, other parts are printed for information only.
alt. code: 900015020321A
Page 42
SERVICE PARTS LIST
Item Code Number Description Item Code Number Description
s
Q302
TRANSISTOR BC556 TO92
4822 130 40989
s
R200
RC2PHI P 220E 1% 1206 S
2322 724 52201
s
R201
RC2PHI P 2M2 1% 1206 S
2322 724 52205
s
R202
PR1PHI I 47K 5% 4E C 1W
2322 193 13473
s
R203
RC2PHI P 33K 1% 1206 S
2322 724 53303
s
R204
RC2PHI P 33K 1% 1206 S
2322 724 53303
s
R205
PR1PHI P 1K0 5% 4E C 1W
2322 193 13102
s
R206
RC2PHI P 2E2 1% 1206
2322 724 52208
s
R207
RC2PHI P 2M2 1% 1206 S
2322 724 52205
s
R208
SFRPHI P 1E5 5% 3E C
2322 187 73158
s
R209
RC2PHI P 1E 1% 1206
2322 724 50011
s
R210
MTLRST FLM NFR25 1E PM5
4822 052 10108
s
R211
NFRPHI P 100E 5% 4E NFR25
2322 205 13101
s
R212
NFRPHI P 1K2 5% 4E NFR25H
2322 207 13122
s
R213
RC2PHI P 220E 1% 1206 S
2322 724 52201
s
R214
RC2PHI P 11K00 1% 1206 S
2322 724 51103
s
R215
RC2PHI P 68K 1% 1206 S
2322 724 56803
s
R216
RC2PHI P 100K0 1% 1206 S
2322 724 51004
s
R217
RC2PHI P 100K0 1% 1206 S
2322 724 51004
s
R218
RC2PHI P 100K0 1% 1206 S
2322 724 51004
s
R219
RC2PHI P 33K 1% 1206 S
2322 724 53303
s
R220
RC2PHI P 560K 1% 1206 S
2322 724 55604
s
R221
MRSPHI P 1K50 1% 3E C
2322 157 11502
s
R222
RC2PHI P 4K70 1% 1206 S
2322 724 54702
s
R223
RC2PHI P 470K 1% 1206
2322 724 54704
s
R224
RC2PHI P 10K0 1% 1206 S
2322 724 51003
s
R225
RC2PHI P 100K0 1% 1206 S
2322 724 51004
s
R227
RC2PHI P 100E 1% 1206
2322 724 51001
s
R228
RC2PHI P 470K 1% 1206
2322 724 54704
s
R229
MRSPHI P 180E0 1% 3E C
2322 157 11801
s
R230
RC2PHI P 390E 1% 1206
2322 724 53901
s
R234
MRSPHI P 180E0 1% 3E C
2322 157 11801
s
R235
RC2PHI P 1K5 1206 S
2322 724 51502
s
R236
RC2PHI P 1K00 1% 1206 S
2322 724 51002
s
R237
RC2PHI P 33K 1% 1206 S
2322 724 53303
s
R238
RC2PHI P 4K70 1% 1206 S
2322 724 54702
s
R239
RC2PHI P 6E8 1% 1206
2322 724 56808
s
R240
MRSPHI P 820E0 1% 3E C
2322 157 18201
s
R241
MRSPHI P 270K0 1% 3E C
2322 157 12704
s
R243
RC2PHI P 39K 1% 1206 S
2322 724 53903
s
R244
RC2PHI P 12K00 1% 1206 S
2322 724 51203
s
R248
MTLGLRST FLM VR25 2M2 PM5
4822 053 20225
s
R249
VR PHI P 820K 5% 4E VR25
2322 241 13824
s
R250
PR1PHI I 330K 5% 4E C 1W
2322 193 13334
s
R251
RC2PHI P 5K10 1% 1206 S
2322 724 55102
s
R252
RC2PHI P 6K80 1% 1206 S
2322 724 56802
s
R253
MRSPHI P 22K00 1% 3E C
2322 157 12203
s
R254
RC2PHI P 100K0 1% 1206 S
2322 724 51004
s
R255
RC2PHI P 10K0 1% 1206 S
2322 724 51003
s
R256
RC2PHI P 33K 1% 1206 S
2322 724 53303
s
R257
MRSPHI P 150E0 1% 3E C
2322 157 11501
s
R258
RC2PHI P 100K0 1% 1206 S
2322 724 51004
s
R259
RC2PHI P 330K 1% 1206
2322 724 53304
s
R260
RC2PHI P 100K0 1% 1206 S
2322 724 51004
s
R261
RC2PHI P 91K00 1% 1206 S
2322 724 59103
s
R262
RC2PHI P 91K00 1% 1206 S
2322 724 59103
s
R263
RC2PHI P 390K 1% 1206
2322 724 53904
s
R264
RC2PHI P 56E 1% 1206
2322 724 50561
s
R265
RC2PHI P 220K 1% 1206 S
2322 724 52204
s
R266
RC2PHI P 33K 1% 1206 S
2322 724 53303
s
R268
PR1PHI P 120E 5% 4E C 1W
2322 193 13121
s
R269
RC2PHI P 33K 1% 1206 S
2322 724 53303
s
R270
MRSPHI P 10K00 1% 3E C
2322 157 11003
s
R272
RC2PHI P 330K 1% 1206
2322 724 53304
s
R273
RC2PHI P 220K 1% 1206 S
2322 724 52204
s
R274
NFRPHI P 100E 5% 4E NFR25
2322 205 13101
s
R275
RC2PHI P 220K 1% 1206 S
2322 724 52204
s
R276
RC2PHI P 100K0 1% 1206 S
2322 724 51004
s
R277
RC2PHI P 1M 1% 1206 S
2322 724 51005
s
R278
RC2PHI P 1E 1% 1206
2322 724 50011
s
R280
RC2PHI P 22K 1% 1206 S
2322 724 52203
s
R283
RC2PHI P 2K70 1% 1206 S
2322 724 52702
s
R284
RC2PHI P 22K 1% 1206 S
2322 724 52203
s
R285
RC2PHI P 39K 1% 1206 S
2322 724 53903
s
R287
RC2PHI P 100E 1% 1206
2322 724 51001
s
R288
RC2PHI P 100E 1% 1206
2322 724 51001
s
R289
NFRPHI P 15E 5% 4E NFR25
2322 205 13159
s
R290
MTLGLRST FLM VR25 4M7 PM5
4822 053 20475
s
R291
RC2PHI P 100K0 1% 1206 S
2322 724 51004
s
R292
RC2PHI P 47K 1% 1206 S
2322 724 54703
s
R293
RC2PHI P 510K 1% 1206
2322 724 55104
s
R294
RC2PHI P 680K 1% 1206 S
2322 724 56804
s
R295
RC2PHI P 2M 1% 1206 S
2322 724 52005
s
R296
RC2PHI P 160K 1% 1206 S
2322 724 51604
s
R297
RC2PHI P 82K0 1% 1206 S
2322 724 58203
s
R298
RC2PHI P 330K 1% 1206
2322 724 53304
s
R299
RC2PHI P 240K0 1% 1206 S
2322 724 52404
s
R302
AB RCR20G272JS 2K7 1/2W
2323 111 11272
s
R303
MTLRST FLM NFR25 5E6 PM5
4822 052 10568
s
R305
MRSPHI P 4K30 1% 3E C
2322 157 14302
s
R306
MRSPHI P 4K30 1% 3E C
2322 157 14302
s
R307
MRSPHI P 820E0 1% 3E C
2322 157 18201
s
R308
SFRPHI P 3E3 5% 3E C
2322 187 73338
s
R350
RC2PHI P 22E 1% 1206
2322 724 50221
s
R351
RC2PHI P 10K0 1% 1206 S
2322 724 51003
s
T201
TRAPHI P SMSIG SOT 2 1206
4822 130 42614
s
T202
TRANSISTOR BSV52
3922 450 16241
s
T203
TRANSISTOR BSV52
3922 450 16241
s
T204
POWERFET
5322 130 62264
s
T205
POWERFET
5322 130 62264
s
T206
POWERFET
5322 130 62264
s
T208
TRANSISTOR BUX87
3922 450 16251
s
T209
TRANSISTOR BS170
4822 130 41937
s
T210
TRAPHI P SMSIG SOT 2 1206
4822 130 42614
s
T211
FETPHI P SWITCH SOT23 S
5322 130 60803
s
T212
TRAPHI P SMSIG SOT 2 1206
4822 130 42614
s
T213
FETPHI P SWITCH SOT23 S
5322 130 60803
s
T214
TRAPHI P POWER T0220 C
3922 450 05181
s
T215
TRAPHI P SMSIG TO92C PNP
4822 130 42149
s
T217
TRAPHI P SMSIG SOT 2 1206
4822 130 42614
3 2
SHEET: OF
© Philips Digital Video Systems BV, Breda, The Netherlands
3922 450 16311
DATE:
1997-10-01
REF NR:
ORDERING CODE:
STATUS:
3922 450 16311
DEFLECTION BOARD
products market with "s" are available as spare part, other parts are printed for information only.
alt. code: 900015020321A
Page 43
Item Code Number Description
SERVICE PARTS LIST
s
T218
TRAPHI P SMSIG SOT 2 1206
4822 130 42614
s
T219
TRAPHI P SMSIG SOT 23 S
5322 130 60123
s
T220
TRANSISTOR VN2406L
3922 450 05311
s
T221
TRAPHI P SMSIG T092 C
5322 130 44864
s
T223
TRAPHI P SMSIG SOT 23 S
5322 130 62802
s
T224
TRAPHI P SMSIG SOT 23 S
5322 130 62802
s
T225
TRAPHI P SMSIG SOT 23 S
5322 130 60159
s
T226
TRAPHI P SMSIG SOT 23 S
5322 130 60159
s
T227
FETPHI P SWITCH SOT23 S
5322 130 63289
s
T230
TRAPHI P SMSIG SOT 23 S
4822 130 60516
s
TR201
EHT TRANSFORMER
3922 450 04841
3 3
SHEET: OF
© Philips Digital Video Systems BV, Breda, The Netherlands
3922 450 16311
DATE:
1997-10-01
REF NR:
ORDERING CODE:
STATUS:
3922 450 16311
DEFLECTION BOARD
products market with "s" are available as spare part, other parts are printed for information only.
alt. code: 900015020321A
Page 44
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
