THOMSON RP2400, LAD790U Owner's Manual

p

r

o

g

r

a

m

m

a

b

l

e

c

o

m

p

a

c

t

d

i

s

c

p

l

a

y

e

r

b

a

s

s

b

o

o

s

t

m

o

d

e

P

p

r

o

g

•

d

i

s

p

l

a

y

s

e

c

o

n

d

t

r

a

c

k

minute

• 1 bit d/a convertor •

BASS BOOST

P

usermanual

RP2400 / LAD790U

Thomson multimedia Inc.

10330 N. Meridian St.

Indianapolis, IN 46290

©2001 Thomson multimedia Inc.

Trademark(s) © Registered

Marca(s) © Registrada(s)

Marque(s) © Deposée(s)

55118150 Rev.1 (EN/F/E)

www.rca.com

RP2400 EN rev.1 4/12/01 5:36 PM Page 2

1

SAFETY INFORMATION

EN

FCC Information
(North America)

This device generates and uses radio frequency
(RF) energy, and if not installed and used
properly, this equipment may cause interference
to radio and television reception.
This equipment has been type tested and found
to comply with the specifications in Subpart J of
Part 15 of FCC Rules. These rules are designed to
provide reasonable protection against radio and
television interference in a residential
installation. However, there is no guarantee that
interference will not occur in particular
installations.
If this equipment does cause interference to
radio or television reception (which you can
determine by turning the equipment off and
on), try to correct the interference by one or
more of the following measures:

• Reorient the receiving antenna (that is, the
antenna for the radio or television that is
“receiving" the interference).

• Move the unit away from the equipment that
is receiving interference.

• Plug the unit into a different wall outlet so
that the unit and the equipment receiving
interference are on different branch circuits.

If these measures do not eliminate the
interference, please consult your dealer or an
experienced radio/television technician for
additional suggestions.
Also, the Federal Communications Commission
has prepared a helpful booklet, "How To
Identify and Resolve Radio TV Interference
Problems." This booklet is available from the U.S.
Government Printing Office, Washington, DC

20402. Please specify stock number 004-000-

00345-4 when ordering copies.

For Your Records

In the event that service should be required, you
may need both the model number and the serial
number. In the space below, record the date and
place of purchase, and the serial number:

Model No.
Date of Purchase
Place of Purchase
Serial No.

Service Information

This product should be serviced only by those
specially trained in appropriate servicing
techniques. For instructions on how to obtain
service, refer to the warranty included in this
Guide.

Have a Blast- Just Not in
Your Eardrums
Make sure you turn down
the volume on the unit
before you put on
headphones. Increase the
volume to the desired level only after
headphone are in place.

SAFETY INFORMATION

Thomson Information
CAUTION!

Invisible laser radiation when open. Avoid
exposure to beam. Class 3B laser product. This
system must be opened only by qualified
technicians to prevent accidents caused by the
laser beam.

LASER λ = 780 nm, P max = 5 mW

Rating Information: At bottom of the unit
this unit comply with the existing requirements

In accordance with the rating plate of the unit,
this unit complies with current standards con­cerning electrical safety and electromagnetlc
compatibillity.

2

EN

Please respect the environment! Before throwing any batteries away, consult your
distributor who may be able to take them back for specific recycling.

ADVARSEL!

USYNLIG LASERSTRÅLNING VED
ÅBNING NAR SIKKERHEDSAFBRYDERE
ER UDE AF FUNKTION. UNGDÅ
UDSAETTELSE FOR STRÅLNING.

VORSICHT!

UNSICHTBARE LASERSTRALUNG
WENN ABDECKUNG GEÖFFNET UND
SICHERHEITS– VERRIEGELUNG
ÜBERBRÜCKT.
NICHT DEM LASERSTRAHL AUSSETZEN!

CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL A LASER DE CLASSE 1
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT

CAUTION – INVISIBLE LASER
RADIATION WHEN OPEN AND
INTERLOCKS FAILED OR DEFEATED.
AVOID EXPOSURE TO BEAM.

ATTENTION – RAYONNEMENT LASER
INVISIBLE DANGEREUX EN CAS
D'OUVERTURE ET LORSQUE LA
SECURITE EST NEUTRALISEE.
EXPOSITION DANGEREUSE AU
FAISCEAU.

VARNING–

OSYNLIG LASERSTRÅLNING NÄR
DENNA DEL ÄR ÖPPNAD OCH
SPÄRRAN ÄR URKOPPLADE.
BETRAKTA EJ STRÅLEN.

VARO!

AVATTAESSA JA SOUJALUKITUS
OHITETTAESSA OLET ALTTIINA
NÄKYMÄTTÖMÄLLE.
LASERSÄTEILYLLE ÄLÄ KATSO
SÄTEESEEN.

This Class B digital apparatus complies with
Canadian ICEC-003.
Cet appareil numérique de la class B est
conforme à la norme du NMB-003 du
Canada

RP2400 EN rev.1 4/12/01 5:36 PM Page 4

AC OUTLET POWER SUPPL Y

Refer to the above chart for adapter
(transformer) information that can be
used with your unit.
AC/DC adaptor is purposed for indoor use
in dry rooms only. Remove the jack from
the device to use it with the batteries.

Note : Power is fed to the unit even when
it is not functionning. To cut the power
supply off, the AC/DC adaptor must be
unplugged.

BATTERIES POWER SUPPLY

Refer to the table for details of the
batteries required to operate your unit.
Recharge function (Thomson Models)

—
To charge Ni-Cd batteries (not included):
Insert 2 rechargeable batteries in the
compartment. Turn the switch to the ON
position at the back of the unit. Connect
the main adaptor. The batteries take
about eight hours to become fully charged
if the player is not operating.

Important : If you use your CD player
with non rechargeable batteries, turn
OFF the switch at the back of the unit
in order to prevent any damage to the
unit or batteries.

THE CD PLAYER

THE CD PLAYER

EN

43

EN

open

volume

d

c

4

.

5

V

volume

l

i

n

e

o

u

t

p

r

o

g

r

a

m

m

a

b

l

e

c

o

m

p

a

c

t

d

i

s

c

p

l

a

y

e

r

b

a

s

s

b

o

o

s

t

m

o

d

e

P

p

r

o

g

•

d

i

s

p

l

a

y

s

e

c

o

n

d

t

r

a

c

k

minute

• 1 bit d/a convertor •

BASS BOOST

P

2

3

4

5

6

7

8

9 10

11

13

14

14

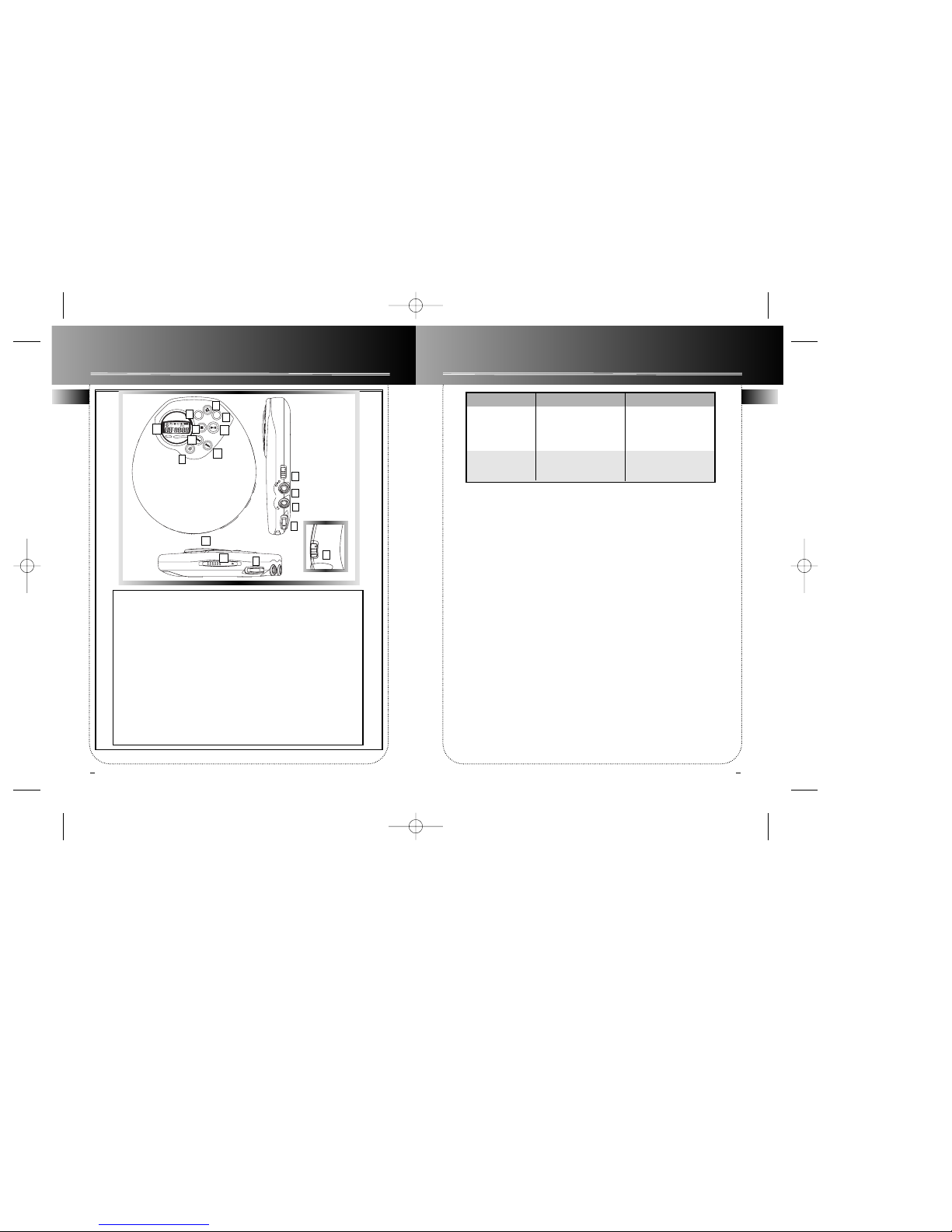

1. CONTROL switch. To lock or unlock
the buttons

2. VOLUME button. To adjust the
volume.

3. HEADPHONES jack. Insert your head-

phones here.

4. DC jack. You can insert the adapter

instead of batteries for indoor use.

5. For random playback.

6. P button. To program & display.

7. MODE button. For repeat or

introscan function.

8. Press to adjust Bass Boost level.

9. STOP button. Press to stop CD play.

10. PLAY/PAUSE button. Press to play
CD.

11. Skip up one track.

12. Skip down one track.

13. Display Panel. More information

on Page 6.

14. OPEN switch. Slide to open CD
door.

1

2

12

• on

• hold

controls

1

Model Number Adaptor Batteries

RP 2400 Not Included AAx2

Required Rating: (Not Included)
Input:120VAC 60Hz 6.0W
Output: 4.5VDC @ 600mA

LAD790U Included AAx2

A30460B (Included)

(230V 50Hz)

RP2400 EN rev.1 4/12/01 5:37 PM Page 6

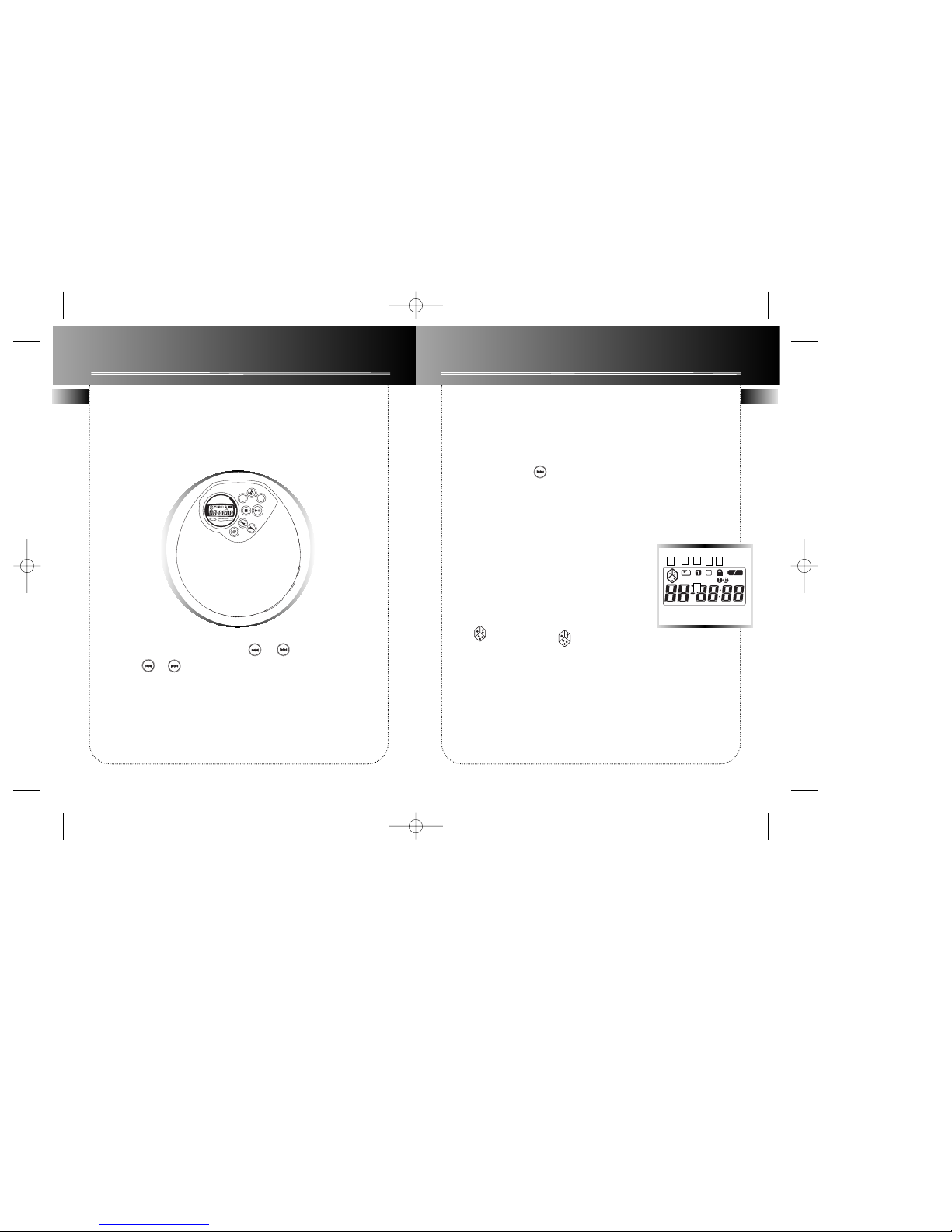

You can program up to 24 tracks.
To play your program again, press play .
To add/edit tracks to the program, go to
stop mode ; press and hold P button
again. Refer to step 2 of the above
paragraph.

To check the program,
press PLAY/PAUSE and

To cancel your program, press and hold
the mode key when you are in the stop
mode. ERASE will appear in the display.
The program will be automatically
canceled.
To exit program mode, remove P from the
display by pressing STOP then P.

Random tracks play

(MIX for Thomson &
SHUFFLE for RCA)

1. Listen press PLAY
key.

To cancel this function,

PAUSE

Suspend the playback by pressing
PLAY/PAUSE button. The minutes and
secondes flash when interrupted

STOP

Stop playback by pressing STOP button.
The player switches off automatically
after 10 seconds. Press twice stop key to
stop your CD player.

REMAIN TIME

Display remaining time in the play mode,
at play mode Press display information
about CD playing time.

THE DISPLA Y

1. Repeat
entire disc.

2. Repeat
current track.

3. RANDOM

TRACKS

4. PROGRAM

5. Is displayed when the control button is

on HOLD position.

6. Is displayed when Bass Boost is ON.

Listening to a Compact Disc

1. Slide the OPEN switch to the right
to open the door. Insert a disc and
press lightly on the centre to lock. Close
the door. Press PLAY/PAUSE button. Rd
DISC will appear in the display. Then,
the total number of tracks
and time of the CD will
be displayed. If the
disc compartment
is empty or the
disc cannot be
played, No Disc
will appear in
the display.

2. Slide CONTROL
switch to HOLD
position to lock
the button to
avoid accidental
activation of
unwanted functions.

You can also change tracks or quickly
listen to part of a track by pressing down
or holding

Repeating

You can replay the entire CD or one
track as many times as you wish as well
as listen to the beginning of each track
for 10 seconds.

Press MODE successively to

1. Replay the entire CD .

2. Replay the current track.

3. Replay the beginning of each track
for 10 seconds.

(The number of the track being played
will be displayed and SCAN will appear.)

4. Press again to the function
de-select.

Program

This function lets

you listen to the
tracks you
selected in the
order you want.

The CD player

must be in Stop

mode.

1. Press P button. P will

appear in the display.

2. Select the track to store by pressing
& press P again to con­firm.

3. Return to step 2 to store other tracks.

4. Press PLAY/PAUSE button to listen to
your programming.

Note : To prevent excessive battery
consumption, the unit switches off
automatically in all modes after 30s if
no key has been activated.

65

THE CD PLAYER

THE CD PLAYER

ENEN

or

or

p

r

o

g

r

a

m

m

a

b

l

e

c

o

m

p

a

c

t

d

i

s

c

p

l

a

y

e

r

b

a

s

s

b

o

o

s

t

m

o

d

e

P

p

r

o

g

•

d

i

s

p

l

a

y

s

e

c

o

n

d

t

r

a

c

k

minute

• 1 bit d/a convertor •

BASS BOOST

P

2. Press
De-select

BASS BOOST

P

1 23 4 5

6

RP2400 EN rev.1 4/12/01 5:37 PM Page 8

7

MORE INFORMATION

EN

EN

MORE INFORMATION

USEFUL ADVICE

• Do not store CDs in damp areas.

• Do not expose CDs to high
temperatures.

• Do not put any tape or adhesives on
either side of the disc.

• You should avoid leaving the CD
door open. Dust is liable to impair
performance of the laser optical unit.

• Do not use your set immediately
after transport from a cold place to a
warm place : there may be
condensation problems.

• Do not touch the playing surface.
Make sure that you keep your set
away from water and high
temperatures.

• If you do not use your set on battery
power for more than one month, we
advise you to take out all the batteries.

• To prevent personal injury , do not
reverse any battery and do not mix
battery types.

• Discard leaking batteries immediately.
Leaking batteries can cause skin burns
or other personal injury.

• Thomson recommends Duracell Ultra
Batteries.

• Prolonged use of the CD player at full

volume can damage the user’s ear .

PLEASE RESPECT
THE ENVIRONMENT !

Before throwing any batteries away,
consult your distributor who may be able
to take them back for specific recycling.

MAINTENANCE

Clean the player with a soft cloth, or a
damp chamois leather. Never use
solvents.

Notes on CD-R Discs

• CD-R discs that are recorded by
personal computers or some CD-R
recorders may not be played on this unit
due to the differences in recording
platforms.

• Do not load an unrecorded CD-R disc
into the unit. This may take a longer
time to read the disc.

TECHNICAL SPECIFICATIONS

* Frequency reponse: 20Hz to 20kHz

Power Supply

• 4.5V DC (through AD/DC adaptor
(refer to table page 2 for details)

• 2 batteries
( Duracell Ultra recommended)

• 2 rechargeable Ni-cd batteries
(Recharge function on Thomson
models)

What your warranty covers:

• Any defect in materials or workmanship.

For how long after your purchase:

• One year (The warranty period for rental units begins with the first rental or 45 days from date of
shipment to the rental firm, whichever comes first.)

What we will do:

• Provide you with a new, or at our option, a refurbished unit.

• The exchange unit is under warranty for the remainder of the original product's warranty period.

How to make a warranty claim:

• Properly pack your unit. Include any cables, etc., which were originally provided with the product.
We recommend using the original carton and packing materials.

• Include in the package evidence of purchase date such as the bill of sale. Also print your name and
address and a description of the defect. Send standard UPS or its equivalent to:

Thomson multimedia Inc.
Product Exchange Centre,
11721 B Alameda Ave,
Socorro, TX 79927

• Pay any charges billed to you by the Exchange Center for service not covered by the warranty.

• Insure your shipment in case of loss of damage. Thomson accepts no liability in case of damage or
loss.

• A new or refurbished unit will be shipped to you prepaid freight.

What your warranty does not cover:

• Customer instruction. (Your Owner's Manual provides information regarding operating instruc­tions and user controls. For additional information, ask your dealer.)

• Installation and set-up service adjustments.

• Batteries.

• Damage from misuse or neglect.

• Products which have been modified or incorporated into other products.

• Products purchased or serviced outside the USA.

• Acts of God, such as but not limited to lightning damage.

How state law relates to this warranty:

• This warranty gives you specific legal rights, and you may have other rights which vary from state
to state.

If you purchased your product outside the USA:

• This warranty does not apply. Contact your dealer for warranty information.

US Warranty

8

RP2400 EN rev.1 4/12/01 5:37 PM Page 10

Canadian Warranty

9

EN

Thomson multimedia Ltd. warrants to the purchaser or gift recipient that if any manufacturing defect
becomes apparent in this product within 1 year from the original date of purchase, it will be replaced
free of charge, including return transportation.
This warranty does not include damage to the product resulting from accidents, misuse or leaking bat­teries.
Should your product not perform properly during the warranty period, either:

1. Return it to the selling dealer with proof of purchase for replacement,
OR

2. Remove the batteries (where applicable), and pack product complete with accessories in the

original carton (or equivalent).
— Mail prepaid (with proof of purchase) and insured to:

Thomson multimedia Ltd.
6200 Edwards Blvd.,
Mississauga, Ontario,
L5T 2V7
Canada

The provisions of this written warranty are in addition to and not a modification of or subtraction
from the statutory warranties and other rights and remedies contained in any applicable legislation,
and to the extent that any such provisions purport to disclaim, exclude or limit any such statutory war­ranties and other rights and remedies, such provisions shall be deemed to be amended to the extent
necessary to comply therewith.
If you are unable to find a qualified servicer for out of warranty service, you may write to:
Thomson multimedia Ltd.
P.O. Box 0944
Indianapolis, Indiana, U.S.A., 46206-0944
Attach your sales receipt to this booklet for future reference. This information is required if service is
needed during the warranty period.

PURCHASE DATE

NAME OF STORE

RP2400 EN rev.1 4/12/01 5:37 PM Page 12
