Page 1
MODULES
MAIN MAIN R
55107250
AMPL AMPLI R
55107240
KDB DISPLAY/CONTROL R
55107260

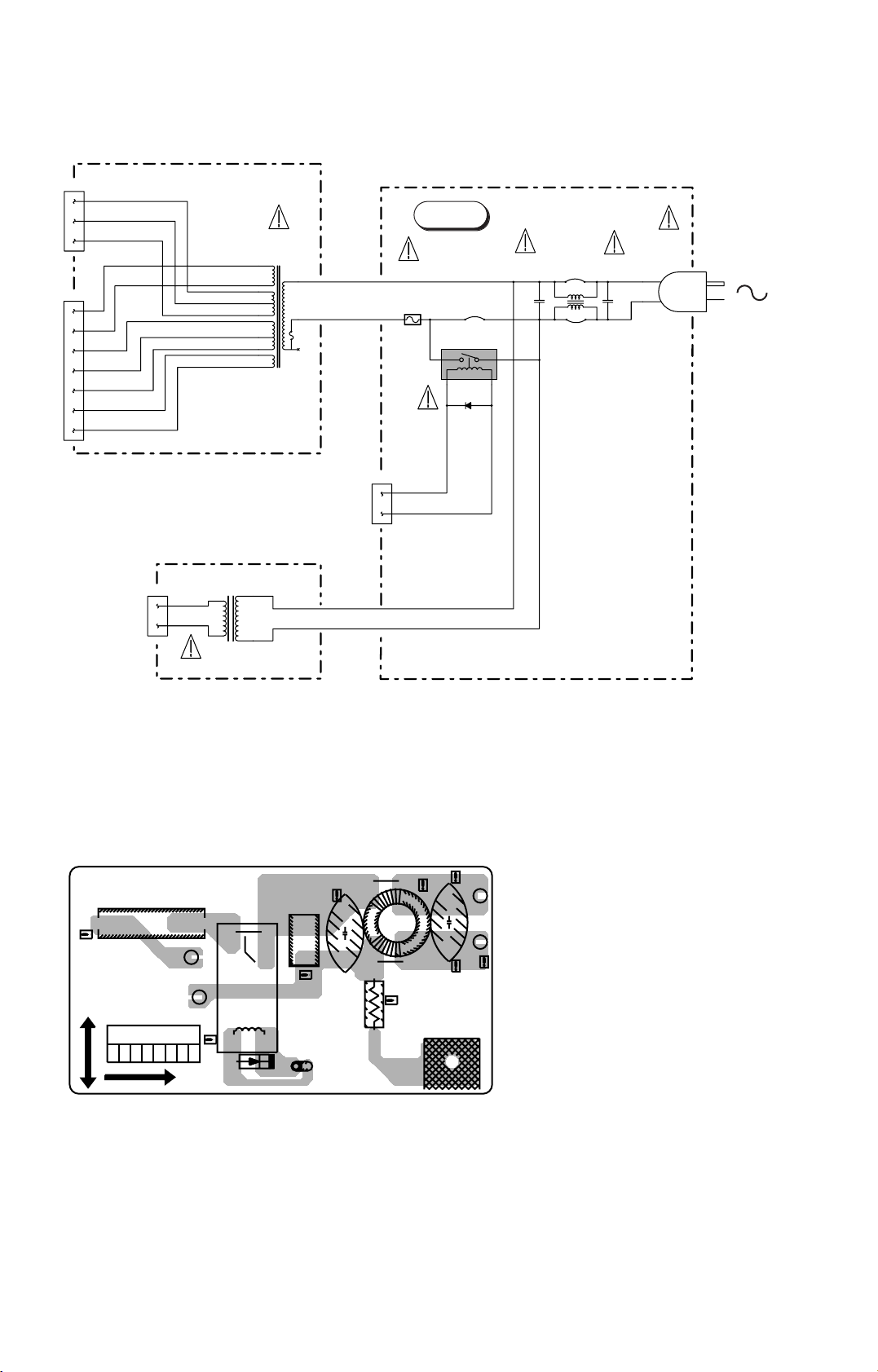

POWE POWER
55107880
RCPB CASSETTE
55107230
SVB CD CONTROL
55024460
I
IC001 (MAIN) TEA5757H
20955120
IC002 (MAIN) BU1924F FLAT
55048400
IC001,002 (SVB) LB1641 W
20656300
IC300 AN7348K
20693340
IC301 TDA7439
35096300
IC302 BA7755A
10214460
IC502 TDA7269
10348790
IC701 UPD780206-098-3BA FLAT
55112840
IC801 HCF4094BM1 FLAT
55069960
IC802 AN6605N
55107490
ICP01 ICP15
20777230
IR701 GP1U287R
20852030
Q812,813 KTC3203
20538210
T
PI001,002,003, RPI-574
20586840
005,006
PI004 GP2S28
20556130
Q003,004,006, KTC3875GR SMD
20779850
702,703,705,
706,801,804,
807,808,809
Q305,401,504, KTC3203Y/KTC2120Y
20538220
513,701,802,
805
Q307,331 KRC107S SMD
55051240
Q330 KTA1504GR SMD
20779750
Q503,505,511, KTC3198GR
20508070
515
Q510 KTA966A-Y
10469490
Q512 2SD2012
10221820
Q516 2SA1266Y
20508210
Q517 2SK117Y
35095520
Q803,806,810, 2SA950Y
20534440
811
D
D001,002(MAIN) SVC201SP
10281340
D001 (SVB) 1N5232B 5.6V
20414280
D002 (SVB) 1N5235B
20526990
D003 (MAIN) SVC348
55104590
D003,004,515, 1N4002
11070780
519,520,521,
522,JP503
D402,513 BZX55C7V5
80444150
D505,506,507, 1N5402
55041640
508
D509,510,511, 1N5392
10232130
512
D514 1N4751A
20743260
D523 BZX85C12
70437720
D525,707,708, 1N4148
44009209
709,710,711,
713,714,715,
727,801,802
D701 1N5234B 6V2
20526970
D705 L314-SRD LED
20971500
F
TF001 796KHZ 400UH
55103950
TF002 252KHZ
55104000
TF003 104UH
55103970
TF004 796KHZ 110UH
55104260
TF005 460KHZ
55103990
TF006 11MHZ
55103940
TF007,008 442KHZ
55103980
X001 75KHZ
55106010
X002 4M332HZ
55050710
Y001,002 10M7HZ
55079320
Y003 450K0HZ
20973940
Y701 4M19HZ
20776150
B
L801
70182000
P
EN701
55117390
R832 4K7 OHM
10368440
RV001 4K7 OHM
55125730
R
R003,004 2R2 OHM 5% 0,25W W
15009870
C
C018,CV001, 11P0F
10280980
CV002
C801,802 4N7F 20% 250V W
20677520
S
T05474A W
55117360
T05476B ( STAND-BY ) W
55093640
No copying, translation, modification on other use authorized. All rights reserved worldwide. • Tous droits de reproduction, de traduction, d'adaptation et d'exécution réservés pour tous les pays. • Sämtliche Urheberrechte an diesen Texten und Zeichnungen stehen uns zu. Nachdrucke,
Vervielfältigungen - auch auszugsweise - nur mit unserer vorherigen Zustimmung zulässig. Alle Rechte vorbehalten. • I diritti di riproduzione, di traduzione, e esecuzione sono riservati per tutti i paesi. • Derechos de reproduccion, de traduccion, de adaptacion y de ejecucion reservados para todos los paises.
For any requests, please contact THOMSON multimedia after sales service area
Pour toutes précisions, contactez votre service apres vente local THOMSON multimedia
Für weitere Auskünfte, wenden Sie sich bitte an die THOMSON multimedia Kundendienste
Per precisazioni, contattare l’assistenza tecnica THOMSON multimedia
Para cualquier pregunta, por favor contactar con el responsable de zona del servicio postventa de THOMSON multimedia
R : RECYCLED PART
: PIECE RECYCLEE
: AUSTAUSCHTEILE
: RICAMBIO RICICLATO
: MODULO REPROCESADO

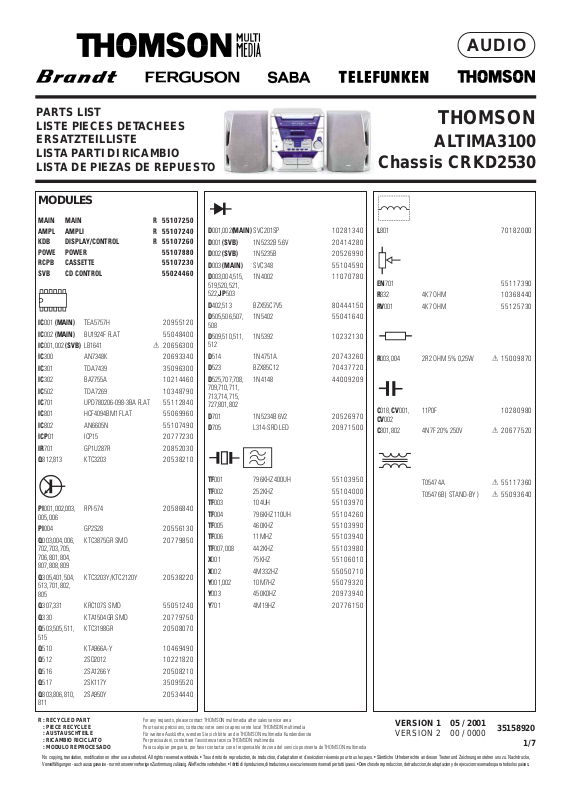

THOMSON
ALTIMA3100
Chassis CRKD2530
PARTS LIST
LISTE PIECES DETACHEES
ERSATZTEILLISTE
LISTA PARTI DI RICAMBIO
LISTA DE PIEZAS DE REPUESTO
AUDIO
VERSION 1 05 / 2001
35158920
VERSION 2 00 / 0000
1/7
Page 2
MECHANISM
MECANIQUE
MECHANIK
MECCANICA
MECANISMO
CASSETTE MECHANISM
55107480
MECANIQUE CASSETTE
CASSETTENLAUFWERK
MECCANICA CASSETTA
MECANISMO CASSETTE

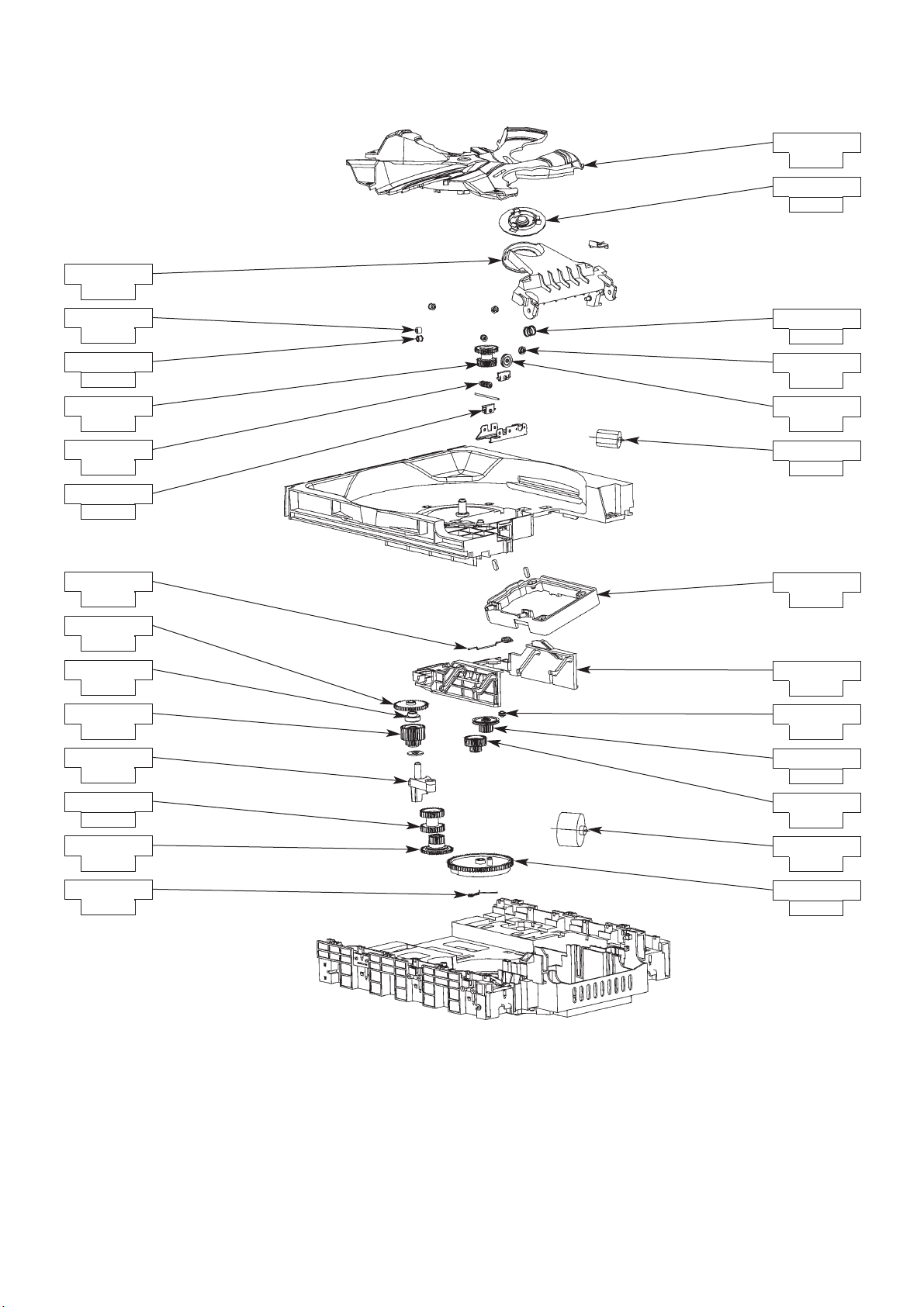

CD 5 DISC CHASSIS ASSY
55062750
CHASSIS CD 5 DISQUES EQUIPE
CD-WECHSLER K.P.L
CHASSIS CD 5 DISCOS COMPLETO
CHASIS CD 5 DISCOS EQUIPADO
TCM130-0W OPTICAL PLAYER
10663890
TCM130-0W LECTEUR OPTIQUE
TCM130-0W LECTEUR OPTIQUE
TCM130-0W ASSIEME OTTICA
TCM130-0W MECANISMO OPTICO
RUBBER BELT (MOTOR) D:36,5MM
55073350
COURROIE CAOUTCHOUC (MOTEUR) D:36,5MM
ANTRIEBSRIEMEN (MOTOR) D:36,5MM
CINGHIA DI GOMMA (MOTORE) D:36,5MM
CORREA DE GOMA (MOTOR) D:36,5MM
RUBBER BELT (TABLE) D:23MM
20710160
COURROIE CAOUTCHOUC (POS.PLATEAU) D:23MM
ANTRIEBSRIEMEN (TELLER) D:23MM
CINGHIA DI GOMMA (PIATTO) D:23MM
CORREA DE GOMA (PLATO) D:23MM
BUSH RUBBER CD FRONT
20446740
AMORTISSEUR CAOUTCHOUC CD AVANT
DAEMPFER GUMMI CD VORN
AMMORTIZZATORE DI GOMMA CD ANTERIORE
AMORTIGUADOR DE GOMA CD DELANTERA
BUSH RUBBER CD REAR
20365070
AMORTISSEUR CAOUTCHOUC CD ARRIERE
DAEMPFER GUMMI CD HINTEN
AMMORTIZZATORE DI GOMMA CD POSTERIORE
AMORTIGUADOR DE GOMA CD TRASERA
ACCESSORIES
ACCESSOIRES
ZUBEHOER
ACCESSORI
ACCESORIOS
LC20 CD DVD CD-ROM LENS CLEANER
35128640
LC20 NETTOYEUR DE LENTILLE CD DVD CD-ROM
LC20 LINSENREINIGER FÜR CD DVD CD-ROM
LC20 PULITORE PER LENTI DI CD DVD CD-ROM
LC20 LIMPIADOR DE LENTE CD DVD CD-ROM
M
ALTIMA3100 UM TH
55130790
ALTIMA3100 NU TH
ALTIMA3100 BA TH
ALTIMA3100 IU TH
ALTIMA3100 IU TH
CRKD2530 SERVICE MANUAL
35158930
CRKD2530 DOCUMENTATION TECHNIQUE
CRKD2530 TECHNISCHE DOKUMENTATION
CRKD2530 DOCUMENTAZIONE TECNICA
CRKD2530 DOCUMENTACION TECNICA
A3100 PARTS LIST
35158920
A3100 LISTE DE PIECES DETACHEES
A3100 ERSATZTEILLISTE
A3100 LISTA PARTI DI RICAMBIO
A3100 LISTA DE PIEZAS DE REPUESTO
OTHER PARTS
AUTRES PIECES
SONSTIGE TEILE
ALTRE P AR TI
OTRA S PIEZA S
F503,504 2AT 250V TIME-LAG FUSE W
48029300
2AT 250V FUSIBLE TEMPORISE
2AT 250V SICHERUNG
2AT 250V FUSIBILE TEMPORIZZATO
2AT 250V FUSIBLE TEMPORIZADO
F505,506,801 1A6T 250V TIME-LAG FUSE W
48064700
1A6T 250V FUSIBLE TEMPORISE
1A6T 250V SICHERUNG
1A6T 250V FUSIBILE TEMPORIZZATO
1A6T 250V FUSIBLE TEMPORIZADO
FL701 DISPLAY LCD
55105080
AFFICHEUR LCD
LCD-ANZEIGE
VISUALIZZATORE LCD
VISUALIZADOR LCD
NJ501 LOUDSPEAKER SOCKET
10284650
PRISE HAUT PARLEUR
LAUTPSRECHERBUCHSE
PRESA ALTOPARLANTE
TOMA HEMBRA ALTAVOZ
NJ504 HEADPHONE SOCKET
55050690
PRISE CASQUE
KOPFHOERERBUCHSE
PRESA JACK
TOMA JACK
NJ515 LOUDSPEAKER SOCKET
55060580
PRISE HAUT PARLEUR
LAUTSPRECHERBUCHSE
PRESA ALTOPARLANTE
TOMA HEMBRA ALTAVOZ
NJ516 CINCH SOCKET
55051030
PRISE CINCH
CHINCH-BUCHSE
PRESA CINCH
TOMA CINCH
NJ517 CINCH SOCKET
55066600
PRISE CINCH
CHINCH-BUCHSE
PRESA CINCH
TOMA CINCH
OP01 OPTICAL SOCKET
55035050
PRISE OPTIQUE
BUCHSE PICK-UP
PRESA OTTICA
TOMA OPTICO
RLY1 SDT-S-112LMR RELAY 12V W
35095470
SDT-S-112LMR RELAIS 12V
SDT-S-112LMR RELAIS 12V
SDT-S-112LMR RELEE 12V
SDT-S-112LMR RELEE 12V
SW701,702, MICROSWITCH
20404730
703,704,705, MICROCONTACTEUR
706,707,708, MIKROSCHALTER
709,710,711, MICROINTERRUTTORE
712,713,714, MICROCONTACTOR
715,716,717,
718,719,720,
721,722,723,
724
EQUIPMENT/PRESENTA TION
EQUIPEMENT/PRESENTA TION
AUSS TATTUNG/GEHAEUSE
PARTI VARIE
EQUIPO/PRESENTACION
FOLDING BOX
55130780
EMBALLAGE CARTON
KARTON
IMBALLGGIO CARTONE
EMBALAJE CARTON
FITTING REAR
55144040
CALE ARRIERE
POLSTER HINTEN
DISTANZIATORE POSTERIORE
CALZO TRASERA
FITTING FRONT
55144030
CALE AVANT
POLSTER VORN
DISTANZIATORE ANTERIORE
CALZO DELANTERA
A3100 REMOTE CONTROL
55135070
A3100 TELECOMMANDE
A3100 FERNBEDIENUNG
A3100 TELECOMANDO
A3100 TELEMANDO
AM ANTENNA
55115970
ANTENNE AM
AM ANTENNE
ANTENNA AM
ANTENA AM
LOUDSPEAKER BOX ASSY RIGHT AND LEFT
55113320
ENCEINTE ACOUSTIQUE GAUCHE ET DROITE
LAUTSPRECHERBOX RECHTS UND LINKS
CASSA ACUSTICA DESTRO E SINISTRO
CAJA ACUSTICA DERECHA Y IZQUIERDA
LOUDSPEAKER BOX RIGHT
35160990
ENCEINTE ACOUSTIQUE DROITE
LAUTSPRECHERBOX RECHTS
CASSA ACUSTICA DESTRO
CAJA ACUSTICA DERECHA
LOUDSPEAKER BOX LEFT
35164370
ENCEINTE ACOUSTIQUE GAUCHE
LAUTSPRECHERBOX LINKS
CASSA ACUSTICA SINISTRO
CAJA ACUSTICA IZQUIERDA
MULTIMEDIA PACK CD ROM + CABLE
55114820
MULTIMEDIA PACK CD ROM + CABLE
MULTIMEDIA PACK CD ROM + KABLE
MULTIMEDIA PACK CD ROM + CAVO
MULTIMEDIA PACK CD ROM + CABLE
CINCH(2)/JACK CABLE
55049770
CORDON PRISES CINCH(2)/JACK
CINCH(2)/JACK-KABEL
CAVO PRESA CINCH(2)/JACK
CABLE DE ENLACE CINCH(2)/JACK
POWER SUPPLY LEAD W
10260820
CORDON D’ALIMENTATION
NETZKABEL
CAVO DI ALIMENTAZIONE
CABLE DE ALIMENTACION
A3100 2/7
Page 3

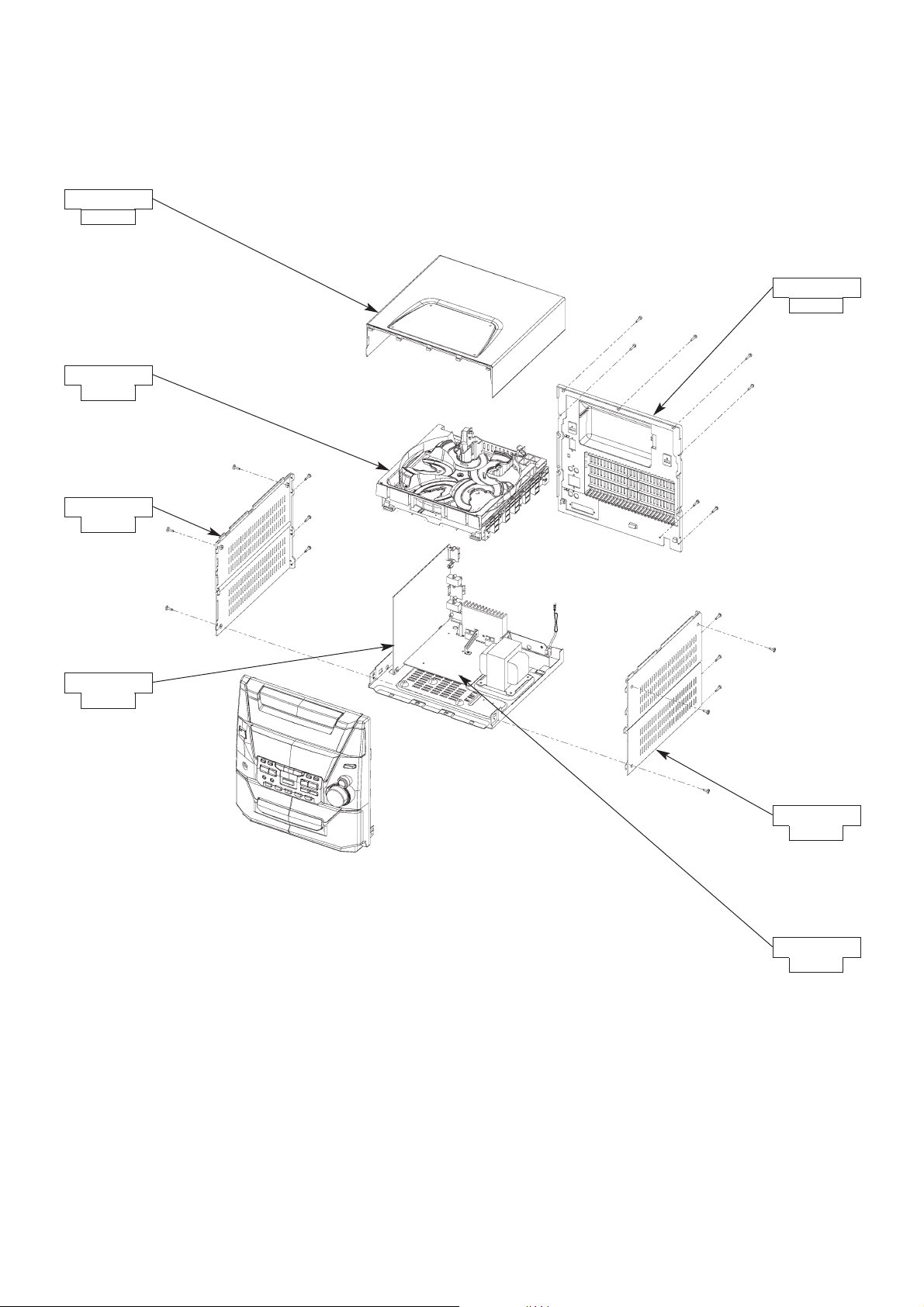

CHASSIS AND PRESENTATION
CHASSIS ET PRESENTATION
CHASSIS UND GEHAEUSETEILE
TELAIO E DI PRESENTAZIONE
CHASIS Y PRESENTACION
AMPL AMPLI BOARD
55107240
AMPLI PLATINE
AMPLI PLATTE
AMPLI PIASTRA
AMPLI PLATINA
CDM5 CD 5 DISC CHASSIS ASSY
55062750
CHASSIS CD 5 DISQUES EQUIPE
CD-WECHSLER K.P.L
CHASSIS CD 5 DISCOS COMPLETO
CHASIS CD 5 DISCOS EQUIPADO
MAIN MAIN BOARD
55107250
MAIN PLATINE
MAIN PLATTE
MAIN PIASTRA
MAIN PLATINA
060 SIDE PANEL LEFT
55123620
PANNEAU LATERAL GAUCHE
SEITENTEIL LINKS
PANNELLO LATERALE SINISTRO
PANEL LATERAL IZQUIERDO
070 SIDE PANEL RIGHT
55123560
PANNEAU LATERAL DROIT
SEITENTEIL RECHTS
PANNELLO LATERALE DESTRO
PANEL LATERAL DERECHO
080 REAR PANEL
55112980
PANNEAU ARRIERE
SEITENTEIL HINTEN
PANNELLO POSTERIORE
PANEL POSTERIOR
090 UPPER CASE ASSY
55110500
COFFRET SUPERIEUR
GEHAEUSE OBEN
CASSA SUPERIORE
CAJA SUPERIOR

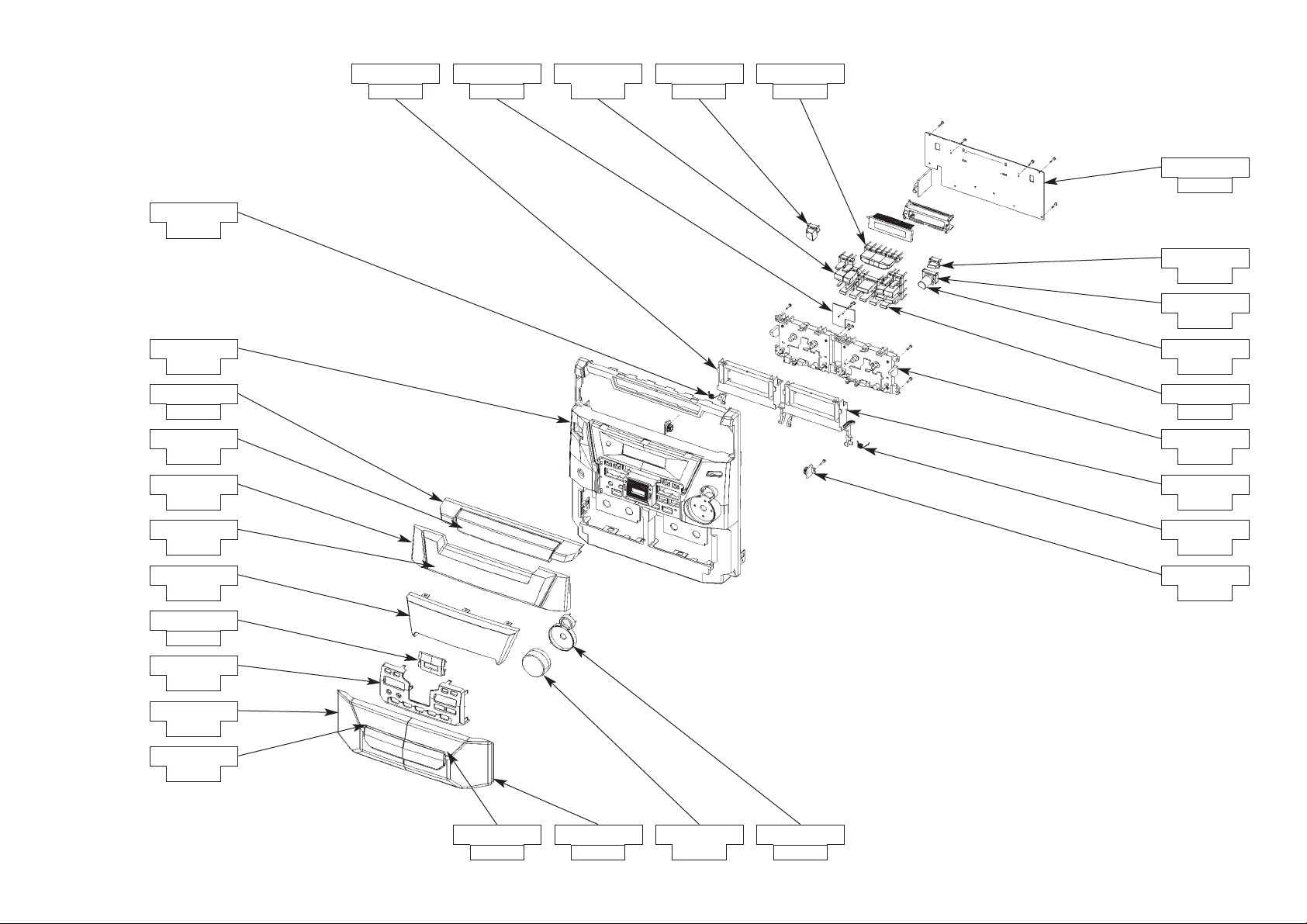

CHASSIS AND PRESENTATION 2
CHASSIS ET PRESENTATION 2
CHASSIS UND GEHAEUSETEILE 2
TELAIO E DI PRESENTAZIONE 2
CHASIS Y PRESENTACION 2

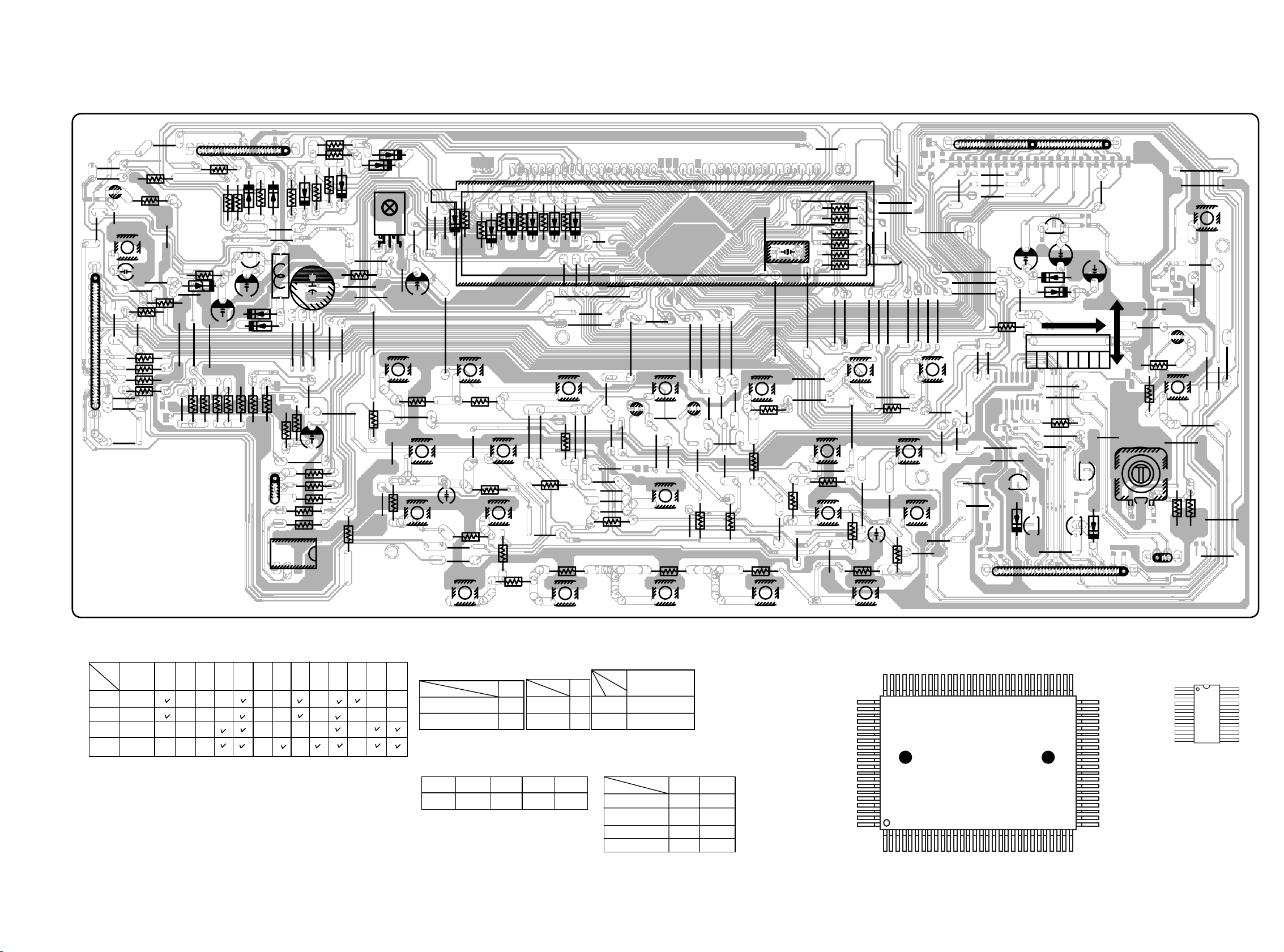

KDB DISPLAY/CONTROL BOARD
55107260
DISPLAY/CONTROL PLATINE
DISPLAY/CONTROL PLATTE
DISPLAY/CONTROL PIASTRA
DISPLAY/CONTROL PLATINA
RCPB CASSETTE BOARD
55107230
CASSETTE PLATINE
CASSETTE PLATTE
CASSETTE PIASTRA
CASSETTE PLATINA
040 FRONT PANEL
55153640
FACADE
FRONTPLATTE
PANNELLO FRONTALE
PANEL FRONTAL
100 CASSETTE FLAP DOOR LEFT
55132390
VOLET CASSETTE GAUCHE
CASSETTENKLAPPE LINKS
SPORTELLO CASSETTA SINISTRO
TAPA CASSETTE IZQUIERDO
110 CASSETTE FLAP DOOR RIGHT
55132400
VOLET CASSETTE DROIT
CASSETTENKLAPPE RECHTS
SPORTELLO CASSETTA DESTRO
TAPA CASSETTE DERECHO
120 CD DOOR
55110720
VOLET CD
CD KLAPPE
SPORTELLO CD
TAPA CD
220 VOLUME KNOB
55111090
BOUTON VOLUME
LAUTSTAERKEKNOPF
ROTELLA DI PLASTICA VOLUME
RUEDA PLASTICA MANDO VOLUMEN
230 BUTTON STRIP 13 KEYS
55146530
BARRETTE DE 13 TOUCHES
TASTENLEISTE 13 TASTE
PIATTINA 13 TASTI
PLACA DE 13 TECLAS
235 BUTTON STRIP DISC CD
55146540
BARRETTE DE TOUCHES SELECTION DISQUE
TASTENLEISTE AUSWAHL LASERPLATTE
PIATTINA TASTI SELEZIONE DEL DISCOS
PLACA DE TECLAS SELECCION DE DISCOS
240 BUTTON STRIP ROCK-EQ-JAZZ
55111010
BARRETTE TOUCHES 3T ROCK-EQ-JAZZ
TASTENLEISTE ROCK-EQ-JAZZ
PIATTINA TASTI 3T ROCK-EQ-JAZZ
PLACA DE TECLAS 3T ROCK-EQ-JAZZ
250 B.BOOST BUTTON
55111030
TOUCHE B.BOOST
TASTE B.BOOST
TASTO B.BOOST
TECLA B.BOOST
260 DIMMER/DEMO BUTTON
55111050
TOUCHE DIMMER/DEMO
TASTE DIMMER/DEMO
TASTO DIMMER/DEMO
TECLA DIMMER/DEMO
270 ON/OFF BUTTON
55111070
TOUCHE MARCHE/ARRET
EIN-AUS TASTE
TASTO ACCESO/SPENTO
TECLA MARCHA/PARADA
280 BUTTON B.BOOST/VOLUME RING
55153620
BAGUE TOUCHE B.BOOST/VOLUME
TASTE B.BOOST/VOLUME RING
TASTO B.BOOST/VOLUME ANELLO
TECLA B.BOOST/VOLUME ANILLO
A3100 3/7
290 CONTROL PANEL
55110610
TABLEAU DE COMMANDES
BEDIENTEIL
QUADRO DI COMANDO
TABLERO DE MANDO
300 UPPER FLAP
55153570
VOLET SUPERIEUR
OBEN KLAPPE
SPORTELLO SUPERIORE
TAPA SUPERIOR
350 CASSETTE FLAP WINDOW LEFT
55153120
GLACE VOLET CASSETTE GAUCHE
FENSTER CASSETTENKLAPPE LINKS
VETRO SPORTELLO CASSETTA SINISTRO
CRISTAL TAPA CASSETTE IZQUIERDO
360 CASSETTE FLAP WINDOW RIGHT
55153130
GLACE VOLET CASSETTE DROIT
FENSTER CASSETTENKLAPPE RECHTS
VETRO SPORTELLO CASSETTA DESTRO
CRISTAL TAPA CASSETTE DERECHA
400 UPPER CASE WINDOW
55132620
GLACE COFFRET SUPERIEUR
FENSTER GEHAEUSE OBEN
VETRO DEL CASSA SUPERIORE
CRISTAL DEL CAJA SUPERIOR
420 DISPLAY WINDOW
55113040
GLACE AFFICHEUR
ANZEIGEFENSTER
VETRO DEL VISUALZZATORE
CRISTAL DEL VISUALIZADOR
430 TRAY CD WINDOW
55113090
GLACE VOLET CD
FENSTER CD KLAPPE
VETRO DEL SPORTELLO CD
CRISTAL DEL TAPA CD
440 CRYSTAL B.BOOST
55153160
GLACE B.BOOST
FENSTER B.BOOST
VETRO B.BOOST
CRISTAL B.BOOST
450 CRYSTAL X-SURROUND
55153180
GLACE X-SURROUND
FENSTER X-SURROUND
VETRO X-SURROUND
CRISTAL X-SURROUND
485 CASSETTE HOLDER LEFT
55116880
PORTE CASSETTE GAUCHE
CASSETTENHALTER LINKS
PORTACASSETTA SINISTRO
PORTACASSETTE IZQUIERDO
490 CASSETTE HOLDER RIGHT
55116890
PORTE CASSETTE DROIT
CASSETTENHALTER RECHTS
PORTACASSETTA DESTRO
PORTACASSETTE DERECHO
520 SPRING TORSION CASSETTE LEFT
55113720
RESSORT VOLET CASSETTE GAUCHE
NADELFEDER CASSETTENKLAPPE LINKS
MOLLA PORTACASSETTA SINISTRO
RESORTE PORTACASETTE IZQUIERDO
530 SPRING TORSION CASETTE RIGHT
55113730
RESSORT VOLET CASSETTE DROIT
NADELFEDER CASSETTENKLAPPE RECHTS
MOLLA PORTACASSETTA DESTRO
RESORTE PORTACASETTE DERECHO
580 CASSETTE DOOR DAMPER GEAR
10039140
ROUE DENTEE PORTE CASSETTE
ZAHNRAD CASSETTENHALTER
RUOTA DENTATA PORTACASSETTA
RUEDA DENTADA PORTACASSETTE
590 CASSETTE MECHANISM
55107480
MECANIQUE CASSETTE
CASSETTENLAUFWERK
MECCANICA CASSETTA
MECANISMO CASSETTE
Page 4
CD MECHANISM
MECANIQUE CD
CD MECHANIK
MECCANISMO CD
MECANICA CD
03 SPRING
20979850
RESSORT
FEDER
MOLLA
RESORTE
04 GEAR MAIN
20979800
ROUE DENTEE PRINCIPALE
HAUPT-ZAHNRAD
RUOTA DENTATA PRINCIPAL
RUEDA DENTADA PRINCIPALE
05 GEAR PIVOT
20979830
ENGRENAGE PIVOT
ZAHNRAD DREHPUNKT
PIGNONE PERNO
PINON PIVOTE
06 DUAL GEAR WHEEL
20979760
DOUBLE ROUE DENTEE
DOPPELT ZAHNRAD
DOPPIO RUOTA DENTATA
DOBLE RUEDA DENTADA
07 SWING ARM
20979940
BRAS PIVOT
ARM,DREHPUNKT
BRACCIO PERNO
BRAZO PIVOTE
09 GEAR CLUTCH
20979750
ROUE D’EMBBRAYAGE
RAD KUPPLUNG
RUOTA DI FRIZIONE
RUEDA DE EMBRAGUE
10 SLIDING ROLLER
20979950
PATIN GLISSANT
RUTSCHIG ROLL
PATTINO SCIVOLOSO
PATIN RESBALADIZO
11 GEAR WHEEL
20979790
ROUE DENTEE
ZAHNRAD
RUOTA DENTATA
RUEDA DENTADA
12 DUAL GEAR
20979770
DOUBLE ENGRENAGE
DOPPELT ZAHNRAD
DOPPIO PIGNONE
DOBLE PINON
13 INTERMEDIATE GEAR WHEEL
20979840
POULIE INTERMEDIAIRE DENTEE
ZWISCHENZAHNRAD
PULEGGIA INTERMEDIA DENTATA
POLEA INTERMEDIA DENTADA
14 MOTOR PULLEY TRAY/TABLE CD
20979870
POULIE MOTEUR TIROIR/PLATEAU CD
MOTORROLLE SCHUBLADE/TELLER CD
PULEGGIA DEL MOTORE CASSETTO/
PIATTO CD
POLEA DE MOTOR CORREDERA/PLATO CD
15 GUIDE RAIL
20979740
GUIDE RAIL
FUEHRUNGSSCHIENE EINFAEDELN
CONTROROTAIA
CONTRACARRIL
16 MAIN GEAR TORSION SPRING
20979810
RESSORT A EPINGLE ROUE PRINCIPALE
HAUPT-ZAHNRAD NADELFEDER
MOLLA DI TORSIONE RUOTA PRINCIPAL
RESSORTE HORQUILLA RUEDA PRINCIPALE
17 OPTICAL PLAYER BRACKET
20979970
SUPPORT LECTEUR OPTIQUE
CD-LAUFWERK HALTER
SUPPORTO ASSIEME OTTICA
SOPORTE MECANISMO OPTICO
22 THREADED END-FITTING
20979960
EMBOUT PLASTIQUE
MUFFENTUELLE
GHIERA DI PLASTICA
CONTERA PLASTICA
24 INTERMEDIATE SPINDLE
20979890
AXE INTERMEDIAIRE
ZWISCHENACHSE
SPINOTTO INTERMEDIO
EJE INTERMEDIO
25 DUAL GEAR WHEEL
20979780
DOUBLE ROUE DENTEE
DOPPELT ZAHNRAD
DOPPIO RUOTA DENTATA
DOBLE RUEDA DENTADA
26 PULLEY
20979880
POULIE
ROLLE
PULEGGIA
POLEA
27 RUBBER ROLLER BRACKET
20712170
SUPPORT GALET CAOUTCHOUC
GUMMIROLLE HALTER
SUPPORTO RULLO DI GOMMA
SOPORTE RODILLO DE GOMA
29 SPRING
21014080
RESSORT
SPRUNGFEDER
MOLLA
MUELLE
30 ARM, PLASTIC
20979980
BRAS PLASTIQUE
ARM, KUNSTSTOFF
BRACCIO IN PLASTICA
BRAZO PLASTICO
32 HOLDER MAGNET
20582250
SUPPORT AIMANT
HALTER MAGNET
SUPPORTO MAGNETE
SOPORTE IMAN
33 TABLE 5 CD
55022540
PLATEAU 5 CD
TELLER 5 CD
PIATTO 5 CD
PLATO 5 CD
34 FF-130SH-14230 MOTOR DC
20581820
FF-130SH-14230 MOTEUR DC
FF-130SH-14230 MOTOR DC
FF-130SH-14230 MOTORE DC
FF-130SH-14230 MOTOR DC
35 RF-500TB MOTOR DC
20581800
RF-500TB MOTEUR DC
RF-500TB MOTOR DC
RF-500TB MOTORE DC
RF-500TB MOTOR DC
36 RUBBER ROLLER
20712120
GALET CAOUTCHOUC
GUMMIROLLE
RULLO DI GOMMA
RODILLO DE GOMA
A3100 4/7
Page 5
55110500
090
55062750
CDM5
55123620
060
55107250
MAIN
55112980
080
55123560
070
55107240
AMPL
A3100 5/7
CHASSIS AND PRESENTATION / CHASSIS ET PRESENTATION / CHASSIS UND GEHAEUSETEILE /
TELAIO E DI PRESENTAZIONE / CHASIS Y PRESENTACION
Page 6
55107260
KDB
55111050
260
55111030
250
55153160
440
55146540
235
55107480
590
55116890
490
55113730
530
10039140
580
55113720
520
55153640
040
55153570
300
55132620
400
55110720
120
55113090
430
55113040
420
55153180
450
55110610
290
55132390
100
55153120
350
55153620
280
55111090
220
55132400
110
55153130
360
55111010
240
55111070
270
55146530
230
55107230
RCPB
55116880
485
A3100 6/7
CHASSIS AND PRESENTATION 2 / CHASSIS ET PRESENTATION 2 / CHASSIS UND GEHAEUSETEILE 2 /
TELAIO E DI PRESENTAZIONE 2 / CHASIS Y PRESENTACION 2
Page 7
THOMSON multimedia S.A au capital de 994 175 655 - 46, Quai Alphonse Le Gallo 92648 Boulogne Cedex FRANCE - RCS NANTERRE B 333 773 174
The description and characteristics given here are of informative significance only, and non committal. To keep up the high quality of our products, we reserve the right to
make any changes or improvement without previous notice. • Les descriptions et caractéristiques figurant sur ce document sont données à titre d'information et non
d'engagement. En effet, soucieux de la qualité de nos produits, nous nous réservons le droit d'effectuer, sans préavis, toute modification ou amélioration. • Die
Beschreibungen und Daten in dieser Anleitung dienen nur zur Information und sind nicht bindend. Um die Qualität unserer Produkte ständig zu verbessern, behalten wir uns
das Recht auf Änderungen vor. • Le descrizioni e le caratteristiche date su questo documento sono fornite a semplice titolo informativo e senza impegno. Ci riserviamo il
diritto di eseguire, senza preavviso, qualsiasi modifica o miglioramento. • Las descripciones y características que figuran en este documento se dan a título de información
y no de compromiso. En efecto, en bien de la calidad de nuestros productos, nos reservamos el derecho de efectuar, sin previo aviso, cualquier modificación o mejora.
A3100 7/7
20979980
30
20712120
36
20712170
27
20979780
25
20979890
24
20979960
22
20979810
16
20979790
11
20979950
10
20979750
09
20979940
07
20979760
06
20979830
05
20979850
03
55022540
20582250
21014080
33
32
29
20979870
14
20979880
26
20581820
34
20979970
17
20979740
15
20979870
14
20979840
13
20979770
12
20581800
35
20979800
04
CD MECHANISM / MECANIQUE CD / CD MECHANIK /
MECCANISMO CD / MECANICA CD
Page 8
13
CRKD 2531
14 First issue08/01
C603
J114
JP011
J605
P002
J509
C298
J428
J316
J380
Q327
J425
J134
C304L
C304R
C305L
C311L
C320
C315L
C315R
C307R
C307L
C319
J502
C312
J426
C314L
C305R
C316
J160
C460
C451
C459
C453
C454
C455
C456
C457
C420
L304
L301
L303
L302
P001
J390
C062
J033
J440
J030
J063
J061
C053
N702
SVC001
Y003
J029
IC002
J050
X002
X001
TF001
RV001
D001
C052
C051
C050
C054
C022R
C045
C022L
C017R
C017L
C013
C012
C011
C61
C002
C036
J024
C047
C035
C059
J044
Q601R
J311
J132
Y002
Y001
L003
J053
J066
J060
J317
J318
J331
J309
J324
J062
J321
J315
J322
C311R
J327
J308
J307
J323
J310
J325
J329
J328
J326
J330
C411
N304
D402
D403
Q401
J504
J508
J506
J503
J507
J600
J601
J603
J602
J604
J606
N312
C299
J410
J415
J405
J411
J409
J402
J414
J404
J407
J408
J406
J403
J423
J418
J400
J412
J416
J413
J419
J422
J420
J421
J424
J229
TF005
D010
J219
J231
J232
J238
J243
J235
J234
J242
J240
J245
J043
J258
J246
J259
J244
J247
J248
J214
J237
J236
J233
D299
D410
PK001
D411
D002
D004
D003
RV340
TF003
TF002
D005
IC301
IC302
NJ515
IC300
JK001
J065
N302
N303
N513
C005
R401
J034
J023
J031
J042
J045
J026
J052
J047
C030
J054
J051
J108
L004
J032
J113
J003
J109
J129
J128
IC003
J131
J125
N301
P102
P511
P101
P501
RV341
Q305
R340
R342
R341
J027
J009
J005
J002
J006
J041
C027
J064
D011
J055
J046
J004
C314R
C410
C343
J010
J022
J007
J048
J001
C409R
C463
C409L
C453R
C402R
C401R
C401L
C902
C402L
C453L
C410L
C410R
C426R
C426L
C616L
C616R
C611R
C615R
C615L
C515
C517
C611L
R618R
R299
C903
C333
J025
C348
C342
C391
C341
C390
NJ516
N703
J028
M001
J049
NJ517
IC453
R618L
C351
J124
J133
Q601L
J417
P517
J127
J607
C317
J427
J430
Q299
N401
J126
N313
JP301
C350
J320
J223
N402
J008
J021
J312
J102
L302R
L301L
L301R
C352
P003
C370
2000/06/30
L302L
A3200G MN BD FOR PRD
22
1
11
1
30
15
TOCOM# 55090800
1
6 DATA_OUT
5 DATA_IN
1
10 H/P-MUTE
11 AUX-MUTE
9 TUNERPWR
8 STI
7 PLL_CE
4 SCLK
3 TAPEMUTE
2 CD_SYNCHRO
1 VMAX
11 1
TUNER
CONVEYOR
8765432
QUALITY CHECK
1
GRAIN

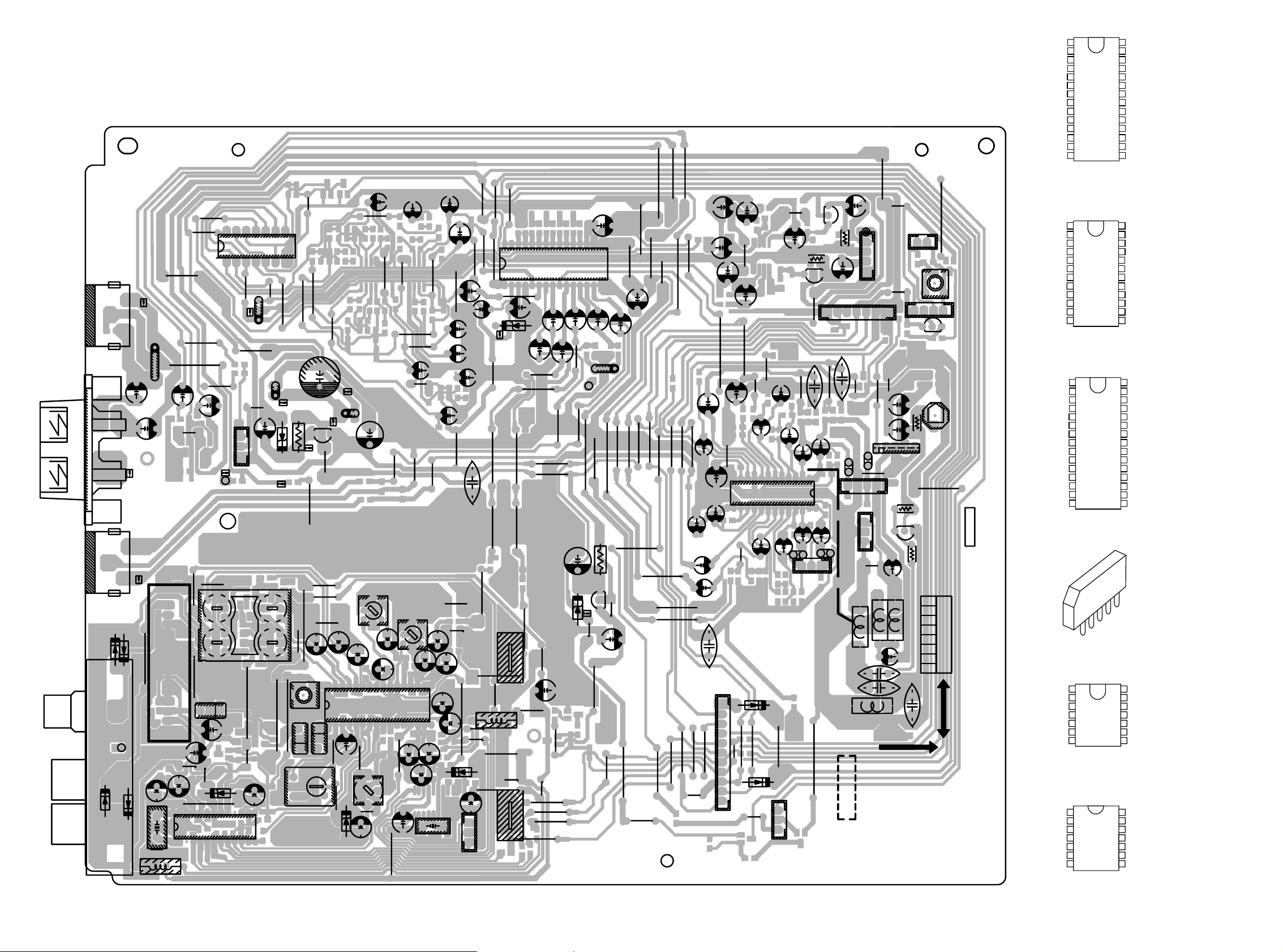

Component side
Côté composants
Bestückungsseite
Lato componenti
Lado componentes
Main P.C.B.
Platine principale
Grundplatte
Piastra principale
Platina principal
AN7348K
1
13
12
24
TDA 7439
1
16
15
30
BA7755A
1
5
BU4066BC
1
7
8
14
1
14
8
9
MC1466BCP
1
15 16
30
LA1837
Page 9
17
CRKD 2531
18 First issue 08/01
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81828384858687888990919293949596979899
100
12
12345678910 11 12 13
1
2
3
1
2
3
123
123456789
1 23456789101112 13 14 15
12
12
12
1
2
12
1
2
12121
2
1
2
121
2
1
2
1
2
1
2
1
2
1
212
12
12
12
1
2
1
2
1
2
1
2
56789
10
11121314151617
18
19
20
21
22
23
24
25
262728293031323334353637383940
4142434445
46
49
50
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
1
2
3
6
7
5
8
4
12345678910111213
10K
10uF
10K
KTC1504GR
KTC3875GR
KTC3875GR
KTC3875GR
KTC3203Y
KTC3875GR
KTC3875GR
KTC3875GR
PIC-21045TE2
KTC1504GR
KTC1504GR
KTC3875GR
1N4148
1N4148
1N4148
1N4148
1N4148
1N4148
1N4148
1N4148
1N4148
1N4148
1N4148
1N4148
KTC3875GR
KTC3875GR
HNA-06SS69
MC14094BCP
ST24C01B1
1N4148
1N4148
KTC3875GR
1N4148
1N4148
1N4148
PWR_DETECT
SDATA/DATA _IN
DRAW_OUT
MOTOR_C
MOTOR_C
MOTOR_B
MOTOR_B
COLLECTOR1
DRAW_IN
DRW_DIR_CW
CD_SYNCHRO
REC_SW
TAPE_DETECT1
CD_RESET
COLLECTOR2
CD_CLK
DRW_DIR_CCW
CAR_DIR_CCW
SLIDER_DN
RESET
ANODE2
CD_DATA
RDS_QUAL
TAPE_DETECT2
-FIL
ECO
GND
GND
GND
GND
GND
GND
GND
GND
GND
AUDIO_MIX/AUX_MUTE
KEY1
-30V
RDS_CLK
PLATTER_SW
REC_BIAS
REC_BIAS
SOL1
SOL1
ANODE1
CAR_DIR_CW
KEY2
DISC_SW
MUTE
PB_SW
PB_SW
TUNER_POWER
SCLK
KEY0
SYS_POWER
+FIL
RDS_DATA
SLIDER_UP
ST_MONO/TUNERPWR
H/P_MUTE
VMAX
TAPEMUTE/AUDIO_MIX
+5V
+5V
+5V
+12V
+12V
+12V
WN_EN/STI
CPU_VCC
B.BOOST
SOL2
SOL2
MOTOR_A
MOTOR_A
PROTECT
TUNER_CLK/DATA_OUT
TUNER_DATA/PLL_CE
uPD780205GF
CD_POWER
TO POWER BD
IC701
R880
R775
R776
R763
R764
R765
R766
R767
R768
R769
R770
R771
R762
R772
R773
R707
R789
R790
R711
R712
R720
R717
R718
R719
R701
R749
R750
R751R752R753R754R755R756R757R758R759R760
R761
R787
R702
R703
R700
R704
R743
R736
R729
R723
R825
R823
R824
R858
R706
Q707
P802
R850
R859
R819
R818
R817
R730
R738
R739
R740
R737
R722
R741
R742
R745
R715
R816
R821
R820
R731R732
R733
R734R735
R714
R815
R724
R725R726
R727
R728
R713
R813
R788
R721
R812
R744
R708
R710
R709
R814
R822
R716
R791
R792
R747
R826
R748
R705
R793
R794
D701
R857
C701
C703
C704
C717
C712
C707
C721 C720
C702
C705
C719
C706
C718
C716
C715
C714
C710
R786
C713
C711
C724
P702
L701
D720
R810
Q706
EN701
Q805
Q802
Q701
Q702
Q705
Q703
R802
R803
R804
R805
R806
R807
R808
R777
R795
JP701
JP704
R852
IR701
R774
Q806
Q803
Y701
R885
P703
P701
P705
R746
SW709
SW717
SW701
SW718
SW719
SW720
SW724
SW716
SW708
SW721
SW722
SW723
SW710
SW711
SW712
SW713
SW714
SW715
SW702
SW703
SW704
SW705
SW706
SW707
D705
Q708
D728
D727
D713
JP702
D802
D707
D801
D712
D711
D710
D709
D708
D706
R811
Q804
Q801
D721
FL701
IC801
IC703
D714
C722
JP716
D715
R801
R856
R855
R851
JP703
D718
R882
R883
Q710
D717
R881
D722
D719
R886
C725
D723
R887
JP710
JP711
JP713
JP712
JP707
JP705
JP706
JP708
P809
JP717
JP715
JP714
R860
R869
R868
R867
R866
R865
R864
R863
R862
R861
R879
R878
R877
R876
R875
R874
R873
R872
R871
R870
R890
R889
R888
R891
R892
R893
R894
R895
R896
R897
R898
R899
R900
R778
For A3500
for RS2532/32X
Not used in A3300/A3500
For A3300/A3500
for EUR model & RS2531/32
For
RS2531/32
For A3300/A3500
For EUR model
for CRKD2531/32
for RS2530/31/32/A3100
For CRKD2530
FOR LOGIC DECK MODEL USE
TO LOGIC DECK BD
TO MN BD
only for CRKD2532
FOR CRKD2532
encoder for Volume control
TO MAIN BD
TO CD MODULE
Not in use
PROG
REPEAT
POP/JAZZ
CUSTOM EQ
ROCK/
CLASSIC
TIMER
CLOCK
POWER
SURROUND
DIMMER
B.BOOST
STOP
REW.
BAND
SOURCE
DISCSKIP
OPEN/CLOSE
DISC1
DISC2
DISC3
DISC4
DISC5
F.F WD
PLAY/PAUSE
Only for RS2531(mech deck)
For EUR only
For OTP only
For OTP only
For option use
POWER(RED)
P35/PCL
P36/BUZ
P37
VDD3
VDD2
P04/XT1
XT2
IC(VPP)
X1
X2
RESET
P30/TO0
P31/TO1
P32/TO2
P33/TI1
P34/TI2
P13/ANI3
P14/ANI4
P15/ANI5
P16/ANI6
P17/ANI7
AVSS
P20/SI1
P21/SO1
P22/SCK1
P23/STB
P24/BUSY
P25/S10/SB0
P26/SO0/SB1
P27/SCK0
P87/FIP20
VLOAD
P90/FIP21
P91/FIP22
P92/FIP23
P93/FIP24
P94/FIP25
P95/FIP26
P96/FIP27
P97/FIP28
P100/FIP29
P101/FIP30
P102/FIP31
P103/FIP32
P104/FIP33
P105/FIP34
P106/FIP35
P107/FIP36
P110/FIP37
P111/FIP38
P112/FIP39
P113/FIP40
P114/FIP41
P115/FIP42
P116/FIP43
P117/FIP44
P120/FIP45
P121/FIP46
P122/FIP47
P123/FIP48
P12/ANI2
P11/ANI1
P10/ANI0
AVDD
AVREF
P03/INTP3/CI0
P02/INTP2
P01/INTP1
P00/INTP0/TI0
VSS
P74
P73
P72
P71
P70
VDD1
P127/FIP52
P126/FIP51
P125/FIP50
P124/FIP49
FIP0
FIP1
FIP2
FIP3
FIP4
FIP5
FIP6
FIP7
FIP8
FIP9
FIP10
FIP11
FIP12
P80/FIP13
P81/FIP14
P82/FIP15
P83/FIP16
P84/FIP17
P85/FIP18
P86/FIP19
220K
1/4W
47K
1/4W
47K
1/4W
1K1/4W
1K1/4W
1K1/4W
1K1/4W
1K1/4W
1K1/4W
1K1/4W
1K1/4W
1K1/4W
1K1/4W
1K1/4W
1K1/4W
1K1/4W
1K
1/4W
1K
1/4W
1K1/4W
1K1/4W
1K1/4W
1K
1/4W
1K1/4W
1K
1/4W
680
1/4W
330
1/4W
1/4W
47k
1/4W
47k
1/4W
47k
1/4W
47k
1/4W
47k
1/4W
47k
1/4W
47k
1/4W
47k
1/4W
47k
1/4W
47k
1/4W
47k
1/4W
47k
47K
1/4W
2K2
1/4W
5K6
1/4W
120K
1/4W
10K
1/4W
22K
1/4W
22K
1/4W
22K
1/4W
1K2
1/4W
100K
1/4W
68K
1/4W
1K
1/4W
22K1/4W
330
1/4W
330
1/4W
22K1/4W
100K
1/4W
68K
1/4W
1K
1/4W
1K2
1/4W
1K5
1/4W
2K2
1/4W
3K3
1/4W
1K2
1/4W
1K1/4W
4K7
1/4W
7K5
1/4W
100
1/4W
10K
1/4W
15K
1/4W
39K
1/4W
100
1/4W
1K5
1/4W
2K2
1/4W
3K3
1/4W
4K7
1/4W
7K5
1/4W
10K
1/4W
15K
1/4W
1K5
1/4W
2K2
1/4W
3K3
1/4W
4K7
1/4W
7K5
1/4W
10K
1/4W
39K
1/4W
68K
1/4W
1K
1/4W
100
1/4W
10K
1/4W
1K
1/4W
1K
1/4W
1K
1/4W
1K1/4W
1K1/4W
1K1/4W
1K1/4W
22K
1/4W
1K1/4W
1K
1/4W
10K
1/4W
10K
1/4W
1K
1/4W
1K
1/4W
1/2W
6V2
22K
1/4W
47uF
10V
470uF
10V
100uF
10V
10uF
50V
4.7uF
10V
47nF
50V
100pF
50V
100pF
50V
100nF
16V
100nF
16V
47nF
50V
47nF
50V
33pF
50V
33pF
50V
1nF
50V
1nF
50V
100nF
16V
1K1/4W
1nF
50V
100nF
16V
10uF
10V
100uH
150K
1/4W
B
A
COM
47K
1/4W
47K
1/4W
47K
1/4W
47K
1/4W
47K
1/4W
47K
1/4W
47K
1/4W
10K
1/4W
22K
1/4W
1K
1/4W
VCC
VOUT
GND
22k
1/4W
4.194MHz
330
1/4W
1K
1/4W
150K
1/4W
F2_1
F2_2
P33
P34
P35
P36
P15
P16
P17
P18
P19
P20
P21
P22
P23
P24
P25
P26
P27
P28
P29
P30
P31
P32
F1_2
1G2G3G
4G5G6G
P1P2P3P4P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
F1_1
ENABLE
Q8
QS
QS
Q7
Q6
Q5
VDD
VSS
Q4
Q3
Q2
Q1
CLOCK
DATA
STROBE
E1
VSS
VCC
E2
E0
MODE
SCL
SDA
4.7uF
10V
47K
1/4W
1K
1/4W
1K
1/4W
330
1/4W
470R
1/4W
27R
1/4W
12K
1/4W
47K
1/4W
10uF
10V
47K
1/4W
1K8
1/4W
47K
47K
47K
47K
47K
47K
47K
47K
47K
47K
47K
47K
47K
47K
47K
47K
1/10W
1/10W
1/10W
1/10W
1/10W
1/10W
1/10W
1/10W
1/10W
1/10W
1/10W
1/10W
1/10W
1/10W
1/10W
1/10W
1/4W/47K
1/4W/47K
1/4W/47K
1/4W/47K
1/4W/47K
1/4W/47K
1/4W/47K
1/4W/47K
1/4W/47K
1/4W/47K
1/4W/47K
1/4W/47K
1/4W/47K
10K
1/4W

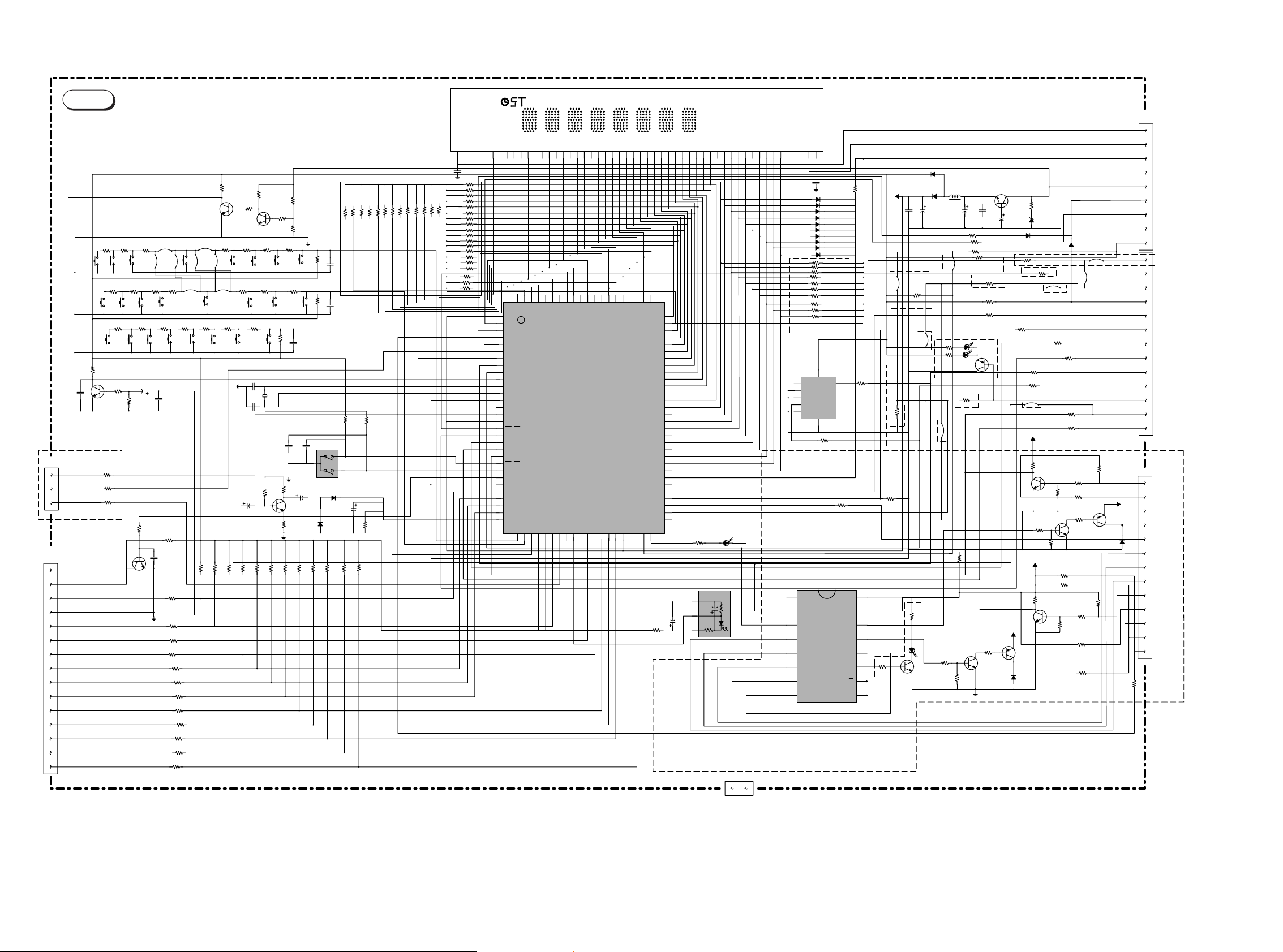

CONTROL / DISPLAY SCHEMATIC DIAGRAM - SCHEMA COMMANDES / AFFICHEUR - SCHALTBILD BEDIENTEIL / ANZEIGE - SCHEMA COMANDI / INDICATORE ESQUEMA MANDOS / INDICADOR
KDB
Page 10
CRKD 2531
First issue 08/01 19
20
J411
D701
C701
C703
C715
L701
Q701
J251
J449
D722
P701
C724
SW709
D705
D728
J103
P702
J216
J522
IC703
R887
FL701
J308
J502
J503
J237
J505
J218
J219
J601
J408
J266
R707
R789
R790
R711
R712
R720
R717
R718
R719
R701
R749
J305
J304
J221
J504
J220
J230
J227
C722
J511
J226
J225
J224
J310
R702
R703
R700
R704
R743
R736
R729
R723
J208
J101
J311
R706
J234
Q806
D802
J235
J236
J238
R730
R738
R739
R740
R737
R722
R741
R742
R745
R715
J253
J270
R731
R732
R733
R734
R735
R714
R724
R725
R726
R727
R728
R713
J265
R788
R721
J325
R744
R708
R710
R709
J245
J324
R716
R791
R792
R747
R786
R748
R705
R793
R794
R802
R803
R804
R805
R806
R807
R808
Q803
D801
J318
J317
R746
R801
Q710
C704
C717
C712
J604
J433
J257
C714
C713
J425
J215
J244
SW717
SW701
SW718
SW719SW720
SW724
SW716
SW708
SW721
SW722SW723
SW710
SW711 SW712
SW713
SW714
SW715
SW702
SW703
SW704
SW705
SW706
SW707
D727
D713
D707
D712
D711
D710
D709
D708
D706
D714
D715
D717
J271
J255
J232
J229
J268
J228
J201
J203
J205
J202
J401
J211
J402
J404
J405
J406
J204
R777
J269
J403
J302
J423
J303
JP701
J301
J231
J407
J319
J306
J412
J413
J414
J415
J416
J417
J418
J419
J420
J421
JP702
J309
J312
J313
J259
J455
J542
J272
J307
J217
J212
J213
J210
J214
J209
J207
J320
J250
J239
J241
J248
J246
J254
J314
J315
J322
J603
J247
J240
R795
R775
R776
J323
J242
P705
P703
J610
Y701
EN701
IR701
J243
D718
J321
JP716
J316
P802
R850
D720
JP717
JP704
R852
D721
R851
JP703
Q805
Q802
J249
J223
J111
J222
J422
R885
J334
J262
J263
J333
J260
J261
J444
J258
J256
D723
C725
R886
D719
J280
JP706
JP705
JP714
JP712
P809
JP711
J267
JP708
JP707
JP713
JP710
JP715
2001-02-13 (VERSION O)
1
CRKD 2531 KEY BD PCB(PROD)
8
(P707)
(P706)
1
2
15
91
13
1
13 1
TOCOM# 55102780
AK
AK
8765432
QUALITY CHECK
1
CONVEYOR
GRAIN
AK
AK

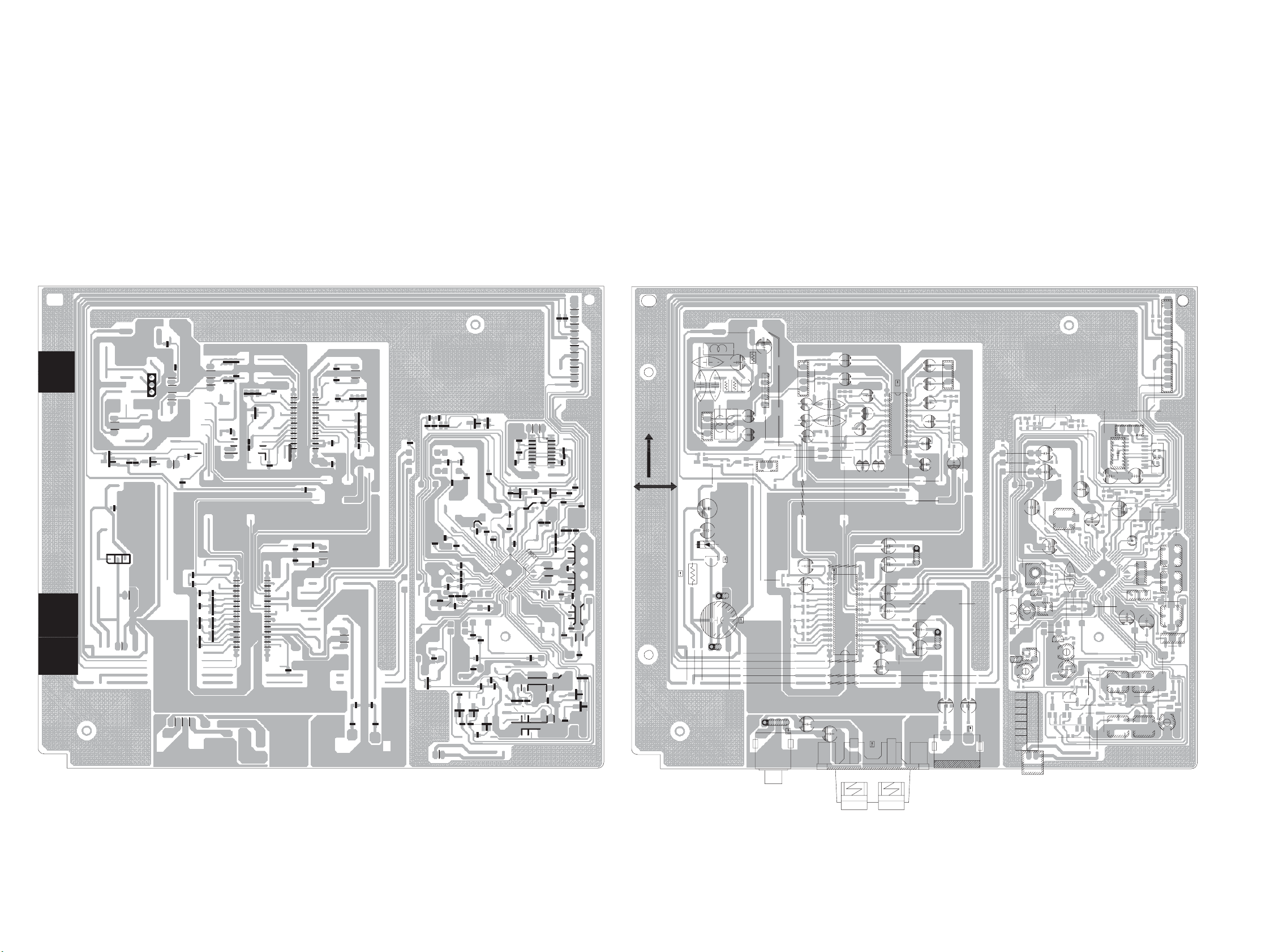

Controls / display P.C.B.
Platine commandes / afficheurs
Ltpl. Bedienteil / Anzeige
Piastra comandi / indicatore
Platina de mandos / indicadores
Component side
Côté composants
Bestückungsseite
Lato componenti
Lado componentes
130
31
50
51
80
81
100
UPD78205GF
1
8
16
9
MC14094BCP
JP717JP716JP715JP714
R716
R722
(P2 to P10)
10 pins
(P2 to P11)
8 pins
(P4 to P11)
(P4 to P12)
9 pins
9 pins
R795
&
R792
&&
JP701
JP702
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
XXX
X
X
X
X
X
X
X
X
X
X
X
A3100G
A3100
R786R747R746R721JP704
JP703
P702
A3500
A3300
Model
Name
Comp.
A3100
A3500
A3500
A3300
A3100
A3300
D719
(For logic deck model)
Magic Demo
Function
M
o
d
e
l
D723
Sub-woofer
Bass Boost
Function
11
00
D706
VMAX
MODEL
LOCATION
LOCATION
0: NO DIODE
1: HAVE DIODE
1
0
poor rate
3rd rate
2nd rate
1st rate
(Only for tuner TEA5757)
SELECT SENSITIVITY
D715D712
VERSION
D711
D710D709D708D707
LOCATION
0: NO DIODE 0: NO DIODE
1: HAVE DIODE
1: HAVE DIODE
24/12HRSLWRDS50K/200K9K/10K
1
11
1
00
0
0
Page 11
P026
P004
IC002
IC001
R007
C004
C002
C003
C001
C006
R004
R003
P027
JC002
P005
N006
P006
P002
R001
C005
D003D004
L001
JD001
P007
JA002
JA001
JE009
JE006
JE005
JE002
JE003
JE008
JE007
JE001
JE004
JB006
JB004
JB002
JB001
JB003
R002
R005
R006
JC001
PI002
PI006
D002
D001
DRAWER-
SLIDER2
SDATA
SDATA
SCLK
SCLK
DRAWER+
PLATTER-
CD_RESET
CD_RESET
PLATTER+
+5V
AGND
AGND
CD_R
CD_R
CD_L
CD_L
+12V
+V1CC
DRW2
PLAT_SW
PLAT_SW
GND
GND
GND
GND
GND
CRSMTR1
CRSMTR2
DISC_SW
DISC_SW
+V1
SLIDER1
+5V.
DRW1
DRW1
07/11/99
2098737C REV 3.0
07/111/99
2098737C REV 3.0
07/11/99
2098737C REV 3.0
CAV 1
CAV 1
CAV 1
SECTION A
SECTION C
SECTION B
2
15
6
1
1
1
3
5 DISK CONICAL
5 DISK CONICAL
5 DISK CONICAL
10
1
10
1
12
1
9
6
1
31
31
2
1
1
CONVEYOR
8765432
QUALITY CHECK
1
GRAIN
CD control P.C.B.
Platine commandes CD
Ltpl. CD Bedienteil
Piastra comandi CD
Platina de mandos CD
Page 12
29
JP802
JP803
JP801
P802A
R801
X804
D801
RLY1
L801
F801
X802
X801
N804
X803
C801
C802
TM#55105440
2001/03/02 PRD
CRKD2531/30 POWER BD
RECHANGE DE MEME TYPE ET CALIBRE.
ATTENTION:UTILISER UN FUSIBLE DE RECHANGE DE
REPLACE ONLY WITH SAME TYPE FUSE AND RATING.
CAUTION:FOR CONTINUED PROTECTION AGAINST RISK OD FIRE
US:5S 2.5A/250V
EUR:5T 1.6AL/250V
N
L
8765432
QUALITY CHECK
1
CONVEYOR
GRAIN
1
2
3
2
3
6
8
9
10
11
12
13
14
15
16
17
12
1
2
3
4
5
6
7
3
2
1
12
34
12
WARNING
SEE NOTE
WARNING
SEE NOTE
WARNING
SEE NOTE
WARNING
SEE NOTE
WARNING
SEE NOTE
WARNING
SEE NOTE
WARNING
SEE NOTE
WIRE TYPE X'FER
X803
X804
ONE
FOUR
EIGHT
SIX
T2
F801
P801
T1
P803
P802B
JP803
C801
C802
JP801
JP802
RLY1
L801
P802A
D801
T1.6AL/250V
4700pF
4700pF
SDT-S-112
3.5T
TO AMPLIFIER BDTO AMPLIFIER BD
TO AMPLIFIER BD
TO AMPLIFIER BD
POWER SUPPLY SCHEMATIC DIAGRAM - SCHEMA DE L'ALIMENTATION SCHALTBILD NETZTEIL - SCHEMA DELL' ALIMENTAZIONE - ESQUEMA DE LA
ALIMENTACIÓN
POWE

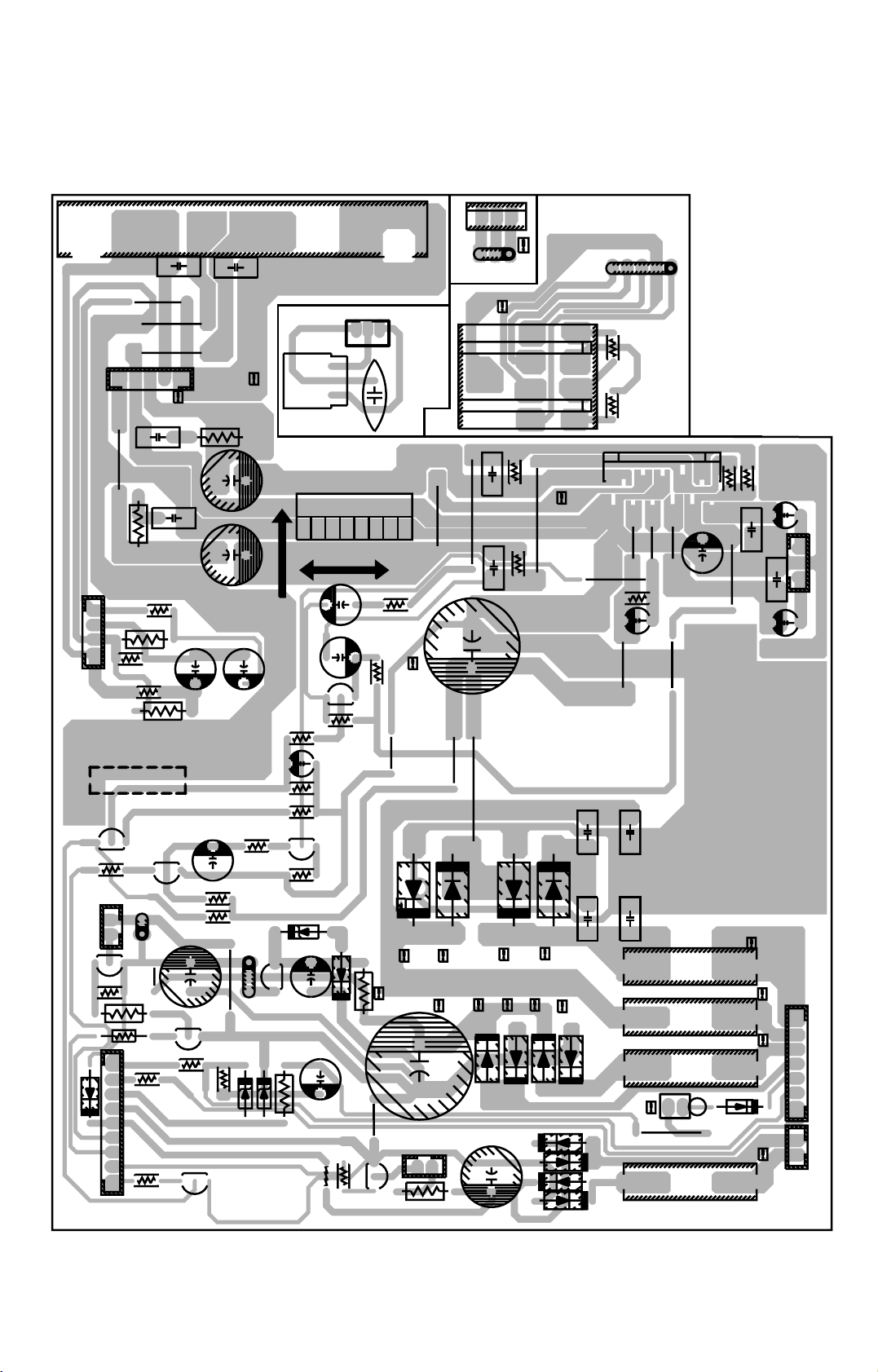

Power unit P.C.B.
Platine secteur
Netzanschluss Ltpl.
Piastra di rete
Platina de red
Component side
Côté composants
Bestückungsseite
Lato componenti
Lado componentes
Page 13
CRKD 2530
4 First issue 07 / 013

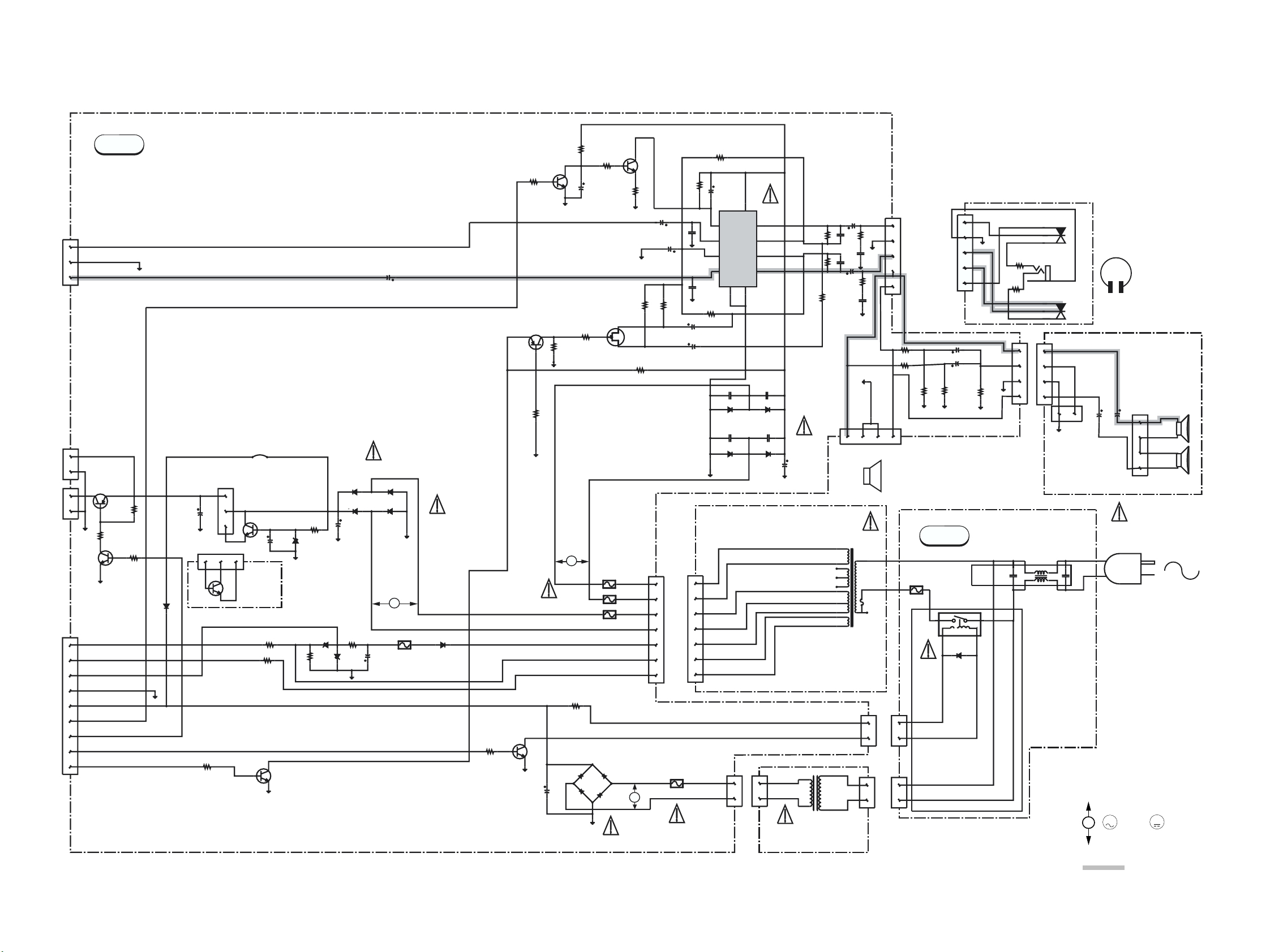

AMPLIFIER AND POWER SUPPLY SCHEMATIC DIAGRAM - SCHEMA DE L’AMPLIFICATEUR ET DE L'ALIMENTATION - SCHALTBILD ENDVERSTÄRKER UND NETZTEIL - SCHEMA
DEL AMPLIFICATORE E DELL' ALIMENTAZIONE - ESQUEMA DEL AMPLIFICADOR Y DE LA ALIMENTACIÓN
12,3 10MΩ
Audio
to Main BD
to CDM5B
to MAIN BD
to Front BD
N511
123
11,9
12
P101
11,9
12
N501
GND1
Q511
KTC3198Y
FIL
123456789
FIL
-30V
GND
+10V
MUTE
ST-BY
Surround
N701
AMPL
GND1
Q510
KRA1273
10k
11,2
R535
560
R536
1/2W
0,1
10k
0,7
R508
GND1
GND1
ECO
Note: L503L/R, L503 use 10mm jumpers in A3100.
JP503
1N4002
C546
P510B
GND1
Q512
2SD2012
R541
10k
25V
1000uF
P510A
123
KTC3198Y
JP504
123
regulate circuit.
Q515
Q513
KTC3203Y
R518
R519
1
GND1
R511R
47K
Q503
KTC3198Y
MUTE
R506
10k
GND1
C532L
1uF
50V
R545
51k
10k
R542
WARNING
SEE NOTE
C516
470uF
25V
GND1
1N4002
R543
D519
24,8
1/2W
D521
1N4002
R525
10
Q516
KTA1266
R524
1K
Q504
KTC3203Y
0,7
GND1
0
GND1
WARNING
SEE NOTE
1N5392
1N5392
R537
C545
12v
D523
100uF
16V
GND1
1
D512
220
1w
C514
3300uF
25V
!
GND1
1W
D513
7V5
1/2W
D514
R520
30V
10K
D510
R521
100
1/2w
1W
GND1
1N5392
D509
1N5392
D511
13,8
!
C515
47uF
50V
GND1
DIA
ICP01
600mA
WARNING
SEE NOTE
D515
1N4002
Q505
R526
KTC3198Y
R507
10k
2SK117Y
DIA
DIA
DIA
Q517
F503
F504
F505
D520
1N4002
D522
1N4002
WARNING
SEE NOTE
R513
15K
GND1
GND1
R546
R544
T2.0AL/250V
T2.0AL/250V
T1.6AL/250V
11,8
C532R
1uF
50V
15k
!
10K
7
6
5
4
3
2
1
N802B
DIA
C538
33u
50V
1M
GND1
25V
C535
470uF
15k
R547
T1.6A/250V
F506
WARNING
SEE NOTE
P802B
C542R
GND1
GND1
R514
C542
C543
15K
47uF
47uF
7
6
5
4
3
2
1
1k2
C517
1uF
5
50V
14,7
7
14,7
470pF
9
14,7
11
14,7
50V
470pF
C542L
!
R511L
1k2
50V
50V
C525
50V
C527
100nF
50V
GND1
WIRE TYPE X'FER
!
50V
31,9
MUTE
IC502
INL INL-
TDA7269A
GND INR-
INR
-VS1
0
0
1
100nF
D505
1N5402
D507
1N5402
12
N803
OUTL
OUTR
+VS
-VS2
WARNING
3
SEE NOTE
4
14,7
14,7
8
14,7
10
2
14,7
6
C526
100nF
50V
D506
1N5402
C528
100nF
50V
D508
1N5402
GND1
12
P803
WARNING
SEE NOTE
C513
3300uF
50V
WARNING
SEE NOTE
EIGHT
SIX
R510L
!
T2
!
R510R
33k
33k
1k5
!
R548
10
11
12
ONE
ST-BY
FOUR
C518R
5pF
50V
C541R
5pF
50V
C518L
C541L
1000uF 25V
R512L
2R2
C508L
100nF
50V
GND1
MAIN SPK(RCA TYPE)
6 ohm x 2
T1
8
9
13
14
15
16
17
1000uF25V
R512R
2R2
GND1
100nF
50V
C508R
GND1
GND1
WARNING
SEE NOTE
6
3
2
P804
H/P-IN-R
H/P-IN-L
H/P-OUT-L
H/P-OUT-R
TO MAIN BD
R503
1k8
GND1
25V
R504
C502
100uF
25V
C501
100uF
47k
GND1
R501
33k
R502
33k
1k8
GND1
POWE
F801
T1.6AL/250V(EU)
DIA
WARNING
SEE NOTE
12
12
P802A
N802A
12
1
2
N804
THREE
SDT-S-112
1
ONE
1N4148
RLY1
TWO
D801
R610L
1/2W
470
R610R
HEADERPHONE BD
470
1/2W
N517
P517
1
1
2
2
3
4
3.5T
3
4
N517
SUB WOOFER
L801
12
34
X'fer BD
4700pF
250V
C801
11,9
C903
10uF
C902
NJ515
10uF
50V
50V
V
SURROUND SPEAKER
8 + 8 ohm
WARNING
SEE NOTE
1
pos
neg
2
3
neg
pos
4
V
GND1
R505
4700pF
C802
250V
FOUR
43
2
Page 14
CRKD 2530
First issue 07 / 01 5 6

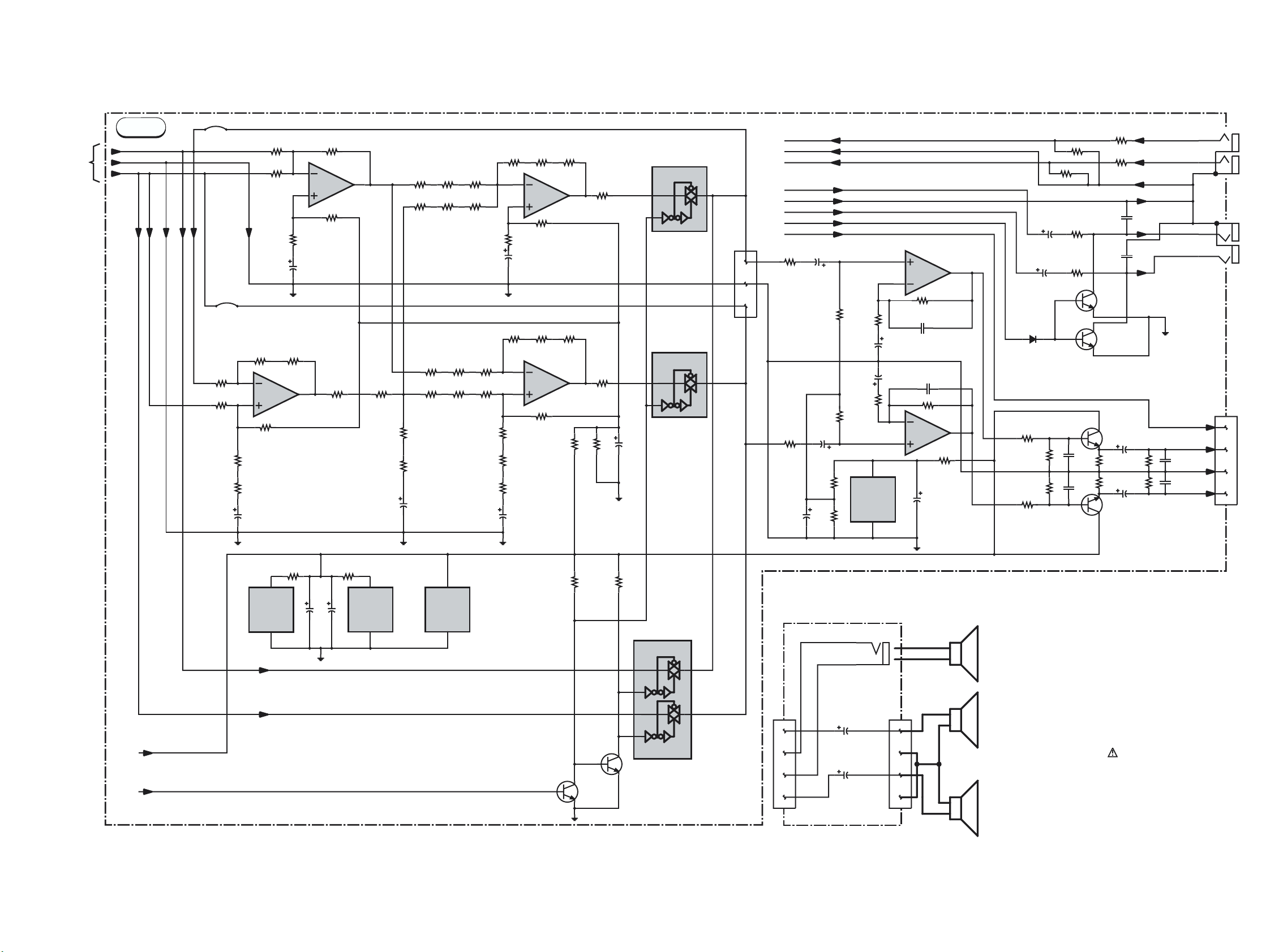

AUDIO INPUT/OUTPUT SCHEMATIC DIAGRAM - SCHEMA DES ENTREES/SORTIES AUDIO - SCHALTBILD AUDIO EINGÄNGEN/AUSGÄNGEN - SCHEMA INGRESSI/USCITE AUDIO ESQUEMA ENTRADAS/SALIDADES AUDIO
TO RECORD/PLAYBACK SCHEMATIC
MAIN
AUDIO_R
AGND
AUDIO_L
JP01R
R454
1/16W
15K
R455
15K
1/16W
JP01L
R458
R459
C459
8K2
1K2
22uF
6
5
1/16W
8K2
1/16W
1/16W
25V
IC451
R498
68K
1/16W
R451
10K
1/16W
R452
10K
1/16W
R456
BA4558F
R494
C454
1/16W
1K2
VMAX
R453
1K
1/16W
BA4558F
2
IC451
3
82R
1/16W
25V
22uF
R457
7
R497
68K
1/16W
R460
2K
1/16W
1
1/16W
R461
150
4K7
1/16W
R467 R468 R469
4K7
1/16W
1/16W
R476
1/16W
R462
82R0
1/16W
4R7
R463
1/16W
50V
0u22F
C451
R474
4K7
4K7
560
560
1/16W
1/16W
R473
1/16W
1/16W
R477
R466R465R464
100
1/16W
100
1/16W
560
560
1/16W
1/16W
R475
R478
100
100
R482
R483
R484
C460
R470 R471 R472
12K
4K7
1/16W
1/16W
1/16W
22uF
1/16W
R495
25V
4K7
4K7
12K
100
22uF
2
3
82R
C453
6
5
1/16W
1/16W
1/16W
25V
R479
IC452
IC452
R496
1/16W
1/16W
R499
1/16W
BA4558F
68K
12K
R480
BA4558F
68K
1/16W
100
1/16W
100
1
7
R403
R481
1/16W
10K
1/16W
1/16W
R404
R485
1K
1K
1/16W
10K
R487
MC14066N
IC453
IN
12
C
13
MC14066N
IC453
IN
43
C
5
25V
47uF
C457
OUT
12
P511
3
OUT
AUXIN_L
AGND
AUXIN_R
AUXOUT_R
AGND
AUXOUT_L
AUX_MUTE
H/P_MUTE
R611R
1K
1/16W
TO AUDIO BD
R611L
1K
1/16W
C517
C611R
2u2F
50V
C611L
2u2F
100uF 10V
R414L
1/16W
20K
R414R
1/16W
20K
C426R
R421R
50V
1K
470pF
3
IC601
2
R614R
3K3 1/16W
10uF
10uF
3K3 1/16W
50V
50V
8K2 1/16W
6
IC601
5
C612R
470pF
470pF
8K2
10K
1/16W
R613R
C615L C615R
R613L
R612L R612R
10K 1/16W
50V
8
VCC
R519
10K 1/16W
IC601
BA4558F
GND
4
24K 1/16W
R518
50V
C612L
R614L
BA4558F
50V
1/16W
BA4558F
100uF
C515
1/16W
100
R517
10V
1
IN4148
R615R
1/10W
7
4R7
R615L
4R7
1/10W
C426L
470pF
D411
10K
10K
50V
1/16W
1/16W
Q412R
KRC107S
KTC3198GR
R616L R616R
C614L C614R
1/16W
R421L
1K
1/16W
KRC107S
Q412L
Q601R
100nF 50V 100nF 50V
Q601L
R413L
39K 1/16W
R413R
39K 1/16W
C616R
10V
100uF
120
1/16W
R618R
120
1/16W
R618L
TTT
C616L
100uF
10V
C425R
C425L
1K
R619L
100pF
100pF
R619R
1/16W
AU/IN_L
AU/IN_R
AGND
AGND
50V
AU/OUT_R
AU/OUT_L
50V
AGND
1K
1n8F
1/16W
50V
1n8F
50V
C617R
C617L
H/P_MUTE
AUDIO/R
AGND
AUDIO/L
NJ516
3
4
5
AUX IN
AUX OUT
N513
1
2
3
4
6.8V
VMAX
VCC
IC451
BA4558F
GND
R406
100
1/16W
8
C456
4
R405
100
1/16W
8
VCC
IC452
47uF25V
47uF25V
C455
BA4558F
GND
4
14
VDD
IC453
MC14066N
VSS
3K3
R493
1/16W
7
Q453
KRC107S
AGND
10K
R492
1/16W
MC14066N
IC453
IN
89
C
6
IN
11 10
C
12
IC453
MC14066N
KRC107S
Q454
WOOF
2
NJ517
GND_AU/1
OUT
OUT
1234
P517
C902
10uF
50V
C903
10uF
50V
1
AUDIO/2_R
GND_AU/2
AUDIO/2_L
SWB WOOFER
NJ515
1234
SURRONG SPAEKER
NOTES:
1. Unless otherwise specified:
A. All resistor values are in ohms,
1/16W
B. All Capacitor values are in uF
2. Voltages are positive with respect
to ground
3. Replace transistors with type
specified from replacement parts list
4. Unless otherwise stated, all voltages
taken in radio "on" position
5. * and indicates critical safety
components. Replace only with those
specified from replacement parts list
to maintain proper performances and
safety of this unit.
Page 15
7
CRKD 2530
8 First issue 07 / 01
IC001 FM AM FM AM
1 2,1 2,1 23 VDD6,7
VDD6,7
2
0024
6,1(MONO) 6,1(MONO)
3 0025 1,4 1,4
4 AGND0 0 26 00
5 0027 CLOCK CLOCK
6 0028 DATA DATA
7 VCC6,8 VCC6,8 29 WRITE WRITE
8 VT06 VT0,6 30 P0 P0
9 11,431 P1 P1
10 0,8 0,8 32 1,4 1,5
11 1,3 1,3 33 0,8 1
12 0,8 0,2 34 1,4 1,5
13 0,8 0,8 35 0,7 1
14 0,6 0,6 36 1,4 1,5
15 0,6 0,6 37 0,6 0,9
16 11,0538 1,3 1,3
17 0039 11
18 10,140 1,3 1,3
19 1,1 1,1 41 1,3 1,3
20 1,1 1,1 42 00
21 1,8 0,8 43 0,7 0,7
22
VCC2 11 VCC2 11
44 0,3 0,2
FM, audio

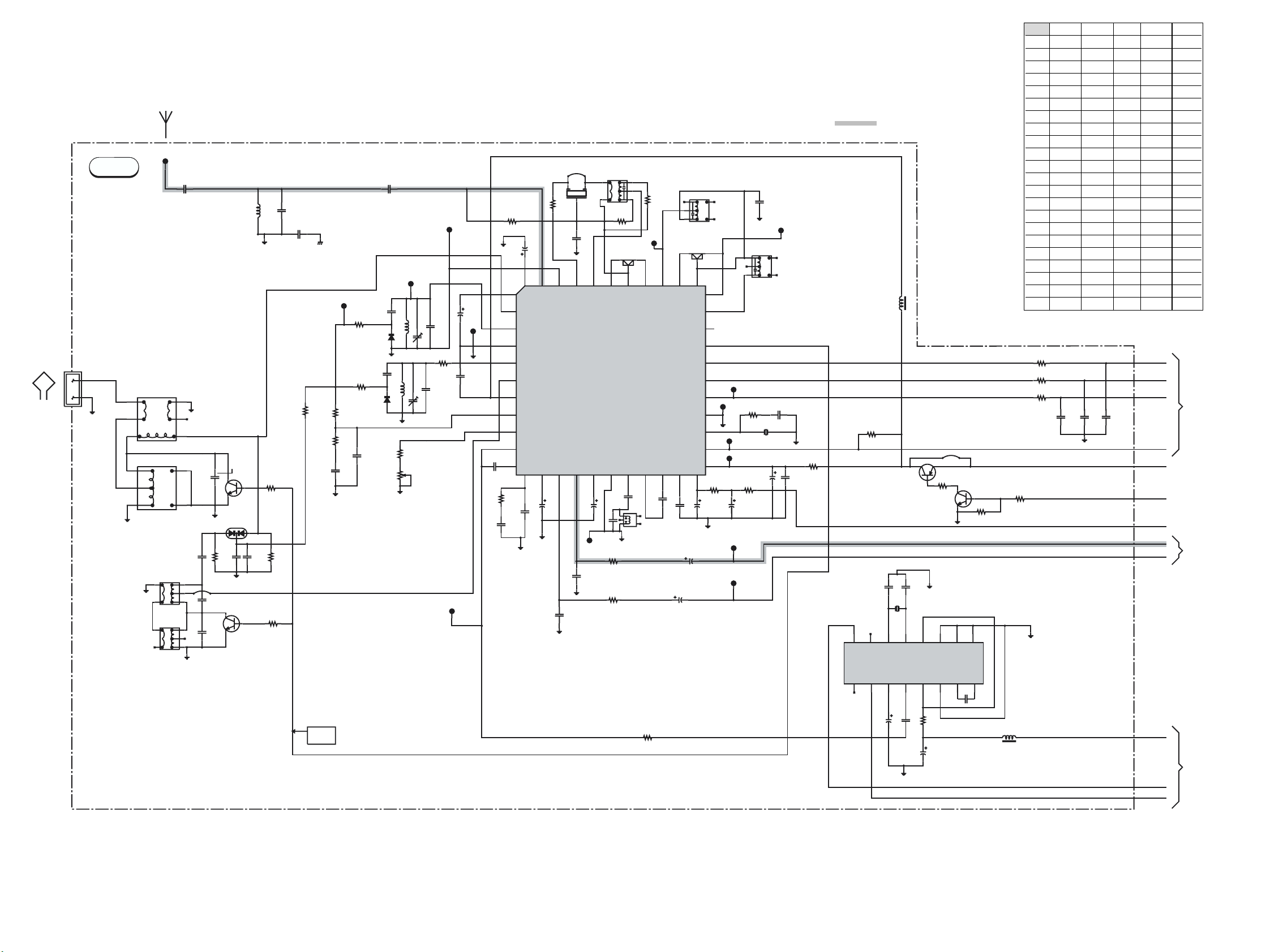

RF / FI SCHEMATIC DIAGRAM - SCHEMA HF / FI - SCHALTBILD HF / ZF - SCHEMA HF / FI - ESQUEMA RF / FI
FM-ANT.
TF001
TF002
TF003
7DRS-11459N
6
4
TF004
7DRS-11459N
6
4
TP001
50V
33pF
C001
1
2
34
6
SGBAM1-20392
C020
1
2
3
C060
1
330p
2
3
560p
C004
33PF
R006
47K
SVC201SPA
R007
47K
SVC201SPA
C015
0.1uF
50V
AGND
R065
180R
C007
10V
4u7F
AGC
1
RIPPLE
AM-RFI
2
FM-RFO
3
SUBGND
4
FM-OSC
5
AM-OSC
6
VCC1
7
TUNE
8
VCO
9
AFO MO-ST
10
C014
MPXI
11
LPF
12 13 14 15 16 17 18 19 20 21 22
C023
470nF
10V
R015
C022
10V
470nF
470nF
16V
2K2
TP001G
RFGND
FM-RF
TP004
C009
C008
100uf
10V
TP009G
5p
50V
R005
10R
C013
100nF
16V
TP009
C010
50V
47pF
4.5T
L003
CV001
R011
RV001
47K
G
11p
11pF
2.5T
C012
L004
68K
15pF
CV002
50V
G
3
2
1
D001
C011
100pF
50V
D002
10V
C003
50V
L001
4.5T
Not be use now
Selection
C044
27PF
10V
10V
JP002
10V
10V
SVC348
C021
22p
220K
R014
Q003
TTT
D003
3
1
2
C019A
C019
470nF
1UF
10V
10V
Q004
TTT
R064
10K
R063
33p
C088
(For FCC)
GND
(To * gnd)
50V
100PF
TP002
R008
47K
R009
R013
220K
10K
R010
C016
470nF
10V
MW=HIGH
LW= LOW
47K
2K2
MAIN
12
N001
AM
A7BRS-A9452YWT
6
5
34
2
1
R099
(For Overload)
FM-RFI
MUTE
1uF
16V
C024
C025
22nF
JP005
IN OUT
E
100R
(For Overload)
C040
100nF
50V
RFGND
AM-IF1I
AF-RO
AF-LO
450AL
2.2uf
16V
TP004G
C026
22nF
Y003
AM-MIXER
PILFIL
C027
TF005
A7MCS-11844N
6
4
JR01
0R
Y001
SFECV10.7MS3IN
FM-MIXER
IC001
TEA5757H
IFGND
100p
10V
3
C028
2
1
R017
8K2
R021
8K2
1
2
3
OUT
E
VSTABA
FM-DEM
15pF
10V
C029
4
6
CDACV10.7MG4A-A
TF006
292BEAS-59682
R024
1k
TP011
FM-IF1I
AFC-NEG
C030
470nF
10V
JR02
0R
AM-IF2I/O
AFC-POS
100nF
(For Overload)
A7MCS-11845Y
SFECV10.7MS3IN
FM-IF1O
WRITE-ENABLE
BUS-CLOCK
INDICATOR
C031
16V
C039
1uF
C042
1uF
16V
3
2
1
Y002
AFC-AM
TF008
E
DATA
DGND
XTAL
16V
VSTABB
P1
P0
VCC2
3435363738394041424344
C032
OUT
33
FM-IF2I
32
31
30
29
28
27
26
25
24
VDD
23
R030
1uf
16V
4
6
TP010
TP010G
TP005
TP006
1K0
C033
1uf
16V
TP007
TP008
TF007
3
2
1
A7MCS-11845Y
R036
150K
75.0KHZ
C034
33uF
16V
R031
1K
X001
C041
100nF
50V
12pF
4
6
TP003
C036
L007
47uH
50V
R034
C035
22R
100nF
16V
R035
18K
33pF
50V
30 3
16
1
RCLKQUAL
14
15
X0
(NC)
RDATA
VREF
2
3
3,3
C056
47uF
10V
TTT
Q008
C052C050
33pF
50V
X002
4.332Mh
2,2
12
13
X1
VDD2
IC002
BU1924
MUX
VDD1
4
5
3,26600,200,2
C055
10nF
R025
C054
47uF
10V
330
50V
R056
6
J113
11
VSS2
VSS1
TO AMPLIFIER AND POWER SUPPLY SCHEMATIC
470
Q009
TTT
R058
22K
0
9
10
T2
T1
VSS3
CMP
7
8
3,3
50V
C053
10nF
R046
470
R045
470
R047
470
C047
470pF
50V
R057
10K
TO DISPLAY SCHEMATIC
Note:RDS circuit GND need connect
to * Gnd
L006
47uH
C045
470pF
WR_EN
DATA_T
CLOCK_T
50V
C046
470pF
50V
ST_MONO
TUNER_PWR
+10V
TUNER_R
TUNER_L
TO DISPLAY SCHEMATIC
+7V
SCHEMATIC
TO RECORD / PLAYBACK
+7V
RCLK
RDATA
TO DISPLAY SCHEMATIC
Page 16
11
CRKD 2530
12 First issue 07 / 01
CB E
24
1312
1
2 1
30
1
34
33
23
22
12
11
44
1
Q331
Q330
Q001
Q008
Q004
Q003
Q002
Q005
R099
JR02
JR01
IC002
TP002
R325
C088
TP006
TP003
TP001
TP004
TP007
TP008
R324
R302L
R303L
R304L
R306L
R312
R302R
R303R
R304R
R309
R301L
R301R
R307
R308
R305L
R305R
R306R
R311R
R311L
R311
R401R
R402R
R401L
R402L
R420
R407
R408
R409
R410
R411
R412
R330
R331
R440
R441
R063
R062
R061
R060
R064
R056
R014
R013
R021
R025
R027
R009
R047
R045
R046
R001
R008
R030
R036
R015
R012
R035
R085
R011
R007
R034
R006
R031
R010
R017
R005
R065
R326
C464
C306L
C309
C310L
C302L
C302R
C308L
C308R
C310R
C303L
C303R
C306R
C404L
C404R
C405L
C406L
C408L
C407L
C408R
C407R
C406R
C405R
R414L
R414R
R413L
R413R
C060
C019
C020
C035
C028
C050
C052
C053
C055
C044
C046
C045
C047
C026
C003
C002
C004
C036
C009
C012
C017
C025
C001
C016
C021
C010
C013
C014
C029
C031
C030
C022
C011
C040
C041
C023
C301L
R084
R058
JR03
Q009
R057
R082
C080
Q006
R083 R081
C301R
C081
C019A
R024
C380
C043
R080
Amplifier/power supply P.C.B.
Platine amplificateur/alimentation
Ltpl. Endverstärker/Netzteil
Piastra amplificatore/alimentazione
Platina amplificadore/alimentación
Component side
Côté composants
Bestückungsseite
Lato componenti
Lado componentes
C304L
C304R
C305L
C311L
C320
C315L
C315R
C307R
C307L
C319
C311R
C312
C317
C314L
C305R
C316
C420
C351
C350
C314R
L301
L303
L302
L007
L006
J378
J380
J303
C034
C033
C027
C024
C039
C042
C054
C056
C007
C032
C410
C409L
C008
C409R
C463
C453R
C402R
C401R
C401L
C902
C402L
C453L
C410L
C410R
C903
C333
C343
N304
N313
N702
J502
J501
C411
D402
Q401
J503
J504
J606
J603
J607
J605
J602
J604
J601
J401
J402
J424
J403
J406
J404
J405
P517
J408
J411
J412
J410
J409
J407
J304
TF001
D003
J209
J206
J260
J238
J236
J233
J237
J234
J205
J208
J204
JP002
JP005
D004
D002
D001
L001
L003
L004
X002
X001
Y002
Y001
Y003
TF005
TF007
TF008
TF003
TF002
TF004
RV001
J202
J201
J203
J210
J331
J338
J336
J337
J342
J335
J334
J332
J305
J311
J310
J309
J308
J307
J306
IC301
IC302
NJ515
IC300
QC
N802
N303
N703
J239
R401
J132
J102
J131
R342
P511
P102
P806
P501
J231
J135
J144
J138
J137
J142
J130
CV001
C018
CV002
CV004
TF006
Q305
R340
R341
C348
C342
C391
C341
C390
C603
NJ517
JP006
JP001
JP008
M001
J330
J312
J302
J313
J301
NJ516
N002
J314
C015
J207
J103
2001/03/20
REV#1.0
TOCOM# 5510790A
A3100 MN BD
3
1
12
1
30
1
24
1
1
5
FMANT
3
1
3
1
1
CONVEYOR
GRAIN
1
QUALITY CHECK
2345678

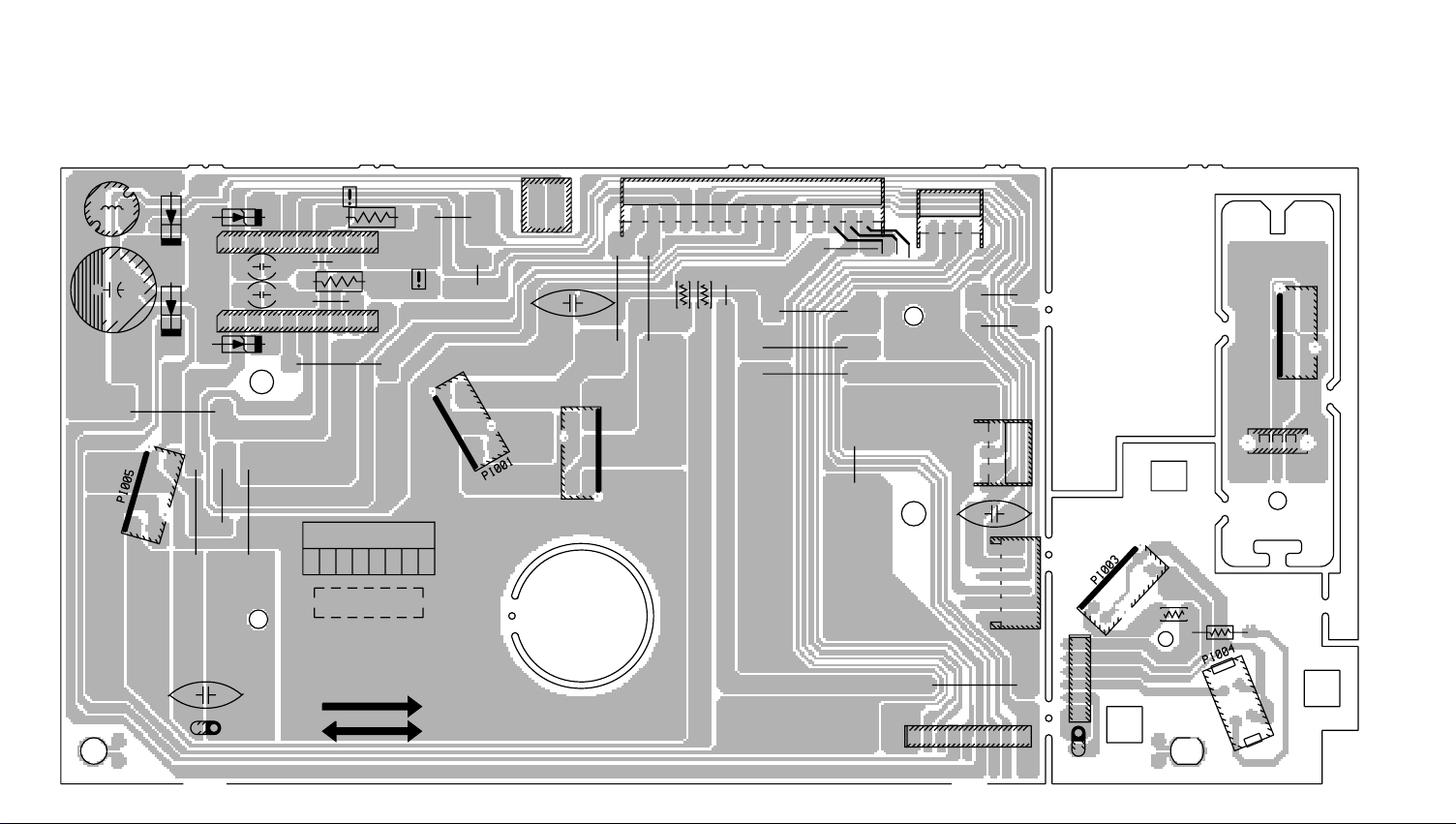

Solder side
Côté cuivre
Lötseite
Lato saldature
Lado del cobre
Page 17
CRKD 2530
First issue 07 / 01 13
14

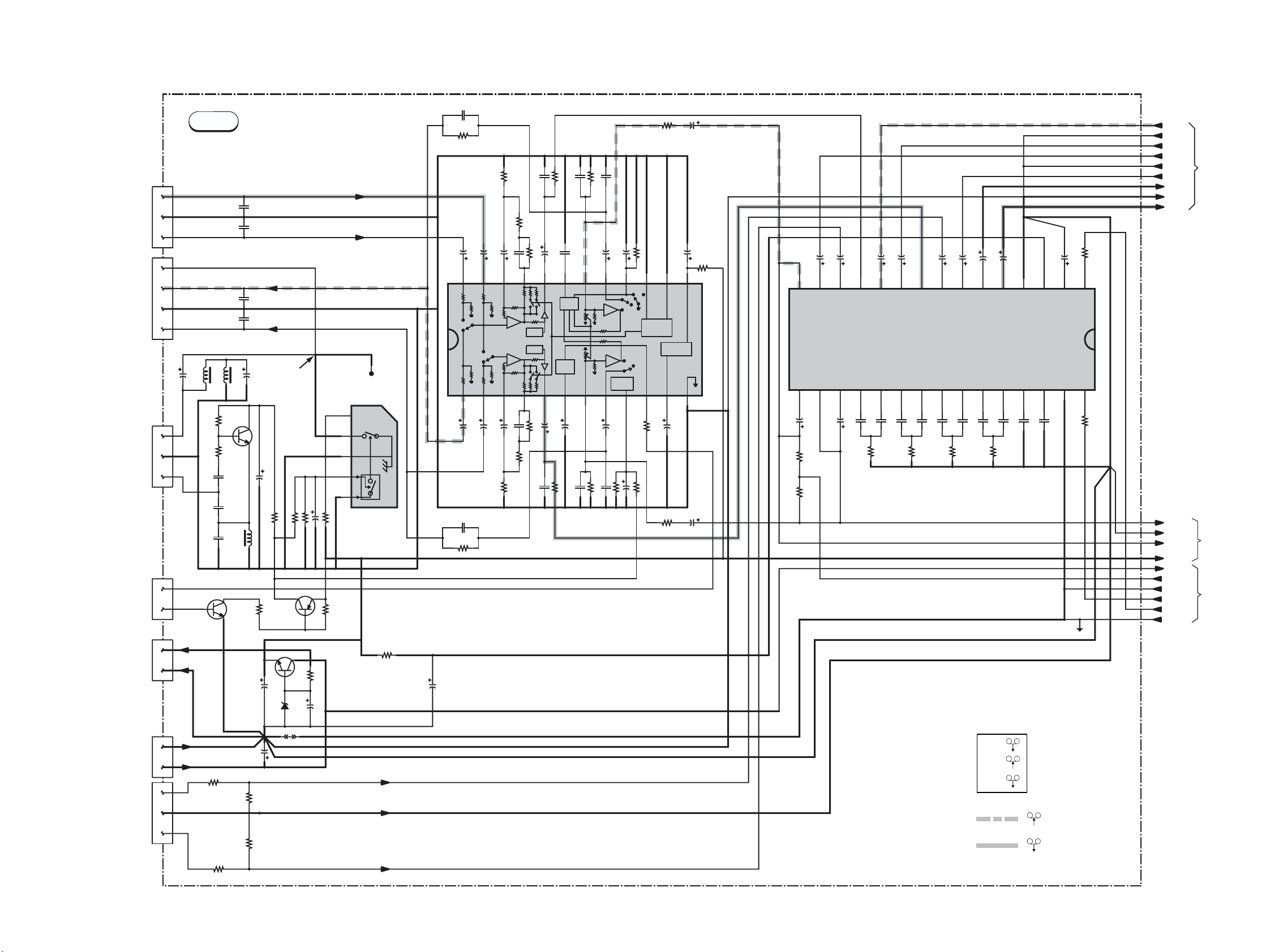

RECORD / PLAYBACK SCHEMATIC DIAGRAM - SCHEMA ENREGISTREMENT / LECTURE - SCHALTBILD AUFNAHME / WIEDERGABE - SCHEMA REGISTRAZIONE / RIPRODUZIONE - ESQUEMA GRABACIÓN / REPRODUCCIÓN
0,4
0
0,4
(REC)
(PB), audio
C302L
N304
WHITE
3
GND
2
PLAYBACK
N303
DECK B DECK A
REC/PLAYBACK
N313
AC ERASING
N802
P806
TO LOGIC DECK BDTO AUDIO BDTO CD MODULE BD TO KEY BD
P501
P102
RED
1
YELLOW
RED
GND
WHITE
1234
50V
22uF
C350
1
2
3
BIAS OSC
1 2
12 12
3
2
1
MAIN
L302
470uH
56K
47K
50V
33nF
50V
5n6F
50V
68nF
Q331
10K
R401R
R401L
10K
L303
KRT107S
R341
R340
C341 C348
C342
C301LC301R
C303R C303L
470uH
Q305
C351
L301
1000pF 50V
50V
1000pF
50V
1000pF
1nF
50V
1nF
50V
50V
100uF
KTC3203Y
1uF 50V
220uH
R331
16V
220uF
RECORD L
V = 12 V ± 0,6 V
f = 63 kHz ± 3 kHz
C343
10
R342
1K
Q330
KTC1504GR
KTC3203Y
Q401
C411
7V5
D402
JN01
100K
R326
15K
R301L
1K2
50V
R304L
C308L
27
100P
680
MUTE
MUTE
120K
R302L
2,8
2,7
2,8
2,7
120K
C306R
C308R
50V
100P
25V
C307L
1uF
0,15
3,200
PB/OUT
ALC-L/CUT
Logic
A/B
PB-OUTR
2,8
2,800
1uF
50V
C307R
1K2
R305R
R305L
R
25V
1uF
A-I/PR
B-I/PR
C305L
10uF 25V
0,7
PB Amp (L)
PB Amp (R)
0,7
10uF
1uF 25V
PB/NFL
PB-NFR
50V
C305R
R303L
C306L
50V
22N
3,5
3,4
PB/EQL
+
+
-
PB-EQR
3,5
3,4
22N
50V
R302R
R303R
680
R304R
27
L
C304R
C304L
1uF 25V
00000,7
A-I/PL
A/Rec
A/Rec
TP60
B-I/PL
1234567891011
02020,7
VCC
BA7755A
12345
IC302
SW
GND
CTRL2
100
R325
R330
CTRL1
10K
R420
100
39K
2.2uF 25V
C333
R324
470
R401
25V
C410
10uF
C463
C315L
1000pF 50V
15K
25V
100uF
1uF 25V
C302R
R301R
C315R
50V
C310L
1N2
50V
C309
18N
ALC
REC/INL
AB/SWT
REC/INR
16V
C319
10uF
50V
C310R
1N2
R306L
50V
1N8
C390
1K2
C312
C311L
1uF 50V
22uF 16V
0,15
2,600,10000
ALC
REC/OL
R
Rec
AMP(L)
Rec
AMP(R)
R
Logic
Rec/PB
REC/OUTR
0,1
2,402,8
50V
C311R
1uF
24K
1K2
1N8 50V
C391
C316
R306R
R307
R311L
C314L
2.2uF
47K
25V
R312
P
HI/LO
R
P
Nor / Cro
& Hi / Lo
Logic
P
REC/PB
AB/SW
1,2
4,5
1,2
4,400
R309
C317
15K
27K
R308
2u2 50V
R311R
47K
CRO/NOR
Ripple
Rejection
RIPPLE/FIL
16V
22uF
R311
56R
6,2
6
131415161718192021222324
VCC
IC300
AN7348K
O/PGND
12
C410L
2.2uF 50V
R440
R441
C314R
2.2uF
25V
1516
MUXOUTL
INL
10K
10K
C453L
2.2uF 50V
14
L-IN4
MUXOUTR
17
C402L
C410R
2.2uF 50V
13
L-IN3
INR
18
50V
C405R
18N
2.2uF 50V
12
L-IN2
MIN(R)
19
R412
C401L
C406R
2.2uF 50V
L-IN1
MOUT(R)
50V
22N
2K7
C401R
2.2uF 50V
11
20
50V
C407R
100N
R-IN1
BIN(R)
R411
C402R
2.2uF 50V
9
10
R-IN2
IC301
TDA7439
BOUT(R)
21
22
50V
50V
C408R
C407L
100N
100N
5K6
R-IN3
BIN(L)
8
R410
C409L
7
R-IN4
BOUT(L)
C409R
22uF 50V
22uF 50V
4
5
6
LOUT
ROUT
AGND
MOUT(L)
MIN(L)
C405L
TREBLE(L)
26
50V
50V
C404L
5n6
18N
2K7
24
25
50V
C406L
22N
R409
C453R
2.2uF 50V
23
50V
C408L
100N
5K6
25V
100uF
C320
1M5
50V
C420
2.2uF
3
VS
TREBLE(R)
27
28
5n6
C404R
50V
470uF
25V
C603
10K
R402R
10K
R402L
2
CREF
DIG-GND
29
5,53,26,3502,52,53,23,23,23,23,23,23,23,23,2
DGND
R407
003,23,23,25,53,23,23,23,23,23,23,23,23,2
R408
1K
1
SDA
SCL
30
1K
FR SHEET N0.3
FR SHEET N0.3
FR SHEET N0.3
FR SHEET N0.3
FR SHEET N0.3
FR SHEET N0.3
TO SHEET N0.3
TO SHEET N0.3
TO SHEET N0.3
TUNER_L
AGND
TUNER_R
AUXIN_L
AGND
AUXIN_R
AUDIO_R
AGND
AUDIO_L
AUXOUT_R
AGND
AUXOUT_L
6.8V
+10V
AUDIO_MIX
DGND
CLOCK
DATA
DGND
TO / FROM RF/FI
TO / FROM KDB TO RF/FI
Page 18
15
Main P.C.B.
Platine principale
Grundplatte
Piastra principale
Platina principal
Component side
Côté composants
Bestückungsseite
Lato componenti
Lado componentes
C581L
J305
J407
J406
C581R
NJ501
OP01
N009
SECTION C
B
Q512
P510
SECTION B
C
E
NJ504
5
SECTION A
P513
R610L
1
J402
R512L
R503
N517
R505
R502
R504
CRKD2530 AUDIO BD
TM#55107430 FOR PRD
2001/03/10
Q516
N513
C508R
R501
Q503
C508L
C502
C518L
R512R
R507
C541
C518R
CONVEYOR
C501
R543
R542
Q505
1
C543
C542
R545
QUALITY CHECK
GRAIN
Q517
R547
C053
R548
J206
R546
R610R
IC502
8765432
C513
J303
C541L
J603
C541R
R510R
R510L
J602
J405
J601
R514
C517
C528
1
J202
J201
J401
J304
C527
11
J204
C535
J302
R511L
R511R
C542R
C542L
J403
UTILISER UN FUSIBLE DE
C532L
N511
C532R
FOR CONTINUED PROTECTION
Q510
R535
R536
R508
JP503
N501
N701
R506
R541
R519
JP504
P101
R526
R544
C546
Q511
R518
Q515
C538
R520
J404
D513
P510
D514
Q513
R521
R513
D523
C545
J104
R524
D525
C515
Q504
J203
R537
C514
N802A
R525
D507
D508
C516
D512
D505
D511
D510
D519
D522
D506
D509
C526
D521
D520
C525
5T2.0AL 250V
5T2.0AL 250V
5T1.6AL 250V
ICP01
J408
5T1.6AL 250V
F503
ATTENTION:
RECHANGE DE MEME TYPE ET CALIBRE
F504
F505
D515
F506
AGAINST RISK OF FIRE,REPLACE ONLY WITH
CAUTION:
SAME TYPE FUSE AND RATING.
N802
N803
Loading...
