Page 1
SpeedTouch™716v5 WL
SpeedTouch™716v5 (WL)
Residential ADSL Gateway with VoIP (MGCP)
User’s Guide
Release R5.3
Page 2
Page 3
SpeedTouch™
716
v5 (WL)
User’s Guide
R5.3 MGCP
Page 4
Copyright
Copyright ©1999-2005 THOMSON. All rights reserved.
Distribution and copying of this document, use and communication of its contents is not permitted without written authorization
from THOMSON. The content of this document is furnished for informational use only, may be subject to change without notice,
and should not be construed as a commitment by THOMSON. THOMSON assumes no responsibility or liability for any errors or
inaccuracies that may appear in this document.
Thomson Telecom Belgium
Prins Boudewijnlaan, 47
B-2650 Edegem
Belgium
www.speedtouch.com
Trademarks
The following trademarks are used in this document:
SpeedTouch™ is a trademark of THOMSON.
Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.
Ethernet™ is a trademark of Xerox Corporation.
Wi-Fi® and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. "Wi-Fi CERTIFIED", "Wi-Fi ZONE", "Wi-Fi Alli-
ance", their respective logos and "Wi-Fi Protected Access" are trademarks of the Wi-Fi Alliance.
UPnP™ is a certification mark of the UPnP™ Implementers Corporation.
Microsoft®, MS-DOS®, Windows® and Windows NT® are either registered trademarks or trademarks of Microsoft Corpora-
tion in the United States and/or other countries.
Apple® and Mac OS® are registered trademarks of Apple Computer, Incorporated, registered in the United States and other
countries.
UNIX® is a registered trademark of UNIX System Laboratories, Incorporated.
Adobe®, the Adobe logo, Acrobat and Acrobat Reader are trademarks or registered trademarks of Adobe Systems, Incorpo-
rated, registered in the United States and/or other countries.
Netscape® and Netscape Navigator® are registered trademarks of Netscape Communications Corporation.
Other brands and product names may be trademarks or registered trademarks of their respective holders.
Document Information
Status: v2.0 (October 2005)
Reference: E-DOC-CTC-20050803-0002
Short Title: User’s Guide ST716
v5 (WL) R5.3 (en)
Page 5
Contents
E-DOC-CTC-20050803-0002 v2.0
i
Contents
About this User’s Guide .............................................. 1
1 Your SpeedTouch™ ...................................................... 3
1.1 SpeedTouch™ Features ................................................................... 4
1.1.1 Hardware Specifications.................................................................................. 5
1.1.2 Software Features .......................................................................................... 6

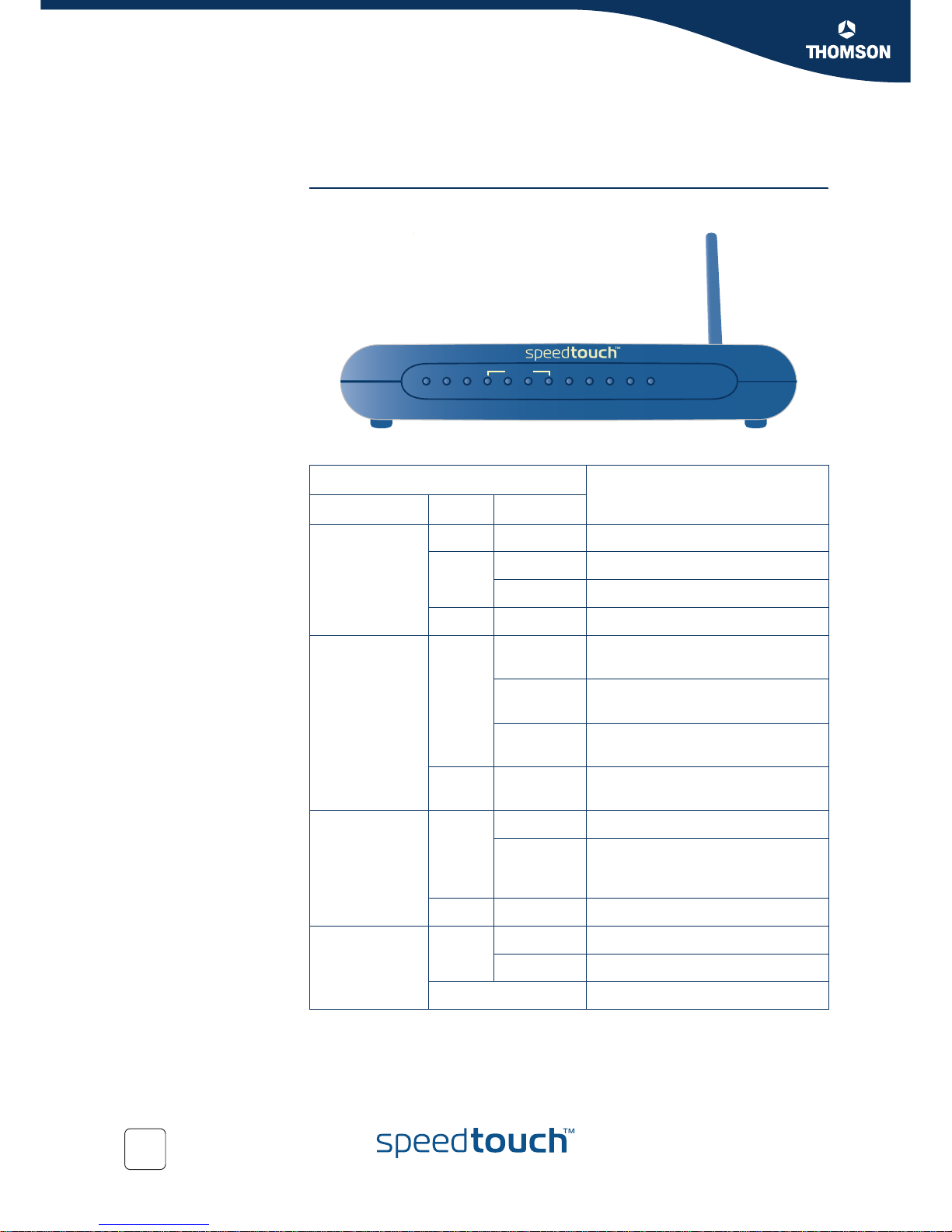

1.2 SpeedTouch™ LED Behaviour.......................................................... 8
1.3 How to Access your SpeedTouch™............................................... 10
1.3.1 Access via the Web Interface......................................................................... 11
1.3.2 Access via CLI ............................................................................................. 12

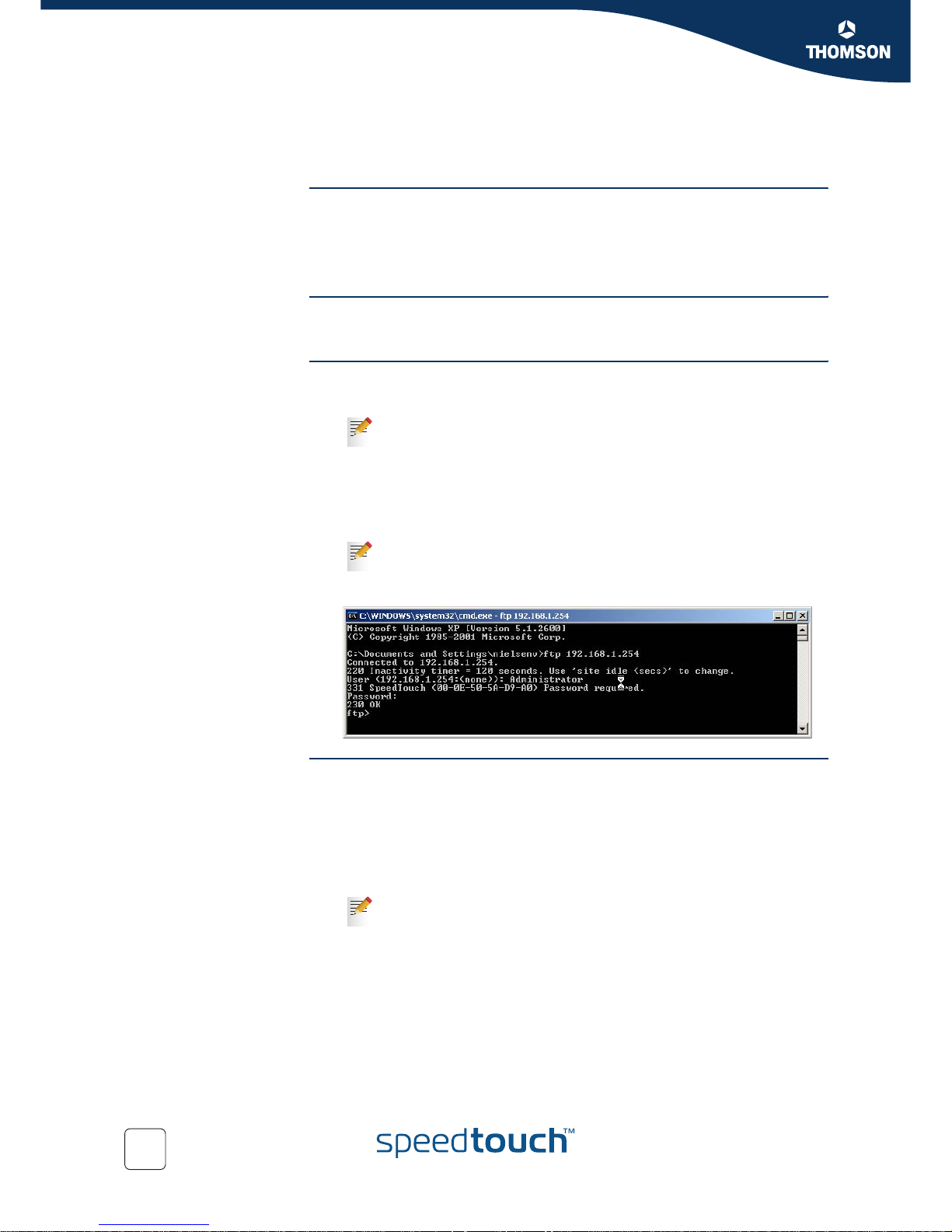

1.3.3 Access via FTP ............................................................................................ 14
1.3.4 Remote Assistance ....................................................................................... 17
2 Local Network Setup .................................................. 19
2.1 Wired Ethernet ............................................................................. 20

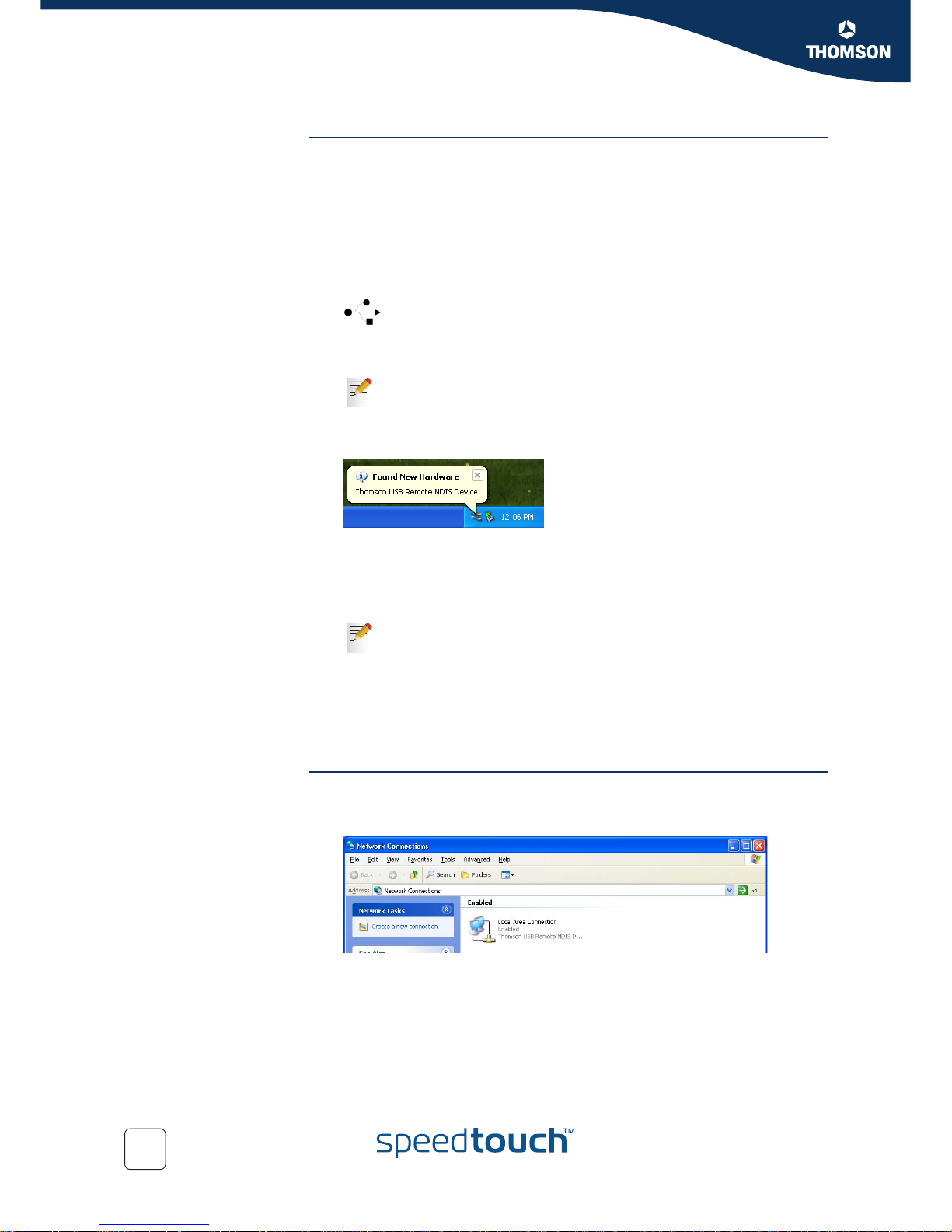

2.2 USB .............................................................................................. 21
2.3 Wireless Ethernet ......................................................................... 24
2.3.1 Wireless Basics ............................................................................................ 25

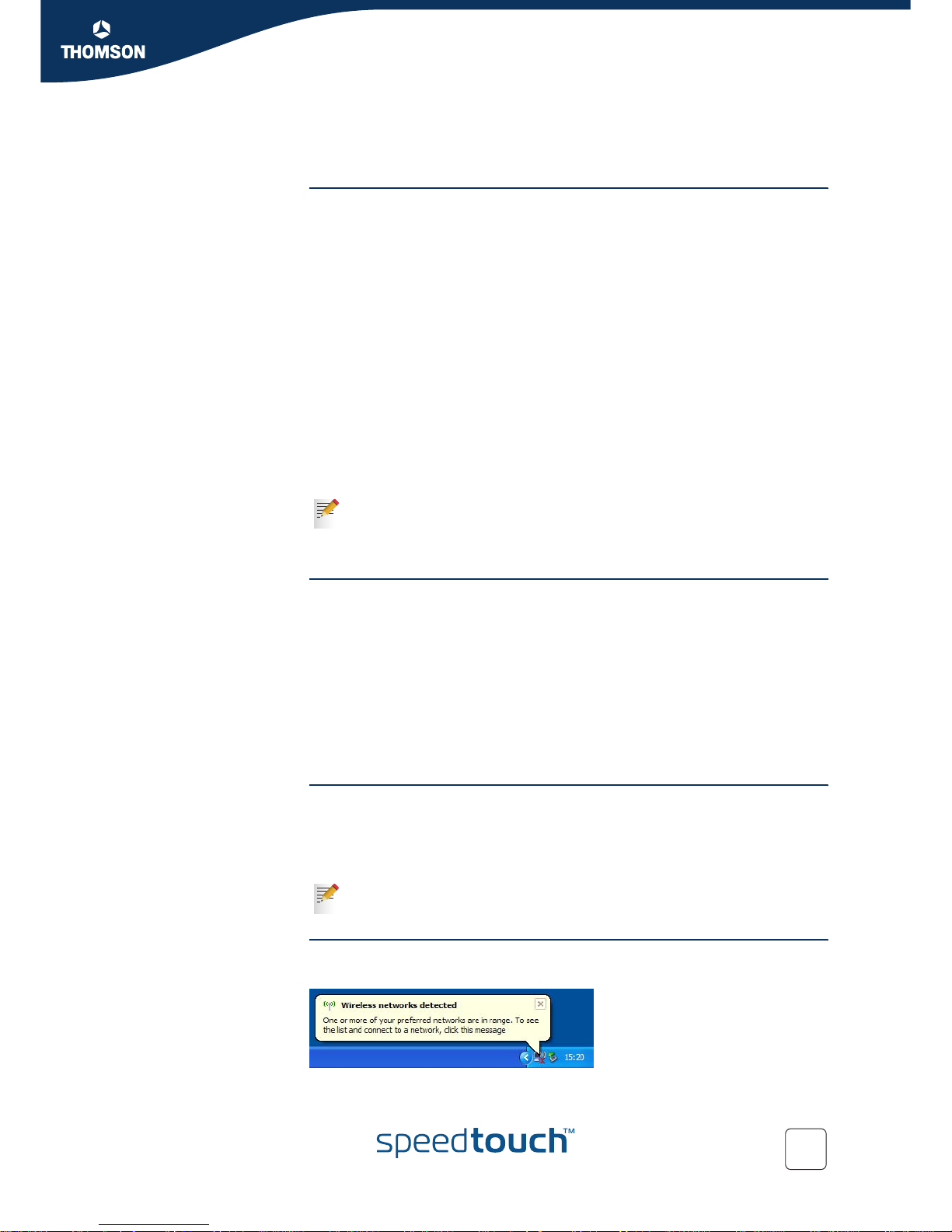

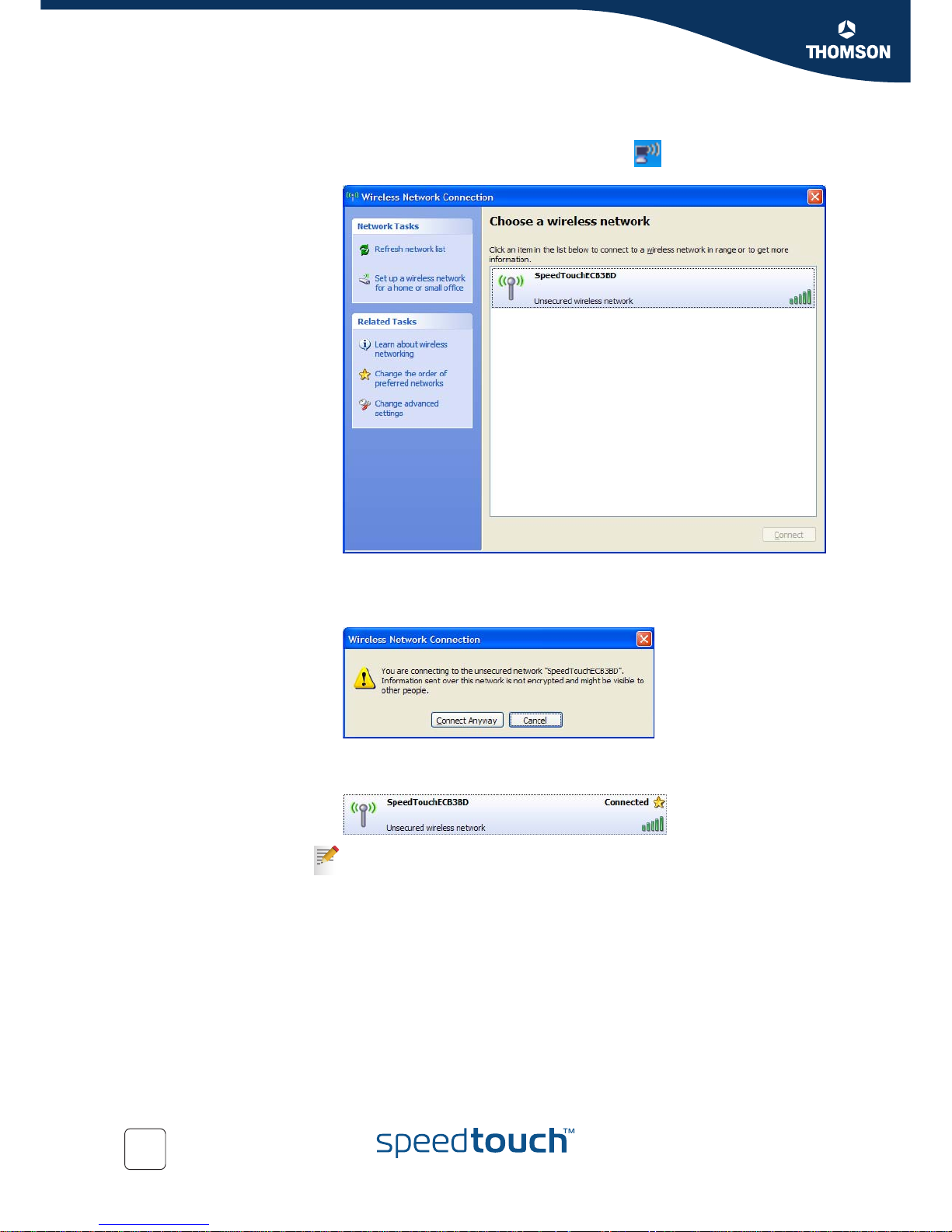

2.3.2 Connecting First-time Wireless Clients............................................................. 27
2.3.3 Wireless Security.......................................................................................... 30
2.3.4 Connecting Additional Wireless Clients............................................................ 32
2.3.5 Extending the Range of Your Wireless Network............................................... 33
3 Internet Connectivity Dial-In Clients ......................... 35
3.1 SpeedTouch™ Web Pages.............................................................. 37
Page 6
Contents
E-DOC-CTC-20050803-0002 v2.0
ii

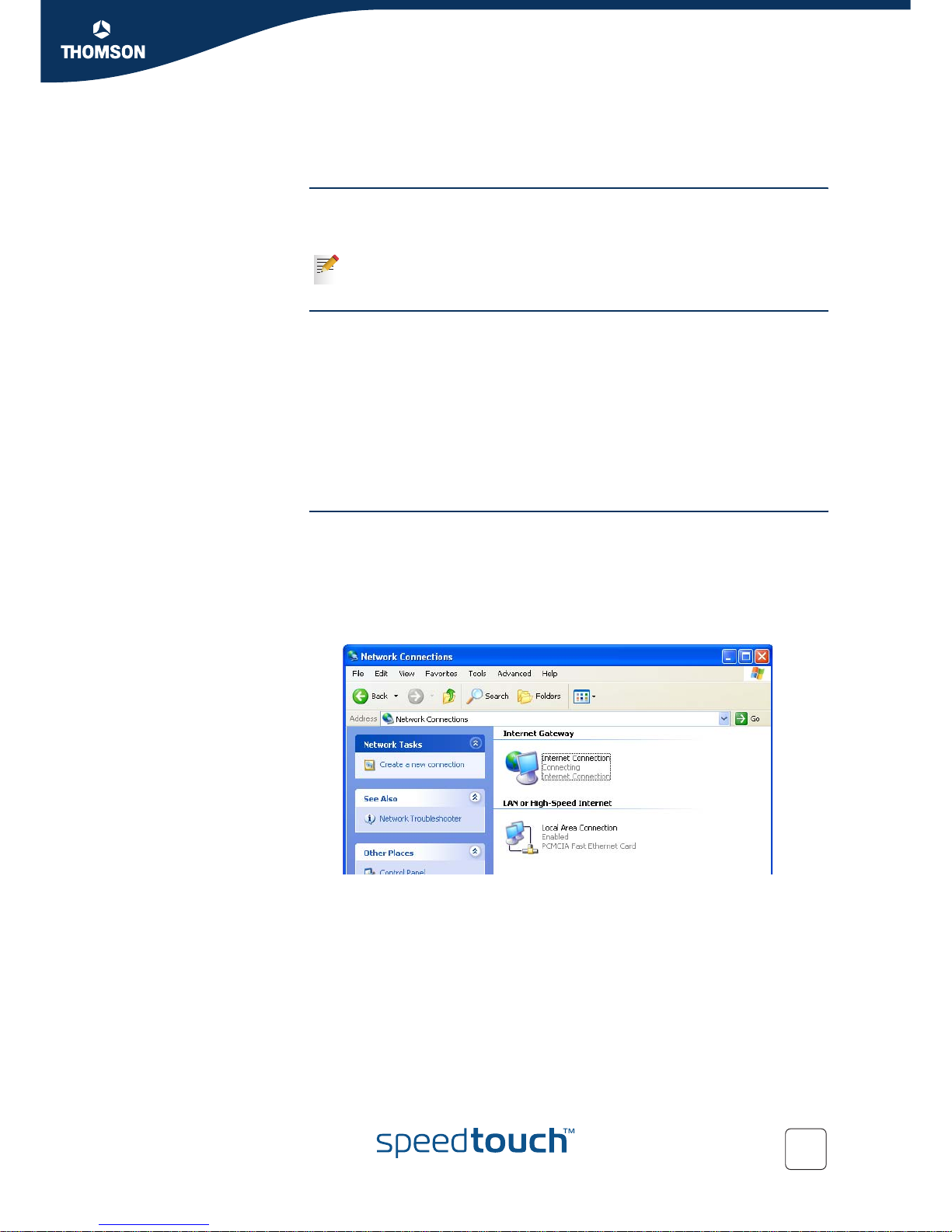

3.2 Internet Gateway Device Control Agent ...................................... 39

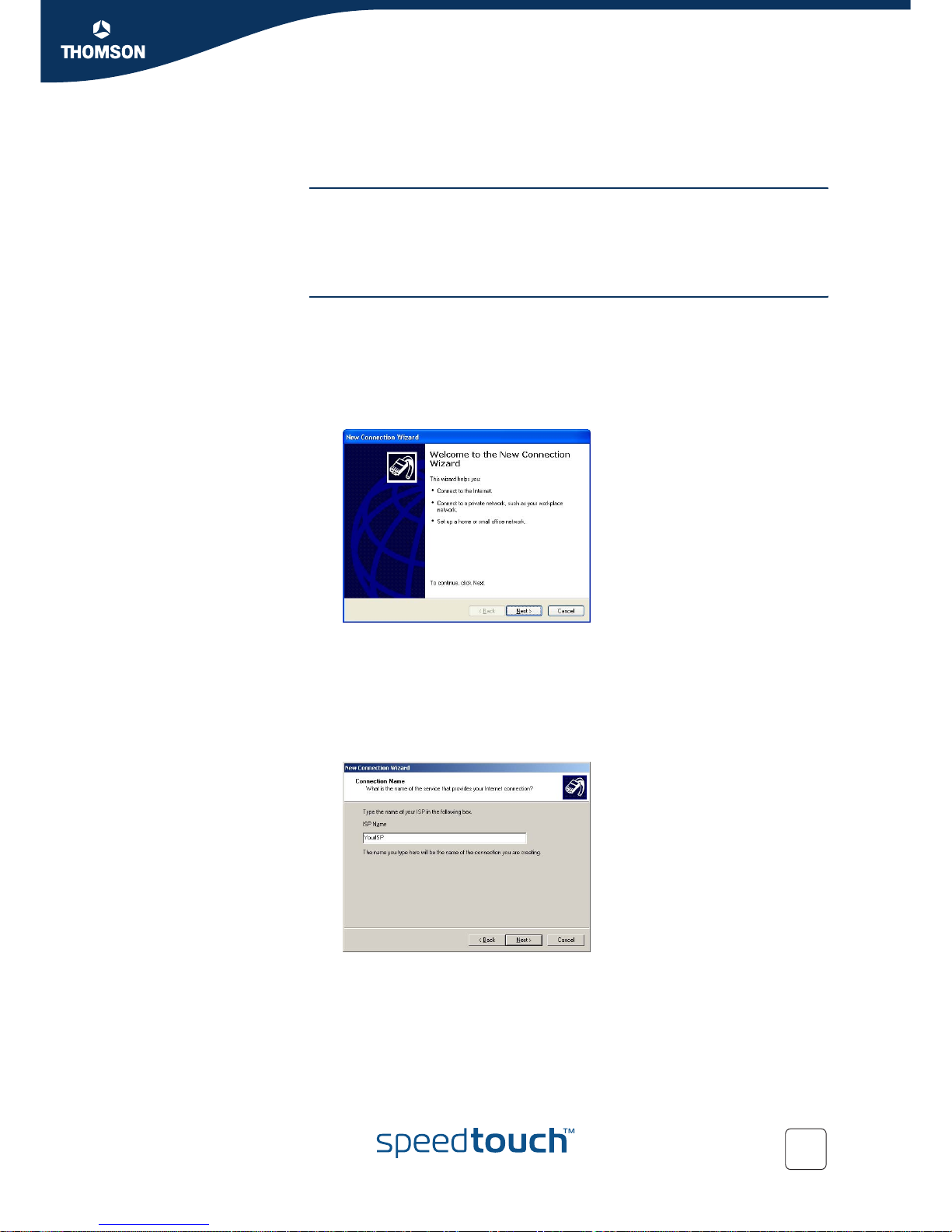

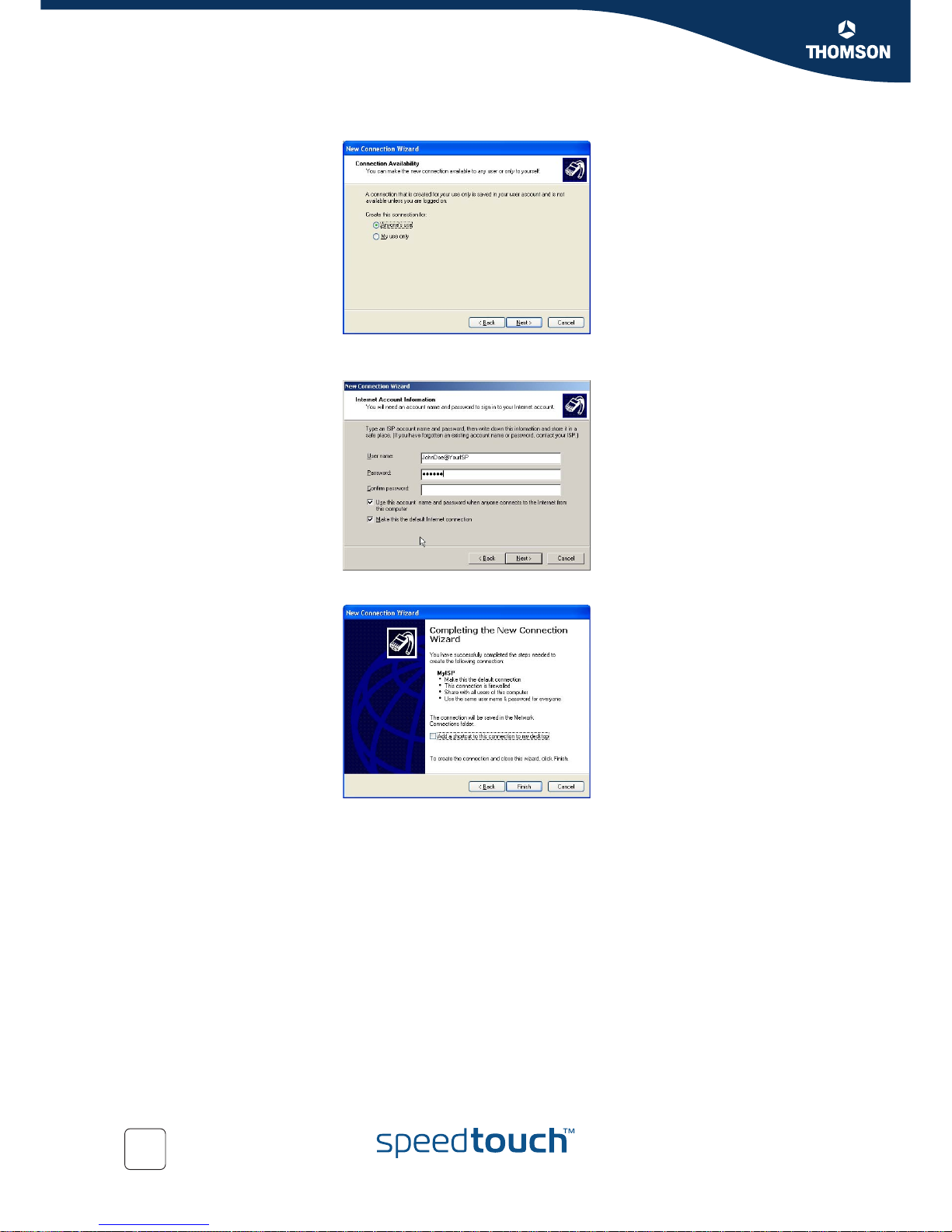

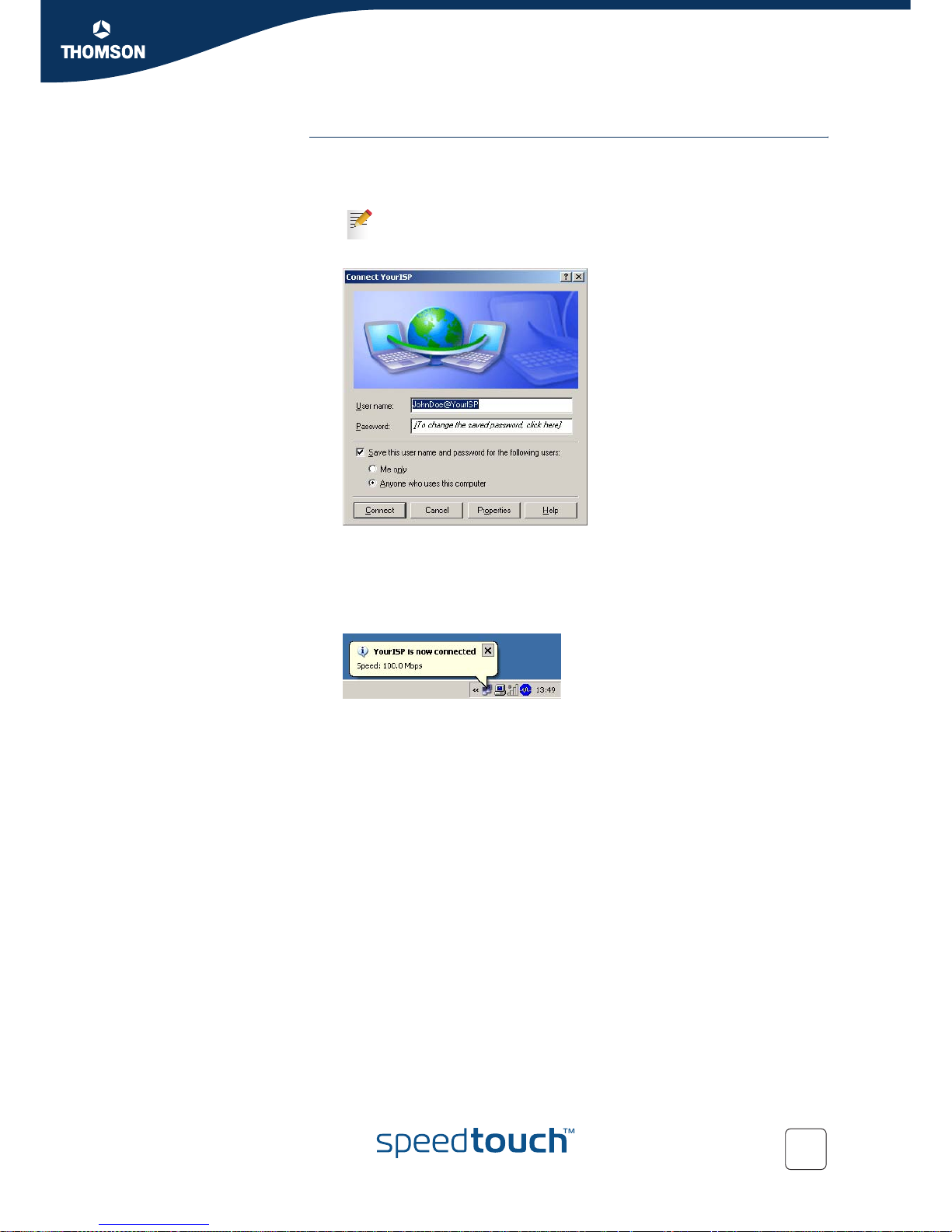

3.3 Windows XP BroadBand Connection ........................................... 41
3.4 Mac OS X PPPoE Dial-in Client .................................................... 45
4 Voice over IP................................................................ 47

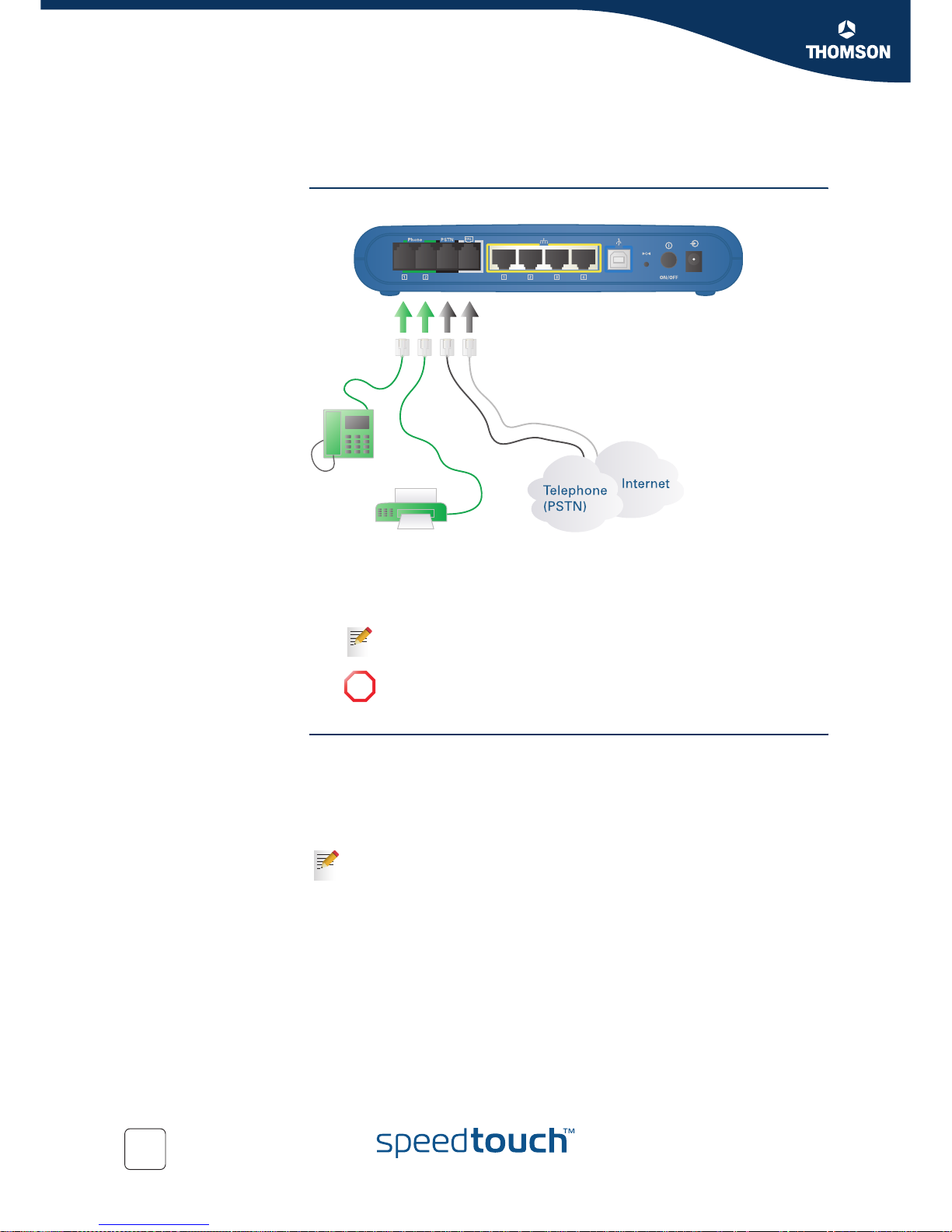

4.1 Telephony Setup .......................................................................... 48
4.2 Supplementary Telephony Services ............................................. 51
5 SpeedTouch™ Web Interface .................................... 55
5.1 Navigation .................................................................................... 56
5.1.1 Menu .......................................................................................................... 57
5.1.2 Language Bar............................................................................................... 58
5.1.3 Navigation Bar ............................................................................................. 59
5.1.4 Notification Area .......................................................................................... 60
5.1.5 Tasks.......................................................................................................... 61

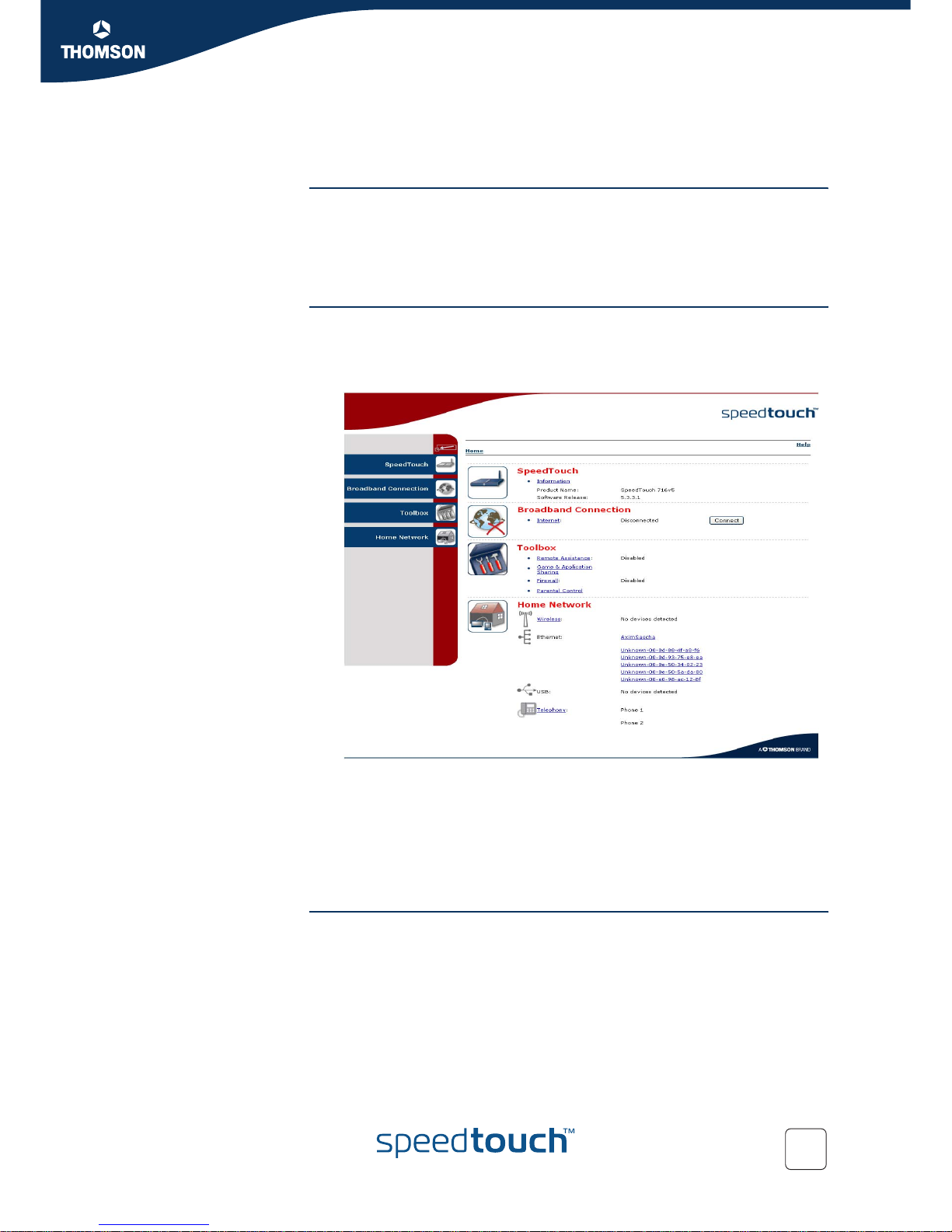

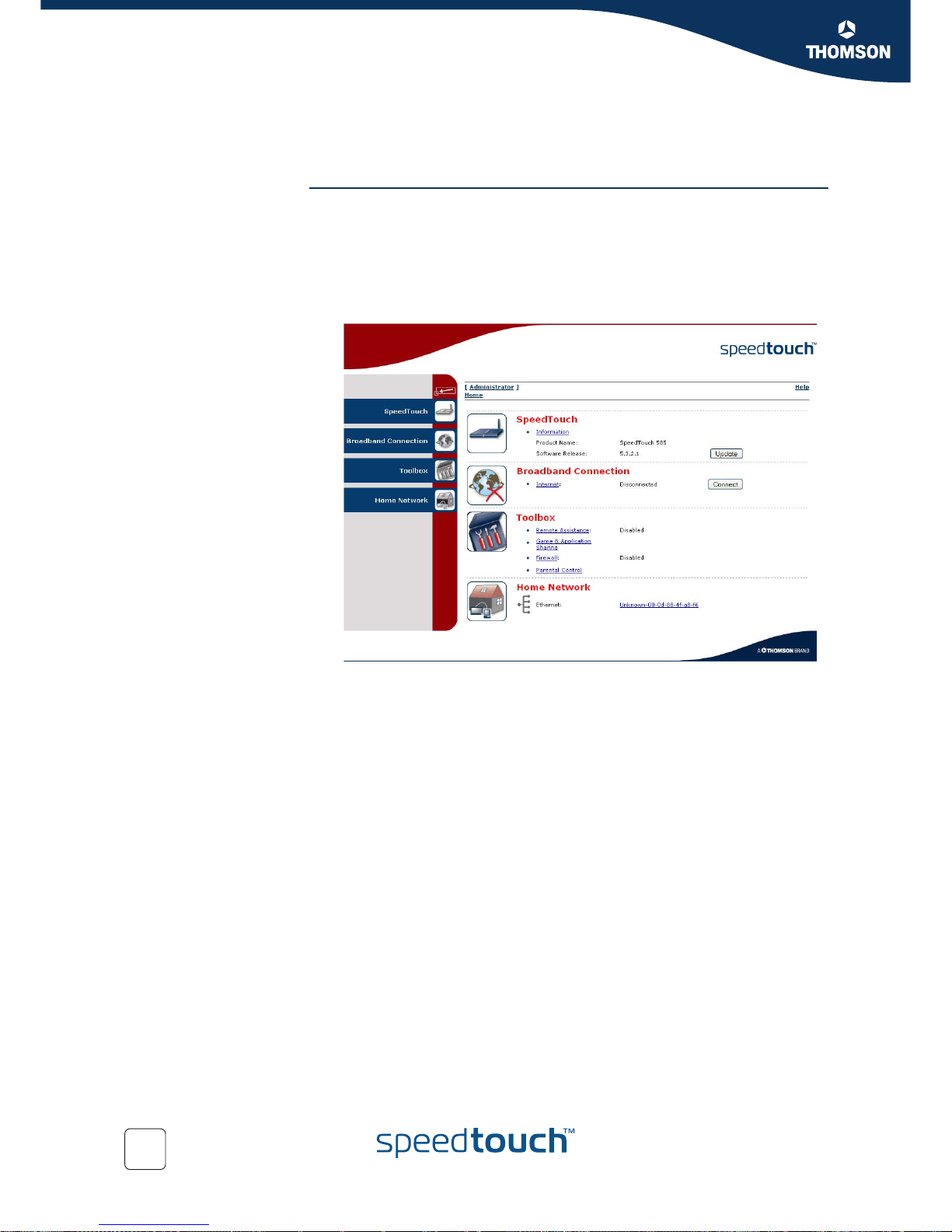

5.2 Home ............................................................................................ 62
5.3 SpeedTouch ................................................................................. 63
5.3.1 Information.................................................................................................. 64

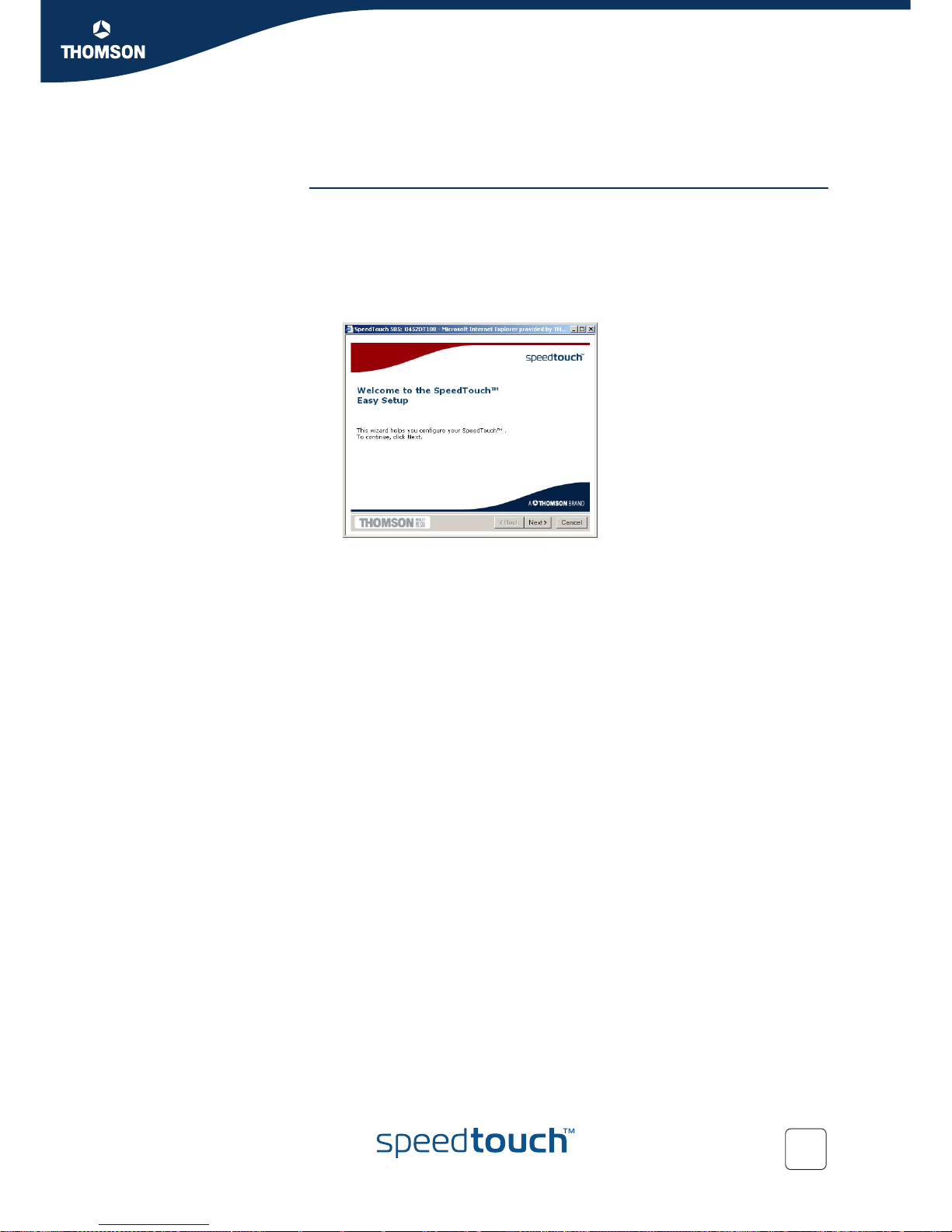

5.3.2 SpeedTouch™ Easy Setup .............................................................................. 65
5.3.3 Restart........................................................................................................ 66
5.3.4 Configuration ............................................................................................... 67

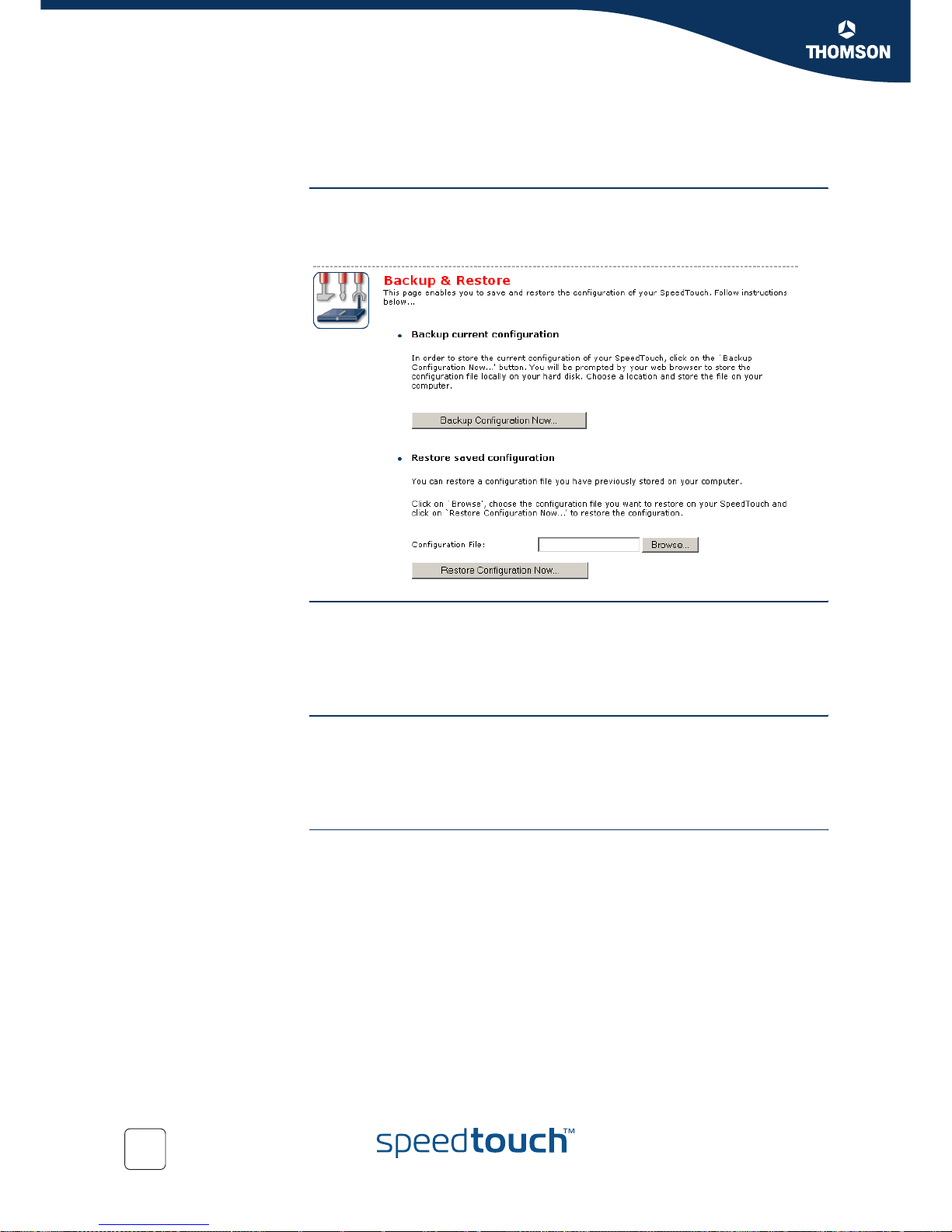

5.3.5 Backup & Restore......................................................................................... 68
5.3.6 Reset to Factory Defaults .............................................................................. 69
5.3.7 Event Logs .................................................................................................. 70

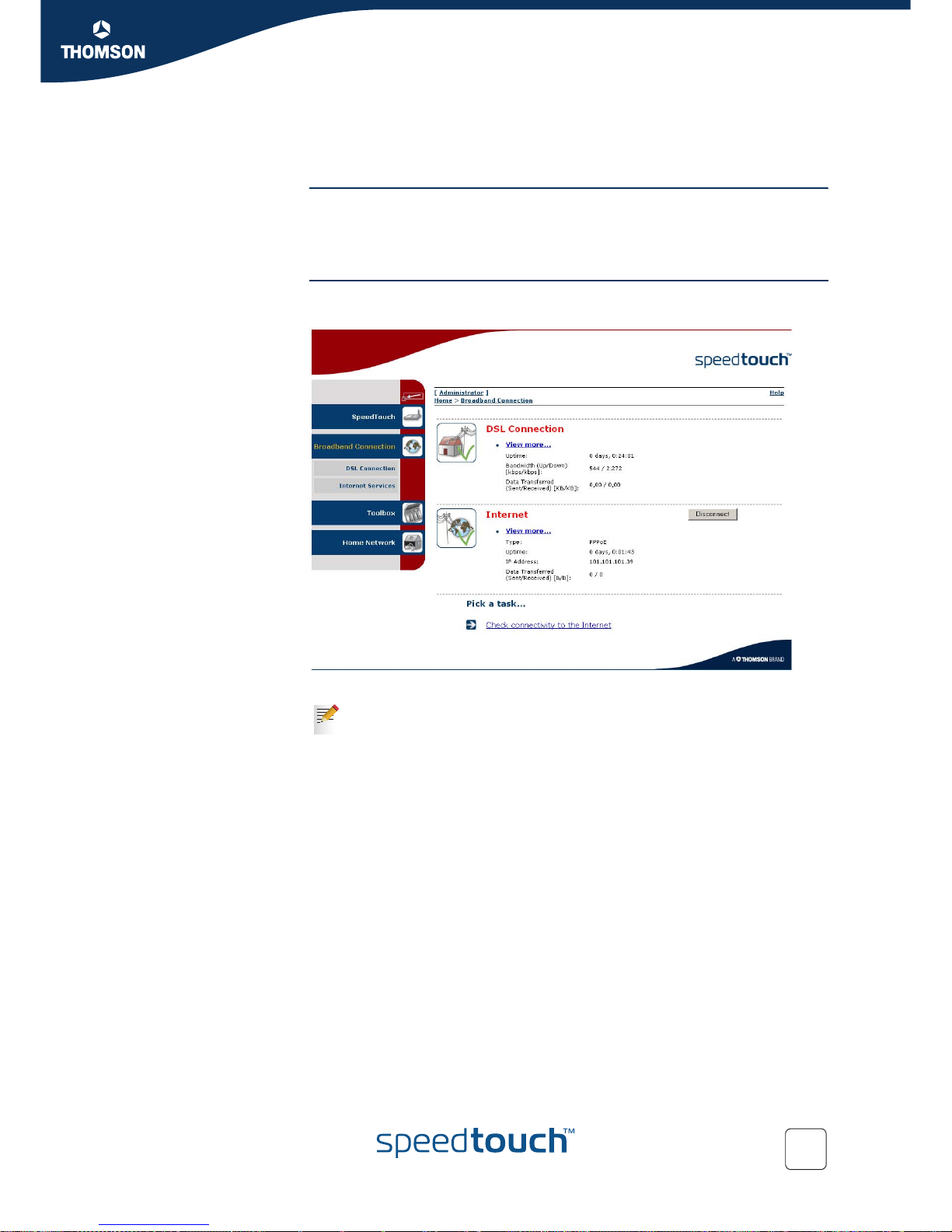

5.4 Broadband Connection................................................................. 71

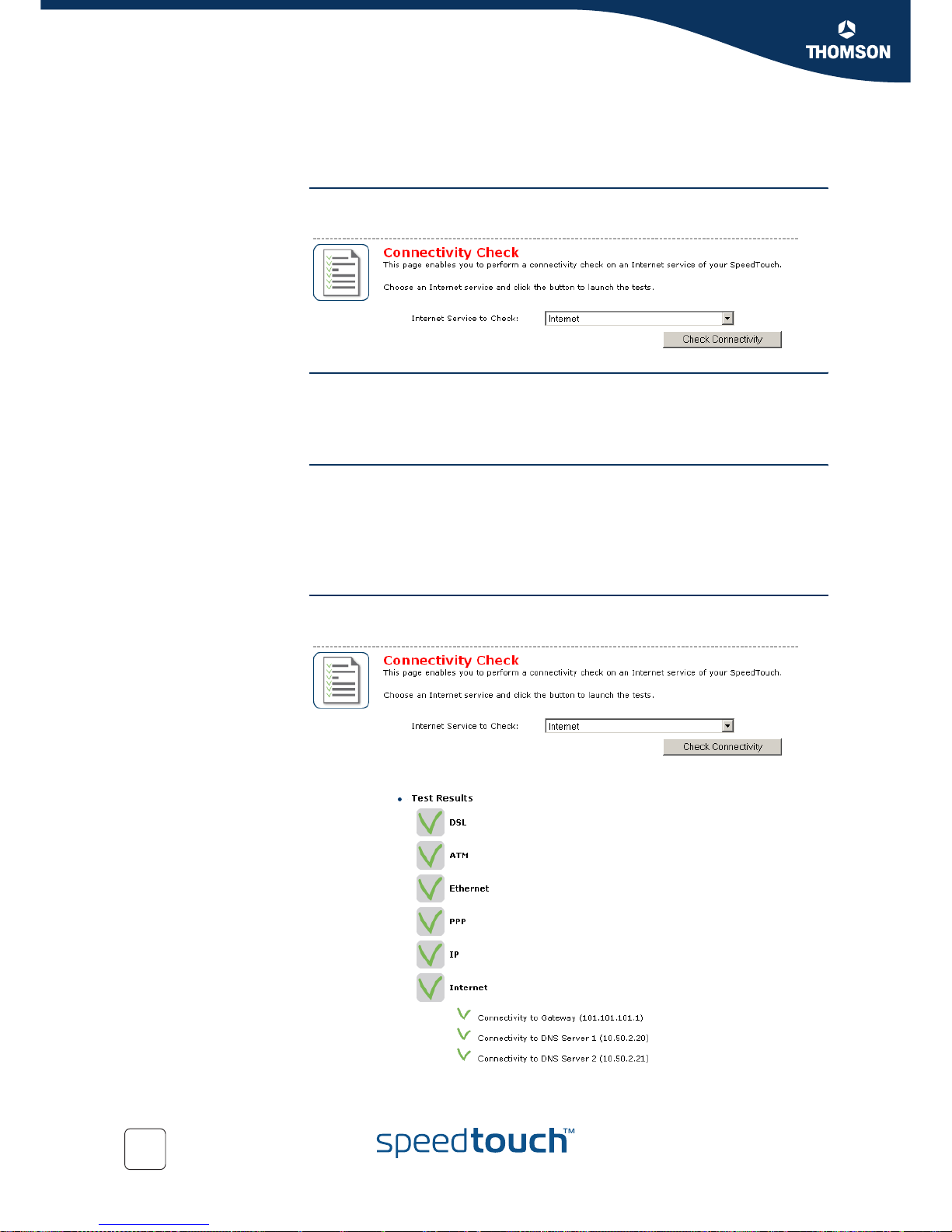

5.4.1 Connectivity Check....................................................................................... 72

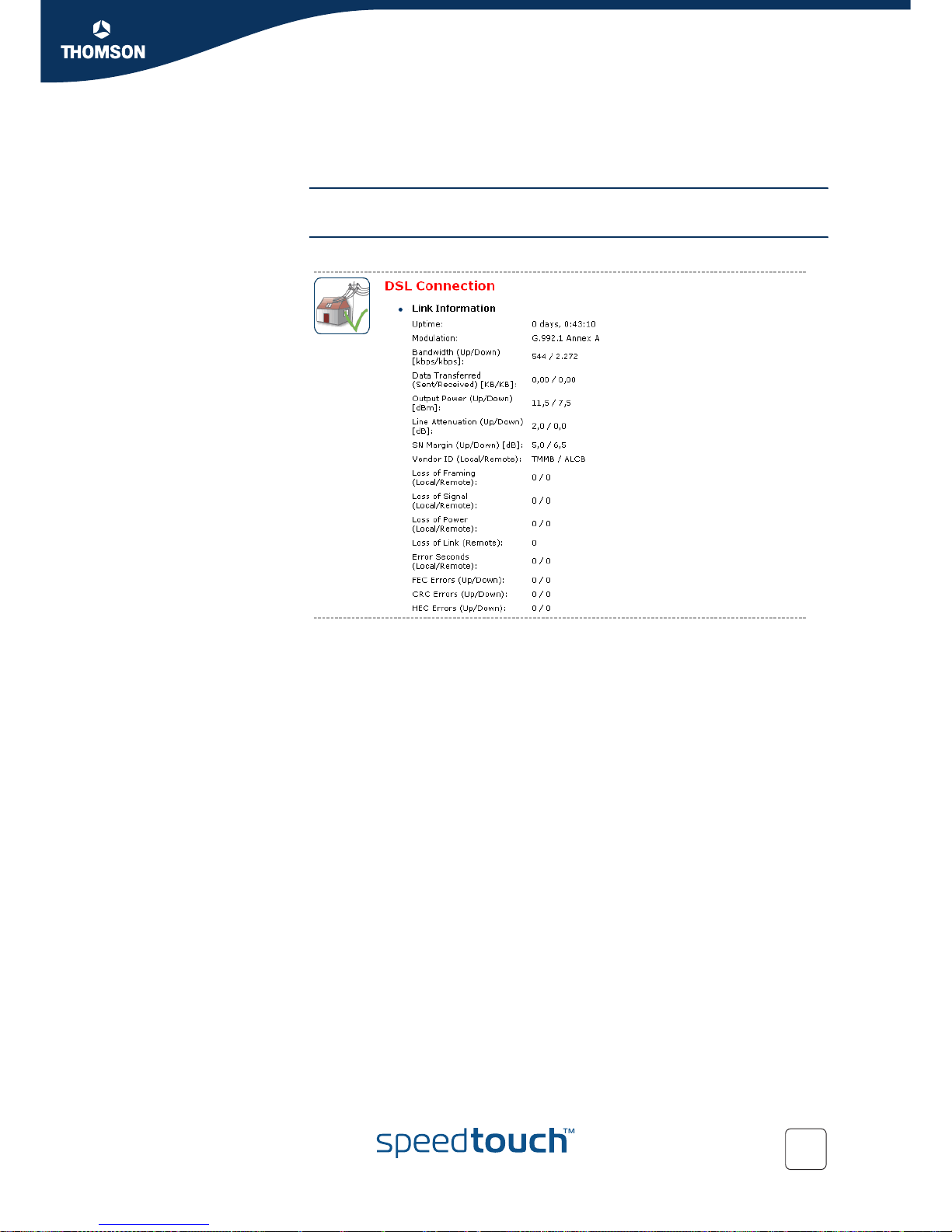

5.4.2 DSL Connection ........................................................................................... 73

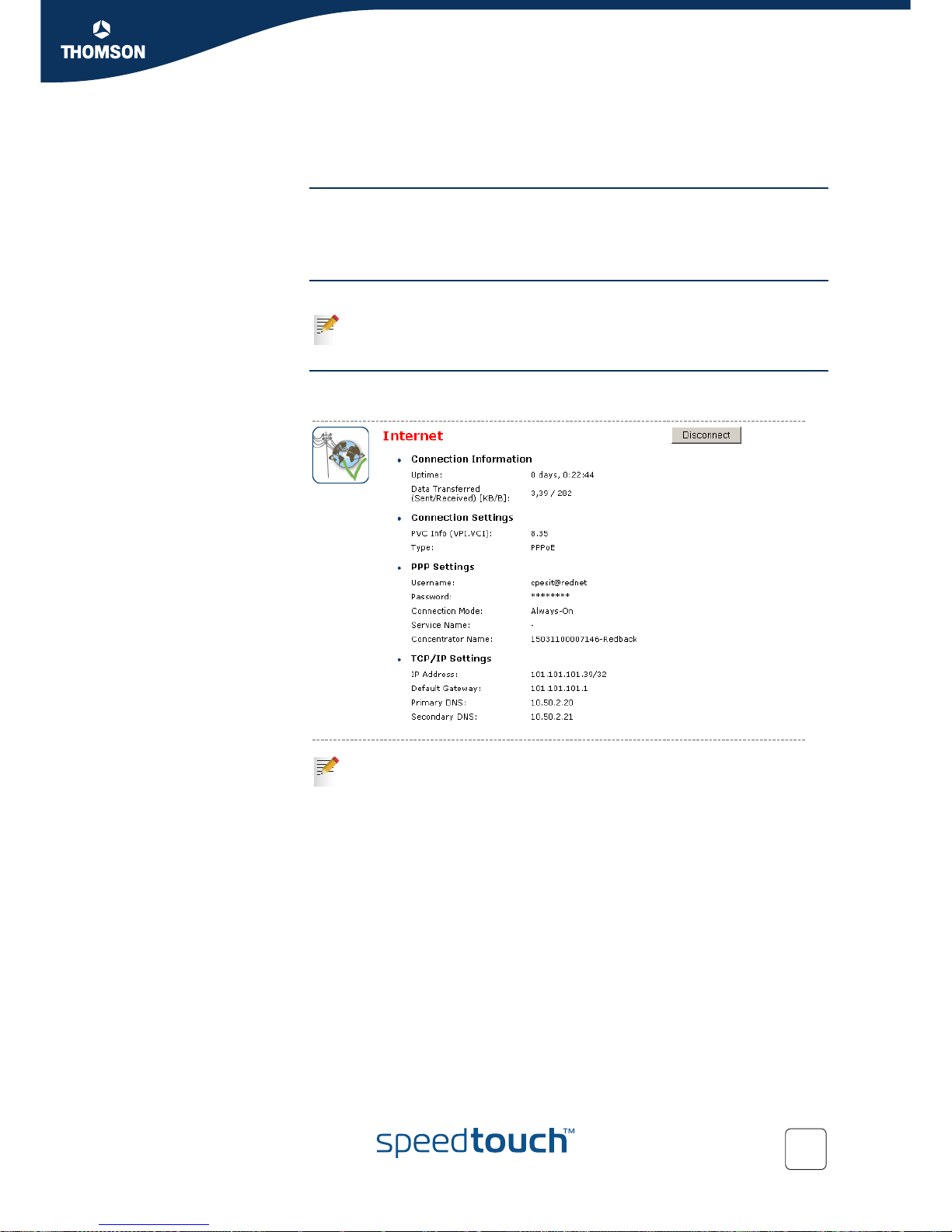

5.4.3 Internet Services .......................................................................................... 74
5.4.4 Internet Service Settings ............................................................................... 75
Page 7
Contents
E-DOC-CTC-20050803-0002 v2.0
iii
5.5 Toolbox ........................................................................................ 76
5.5.1 Remote Assistance ....................................................................................... 77

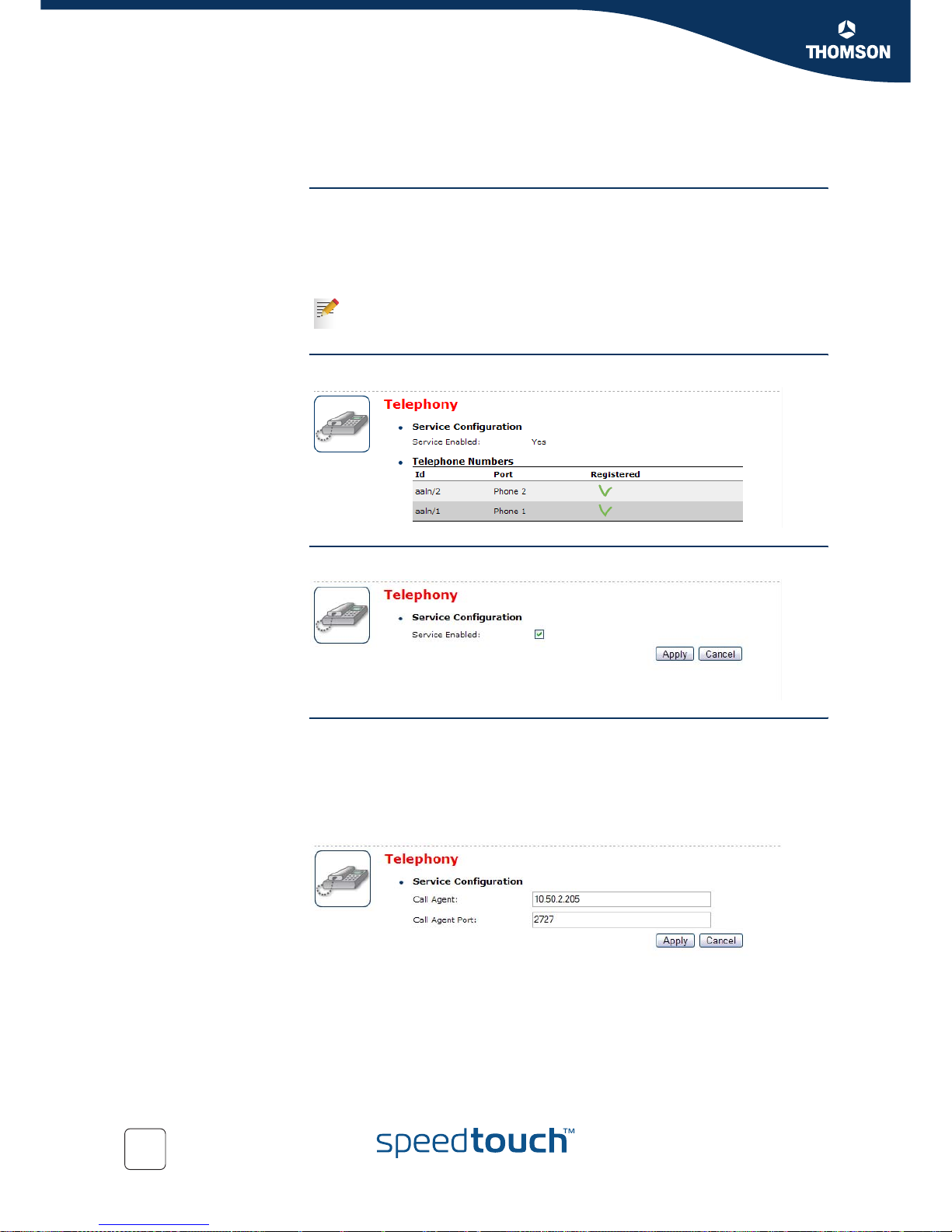

5.5.2 Telephony ................................................................................................... 78
5.5.3 Game & Application Sharing .......................................................................... 79
5.5.4 Defined Games & Applications ....................................................................... 80

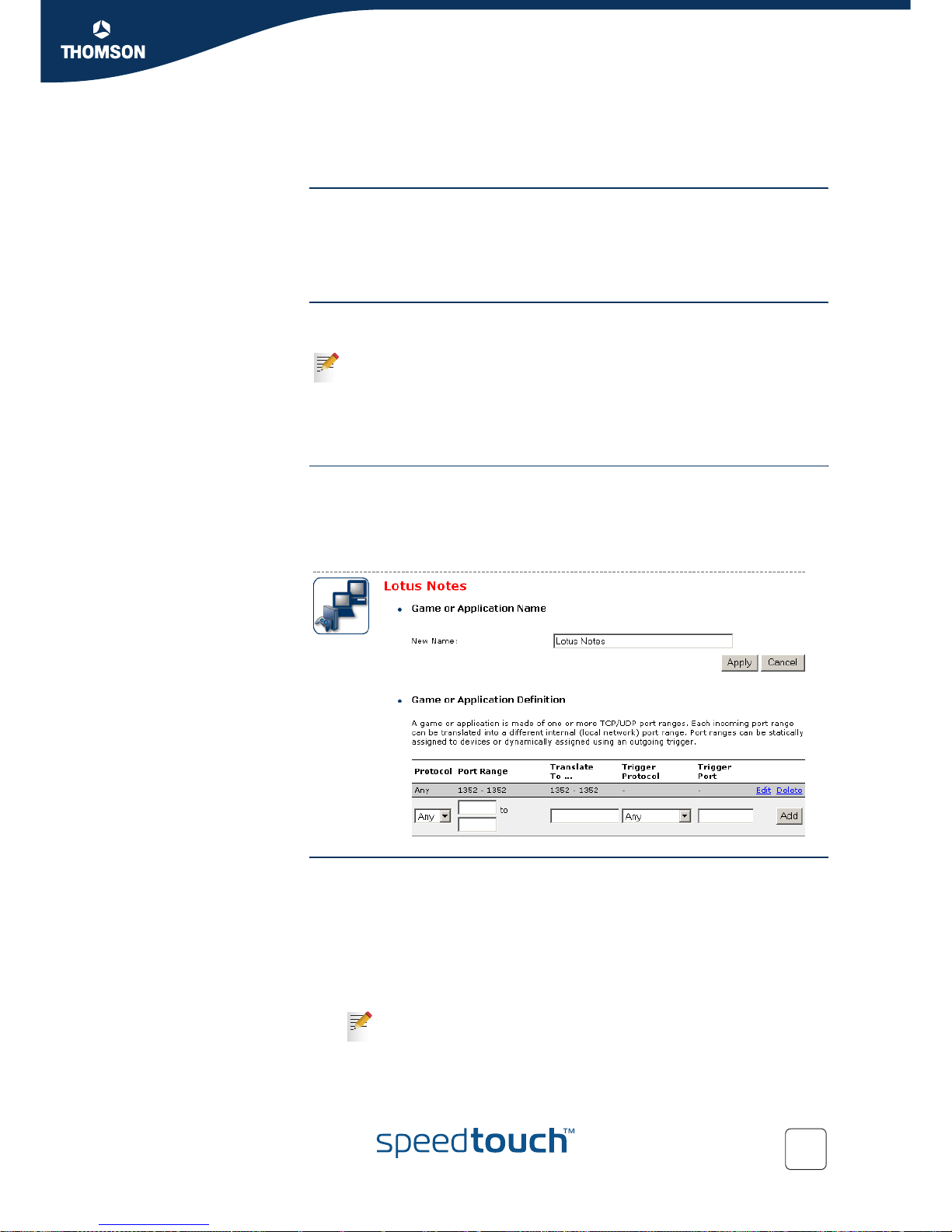

5.5.5 Game or Application Definition....................................................................... 81
5.5.6 New Game or Application.............................................................................. 82
5.5.7 Parental Control ........................................................................................... 83
5.5.8 Web Filtering Activation ................................................................................ 86
5.5.9 Content Level .............................................................................................. 87
5.5.10 New Content Level ....................................................................................... 88
5.5.11 Firewall ....................................................................................................... 90

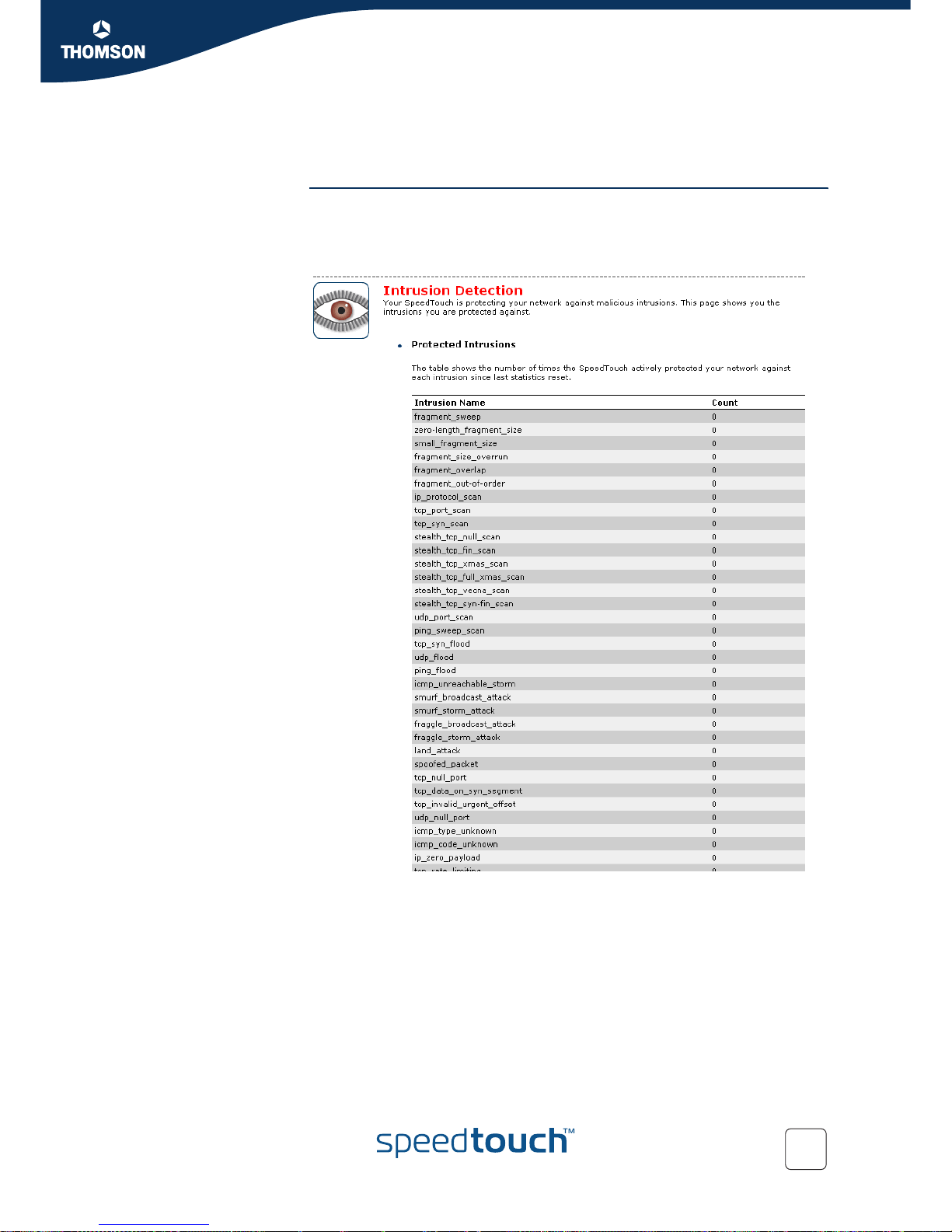

5.5.12 Intrusion Detection ....................................................................................... 91
5.5.13 Dynamic DNS .............................................................................................. 92
5.5.14 User Management ........................................................................................ 93
5.5.15 Edit User ..................................................................................................... 94
5.5.16 Change Default User..................................................................................... 95
5.5.17 Add User..................................................................................................... 96
5.6 Home Network ............................................................................. 97
5.6.1 Devices....................................................................................................... 98

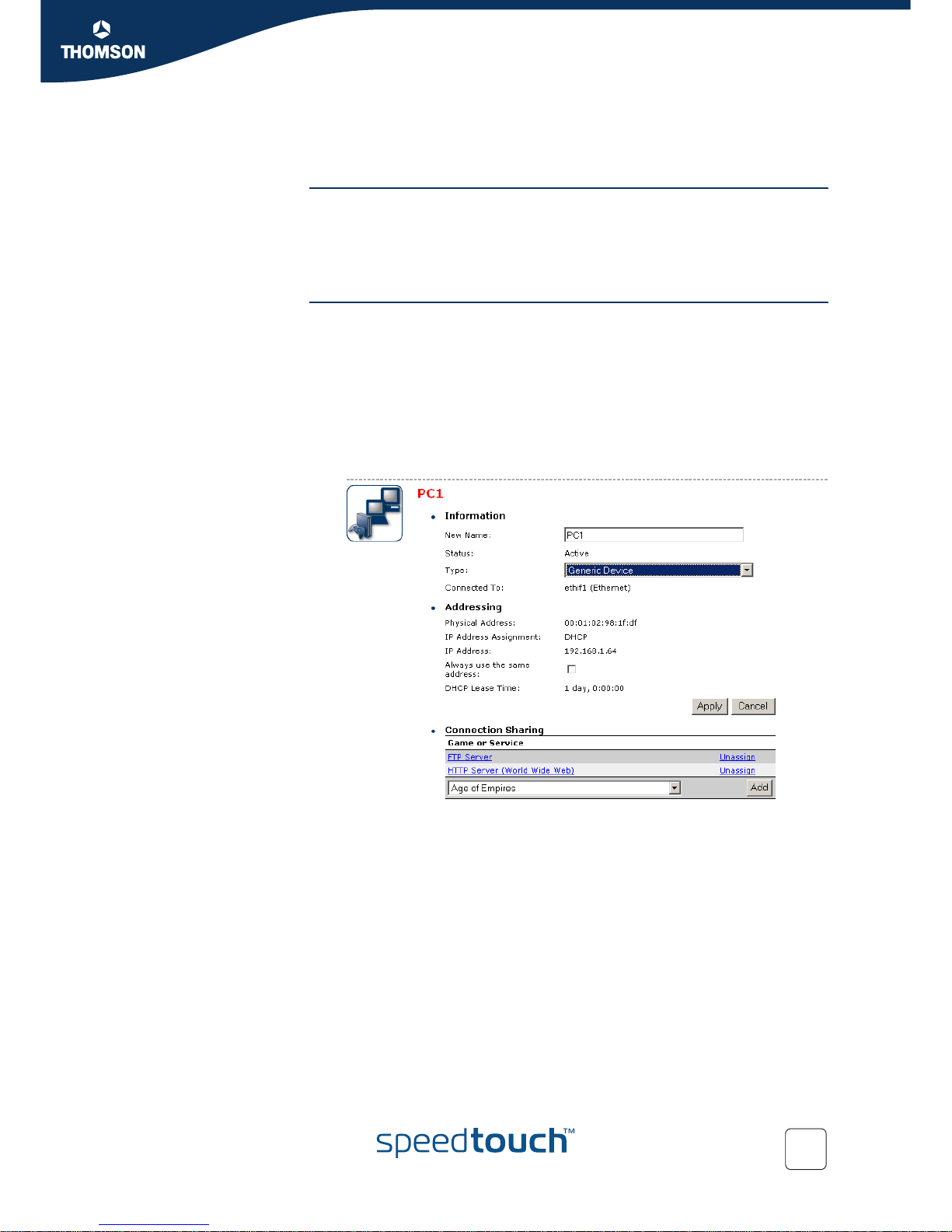

5.6.2 Device Settings............................................................................................ 99
5.6.3 Assign Public IP ......................................................................................... 100
5.6.4 Wireless Device Settings ............................................................................. 101
5.6.5 Access Point Settings ................................................................................. 102

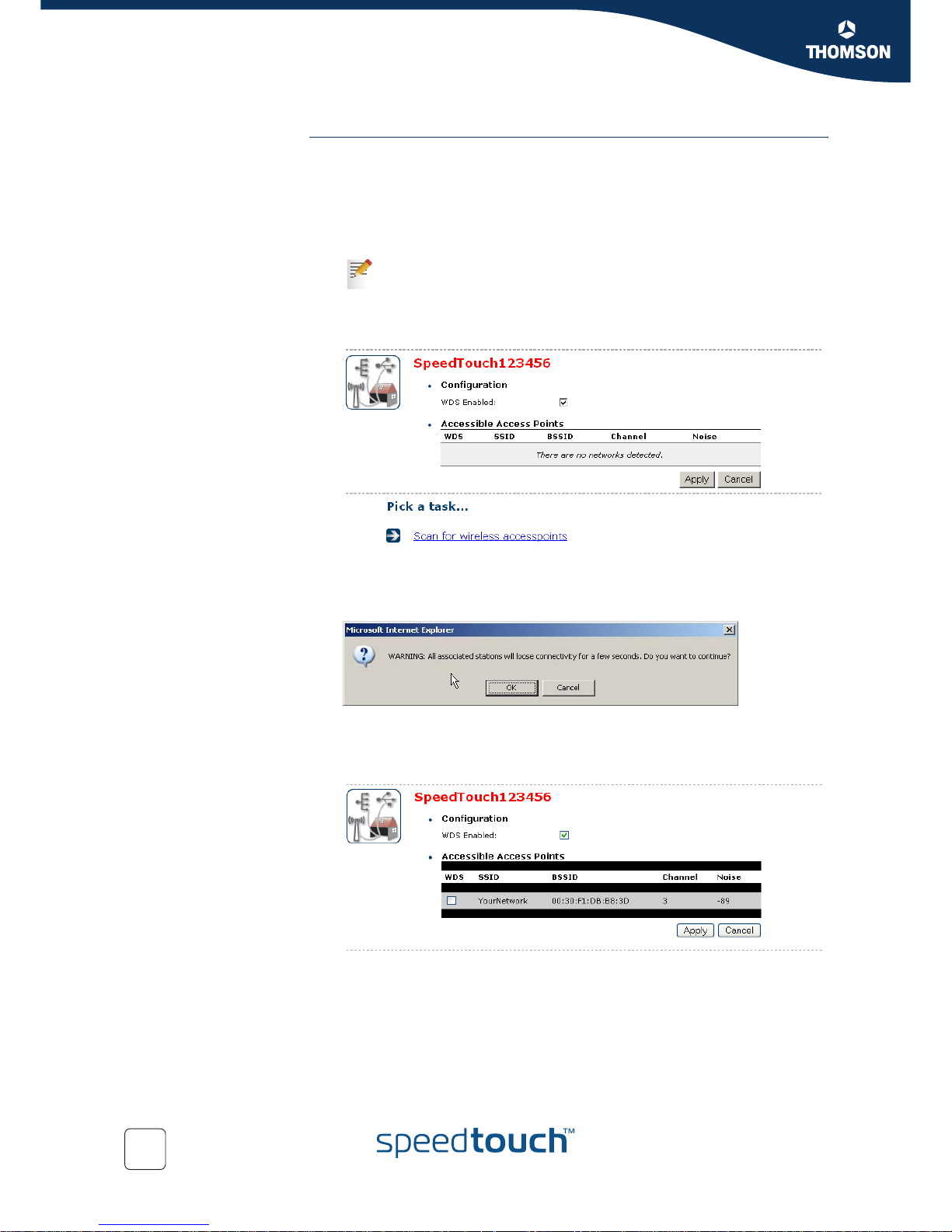

5.6.6 Configuring WDS........................................................................................ 106
5.6.7 Interfaces .................................................................................................. 107
5.6.8 Interface Settings ....................................................................................... 108
5.6.9 DHCP Pool................................................................................................. 109
6 Software Upgrade..................................................... 111
6.1 Upgrade Wizard on Setup CD..................................................... 112
7 Troubleshooting........................................................ 115
Page 8
Contents
E-DOC-CTC-20050803-0002 v2.0
iv
7.1 General SpeedTouch™ Troubleshooting ..................................... 116
7.1.1 Wired Ethernet Troubleshooting.................................................................... 117
7.1.2 Wireless Ethernet Troubleshooting................................................................ 118
7.1.3 Upgrade Troubleshooting............................................................................. 119
7.2 UPnP™ on Windows XP Systems ................................................ 120
7.3 Voice over IP Troubleshooting................................................... 122
7.4 Reset to Factory Defaults .......................................................... 123
Page 9
About this User’s Guide
1
E-DOC-CTC-20050803-0002 v2.0
About this User’s Guide
Used symbols
Terminology
Generally, the SpeedTouch™716v5(i) and the SpeedTouch™ 716v5(i) WL will be
referred to as SpeedTouch™ in this User’s Guide.
Documentation and
software updates
THOMSON continuously develops new solutions, but is also committed to improve
its existing products.
For suggestions regarding this document, please contact
documentation.speedtouch@thomson.net
.
For more information on THOMSON's latest technological innovations, documents
and software releases, visit us at:
www.speedtouch.com
A note provides additional information about a topic.
A tip provides an alternative method or shortcut to perform an action.
!
A caution warns you about potential problems or specific precautions that
need to be taken.
Page 10
About this User’s Guide
2
E-DOC-CTC-20050803-0002 v2.0
Page 11
3
E-DOC-CTC-20050803-0002 v2.0
Chapter 1
Your SpeedTouch™
1 Your SpeedTouch™
Introduction The SpeedTouch™716v5 (WL) (Wireless) Residential DSL Gateway with Voice allows
you to build a secure home or small office network, seamlessly connecting wired and
wireless devices, surf the Internet at high speed, make and receive phone calls over
the Internet or over the traditional phone line - all combined in one device.
Installation For more information on how to set up your SpeedTouch™, installation and wiring
and how to do a first Internet connection setup, refer to the provided Installation and
Setup Guide.
Contents This User’s Guide will assist you in configuring your SpeedTouch™.
Safety instructions Before connecting the SpeedTouch™, please read the SpeedTouch™ Quick Installation
Guide and the Safety Instructions and Regularity Notices.
Page 12
4
E-DOC-CTC-20050803-0002 v2.0
Chapter 1
Your SpeedTouch™
1.1 SpeedTouch™ Features
Introduction Your SpeedTouch™ offers you a wide range of outstanding features.
In this section you will find a comprehensive overview of the:
Hardware Specifications
Software Features
Page 13
5
E-DOC-CTC-20050803-0002 v2.0
Chapter 1
Your SpeedTouch™
1.1.1 Hardware Specifications
DSL modem Integrated multi-mode ADSL modem
Physical interfaces WAN:
One RJ-11 port for ADSL/POTS or ADSL/ISDN connection
LAN:
A USB 1.1 port to connect one computercomputer over USB
Four RJ-45 ports for managed 10/100Base-T Half-/Full-duplex auto-
sensing MDI/MDI-X Ethernet switch
Wireless LAN: IEEE 802.11b/g Wi-Fi compliant access point on the
SpeedTouch™716
v5 WL
Power inlet
Telephony:
Two Voice over IP (VoIP) ports allowing high quality Internet telephony
A PSTN port allowing regular phone calls
LEDs LED indicators for all interfaces
Reset button One recessed reset button for restoring the default settings
Wireless performance On the SpeedTouch™716v5 WL:
Typical indoor coverage: 60m
Dynamic rate switching
Manual / Automatic channel selection
Manual / Automatic selection of pure 802.11g, pure 802.11b or mixed mode
(802.11b/g) network
Wireless Distribution System (WDS)
WPA-PSK / WEP data encryption
Power External power supply adapter with power cord
Page 14
6
E-DOC-CTC-20050803-0002 v2.0
Chapter 1
Your SpeedTouch™
1.1.2 Software Features
ADSL compliance If POTS in overlay: G. handshake, Full Rate ADSL, G.dmt, G.lite (splitterless
ADSL), ADSL2, RE-ADSL and ADSL2+
If ISDN in overlay: G.handshake, G.dmt, ADSL2 and ADSL2+
ATM features Up to 8 simultaneous PVCs, allowing multiple simultaneous destinations
ATM QoS per PVC: CBR, VBR-rt, VBR-nrt, UBR
RFC 1483 / 2684 multiprotocol encapsulation over AAL5 / ATM: both LLC /
SNAP and VC-based multiplexing supported
Bridging features Multiport self-learning transparent bridge per IEEE 802.1D for LAN interconnect
Remote bridge ports are isolated from each other
Bridge Filtering
Routing features Multi-port (up to 8 PVCs) router
Static routing, automatic routes (PPP, LAN)
IP address multi-homing
Services UPnP with NAT traversal capability:
enables game technologies (Xbox live, Direct X, and many others)
enables conferencing functions of Microsoft Messenger
Transparent bridging (IEEE802.1D)
PPPoE routing/bridging with integrated PPP Relay
PPPoA routing, PPPoA-to-PPTP relaying
IP routing with static routing, packet classified routing and residential RIP
Hyper-NAT with virtual server mapping (for instance for Web, FTP, Mail
servers) and ALGs (such as NetMeeting, MSN Messenger, VPN passthrough,
and others)
Quality of Service:
IP QoS
Integrated Dynamic DNS client
Security PAP (RFC1334), CHAP (RFC1994) for PPP session
Integrated Stateful Inspection Firewall, Intrusion Detection
Parental Control, URL Filtering
Wireless security on SpeedTouch™716v5 WL:
64/128bit WEP encryption, WPA-PSK
Wireless client registration/access control
Multi-level SpeedTouch™ access policies, Digest Authentication
Page 15
7
E-DOC-CTC-20050803-0002 v2.0
Chapter 1
Your SpeedTouch™
Configuration Quick Installation Wizard, Home Install Wizard, Easy Setup wizard
Semi-automatic PPP-based Internet connect via HTTP Intercept
Intuitive web-based GUI (HTTP/HTTPs)
Advanced configuration via telnet - Command Line Interface (CLI)
Remote management access control
Management Multi-level user protection, Event logging
DHCP server, client and relay, DHCP-to-PPP spoofing
DNS server, client and relay
Time synchronization:
SNTPv1, SNTPv2, SNTPv3 and SNTPv4
System logging
SNMPv1 agent with MIB-II
Firmware upgradeable via upgrade wizard on Setup CD
VoIP Two VoIP (FXS) ports for VoIP phone calls, supporting:
intelligent lifeline backup
manual selection of PSTN mode or VoIP mode while making a phone call
Automatic selection of PSTN phone call on dialing emergency numbers
Support for IP QoS for VoIP
Page 16
8
E-DOC-CTC-20050803-0002 v2.0
Chapter 1
Your SpeedTouch™
1.2 SpeedTouch™ LED Behaviour
Front panel LEDs The SpeedTouch™ is equipped with a number of LEDs on its front panel, indicating
the state of the device during normal operation.
Following table shows the meaning of the different LEDs.
Indicator Description
Name Colour State
PWR Green On Power on, normal operation
Red On Startup pending
Flashing Updating firmware
Off Power off
DSL Green Flashing DSL line trying to detect carrier
signal
High speed
flashing
DSL line trying to synchronise
On DSL line synchronised, no Internet
activity
Off Power off or DSL line not
synchronised
PPP Green Flashing Internet activity
On At least one PPPoA or PPPoE
connection is up. Users can access
the Internet.
Off No PPPoA or PPPoE connection
Ethernet 1-4 Green Flashing Ethernet activity
On Ethernet connection, no activity
Off No Ethernet connection
PWR PPP EthernetDSL USB Phone
VoIP
Ready
WLAN
12
12
34
Page 17
9
E-DOC-CTC-20050803-0002 v2.0
Chapter 1
Your SpeedTouch™
USB Green Flashing USB activity
On USB connection, no activity
Off Power off or wait for USB
connection going up
WLAN
(SpeedTouch™7
16
v5 WL only)
Green Flashing Wireless activity
On Wireless LAN enabled
Off Wireless LAN disabled
Phone 1-2 Green On The phone is off hook
Off The phone is on hook or no phone
connected
VoIP Ready Green On VoIP service up
Flashing VoIP activity
Off VoIP service down
Indicator Description
Name Colour State
Page 18
10
E-DOC-CTC-20050803-0002 v2.0
Chapter 1
Your SpeedTouch™
1.3 How to Access your SpeedTouch™
Access methods Your SpeedTouch™ is accessible in one of the following ways.
Access Method Can be used to
Web browser Configure your SpeedTouch™ via HTTP or
HTTPs.
For more information, see “1.3.1 Access via
the Web Interface” on page 11.
Command Line Interface (CLI) Fine tune your SpeedTouch™ configuration.
For more information, see “1.3.2 Access via
CLI” on page 12.
File Transfer Protocol (FTP) Backup and restore data on your SpeedTouch™.
For more information, see “1.3.3 Access via
FTP” on page 14.
Remote Assistance Allow a remote user to help you configuring
your SpeedTouch™.
For more information, see “1.3.4 Remote
Assistance” on page 17.
Page 19
11
E-DOC-CTC-20050803-0002 v2.0
Chapter 1
Your SpeedTouch™
1.3.1 Access via the Web Interface
Procedure To access the SpeedTouch™ via the web interface:
1 Open a web browser.
2 In the address bar type your SpeedTouch™’s IP address or DNS host name, by
default that is http://speedtouch.lan
or 192.168.1.254.

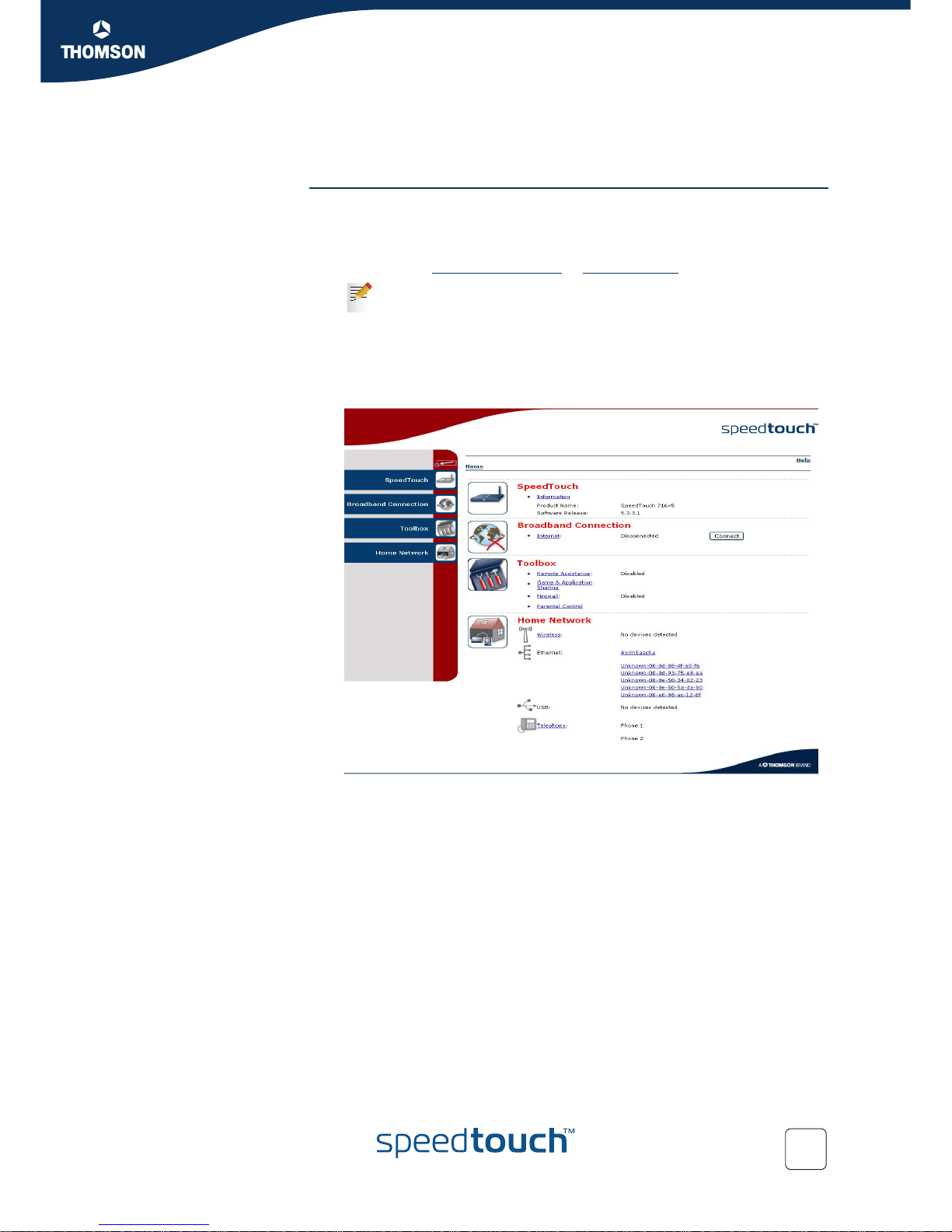

3 As a result the SpeedTouch™ Home page appears, from where you can navigate
to all the configurable aspects of the SpeedTouch™.
For more information on the web pages, see “5 SpeedTouch™ Web Interface” on
page 55.
You can access the pages via HTTP or HTTPs.
For remote assistance the secure version, HTTPs, in combination with
certificates is used. Simply provide your ISP with the link as shown,
user name and password before he can log on to the pages. For more
information, see “1.3.4 Remote Assistance” on page 17.
Page 20
12
E-DOC-CTC-20050803-0002 v2.0
Chapter 1
Your SpeedTouch™
1.3.2 Access via CLI
Command Line
Interface (CLI)
You can access the Command Line Interface (CLI) via:
A Telnet session
This requires that TCP/IP connectivity exists between the host from which the
Telnet session is opened and the SpeedTouch™. Your SpeedTouch™ and the
connected computer must have an IP address in the same subnet.
Quote site commands (over FTP)
For more information, see “ Quote site command” on page 16.
For information on CLI commands, see the SpeedTouch™ CLI Reference Guide.
Page 21
13
E-DOC-CTC-20050803-0002 v2.0
Chapter 1
Your SpeedTouch™
Teln e t ses s ion Proceed as follows:
1 Open a telnet application.
2 Connect to your SpeedTouch™. .
3 Enter your SpeedTouch™ security user name and password.
4 As soon as you’ve opened a session to the CLI, the SpeedTouch™ banner is
displayed, followed by the CLI prompt, as shown in the example below.
You can use the Command Prompt window.
In Windows XP for instance:
1 On the Windows task bar, click Start.
2 Select (All) Programs > Accessories > Command Prompt.
In the Command Prompt window:
At the prompt, type
telnet followed by the IP address of your
SpeedTouch™ (default is 192.168.1.254).
The default user is ‘Administrator’ and the default password is blank.
Username : Administrator
-----------------------------------------------------------------------
* ______ SpeedTouch
* ___/_____/\
* / /\\ Version 5.3
* _____/__ / \\
* _/ /\_____/___ \ Copyright (c) 1999-2005,
* // / \ /\ \ THOMSON
* _______//_______/ \ / _\/______
* / /\ \ / // /\
* __/ / \ \ / / / / _\__
* / / / \_______\/ / / / / /\
* /_/______/___________________/ /________/ /___/ \
* \ \ \ ___________ \ \ \ \ \ /
* \_\ \ / /\ \ \ \ \___\/
* \ \/ /\ \\ \/
* \_____/ / \ \ \________\/
* /__________/ \ \ /
* \ _____ \ /_____\/
* \ / /\ \ /___\/
* /____/\\/
* \ \ /___\/
* \____\/
----------------------------------------------------------------------{Administrator}=>
Page 22
14
E-DOC-CTC-20050803-0002 v2.0
Chapter 1
Your SpeedTouch™
1.3.3 Access via FTP
File Transfer Protocol
(FTP)
You can access the file system of the SpeedTouch™ via the File Transfer Protocol
(FTP), in order to:
Restore or backup configuration files, templates or language packs.
Upgrade your configuration.
File system The SpeedTouch™ file system is stored on nonvolatile memory, and contains the
SpeedTouch™ software, service template files and (optionally) default setting files.
FTP session To open an FTP session:
1 Open a Command Prompt window.
2 At the prompt, type ftp followed by the IP address of your SpeedTouch™
(default is 192.168.1.254).
3 Enter your SpeedTouch™ security user name and password.
4 The example below shows an FTP session to the SpeedTouch™ file system.
File system structure The structure of the file system is very simple: It consists of a single root directory
called root and a subdirectory called dl.
The root directory contains:
all the necessary files for the SpeedTouch™ to boot correctly
the dl directory
The dl (download) directory contains the software image.
In Windows XP for instance:
1 On the Windows task bar, click Start.
2 Select (All) Programs > Accessories > Command Prompt.
The default user is ‘Administrator’ and the default password is blank.
If you made changes to the SpeedTouch™ configuration and saved
them, a user.ini configuration settings file is created in the dl
subdirectory.
Page 23
15
E-DOC-CTC-20050803-0002 v2.0
Chapter 1
Your SpeedTouch™
File system access
rights
On the different directories you have following rights.
Common FTP
commands
Depending on the access rights you have on a directory, you can use one of
following commands.
Directory Access rights
root NO read/write
dl read/write
Command... You can use to...
cd access another directory than the one currently open.
Example: ftp>cd dl.
dir list the directory files.
Example: ftp>dir.
bin set the transfer mode to ‘binary’.
hash turn on the hashing option.
put upload files.
Example: ftp>put C:/MyBackupFiles/user.ini.
A configuration file must be uploaded to the dl directory.
get download files.
Example: ftp>get user.ini.
Downloading the configuration file must be done from the dl
directory.
delete delete files.
bye quit FTP.
Page 24
16
E-DOC-CTC-20050803-0002 v2.0
Chapter 1
Your SpeedTouch™
FTP file t ra n sf e r To allow correct file transfers, set the transfer mode to “binary”: At the ftp prompt,
type
bin and press Enter.
Example.
Quote site command All the CLI commands can be executed from within an FTP session. Only complete
CLI commands (in other words, the complete command syntax with all the
parameters already specified) can be executed.
Example: To execute the CLI command
:ip iplist to list all IP addresses
currently assigned to SpeedTouch™ interfaces: At the FTP prompt type ‘quote site ip
iplist’ and press Enter.
For more information on CLI commands, see the SpeedTouch™ CLI Reference Guide.
Turn on the hashing option to see the progression of the file transfer: At the
ftp prompt type
hash and press Enter.
/home/doejohn{1}$ftp 192.168.1.254
Connected to 192.168.1.254
220 Inactivity timer = 120 seconds. Use 'site idle <secs>' to change.
Name (192.168.1.254:doejohn):
331 SpeedTouch™ (00-90-D0-01-02-03) User 'doejohn' OK. Password requir
ed.
Password : ######
330 OK
ftp>
ftp>bin
200 TYPE is now 8-bit binary
ftp>
ftp>hash
200Hash mark printing on (8192 bytes/hash mark).
ftp>cd dl
250 Changed to /dl
ftp>put C:\user.ini
200 Connected to 192.168.1.10 port 1271
150 Opening data connection for user.ini
226 File written successfully
ftp: 256 bytes sent in 0,000Seconds 256000,000Kbytes/sec.
ftp>
ftp> quote site ip iplist
200- Interface Type IP-address Point-to-point/Mask
200- 2 LocalNetwork Ethernet 10.0.0.138 255.255.255.0
200- 2 LocalNetwork Ethernet *192.168.1.254 255.255.255.0
200- 1 Internet Serial 81.240.198.191 81.240.198.1
200- 0 loop Internal 127.0.0.1 255.255.255.255
200200 CLI command "ip iplist" executed
ftp>
Page 25
17
E-DOC-CTC-20050803-0002 v2.0
Chapter 1
Your SpeedTouch™
1.3.4 Remote Assistance
Remote access You can make your SpeedTouch accessible from the Internet with regard to remote
support. This way, you can allow your helpdesk to access your SpeedTouch™
remotely.
Enabling remote access To enable remote assistance:
1 Go to the SpeedTouch™ pages, as described in “1.3.1 Access via the Web
Interface” on page 11.

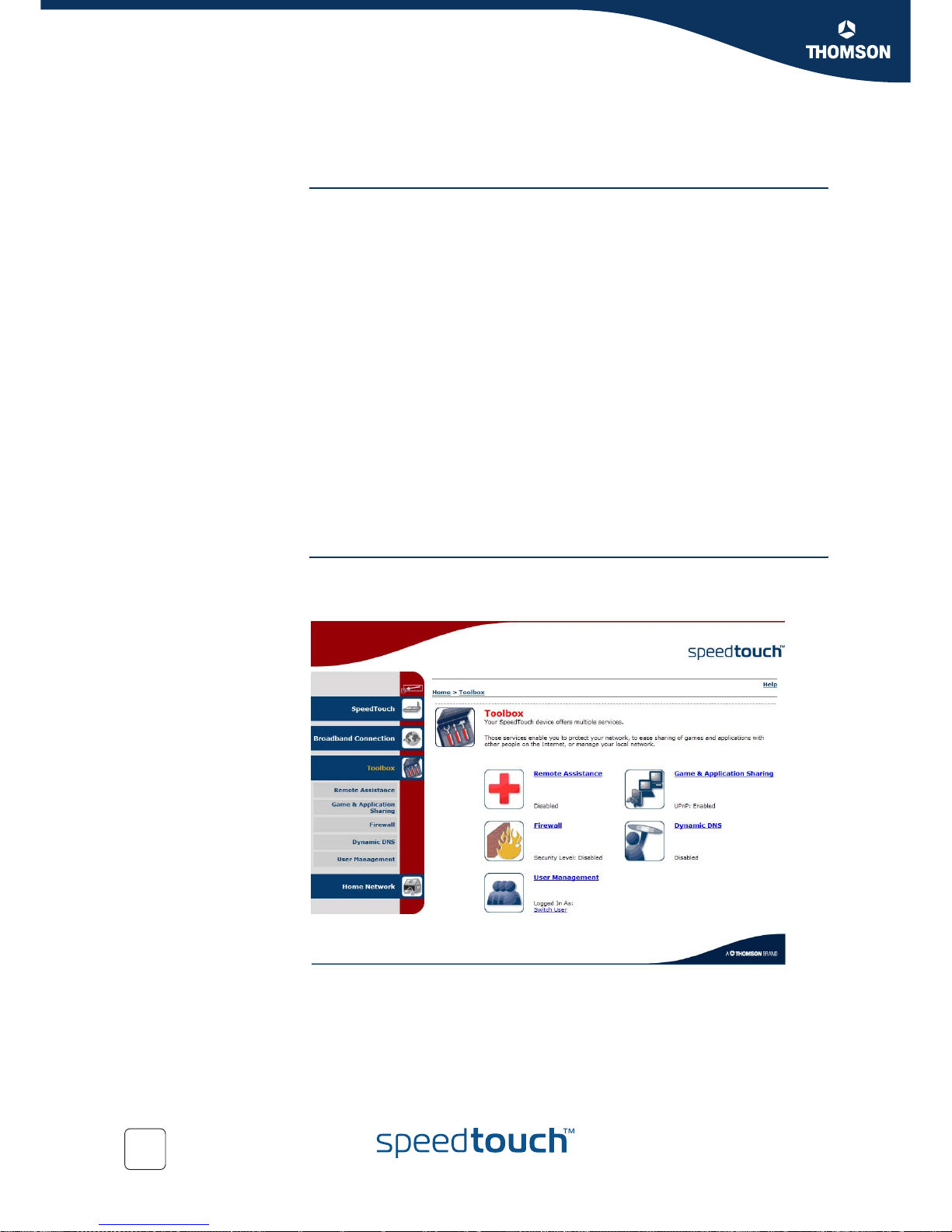

2 In the menu select Toolbox > Remote Assistance.
3 Click Enable Remote Assistance.
4 Provide the following parameters to your helpdesk:
URL (the HTTPs link)
User name
Password
5 Your ISP is now able to access your SpeedTouch™ via the secure HTTPs link in
combination with the provided certificate (a secure authentication mechanism).
Disabling remote
access
To disable remote assistance:
1 Go to the SpeedTouch™ pages, as described in “1.3.1 Access via the Web
Interface” on page 11.
2 In the menu select Toolbox > Remote Assistance.
3 Click Disable Remote Assistance.
For security reasons, after 20 minutes of inactivity, or on reboot, remote
assistance will be automatically disabled.
Page 26
18
E-DOC-CTC-20050803-0002 v2.0
Chapter 1
Your SpeedTouch™
Page 27
19
E-DOC-CTC-20050803-0002 v2.0
Chapter 2
Local Network Setup
2 Local Network Setup
Introduction The SpeedTouch™ offers you following local networking solutions:
Wired Ethernet
USB (v1.1)
Wireless Ethernet on the SpeedTouch™716v5 WL

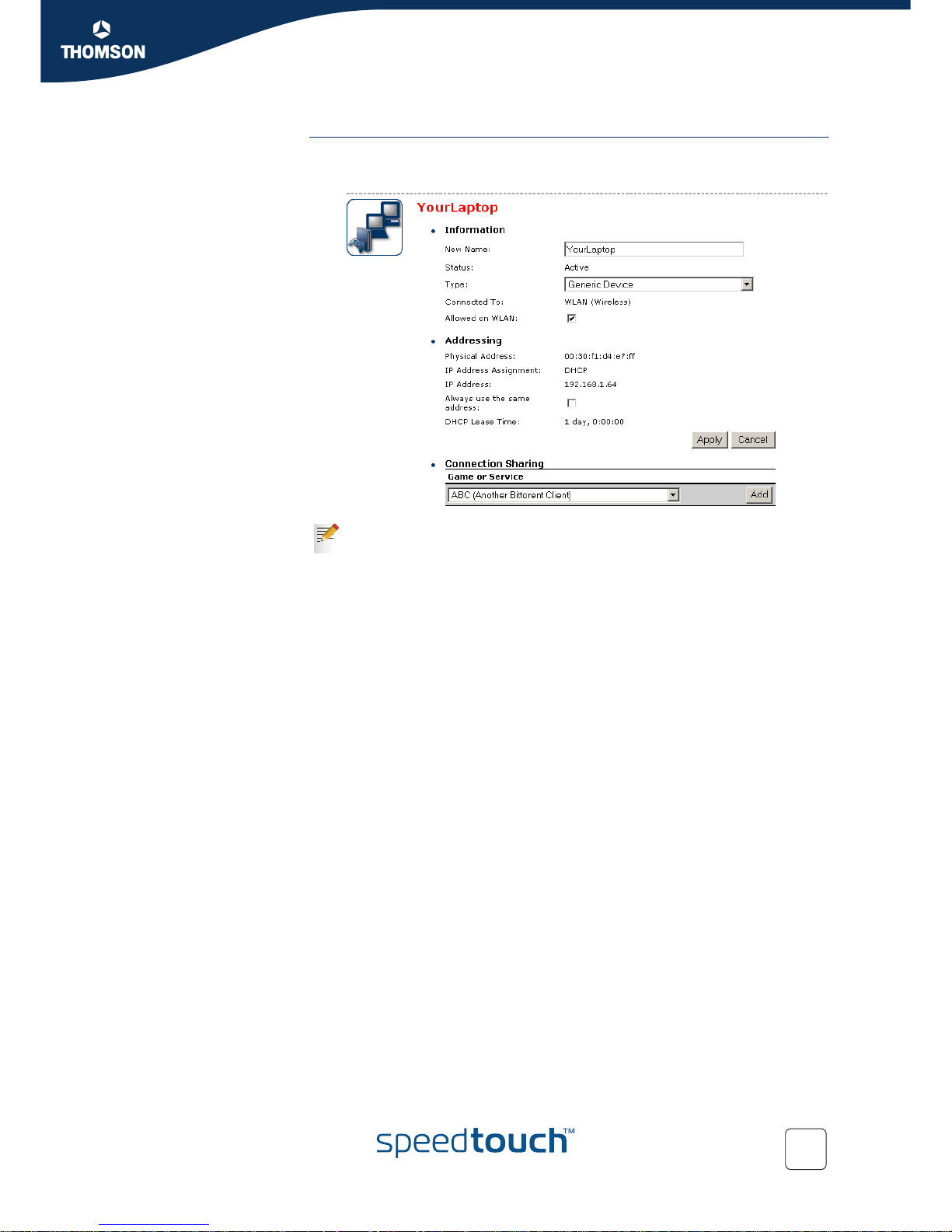

Device settings Once you’ve connected a device, you are able to personalise its settings:
1 Go to the SpeedTouch™ web pages.
2 In the menu select Home Network > Devices.
3 Click the name of your device, or if the device’s settings haven’t been
personalised yet, click the MAC address of the device.
4 On the top right, click Configure.
5 Now you can change the device’s name, lock its IP address and assign
applications and services to the device.
Page 28
20
E-DOC-CTC-20050803-0002 v2.0
Chapter 2
Local Network Setup
2.1 Wired Ethernet
Local network The Ethernet ports on the backpanel allow you to connect the SpeedTouch™ to an
existing 10 or 100Base-T Ethernet network or one (or more) computer(s) with
installed Ethernet card.
Using the SpeedTouch™ Ethernet switch, you can create a local Ethernet network of
up to four devices, without needing extra networking devices.
Standard wiring
procedure
Use the yellow Ethernet cable provided to wire your computer's Ethernet port to
one of the SpeedTouch™'s Ethernet ports.
Device settings Once you’ve connected a device, you are able to personalise its settings.
For more information, see “ Device settings” on page 19.
Managed Ethernet
switch
Your SpeedTouch™ intelligently switches data between the devices on your LAN,
using priority queuing to ensure that higher priority messages are delivered first and
in real-time. This feature maximizes your network performance.
You can configure the managed Ethernet switch manually using CLI (For more
information, see the SpeedTouch™ CLI Reference Guide).
In the SpeedTouch™ package, a yellow full-wired straight-through RJ-45/RJ45 Ethernet cable is included.
The Ethernet cable can also be used to wire an Ethernet port of your
SpeedTouch™ to any external Ethernet hub or switch.
Please follow the installation instructions supplied with the external hub or
switch for connections and Ethernet cabling.
Page 29
21
E-DOC-CTC-20050803-0002 v2.0
Chapter 2
Local Network Setup
2.2 USB
Supported operating
systems
Installing and using the SpeedTouch™ USB connection on the SpeedTouch™ is
supported for following operating systems:
Microsoft Operating Systems:
Windows 98SE
Windows Millennium
Windows 2000
Windows XP
You may need the Windows installation CD-ROM during installation.
Mac Operating Systems:
Mac OS X Jaguar (10.2)
Mac OS X Panther (10.3)
Mac OS X Tiger (10.4)
System requirements For Windows 98SE/ME:
Pentium processor 166 MHz or compatible
32 megabytes (MB) of memory
30 MB of free disk space
For Windows 2000/XP:
Pentium II processor or compatible
64 MB of memory
30 MB of free disk space
For Mac OS X:
128 MB of memory
30 MB of free disk space
Prerequisites It is strongly advised to remove any SpeedTouch™ USB driver installation that may
reside on your computer before you install USB drivers from the SpeedTouch™ Setup
CD delivered with your SpeedTouch™ product.
Make sure both your computer and SpeedTouch™ are turned on and operational.
The installation procedures might be slightly different depending on
the Windows OS you are using.
In the SpeedTouch™ package, a blue USB cable is included to connect a
single computer to your SpeedTouch™.
Page 30
22
E-DOC-CTC-20050803-0002 v2.0
Chapter 2
Local Network Setup
Installing Windows USB
driver
The first time you connect the SpeedTouch™ to your computer through the USB port,
as soon as you plug the USB cable into the computer, you will be prompted for a
USB driver.
You will find the required USB driver software on the Setup CD. The installation is
plug and play, meaning that installation will require almost no effort.
Proceed as follows:
1 Insert the blue USB cable provided into the SpeedTouch™ USB port marked with
the USB logo:
2 The other end of the USB cable fits in (one of) the USB port(s) of your
computer. In most cases your computer's USB port is marked with the same
USB symbol.
3 Windows will automatically recognise the Thomson USB Remote NDIS
device.
4 The Windows Found New Hardware Wizard appears:
This wizard will guide you through the installation procedure of the USB
drivers.
Click Next to continue.
5 Select Install the software automatically (Recommended), and click Next.
6 The USB driver is being installed. After a while a completing dialogue will
appear. Click Finish to complete the installation.
7 As a result your USB connection is installed and ready for use.
Verifying USB
connectivity in Windows
The SpeedTouch™ USB connection is represented as a local network interface. You
can easily check this interface by opening the Network Connections window from
Windows’ Control Panel.
You can also connect your computer to the SpeedTouch™ via a USB
hub.
The Windows Found New Hardware Wizard may ask your
authorisation to connect to Window Update to search for software. If
this is the case, select No, not this time and click Next.
Page 31
23
E-DOC-CTC-20050803-0002 v2.0
Chapter 2
Local Network Setup
Installing Mac USB
drivers
You will find the required USB driver software on the Setup CD. The installation is
plug and play, meaning that installation will require almost no effort.
Proceed as follows:
1 Insert the blue USB cable provided into the SpeedTouch™ USB port marked with
the USB logo.
2 The other end of the USB cable fits in (one of) the USB port(s) of your
computer. In most cases your computer's USB port is marked with the same
USB symbol.
3 Mac OS X will automatically recognise the detection of a new port.
4 Make sure the SpeedTouch™ Setup CD is inserted, then click OK.
5 In the Network window, click Apply Now.
Device settings Once you’ve connected a device, you are able to personalise its settings. For more
information, see “ Device settings” on page 19.
An USB logo looks like this:
You can also connect your computer to the SpeedTouch™ via a USB
hub, provided that the hub is autonomously powered.
Page 32
24
E-DOC-CTC-20050803-0002 v2.0
Chapter 2
Local Network Setup
2.3 Wireless Ethernet
Introduction The SpeedTouch™ 716v5 WL Wi-Fi® certified IEEE 802.11g compliant wireless access
point allows multiple computers to connect wirelessly to your local network over the
SpeedTouch™ Wireless LAN environment. The SpeedTouch™ is backward compatible
with IEEE 802.11b, which means 802.11b and 802.11g devices can coexist in the
same wireless network.
The Wireless Distribution System (WDS) on your SpeedTouch™ allows you to extend
the range of your wireless network. To be able to use WDS, you will need to
introduce an additional WDS-enabled access point into your wireless network.
To be able to connect the computers, make sure that a wireless client adapter
(WLAN client) is installed on each computer you want to connect via the WLAN.
Wireless client
requirements
All wireless client adapters compliant to 802.11g and/or 802.11b, will be able to
communicate with the SpeedTouch™ and other members of the SpeedTouch™
(W)LAN environment. However, be aware that only 802.11g compliant wireless
clients are able to gain full profit of the 54 Mb/s (Max) bandwidth delivered by the
SpeedTouch™.
It is highly recommended to use only wireless client adapters that are Wi-Fi™
certified to ensure smooth interoperability with the SpeedTouch™’s WLAN.
Page 33
25
E-DOC-CTC-20050803-0002 v2.0
Chapter 2
Local Network Setup
2.3.1 Wireless Basics
Introduction In this section some key wireless concepts are explained.
802.11b/g 802.11b is an IEEE standard, operating at 2,4 GHz at a speed of up to 11 Mb/s.
802.11g, a newer IEEE standard also operating at 2,4 GHz, gives you up to 54 Mb/s
speed, more security and better performance.
Wireless Fidelity The Wi-Fi certification ensures that your SpeedTouch™ will interoperate with any Wi-
Fi certified 802.11g and 802.11b compliant wireless device.
Access Point The SpeedTouch™ Wireless LAN Access Point (AP) behaves as a networking hub
allowing to wirelessly interconnect several devices to the local (W)LAN and to
provide access to the Internet.
Network Name or SSID The WLAN's 'radio' link is a shared medium. As no physical connection exists
between the SpeedTouch™ and wireless clients, a name must be given to allow
unique identification of your WLAN radio link. This is done by the Service Set ID
(SSID), also referred to as Network Name. Wireless clients must be part of this SSID
environment in order to be able to communicate with other clients on the (W)LAN including the SpeedTouch™.
Radio channels The 802.11g standard allows several WLAN networks using different radio channels
to be co-located. The SpeedTouch™ supports multiple radio channels and is able to
select the best radio channel at each start-up.
You can choose to set the channels automatically or manually.
The SpeedTouch™ supports all channels allowed for wireless networking. However,
depending on local regulations, the number of channels actually allowed to be used
may be additionally restricted, as shown in the table below.
The different channels are overlapping. To avoid interference with another
access point, make sure that the separation (in terms of frequency) is as
high as possible. It’s recommended to keep at least 3 channels between 2
different access points.
Regulatory Domain Allowed Radio Channels
China 1 to 13
Europe 1 to 13
Israel 5 to 8
Japan 1 to 14
Jordan 10 to 13
Thailand 1 to 14
USA 1 to 11
Page 34
26
E-DOC-CTC-20050803-0002 v2.0
Chapter 2
Local Network Setup
Antennas Direct the external antenna to allow optimization of the wireless link. If for example
the antenna is erect, wireless links in the horizontal plane are favoured. Please note
that the antenna characteristics are influenced by the environment, that is by
reflections of the radio signal against walls or ceilings. It is advisable to use the
received signal strength as indicated by the wireless client manager to optimize the
antenna position for the link to a given client.
Concrete walls will die down the radio signal strength and thus affect the
connection.
Page 35
27
E-DOC-CTC-20050803-0002 v2.0
Chapter 2
Local Network Setup
2.3.2 Connecting First-time Wireless Clients
Wireless default
settings
After every Reset-to-Defaults, the SpeedTouch™ wireless access point configuration
is returned to its initial default settings.
These default settings are:
Security level is low (security disabled) for an easy first use, meaning the data
will not be encrypted. Wireless security settings are described in
“2.3.3 Wireless Security” on page 30.
The SpeedTouch™ is broadcasting its network name (SSID).
This default network name (SSID) is printed on the identification label located
on the bottom of your SpeedTouch™ and is unique for each device. It consists
of the concatenation of the word “SpeedTouch” and 6 hexadecimal characters,
without any spaces, for example SpeedTouch123456.
The radio channel number is set to ‘automatically scan for the best radio
channel’.
Registration is not activated. New stations are allowed automatically. The
Access Control List is open and empty. No wireless client will be denied
access to the SpeedTouch™ based on its physical hardware address.
Preparing first-time
wireless clients
Make sure that:
The SpeedTouch™ is powered on and ready for service.
The SpeedTouch™ is in its default configuration.
If needed, reset the SpeedTouch™ to its default configuration (See “7.4 Reset
to Factory Defaults” on page 123 for more information).
A wireless client adapter is installed on your computer.
The wireless client adapter’s IP configuration is set to dynamically obtain its IP
configuration (DHCP) - this is usually the default. For more information, see
the documentation of your wireless client adapter.
Configuring first-time
wireless clients
The wireless client must be correctly configured for the default network name. As
the SpeedTouch™ broadcasts its network name to the wireless clients, you can select
the SpeedTouch™ wireless network from a list of available networks. Depending on
your wireless client a wireless icon may become green or a message similar to the
following may pop up: “Successfully joined Wireless network SpeedTouch123456”.
First-time association
example
In the example below is shown how the SpeedTouch™ wireless network is presented
towards a Windows XP Service Pack 2 system.
The default wireless settings may differ from the settings listed above
depending on your Service Provider’s requirements. If this is the case, refer
to the installation/configuration instructions provided by your Service
Provider.
Some wireless clients do not automatically join a wireless network. If so,
follow the instructions for the wireless client software to initiate association.
Page 36
28
E-DOC-CTC-20050803-0002 v2.0
Chapter 2
Local Network Setup
To associate your wireless client to the SpeedTouch™:
1 Click the network icon in the notification area:
2 The Wireless Network Connection window appears.
In the Choose a wireless network list, select the SpeedTouch™ wireless
network and click Connect.
3 Following window appears.
Click Connect Anyway.
4 Your computer is now connected to the SpeedTouch™ wireless network.
For other Operating Systems the wireless client will in most cases be
configured via dedicated client managers.
Page 37
29
E-DOC-CTC-20050803-0002 v2.0
Chapter 2
Local Network Setup
Wireless device
settings
Once you’ve connected a device, you are able to personalise its settings.
For more information, see “ Device settings” on page 19.
To add a wireless device to the Access Control List (ACL), select Allowed on
WLAN.
Page 38
30
E-DOC-CTC-20050803-0002 v2.0
Chapter 2
Local Network Setup
2.3.3 Wireless Security
Introduction Since the SpeedTouch™ wireless environment is a radio environment, precautions
must be taken to ensure that your wireless network is safe from malicious intruders.
To secure your wireless network, following wireless access point settings can be
personalised:
Your Network Name (SSID)
ACL setting
Data encryption
Security settings To personalise the wireless security settings on your SpeedTouch™:
1 Go to the SpeedTouch™ web pages.
2 In the menu select Home Network.
3 Click your WLAN.
4 On the top right, click Configure.
5 On the Wireless Access Point page, you can modify the Security settings.
Network Name (SSID) On the Wireless Access Point page, you can give a new name to your Network
Name (SSID).
Under Security, you can clear Broadcast Network Name (SSID), to prohibit the
Network Name from being broadcast.
Access Control List
(ACL)
The SpeedTouch™ features a managed Access Control List (ACL).
On the Wireless Access Point page, you have following options for the ACL: New
stations are
Allowed (automatically): All new stations can access the SpeedTouch™.
Allowed (via registration): Only allowed stations in the ACL have access. You
can add new stations to the ACL only via the Search for wireless devices task.
Not allowed: Only allowed stations in the ACL have access.
Page 39
31
E-DOC-CTC-20050803-0002 v2.0
Chapter 2
Local Network Setup

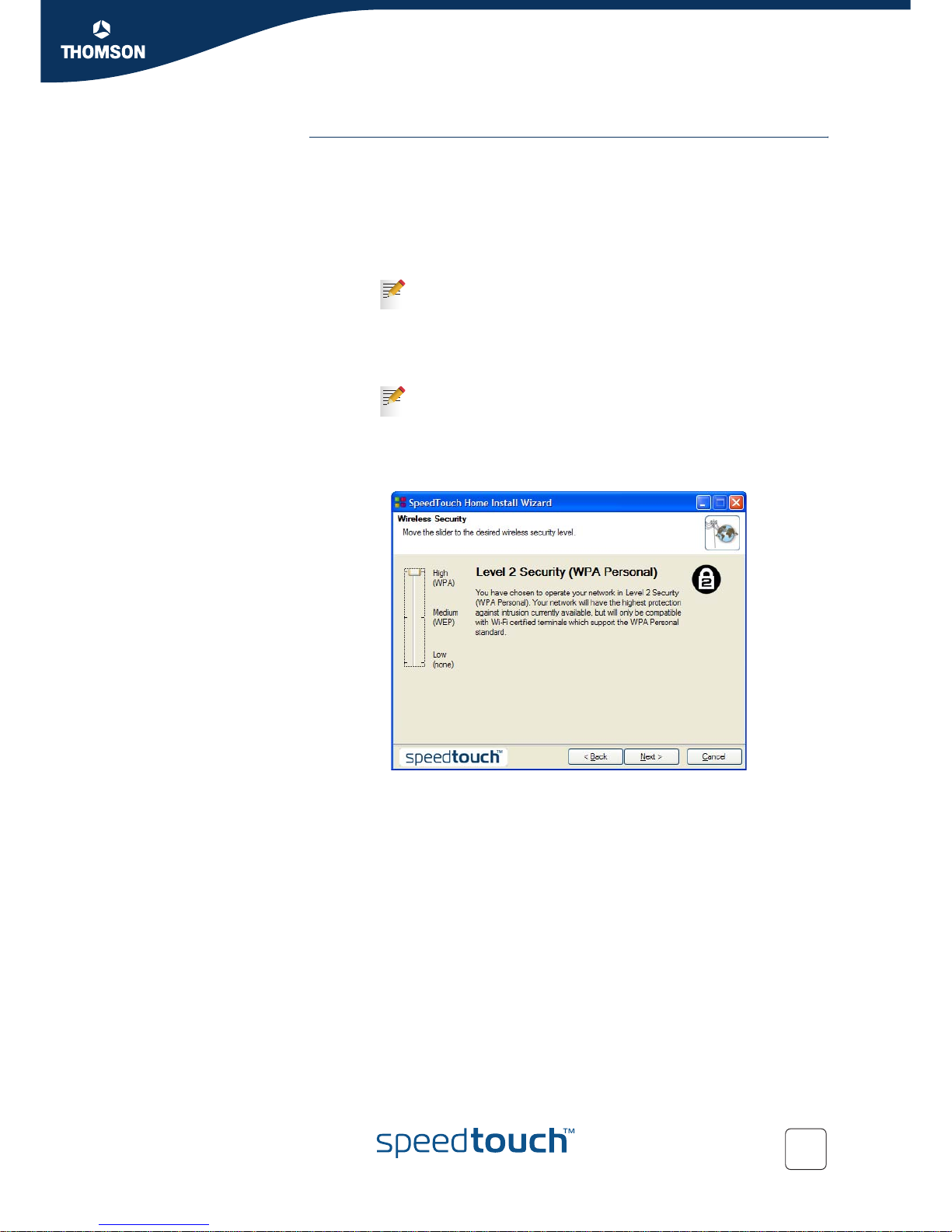

Data encryption To setup wireless connectivity, you can choose different levels of security:
Low (Security disabled, the default): No security; the data will not be
encrypted, no authentication process will be used.
Medium: Use WEP (Wired-Equivalent Privacy) to encrypt the traffic
between the SpeedTouch™ and the clients by sharing a pre-defined 64-bit
or a 128-bit Network key for secure communication with legacy 802.11b
clients.
High: Use WPA-PSK (Wi-Fi Protected Access Pre-Shared Key) encryption,
the highest form of security available, but make sure that your wireless
client and client manager are compatible with it.
The default 64 bit hexadecimal WEP key is printed on the
identification label located at the bottom of the SpeedTouch™
and is unique for each device.
The default WPA-Personal passphrase is printed on the
identification label located at the bottom of the SpeedTouch™
and is unique for each device.
The WPA-Personal passphrase must consist of 8 to 63 ASCII
characters or 8 to 64 HEX digits.
Page 40
32
E-DOC-CTC-20050803-0002 v2.0
Chapter 2
Local Network Setup
2.3.4 Connecting Additional Wireless Clients
Preconditions Make sure that:
The SpeedTouch™ is powered on and ready for service.
The SpeedTouch™ has been configured as DHCP server (default).
The wireless client adapters have been installed on all computers you want to
connect to the WLAN.
Security issues Depending on the personalised wireless settings:
Make sure to use the same encryption or security level on the client as on your
SpeedTouch™. If for instance WPA-PSK is enabled on the SpeedTouch™, you
must also configure the wireless client to use WPA-PSK and configure the same
WPA-PSK passphrase.
In case the Network Name (SSID) is not broadcasted, you must configure the
wireless client for the SpeedTouch™ Network Name. Refer to the
documentation of your wireless client for more information.
Depending on the ACL settings:
In case New stations are allowed (automatically), your device will be
able to access the SpeedTouch™ WLAN.
In case New stations are allowed (via registration), you will need to
register.
In case New stations are not allowed, you will not be able to access the
SpeedTouch™.
Registering clients You can add a wireless client to the ACL as follows:
1 Go to the SpeedTouch™ web pages.
2 In the menu select Home Network > Devices.
3 Under Pick a task..., click Search for wireless devices.
4 The SpeedTouch™ searches for new wireless stations that use the encryption
key of the SpeedTouch™ Access Point.
5 The SpeedTouch™ takes you to the Home Network. The new station will be
shown next to the name of the SpeedTouch™ WLAN.
6 Click the name of the new station.
7 Click Configure.
8 Select Allowed on WLAN and click Apply.
9 Now the device is added to the ACL and will always be allowed to connect to
the SpeedTouch™.
Page 41
33
E-DOC-CTC-20050803-0002 v2.0
Chapter 2
Local Network Setup
2.3.5 Extending the Range of Your Wireless
Network
WDS The SpeedTouch™ features Wireless Distribution System (WDS) functionality. This
feature allows you to extend the range of your wireless network by introducing one
or more WDS-enabled devices into your wireless network.
The Wireless Distribution System (WDS) enables data packets to pass from one
wireless access point to another, just as if the access points were ports on a wired
Ethernet switch. WDS allows you to extend the range of your SpeedTouch™ by
means of one or more wireless repeaters, like for instance a SpeedTouch™180. The
following illustration depicts two WDS-enabled devices communicating via WDS.
Preconditions Check on following:
Your wireless repeater must be WDS enabled.
Both your SpeedTouch™ and your wireless repeater must use:
The same WEP key if WEP is enabled.
The same fixed channel.
The SpeedTouch™ allows you to add up to four wireless repeaters.
Repeaters extend the coverage area of your wireless LAN, however bear in
mind that throughput is reduced for wireless clients that are connected
through a repeater.
SpeedTouch™180 SpeedTouch™716v5 WL
WDS Link
!
WPA encryption is not supported when using WDS.
The SpeedTouch™ and your wireless repeater do not necessarily need to use
the same SSID. Using different SSIDs allows you to force your wireless
clients to use either the access point of the SpeedTouch™ or the one of your
wireless repeater.
Page 42
34
E-DOC-CTC-20050803-0002 v2.0
Chapter 2
Local Network Setup
Configuring WDS To configure your WDS on the web pages:
1 Go to the SpeedTouch™ web pages.
2 In the menu select Home Network.
3 Click your WLAN.
4 On the top right, click Configure.
5 On the Wireless Access Point page, in the Pick a task... list, click Configure
WDS.
6 Select WDS Enabled.
7 In the Pick a task... list, click Scan for wireless access points.
8 A warning will be displayed..
Click OK.
9 The SpeedTouch™ will scan for access points on the same radio channel.
10 Select your repeater in the List of Accessible Access Points and click Apply.
If not already done, set a fixed channel and check whether the security
settings (WEP encryption or no encryption) on your SpeedTouch™ are
the same as on the repeater.
Page 43
35
E-DOC-CTC-20050803-0002 v2.0
Chapter 3
Internet Connectivity Dial-In Clients
3 Internet Connectivity Dial-In Clients
Introduction For setting up initial Internet connectivity, using the Home Install Wizard on the
Setup CD or the embedded Easy Setup, refer to the provided Installation and Setup
Guide.
Access methods Depending on the configuration of the SpeedTouch™ you may have:
Direct access:
As soon as the initial configuration has been done, immediate and
uninterrupted WAN access is provided.
Dial-in access:
Access must be explicitly established, that is by “dialing” into a Broadband
Remote Access Server (BRAS).
Depending on the SpeedTouch™ configuration, dial-in access is provided via the
SpeedTouch™’s Routed PPPoA or Routed PPPoE packet services with
embedded PPP client.
Connection protocols The applied connection protocol model depends on the service profile you selected
to configure the SpeedTouch™ and should correspond with the Service Provider’s
requirements. If your ISP provides PPPoE for instance, you should configure PPPoE.
More information on connection protocols can be found in the Internet Connection
Configuration Guide.
Dial-in clients There are different ways of dialing in, depending on the operating system on your
computer and your preferences.
In case of direct access, the remote organisation might ask for a user
name and password on an Internet welcome page.
Dial-in method: can be used on
following operating
system:
For more
information, see:
Embedded PPP dial-in client:
1 Dial-in client on
embedded pages
Windows, Mac, unix,
other
“3.1 SpeedTouch™ Web
Pages”
2 Windows XP/UPnP
(Internet Gateway
Device)
Windows XP “3.2 Internet Gateway
Device Control Agent”
on page 39
Host PPP dial-in client for a SpeedTouch™ configured in pure bridging mode:
1 Windows XP
Broadband connection
Windows XP “3.3 Windows XP
BroadBand Connection”
2 Mac OS X PPPoE dial-in
client
Mac OS X “3.4 Mac OS X PPPoE
Dial-in Client”
Page 44
36
E-DOC-CTC-20050803-0002 v2.0
Chapter 3
Internet Connectivity Dial-In Clients
Embedded PPP dial-in
clients
The SpeedTouch™’s embedded PPP dial-in client allows you to establish an Internet
connection for computers residing on your local network, using only one computer of
the network to control the client.
If this computer runs:
Any Operating System
you can always use the SpeedTouch™ web pages.
See “3.1 SpeedTouch™ Web Pages” on page 37 to proceed.
Windows XP
you can use Windows XP’s Internet Gateway Device Control Client.
See “3.2 Internet Gateway Device Control Agent” on page 39 to proceed.
Broadband host PPPoE
dial-in clients
You can also connect to the Internet using a Broadband PPPoE dial-in application.
The PPP over Ethernet connection scenario provides PPP-like dial-in behaviour over
the virtual Ethernet segment.
To be able to use a broadband dial-in application on your computer for connecting
to the Internet, the SpeedTouch™ needs to be configured for Bridged Ethernet or
Routed PPPoE (with PPPoE relay) via the SpeedTouch™ Home Install Wizard on the
Setup CD or the embedded Easy Setup.
If this computer runs:
Windows XP
you can use the Windows XP broadband dial-in client. See “3.3 Windows XP
BroadBand Connection” on page 41 for more information.
Mac OS X
you can use a Mac OS X broadband dial-in client. See “3.4 Mac OS X PPPoE
Dial-in Client” on page 45 for more information.
- or -
A broadband PPPoE dial-in client provided by your Service Provider to
connect to the Internet
Upon availability of OS-specific PPPoE dial-in client applications, the
latter method is Operating System independent.
For PPPoE session connectivity from a Mac OS 8.6/9.x, an Windows
95/98(SE)/ME/2000 or a Linux system, a host PPPoE dial-in application
is mandatory.
Page 45
37
E-DOC-CTC-20050803-0002 v2.0
Chapter 3
Internet Connectivity Dial-In Clients
3.1 SpeedTouch™ Web Pages
Introduction As the SpeedTouch™ web pages are controllable from any Operating System with an
installed web browser, the method to establish PPP sessions described later, can be
used on any computer system.
For more information on Internet connection setup, see the provided Installation
and Setup Guide.
Starting an Internet
session
Proceed as follows:
1 Open a web browser on your computer and browse to the SpeedTouch™ web
pages (see “1.3.1 Access via the Web Interface” on page 11 for more
information).
By default the SpeedTouch™ shows you the Home page.
2 Click Connect at the appropriate broadband connection.
You might be requested to enter your user name and password.
As a result SpeedTouch™’s embedded PPP dial-in client establishes the Internet
connection.
3 Now you can surf the Internet.
Monitoring your
Internet connection
You are able to overview and monitor your Internet connectivity as long as the
session is running via:
The SpeedTouch™ System Information page: see “5.3.1 Information” on
page 64.
The SpeedTouch™ Diagnostics task: see “5.4.1 Connectivity Check” on
page 72.
Page 46
38
E-DOC-CTC-20050803-0002 v2.0
Chapter 3
Internet Connectivity Dial-In Clients
Terminating an Internet
session
To close an active PPP connection:
1 Go to the SpeedTouch™ Home page.
2 Click Disconnect at the appropriate broadband connection.
As a result the SpeedTouch™’s embedded PPP dial-in client will close the Internet
connection. The Internet Link status will change to Disconnected and your computer
is off-line.
Page 47
39
E-DOC-CTC-20050803-0002 v2.0
Chapter 3
Internet Connectivity Dial-In Clients
3.2 Internet Gateway Device Control Agent
Introduction Windows XP users can easily establish PPP sessions, thanks to Windows XP’s
Internet Gateway Device (IGD) Discovery and Control Client that allows you to
control the SpeedTouch™ directly from you computer.
Preconditions Following conditions must be met:
Following subcomponents of Windows XP’s Networking Services must be
added to your Windows XP system:
UPnP™ (see “ SpeedTouch™ not detected by UPnP™ or IGD Control Client”
on page 120).
IGD Discovery and Control Client (see “ Adding IGD Discovery and
Control” on page 121).
UPnP™ must be enabled on your SpeedTouch™. To enable UPnP, see
“5.5.3 Game & Application Sharing” on page 79.
Starting an Internet
session
Proceed as follows:
1 In the Windows task bar, click Start.
2 Select (Settings >) Control Panel.
3 The Control Panel window appears. Go to (Network and Internet Connections
>) Network Connections.
4 The Network Connections window appears.
You will find an Internet Gateway icon, representing the SpeedTouch™ IGD
Internet connection ability.
5 Double-click the Internet Connection icon.
As a result the SpeedTouch™’s embedded PPP dial-in client establishes the
Internet connection. The Internet Gateway icon displays Connected and your
computer is online.
6 You can open a web browser and surf the Internet.
The IGD control client only allows to connect or to disconnect a fully
configured connection.
Page 48
40
E-DOC-CTC-20050803-0002 v2.0
Chapter 3
Internet Connectivity Dial-In Clients
Internet connection
status
As long as the SpeedTouch™’s embedded PPP dial-in client is connected, you are able
to overview the connection status and some counters by double-clicking the Internet
Connection icon in your computer’s Network Connections window.
Terminating an Internet
session
Proceed as follows:
1 In the Windows task bar, click Start.
2 Select (Settings >) Control Panel > (Network and Internet Connections >)
Network Connections.
3 In the Network Connections window, right-click the Internet Connection icon
and select Disconnect to close the session.
4 As a result the SpeedTouch™’s embedded PPP dial-in client will close the
Internet connection. The Internet Gateway icon displays Disconnected and
your computers are off-line.
You can also double-click the icon. Then the Internet Connection
Status window will appear on which a Disconnect button is available
to close the session.
Page 49
41
E-DOC-CTC-20050803-0002 v2.0
Chapter 3
Internet Connectivity Dial-In Clients
3.3 Windows XP BroadBand Connection
Prerequisites To be able to use the Windows XP BroadBand Connection, your SpeedTouch™ must
be configured for either:
Bridging, or
PPPoE Relay
Configuring a
broadband connection
Proceed as follows:
1 On the Start menu, click (Settings >) Control Panel.
2 The Control Panel window appears. Go to (Network and Internet Connections
>) Network Connections.
3 In the Network Tasks menu, click Create a new connection.
The New Connection Wizard appears.
Click Next.
4 Select Connect to the Internet and click Next.
5 Select Set up my connection manually and click Next.
6 Select Connect using a broadband connection that requires a user name and
password and click Next.
7 Give a name to the connection you are creating, for example YourISP.
Page 50
42
E-DOC-CTC-20050803-0002 v2.0
Chapter 3
Internet Connectivity Dial-In Clients
8 Select whether the connection will be available to any user or only to yourself.
9 Fill in the Internet account information. This information should be provided
by your service provider.
10 At the end of the configuration the following window appears.
Click Finish to complete the configuration.
The Connect Your IS P window (see below) appears.
Page 51
43
E-DOC-CTC-20050803-0002 v2.0
Chapter 3
Internet Connectivity Dial-In Clients
Starting a broadband
Internet session
Proceed as follows:
1 On the Start menu, point Connect To and click the name of the connection
you’ve created, for example YourISP.
2 The Connect YourISP window appears.
3 If requested, enter user name and password for your user account at the
Service Provider.
4 Click Connect.
5 As soon as the connection is established, the Connection message box and
Dialup window are minimised into an icon in the notification area.
6 You can open your web browser and surf the Internet.
If you are using the Classic Start menu click Start > Settings >
Network (and Dial-up) connections > YourISP.
Page 52
44
E-DOC-CTC-20050803-0002 v2.0
Chapter 3
Internet Connectivity Dial-In Clients
Terminating a
broadband Internet
session
Proceed as follows:
1 On the Start menu, point Connect To and click the name of the connection
you’ve created, for example YourISP.

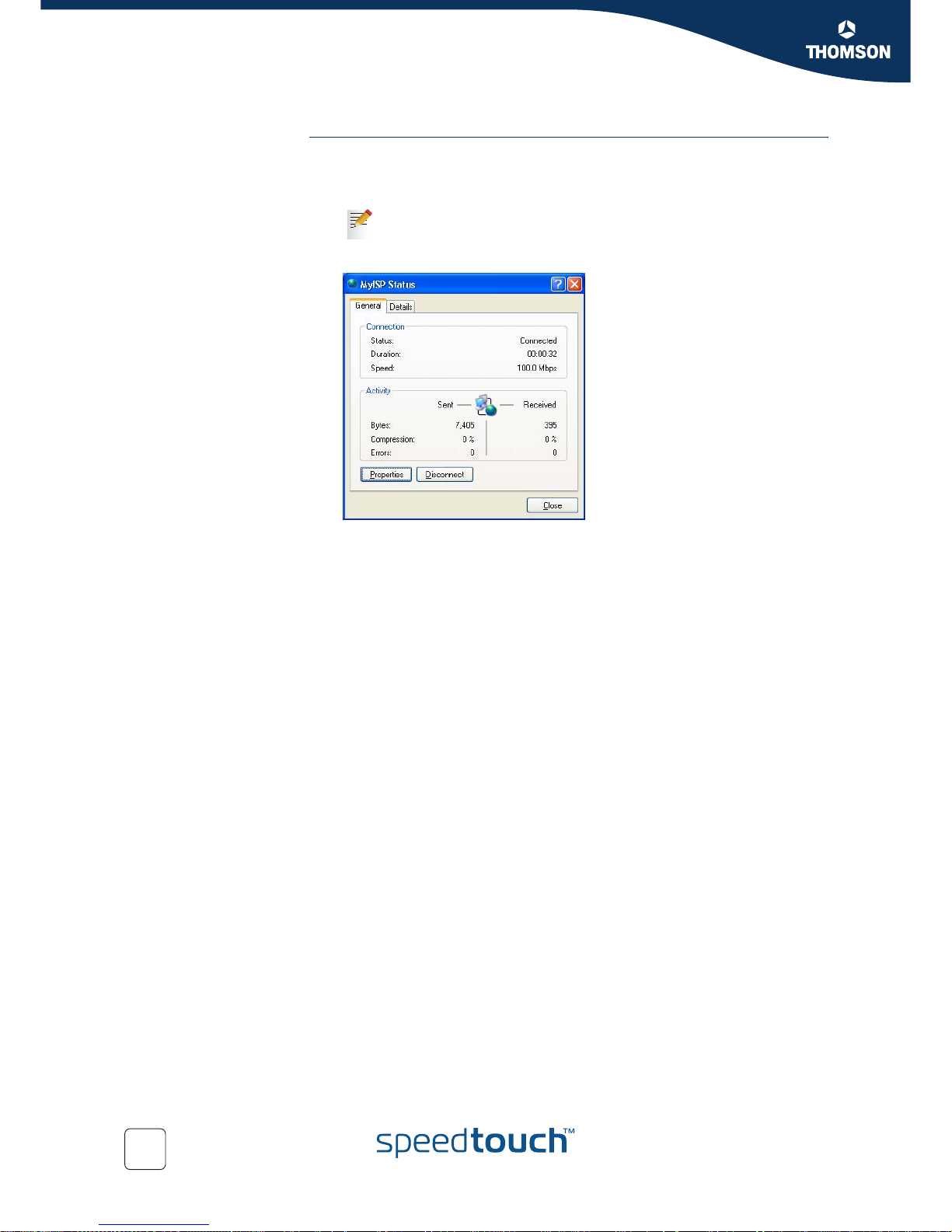

2 The MyISP Status window appears.
3 Click Disconnect.
4 The connection is released. As a result no Internet connectivity exists any
more.
If you are using the Classic Start menu go to Start > Settings >
Network (and Dial-up) connections > YourISP.
Page 53
45
E-DOC-CTC-20050803-0002 v2.0
Chapter 3
Internet Connectivity Dial-In Clients
3.4 Mac OS X PPPoE Dial-in Client
Prerequisites To be able to use the Windows XP BroadBand Connection, your SpeedTouch™ must
be configured for either:
Bridging, or
PPPoE Relay
Configuring a
broadband connection
Proceed as follows:
1 On the Apple menu, click System Preferences.
2 In the System Preferences window, click the Network icon.
3 The Network window appears. Make sure Built-in Ethernet is selected in the
Show list and click the PPPoE tab.
4 Enter the Account Name and Password provided by your Service Provider.
5 Click Apply Now.
Select Save password in case you want the computer to remember
the password for this account name.
Optionally, you can enter a name for this connection in the Service
Provider field. All other fields may stay empty.
Page 54
46
E-DOC-CTC-20050803-0002 v2.0
Chapter 3
Internet Connectivity Dial-In Clients
Starting a broadband
Internet session
Proceed as follows:
1 Click the Internet Connect dockling.

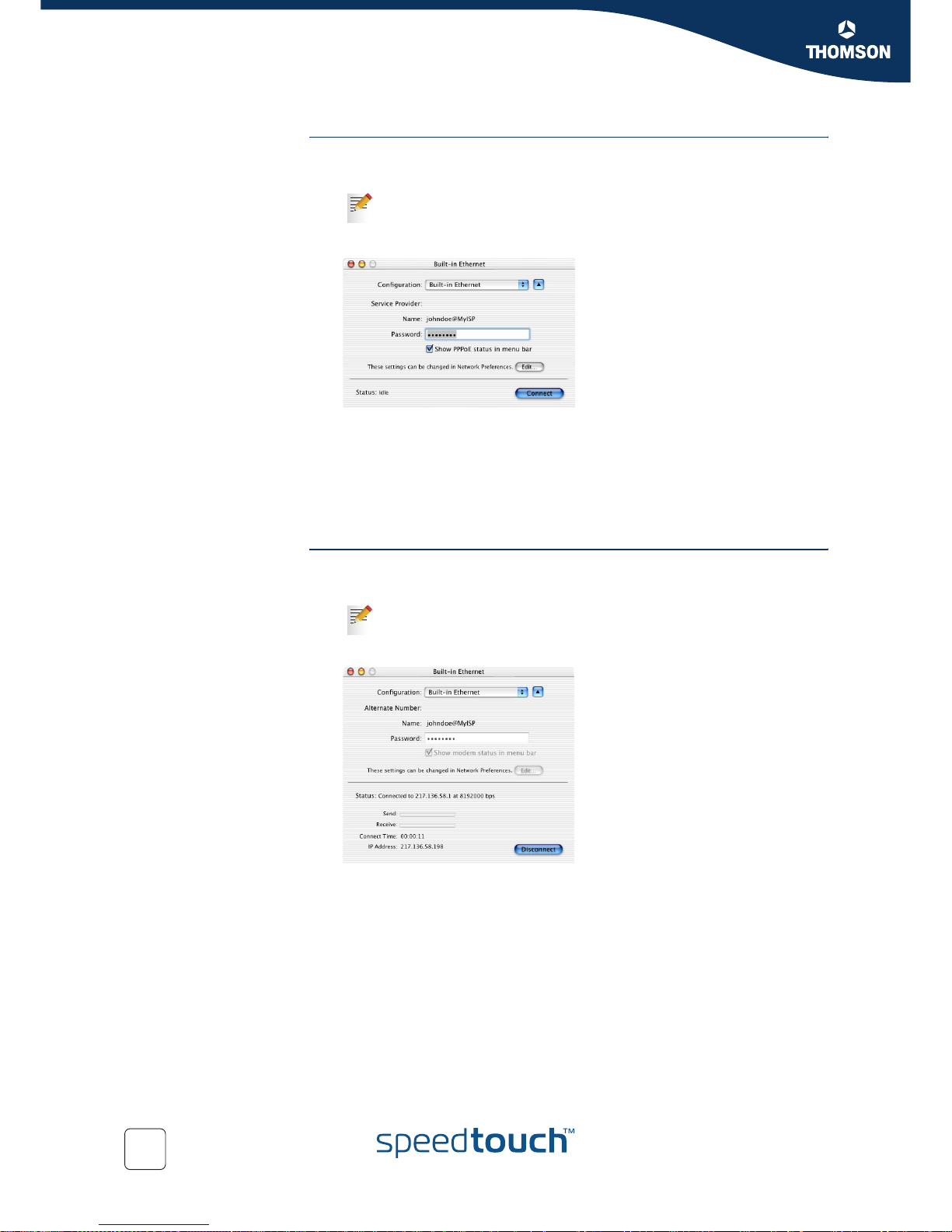

2 The following window appears.
Make sure Built-in Ethernet is selected in the Configuration list.
3 If needed, enter user name and password for your user account at the Service
Provider.
4 Click Connect.
5 As soon as the connection is established you can open your web browser and
surf the Internet.
Terminating a
broadband Internet
session
Proceed as follows:
1 Click the Internet Connect dockling.
2 The following window appears.
Make sure Built-in Ethernet is selected in the Configuration list
3 Click Disconnect.
4 The connection is released. As a result no Internet connectivity exists any
more.
If the Internet Connect dockling is not available, go to the Applications
folder on the system startup disk and double-click Internet Connect.
If the Internet Connect dockling is not available, go to the Applications
folder on the system startup disk and double-click Internet Connect.
Page 55
47
E-DOC-CTC-20050803-0002 v2.0
Chapter 4
Voice over IP
4 Voice over IP
What is Voice over IP Internet telephony or Voice over IP (VoIP) can be defined as the transport of
telephone calls over your Internet connection.
The SpeedTouch™ VoIP
solution
With your SpeedTouch™ you can make Internet and regular telephone calls using
traditional analogue phones, connected to your SpeedTouch™.
Multi-line service Moreover, the voice service on your SpeedTouch™ provides additional lines without
the need for additional copper pairs. The additional lines allow you to make and
receive several internal and external Internet calls simultaneously.
Fax It is also possible to connect a fax machine to your SpeedTouch™, enabling to send
and receive faxes over your Internet connection or over the traditional phone line.
Following MGCP configuration parameters are provided by your ISP:
IP address and port number (usually 2727) of the provider’s call agent
Call agent The provider’s call agent contains the call control "intelligence". It creates, modifies
and deletes connections in order to establish and control media sessions with other
multimedia endpoints.
As VoIP signalling protocol your SpeedTouch™ uses the Media Gateway
Control Protocol MGCP), RFC 3435.
Page 56
48
E-DOC-CTC-20050803-0002 v2.0
Chapter 4
Voice over IP
4.1 Telephony Setup
Telephony installation The SpeedTouch™ is equipped to connect one or two analogue phones or faxes.
Use a phone cable with RJ-11 connectors to:
1 Wire the SpeedTouch™ Phone port(s) to your phone(s) or fax.
2 Wire the SpeedTouch™ PSTN port to your telephone wall outlet or distributed
filter depending on your Service Provider’s specific needs.
Telephony configuration The telephony service might already have been configured on your SpeedTouch™
during initial setup.
If the service hasn’t been configured yet, follow the instructions hereunder:
Enable the telephony service
Configure the telephony service
This is only required if you still want to make phone calls using the
regular telephone line.
!
Be aware that if the PSTN port is not wired to your telephone wall
outlet or distributed filter, emergency calls will not always be
possible!
Your Internet connection must be up, to be able to configure Internet
telephony.
Page 57
49
E-DOC-CTC-20050803-0002 v2.0
Chapter 4
Voice over IP
Enable the telephony
service
Proceed as follows:
1 Go to the SpeedTouch™ web pages.
2 In the menu select Toolbox > Telephony.
3 On the top right, click Configure.
4 Select Service Enabled.
5 Click Apply.
For more information, see “1.3.1 Access via the Web Interface” on
page 11.
Page 58
50
E-DOC-CTC-20050803-0002 v2.0
Chapter 4
Voice over IP
Configure the telephony
service
To configure the MGCP telephony service:
1 Go to the SpeedTouch™ web pages.
2 In the menu select Toolbox > Telephony.
3 On the top right, click Expert configure.
4 Enter the IP address and the port number of the call agent, as provided by
your ISP.
5 Click Apply.
Verifying telephone
connectivity
To verify the voice connection:
1 Make sure the SpeedTouch™ is powered on and ready for service.
2 Check whether your phone is properly attached to the SpeedTouch™.
3 Make sure the Internet telephony service is enabled and configured.
4 The VoIP Ready LED must be on.
5 Pick up your phone, wait for the dial tone, and dial the number. You can dial a
‘#’ after the phone number to indicate the end of the number, as a result of
which the phone number will be called instantly.
The phone(s) attached to the SpeedTouch™ are reachable for incoming VoIP
calls, as long as your SpeedTouch™ is powered on and the VoIP Ready LED is
on.
For calls over the regular phone line, your phones are line powered by the
telephone company and thus are always reachable, even if the modem is
powered off.
Page 59
51
E-DOC-CTC-20050803-0002 v2.0
Chapter 4
Voice over IP
4.2 Supplementary Telephony Services
Supported telephony
services
Depending on your provider’s configuration, following services will be available.
For more information on how to use some of these services, see “ Using the services
on the phone” on page 52.
Service Description
Call Hold Allows you to put a call on hold, to dial another number, and
to switch between the active and held call whenever you
want, or to terminate the active or held call.
Call Waiting Allows you to you to answer or reject an incoming call while
you are in a conversation.
Call Transfer Allows you to transfer a call to another person.
Conference Call
(3 Party)
Allows you to make a conference call.
Calling Line
Identification
Presentation
(CLIP)
Allows you to see the phone number of the person who is
calling you on your phone display.
In case you are unable to take the call, the phone number
remains stored on the SpeedTouch™ web pages,
guaranteeing you do not miss important calls.
CLIP will only work if CLIR is deactivated on the calling
phone.
Calling Line
Identification
Restriction (CLIR)
Restricts the transmission of your phone number when you
make a call, in order to protect your confidentiality. Your
phone number will not appear on the screen of your partner.
When this service is activated, your phone number will
never be transmitted.
To act ivat e CLI R on call basis, se e “ Using the services on the
phone” on page 52.
Forced FXO Allows you to force the SpeedTouch™ to make the phone call
over the PSTN, that is the regular telephone line.
Page 60
52
E-DOC-CTC-20050803-0002 v2.0
Chapter 4
Voice over IP
Using the services on
the phone
In following table the procedures are shown of how to use a telephony service. The
commands are depending on your provider’s configuration, so might be different
from the ones described here. For more information, see your provider’s
documentation.
Make sure your phone is off hook while dialing the commands.
If your phone hasn’t got an R or another hook flash button, put down the
hook for 1/2 second and then dial the command number.
To use the service: Proceed as follows:
Call Hold To put person A on hold:
1 Dial R, 2 to put the call with person A on hold.
2 Dial R, 1 to retrieve the call on hold.
To put person A on hold and set up a call to person
B:
1 Dial R, 2 to put the call with person A on hold.
2 Wait for the dial tone, and dial the number of
person B.
3 Dial R, 2 to switch back to person A. Person B
is put on hold.
Call Waiting You are in a phone conversation with person A
while person B is calling you. The phone produces
a waiting tone and - if CLIP is enabled and CLIR
disabled - displays the number of person B on the
display.
To reject the incoming call, dial R, 0.
To terminate the first call and to switch to the
waiting call, dial R, 1.
If you do not want to terminate the first call,
dial R, 2 to keep the first caller on hold while
answering the second call.
To return to person A while putting
person B on hold, dial R, 2.
To return to person A while terminating
the call with person B, dial R, 1.
Call Transfer You receive a phone call from person A and you
want to transfer him to person B.
1 Dial R, 2.
2 Wait for the dial tone.
3 Dial the number of person B.
4 Person B picks up the phone.
5 Dial R, 4 to transfer the call.
6 Hang up the phone.
Page 61
53
E-DOC-CTC-20050803-0002 v2.0
Chapter 4
Voice over IP
Command overview In the table below all standard service codes of the telephony services are listed. On
your SpeedTouch™ these might be different, depending on your provider.
Conference Call (3 Party) To set up a conference call:
1 Call person A.
2 Dial R, 2. Person A is put on hold.
3 Wait for the dial tone.
4 Dial the number of person B.
5 Person B picks up the phone.
6 Dial R, 3.
Once the conference call has been established, you
can:
1 Dial R, 2 to put the 2 calls on hold.
2 Dial R, 3 to retrieve the 2 held calls.
CLIR on call basis It is possible to hide your phone number for one
particular call. Dial *31* directly followed by the
phone number of person A.
Forced FXO To make a phone call over the regular telephone
line:
1 Dial *01*.
2 Wait for the dial tone, and then dial the phone
number of person A.
To use the service: Proceed as follows:
Phone command: Is used to:
R 0 drop a held call
reject an incoming call
R 1
terminate an active call and switch to the
waiting or held call
R 2
put a call on hold
switch between active and waiting or held call
put a conference call on hold
R 3
establish a 3-way conference call
R 4
transfer a call
*31*
make an anonymous call (use CLIR) on call
basis
*01*
use the regular telephone line
Page 62
54
E-DOC-CTC-20050803-0002 v2.0
Chapter 4
Voice over IP
Page 63
55
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5 SpeedTouch™ Web Interface
Introduction The SpeedTouch™ comes with embedded HTML pages, providing an interface to the
software installed on the device. It allows easy setup and management of the
SpeedTouch™ via your web browser form any PC connected to the SpeedTouch™.
See “1.3.1 Access via the Web Interface” on page 11 to access the pages.
SpeedTouch™
documentation
Consult:
The SpeedTouch™ Installation and Setup Guide
for more information on setup and installation procedures.
Page 64
56
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.1 Navigation

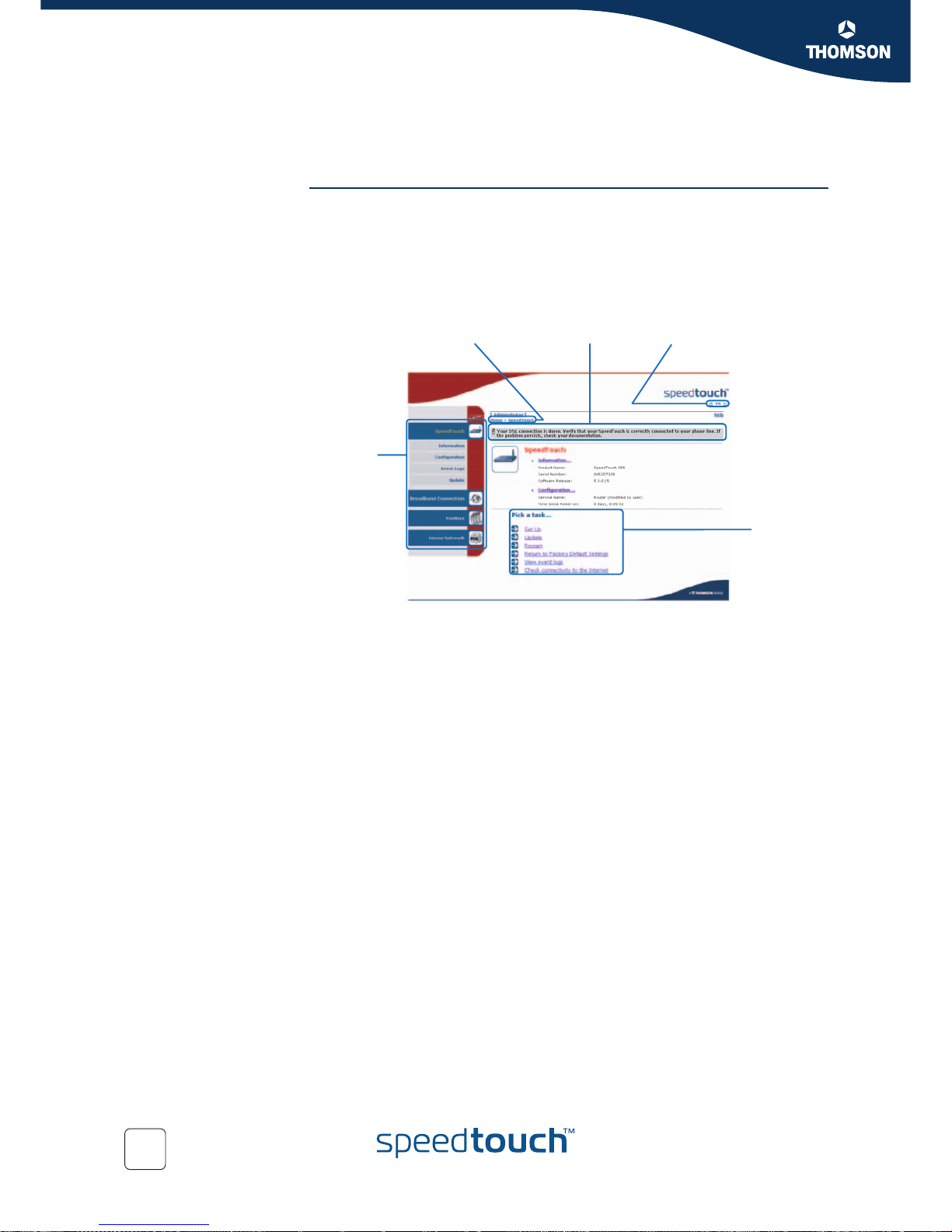

Navigation components The SpeedTouch™ web interface consists of following components:
Menu
Language Bar
Navigation Bar
Notification Area
Tasks
Menu
Tasks
Navigation bar
Notification area Language bar
Page 65
57
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.1.1 Menu
Menu items The menu is located on the left side of the page and consists of the following menu
items:
SpeedTouch:
Provides basic information on the SpeedTouch™.
Broadband Connection:
Allows you to view/configure your broadband connections.
Toolbox:
Allows you to assign games or applications to a device and secure your
Internet connection.
Home Network:
Allows you to manage your local network.
Collapsing and
expanding the menu
You are able to collapse/expand the menu by clicking the arrow located on the top
of the menu.
Page 66
58
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.1.2 Language Bar
Language bar The language bar is located under the SpeedTouch™ logo and allows you to change
the language of the SpeedTouch™ web interface.
!
The language bar will only be shown if more than one language is available.
Page 67
59
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.1.3 Navigation Bar
Navigation bar The navigation bar is located on the top of the page and allows you to:
View the current user name.
Click this name to change your password or switch to another user.
View the current position on the SpeedTouch™ web interface.
Get context related Help information.
Display level Depending on the page you are viewing following buttons will be available:
Overview to view a summary of the current status or configuration.
Details to view more detailed information on the current status or
configuration.
Configure to change the current settings.
Page 68
60
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.1.4 Notification Area
Notification area The notification area is located under the Navigation Bar and is used to display:
Error messages indicated by a red traffic light.
Warnings indicated by an orange traffic light.
Information indicated by a green traffic light.
If none of these events occur, the notification area will not be shown.
Page 69
61
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.1.5 Tasks
Task s To allow a swift configuration of your SpeedTouch™, some pages may offer you a
number of related tasks. These tasks will guide you to the page where you can
perform the selected task.
Page 70
62
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.2 Home
SpeedTouch™ home
page
The SpeedTouch™ home page gives you a short overview of all the configurable
aspects of the SpeedTouch™:
SpeedTouch
Broadband Connection
Toolbox
Home Network
Page 71
63
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface

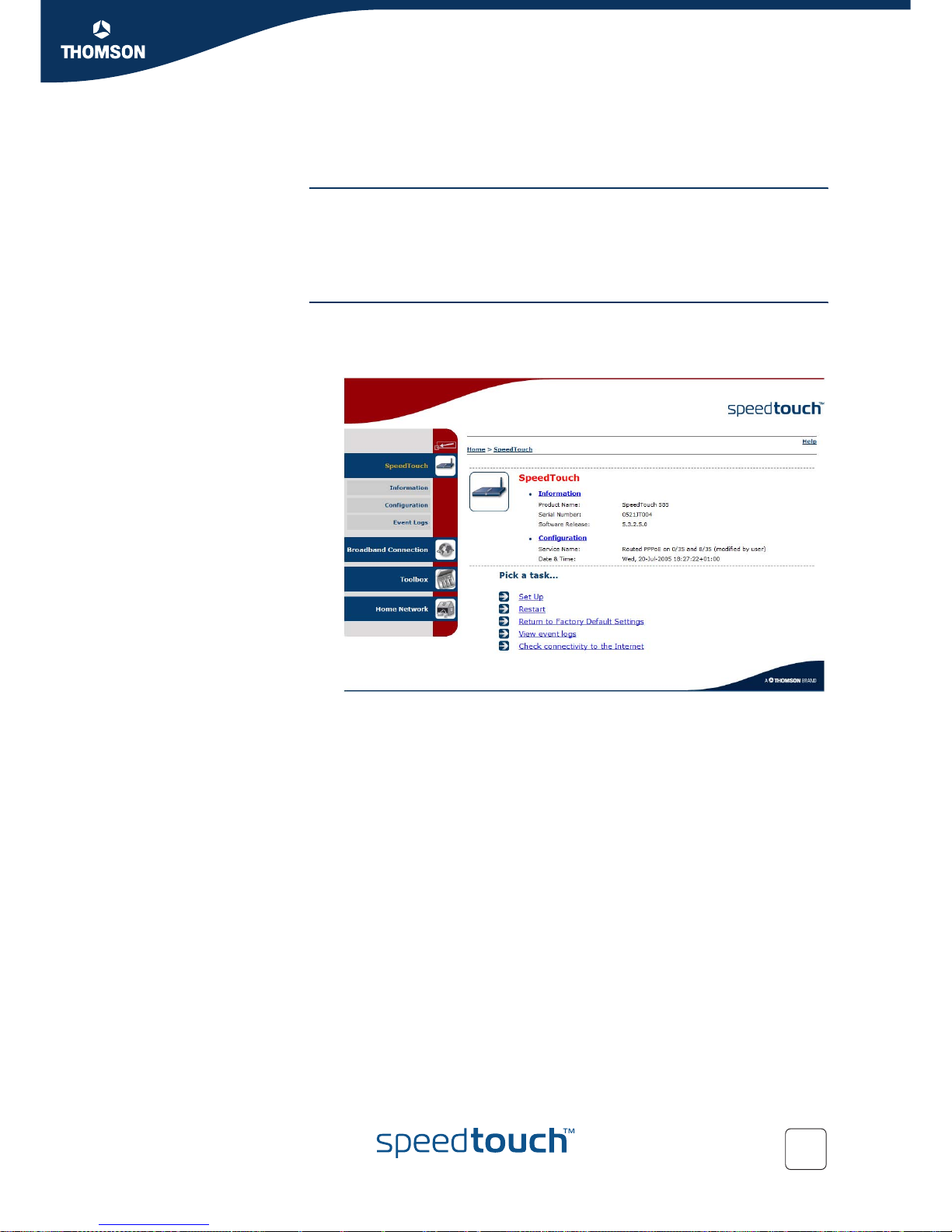

5.3 SpeedTouch
The SpeedTouch menu The SpeedTouch menu consists of following items:
Information
Configuration
Event Logs
The SpeedTouch page The SpeedTouch page gives you some basic information on the SpeedTouch™:
Product Information
Configuration
Page 72
64
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.3.1 Information
Information The Information page summarizes important information on your SpeedTouch™. You
may need this information when you contact your helpdesk.
Page 73
65
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.3.2 SpeedTouch™ Easy Setup
Easy Setup Wizard This wizard helps you configure your SpeedTouch™ Internet connection.
To configure the SpeedTouch™ using the SpeedTouch™ Easy Setup wizard:
1 On the left menu, click SpeedTouch.
2 In the Pick a task... list, click Set up.
3 The Easy Setup wizard will now guide you through the configuration of your
SpeedTouch™.
Page 74
66
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.3.3 Restart
Accessing the Restart
page
Proceed as follows:
1 On the left menu, click SpeedTouch.
2 In the Pick a task... list, click Restart.
Restarting your
SpeedTouch™
Proceed as follows:
1 Click Yes, restart my SpeedTouch.
2 The SpeedTouch™ restarts.
3 The SpeedTouch™ returns to the Home page.
Page 75
67
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.3.4 Configuration
Overview The Overview page displays the current configuration of your SpeedTouch™.
Details The Details page displays more detailed information on the current configuration of
your SpeedTouch™.
Configure The Configure page allows you to change the current configuration.
If you want to:
Reconfigure your SpeedTouch™:
Click Configuration Wizard under Service Configuration. For more
information, see “5.3.2 SpeedTouch™ Easy Setup” on page 65.
Configure the time settings of your SpeedTouch™:
Select Auto-configuration if you want the SpeedTouch™ to use a time
server to synchronise its clock to a dedicated time server.
Clear Auto-configuration to manually configure the SpeedTouch™ time
settings.
Disable/enable web browsing interception or set it to automatic.
Click Apply to save your settings.
!
If you disable web browsing interception or set it to automatic you will
not be able to use Parental Control.
Page 76
68
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.3.5 Backup & Restore
Introduction This page allows you to:
Save your current configuration.
Restore a previously saved configuration.
Accessing the Backup
& Restore page
Proceed as follows:
1 On the SpeedTouch menu, click Configuration.
2 Click Configure.
3 In the Pick a task... list, click Save or Restore Configuration.
Saving your current
configuration
Proceed as follows:
1 Click Backup Configuration Now.
2 Click Save.
3 Choose a location to save your backup file and click Save.
Restoring a previously
saved configuration
Proceed as follows:
1 Click Browse.
2 Select the configuration file you want to restore and click Open.
3 Click Restore Configuration Now.
4 The SpeedTouch™ loads your configuration and restarts.
5 At the end of the procedure, the SpeedTouch™ returns to the Home page.
Page 77
69
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.3.6 Reset to Factory Defaults
Introduction This page allows you to reset the SpeedTouch™ to return to the initial configuration
of your SpeedTouch™. All your changes will be deleted.
Accessing the Reset to
Factory Defaults page
Proceed as follows:
1 On the left menu, click SpeedTouch.
2 In the Pick a task... list, click Return to Factory Default Settings.
Resetting the
SpeedTouch™ to
factory defaults
If you want to reset your SpeedTouch™ to factory defaults, click Yes, reset my
SpeedTouch.
!
If you reset your SpeedTouch™ to factory default settings, all active
connections will be disconnected.
Page 78
70
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface

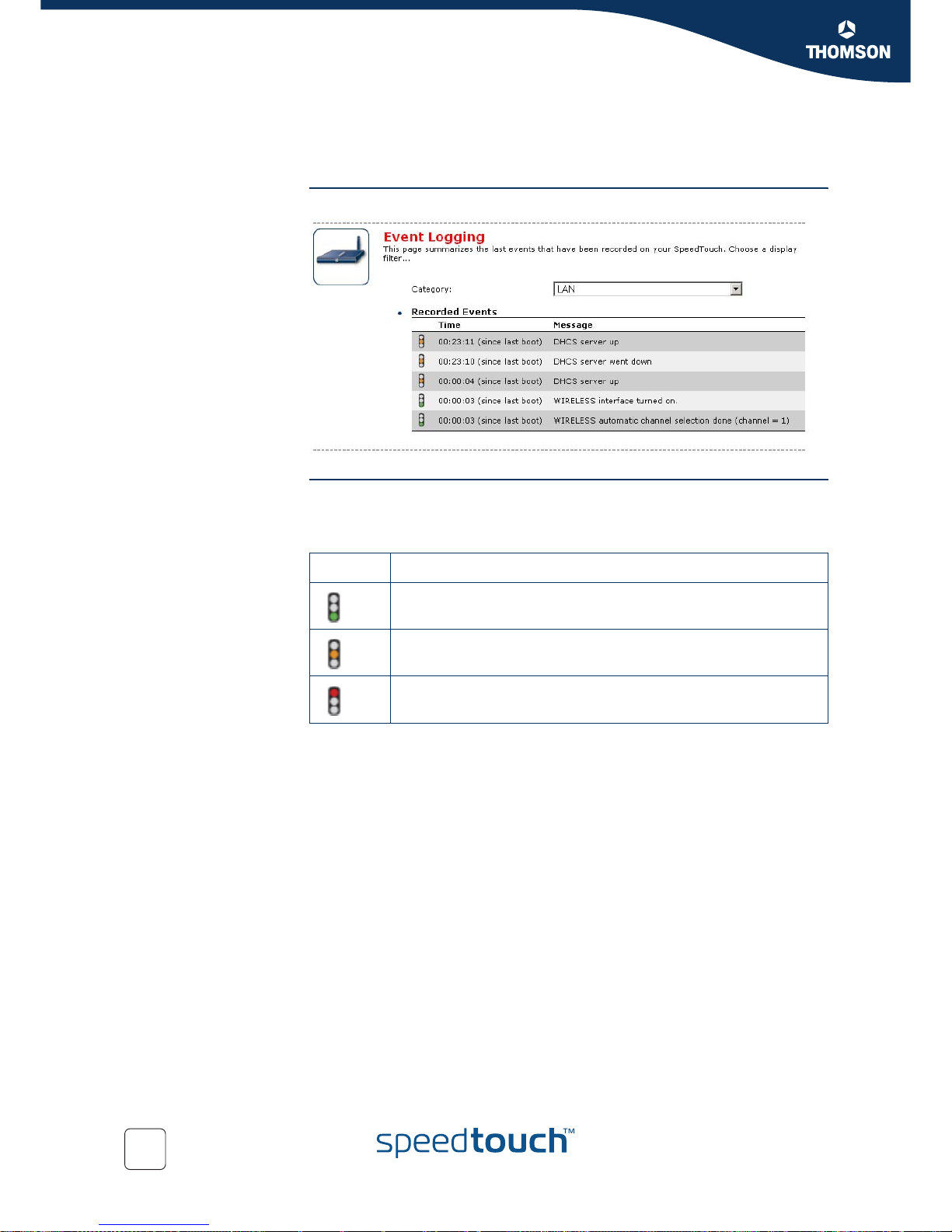

5.3.7 Event Logs
Event Logging The Event Logs page summarizes the latest events recorded on your SpeedTouch™.
Recorded Events The Recorded Events table gives you an overview of the latest event logs that have
been recorded since power on. The first column of the table indicates the
importance of the event log
The Category list allows you to filter the events shown in the Recorded Events
table. For example, by clicking Security you can view all security related events, for
example generated by the SpeedTouch™ firewall.
Indicator Description
Informational
Warning
Error
Page 79
71
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.4 Broadband Connection
The Broadband
Connection menu
The Broadband Connection menu consists of following menu items:
DSL Connection
Internet Services
The Broadband
Connection page
The Broadband Connection page gives you a short status overview of the
connections configured on the SpeedTouch™.
Click View more to see more information on the selected broadband connection.
If you configured a dial-up connection, you are able to establish/terminate
the connection by clicking Connect/Disconnect.
Page 80
72
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.4.1 Connectivity Check
Introduction This page enables you to perform a connectivity check on an Internet service of
your SpeedTouch™.
Accessing the
Connectivity Check page
Proceed as follows:
1 On the left menu, click Broadband Connection.
2 In the Pick a task... list, click Check connectivity to the Internet.
Checking you Internet
Connectivity
Proceed as follows:
1 In the Internet Service to Check list, click the Internet service that you want to
check.
2 Click Check Connectivity.
3 The SpeedTouch™ lists the test results in the Test Results list.
Analysing the test
results
If the test is successful, you will get a list of green check marks. Otherwise a red
cross will indicate which tests have failed.
Page 81
73
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.4.2 DSL Connection
Overview Click Overview to view brief information on your DSL connection.
Details Click Details to view more detailed information on your DSL connection.
Page 82
74
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.4.3 Internet Services
Internet Services
information
The Internet Services page displays information on your Internet Connection(s).
To view more detailed information on a specific connection, click the View more.
link of the corresponding connection.
If you configured a dial-up connection you are able to establish/terminate
the connection by clicking Connect/Disconnect.
Page 83
75
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.4.4 Internet Service Settings
Accessing the Internet
Service Settings page
Proceed as follows:
1 On the Broadband Connection menu click Internet Services.
2 Click the View more link of the internet service you want to view.
Overview The Overview page gives you basic information on the selected Internet Service.
Details The Details page gives you more detailed information on the selected Internet
Service.
If you configured a connection you are able to establish/terminate the
connection by clicking Connect/Disconnect.
If you configured a dial-up connection you are able to establish/terminate
the connection by clicking Connect/Disconnect.
Page 84
76
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.5 Toolbox
The Toolbox menu The To ol box menu consists of following menu items:
Remote Assistance
Allows you to make your SpeedTouch™ accessible for remote support.
Telephony
Allows you to configure your Voice over IP (VoIP) network.
Game & Application Sharing
Allows you to share services and games that you run in your private network
towards the internet.
Parental Control
Allows you to block/allow access to specific web sites.
Firewall
Allows you to configure the security level of the SpeedTouch™ firewall.
Intrusion Detection
Allows you to view the intrusions you are protected against.
Dynamic DNS
Allows you to assign a DNS host name to your broadband connection(s).
User Management
Allows you to manage the users configured on your SpeedTouch™.
The Toolbox page The To ol bo x page gives you an overview of the available services and their current
status. You can click on the names of these services to go to the corresponding web
page.
Page 85
77
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.5.1 Remote Assistance
Enabling Remote
Assistance
This page allows you to make your SpeedTouch™ accessible for remote support.
To use remote assistance:
1 If needed, type a password in the Password box.
2 Click Enable Remote Assistance.
3 Pass the information listed under:
URL
Username
Password
to your technical support, in order for them to be able to access your
SpeedTouch™.
4 The remote assistance session ends:
if the technical support disables remote assistance.
after 20 minutes of inactivity.
after a reboot.
!
You must be connected to the Internet to be able to enable remote
assistance.
Once the technical support is connected, no other connections are
possible.
Page 86
78
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.5.2 Telephony
Introduction The SpeedTouch™ is equipped with:
Two Phone ports allowing you to connect up to two phones for making phone
calls over the Internet.
One PSTN port allowing you to make phone calls over the Public Switched
Telephone Network (PSTN) network.
Overview This page allows you to view information on your current VoIP configuration.
Configure This page allows you to disable/enable the VoiP service.
Expert Configure This page allows you to view/change following MGCP parameters:
Call agent:
The IP address of your provider’s MGCP server.
Call agent port:
The port used by your call agent (usually port 2727). This port will be used to
contact the call agent.
For more information on how to set up your Voice over IP (VoIP) network,
consult the User’s Guide on the SpeedTouch™ Setup CD.
Page 87
79
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface

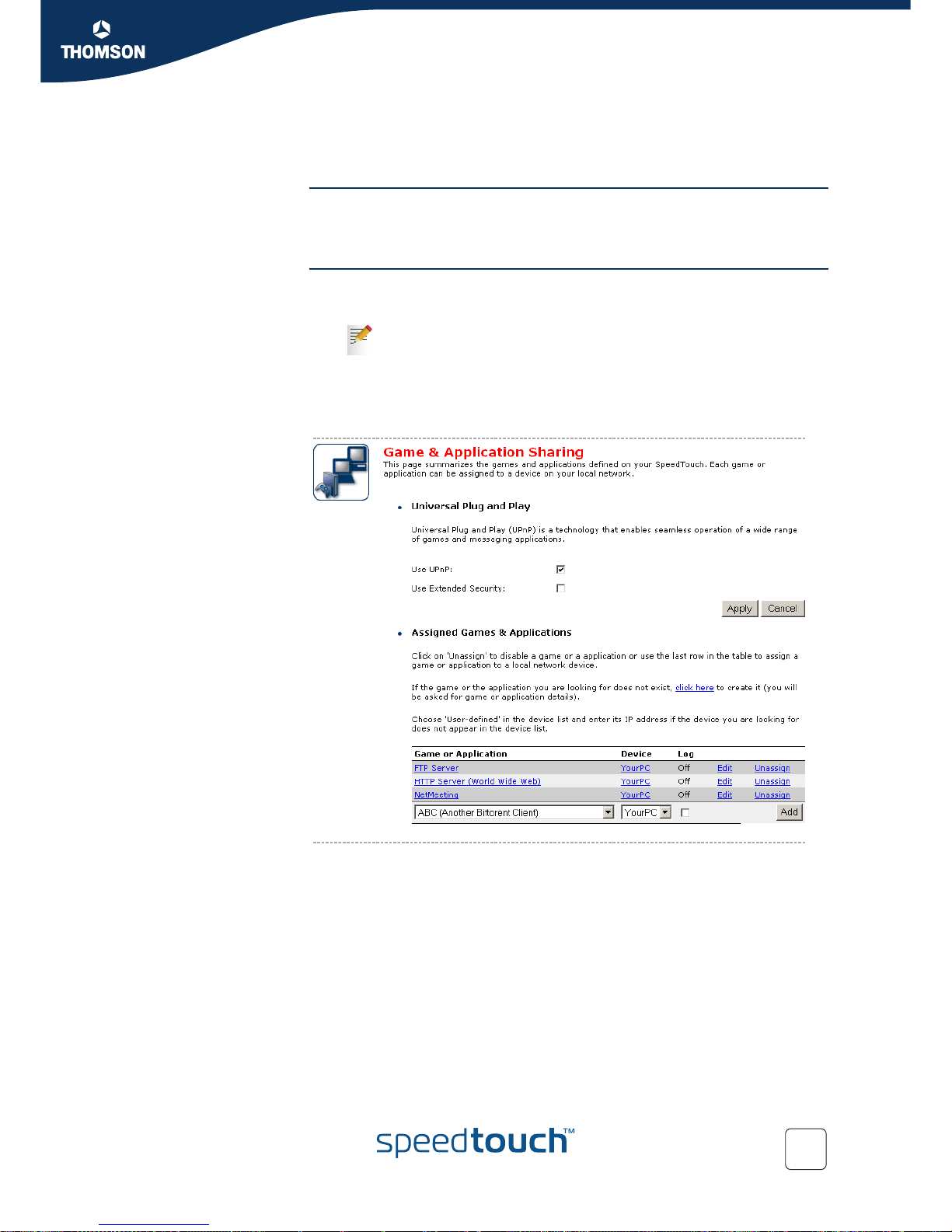

5.5.3 Game & Application Sharing
Overview The Overview page summarizes the games and applications on a particular host on
your network, for which the SpeedTouch™ accepts connections coming from the
Internet.
Configure The Configuration page allows you to:
Select Use UPnP to enable UPnP on the SpeedTouch™.
Select Use Extended Security to only allow the creation of port maps.
Assign a game or application to a specific network device.
Universal Plug and Play is an architecture for transparent peer-to-peer
connectivity of computers, intelligent appliances, and (wireless)
devices. It enables seamless operation of a wide range of games and
messaging applications.
Page 88
80
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface

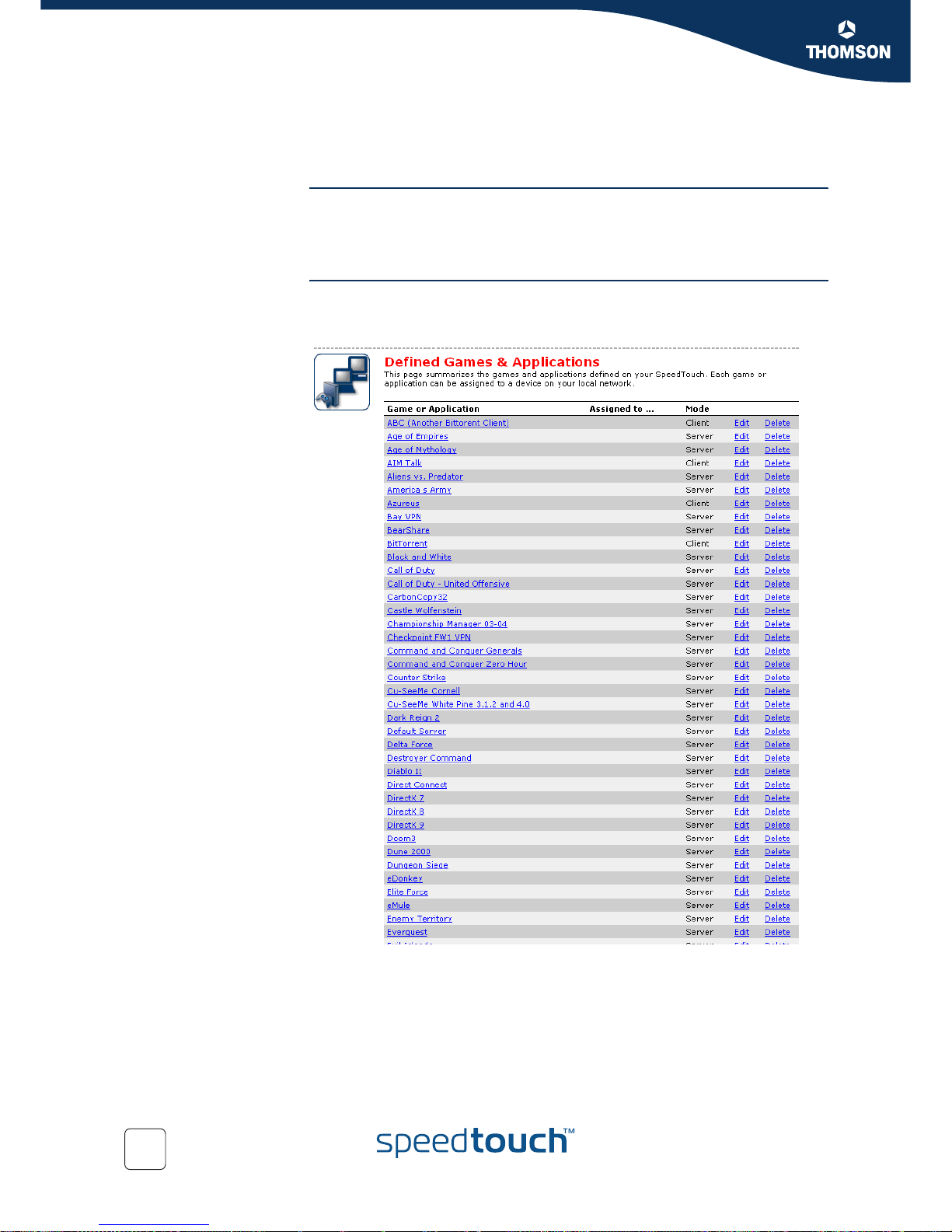

5.5.4 Defined Games & Applications
Accessing the Defined
Games & Applications
page
Proceed as follows:
1 In the Toolbox menu, click Game & Application Sharing.
2 In the Pick a task... list, click Modify a game or application.
The Defined Games &
Applications page
This page gives you an overview of the games and applications defined on your
SpeedTouch™. Each game or application can be assigned to a device on your local
network.
To:
View the translation rules of a game or application, click the name of the rule.
Change the translation rules of a game or application, click the Edit link of the
the game or application.
Page 89
81
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.5.5 Game or Application Definition
Accessing the Game or
Application Definition
page
Proceed as follows:
1 In the Toolbox menu, click Game & Application Sharing.
2 In the Pick a task... list, click Modify a game or application.
3 Click the name of the game or application you want to view/change.
Overview This page gives you an overview of the port mappings used to allow this service or
game to be initiated from the Internet.
A service is made of one or more TCP/UDP port ranges. Each incoming port range
can be translated into a different internal (local network) port range. Port ranges can
be statically assigned to devices or dynamically assigned using an outgoing trigger.
Configure Under:
Game or Application Name you can:
Change the name of the game or application.
Game or Application Definition you can:
Change the TCP/UDP port definition for this game or application.
Adding a Port
Translation rule
Proceed as follows:
1 In the Protocol list, click the protocol the game or application uses.
2 In the Port Range box, type the port range the game or application uses.
3 In the Translate To... box, type the port range to which the SpeedTouch™ has to
translate the ports specified under Port Range.
4 If you want to make a dynamic translation rule you must specify a trigger
protocol and port.
5 Click Apply.
Consult the user’s guide or support pages of your application to know
which ports are being used by this application.
As soon as the SpeedTouch™ receives outgoing traffic on this trigger
port, it will activate this translation rule.
Page 90
82
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.5.6 New Game or Application
Accessing the Game or
Application Definition
Proceed as follows:
1 On the Applications page, click Game & Application Sharing.
2 In the Pick a task... list, click Create a new game or application.
Creating a new game or
application
Proceed as follows:
1 Type the name of the game or application in the Name box.
2 Click:
Clone Existing Game or Application if you want to start from the port
mappings of the selected game or application.
Manual Entry of Port Maps if you want to manually configure the port
mapping for this game or application.
3 The SpeedTouch™ creates the game or application and takes you to the Game
or Application Definition page to configure the port mappings for this game or
application.
4 Enter the necessary port mappings and click Add.
Page 91
83
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.5.7 Parental Control
Parental Control The SpeedTouch™ allows you to block/allow particular web sites:
Based on the web site’s URL.
Based on the web site’s content.
Redirect a web site to another web site.
Overview The Overview page displays:
The current Address Based Filtering rules.
The current Content Based Filtering configuration.
To view which content types are blocked/allowed, click Details. For more
information, see “5.5.9 Content Level” on page 87.
Configure The Configure page allows you to:
Deny access to a specific web site.
Allow access to a specific web site.
Redirect a web site.
Configure content based filtering settings.
Content levels Following content levels are available:
All:
Allow all categorized web sites.
Legal:
Allow all except illegal, extreme, spam and spyware web sites.
Teenagers:
Block illegal, adult, extreme, online ordering/gambling, spam and spyware
web sites.
Children:
Only allow children-save web sites.
BlockAll:
Block all categorized web sites.
As within a web site lots of references can be made to other URLs, it is
recommended to use this feature in combination with content based
filtering.
!
If your administrator account is configured as default user, make sure to
configure a password for this account or change the default user. Otherwise
users on your local network can surf to your SpeedTouch™ to disable your
filtering rules.
For more information, see “5.5.14 User Management” on page 93 and
“5.5.16 Change Default User” on page 95.
!
Address based filtering rules have priority over content based filtering
rules.
Page 92
84
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
Deny access to a
specific web site
Use this feature if:
Allow is selected under Action for Unknown Sites.
Block is selected under Action for Unknown Sites and you want to make an
exception on an allow rule. For example: you are allowing “provider.com” but
you want to deny access to “mail.provider.com”.
A content category/group is allowed by Content Based Filtering and you want
to make an exception. For example: you are allowing Web Mail content but
you want to deny access to “mail.provider.com”.
Proceed as follows:
1 Type the URL of the web site you want to block (for example
“mail.provider.com”) in the Web Site box.
2 In the Action list, click:
Block if you want to block this web site.
Redirect if you want to redirect to another page. Type the address of the
redirect page in the Redirect box.
3 Click Add.
Allow access to a
specific web site
Use this feature if:
Block is selected under Action for Unknown Sites
Allow is selected under Action for Unknown Sites and you want to make an
exception on a block/redirect rule. For example: you are blocking “bank.com”
but you want to allow access to “netbanking.bank.com”.
A content category/group is blocked by Content Based Filtering and you want
to make an exception. For example: you are blocking Finance / Investment
content but you want to allow access to “netbanking.bank.com”.
Proceed as follows:
1 Type the URL of the web site you want to allow (for example
“netbanking.bank.com”) in the Web Site box.
2 Click Allow in the Action list.
3 Click Add.
Redirect a web site Proceed as follows:
1 Type the URL of the web site you want to redirect (for example “cracks.am”) in
the Web Site box.
2 Click Redirect in the Action list.
3 Type the URL of the web site you want to redirect to (for example
“mycompany.com/internetpolicy.htm”) in the Redirect box.
4 Click Add.
Page 93
85
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
Redirecting all web
sites
Proceed as follows:
1 Type “*” in the Web Site box.
2 Click Redirect in the Action list.
3 Type the URL of the web site you want to redirect to (for example
“mycompany.com/internetpolicy.htm”) in the Redirect box.
4 Click Add.
5 Type the URL of the web site you want to redirect to (for example
“mycompany.com/internetpolicy.htm”) in the Web Site box.
6 Click Allow in the Action list.
7 Click Add.
Configure content
based filtering settings
Under Content Based Filtering you are able to:
Enable/disable content based filtering.
Allow/block uncategorized web sites.
Select a content level in the Content Level list.
To change a content level definition, click the Edit link of the content
level you want to change. For more information, see “5.5.9 Content
Level” on page 87.
Page 94
86
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.5.8 Web Filtering Activation
Accessing this page Proceed as follows:
1 On the Too lbo x menu, click Web Site Filtering.
2 In the Pick a task... list, click Activate Web filtering License.
Web Filtering Activation
page
This page allows you to:
Activate a Web Filtering evaluation license.
Activate a free 30-days Web Filtering evaluation license.
Standard license
activation
Proceed as follows:
1 Click Standard.
2 In the License Key box, type the license key provided by your ISP.
3 Click Apply.
Page 95
87
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.5.9 Content Level
Accessing this page Proceed as follows:
1 On the Too lbo x menu, click Web Site Filtering.
2 Click Configure.
3 Click the Edit link of the content level you want to edit.
Overview This page gives you an overview of the different categories and their rules.
Following icons indicate whether the content type is allowed or not.
Configure This page allows you to change:
The content level name.
The content level description.
The content level configuration.
Icon Description
The category/group is allowed
The category/group is not allowed.
The group is partly allowed.
Page 96
88
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.5.10 New Content Level
Introduction This page allows you to create a new content level. To access this page:
1 On the Too lbo x menu, click Web Site Filtering.
2 In the upper right corner, click Configure.
3 Under Pick a task..., click Create a new content level.
Procedure To apply a new content level following actions must be performed:
1 Content level creation
2 Content level configuration
3 Content level definition
4 Content level activation
Content level creation Proceed as follows:
1 In the Name box, type a name for the new content level.
2 In the Description box, type a short text to describe what this security level will
do.
3 Click Next.
Content level
configuration
Proceed as follows:
1 The Configuration section becomes available.
2 Click:
Clone Existing Level to start from a previously created content level.
Black List to allow all web sites by default.
White List to block all web sites by default.
3 Click Next.
Content level definition Only web sites that match the selected content level will be allowed. Proceed as
follows:
1 If you want to:
Allow a category:
Select the check box next to the category name.
Allow an entire group:
Select the check box next to the group name.
Block a category:
Clear the check box next to the category name.
Block an entire group:
Clear the check box next to the group name.
2 Click Apply.
!
You can create up to 16 content levels.
If no levels have been defined before, this option will not be
shown.
Page 97
89
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
Content level activation To activate your new content level:
1 On the Too lbo x menu, click Web Site Filtering.
2 In the upper right corner, click Configure.
3 In the Content Level list, select your new content level.
4 The new content level is now active.
Page 98
90
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.5.11 Firewall
Overview The Overview page summarizes the overall security policy configured on your
SpeedTouch™.
Configure The Configure page allows you to select the security level of the SpeedTouch™.
Select one of following security levels:
Block All:
To protect your network from all attempts of incoming (from untrusted site)
connection requests and to perform checks on outgoing (from trusted site)
connections. This level is meant to prevent incoming malicious traffic.
Standard:
To protect your network from all incoming (from untrusted site) connection
requests while permitting safe outgoing connections. This is the default.
Disabled:
To allow all incoming and outgoing traffic. This does not mean the complete
SpeedTouch™ firewall is disabled. It means all traffic coming in on one interface
and going out on another is allowed, but access to the embedded services of
the SpeedTouch™ (as TELNET, web interface,...) is only allowed for clients
residing on the LAN side, so the SpeedTouch™ itself stays protected.
Page 99
91
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.5.12 Intrusion Detection
Intrusion Detection Your SpeedTouch™ is protecting your network against malicious intrusions. This page
shows you the intrusions you are protected against.
The Protected Intrusions table shows the number of times the SpeedTouch™ actively
protected your network against each intrusion since last statistics reset.
Page 100
92
E-DOC-CTC-20050803-0002 v2.0
Chapter 5
SpeedTouch™ Web Interface
5.5.13 Dynamic DNS
What is Dynamic DNS The Dynamic DNS service allows you to assign a dynamic DNS host name (for
example john.dyndns.org) to a broadband connection even if it is using a dynamic
IP address. As soon as the device gets a new IP address, the dynamic DNS server
updates its entry to the new IP address.
Overview Click Overview to view the different Dynamic DNS clients with their name,
hostnames, interface and IP address.
Configure The Configure page allows you to assign a Dynamic DNS host name to a broadband
connection:
1 Create an account at the Dynamic DNS service of your choice, for example:
www.dyndns.org
www.no-ip.com
www.dtdns.com
GnuDIP for Linux
2 On the Dynamic DNS page, click Configure.
3 Select Enabled.
4 If needed, click the broadband connection to which you want to assign the
Dynamic DNS hostname in the Interface list.
5 Type the user name and password of your Dynamic DNS service account in
the corresponding fields.
6 In the Service list, click your Dynamic DNS service.
7 In the Host box, type the host name you want to assign to this interface (for
example myspeedtouch.dyndns.org).
8 Click Apply.
Loading...
