Thomson 2-5110A Users Manual
Please read this manual
before operating this
product for the first time.
2.4 Ghz Cordless Telephone
and Wireless Headset with
Call-Waiting/Caller ID
User’s Guide
Model 25110
Important Information
Equipment Approval Information
Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15 and 68,
FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA.
1 Notification to the Local Telephone Company
On the bottom of this equipment is a label indicating, among other information, the US number and Ringer Equivalence Number (REN) for the equipment.
You must, upon request, provide this information to your telephone company.
The REN is useful in determining the number of devices you may connect to your telephone line and still have all of these devices ring when your telephone
number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of
devices you may connect to your line as determined by the REN, you should contact your local telephone company.
A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and re
quirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible
modular jack that is also compliant. See installation instructions for details.
Notes
• This equipment may not be used on coin service provided by the telephone company.
• Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you are on a party line. Check with your
local telephone company.
• Notice must be given to the telephone company upon permanent disconnection of your telephone from your line.
• If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this product does not disable your alarm
equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer.
2 Rights of the Telephone Company
Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you
that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone
company may temporarily discontinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you
of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations.
The telephone company may make changes in its communications facilities, equipment, operations or procedures where such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the use or performance of your telephone
equipment, the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service.
-
2
Important Information
Interference Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference;
and (2) This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are de
signed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference).
• Reorient or relocate and increase the separation between the telecommunications equipment and receiving antenna.
• Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected.
If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also,
the Federal Communications Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV Interference Problems.” This booklet is avail
able from the U.S. Government Printing Office, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when ordering copies.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be
co-located or operated in conjunction with any other antenna or transmitter.”
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with the belt clip supplied
with this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.
Licensing
Licensed under US Patent 6,427,009.
Hearing Aid Compatibility
This telephone system meets FCC standards for Hearing Aid Compatibility.
US NUMBER IS LOCATED ON THE CABINET BOTTOM
REN NUMBER IS LOCATED ON THE CABINET BOTTOM
-
-
3
Table of Contents
EQUIPMENT APPROVAL INFORMATION ..............................................................2
I
NTERFERENCE INFORMATION ..........................................................................3
FCC RF R
ADIATION EXPOSURE STATEMENT .....................................................3
LICENSING .................................................................................................3
H
EARING AID COMPATIBILITY ........................................................................3
I
NTRODUCTION ............................................................................................6
P
ARTS CHECKLIST ........................................................................................7
I
MPORTANT INSTALLATION INFORMATION ..........................................................8
S
AFETY PRECAUTIONS .............................................................................................. 8
I
NSTALLATION GUIDELINES ........................................................................................ 8
T
ELEPHONE JACK REQUIREMENTS ....................................................................9
H
EADSET SET UP .....................................................................................10
H
EADBAND ATTACHMENT .......................................................................................10
To switch from ear to ear ....................................................................................11
EAR CLIP ATTACHMENT .........................................................................................12
To switch from ear to ear ....................................................................................12
PHONE INSTALLATION ................................................................................ 13
C
ONNECTING THE AC (ELECTRICAL) POWER ...........................................................13
Charger unit ............................................................................................................13
Wall base unit .........................................................................................................
13
CONNECTING THE TELEPHONE LINE .........................................................................13
I
NSTALLING THE BATTERIES .....................................................................................14
Installing the Handset Battery ..........................................................................14
Installing the Earpiece Battery ..........................................................................15
HANDSET LAYOUT .................................................................................... 16
H
EADSET LAYOUT ..................................................................................... 17
ANDSET SET UP .................................................................................... 18
H
D

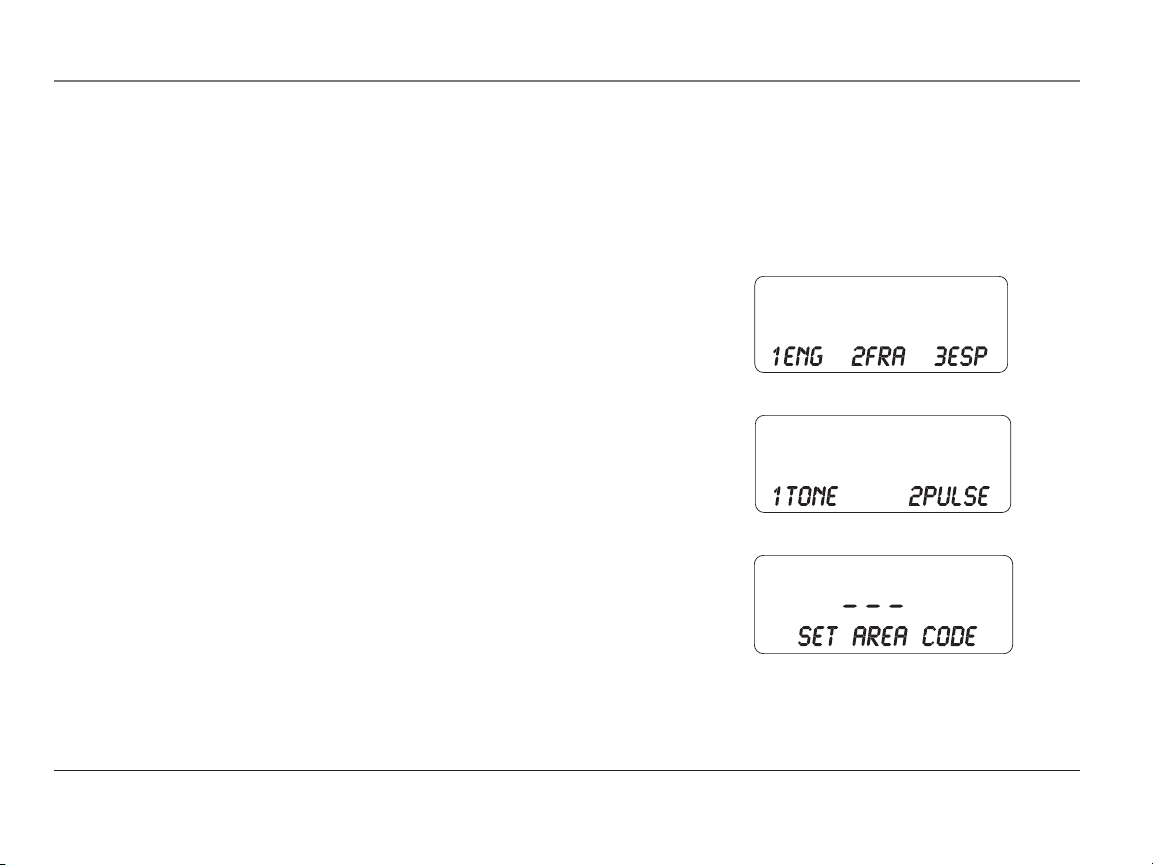

ISPLAY LANGUAGE ...............................................................................................18
T
ONE/PULSE DIALING ............................................................................................18
A
REA CODE ..........................................................................................................18
R

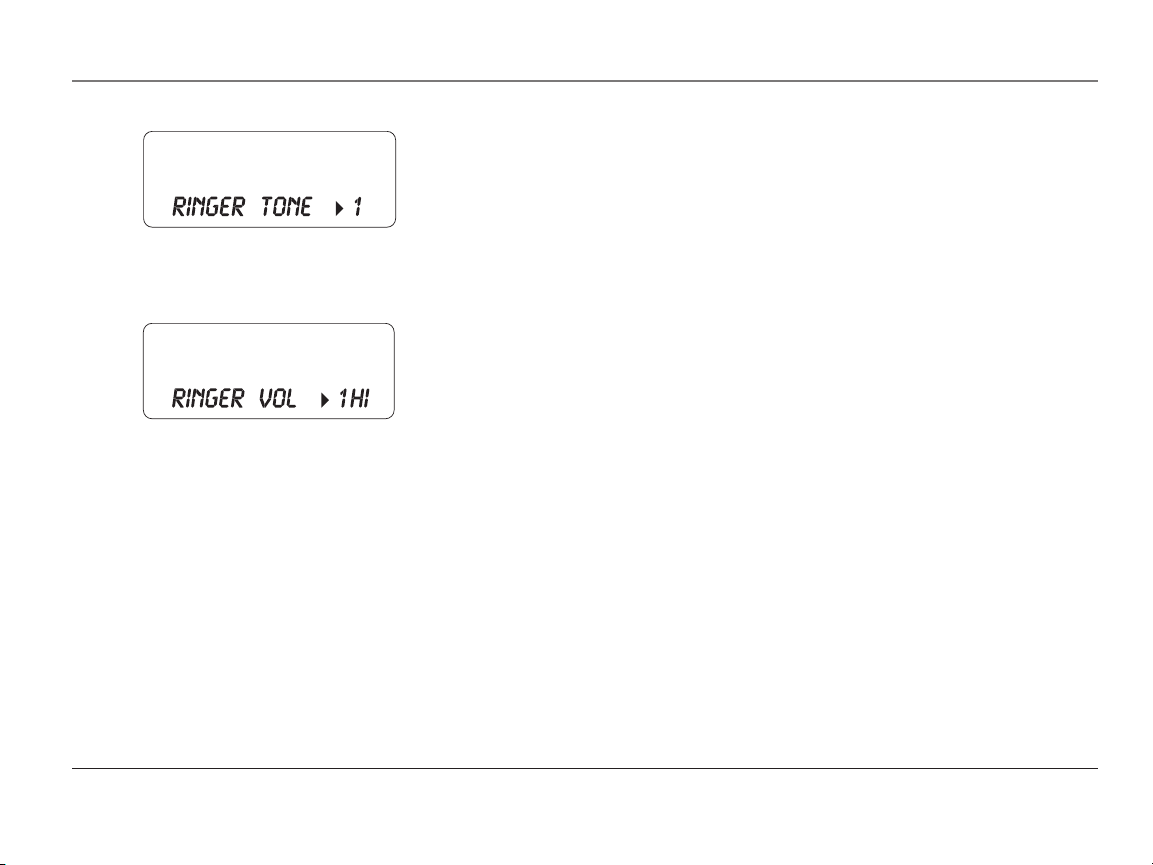

INGER TONE .......................................................................................................19
R
INGER VOLUME ...................................................................................................19
D
EFAULT SETTING SELECTION .................................................................................19
T
ELEPHONE OPERATION ............................................................................. 20
M
AKING A CALL ...................................................................................................20
On the Handset ......................................................................................................20
On the Headset .......................................................................................................20
ANSWERING A CALL .............................................................................................20
On the Handset ......................................................................................................20
On the Headset .......................................................................................................20
CALL TRANSFER ....................................................................................................21

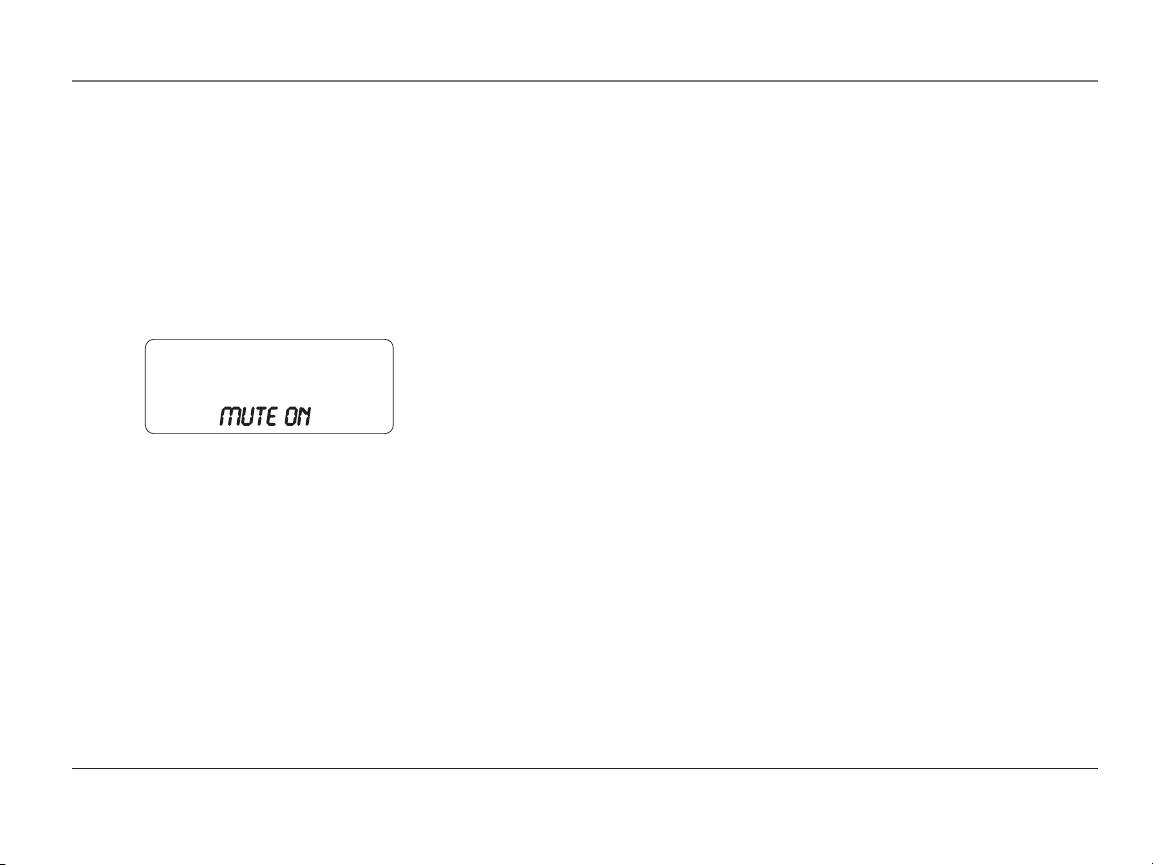

M
UTE ...................................................................................................................21
R
EDIAL .................................................................................................................21
F
LASH ..................................................................................................................22
E
XIT .....................................................................................................................22
H
ANDSET VOLUME ................................................................................................22
H
EADSET VOLUME .................................................................................................22
To Adjust Volume from Headset: ......................................................................22
To Adjust Volume from Handset: ......................................................................
PAGING THE HANDSET AND HEADSET .....................................................................23
I

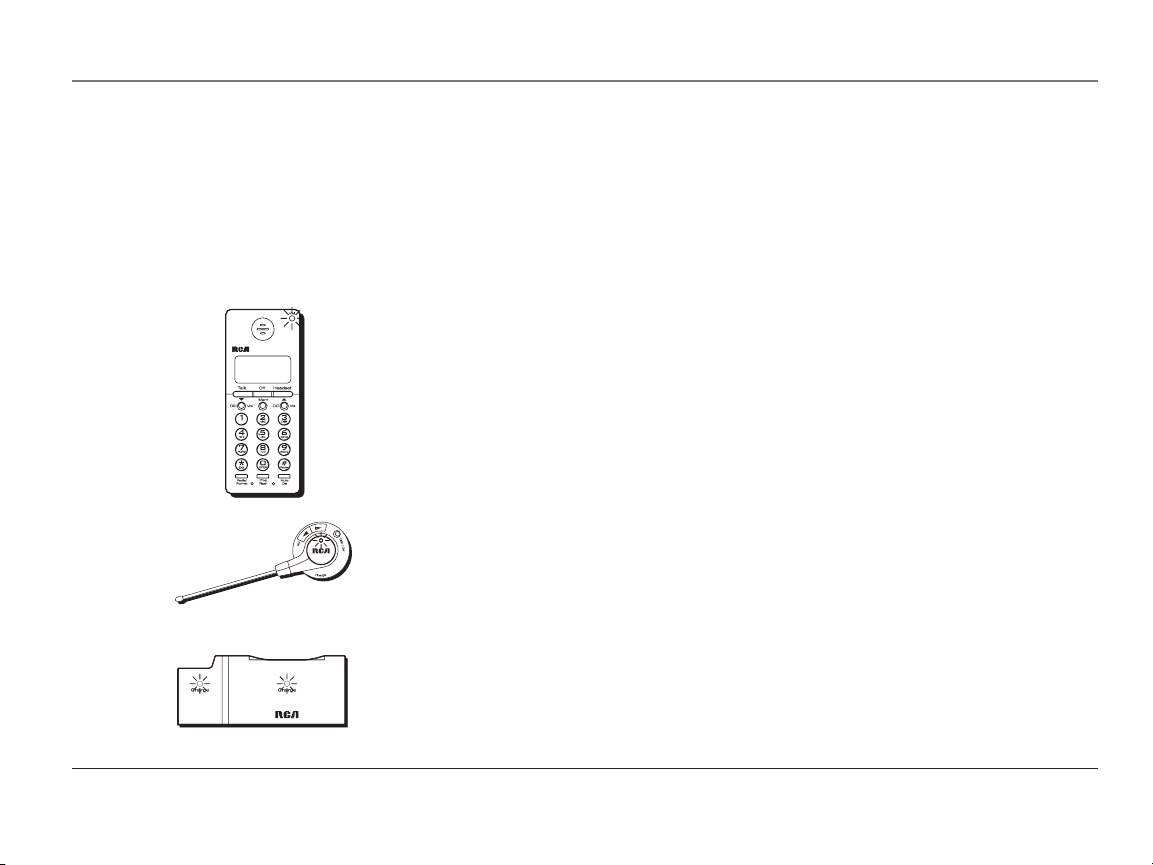

N USE INDICATOR LIGHT ......................................................................................23
On the Handset ......................................................................................................23
On the Headset .......................................................................................................23
CHARGER INDICATOR LIGHT ...................................................................................23
C
ALL TIMER ..........................................................................................................24
T
EMPORARY TONE DIALING ....................................................................................24
22
4
Table of Contents
CALLER ID ............................................................................................. 25
C
ALLER ID WITH CALL WAITING ............................................................................25
R
ECEIVING AND STORING CALLS .............................................................................25
R
EVIEWING RECORDS ............................................................................................25
T
RANSFERRING CID RECORDS TO MEMORY ............................................................26
D
ELETING RECORDS ...............................................................................................26
D
ELETING THE CURRENT RECORD ...........................................................................26
D
ELETING ALL RECORDS ........................................................................................27
D
IALING A CALLER ID NUMBER ............................................................................27
C
HANGING THE CID NUMBER FORMAT ..................................................................27
M
EMORY ............................................................................................... 28
S
TORING A NAME AND NUMBER IN MEMORY ........................................................28
V
IEWING A STORED NUMBER .................................................................................29
C
HANGING A STORED NUMBER ..............................................................................29
S
TORING A REDIAL NUMBER ..................................................................................29
D
IALING A STORED NUMBER .................................................................................30
I
NSERTING A PAUSE IN THE DIALING SEQUENCE OF A STORED NUMBER ...................30
R
EVIEWING AND DELETING STORED NUMBERS ........................................................30
H
EADSET AND BELT CLIP OPERATION ............................................................31
CONNECTING AN OPTIONAL HEADSET TO THE HANDSET ...........................................31
ATTACHING THE BELT CLIP .....................................................................................31
R
EPLACING THE BATTERIES ......................................................................... 32
H
ANDSET BATTERY ................................................................................................32
H
ANDSET MEMORY RETENTION ............................................................................32
H
EADSET BATTERY .................................................................................................33
B
ATTERY SAFETY PRECAUTIONS ................................................................... 33
D
ISPLAY MESSAGES ................................................................................. 34
H
ANDSET SOUND SIGNALS ......................................................................... 35
C
ALLER ID ...........................................................................................................35
No display .................................................................................................................35
Caller ID error message ........................................................................................
36
TELEPHONE ...........................................................................................................36
No dial tone .............................................................................................................36
TROUBLESHOOTING TIPS .........................................................37
GENERAL PRODUCT CARE .......................................................................... 38
C
AUSES OF POOR RECEPTION ..................................................................... 38
I
NTERFERENCE INFORMATION ....................................................................... 39
S
ERVICE ................................................................................................. 40
LIMITED WARRANTY ..................................................................................41
5
Important Information
SE E M ARK ING ON BO TTO M / BA CK OF PRO DUC T
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO
PREVENT FIRE OR
ELECTRICAL SHOCK
HAZARD, DO NOT
EXPOSE THIS
PRODUCT TO RAIN
OR MOISTURE.
THE LIGHTNING
FLASH AND ARROW
HEAD WITHIN THE
TRIANGLE IS A
WARNING SIGN
ALERTING YOU OF
“DANGEROUS
VOLTAGE” INSIDE
THE PRODUCT.
CAUTION: TO REDUCE THE
RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR
BACK). NO USER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
THE EXC LAMATION
POINT WITHIN THE
TRIANG LE IS
A
WARNING SIGN
ALERTI NG YOU OF
IMPORTANT
INSTRU CTIONS
ACCOMPANY ING
THE PR ODUCT.
CAUTION:
Introduction
CAUTION: When using telephone equipment, there are basic safety instructions that
should always be followed. Refer to the IMPORTANT SAFETY INSTRUCTIONS provided
with this product and save them for future reference.
Your Caller ID phone stores and displays information provided by your local telephone company, to subscribers of Caller ID or similar caller identification services.
Your Caller ID phone enables you to:
• Identify callers before you answer the phone.
• View the time and date of each incoming call.
• Record up to
• Know who called while you were away.
To get the most from your new phone, we suggest that you take a few minutes
right now to read through this user’s guide.
IMPORTANT: In order to use all of the features of this unit, you must subscribe to either the
standard Name/Number Caller ID Service or Call Waiting Caller ID Service. To know who is
calling while you are on the phone, you must subscribe to Call Waiting Caller ID Service.
IMPORTANT: Because cordless phones operate on electricity, you should have at least one
phone in your home that isn’t cordless, in case the power in your home goes out.
99 Caller ID messages sequentially.
6
Parts Checklist
Make sure your package includes the following items:
Connections & Setup
Handset
Wall base
Battery
compartment cover
Headband Headset battery Ear clip ringEar clipHeadset
ChargerHandset battery Belt clip
AC power
adaptor
Telephone
line cord
7
Connections & Setup
Important Installation Information
Safety Precautions
• Never install telephone wiring during a lightning storm.
• Never install telephone jacks in wet locations unless the jack is specifically
designed for wet locations.
• Never touch non-insulated telephone wires or terminals, unless the telephone
line is disconnected from the network.
• Use caution when installing or modifying telephone lines.
• Temporarily disconnect any equipment connected to the phone such as faxes,
other phones, or modems.
Installation Guidelines
• Install the wall base unit into an electrical outlet that is near a telephone
(modular) jack.
• Avoid sources of noise, such as a window by a busy street, and electrical noise,
such as motors, microwave ovens, and fluorescent lighting.
• Avoid heat sources, such as heating air ducts, heating appliances, radiators, and
direct sunlight.
• Avoid areas of excessive moisture or extremely low temperature.
• Avoid dusty locations.
• Avoid other cordless telephones or personal computers.
8
Connections & Setup
CAUTION: Always disconnect all phone cords from the base unit before battery
installation or replacement.
INSTALLATION NOTE:
or receive interference with TVs, microwave ovens, and VCRs. To minimize or prevent such
interference, the base of the cordless telephone should not be placed near or on top of a TV,
microwave ovens, or VCR. If such interference continues, move the cordless telephone farther
away from these appliances. Certain other communications devices may also use the 2.4GHz
frequency for communication, and, if not properly set, these devices may interfere with each
other and/or your new telephone. If you are concerned with interference, please refer to
the owner’s manual for these devices on how to properly set channels to avoid interference.
Typical devices that may use the 2.4GHz frequency for communication include wireless
audio/video senders, wireless computer networks, multi-handset cordless telephone systems,
and some long-range cordless telephone systems.
Some cordless telephones operate at frequencies that may cause
Wall plate
Modular telephone
line jack
Telephone Jack Requirements
To use this phone, you will need an RJ11C type modular phone jack, which might
look like the one pictured here, installed in your home. If you don’t have a modular
jack, call your local phone company to find out how to get one installed.
9
Connections & Setup
Headset Set Up
Headband Attachment
1. Hold the headband and insert it into keyed slot marked with an arrow on the
headset.
NOTE: To ensure proper installation, the connector is keyed and can only be inserted one way
2. Rotate the L-shaped band 90 degrees clockwise.
3. Align the L-shaped band into the hole on the headset.
10
To switch from ear to ear
Rotate microphone boom to reposition nearer to mouth.
Connections & Setup
11
Connections & Setup
Ear Clip Attachment
1. Attach the ear clip ring to the headset and ensure all three contact points align
and are engaged.
2. Insert ear clip into either side of ear clip ring, matching with the “L” or “R”
marked on ear clip ring to fit either your left or right ear.
To switch from ear to ear
Unplug the ear clip from ear clip ring.
Insert the ear clip to ear clip ring with “L” mark for Left ear.
Insert the ear clip to “R” mark for Right ear.
Rotate microphone boom to reposition nearer to mouth.
12
Connections & Setup
Phone Installation
Connecting the AC (Electrical) Power
Charger unit
Plug the AC power adaptor into an electrical outlet and the DC connector into the
bottom of the charger.
CAUTION: Only use the ATLINKS USA. Inc. 5-2678 power converter that came with this
unit. Using other power converters may damage the charger unit.
Wall base unit
To install your wall base unit, locate an electrical outlet with a phone jack nearby.
1. Plug the wall base unit into an electrical outlet.
2. Make sure that the pins are inserted fully and firmly into the outlet. If not,
choose another electrical outlet.
Connecting the Telephone Line
There are two jacks on the bottom of the wall base unit.
Plug one end of the telephone line cord into the LINE jack on the bottom of the
wall base unit and the other end into a modular jack.
The PHONE jack may be used to connect a parallel phone by connecting a second
telephone line cord from the PHONE jack on the bottom of the wall base unit to the
parallel phone.
13
BLACK WIRE
RED WIRE
BATTERY
PRESS DOWN
FIRMLY
Connections & Setup
Installing the Batteries
Installing the Handset Battery
NOTE: You must connect the handset battery before use.
1. Locate battery and battery door which are packaged together inside a plastic
bag and are separate from the handset.
2. Locate the battery compartment on the back of the handset.
3. Plug the battery pack cord into the jack inside the compartment.
NOTE: It is important to maintain the polarity (black and red wires) to the jack inside the
compartment. To ensure proper battery installation, the connector is keyed and can be
inserted only one way.
4. Insert the battery pack.
5. Close the battery compartment by pushing the door up until it snaps into place.
6. Place the
Allow the handset to charge for 16 hours prior to first use. If you don’t properly charge the
handset, battery performance is compromised.
handset in the charging cradle.
CAUTION: To reduce the risk of fire or personal injury, only use the ATLINKS Ni-MH
battery model 5-2683.
14
Loading...
