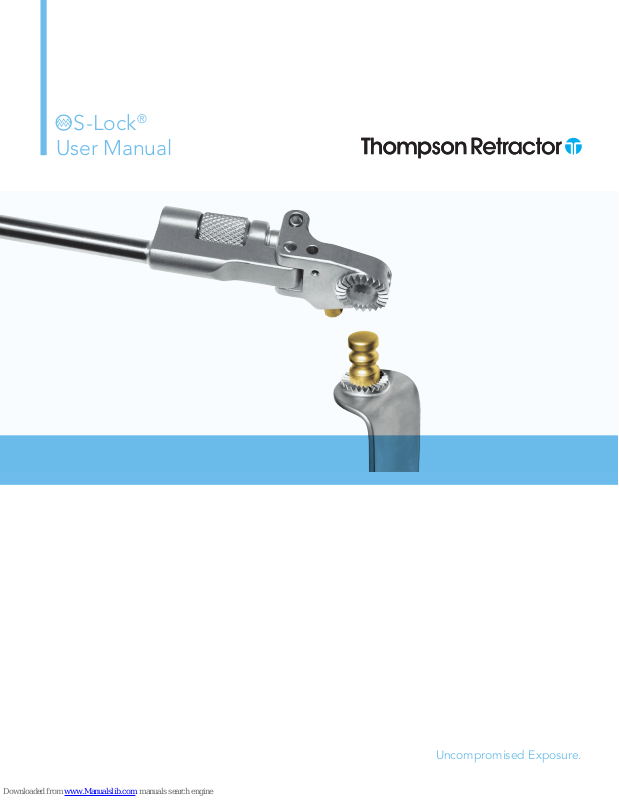

Thompson Retractor S-Lock User Manual
S-Lock®
User Manual
Uncompromised Exposure.
0297
S-LOCK USER MANUAL
All S-Lock blade and handle part numbers start with an ‘SL’ or ‘SO’ and are only compatible with other S-Lock blades and handles.
push
COMBINE S-LOCK BLADE AND HANDLE
1
S-Lock handles have serrated faces that match up with serrations
on S-Lock blades for precise blade placement.
Insert S-Lock blade nipple into S-Lock handle by pushing button.
Swivel
Locked
Swivel
Lock
SWIVEL ALIGNS ON TISSUE
2
Release button with handle on the “swivel” groove nipple
setting and swivel to desired position. Ensure the button is
fully extended out of the handle to secure.
LOCK WHEN SWIVEL IS NOT DESIRED
3
Lock S-Lock blade in position on the “lock” groove nipple
setting by pushing the button again and pressing straight
down over the handle to engage the serrations. Ensure the
button is fully extended out of the handle to secure.
TIP:
To switch between two settings during use, unlock the
handle or release retraction for ease of use.
RELEASING BLADES
4
Press button in to disengage.
