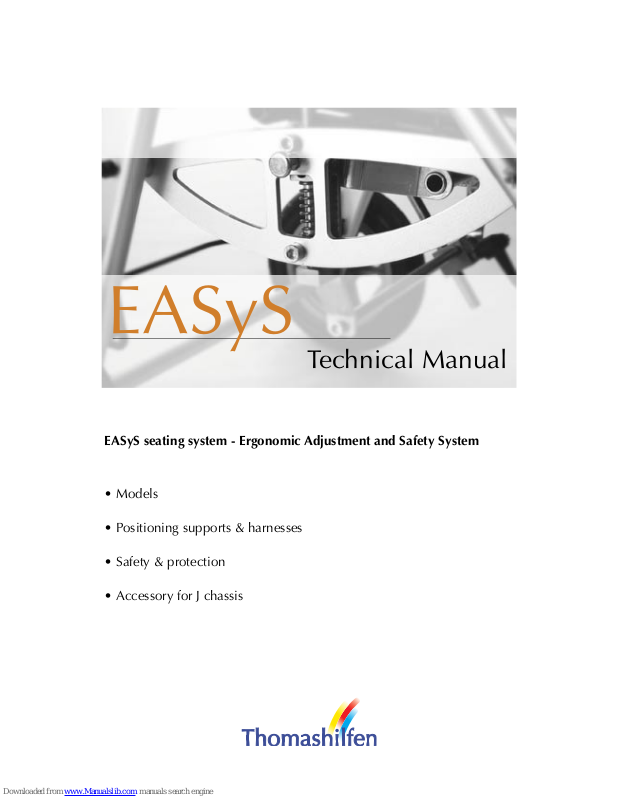

Thomashilfen EASyS1, EASyS2 Technical Manual

EASyS seating system - Ergonomic Adjustment and Safety System

• Models

• Positioning supports & harnesses

• Safety & protection

• Accessory for J chassis

Technical Manual

EASyS

Contents page

MODELS EASyS 1 + 2 seating system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

J chassis with EASyS seat unit 1 + 2. . . . . . . . . . . . . . . . . . . . . . . . . 4

Q hi/low base with EASyS seat unit 1 + 2 . . . . . . . . . . . . . . . . . . . . 4

Standard underframe for indoor use with EASyS seat unit 1 + 2. . . . 5

POSITIONING SUPPORTS & HARNESSES Buttery / chest harness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Seat waistcoat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

H-belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Lateral trunk supports, stiff. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Lateral head supports, exible with chest belt . . . . . . . . . . . . . . . . . 7

Head support, exible small + large + lateral . . . . . . . . . . . . . . . . . 7

Lateral head supports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Lateral head supports, 45°. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Abduction block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Soft pelvic harness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Grip rail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Foot straps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

SAFETY & PROTECTION Sleeping bag (padded and woven fur) . . . . . . . . . . . . . . . . . . . . . . 10

Sun and rain cover with leg blanket and pocket . . . . . . . . . . . . . . 10

Rain cover with leg blanket (transparent). . . . . . . . . . . . . . . . . . . . 10

Rain cape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Umbrella. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Frame padding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Calf strap. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Tray, transparent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Accessory bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Side padding, coloured . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Fabric, per meter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

ACCESSORY FOR J CHASSIS Transit tie down system, J chassis. . . . . . . . . . . . . . . . . . . . . . . . . . 13

Seat suspension, J chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Tilt-in space lever at push bar, J chassis . . . . . . . . . . . . . . . . . . . . . 13

Pneumatic wheels, J chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

EASyS, …

... the ergonomic adjustment and safety seating system for rehabilitation
strollers, offers a triple safety package to disabled children, to users of
rehabilitation strollers, to therapists, and to the specialised trade.

The EASyS seating system with BSS® (Balance Safety System) ensures that
sitting, lying and transportation are safe, comfortable, and therapeutically
correct.

Thomashilfen, the specialist for rehabilitation strollers, spent several years
researching and testing solutions for the weak points and risk factors
around the subjects sitting, lying and transportation, with a team of clinical
professionals and engineers. The result is EASyS, the most innovative
pediatric seating system, which can be used on several styles of indoor
and outdoor frames.

EASyS with BSS® ensures a higher safety in the rehabilitation stroller.

For more information about EASyS, please visit our website at:

www.thomashilfen.com

INDEX

EASyS 1 seating system

Item code 6609/5
Seat depth 19 - 30 cm / 7.5 - 11.8"
Seat width 19 - 31 cm / 7.5 - 12.2"
Back height 40 - 65 cm / 15.7 - 25.6"
Lower leg length 17 - 30 cm / 6.7 - 11.8"
Size of hip guide (w x h) 12 x 23 cm / 4.7 x 9.1"
Knee angle (adjustable in 15° steps) 90° to 180°
Hip angle 90° to 180°
Foot angle 78° to 100°
Seat tilt-in-space (on J chassis) -15° to + 45°
Size of foot rest (w x l) 28.5 x 18 cm / 11.2 x 7.1"
Overall dimensions (w x h x l) 38 x 98 x 64 cm / 15 x 38.6 x 25.2"
Folded dimensions (w x h x l) 38 x 40 x 72 cm / 15 x 15.7 x 28.3"
Carrying capacity 35 kg / 77.2 Ib
Weight 7.7 kg / 17 Ib
Material upholstery: Trevira CS fabrics,

3-mesh- air-comfort-interlaced
yarns (AGW)
seat: aluminium tubular frame,
plastic assembly units

Features

Seat unit with BSS® (Balance Safety System), physiological pivots for the hip- and knee
joint, breathable seat and back upholstery with reflective safety-seams, fire retardant
fabrics, padded pelvic belt, lateral body guides, height adjustable footrest, EASyS click­system for an easy seat installation / removal, continuously adjustable back height, hip
angle, seat depth and seat width, easily accessible adjustments using an Allen key

MODELS

3

EASyS 2 seating system

Item code 6709/5
Seat depth 27 - 38 cm / 10.6 - 15"
Seat width 25 - 36 cm / 9.8 - 14.2"
Back height 53 - 73 cm / 20.9 - 28.7"
Lower leg length 25 - 36 cm / 9.8 - 14.2"
Size of hip guide (w x h) 15 x 30 cm / 5.9 x 11.8"
Knee angle (adjustable in 15° steps) 90° to 180°
Hip angle 90° to 180°
Foot angle 78° to 100°
Seat tilt-in-space (on J chassis) -10° to +40°
Size of foot rest (w x l) 33 x 21 cm / 12.9 x 8.2"
Overall dimensions (w x h x l) 45 x 116 x 76 cm / 17.7 x 45.7 x 29.9"
Folded dimensions (w x h x l) 45 x 42 x 84 cm / 17.7 x 16.5 x 33.1"
Carrying capacity 40 kg / 88.2 Ib
Weight 9.4 kg / 20.7 Ib
Material upholstery: Trevira CS fabrics,

3-mesh-air-comfort-interlaced
yarns (AGW)
seat: aluminium tubular frame,
plastic assembly units

MODELS

J chassis, swivel front wheels size 1 size 2

Item code chassis and seat unit 6603/5 + 6609/5 6703/5 + 6709/5
Item code complete stroller 6601/5 6701/5
Seat tilt-in-space -10° to +45° -10° to +40°
Seat height 48 cm / 18.9" 54 cm / 21.3"
Overall dimensions (w x h x l) 60 x 104 x 100 cm 70.5 x 111 x 111 cm

23.6 x 40.9 x 39.4" 27.8 x 43.7 x 43.7"
Folded dimensions (w x h x l) 60 x 50 x 88 cm 70.5 x 52 x 99 cm

23.6 x 19.7 x 34.6" 27.8 x 20.5 x 39"

Push bar height 92 - 114 cm / 36.2 - 44.9" 92 - 120 cm / 36.2 - 47.2"
Wheel size swivel wheels (front) 7.5" 7.5"
Wheel size (rear) 10" 10"
Carrying capacity 35 kg / 77.2 Ib 40 kg / 88.2 Ib
Weight (including seat unit) 15.9 kg / 35.1 Ib 18.6 kg / 41 Ib
Material aluminium tubular frame, powder-coated,

rim: PP (polypropylene); tire equipment: composition rubber

Features

Chassis: lightweight and stable chassis, foldable (compact folded dimensions), lockable seat
suspension, continuously adjustable seat tilt-in-space, height adjustable push bar with
biocompatible soft grip, foot brake, rim: PP (polypropylene); tire equipment: composition
rubber, swivelling front wheels (with locking option), removable basket
Seat unit: see page 3, both front and rear facing seat

MODELS

4

J chassis, xed front wheels size 1 size 2

Item code chassis and seat unit 6604/5 + 6609/5 6704/5 + 6709/5
Item code complete stroller 6602/5 6702/5
Seat tilt-in-space -10° to +45° -10° to +40°
Seat height 50 cm / 19.7" 54 cm / 21.3"
Overall dimensions (w x h x l) 64 x 104 x 100 cm 68 x 111 x 105 cm

25.2 x 40.9 x 39.4" 26.8 x 43.7 x 41.3"
Folded dimensions (w x h x l) 64 x 50 x 88 cm 68 x 52 x 99 cm

25.2 x 19.7 x 34.6" 26.8 x 20.5 x 39"

Push bar height 92 - 114 cm / 36.2 - 44.9" 92 - 120 cm / 36.2 - 47.2"
Wheel size 10" 10"
Carrying capacity 35 kg / 77.2 Ib 40 kg / 88.2 Ib
Weight (including seat unit) 16.7 kg / 36.8 lb 19.5 kg / 43 lb
Material aluminium tubular frame, powder-coated,

rim: PP (polypropylene); tire equipment: composition rubber

Features

Chassis: lightweight and stable chassis, foldable (compact folded dimensions), lockable seat
suspension, continuously adjustable seat tilt-in-space, height adjustable push bar with
biocompatible soft grip, foot brake, rim: PP (polypropylene); tire equipment: composition
rubber, xed front wheels,removable basket
Seat unit: see page 3, both front and rear facing seat

MODELS

Q hi/low base Q extra low Q standard Q special

Item code chassis and seat unit

6665/5 + 6609/5

6666/5 + 6609/5 6709/5 6664/5 + 6609/5 6709/5
Seat tilt-in-space -28° to +2° -28° to +2° -28° to +2°
Seat height (including seat unit) 25 - 62 cm 30 - 66 cm 44 - 74 cm

9.8 - 24.4" 11.8 - 26" 17.3 - 29.1"
Overall dimensions (w x h x l) 54 x 53.5 x 72.5 cm 54 x 55.5 x 72.5 cm 66.5 x 64 x 87 cm

21.3 x 21.1 x 28.5" 21.3 x 21.9 x 28.5" 26.2 x 25.2 x 34.3"
Folded dimensions (w x h x l) 54 x 23 x 72.5 cm 54 x 23 x 72.5 cm 66.5 x 33.5 x 87 cm

21.3 x 9.1 x 28.5" 21.3 x 9.1 x 28.5" 26.2 x 13.2 x 34.3"
Push bar height accessory accessory

80 - 102 cm / 31.5 x 40.2"

Adapter height 15.5 - 53.5 cm 20 - 55.5 cm 33.5 - 64 cm

6.1 - 21.1" 7.9 - 21.9" 13.2 - 25.2"

Wheel size swivel wheels (front) 75 mm / 3" 75 mm / 3" 6" x 1"
Wheel size swivel wheels (rear)

75 mm / 3" (brake) 75 mm / 3" (brake) 12" x 1" (drum brake)
Carrying capacity (seat unit) 35 kg / 77.2 Ib 35 kg / 77.2 Ib (size 1) 35 kg / 77.2 Ib (size 1)
(only size 1) 40 kg / 88.2 lb (size 2) 40 kg / 88.2 lb (size 2)

Carrying capacity (chassis) 35 kg / 77.2 Ib 50 kg / 110.2 Ib 50 kg / 110.2 Ib
Weight (without seat unit) 11.5 kg / 25.4 Ib 11.5 kg / 25.4 Ib 18.7 kg / 41.2 Ib
Material aluminium tubular frame, powder-coated, PU castors

Features

Hi / low base: comfortable indoor base, easy height and seat tilt-in-space adjustment with gas spring
(foot engaged), 4 swivelling castors (2 lockable),
(optional: with push bar and pneumatic wheels)
Seat unit: see page 3

5

Standard underframe size 1 size 2

for indoor use

Item code chassis and seat unit 6651/5 + 6609/5 6651/5 + 6709/5
Seat tilt-in-space -15° to +35° -15° to +35°
Seat height 39 - 58.5 cm 39 - 58.5 cm

15.4 - 23" 15.4 - 23"
Overall dimensions (w x h x l) 53.5 x (31.5 - 51) x 64 cm 53.5 x (31.5 - 51) x 64 cm

21.1 x (12.4 - 20.1) x 25.2" 21.1 x (12.4 - 20.1) x 25.2"

Wheel size swivel wheels (front / rear) 3" / 3" 3" / 3"
Carrying capacity (Seat unit) 35 kg / 77.2 lb 40 kg / 88.2 lb
Carrying capacity (Chassis) 40 kg / 88.2 lb 40 kg / 88.2 lb
Weight (without seat unit) 7.2 kg / 15.9 lb 7.2 kg / 15.9 lb
Material aluminium tubular frame, powder-coated,

PU castors

Features

Underframe: lightweight and versatile indoor base, mechanical height and seat tilt-in-space adjustment,
4 swivelling castors (2 lockable)
Seat unit: see page 3

Buttery/chest harness

EASyS 1 EASyS 2

Item code

6616/41(small: S); 6617/41(medium: M) 6717/41(large: L); 6617/41(medium:M)

Size of pad (w x h)

S: 11.5 x 12.5 cm; M: 10.5 x 13.5 cm L: 12 x 17 cm; M: 10.5 x 13.5 cm
S: 4.5 x 4.9"; M: 4.1 x 5.3" L: 4.7 x 6.7"; M: 4.1 x 5.3"
Total size of pad (w x h) S: 18.5 x 30 cm; M: 24.5 x 37 cm L: 29 x 42.5 cm; M: 24.5 x 37 cm
S: 7.3 x 11.8"; M: 9.6 x 14.6" L: 11.4 x 16.7"; M: 9.6 x 14.6"
Thorax cutout (depth) S: 15.5 cm; M: 14,5 cm L: 16.5 cm; M: 14.5 cm
S: 6.1"; M: 5.7” L: 6.5"; M: 5.7"
Belt length S: 5 - 37 cm / 2 - 14.6" (thread eye to beginning of upholstery);
M: 5 - 35 cm / 2 - 13.8" (thread eye to beginning of upholstery);
L: 5 - 34 cm / 2 - 13.4" (thread eye to beginning of upholstery)
Weight S: 0.14 kg; M: 0.17 kg L: 0.18 kg; M: 0.17 kg
S: 0.31 lb / M: 0.37 lb L: 0.40 lb; M: 0.37 lb
Material 25 mm / 1.0" textile strap, plastic buckles,
100% Trevira CS upholstery with foam inlay

Fixation 4 allen countersunk screws (M5)

POSITIONING SUPPORTS & HARNESSES

6

Seat waistcoat EASyS 1 EASyS 2

Item code

6631/4 (small: S);6632/4 (medium: M) 6731/4 (large: L);6632/4(medium: M)

Size of pad (w x d) S: 30 x 30 cm; M: 36 x 37 cm L: 42 x 43 cm; M: 36 x 37 cm

S: 11.8 x 11.8"; M: 14.2 x 14.6" L: 16.5 x 16.9"; M: 14.2 x 14.6"
Belt length S: 8 - 25 cm / 3.1 - 9.8" (thread eye to beginning of upholstery);
M: 8 - 23 cm / 3.1 - 9.1" (thread eye to beginning of upholstery);
L: 3 - 23 cm / 1.2 - 9.1" (thread eye to beginning of upholstery)
Weight S: 0.12 kg; M: 0.14 kg L: 0.18 kg; M: 0.14 kg
S: 0.26 Ib; M: 0.31 Ib L: 0.40 Ib; M: 0.31 Ib
Material 25 mm / 1.0" textile strap, plastic buckles,
100% Trevira CS upholstery (impregnated) with foam inlay

Fixation 2 allen countersunk screws (M5)

Lateral trunk supports EASyS 1 EASyS 2

Item code 6634/4 6734/4
Size (h x d) 13 x 13 cm / 5.1 x 5.1" 17 x 15 cm / 6.7 x 5.9"
Adjustment range (to each other)

17 - 27 cm / 6.7 - 10.6" 20 - 28 cm / 7.9 - 11.0"

Weight 0.36 kg / 0.79 Ib 0.50 kg / 1.10 Ib
Material 2 mm / 0.1" aluminium plates,

upholsteries: 100% Trevira CS, foam / eece padding
Fixation 4 button-headed screws with wing nuts (M5);
2 grommets; 2 nuts, self-locking

H-belt, padded EASyS 1 EASyS 2

Item code 6629/4 6629/4
Size of shoulder pad (w x l) 5 x 15 cm / 2 x 5.9" 5 x 17 cm / 2 x 6.7"
Length of pelvic harness 15 - 102 cm / 5.9 - 40.2" 15 - 102 cm / 5.9 - 40.2"

(thread eye to thread eye) (thread eye to thread eye)
Length of shoulder harness 15 - 60 cm / 5.9 - 23.6" 17 - 60 cm / 6.7 - 23.6"
(thread eye to buckle) (thread eye to buckle)

Weight 0.12 kg / 0.26 Ib 0.12 kg / 0.26 Ib
Material 25 mm / 1.0" (shoulder harness) and 30 mm / 1.2" (pelvic belt)

textile strap, plastic buckle,
shoulder upholstery: 100% Trevira CS with foam inlay
Fixation 4 allen countersunk screws (M5)

POSITIONING SUPPORTS & HARNESSES

Lateral trunk supports EASyS 1 EASyS 2

with chest belt

Item code 6633/5 6633/5
Support surface (h x d) 9 x 19 cm / 3.5 x 7.5" 9 x 19 cm / 3.5 x 7.5"
Adjustment range (to each other) 17 - 27 cm / 6.7 - 10.6" 17 - 27 cm / 6.7 - 10.6"
Belt length 31.5 cm / 12.40" 31.5 cm / 12.40"
Weight 0.32 kg / 0.7 lb 0.32 kg / 0.7 lb
Material plastic plate (polyethylene), 3-mesh-air-comfort-interlaced

yarns (AGW) 100% Trevira CS
Fixation 4 button head screws with knurled nuts (M5);
4 grommets

7

Head support EASyS 1 EASyS 2

exible, small

Item code 6625/5 6625/5
Support surface ( w x h) 24 x 10 cm / 9.4 x 3.9" 24 x 10 cm / 9.4 x 3.9"
Height adjustment 11 cm / 4.3" 11 cm / 4.3"

(starting from top edge of seat unit)

Depth adjustment 14 cm / 5.5" 14 cm / 5.5"
Weight 1.28 kg / 2.8 lb 1.28 kg / 2.8 lb
Material PU (Polyurethane) foam piece
Fixation 4 allen screws

Head support EASyS 1 EASyS 2

exible, large

Item code 6626/4 6626/4
Support surface ( w x h) 28 x 14 cm / 11 x 5.5" 28 x 14 cm / 11 x 5.5"
Height adjustment 11 cm / 4.3" 11 cm / 4.3"

(starting from top edge of seat unit)

Depth adjustment 14 cm / 5.5" 14 cm / 5.5"
Weight 1.26 kg / 2.8 lb 1.26 kg / 2.8 lb
Material PU (Polyurethane) foam piece
Fixation 4 allen screws

Head support EASyS 1 EASyS 2

exible, lateral

Item code 6627/4 6627/4
Support surface ( w x h) 40 x 15 cm / 15.7 x 5.9" 40 x 15 cm / 15.7 x 5.9"
Height adjustment 11 cm / 4.3" 11 cm / 4.3"

(starting from top edge of seat unit)

Depth adjustment 14 cm / 5.5" 14 cm / 5.5"
Weight 1.54 kg / 3.4 lb 1.54 kg / 3.4 lb
Material PU (Polyurethane) foam piece
Fixation 4 allen screws

Lateral head supports EASyS 1 EASyS 2

Item code 6624/4 6724/4
Size (h x d) 13 x 11 cm / 5.1 x 4.3" 15 x 14 cm / 5.9 x 5.5"
Adjustment range (to each other) 17 - 27 cm / 6.7 - 10.6" 20 - 28 cm / 7.9 - 11.0"
Weight 0.28 kg / 0.62 Ib 0.36 kg / 0.79 Ib
Material 2 mm / 0.1" aluminium plates,

upholsteries: 100% Trevira CS, foam / eece padding
Fixation 4 button-headed screws with wing nuts (M5);
2 grommets; 2 nuts, self-locking

POSITIONING SUPPORTS & HARNESSES

Abduction block EASyS 1 EASyS 2

Item code 6620/4 6720/4
Size (w x h x l) 6 x 9 x 10 cm / 2.4 x 3.5 x 3.9" 7 x 10.5 x 11 cm / 2.8 x 4.1 x 4.3"
Weight 0.26 kg / 0.57 Ib 0.36 kg / 0.79 Ib
Material wooden core with foam coating, steel angles,

100% Trevira CS upholstery

Fixation 1 hand screw (M6)

8

Lateral head supports, 45° EASyS 1 EASyS 2

Item code 6623/4 6623/4
Size (h x d) 10 x 12 cm / 3.9 x 4.7" 10 x 12 cm / 3.9 x 4.7"
Adjustment range (to each other) 14 - 22 cm / 5.5 - 8.7" 14 - 22 cm / 5.5 - 8.7"
Weight 0.20 kg / 0.44 lb 0.20 kg / 0.44 lb
Material plastic plate (polyethylene), 3-mesh-air-comfort-interlaced

yarns (AGW) 100% Trevira CS
Fixation 4 button head screws with knurled nuts (M5);
4 grommets

Soft pelvic harness EASyS 1 EASyS 2

Item code 6614/4 6714/4
Size of pad (w x h) 24 x 24 cm / 9.4 x 9.4" 26 x 29 cm / 10.2 x 11.4"
Belt length 3 - 28 cm / 1.2 - 11.0" 3 - 32 cm / 1.2 - 12.6"

(

thread eye to beginning of upholstery)

Weight 0.12 kg / 0.26 Ib 0.16 kg / 0.35 Ib
Material 20 mm / 0.8" and 25 mm / 1.0" textile strap, plastic buckles,

100% Trevira CS upholstery with foam inlay
Fixation 2 allen countersunk screws (M5)
2 knurled nuts

POSITIONING SUPPORTS & HARNESSES

Grip rail EASyS 1 EASyS 2

Item code 6621/4 6721/4
Height to seating surface 11.5 / 14 / 16.5 cm 17.5 / 19 / 22 cm

4.5 / 5.5 / 6.5" 6.9 / 7.5 / 8,66"

Width (inner dimension) 34 cm / 13.4" 38 cm / 15"
Upholstery (Ø x l) 3.5 x 62 cm / 1.4 x 24.4" 3.5 x 62 cm / 1.4 x 24.4"
Weight 0.36 kg / 0.79 Ib 0.37 kg / 0.82 Ib
Material steel rail with 100% Trevira CS fabric upholstery and eece lling
Fixation 2 locking pins

9

Foot straps EASyS 1 EASyS 2

Item code 6648/4 6648/4
Belt length 86 cm / 33,85" 86 cm / 33,85"
Weight 0.04 kg / 0.09 Ib 0.04 kg / 0.09 Ib
Material 20 mm / 0.8" textile strap
Fixation plastic buckle

SAFETY & PROTECTION

Sleeping bag, padded EASyS 1 EASyS 2

Item code 6619/4 6719/4
Bottom part of leg blanket (w x l) 35 x (68 - 80) cm 40 x (90 - 104) cm

13.8 x (26.8 - 31.5)" 15.7 x (35.4 - 40.9)"

Leg blanket (lower leg length) 31 cm / 12.2" 43 cm / 16.9"
Upper part back rest (w x l) 37 x 64 cm / 14.6 x 25.2" 40 x 78 cm / 15.7 x 30.7"
Weight 0.82 kg / 1.81 Ib 1.26 kg / 2.78 Ib
Material 100% Trevira CS (impregnated) with eece lling
Fixation velcro, textile strips, buttons

Sleeping bag, woven fur EASyS 1 EASyS 2

Artikel-Nr. 6618/4 6718/4
Bottom part of leg blanket (w x l) 35 x (69 - 78) cm 40 x (90 - 100) cm

13.8 x (27.2 - 30.7)" 15.7 x (35.4 - 39.4)"

Leg blanket (lower leg length) 38 cm / 15" 45 cm / 17.7"
Upper part back rest (w x l) 37 x 64 cm / 14.6 x 25.2" 40 x 78 cm / 15.7 x 30.7"
Weight 1.22 kg / 2.69 Ib 1.48 kg / 3.26 Ib
Material 100% Trevira CS (impregnated) with Polartec
Fixation velcro, textile strips, buttons

10

Sun and rain cover EASyS 1 EASyS 2

with leg blanket and pocket

Item code 6637/4 6737/4
Hood (w x h) 42 x 48 cm / 16.5 x 18.9" 43 x 51 cm / 16.9 x 20.1"

(inner dimensions) (inner dimensions)

Hood pocket (w x h x d) 24 x 28 x 5 cm / 9.4 x 11 x 2" 24 x 28 x 5 cm / 9.4 x 11 x 2"
Size leg blanket (w x l) 40 x 87 cm / 15.7 x 34.3" 43 x 100 cm / 16.9 x 39.4"
Weight 1.84 kg / 4.06 Ib 1.92 kg / 4.23 Ib
Material hood: steel linkage with plastic grid joint, 100% Trevira CS

(impregnated) with eece lling, pocket and clear-view window
leg blanket: 100% Trevira CS (impregnated)

Fixation hood: 2 plastic pins; leg blanket: 8 buttons

Rain cover EASyS 1 EASyS 2

with leg blanket, transparent

Item code 6638/4 6738/4
Hood (w x h) 42 x 48 cm / 16.5 x 18.9" 43 x 51 cm / 16.9 x 20.1"

(inner dimensions) (inner dimensions)

Hood pocket (w x h x d) 24 x 28 x 5 cm / 9.4 x 11 x 2" 24 x 28 x 5 cm / 9.4 x 11 x 2"
Size leg blanket (w x l) 40 x 87 cm / 15.7 x 34.3" 43 x 100 cm / 16.9 x 39.4"
Weight 1.84 kg / 4.06 Ib 1.92 kg / 4.23 Ib
Material PVC-foil (grey tint)
Fixation hood: 2 plastic pins; leg blanket: 8 buttons

SAFETY & PROTECTION

11

Frame padding EASyS 1 EASyS 2

Item code 6622/4 6622/4
Outer dimensions (w x h) (10 - 15) x 45 cm (10 - 15) x 45 cm

(3.9 - 5.9) x 17.7" (3.9 - 5.9) x 17.7"

Weight 0.24 kg / 0.53 Ib 0.24 kg / 0.53 Ib
Material 100% Trevira CS with foam lling
Fixation velcro

Calf strap EASyS 1 EASyS 2

Item code 6635/4 standard
Size (w x h) 29.5 x 8 cm / 11.6 x 3.1"
Weight 0.10 kg / 0.22 Ib
Material 100 % Trevira CS with foam lling
Fixation plastic clamp

Rain cape EASyS 1 EASyS 2

Item code 6340/4 6540/4
Length of blanket (without hood) 125 cm / 49.2" 140 cm / 55.1"
Weight 0.36 kg / 0.79 Ib 0.46 kg / 1.01 Ib
Material hydrophobic synthethic bre
Fixation elastic

Umbrella EASyS 1 EASyS 2

Item code 6643/4 6643/4
Diameter Ø 65 cm / 25.6" 65 cm / 25.6"
Height 75 cm / 29.5" 75 cm / 29.5"
Weight 0.48 kg / 1.06 Ib 0.48 kg / 1.06 Ib
Material wire linkage with 2 bendable elements

and 100% Trevira CS covering
Fixation screw clamp

SAFETY & PROTECTION

Side padding, coloured EASyS 1 EASyS 2

Item code blue 6645/45 6745/45
Item code yellow 6645/43 6745/43
Item code green 6645/42 6745/42
Item code orange 6645/44 6745/44
Item code red 6645/41 6745/41
Size (w x h) (4 - 17)x37 cm / (1.6 - 6.7)x14.6" (7 - 19) x40 cm / (2.8 - 7.5) x15.7"
Weight 0.20 kg / 0.44 lb 0.24 kg / 0.53 lb
Material Nikki velours, Trevira CS (only blue, 6645/45 + 6745/45)
Fixation velcro, push buttons velcro, push buttons

Accessory bag EASyS 1 EASyS 2

Item code 6639/4 6639/4
Size (w x h x d) 30 x 24 x 7 cm / 11.8 x 9.4 x 2.8" 30 x 24 x 7 cm / 11.8 x 9.4 x 2.8"
Number of pockets 4 (2x small; 2x large) 4 (2x small; 2x large)
Pocket size small (w x h) 13 x 13 cm / 5.1 x 5.1" 13 x 13 cm / 5.1 x 5.1"
Pocket size large (w x h) 30 x 24 cm / 11.8 x 9.4" 30 x 24 cm / 11.8 x 9.4"
Weight 0.26 kg / 0.57 lb 0.26 kg / 0.57 lb
Material nylon fabric (soil- and water-resisting), spacing interlaced yarns
Fixation screw connection at the upper backrest bar, detachable by zipper

Fabric, per meter EASyS uni black EASyS decor EASyS AGW

Item code 6652/4 6653/4 6658/4
Weight

200 gr/m² / 0.44 Ib/m² 200 gr/m² / 0.44 Ib/m² 380 gr/m² / 0.84 Ib/m²

Material 100 % Trevira CS 100 % Trevira CS Trevira CS
Flammability ame resistant; FMVSS 302 / DIN 75200

12

Tray, transparent EASyS 1 EASyS 2

Item code 6628/4 6728/4
Size (w x l) 56 x 33.2 cm / 22.0 x 13,0" 60 x 36.2cm / 23.6 x 14,2"
Height to seat surface 15 - 22 cm / 5.9 - 8.7" 15 - 22 cm / 5.9 - 8.7"
Inner edge height 2.5 cm / 1" 2.5 cm / 1"
Angle adjustment ca. 27° / approx. 27° ca. 27° / approx. 27°
Depth adjustment range 16 cm / 6.3" 19 cm / 7.5"
Cut-out (w x d) 41 x 14 cm / 16.1 x 5.5" 45.5 x 17.5 cm / 17.9 x 6.9"
Material thickness 8 mm / 0.3" 8 mm / 0.3"
Colour try plate transparent / uncoloured transparent / uncoloured
Weight 3.2 kg / 7.1 lb 3.45 kg / 7.6 lb
Material 2 x 4mm Polycarbonat; metal hardware st. 37 ((S235JR), galvanised
Fixation 2 locking pins 2 locking pins

picture not included in delivery

uni schwarz Dekor AGW

ACCESSORY FOR J CHASSIS

Transit tie down system J chassis 1 swivel front wheels J chassis 2 swivel front wheels

Item code 970066840 970067840
Norm ISO 7176/19 and ANSI/RESNA WC/vol. 1 - Section 19 6/22/99 Draft
Material steel
Fixation rmly attached to chassis
Hint restraint system not included in delivery

For further information please call: +49 (0) 47 61 / 8 86-68 or -63

Pneumatic wheels J chassis 1 J chassis 2

Item code 6647/4 6647/4
Wheel size swivel wheels (front) 7 x 1" 7 x 1"
Wheel size (rear) 10 x 11/8" 10 x 11/8"
Weight 2.42 kg / 5.34 lb 2.42 kg / 5.34 lb
Material rubber, plastic
Fixation front wheel: allen key; rear wheel: nut

Tilt-in space lever J chassis 1 J chassis 2

at push bar

Item code 6749/4 6749/4
Material plastic grip with bowden cable
Fixation screw connection at the push bar
Hint available for J chassis constructed from Dec. 06 on

Seat suspension J chassis green (extra soft) yellow (extra stiff) red (standard)

Item code 6641/4 6642/4 standard
Spring rate 11 N/mm 17 N/mm 14 N/mm
Height 5.2 cm / 2.0" 5.2 cm / 2.0" 5.2 cm / 2.0"
Weight 16 gr / 0.04 lb 18 gr / 0.04 lb 17 gr / 0.04 lb
Material steel

13

NOTES

14

NOTES

15

Item code: 95343, status: 07/2007, subject to technical alterations

Me mbe r of th e I nte rn ati ona l
Su ppo rt A sso ci ati on fo r t he
Re hab il ita ti o n of Ch ild ren a nd You ths e .V.

Walkmühlenstraße 1 · D - 27432 Bremervörde

Phone: [phone] / 8 86-68 or -63 · Fax: [phone] / 8 86-19

E-mail: [e-mail] · www.thomashilfen.com
