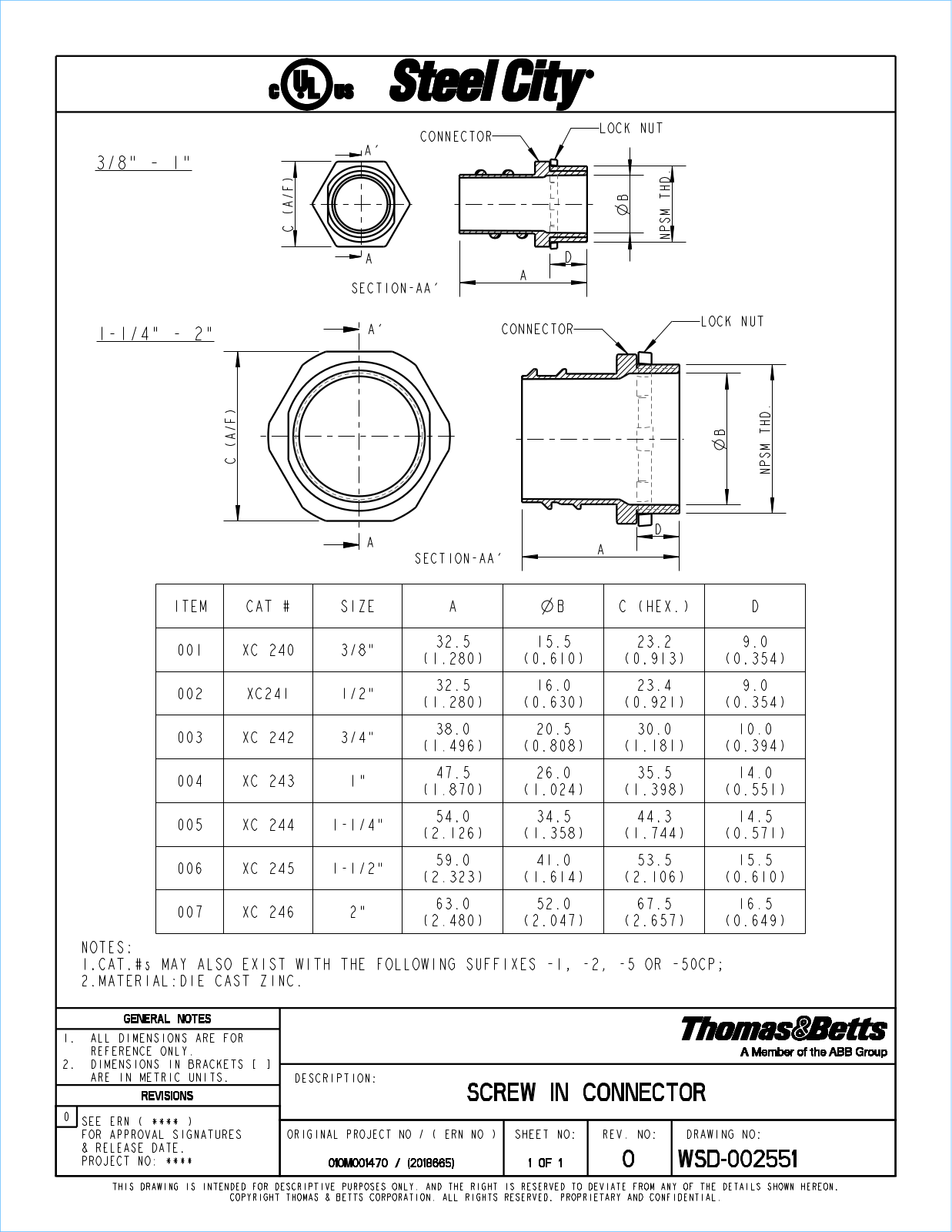

Thomas & Betts XC240 Data Sheet
3/8" - 1"
A'
CONNECTOR
LOCK NUT
1-1/4" - 2"
ITEM CAT # SIZE A C (HEX.) D
001 XC 240 3/8"
C (A/F)
C (A/F)
A
SECTION-AA'
A'
A
SECTION-AA'
(1.280)
32.5
A
CONNECTOR
15.5
(0.610)
NPSM THD.
D
LOCK NUT
NPSM THD.
D
A
23.2
(0.913)
9.0
(0.354)
002 XC241 1/2"
003 XC 242 3/4"
004 XC 243 1"
005 XC 244 1-1/4"
006 XC 245 1-1/2"
007 XC 246 2"
32.5
(1.280)
38.0
(1.496)
47.5
(1.870)
54.0
(2.126)
59.0
(2.323)
63.0
(2.480)
16.0
(0.630)
20.5
(0.808)
26.0
(1.024)
34.5
(1.358)
41.0
(1.614)
52.0
(2.047)
23.4
(0.921)
30.0
(1.181)
35.5
(1.398)
44.3
(1.744)
53.5
(2.106)
67.5
(2.657)
NOTES:
1.CAT.#s MAY ALSO EXIST WITH THE FOLLOWING SUFFIXES -1, -2, -5 OR -50CP;
2.MATERIAL:DIE CAST ZINC.
GENERAL NOTES
1. ALL DIMENSIONS ARE FOR
REFERENCE ONLY.
2. DIMENSIONS IN BRACKETS [ ]
ARE IN METRIC UNITS.
REVISIONS
0
SEE ERN ( **** )
FOR APPROVAL SIGNATURES
& RELEASE DATE.
PROJECT NO: ****
THIS DRAWING IS INTENDED FOR DESCRIPTIVE PURPOSES ONLY. AND THE RIGHT IS RESERVED TO DEVIATE FROM ANY OF THE DETAILS SHOWN HEREON.
COPYRIGHT THOMAS & BETTS CORPORATION. ALL RIGHTS RESERVED. PROPRIETARY AND CONFIDENTIAL.
DESCRIPTION:
SCREW IN CONNECTOR
ORIGINAL PROJECT NO / ( ERN NO )
010M001470 / (2018665) 1 OF 1 0 WSD-002551
SHEET NO: REV. NO: DRAWING NO:
9.0
(0.354)
10.0
(0.394)
14.0
(0.551)
14.5
(0.571)
15.5
(0.610)
16.5
(0.649)
