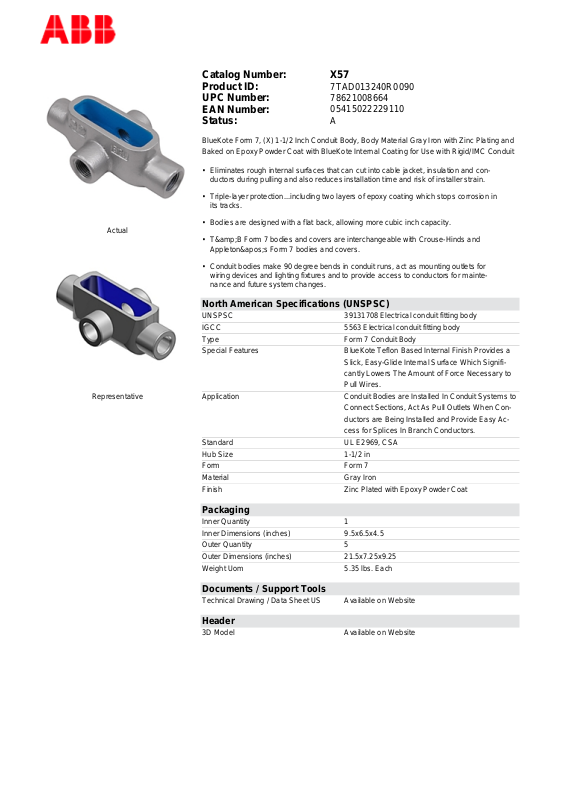

Thomas & Betts X57 Data Sheet

Catalog Number: X57
Product ID:
UPC Number:
EAN Number:
Status:

BlueKote Form 7, (X) 1-1/2 Inch Conduit Body, Body Material Gray Iron with Zinc Plating and
Baked on Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit

• Eliminates rough internal surfaces that can cut into cable jacket, insulation and con­ductors during pulling and also reduces installation time and risk of installer strain.

• Triple-layer protection...including two layers of epoxy coating which stops corrosion in
its tracks.

7TAD013240R0090
78621008664
05415022229110
A

Actual

Representative

• Bodies are designed with a flat back, allowing more cubic inch capacity.

• T&B Form 7 bodies and covers are interchangeable with Crouse-Hinds and
Appleton's Form 7 bodies and covers.

• Conduit bodies make 90 degree bends in conduit runs, act as mounting outlets for
wiring devices and lighting fixtures and to provide access to conductors for mainte­nance and future system changes.

North American Specifications (UNSPSC)

UNSPSC 39131708 Electrical conduit fitting body
IGCC 5563 Electrical conduit fitting body
Type Form 7 Conduit Body
Special Features BlueKote Teflon Based Internal Finish Provides a

Slick, Easy-Glide Internal Surface Which Signifi­cantly Lowers The Amount of Force Necessary to
Pull Wires.

Application Conduit Bodies are Installed In Conduit Systems to

Connect Sections, Act As Pull Outlets When Con­ductors are Being Installed and Provide Easy Ac-

cess for Splices In Branch Conductors.
Standard UL E2969, CSA
Hub Size 1-1/2 in
Form Form 7
Material Gray Iron
Finish Zinc Plated with Epoxy Powder Coat

Packaging

Inner Quantity 1
Inner Dimensions (inches) 9.5x6.5x4.5
Outer Quantity 5
Outer Dimensions (inches) 21.5x7.25x9.25
Weight Uom 5.35 lbs. Each

Documents / Support Tools

Technical Drawing / Data Sheet US Available on Website

Header

3D Model Available on Website
