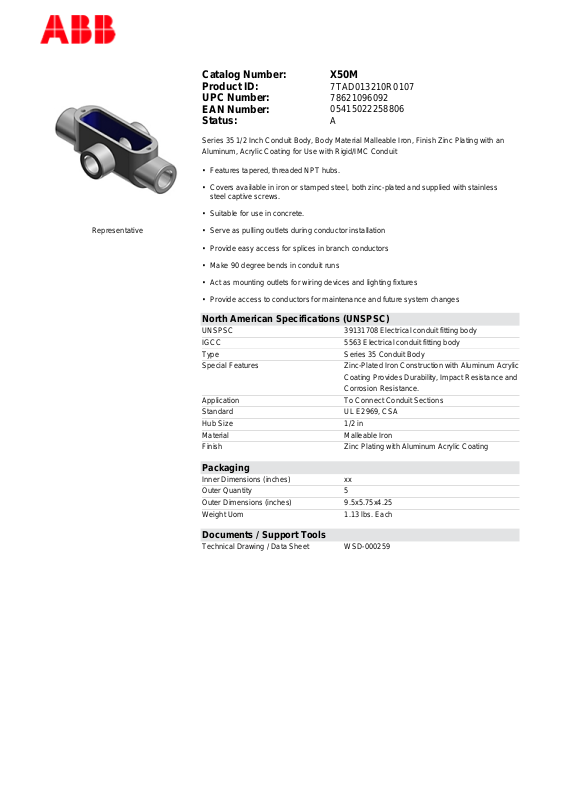

Thomas & Betts X50M Data Sheet

Catalog Number: X50M
Product ID:
UPC Number:
EAN Number:
Status:

Series 35 1/2 Inch Conduit Body, Body Material Malleable Iron, Finish Zinc Plating with an
Aluminum, Acrylic Coating for Use with Rigid/IMC Conduit

• Features tapered, threaded NPT hubs.

• Covers available in iron or stamped steel, both zinc-plated and supplied with stainless
steel captive screws.

• Suitable for use in concrete.

7TAD013210R0107
78621096092
05415022258806
A

Representative

• Serve as pulling outlets during conductor installation

• Provide easy access for splices in branch conductors

• Make 90 degree bends in conduit runs

• Act as mounting outlets for wiring devices and lighting fixtures

• Provide access to conductors for maintenance and future system changes

North American Specifications (UNSPSC)

UNSPSC 39131708 Electrical conduit fitting body
IGCC 5563 Electrical conduit fitting body
Type Series 35 Conduit Body
Special Features Zinc-Plated Iron Construction with Aluminum Acrylic

Coating Provides Durability, Impact Resistance and

Corrosion Resistance.
Application To Connect Conduit Sections
Standard UL E2969, CSA
Hub Size 1/2 in
Material Malleable Iron
Finish Zinc Plating with Aluminum Acrylic Coating

Packaging

Inner Dimensions (inches) xx
Outer Quantity 5
Outer Dimensions (inches) 9.5x5.75x4.25
Weight Uom 1.13 lbs. Each

Documents / Support Tools

Technical Drawing / Data Sheet WSD-000259
