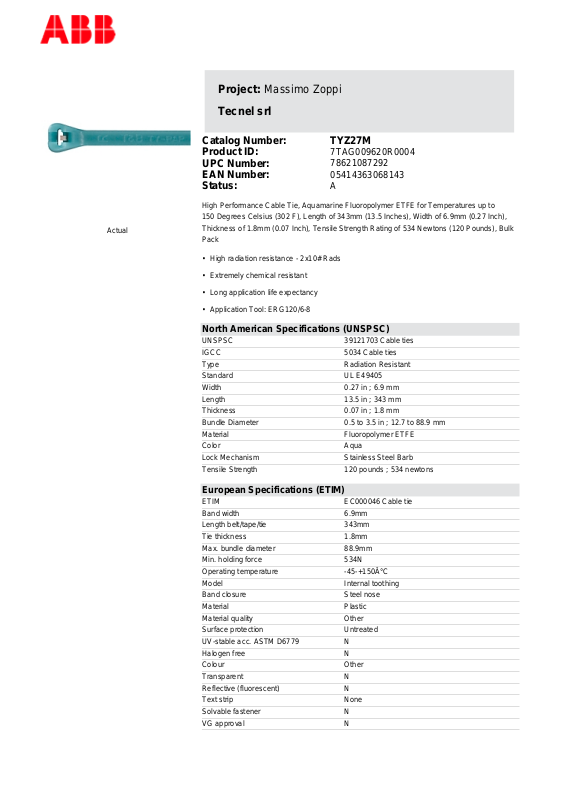

Thomas & Betts TYZ27M Data Sheet

Actual

Project: Massimo Zoppi
Tecnel srl

Catalog Number: TYZ27M
Product ID:
UPC Number:
EAN Number:
Status:

High Performance Cable Tie, Aquamarine Fluoropolymer ETFE for Temperatures up to
150 Degrees Celsius (302 F), Length of 343mm (13.5 Inches), Width of 6.9mm (0.27 Inch),
Thickness of 1.8mm (0.07 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Bulk
Pack

• High radiation resistance - 2x10# Rads

• Extremely chemical resistant

• Long application life expectancy

• Application Tool: ERG120/6-8

North American Specifications (UNSPSC)

UNSPSC 39121703 Cable ties
IGCC 5034 Cable ties
Type Radiation Resistant
Standard UL E49405
Width 0.27 in ; 6.9 mm
Length 13.5 in ; 343 mm
Thickness 0.07 in ; 1.8 mm
Bundle Diameter 0.5 to 3.5 in ; 12.7 to 88.9 mm
Material Fluoropolymer ETFE
Color Aqua
Lock Mechanism Stainless Steel Barb
Tensile Strength 120 pounds ; 534 newtons

7TAG009620R0004
78621087292
05414363068143
A

European Specifications (ETIM)

ETIM EC000046 Cable tie
Band width 6.9mm
Length belt/tape/tie 343mm
Tie thickness 1.8mm
Max. bundle diameter 88.9mm
Min. holding force 534N
Operating temperature -45-+150°C
Model Internal toothing
Band closure Steel nose
Material Plastic
Material quality Other
Surface protection Untreated
UV-stable acc. ASTM D6779 N
Halogen free N
Colour Other
Transparent N
Reflective (fluorescent) N
Text strip None
Solvable fastener N
VG approval N

MIL approval N
UL approval Y

Packaging

Inner Quantity 100
Inner Dimensions (inches) 27x6x0
Outer Quantity 500
Outer Dimensions (inches) 15.7x5.6x10
Weight Uom 2 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet TDS000517
