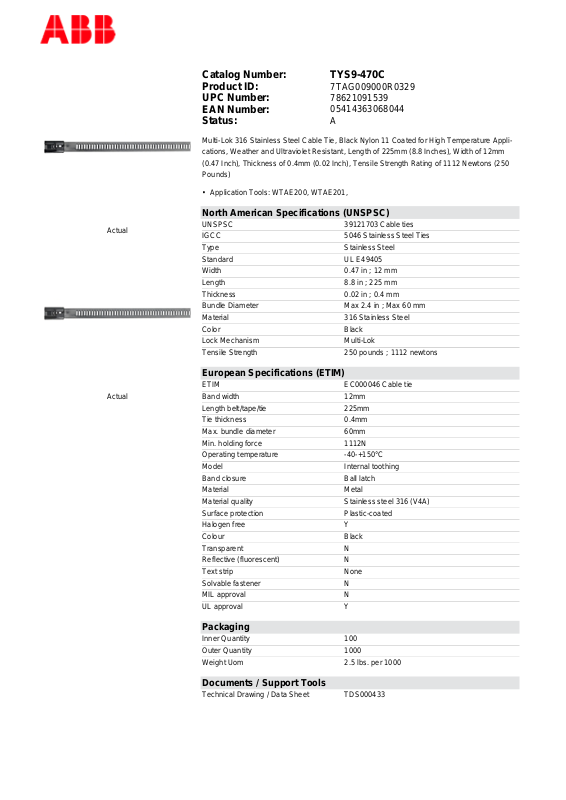

Thomas & Betts TYS9-470C Data Sheet

Actual

Catalog Number: TYS9-470C
Product ID:
UPC Number:
EAN Number:
Status:

Multi-Lok 316 Stainless Steel Cable Tie, Black Nylon 11 Coated for High Temperature Appli­cations, Weather and Ultraviolet Resistant, Length of 225mm (8.8 Inches), Width of 12mm
(0.47 Inch), Thickness of 0.4mm (0.02 Inch), Tensile Strength Rating of 1112 Newtons (250
Pounds)

• Application Tools: WTAE200, WTAE201,

North American Specifications (UNSPSC)

UNSPSC 39121703 Cable ties
IGCC 5046 Stainless Steel Ties
Type Stainless Steel
Standard UL E49405
Width 0.47 in ; 12 mm
Length 8.8 in ; 225 mm
Thickness 0.02 in ; 0.4 mm
Bundle Diameter Max 2.4 in ; Max 60 mm
Material 316 Stainless Steel
Color Black
Lock Mechanism Multi-Lok
Tensile Strength 250 pounds ; 1112 newtons

7TAG009000R0329
78621091539
05414363068044
A

Actual

European Specifications (ETIM)

ETIM EC000046 Cable tie
Band width 12mm
Length belt/tape/tie 225mm
Tie thickness 0.4mm
Max. bundle diameter 60mm
Min. holding force 1112N
Operating temperature -40-+150°C
Model Internal toothing
Band closure Ball latch
Material Metal
Material quality Stainless steel 316 (V4A)
Surface protection Plastic-coated
Halogen free Y
Colour Black
Transparent N
Reflective (fluorescent) N
Text strip None
Solvable fastener N
MIL approval N
UL approval Y

Packaging

Inner Quantity 100
Outer Quantity 1000
Weight Uom 2.5 lbs. per 1000

Documents / Support Tools

Technical Drawing / Data Sheet TDS000433
