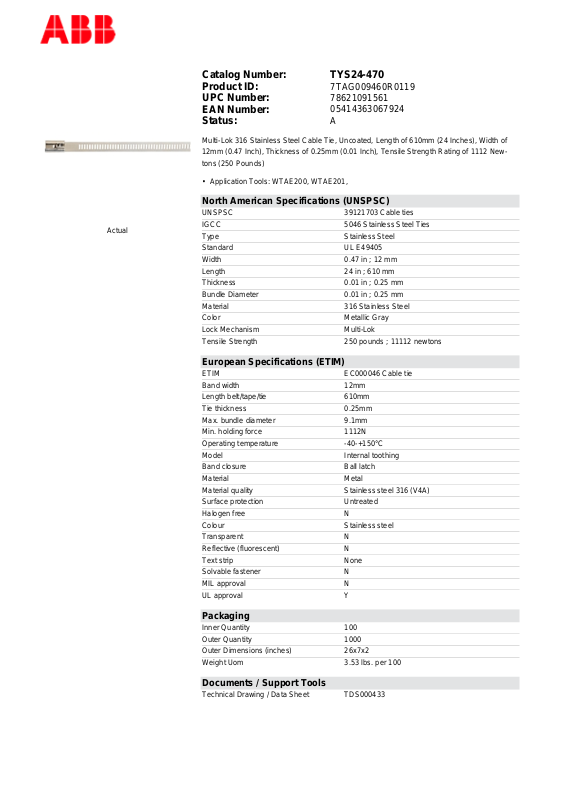

Thomas & Betts TYS24-470 Data Sheet

Actual

Catalog Number: TYS24-470
Product ID:
UPC Number:
EAN Number:
Status:

Multi-Lok 316 Stainless Steel Cable Tie, Uncoated, Length of 610mm (24 Inches), Width of
12mm (0.47 Inch), Thickness of 0.25mm (0.01 Inch), Tensile Strength Rating of 1112 New­tons (250 Pounds)

• Application Tools: WTAE200, WTAE201,

North American Specifications (UNSPSC)

UNSPSC 39121703 Cable ties
IGCC 5046 Stainless Steel Ties
Type Stainless Steel
Standard UL E49405
Width 0.47 in ; 12 mm
Length 24 in ; 610 mm
Thickness 0.01 in ; 0.25 mm
Bundle Diameter 0.01 in ; 0.25 mm
Material 316 Stainless Steel
Color Metallic Gray
Lock Mechanism Multi-Lok
Tensile Strength 250 pounds ; 11112 newtons

7TAG009460R0119
78621091561
05414363067924
A

European Specifications (ETIM)

ETIM EC000046 Cable tie
Band width 12mm
Length belt/tape/tie 610mm
Tie thickness 0.25mm
Max. bundle diameter 9.1mm
Min. holding force 1112N
Operating temperature -40-+150°C
Model Internal toothing
Band closure Ball latch
Material Metal
Material quality Stainless steel 316 (V4A)
Surface protection Untreated
Halogen free N
Colour Stainless steel
Transparent N
Reflective (fluorescent) N
Text strip None
Solvable fastener N
MIL approval N
UL approval Y

Packaging

Inner Quantity 100
Outer Quantity 1000
Outer Dimensions (inches) 26x7x2
Weight Uom 3.53 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet TDS000433
