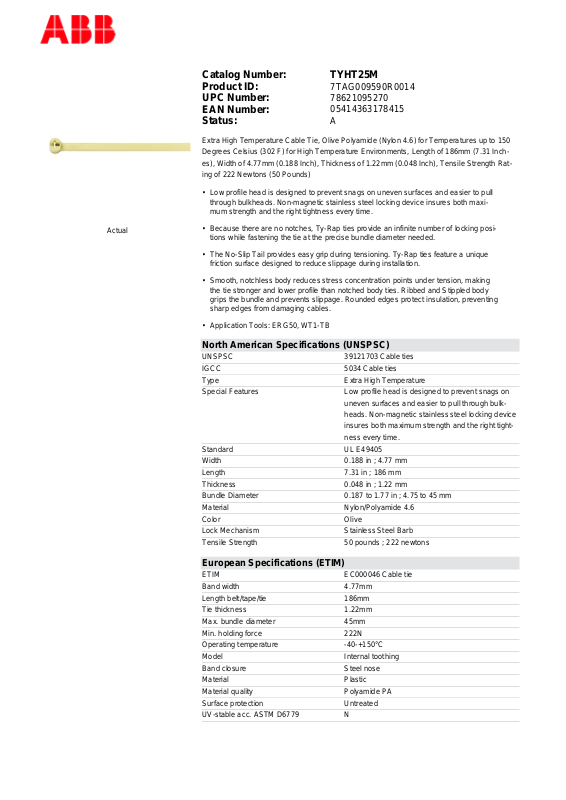

Thomas & Betts TYHT25M Data Sheet

Catalog Number: TYHT25M
Product ID:
UPC Number:
EAN Number:
Status:

Extra High Temperature Cable Tie, Olive Polyamide (Nylon 4.6) for Temperatures up to 150
Degrees Celsius (302 F) for High Temperature Environments, Length of 186mm (7.31 Inch­es), Width of 4.77mm (0.188 Inch), Thickness of 1.22mm (0.048 Inch), Tensile Strength Rat­ing of 222 Newtons (50 Pounds)

• Low profile head is designed to prevent snags on uneven surfaces and easier to pull
through bulkheads. Non-magnetic stainless steel locking device insures both maxi­mum strength and the right tightness every time.

7TAG009590R0014
78621095270
05414363178415
A

Actual

• Because there are no notches, Ty-Rap ties provide an infinite number of locking posi­tions while fastening the tie at the precise bundle diameter needed.

• The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique
friction surface designed to reduce slippage during installation.

• Smooth, notchless body reduces stress concentration points under tension, making
the tie stronger and lower profile than notched body ties. Ribbed and Stippled body
grips the bundle and prevents slippage. Rounded edges protect insulation, preventing
sharp edges from damaging cables.

• Application Tools: ERG50, WT1-TB

North American Specifications (UNSPSC)

UNSPSC 39121703 Cable ties
IGCC 5034 Cable ties
Type Extra High Temperature
Special Features Low profile head is designed to prevent snags on

uneven surfaces and easier to pull through bulk­heads. Non-magnetic stainless steel locking device
insures both maximum strength and the right tight-

ness every time.
Standard UL E49405
Width 0.188 in ; 4.77 mm
Length 7.31 in ; 186 mm
Thickness 0.048 in ; 1.22 mm
Bundle Diameter 0.187 to 1.77 in ; 4.75 to 45 mm
Material Nylon/Polyamide 4.6
Color Olive
Lock Mechanism Stainless Steel Barb
Tensile Strength 50 pounds ; 222 newtons

European Specifications (ETIM)

ETIM EC000046 Cable tie
Band width 4.77mm
Length belt/tape/tie 186mm
Tie thickness 1.22mm
Max. bundle diameter 45mm
Min. holding force 222N
Operating temperature -40-+150°C
Model Internal toothing
Band closure Steel nose
Material Plastic
Material quality Polyamide PA
Surface protection Untreated
UV-stable acc. ASTM D6779 N

Halogen free Y
Colour Other
Transparent N
Reflective (fluorescent) N
Text strip None
Solvable fastener N
VG approval N
MIL approval N
UL approval Y

Packaging

Inner Quantity 1000
Inner Dimensions (inches) 15x1x14
Outer Quantity 10000
Outer Dimensions (inches) 13.12x9.12x20.75
Weight Uom 3 lbs. per 1000

Documents / Support Tools

Technical Drawing / Data Sheet WSD-000156
