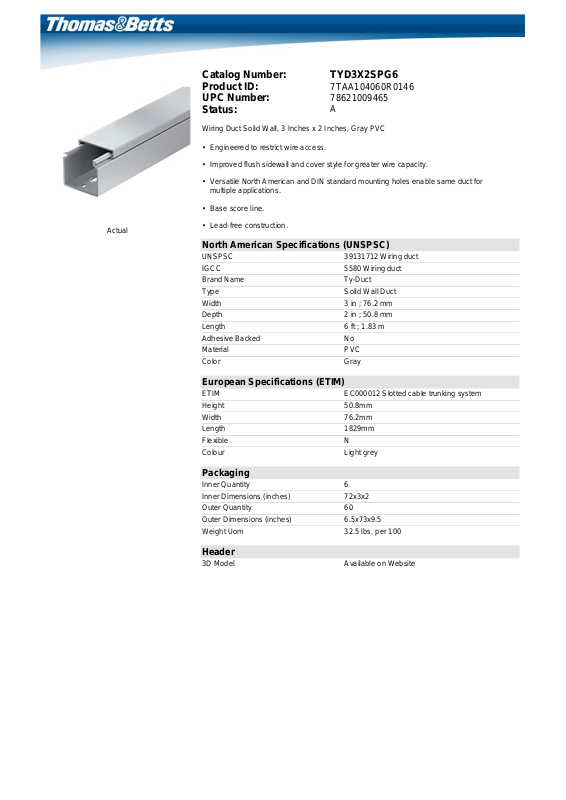

Thomas & Betts TYD3X2SPG6 Data Sheet

Catalog Number: TYD3X2SPG6
Product ID:
UPC Number:
Status:

Wiring Duct Solid Wall, 3 Inches x 2 Inches, Gray PVC

• Engineered to restrict wire access.

• Improved flush sidewall and cover style for greater wire capacity.

• Versatile North American and DIN standard mounting holes enable same duct for
multiple applications.

• Base score line.

7TAA104060R0146
78621009465
A

Actual

• Lead-free construction.

North American Specifications (UNSPSC)

UNSPSC 39131712 Wiring duct
IGCC 5580 Wiring duct
Brand Name Ty-Duct
Type Solid Wall Duct
Width 3 in ; 76.2 mm
Depth 2 in ; 50.8 mm
Length 6 ft ; 1.83 m
Adhesive Backed No
Material PVC
Color Gray

European Specifications (ETIM)

ETIM EC000012 Slotted cable trunking system
Height 50.8mm
Width 76.2mm
Length 1829mm
Flexible N
Colour Light grey

Packaging

Inner Quantity 6
Inner Dimensions (inches) 72x3x2
Outer Quantity 60
Outer Dimensions (inches) 6.5x73x9.5
Weight Uom 32.5 lbs. per 100

Header

3D Model Available on Website
