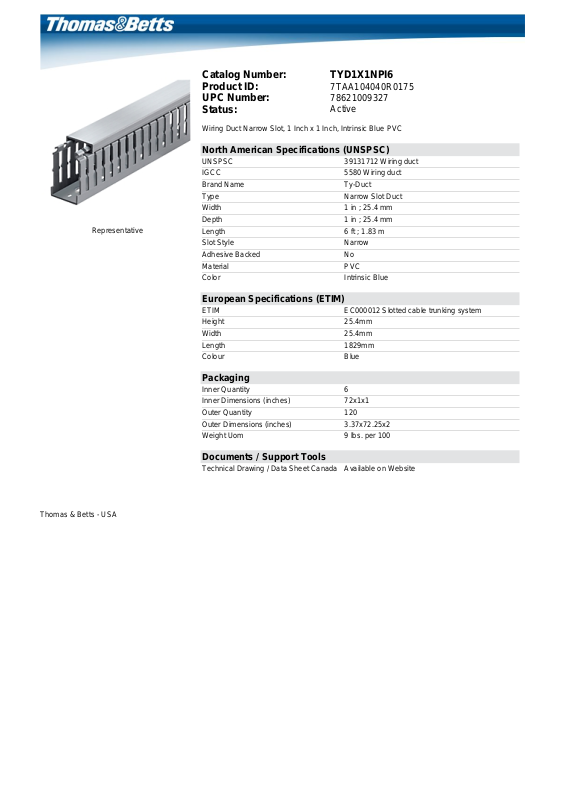

Thomas & Betts TYD1X1NPI6 Data Sheet

Representative

Catalog Number: TYD1X1NPI6
Product ID:
UPC Number:
Status:

Wiring Duct Narrow Slot, 1 Inch x 1 Inch, Intrinsic Blue PVC

North American Specifications (UNSPSC)

UNSPSC 39131712 Wiring duct
IGCC 5580 Wiring duct
Brand Name Ty-Duct
Type Narrow Slot Duct
Width 1 in ; 25.4 mm
Depth 1 in ; 25.4 mm
Length 6 ft ; 1.83 m
Slot Style Narrow
Adhesive Backed No
Material PVC
Color Intrinsic Blue

European Specifications (ETIM)

ETIM EC000012 Slotted cable trunking system
Height 25.4mm
Width 25.4mm
Length 1829mm
Colour Blue

7TAA104040R0175
78621009327
Active

Thomas & Betts - USA

Packaging

Inner Quantity 6
Inner Dimensions (inches) 72x1x1
Outer Quantity 120
Outer Dimensions (inches) 3.37x72.25x2
Weight Uom 9 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet Canada Available on Website
