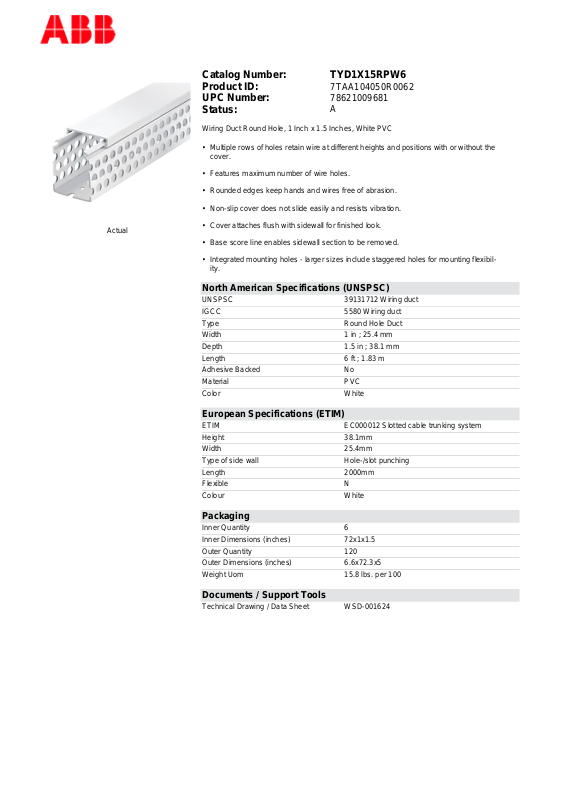

Thomas & Betts TYD1X15RPW6 Data Sheet

Catalog Number: TYD1X15RPW6
Product ID:
UPC Number:
Status:

Wiring Duct Round Hole, 1 Inch x 1.5 Inches, White PVC

• Multiple rows of holes retain wire at different heights and positions with or without the
cover.

• Features maximum number of wire holes.

• Rounded edges keep hands and wires free of abrasion.

• Non-slip cover does not slide easily and resists vibration.

7TAA104050R0062
78621009681
A

Actual

• Cover attaches flush with sidewall for finished look.

• Base score line enables sidewall section to be removed.

• Integrated mounting holes - larger sizes include staggered holes for mounting flexibil­ity.

North American Specifications (UNSPSC)

UNSPSC 39131712 Wiring duct
IGCC 5580 Wiring duct
Type Round Hole Duct
Width 1 in ; 25.4 mm
Depth 1.5 in ; 38.1 mm
Length 6 ft ; 1.83 m
Adhesive Backed No
Material PVC
Color White

European Specifications (ETIM)

ETIM EC000012 Slotted cable trunking system
Height 38.1mm
Width 25.4mm
Type of side wall Hole-/slot punching
Length 2000mm
Flexible N
Colour White

Packaging

Inner Quantity 6
Inner Dimensions (inches) 72x1x1.5
Outer Quantity 120
Outer Dimensions (inches) 6.6x72.3x5
Weight Uom 15.8 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet WSD-001624
