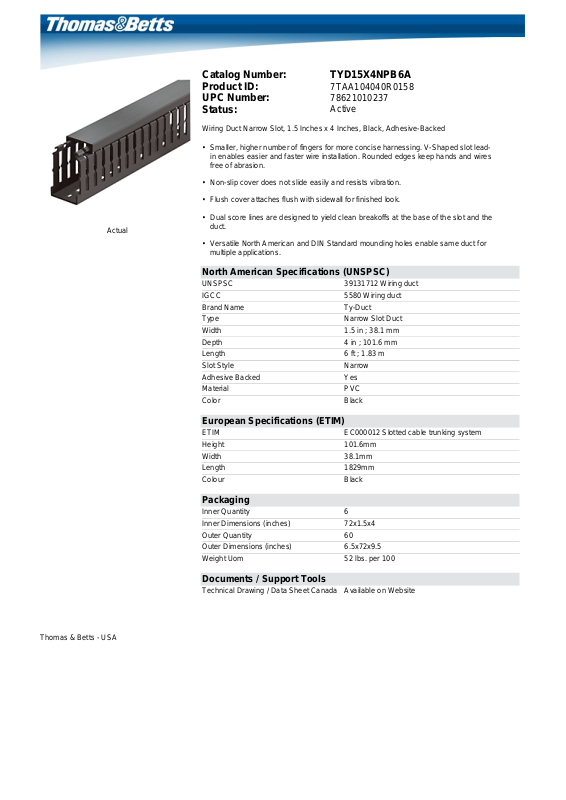

Thomas & Betts TYD15X4NPB6A Data Sheet

Actual

Catalog Number: TYD15X4NPB6A
Product ID:
UPC Number:
Status:

Wiring Duct Narrow Slot, 1.5 Inches x 4 Inches, Black, Adhesive-Backed

• Smaller, higher number of fingers for more concise harnessing. V-Shaped slot lead­in enables easier and faster wire installation. Rounded edges keep hands and wires
free of abrasion.

• Non-slip cover does not slide easily and resists vibration.

• Flush cover attaches flush with sidewall for finished look.

• Dual score lines are designed to yield clean breakoffs at the base of the slot and the
duct.

• Versatile North American and DIN Standard mounding holes enable same duct for
multiple applications.

North American Specifications (UNSPSC)

UNSPSC 39131712 Wiring duct
IGCC 5580 Wiring duct
Brand Name Ty-Duct
Type Narrow Slot Duct
Width 1.5 in ; 38.1 mm
Depth 4 in ; 101.6 mm
Length 6 ft ; 1.83 m
Slot Style Narrow
Adhesive Backed Yes
Material PVC
Color Black

7TAA104040R0158
78621010237
Active

Thomas & Betts - USA

European Specifications (ETIM)

ETIM EC000012 Slotted cable trunking system
Height 101.6mm
Width 38.1mm
Length 1829mm
Colour Black

Packaging

Inner Quantity 6
Inner Dimensions (inches) 72x1.5x4
Outer Quantity 60
Outer Dimensions (inches) 6.5x72x9.5
Weight Uom 52 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet Canada Available on Website
