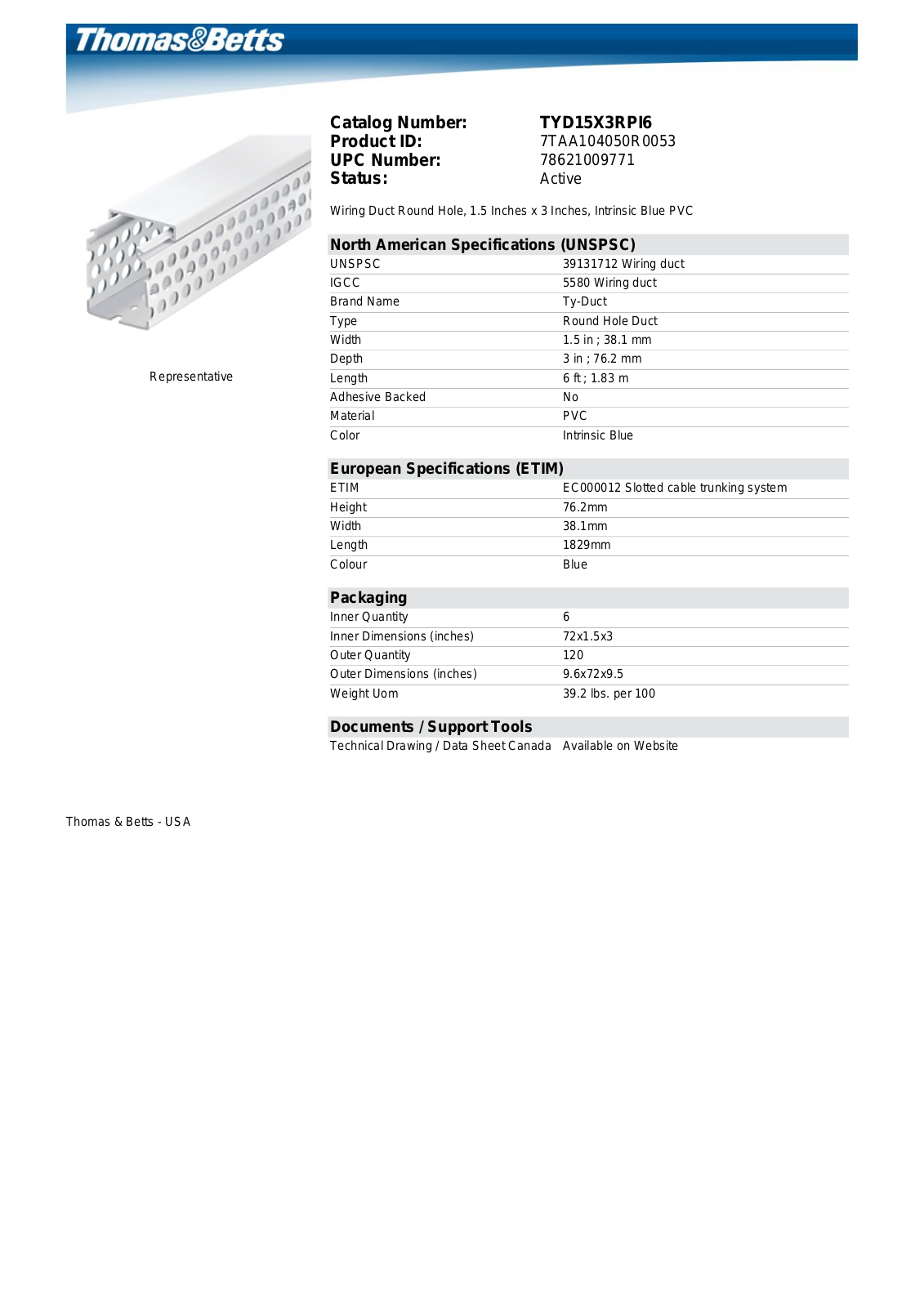

Thomas & Betts TYD15X3RPI6 Data Sheet

Representative

Catalog Number: TYD15X3RPI6
Product ID:
UPC Number:
Status:

Wiring Duct Round Hole, 1.5 Inches x 3 Inches, Intrinsic Blue PVC

North American Specifications (UNSPSC)

UNSPSC 39131712 Wiring duct
IGCC 5580 Wiring duct
Brand Name Ty-Duct
Type Round Hole Duct
Width 1.5 in ; 38.1 mm
Depth 3 in ; 76.2 mm
Length 6 ft ; 1.83 m
Adhesive Backed No
Material PVC
Color Intrinsic Blue

European Specifications (ETIM)

ETIM EC000012 Slotted cable trunking system
Height 76.2mm
Width 38.1mm
Length 1829mm
Colour Blue

7TAA104050R0053
78621009771
Active

Thomas & Betts - USA

Packaging

Inner Quantity 6
Inner Dimensions (inches) 72x1.5x3
Outer Quantity 120
Outer Dimensions (inches) 9.6x72x9.5
Weight Uom 39.2 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet Canada Available on Website
