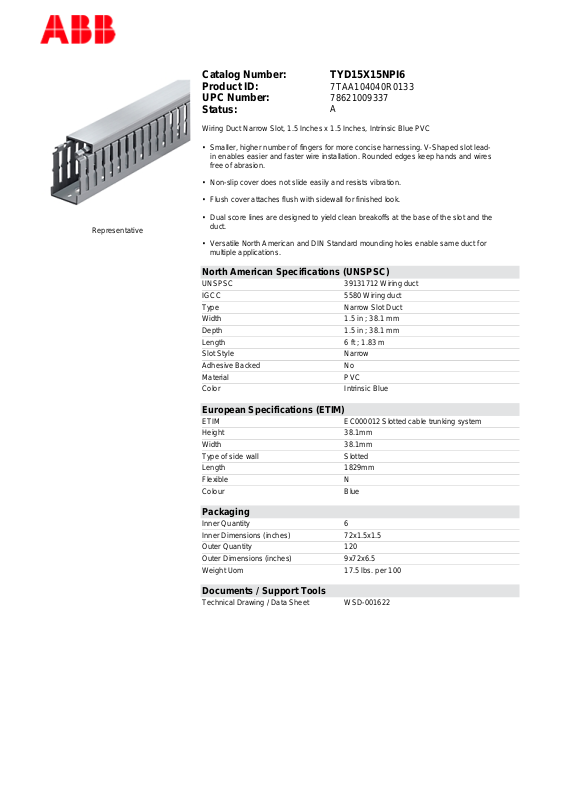

Thomas & Betts TYD15X15NPI6 Data Sheet

Representative

Catalog Number: TYD15X15NPI6
Product ID:
UPC Number:
Status:

Wiring Duct Narrow Slot, 1.5 Inches x 1.5 Inches, Intrinsic Blue PVC

• Smaller, higher number of fingers for more concise harnessing. V-Shaped slot lead­in enables easier and faster wire installation. Rounded edges keep hands and wires
free of abrasion.

• Non-slip cover does not slide easily and resists vibration.

• Flush cover attaches flush with sidewall for finished look.

• Dual score lines are designed to yield clean breakoffs at the base of the slot and the
duct.

• Versatile North American and DIN Standard mounding holes enable same duct for
multiple applications.

North American Specifications (UNSPSC)

UNSPSC 39131712 Wiring duct
IGCC 5580 Wiring duct
Type Narrow Slot Duct
Width 1.5 in ; 38.1 mm
Depth 1.5 in ; 38.1 mm
Length 6 ft ; 1.83 m
Slot Style Narrow
Adhesive Backed No
Material PVC
Color Intrinsic Blue

7TAA104040R0133
78621009337
A

European Specifications (ETIM)

ETIM EC000012 Slotted cable trunking system
Height 38.1mm
Width 38.1mm
Type of side wall Slotted
Length 1829mm
Flexible N
Colour Blue

Packaging

Inner Quantity 6
Inner Dimensions (inches) 72x1.5x1.5
Outer Quantity 120
Outer Dimensions (inches) 9x72x6.5
Weight Uom 17.5 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet WSD-001622
