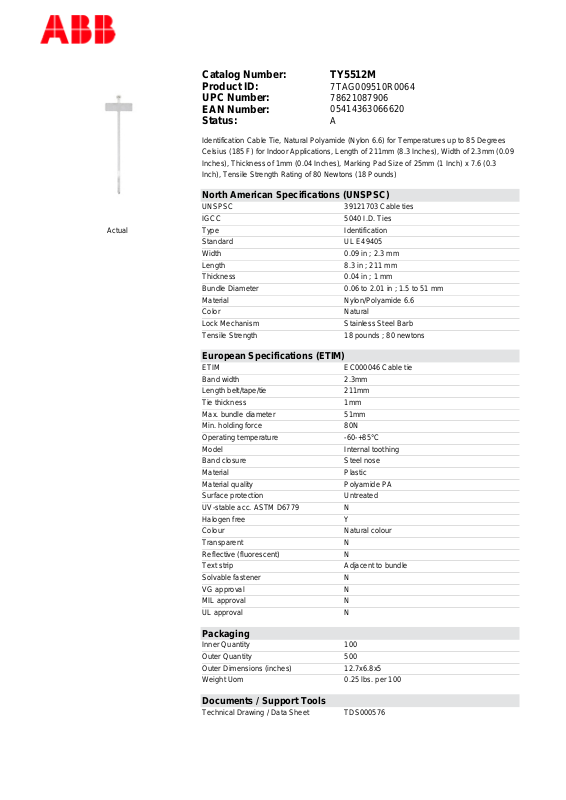

Thomas & Betts TY5512M Data Sheet

Actual

Catalog Number: TY5512M
Product ID:
UPC Number:
EAN Number:
Status:

Identification Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees
Celsius (185 F) for Indoor Applications, Length of 211mm (8.3 Inches), Width of 2.3mm (0.09
Inches), Thickness of 1mm (0.04 Inches), Marking Pad Size of 25mm (1 Inch) x 7.6 (0.3
Inch), Tensile Strength Rating of 80 Newtons (18 Pounds)

North American Specifications (UNSPSC)

UNSPSC 39121703 Cable ties
IGCC 5040 I.D. Ties
Type Identification
Standard UL E49405
Width 0.09 in ; 2.3 mm
Length 8.3 in ; 211 mm
Thickness 0.04 in ; 1 mm
Bundle Diameter 0.06 to 2.01 in ; 1.5 to 51 mm
Material Nylon/Polyamide 6.6
Color Natural
Lock Mechanism Stainless Steel Barb
Tensile Strength 18 pounds ; 80 newtons

7TAG009510R0064
78621087906
05414363066620
A

European Specifications (ETIM)

ETIM EC000046 Cable tie
Band width 2.3mm
Length belt/tape/tie 211mm
Tie thickness 1mm
Max. bundle diameter 51mm
Min. holding force 80N
Operating temperature -60-+85°C
Model Internal toothing
Band closure Steel nose
Material Plastic
Material quality Polyamide PA
Surface protection Untreated
UV-stable acc. ASTM D6779 N
Halogen free Y
Colour Natural colour
Transparent N
Reflective (fluorescent) N
Text strip Adjacent to bundle
Solvable fastener N
VG approval N
MIL approval N
UL approval N

Packaging

Inner Quantity 100
Outer Quantity 500
Outer Dimensions (inches) 12.7x6.8x5
Weight Uom 0.25 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet TDS000576
