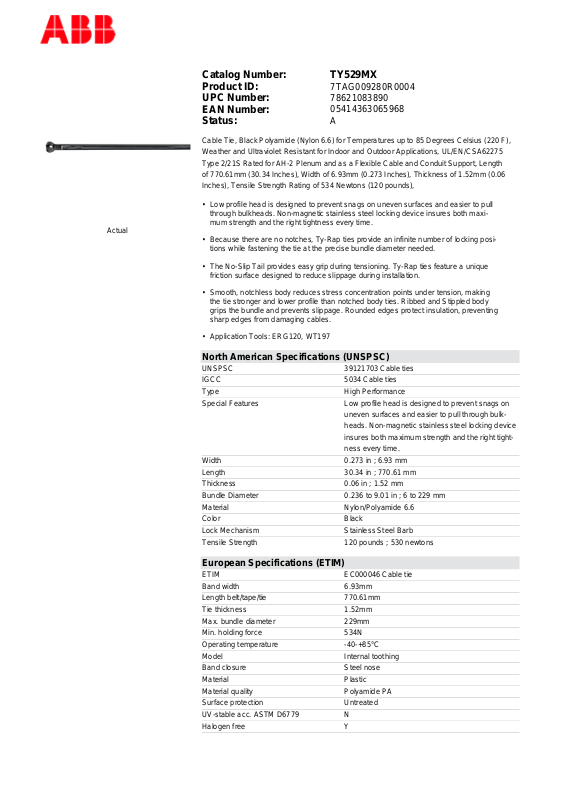

Thomas & Betts TY529MX Data Sheet

Actual

Catalog Number: TY529MX
Product ID:
UPC Number:
EAN Number:
Status:

Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (220 F),
Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, UL/EN/CSA62275
Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length
of 770.61mm (30.34 Inches), Width of 6.93mm (0.273 Inches), Thickness of 1.52mm (0.06
Inches), Tensile Strength Rating of 534 Newtons (120 pounds),

• Low profile head is designed to prevent snags on uneven surfaces and easier to pull
through bulkheads. Non-magnetic stainless steel locking device insures both maxi­mum strength and the right tightness every time.

• Because there are no notches, Ty-Rap ties provide an infinite number of locking posi­tions while fastening the tie at the precise bundle diameter needed.

• The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique
friction surface designed to reduce slippage during installation.

• Smooth, notchless body reduces stress concentration points under tension, making
the tie stronger and lower profile than notched body ties. Ribbed and Stippled body
grips the bundle and prevents slippage. Rounded edges protect insulation, preventing
sharp edges from damaging cables.

• Application Tools: ERG120, WT197

7TAG009280R0004
78621083890
05414363065968
A

North American Specifications (UNSPSC)

UNSPSC 39121703 Cable ties
IGCC 5034 Cable ties
Type High Performance
Special Features Low profile head is designed to prevent snags on

uneven surfaces and easier to pull through bulk­heads. Non-magnetic stainless steel locking device
insures both maximum strength and the right tight-

ness every time.
Width 0.273 in ; 6.93 mm
Length 30.34 in ; 770.61 mm
Thickness 0.06 in ; 1.52 mm
Bundle Diameter 0.236 to 9.01 in ; 6 to 229 mm
Material Nylon/Polyamide 6.6
Color Black
Lock Mechanism Stainless Steel Barb
Tensile Strength 120 pounds ; 530 newtons

European Specifications (ETIM)

ETIM EC000046 Cable tie
Band width 6.93mm
Length belt/tape/tie 770.61mm
Tie thickness 1.52mm
Max. bundle diameter 229mm
Min. holding force 534N
Operating temperature -40-+85°C
Model Internal toothing
Band closure Steel nose
Material Plastic
Material quality Polyamide PA
Surface protection Untreated
UV-stable acc. ASTM D6779 N
Halogen free Y

Colour Black
Transparent N
Reflective (fluorescent) N
Text strip None
Solvable fastener N
VG approval N
MIL approval Y
UL approval Y

Packaging

Inner Quantity 50
Inner Dimensions (inches) 36x6x0
Outer Quantity 500
Outer Dimensions (inches) 34.25x6.25x4.75
Weight Uom 2.19 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet WSD-000280
