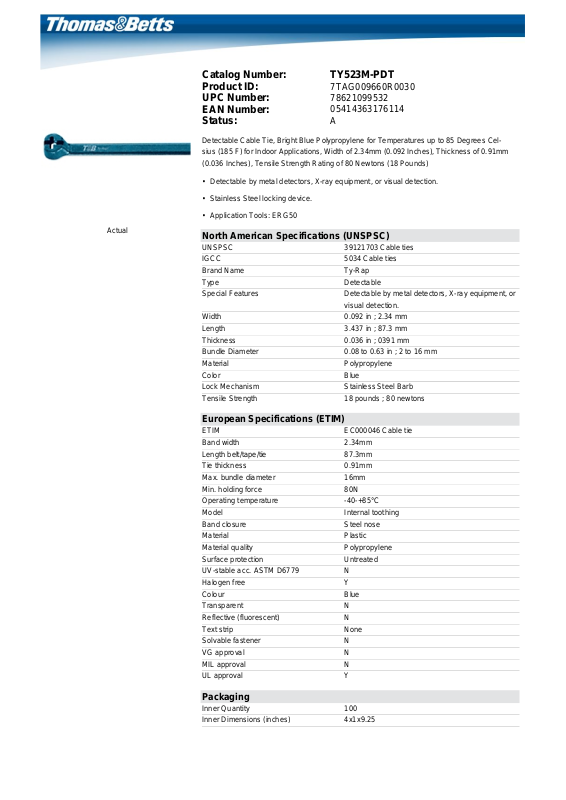

Thomas & Betts TY523M-PDT Data Sheet

Actual

Catalog Number: TY523M-PDT
Product ID:
UPC Number:
EAN Number:
Status:

Detectable Cable Tie, Bright Blue Polypropylene for Temperatures up to 85 Degrees Cel­sius (185 F) for Indoor Applications, Width of 2.34mm (0.092 Inches), Thickness of 0.91mm
(0.036 Inches), Tensile Strength Rating of 80 Newtons (18 Pounds)

• Detectable by metal detectors, X-ray equipment, or visual detection.

• Stainless Steel locking device.

• Application Tools: ERG50

North American Specifications (UNSPSC)

UNSPSC 39121703 Cable ties
IGCC 5034 Cable ties
Brand Name Ty-Rap
Type Detectable
Special Features Detectable by metal detectors, X-ray equipment, or

Width 0.092 in ; 2.34 mm
Length 3.437 in ; 87.3 mm
Thickness 0.036 in ; 0391 mm
Bundle Diameter 0.08 to 0.63 in ; 2 to 16 mm
Material Polypropylene
Color Blue
Lock Mechanism Stainless Steel Barb
Tensile Strength 18 pounds ; 80 newtons

7TAG009660R0030
78621099532
05414363176114
A

visual detection.

European Specifications (ETIM)

ETIM EC000046 Cable tie
Band width 2.34mm
Length belt/tape/tie 87.3mm
Tie thickness 0.91mm
Max. bundle diameter 16mm
Min. holding force 80N
Operating temperature -40-+85°C
Model Internal toothing
Band closure Steel nose
Material Plastic
Material quality Polypropylene
Surface protection Untreated
UV-stable acc. ASTM D6779 N
Halogen free Y
Colour Blue
Transparent N
Reflective (fluorescent) N
Text strip None
Solvable fastener N
VG approval N
MIL approval N
UL approval Y

Packaging

Inner Quantity 100
Inner Dimensions (inches) 4x1x9.25

Outer Quantity 1000
Outer Dimensions (inches) 13x10.75x10.75
Weight Uom 0.5 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet WSD-000276
Safety Data Sheet (SDS) Global SDS-00046-TB2
