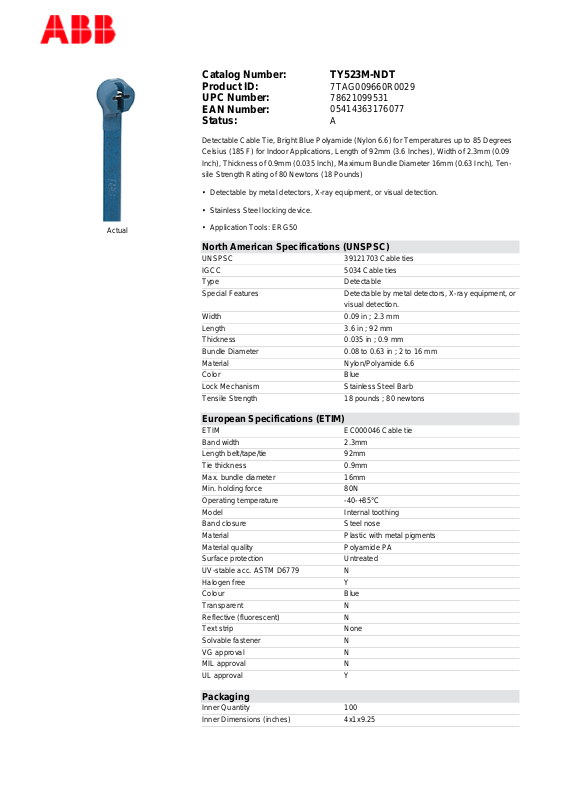

Thomas & Betts TY523M-NDT Data Sheet

Catalog Number: TY523M-NDT
Product ID:
UPC Number:
EAN Number:
Status:

Detectable Cable Tie, Bright Blue Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees
Celsius (185 F) for Indoor Applications, Length of 92mm (3.6 Inches), Width of 2.3mm (0.09
Inch), Thickness of 0.9mm (0.035 Inch), Maximum Bundle Diameter 16mm (0.63 Inch), Ten­sile Strength Rating of 80 Newtons (18 Pounds)

• Detectable by metal detectors, X-ray equipment, or visual detection.

• Stainless Steel locking device.

7TAG009660R0029
78621099531
05414363176077
A

Actual

• Application Tools: ERG50

North American Specifications (UNSPSC)

UNSPSC 39121703 Cable ties
IGCC 5034 Cable ties
Type Detectable
Special Features Detectable by metal detectors, X-ray equipment, or

visual detection.
Width 0.09 in ; 2.3 mm
Length 3.6 in ; 92 mm
Thickness 0.035 in ; 0.9 mm
Bundle Diameter 0.08 to 0.63 in ; 2 to 16 mm
Material Nylon/Polyamide 6.6
Color Blue
Lock Mechanism Stainless Steel Barb
Tensile Strength 18 pounds ; 80 newtons

European Specifications (ETIM)

ETIM EC000046 Cable tie
Band width 2.3mm
Length belt/tape/tie 92mm
Tie thickness 0.9mm
Max. bundle diameter 16mm
Min. holding force 80N
Operating temperature -40-+85°C
Model Internal toothing
Band closure Steel nose
Material Plastic with metal pigments
Material quality Polyamide PA
Surface protection Untreated
UV-stable acc. ASTM D6779 N
Halogen free Y
Colour Blue
Transparent N
Reflective (fluorescent) N
Text strip None
Solvable fastener N
VG approval N
MIL approval N
UL approval Y

Packaging

Inner Quantity 100
Inner Dimensions (inches) 4x1x9.25

Outer Quantity 1000
Outer Dimensions (inches) 12.75x10.75x10.75
Weight Uom 0.63 lbs. per 1000

Documents / Support Tools

Technical Drawing / Data Sheet TDS000442
Safety Data Sheet (SDS) Global SDS-00046-TB2
