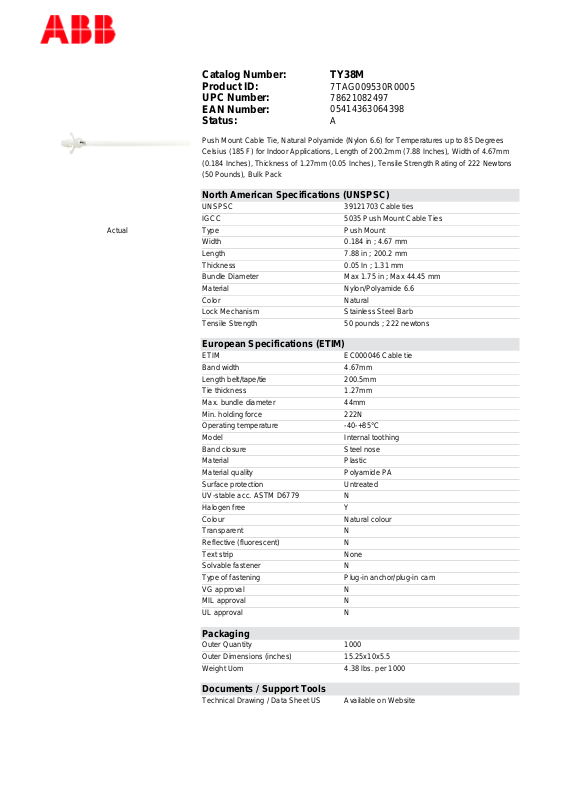

Thomas & Betts TY38M Data Sheet

Actual

Catalog Number: TY38M
Product ID:
UPC Number:
EAN Number:
Status:

Push Mount Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees
Celsius (185 F) for Indoor Applications, Length of 200.2mm (7.88 Inches), Width of 4.67mm
(0.184 Inches), Thickness of 1.27mm (0.05 Inches), Tensile Strength Rating of 222 Newtons
(50 Pounds), Bulk Pack

North American Specifications (UNSPSC)

UNSPSC 39121703 Cable ties
IGCC 5035 Push Mount Cable Ties
Type Push Mount
Width 0.184 in ; 4.67 mm
Length 7.88 in ; 200.2 mm
Thickness 0.05 In ; 1.31 mm
Bundle Diameter Max 1.75 in ; Max 44.45 mm
Material Nylon/Polyamide 6.6
Color Natural
Lock Mechanism Stainless Steel Barb
Tensile Strength 50 pounds ; 222 newtons

European Specifications (ETIM)

ETIM EC000046 Cable tie
Band width 4.67mm
Length belt/tape/tie 200.5mm
Tie thickness 1.27mm
Max. bundle diameter 44mm
Min. holding force 222N
Operating temperature -40-+85°C
Model Internal toothing
Band closure Steel nose
Material Plastic
Material quality Polyamide PA
Surface protection Untreated
UV-stable acc. ASTM D6779 N
Halogen free Y
Colour Natural colour
Transparent N
Reflective (fluorescent) N
Text strip None
Solvable fastener N
Type of fastening Plug-in anchor/plug-in cam
VG approval N
MIL approval N
UL approval N

7TAG009530R0005
78621082497
05414363064398
A

Packaging

Outer Quantity 1000
Outer Dimensions (inches) 15.25x10x5.5
Weight Uom 4.38 lbs. per 1000

Documents / Support Tools

Technical Drawing / Data Sheet US Available on Website
