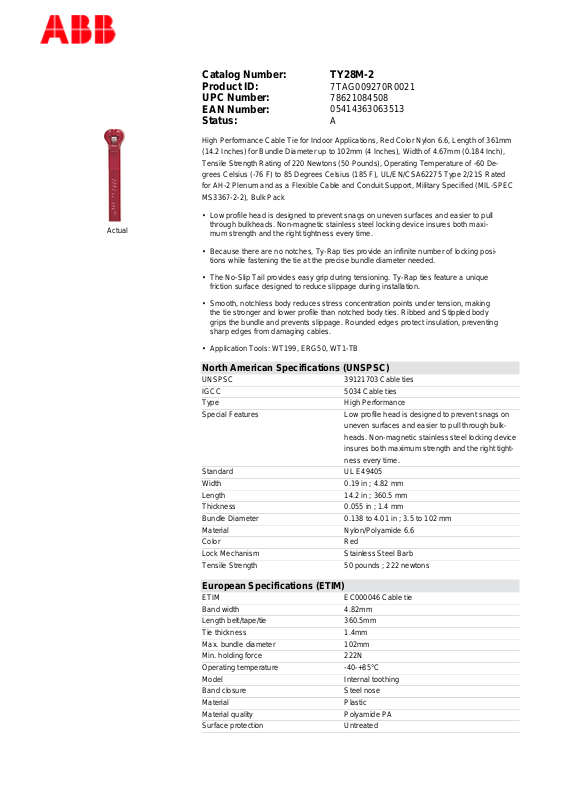

Thomas & Betts TY28M-2 Data Sheet

Actual

Catalog Number: TY28M-2
Product ID:
UPC Number:
EAN Number:
Status:

High Performance Cable Tie for Indoor Applications, Red Color Nylon 6.6, Length of 361mm
(14.2 Inches) for Bundle Diameter up to 102mm (4 Inches), Width of 4.67mm (0.184 Inch),
Tensile Strength Rating of 220 Newtons (50 Pounds), Operating Temperature of -60 De­grees Celsius (-76 F) to 85 Degrees Celsius (185 F), UL/EN/CSA62275 Type 2/21S Rated
for AH-2 Plenum and as a Flexible Cable and Conduit Support, Military Specified (MIL-SPEC
MS3367-2-2), Bulk Pack

• Low profile head is designed to prevent snags on uneven surfaces and easier to pull
through bulkheads. Non-magnetic stainless steel locking device insures both maxi­mum strength and the right tightness every time.

• Because there are no notches, Ty-Rap ties provide an infinite number of locking posi­tions while fastening the tie at the precise bundle diameter needed.

• The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique
friction surface designed to reduce slippage during installation.

• Smooth, notchless body reduces stress concentration points under tension, making
the tie stronger and lower profile than notched body ties. Ribbed and Stippled body
grips the bundle and prevents slippage. Rounded edges protect insulation, preventing
sharp edges from damaging cables.

• Application Tools: WT199, ERG50, WT1-TB

7TAG009270R0021
78621084508
05414363063513
A

North American Specifications (UNSPSC)

UNSPSC 39121703 Cable ties
IGCC 5034 Cable ties
Type High Performance
Special Features Low profile head is designed to prevent snags on

uneven surfaces and easier to pull through bulk­heads. Non-magnetic stainless steel locking device
insures both maximum strength and the right tight-

ness every time.
Standard UL E49405
Width 0.19 in ; 4.82 mm
Length 14.2 in ; 360.5 mm
Thickness 0.055 in ; 1.4 mm
Bundle Diameter 0.138 to 4.01 in ; 3.5 to 102 mm
Material Nylon/Polyamide 6.6
Color Red
Lock Mechanism Stainless Steel Barb
Tensile Strength 50 pounds ; 222 newtons

European Specifications (ETIM)

ETIM EC000046 Cable tie
Band width 4.82mm
Length belt/tape/tie 360.5mm
Tie thickness 1.4mm
Max. bundle diameter 102mm
Min. holding force 222N
Operating temperature -40-+85°C
Model Internal toothing
Band closure Steel nose
Material Plastic
Material quality Polyamide PA
Surface protection Untreated

UV-stable acc. ASTM D6779 N
Halogen free Y
Colour Red
Transparent N
Reflective (fluorescent) N
Text strip None
Solvable fastener N
VG approval N
MIL approval Y
UL approval Y

Packaging

Inner Quantity 1000
Inner Dimensions (inches) 20x14x0
Outer Quantity 5000
Outer Dimensions (inches) 20x12.1x9.9
Weight Uom 5.63 lbs. per 1000

Documents / Support Tools

Technical Drawing / Data Sheet WSD-003269
