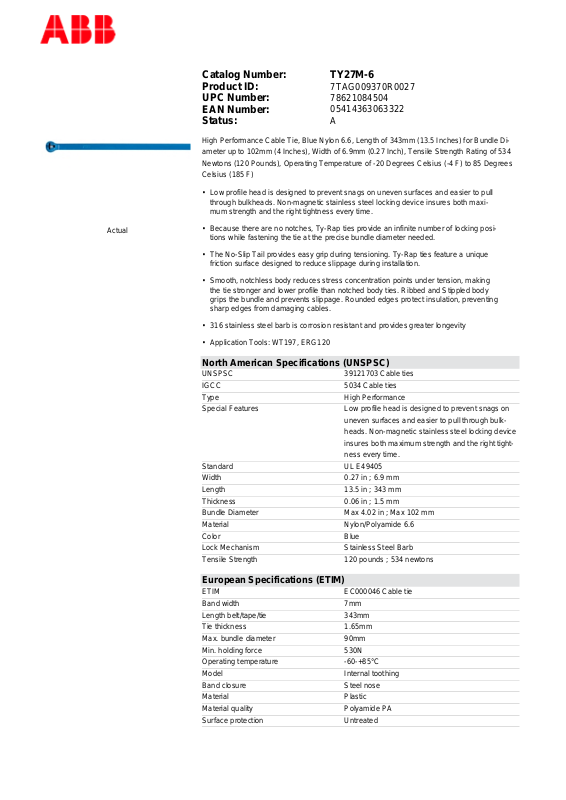

Thomas & Betts TY27M-6 Data Sheet

Catalog Number: TY27M-6
Product ID:
UPC Number:
EAN Number:
Status:

High Performance Cable Tie, Blue Nylon 6.6, Length of 343mm (13.5 Inches) for Bundle Di­ameter up to 102mm (4 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534
Newtons (120 Pounds), Operating Temperature of -20 Degrees Celsius (-4 F) to 85 Degrees
Celsius (185 F)

• Low profile head is designed to prevent snags on uneven surfaces and easier to pull
through bulkheads. Non-magnetic stainless steel locking device insures both maxi­mum strength and the right tightness every time.

7TAG009370R0027
78621084504
05414363063322
A

Actual

• Because there are no notches, Ty-Rap ties provide an infinite number of locking posi­tions while fastening the tie at the precise bundle diameter needed.

• The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique
friction surface designed to reduce slippage during installation.

• Smooth, notchless body reduces stress concentration points under tension, making
the tie stronger and lower profile than notched body ties. Ribbed and Stippled body
grips the bundle and prevents slippage. Rounded edges protect insulation, preventing
sharp edges from damaging cables.

• 316 stainless steel barb is corrosion resistant and provides greater longevity

• Application Tools: WT197, ERG120

North American Specifications (UNSPSC)

UNSPSC 39121703 Cable ties
IGCC 5034 Cable ties
Type High Performance
Special Features Low profile head is designed to prevent snags on

uneven surfaces and easier to pull through bulk­heads. Non-magnetic stainless steel locking device
insures both maximum strength and the right tight-

ness every time.
Standard UL E49405
Width 0.27 in ; 6.9 mm
Length 13.5 in ; 343 mm
Thickness 0.06 in ; 1.5 mm
Bundle Diameter Max 4.02 in ; Max 102 mm
Material Nylon/Polyamide 6.6
Color Blue
Lock Mechanism Stainless Steel Barb
Tensile Strength 120 pounds ; 534 newtons

European Specifications (ETIM)

ETIM EC000046 Cable tie
Band width 7mm
Length belt/tape/tie 343mm
Tie thickness 1.65mm
Max. bundle diameter 90mm
Min. holding force 530N
Operating temperature -60-+85°C
Model Internal toothing
Band closure Steel nose
Material Plastic
Material quality Polyamide PA
Surface protection Untreated

UV-stable acc. ASTM D6779 N
Halogen free Y
Colour Blue
Transparent N
Reflective (fluorescent) N
Text strip None
Solvable fastener N
VG approval N
MIL approval Y
UL approval Y

Packaging

Inner Quantity 500
Inner Dimensions (inches) 22x14x0
Outer Quantity 1000
Outer Dimensions (inches) 15.8x9.7x5.7
Weight Uom 1 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet TDS000487
