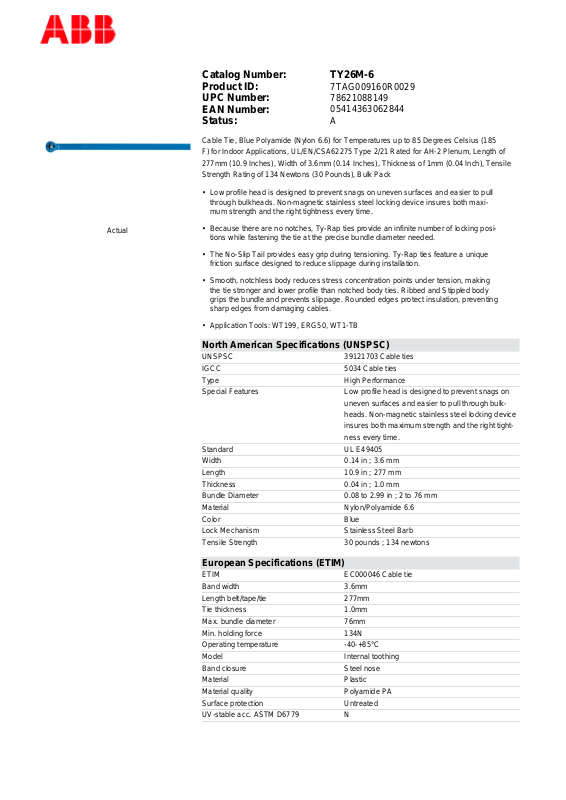

Thomas & Betts TY26M-6 Data Sheet

Catalog Number: TY26M-6
Product ID:
UPC Number:
EAN Number:
Status:

Cable Tie, Blue Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185
F) for Indoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of
277mm (10.9 Inches), Width of 3.6mm (0.14 Inches), Thickness of 1mm (0.04 Inch), Tensile
Strength Rating of 134 Newtons (30 Pounds), Bulk Pack

• Low profile head is designed to prevent snags on uneven surfaces and easier to pull
through bulkheads. Non-magnetic stainless steel locking device insures both maxi­mum strength and the right tightness every time.

7TAG009160R0029
78621088149
05414363062844
A

Actual

• Because there are no notches, Ty-Rap ties provide an infinite number of locking posi­tions while fastening the tie at the precise bundle diameter needed.

• The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique
friction surface designed to reduce slippage during installation.

• Smooth, notchless body reduces stress concentration points under tension, making
the tie stronger and lower profile than notched body ties. Ribbed and Stippled body
grips the bundle and prevents slippage. Rounded edges protect insulation, preventing
sharp edges from damaging cables.

• Application Tools: WT199, ERG50, WT1-TB

North American Specifications (UNSPSC)

UNSPSC 39121703 Cable ties
IGCC 5034 Cable ties
Type High Performance
Special Features Low profile head is designed to prevent snags on

uneven surfaces and easier to pull through bulk­heads. Non-magnetic stainless steel locking device
insures both maximum strength and the right tight-

ness every time.
Standard UL E49405
Width 0.14 in ; 3.6 mm
Length 10.9 in ; 277 mm
Thickness 0.04 in ; 1.0 mm
Bundle Diameter 0.08 to 2.99 in ; 2 to 76 mm
Material Nylon/Polyamide 6.6
Color Blue
Lock Mechanism Stainless Steel Barb
Tensile Strength 30 pounds ; 134 newtons

European Specifications (ETIM)

ETIM EC000046 Cable tie
Band width 3.6mm
Length belt/tape/tie 277mm
Tie thickness 1.0mm
Max. bundle diameter 76mm
Min. holding force 134N
Operating temperature -40-+85°C
Model Internal toothing
Band closure Steel nose
Material Plastic
Material quality Polyamide PA
Surface protection Untreated
UV-stable acc. ASTM D6779 N

Halogen free Y
Colour Blue
Transparent N
Reflective (fluorescent) N
Text strip None
Solvable fastener N
VG approval N
MIL approval N
UL approval Y

Packaging

Inner Quantity 1000
Inner Dimensions (inches) 16x12x0
Outer Quantity 10000
Outer Dimensions (inches) 21x14x6
Weight Uom 3.13 lbs. per 1000

Documents / Support Tools

Technical Drawing / Data Sheet TDS000566
