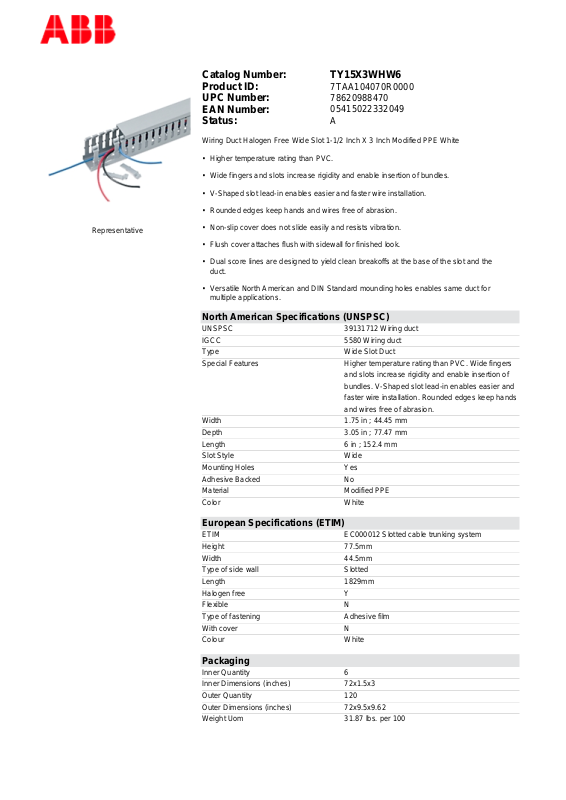

Thomas & Betts TY15X3WHW6 Data Sheet

Catalog Number: TY15X3WHW6
Product ID:
UPC Number:
EAN Number:
Status:

Wiring Duct Halogen Free Wide Slot 1-1/2 Inch X 3 Inch Modified PPE White

• Higher temperature rating than PVC.

• Wide fingers and slots increase rigidity and enable insertion of bundles.

• V-Shaped slot lead-in enables easier and faster wire installation.

• Rounded edges keep hands and wires free of abrasion.

7TAA104070R0000
78620988470
05415022332049
A

Representative

• Non-slip cover does not slide easily and resists vibration.

• Flush cover attaches flush with sidewall for finished look.

• Dual score lines are designed to yield clean breakoffs at the base of the slot and the
duct.

• Versatile North American and DIN Standard mounding holes enables same duct for
multiple applications.

North American Specifications (UNSPSC)

UNSPSC 39131712 Wiring duct
IGCC 5580 Wiring duct
Type Wide Slot Duct
Special Features Higher temperature rating than PVC. Wide fingers

and slots increase rigidity and enable insertion of
bundles. V-Shaped slot lead-in enables easier and
faster wire installation. Rounded edges keep hands

and wires free of abrasion.
Width 1.75 in ; 44.45 mm
Depth 3.05 in ; 77.47 mm
Length 6 in ; 152.4 mm
Slot Style Wide
Mounting Holes Yes
Adhesive Backed No
Material Modified PPE
Color White

European Specifications (ETIM)

ETIM EC000012 Slotted cable trunking system
Height 77.5mm
Width 44.5mm
Type of side wall Slotted
Length 1829mm
Halogen free Y
Flexible N
Type of fastening Adhesive film
With cover N
Colour White

Packaging

Inner Quantity 6
Inner Dimensions (inches) 72x1.5x3
Outer Quantity 120
Outer Dimensions (inches) 72x9.5x9.62
Weight Uom 31.87 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet WSD-000283
