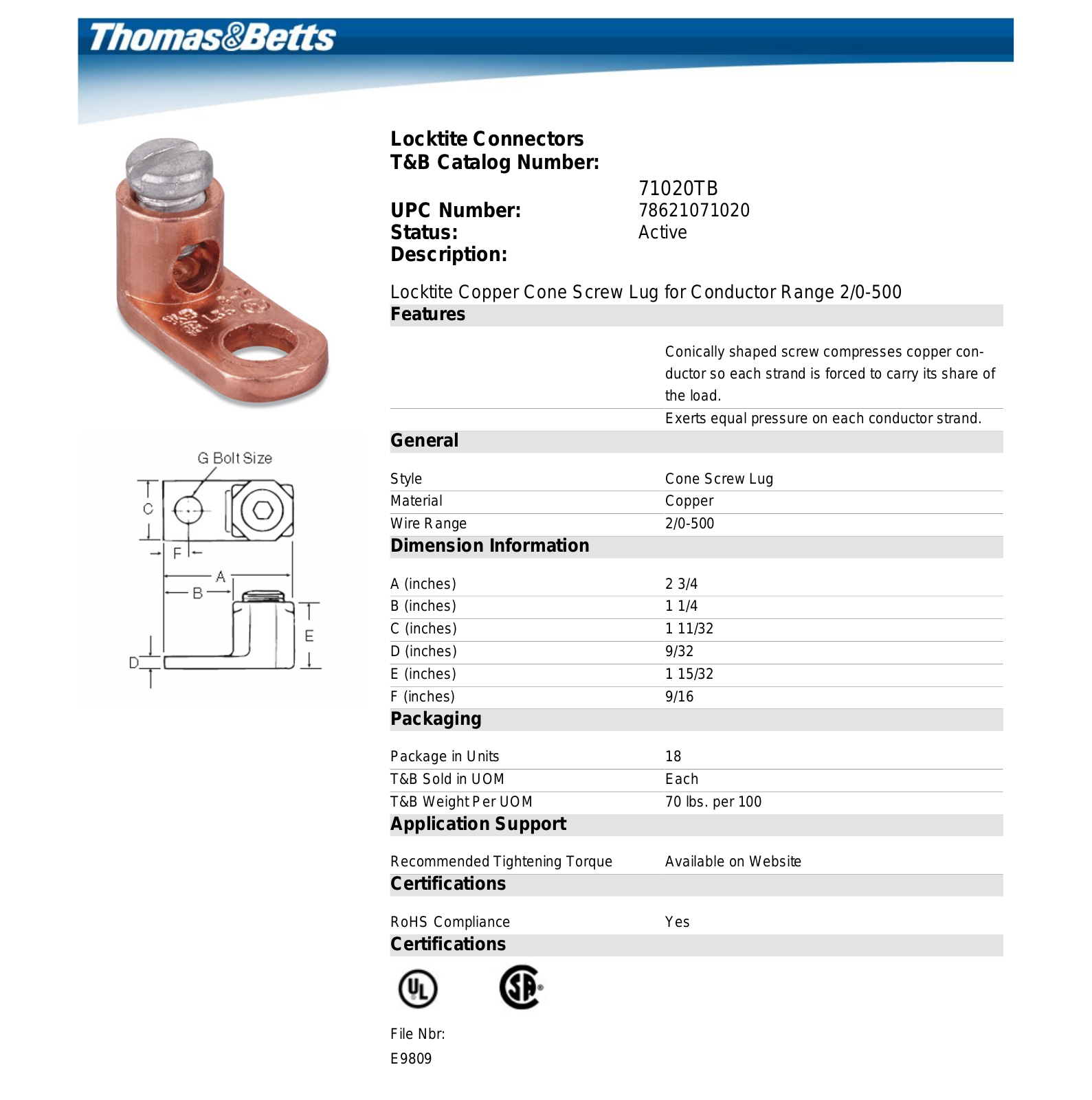

Thomas & Betts Switch Boxes Catalog
Locktite Connectors
T&B Catalog Number:
71020TB
UPC Number:
Status:
78621071020
Active
Description:
Locktite Copper Cone Screw Lug for Conductor Range 2/0-500
Features
Conically shaped screw compresses copper conÂductor so each strand is forced to carry its share of
the load.
Exerts equal pressure on each conductor strand.
General
Style Cone Screw Lug
Material Copper
Wire Range 2/0-500
Dimension Information
A (inches) 2 3/4
B (inches) 1 1/4
C (inches) 1 11/32
D (inches) 9/32
E (inches) 1 15/32
F (inches) 9/16
Packaging
Package in Units 18
T&B Sold in UOM Each
T&B Weight Per UOM 70 lbs. per 100
Application Support
Recommended Tightening Torque Available on Website
Certifications
RoHS Compliance Yes
Certifications
File Nbr:
E9809
