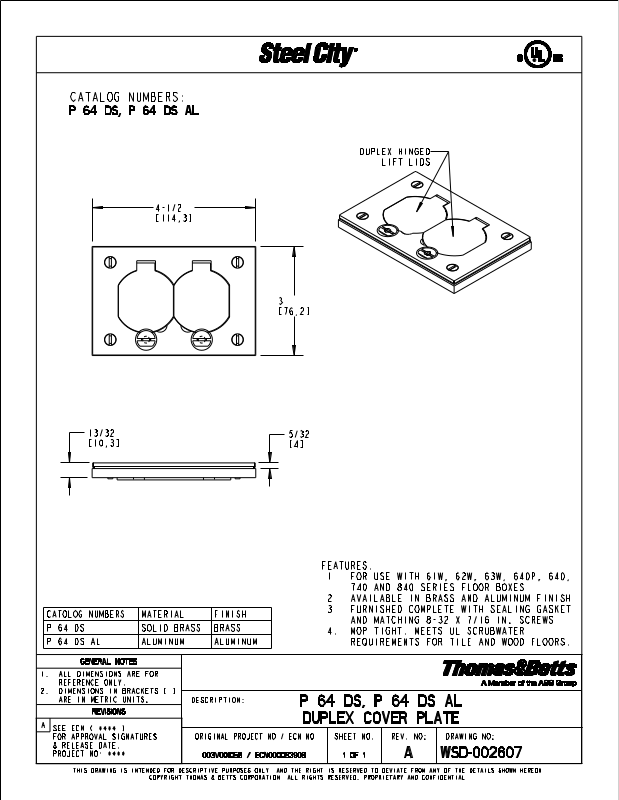

Thomas & Betts P 64 DS, P 64 DS AL Reference Drawing

CATALOG NUMBERS: P 64 DS, P 64 DS AL

4-1/2

114,3[ ]

DUPLEX HINGED

LIFT LIDS

76,2[ ]

13/32

10,3[ ]

CATOLOG NUMBERS

MATERIAL FINISH

P 64 DS SOLID BRASS BRASS

P 64 DS AL ALUMINUM ALUMINUM

GENERAL NOTES

1. ALL DIMENSIONS ARE FOR REFERENCE ONLY.

2. DIMENSIONS IN BRACKETS [ ] ARE IN METRIC UNITS.

REVISIONS

SEE ECN ( **** ) FOR APPROVAL SIGNATURES & RELEASE DATE. PROJECT NO: ****

THIS DRAWING IS INTENDED FOR DESCRIPTIVE PURPOSES ONLY. AND THE RIGHT IS RESERVED TO DEVIATE FROM ANY OF THE DETAILS SHOWN HEREON.

DESCRIPTION:

ORIGINAL PROJECT NO / ECN NO

003V001056 / ECN000083908 1 OF 1 A WSD-002607

5/32

4[ ]

FEATURES:

1. FOR USE WITH 61W, 62W, 63W, 640P, 640, 740 AND 840 SERIES FLOOR BOXES

2. AVAILABLE IN BRASS AND ALUMINUM FINISH

3. FURNISHED COMPLETE WITH SEALING GASKET AND MATCHING 8-32 X 7/16 IN. SCREWS

4. MOP TIGHT. MEETS UL SCRUBWATER REQUIREMENTS FOR TILE AND WOOD FLOORS.

P 64 DS, P 64 DS AL

DUPLEX COVER PLATE

SHEET NO: REV. NO: DRAWING NO:
