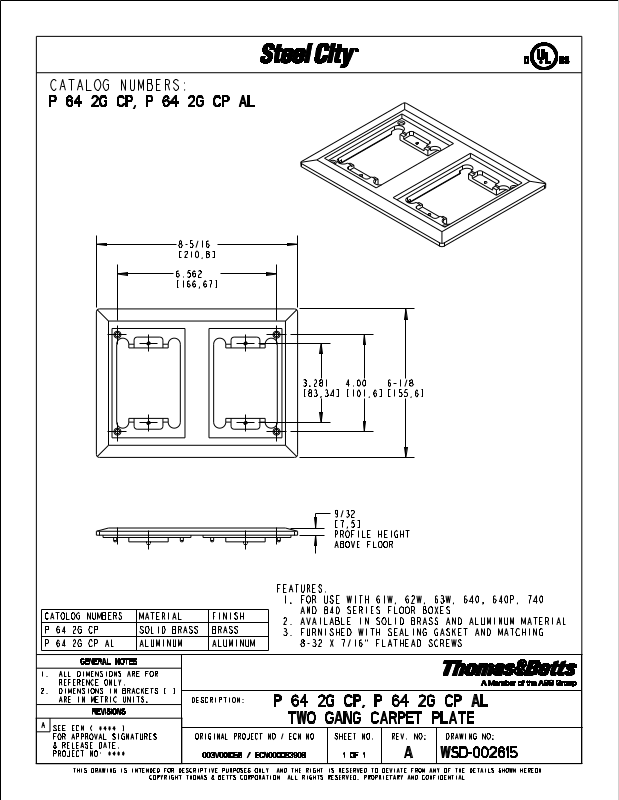

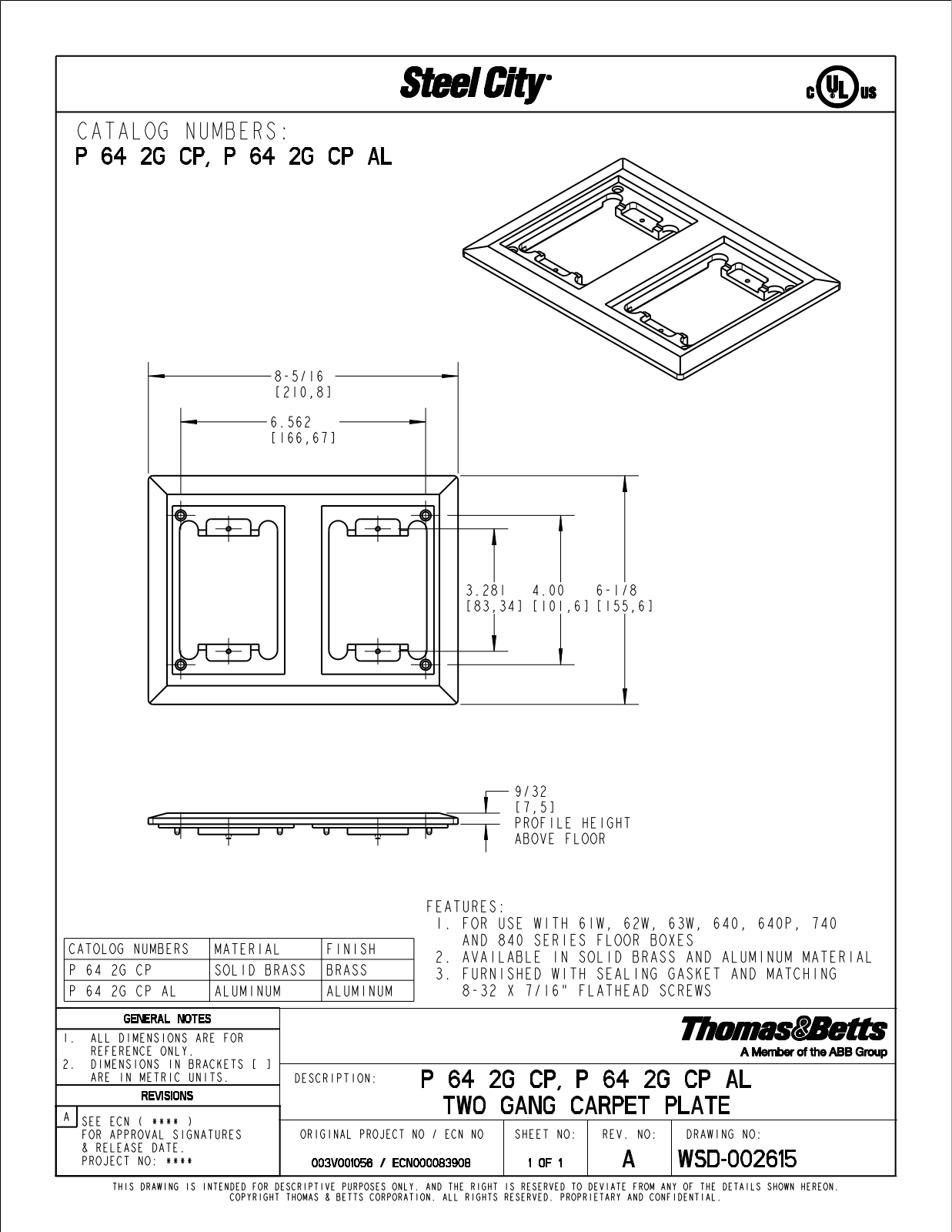

Thomas & Betts P 64 2G CP, P 64 2G CP AL Reference Drawing

CATALOG NUMBERS: P 64 2G CP, P 64 2G CP AL

8-5/16

210,8[ ]

6.562 166,67[ ]

CATOLOG NUMBERS

P 64 2G CP SOLID BRASS BRASS

P 64 2G CP AL ALUMINUM ALUMINUM

GENERAL NOTES

1. ALL DIMENSIONS ARE FOR REFERENCE ONLY.

2. DIMENSIONS IN BRACKETS [ ] ARE IN METRIC UNITS.

REVISIONS

SEE ECN ( **** ) FOR APPROVAL SIGNATURES & RELEASE DATE. PROJECT NO: ****

THIS DRAWING IS INTENDED FOR DESCRIPTIVE PURPOSES ONLY. AND THE RIGHT IS RESERVED TO DEVIATE FROM ANY OF THE DETAILS SHOWN HEREON.

MATERIAL FINISH

DESCRIPTION:

ORIGINAL PROJECT NO / ECN NO

003V001056 / ECN000083908 1 OF 1 A WSD-002615

3.281 83,34[ ]

4.00 101,6[ ]

9/32

7,5[ ] PROFILE HEIGHT ABOVE FLOOR

6-1/8

155,6[ ]

FEATURES:

1. FOR USE WITH 61W, 62W, 63W, 640, 640P, 740 AND 840 SERIES FLOOR BOXES

2. AVAILABLE IN SOLID BRASS AND ALUMINUM MATERIAL

3. FURNISHED WITH SEALING GASKET AND MATCHING 8-32 X 7/16" FLATHEAD SCREWS

P 64 2G CP, P 64 2G CP AL

TWO GANG CARPET PLATE

SHEET NO: REV. NO: DRAWING NO:
