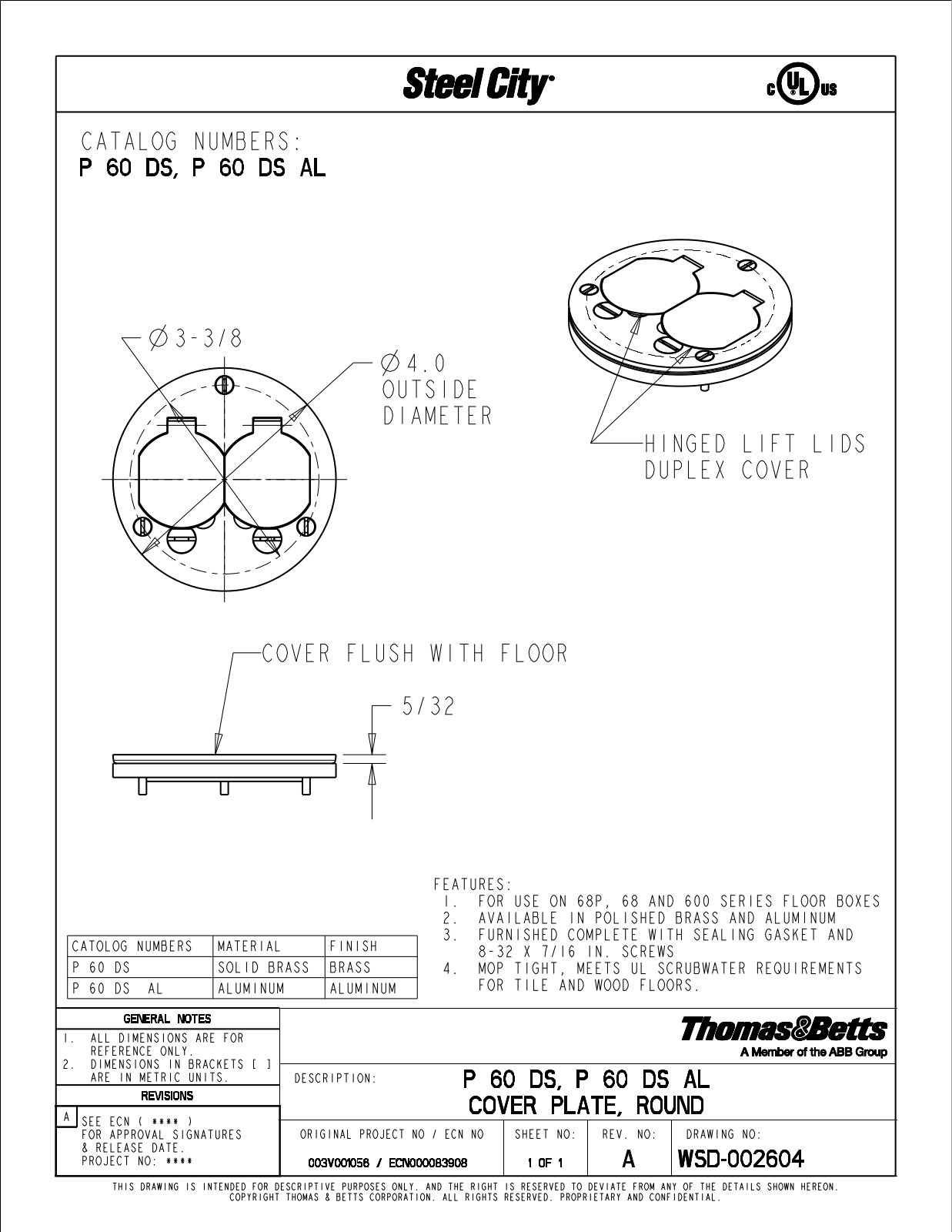

Thomas & Betts P 60 DS, P 60 DS AL Reference Drawing

CATALOG NUMBERS: P 60 DS, P 60 DS AL

3-3/8

4.0 OUTSIDE DIAMETER

HINGED LIFT LIDS DUPLEX COVER

COVER FLUSH WITH FLOOR

CATOLOG NUMBERS MATERIAL FINISH

P 60 DS SOLID BRASS BRASS

P 60 DS AL ALUMINUM ALUMINUM

GENERAL NOTES

1. ALL DIMENSIONS ARE FOR REFERENCE ONLY.

2. DIMENSIONS IN BRACKETS [ ] ARE IN METRIC UNITS.

REVISIONS

SEE ECN ( **** ) FOR APPROVAL SIGNATURES & RELEASE DATE. PROJECT NO: ****

THIS DRAWING IS INTENDED FOR DESCRIPTIVE PURPOSES ONLY. AND THE RIGHT IS RESERVED TO DEVIATE FROM ANY OF THE DETAILS SHOWN HEREON.

DESCRIPTION:

ORIGINAL PROJECT NO / ECN NO

003V001056 / ECN000083908 1 OF 1 A WSD-002604

003V001056 / ECN000083908

5/32

FEATURES:

1. FOR USE ON 68P, 68 AND 600 SERIES FLOOR BOXES

2. AVAILABLE IN POLISHED BRASS AND ALUMINUM

3. FURNISHED COMPLETE WITH SEALING GASKET AND 8-32 X 7/16 IN. SCREWS

4. MOP TIGHT, MEETS UL SCRUBWATER REQUIREMENTS FOR TILE AND WOOD FLOORS.

P 60 DS, P 60 DS AL

COVER PLATE, ROUND

SHEET NO: REV. NO: DRAWING NO:

1 OF 1 WSD-002604
