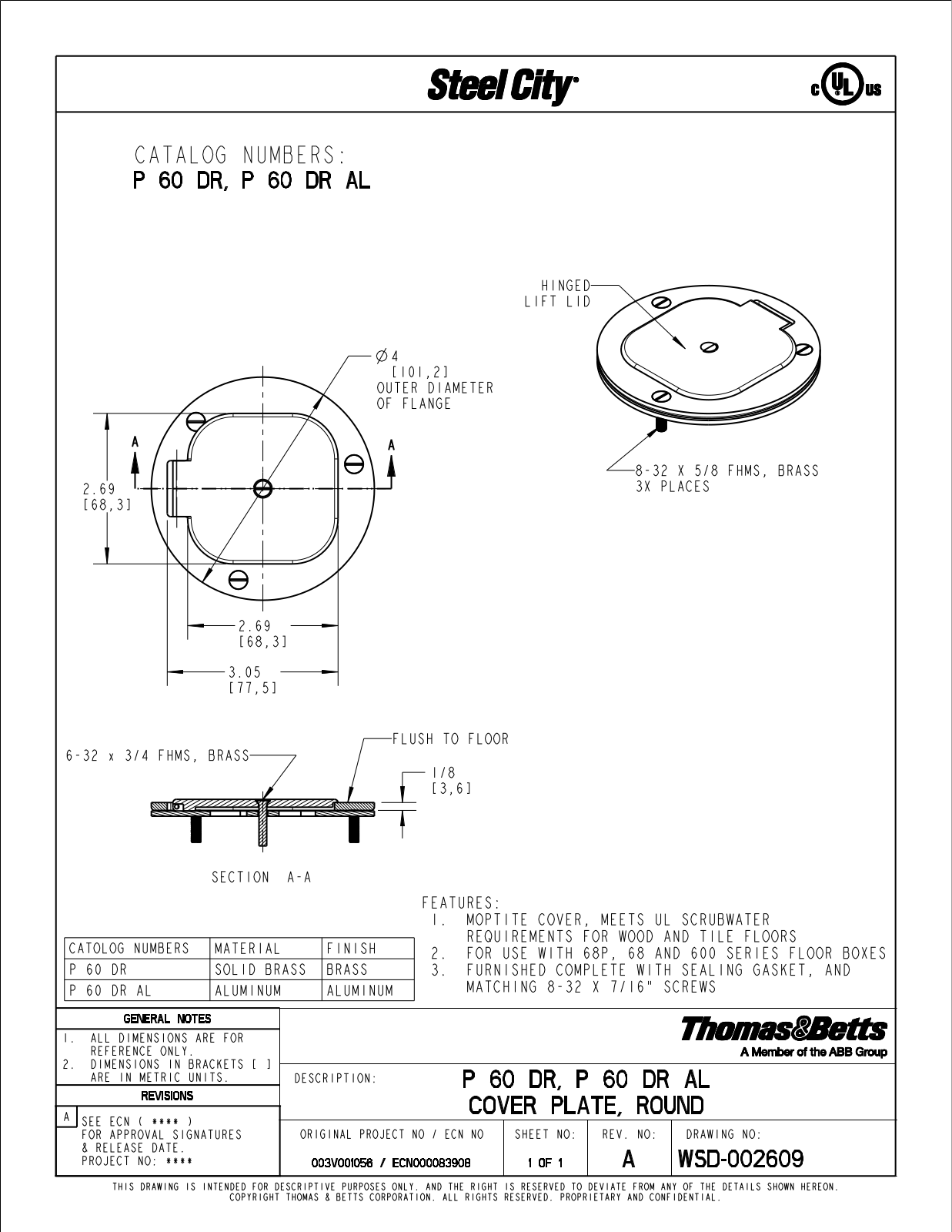

Thomas & Betts P 60 DR, P 60 DR AL Reference Drawing

2.69 68,3[ ]

CATALOG NUMBERS: P 60 DR, P 60 DR AL

HINGED

LIFT LID

101,2[ ] OUTER DIAMETER OF FLANGE

8-32 X 5/8 FHMS, BRASS 3X PLACES

2.69 68,3[ ]

3.05 77,5[ ]

6-32 x 3/4 FHMS, BRASS

SECTION A-A

CATOLOG NUMBERS

MATERIAL FINISH

P 60 DR SOLID BRASS BRASS

P 60 DR AL ALUMINUM ALUMINUM

GENERAL NOTES

1. ALL DIMENSIONS ARE FOR REFERENCE ONLY.

2. DIMENSIONS IN BRACKETS [ ] ARE IN METRIC UNITS.

REVISIONS

SEE ECN ( **** ) FOR APPROVAL SIGNATURES & RELEASE DATE. PROJECT NO: ****

THIS DRAWING IS INTENDED FOR DESCRIPTIVE PURPOSES ONLY. AND THE RIGHT IS RESERVED TO DEVIATE FROM ANY OF THE DETAILS SHOWN HEREON.

DESCRIPTION:

ORIGINAL PROJECT NO / ECN NO

003V001056 / ECN000083908 1 OF 1 A WSD-002609

FLUSH TO FLOOR

1/8

3,6[ ]

FEATURES:

1. MOPTITE COVER, MEETS UL SCRUBWATER REQUIREMENTS FOR WOOD AND TILE FLOORS

2. FOR USE WITH 68P, 68 AND 600 SERIES FLOOR BOXES

3. FURNISHED COMPLETE WITH SEALING GASKET, AND MATCHING 8-32 X 7/16" SCREWS

P 60 DR, P 60 DR AL

COVER PLATE, ROUND

SHEET NO: REV. NO: DRAWING NO:
