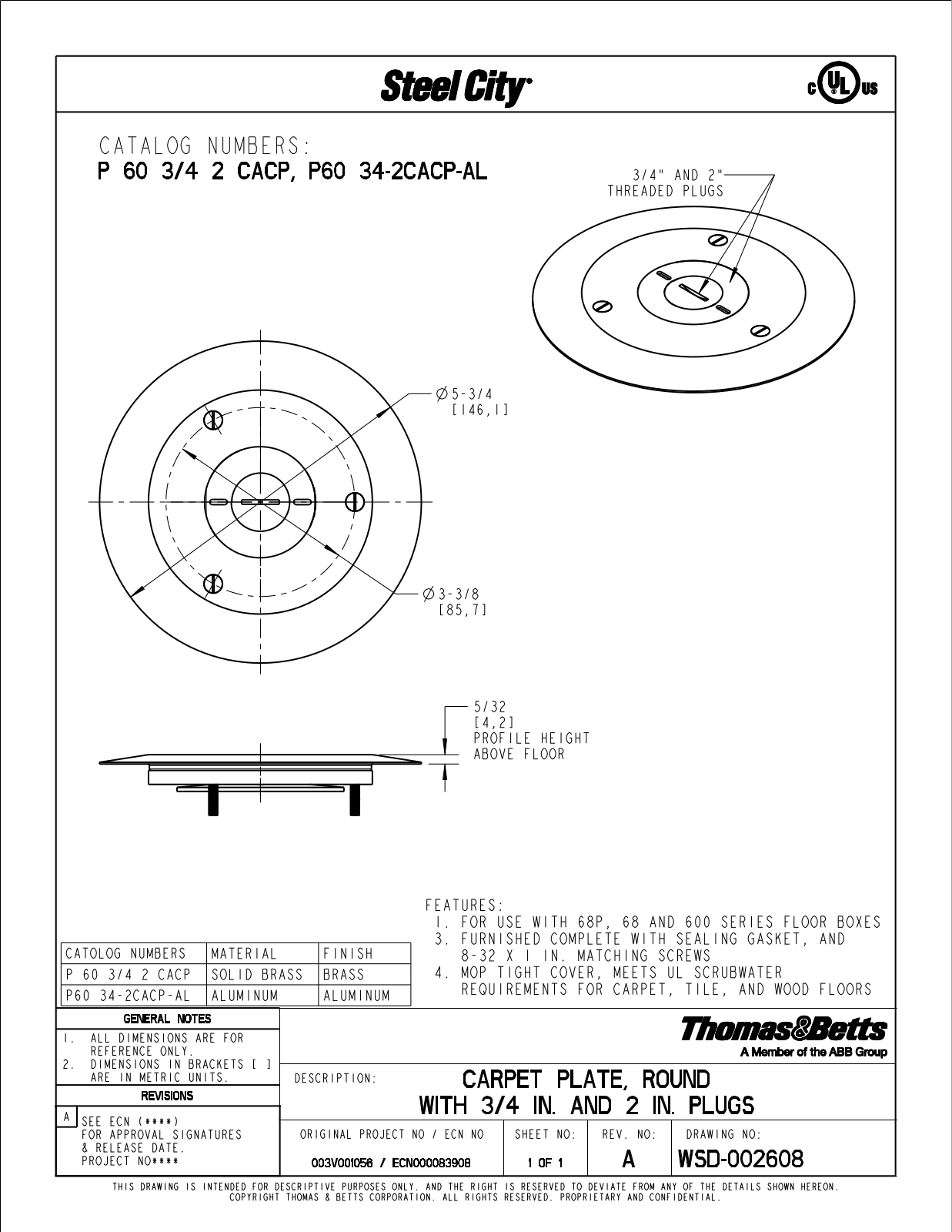

Thomas & Betts P 60 3/4 2 CACP, P60 34-2CACP-A Reference Drawing

CATALOG NUMBERS:
P 60 3/4 2 CACP, P60 34-2CACP-AL

5-3/4

146,1[ ]

3-3/8

85,7[ ]

3/4" AND 2"

THREADED PLUGS

CATOLOG NUMBERS

MATERIAL FINISH

P 60 3/4 2 CACP SOLID BRASS BRASS

P60 34-2CACP-AL ALUMINUM ALUMINUM

GENERAL NOTES

1. ALL DIMENSIONS ARE FOR
REFERENCE ONLY.

2. DIMENSIONS IN BRACKETS [ ]
ARE IN METRIC UNITS.

REVISIONS

A

SEE ECN (****)
FOR APPROVAL SIGNATURES
& RELEASE DATE.
PROJECT NO****

THIS DRAWING IS INTENDED FOR DESCRIPTIVE PURPOSES ONLY. AND THE RIGHT IS RESERVED TO DEVIATE FROM ANY OF THE DETAILS SHOWN HEREON.

COPYRIGHT THOMAS & BETTS CORPORATION. ALL RIGHTS RESERVED. PROPRIETARY AND CONFIDENTIAL.

DESCRIPTION:

ORIGINAL PROJECT NO / ECN NO

003V001056 / ECN000083908 1 OF 1 A WSD-002608

5/32

4,2[ ]
PROFILE HEIGHT
ABOVE FLOOR

FEATURES:

1. FOR USE WITH 68P, 68 AND 600 SERIES FLOOR BOXES

3. FURNISHED COMPLETE WITH SEALING GASKET, AND
8-32 X 1 IN. MATCHING SCREWS

4. MOP TIGHT COVER, MEETS UL SCRUBWATER
REQUIREMENTS FOR CARPET, TILE, AND WOOD FLOORS

CARPET PLATE, ROUND

WITH 3/4 IN. AND 2 IN. PLUGS

SHEET NO: REV. NO: DRAWING NO:
