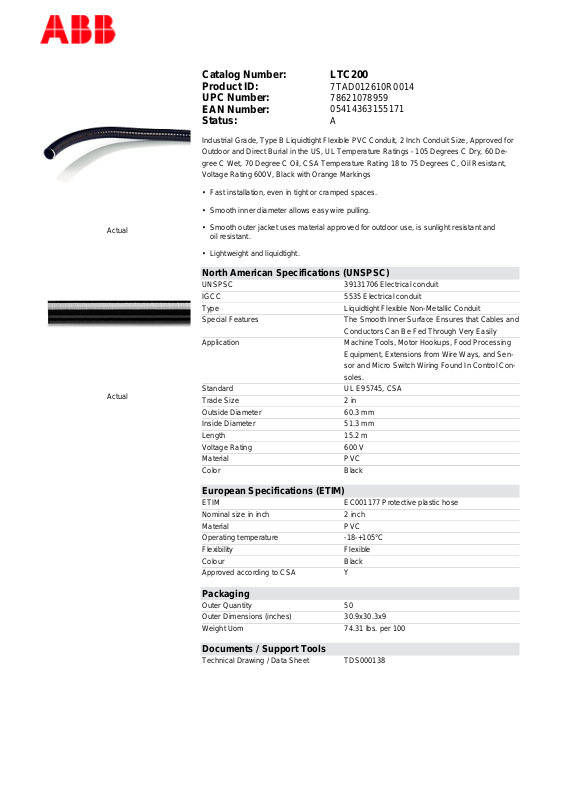

Thomas & Betts LTC200 Data Sheet
Catalog Number: LTC200
Product ID:
UPC Number:
EAN Number:
Status:
Industrial Grade, Type B Liquidtight Flexible PVC Conduit, 2 Inch Conduit Size, Approved for
Outdoor and Direct Burial in the US, UL Temperature Ratings - 105 Degrees C Dry, 60 Degree C Wet, 70 Degree C Oil, CSA Temperature Rating 18 to 75 Degrees C, Oil Resistant,
Voltage Rating 600V, Black with Orange Markings
• Fast installation, even in tight or cramped spaces.
• Smooth inner diameter allows easy wire pulling.
7TAD012610R0014
78621078959
05414363155171
A
Actual
Actual
• Smooth outer jacket uses material approved for outdoor use, is sunlight resistant and
oil resistant.
• Lightweight and liquidtight.
North American Specifications (UNSPSC)
UNSPSC 39131706 Electrical conduit
IGCC 5535 Electrical conduit
Type Liquidtight Flexible Non-Metallic Conduit
Special Features The Smooth Inner Surface Ensures that Cables and
Conductors Can Be Fed Through Very Easily
Application Machine Tools, Motor Hookups, Food Processing
Equipment, Extensions from Wire Ways, and Sensor and Micro Switch Wiring Found In Control Con-
soles.
Standard UL E95745, CSA
Trade Size 2 in
Outside Diameter 60.3 mm
Inside Diameter 51.3 mm
Length 15.2 m
Voltage Rating 600 V
Material PVC
Color Black
European Specifications (ETIM)
ETIM EC001177 Protective plastic hose
Nominal size in inch 2 inch
Material PVC
Operating temperature -18-+105°C
Flexibility Flexible
Colour Black
Approved according to CSA Y
Packaging
Outer Quantity 50
Outer Dimensions (inches) 30.9x30.3x9
Weight Uom 74.31 lbs. per 100
Documents / Support Tools
Technical Drawing / Data Sheet TDS000138
