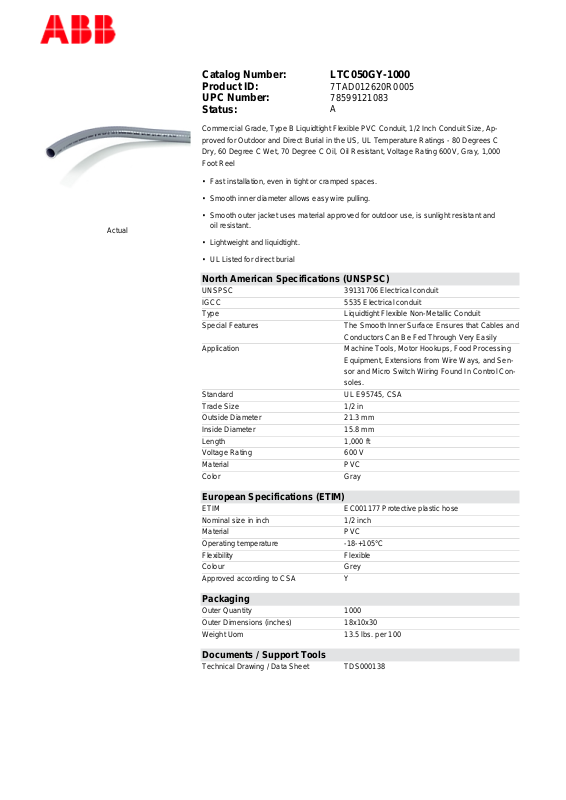

Thomas & Betts LTC050GY-1000 Data Sheet
Actual
Catalog Number: LTC050GY-1000
Product ID:
UPC Number:
Status:
Commercial Grade, Type B Liquidtight Flexible PVC Conduit, 1/2 Inch Conduit Size, Approved for Outdoor and Direct Burial in the US, UL Temperature Ratings - 80 Degrees C
Dry, 60 Degree C Wet, 70 Degree C Oil, Oil Resistant, Voltage Rating 600V, Gray, 1,000
Foot Reel
• Fast installation, even in tight or cramped spaces.
• Smooth inner diameter allows easy wire pulling.
• Smooth outer jacket uses material approved for outdoor use, is sunlight resistant and
oil resistant.
• Lightweight and liquidtight.
• UL Listed for direct burial
North American Specifications (UNSPSC)
UNSPSC 39131706 Electrical conduit
IGCC 5535 Electrical conduit
Type Liquidtight Flexible Non-Metallic Conduit
Special Features The Smooth Inner Surface Ensures that Cables and
Application Machine Tools, Motor Hookups, Food Processing
Standard UL E95745, CSA
Trade Size 1/2 in
Outside Diameter 21.3 mm
Inside Diameter 15.8 mm
Length 1,000 ft
Voltage Rating 600 V
Material PVC
Color Gray
7TAD012620R0005
78599121083
A
Conductors Can Be Fed Through Very Easily
Equipment, Extensions from Wire Ways, and Sensor and Micro Switch Wiring Found In Control Consoles.
European Specifications (ETIM)
ETIM EC001177 Protective plastic hose
Nominal size in inch 1/2 inch
Material PVC
Operating temperature -18-+105°C
Flexibility Flexible
Colour Grey
Approved according to CSA Y
Packaging
Outer Quantity 1000
Outer Dimensions (inches) 18x10x30
Weight Uom 13.5 lbs. per 100
Documents / Support Tools
Technical Drawing / Data Sheet TDS000138
