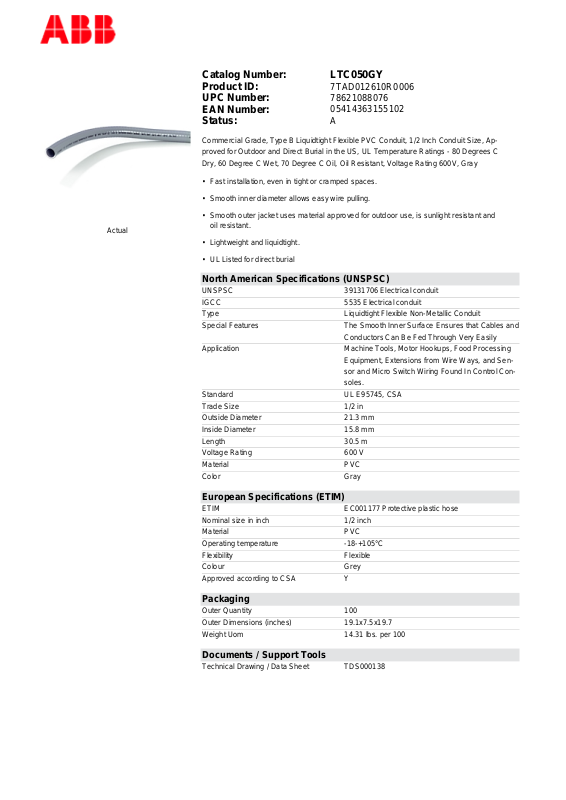

Thomas & Betts LTC050GY Data Sheet

Actual

Catalog Number: LTC050GY
Product ID:
UPC Number:
EAN Number:
Status:

Commercial Grade, Type B Liquidtight Flexible PVC Conduit, 1/2 Inch Conduit Size, Ap­proved for Outdoor and Direct Burial in the US, UL Temperature Ratings - 80 Degrees C
Dry, 60 Degree C Wet, 70 Degree C Oil, Oil Resistant, Voltage Rating 600V, Gray

• Fast installation, even in tight or cramped spaces.

• Smooth inner diameter allows easy wire pulling.

• Smooth outer jacket uses material approved for outdoor use, is sunlight resistant and
oil resistant.

• Lightweight and liquidtight.

• UL Listed for direct burial

North American Specifications (UNSPSC)

UNSPSC 39131706 Electrical conduit
IGCC 5535 Electrical conduit
Type Liquidtight Flexible Non-Metallic Conduit
Special Features The Smooth Inner Surface Ensures that Cables and

Application Machine Tools, Motor Hookups, Food Processing

Standard UL E95745, CSA
Trade Size 1/2 in
Outside Diameter 21.3 mm
Inside Diameter 15.8 mm
Length 30.5 m
Voltage Rating 600 V
Material PVC
Color Gray

7TAD012610R0006
78621088076
05414363155102
A

Conductors Can Be Fed Through Very Easily

Equipment, Extensions from Wire Ways, and Sen­sor and Micro Switch Wiring Found In Control Con­soles.

European Specifications (ETIM)

ETIM EC001177 Protective plastic hose
Nominal size in inch 1/2 inch
Material PVC
Operating temperature -18-+105°C
Flexibility Flexible
Colour Grey
Approved according to CSA Y

Packaging

Outer Quantity 100
Outer Dimensions (inches) 19.1x7.5x19.7
Weight Uom 14.31 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet TDS000138
