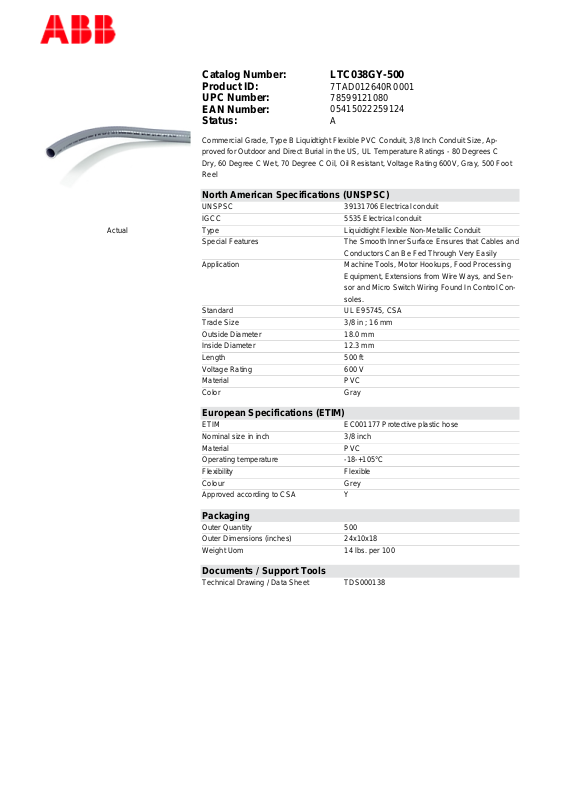

Thomas & Betts LTC038GY-500 Data Sheet

Actual

Catalog Number: LTC038GY-500
Product ID:
UPC Number:
EAN Number:
Status:

Commercial Grade, Type B Liquidtight Flexible PVC Conduit, 3/8 Inch Conduit Size, Ap­proved for Outdoor and Direct Burial in the US, UL Temperature Ratings - 80 Degrees C
Dry, 60 Degree C Wet, 70 Degree C Oil, Oil Resistant, Voltage Rating 600V, Gray, 500 Foot
Reel

North American Specifications (UNSPSC)

UNSPSC 39131706 Electrical conduit
IGCC 5535 Electrical conduit
Type Liquidtight Flexible Non-Metallic Conduit
Special Features The Smooth Inner Surface Ensures that Cables and

Application Machine Tools, Motor Hookups, Food Processing

Standard UL E95745, CSA
Trade Size 3/8 in ; 16 mm
Outside Diameter 18.0 mm
Inside Diameter 12.3 mm
Length 500 ft
Voltage Rating 600 V
Material PVC
Color Gray

7TAD012640R0001
78599121080
05415022259124
A

Conductors Can Be Fed Through Very Easily

Equipment, Extensions from Wire Ways, and Sen­sor and Micro Switch Wiring Found In Control Con­soles.

European Specifications (ETIM)

ETIM EC001177 Protective plastic hose
Nominal size in inch 3/8 inch
Material PVC
Operating temperature -18-+105°C
Flexibility Flexible
Colour Grey
Approved according to CSA Y

Packaging

Outer Quantity 500
Outer Dimensions (inches) 24x10x18
Weight Uom 14 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet TDS000138
