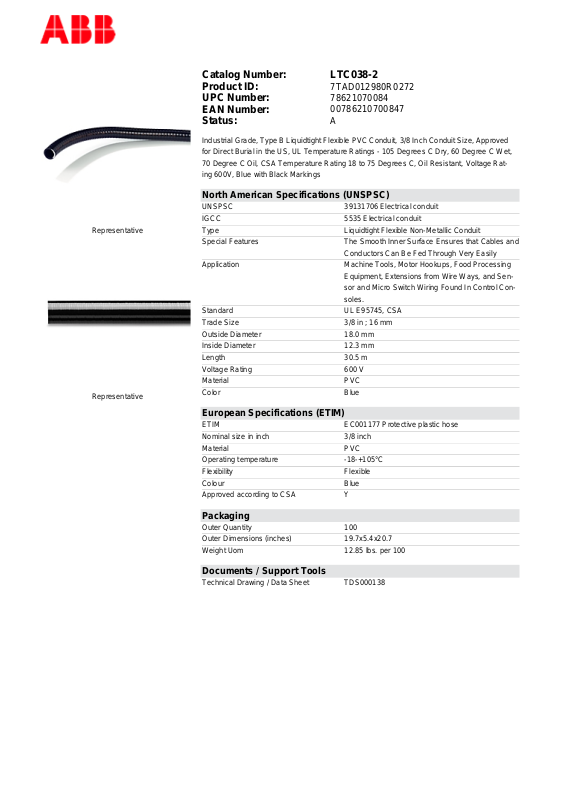

Thomas & Betts LTC038-2 Data Sheet

Representative

Representative

Catalog Number: LTC038-2
Product ID:
UPC Number:
EAN Number:
Status:

Industrial Grade, Type B Liquidtight Flexible PVC Conduit, 3/8 Inch Conduit Size, Approved
for Direct Burial in the US, UL Temperature Ratings - 105 Degrees C Dry, 60 Degree C Wet,
70 Degree C Oil, CSA Temperature Rating 18 to 75 Degrees C, Oil Resistant, Voltage Rat­ing 600V, Blue with Black Markings

North American Specifications (UNSPSC)

UNSPSC 39131706 Electrical conduit
IGCC 5535 Electrical conduit
Type Liquidtight Flexible Non-Metallic Conduit
Special Features The Smooth Inner Surface Ensures that Cables and

Application Machine Tools, Motor Hookups, Food Processing

Standard UL E95745, CSA
Trade Size 3/8 in ; 16 mm
Outside Diameter 18.0 mm
Inside Diameter 12.3 mm
Length 30.5 m
Voltage Rating 600 V
Material PVC
Color Blue

7TAD012980R0272
78621070084
00786210700847
A

Conductors Can Be Fed Through Very Easily

Equipment, Extensions from Wire Ways, and Sen­sor and Micro Switch Wiring Found In Control Con­soles.

European Specifications (ETIM)

ETIM EC001177 Protective plastic hose
Nominal size in inch 3/8 inch
Material PVC
Operating temperature -18-+105°C
Flexibility Flexible
Colour Blue
Approved according to CSA Y

Packaging

Outer Quantity 100
Outer Dimensions (inches) 19.7x5.4x20.7
Weight Uom 12.85 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet TDS000138
