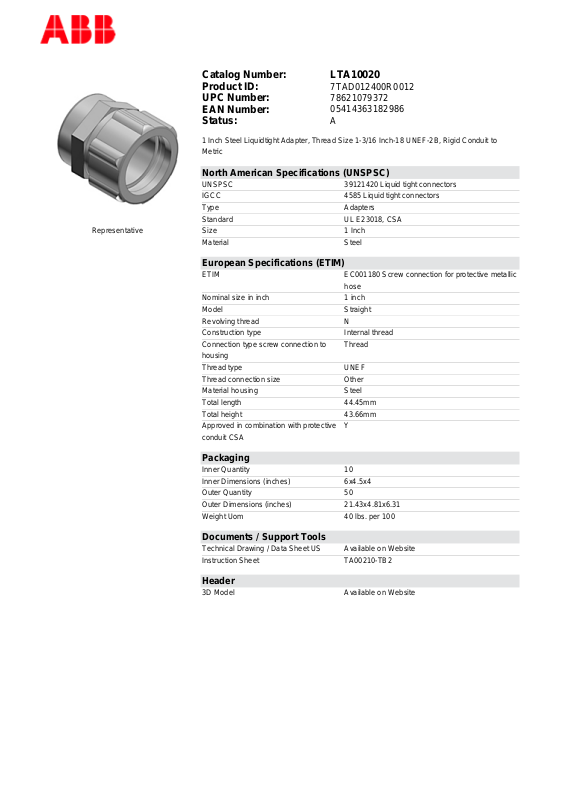

Thomas & Betts LTA10020 Data Sheet

Representative

Catalog Number: LTA10020
Product ID:
UPC Number:
EAN Number:
Status:

1 Inch Steel Liquidtight Adapter, Thread Size 1-3/16 Inch-18 UNEF-2B, Rigid Conduit to
Metric

North American Specifications (UNSPSC)

UNSPSC 39121420 Liquid tight connectors
IGCC 4585 Liquid tight connectors
Type Adapters
Standard UL E23018, CSA
Size 1 Inch
Material Steel

European Specifications (ETIM)

ETIM EC001180 Screw connection for protective metallic

Nominal size in inch 1 inch
Model Straight
Revolving thread N
Construction type Internal thread
Connection type screw connection to
housing
Thread type UNEF
Thread connection size Other
Material housing Steel
Total length 44.45mm
Total height 43.66mm
Approved in combination with protective
conduit CSA

7TAD012400R0012
78621079372
05414363182986
A

hose

Thread

Y

Packaging

Inner Quantity 10
Inner Dimensions (inches) 6x4.5x4
Outer Quantity 50
Outer Dimensions (inches) 21.43x4.81x6.31
Weight Uom 40 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet US Available on Website
Instruction Sheet TA00210-TB2

Header

3D Model Available on Website
