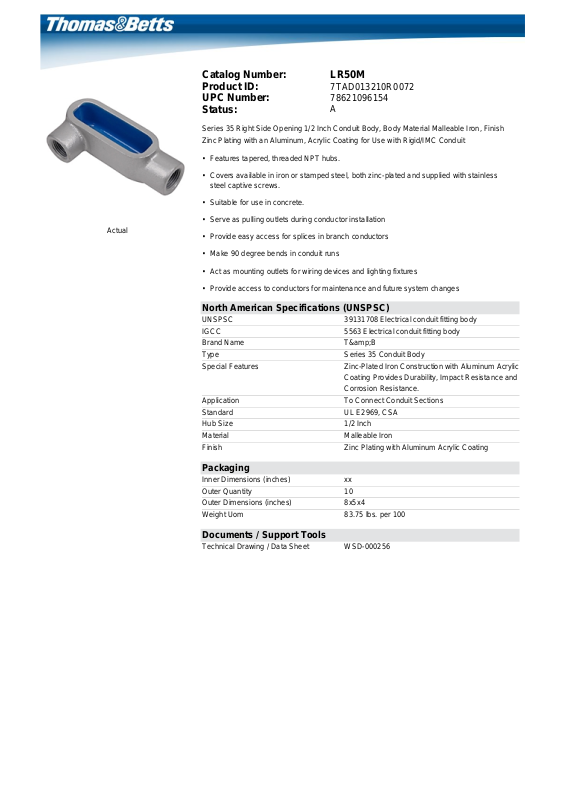

Thomas & Betts LR50M Data Sheet

Actual

Catalog Number: LR50M
Product ID:
UPC Number:
Status:

Series 35 Right Side Opening 1/2 Inch Conduit Body, Body Material Malleable Iron, Finish
Zinc Plating with an Aluminum, Acrylic Coating for Use with Rigid/IMC Conduit

• Features tapered, threaded NPT hubs.

• Covers available in iron or stamped steel, both zinc-plated and supplied with stainless
steel captive screws.

• Suitable for use in concrete.

• Serve as pulling outlets during conductor installation

• Provide easy access for splices in branch conductors

• Make 90 degree bends in conduit runs

• Act as mounting outlets for wiring devices and lighting fixtures

• Provide access to conductors for maintenance and future system changes

North American Specifications (UNSPSC)

UNSPSC 39131708 Electrical conduit fitting body
IGCC 5563 Electrical conduit fitting body
Brand Name T&B
Type Series 35 Conduit Body
Special Features Zinc-Plated Iron Construction with Aluminum Acrylic

Application To Connect Conduit Sections
Standard UL E2969, CSA
Hub Size 1/2 Inch
Material Malleable Iron
Finish Zinc Plating with Aluminum Acrylic Coating

7TAD013210R0072
78621096154
A

Coating Provides Durability, Impact Resistance and
Corrosion Resistance.

Packaging

Inner Dimensions (inches) xx
Outer Quantity 10
Outer Dimensions (inches) 8x5x4
Weight Uom 83.75 lbs. per 100

Documents / Support Tools

Technical Drawing / Data Sheet WSD-000256
